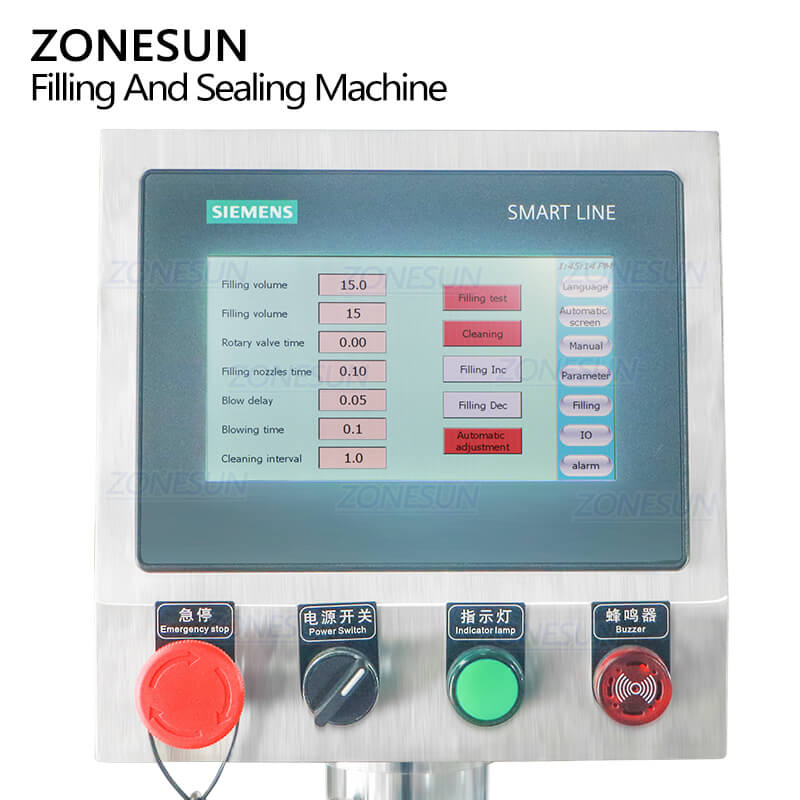

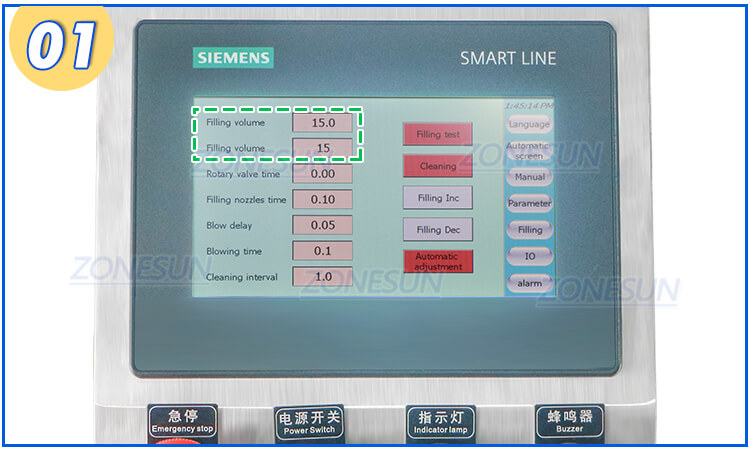

Touchscreen panel makes it convenient to set parameters like filling volume. Language of panel can be customized.

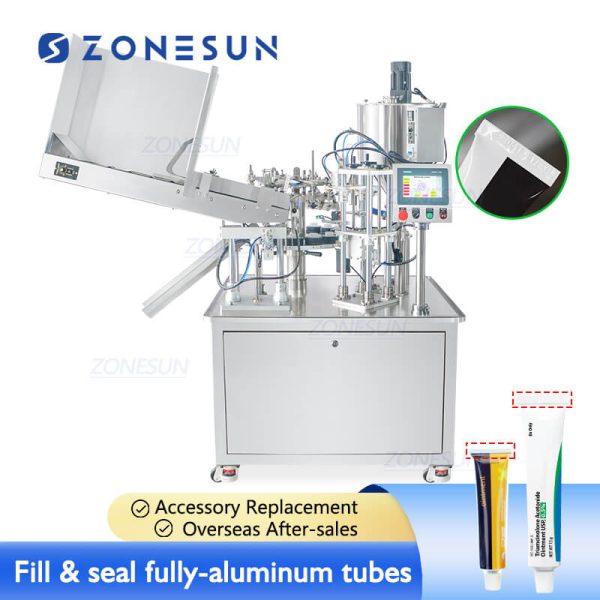

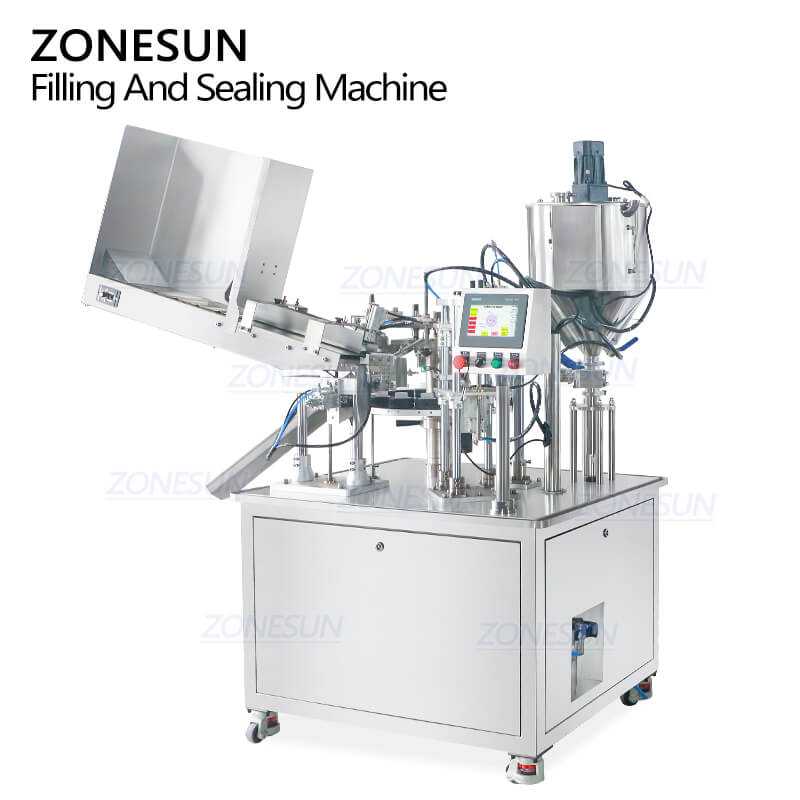

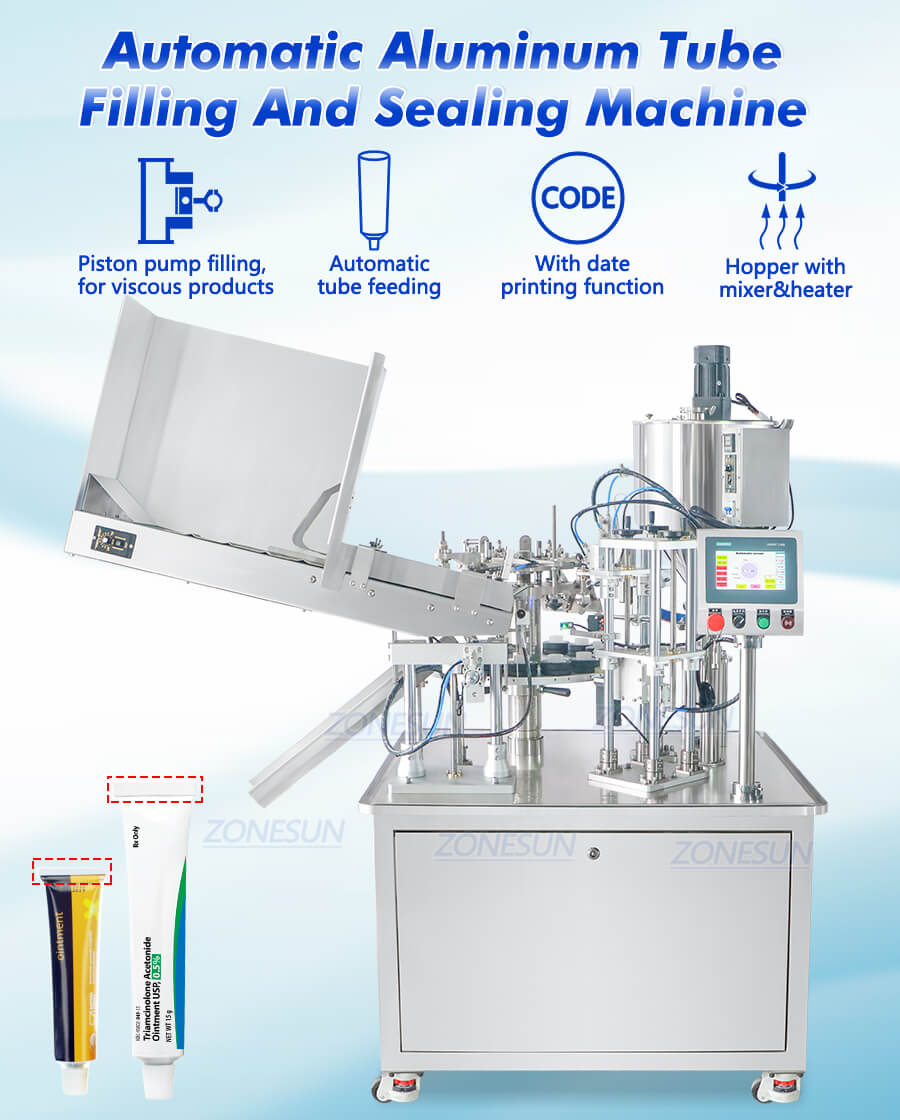

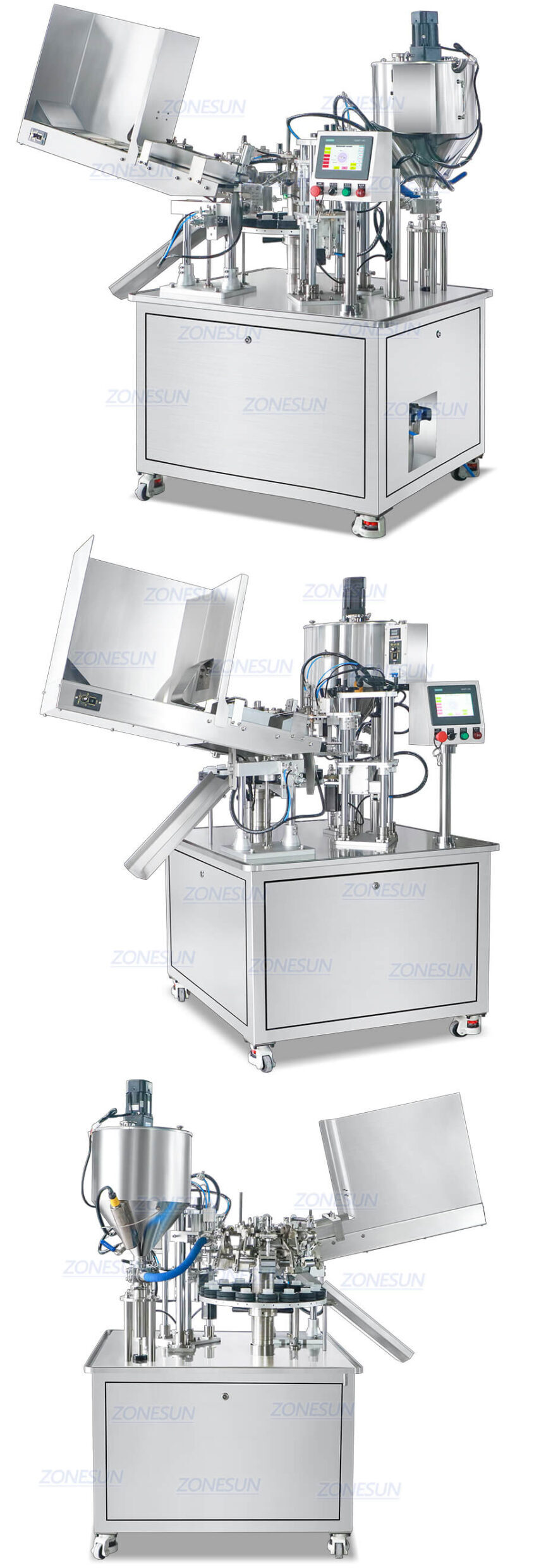

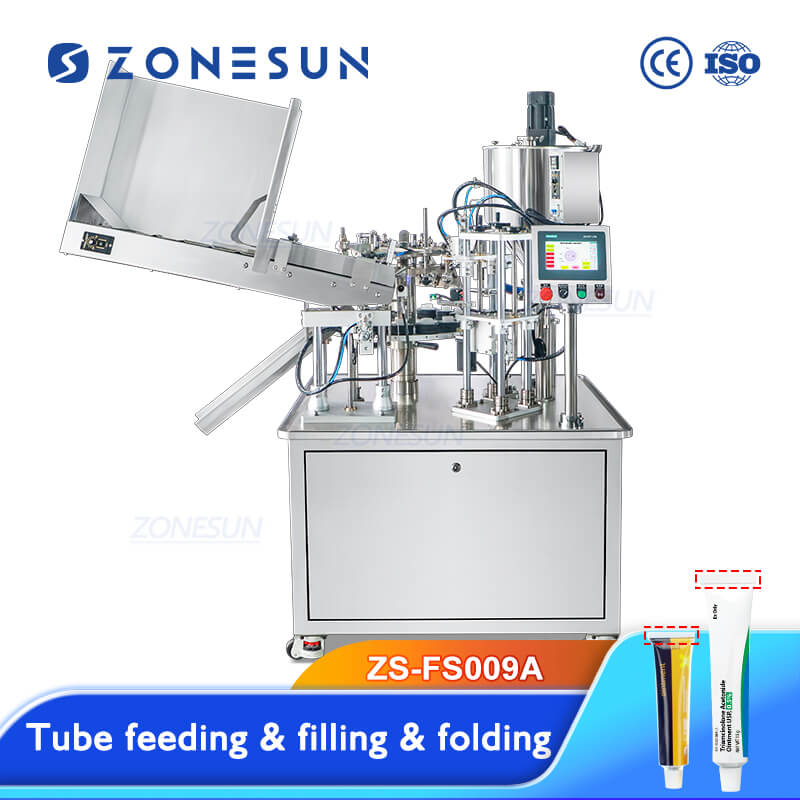

Aluminum Soft Tube Filling Sealing Machine

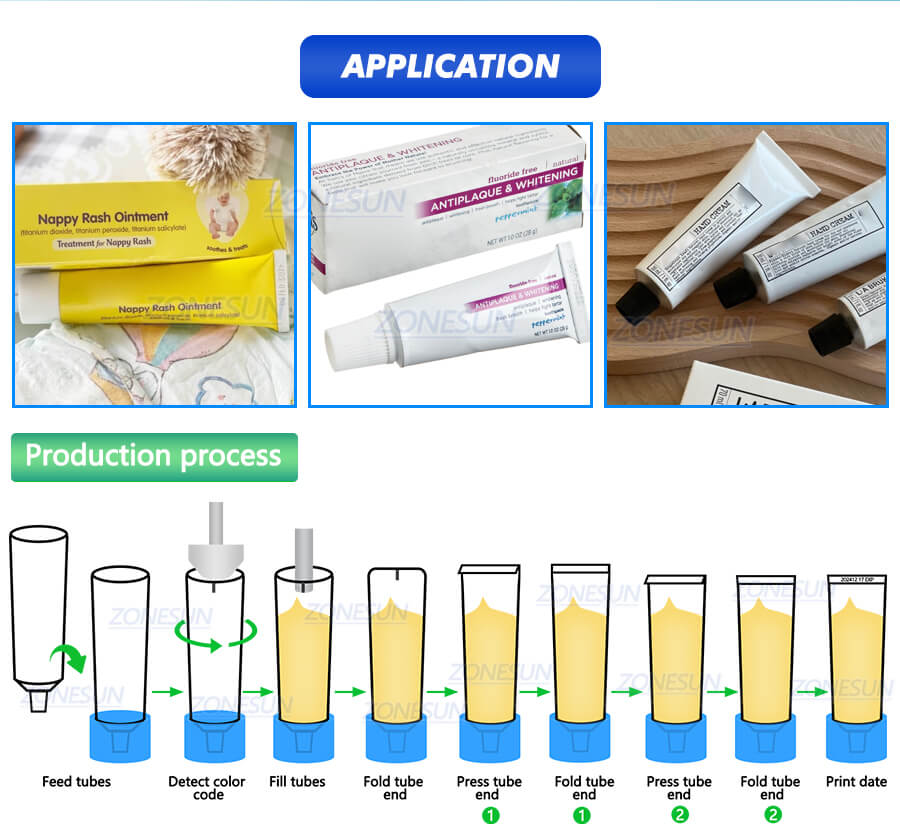

This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.
Share to
Product Description:
This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.
Product Parameters:
|
Machine Model
|
ZS-FS009A
|
|
Voltage
|
220V/110V 50-60Hz
|
|
Power
|
About 3KW
|
|
Working speed
|
About 20-50pcs/min
(depending on tube size and filling materials)
|
|
Filling pump
|
Piston Pump
|
|
Filling range
|
30ml-150ml (Can be customized)
|
|
Filling accuracy
|
≤±1%
|
|
Applicable tubes
|
Fully-aluminum tubes
|
|
Tube diameter
|
Φ13-38mm
|
|
Tube length
|
100-200mm
|
|
Machine part in contact with materials
|
SUS 304
|
|
Air pressure
|
0.6-0.8Mpa
|
|

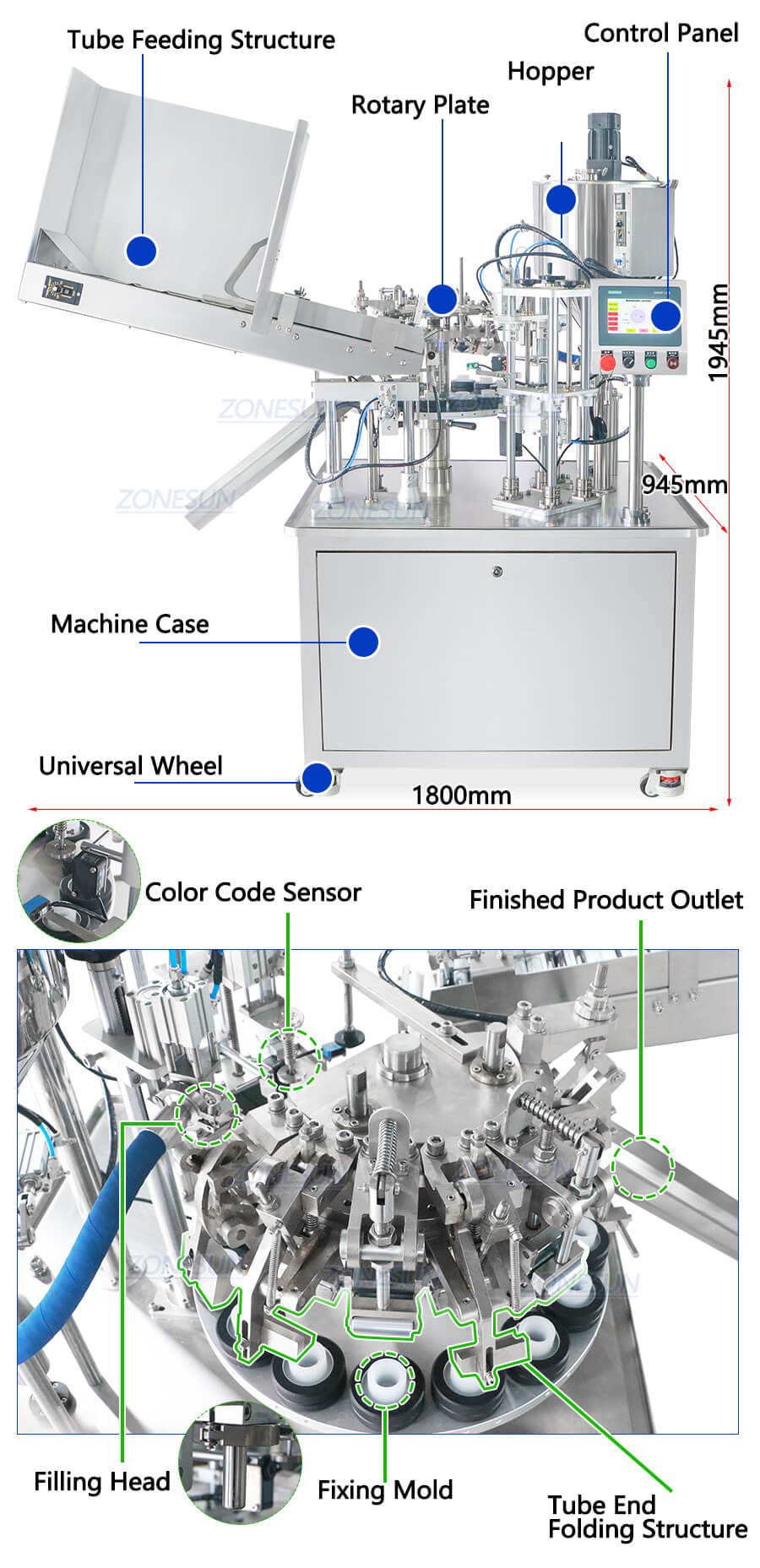

Machine size
|
About 1800*945*1945mm/ About 70.9*37.2*76.6 inch
|
Product Details:
Control Panel

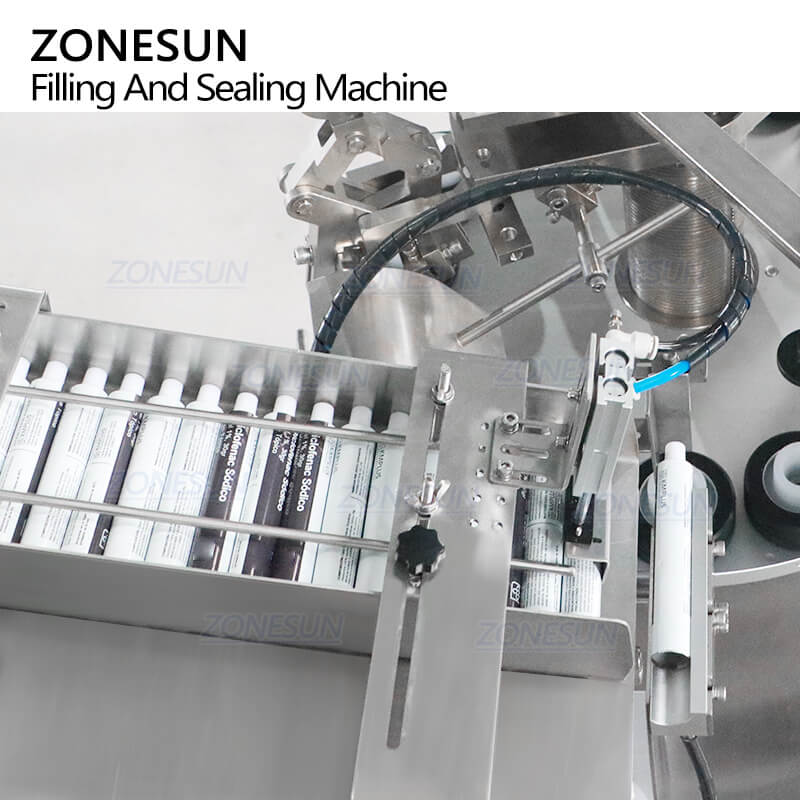

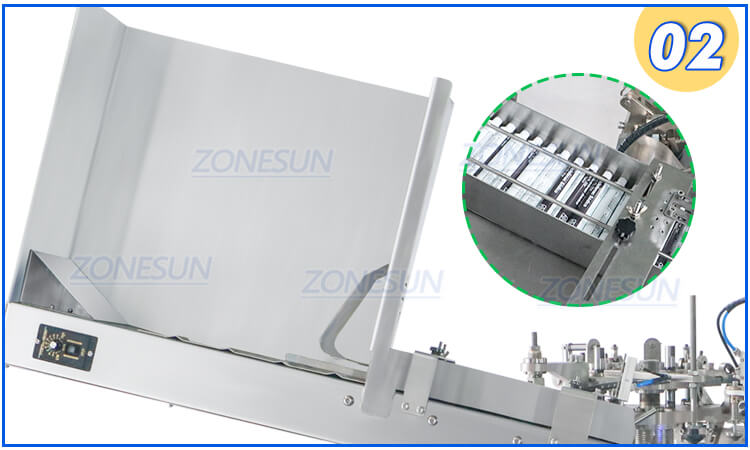

Tube Feeding Structure
Can feed aluminum tubes to molds automatically, saving labor cost.

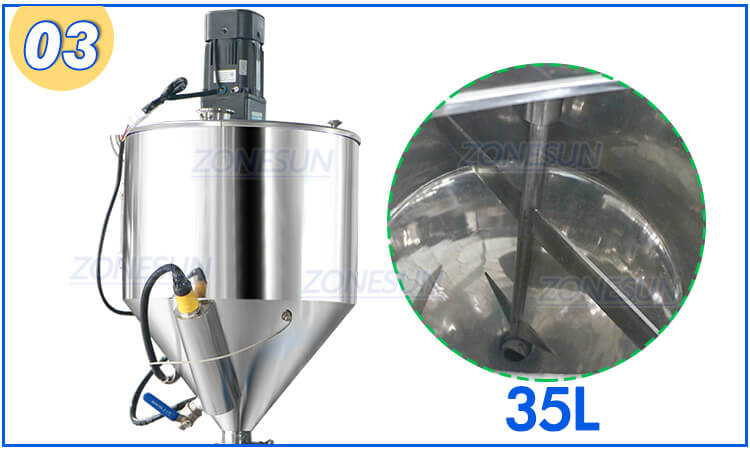

Hopper
The hopper has mixing and heating function, making it fill viscous paste smoothly.

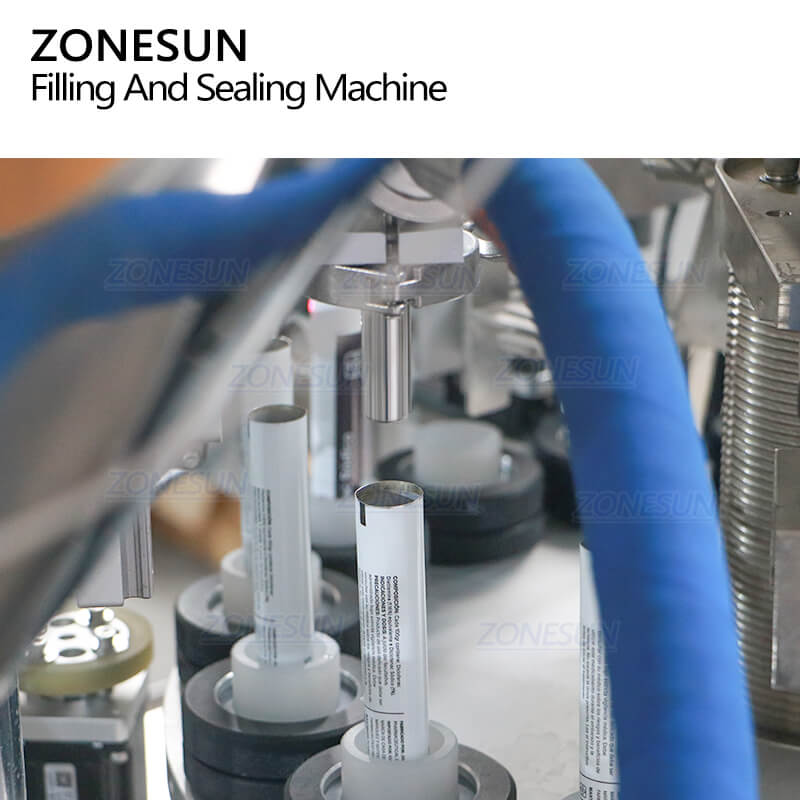

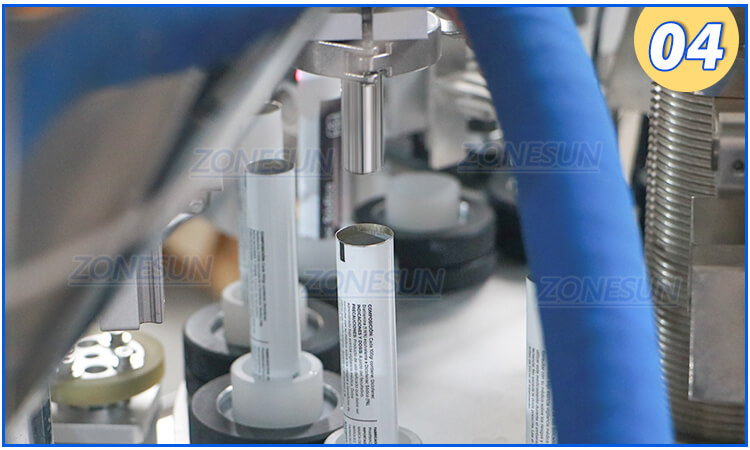

Filling Head
Driven by piston pump, it can fill viscous liquid or paste accurately. Filling range can be customized.

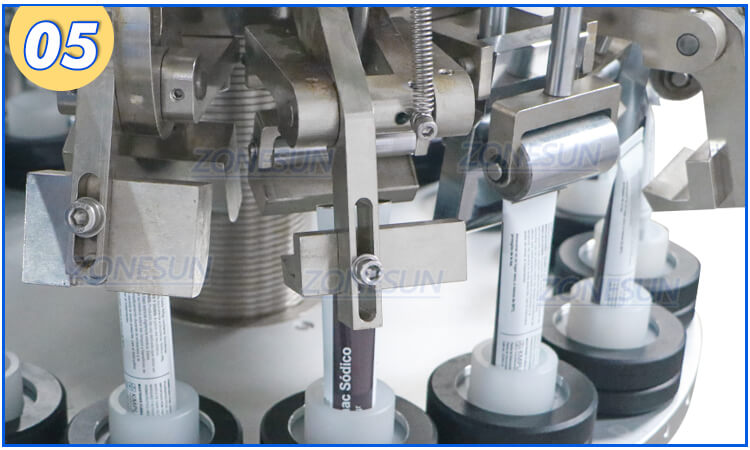

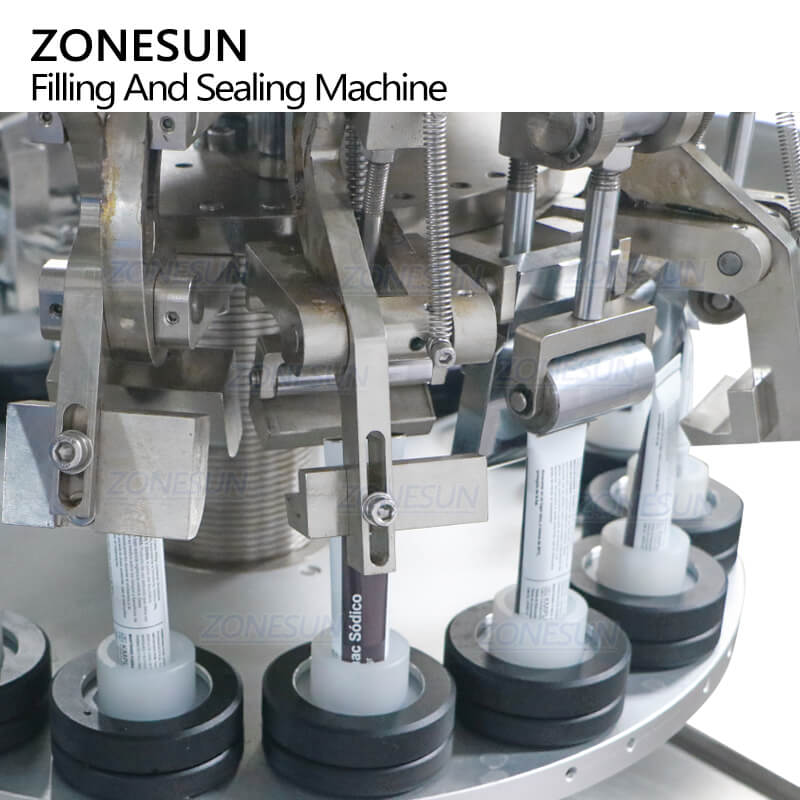

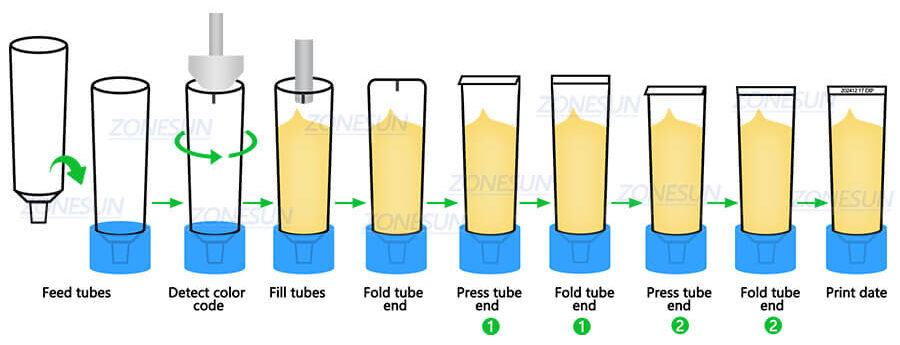

Tube Folding Structure
Can fold and press tube ends automatically. It can be customized as your products.

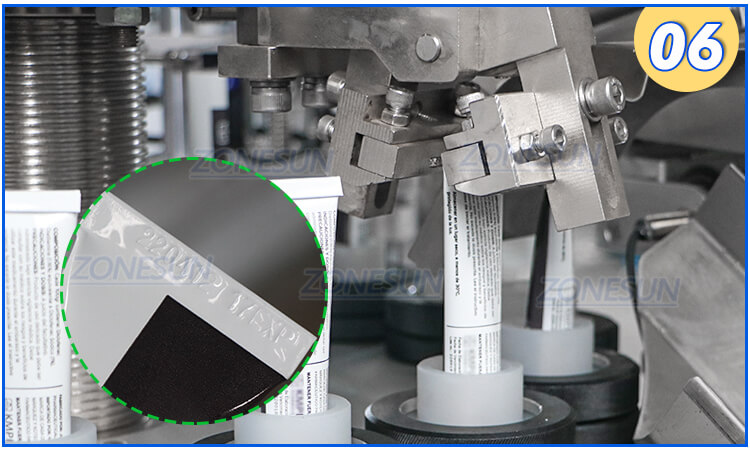

Letter Stamping Structure
Can be used for printing production date or batch on tube ends automatically.
