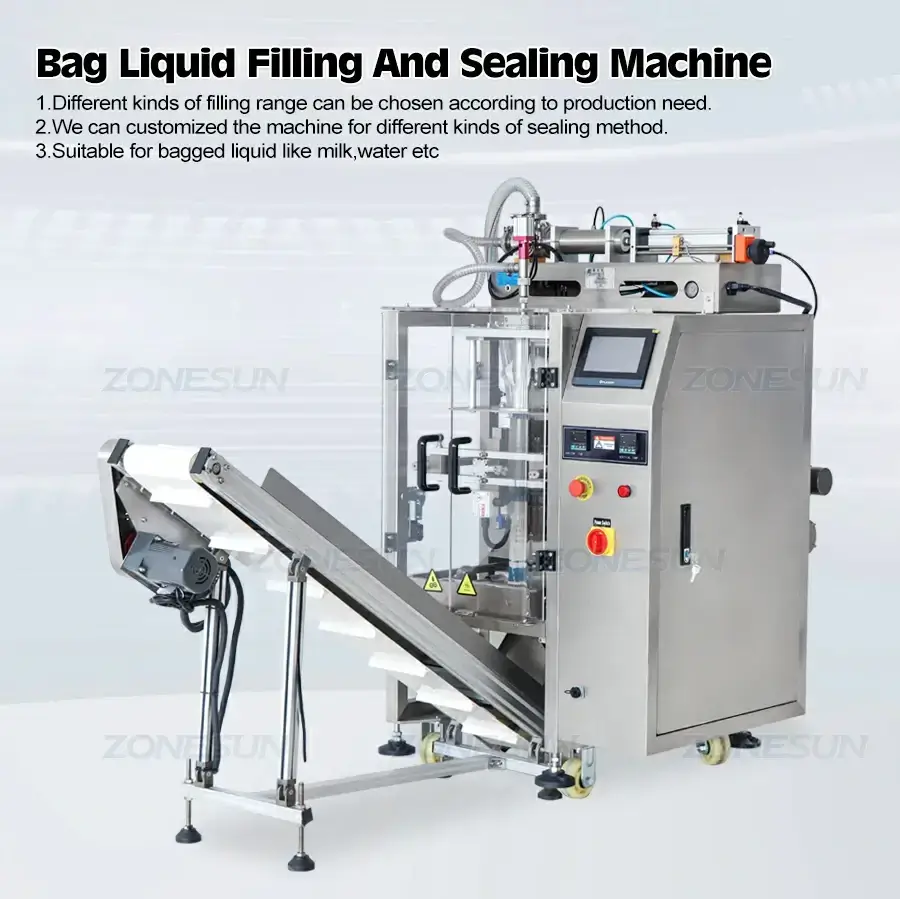

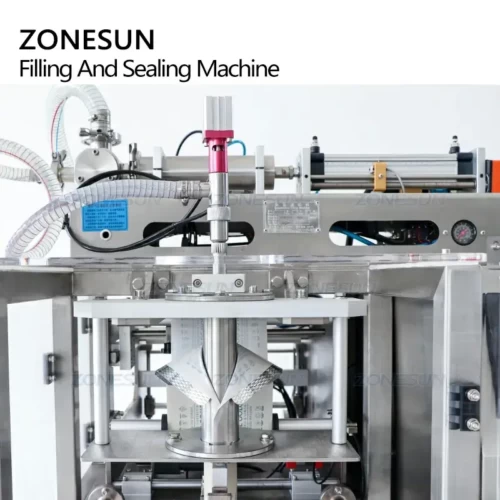

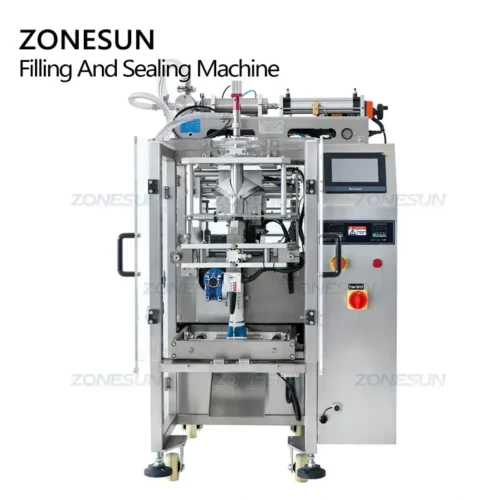

Liquid Bag Packing Machine

This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.

Product Detail

Product Tags


Description:

This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.

Parameter:

Machine modelZS-GFYT320
Machine voltage110V/220V/380V 50-60HZ
Suitable filmOPP/CPP OPP/PE NILO PE
Filling range50-500ml(offer different filling range)
Package speed5-60bags/min
Width of filmMax 320mm
Size of package bags(W)50-150mm*(L)50-400mm

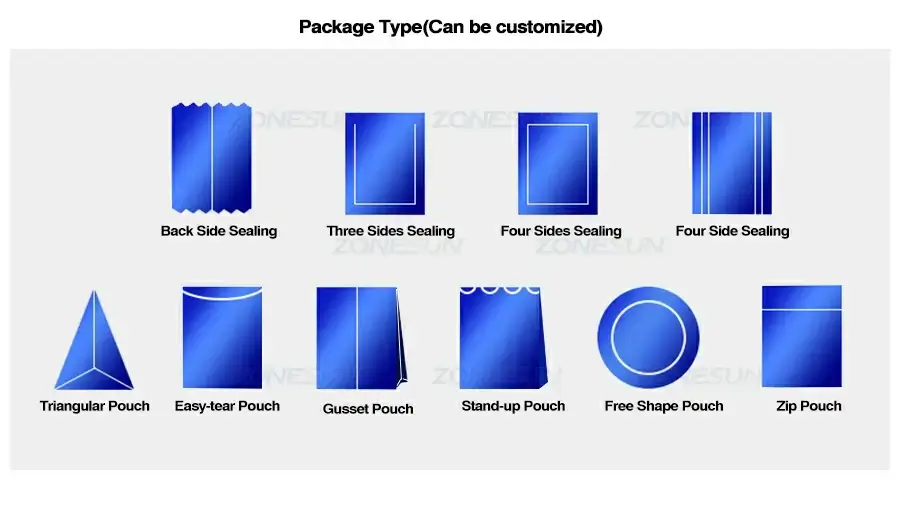

Sealing methodBack side/Three sides/Four sides(Customize)
Filling accuracy≤0.3-1%
Film thickness0.06-0.12mm
Air Pressure0.65Mpa 0.7m³/min
Lifting heightAbout 1200mm
Conveying speed50-300mm/s(adjustable)
Machine sizeAbout 830*1080*1450mm(Machine)
Package size
About 1265*945*1665mm(Machine)
About 1740*500*450mm(Conveyor belt)
Machine weightAbout 289kg(Machine)
Package weightAbout 333kg(Machine)+About 51kg(Conveyor belt)
