Product Description:

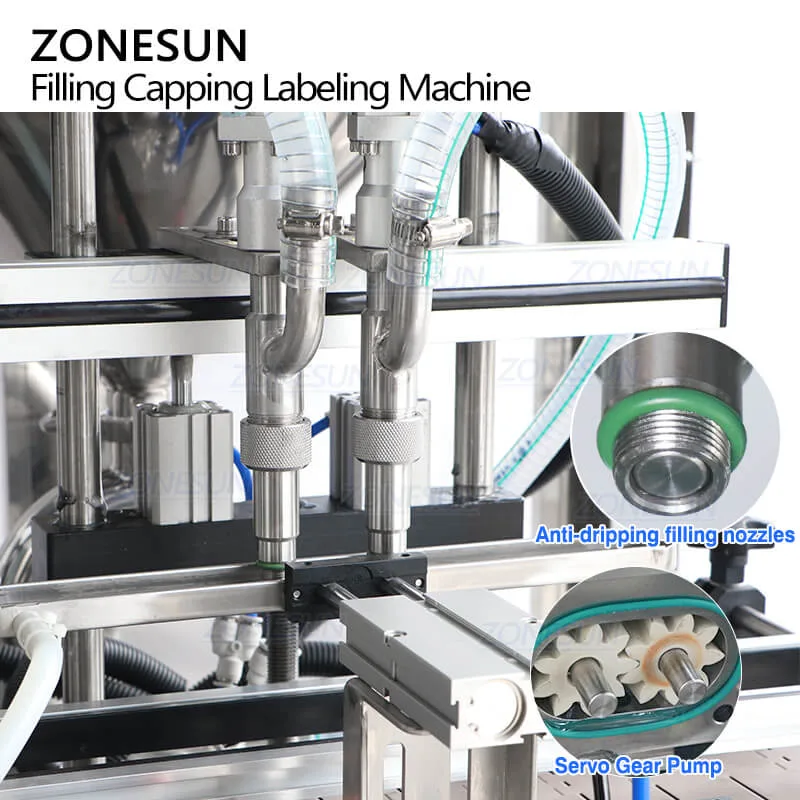

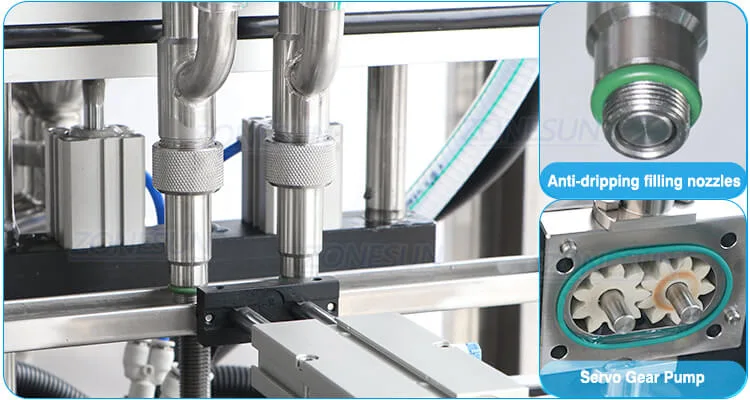

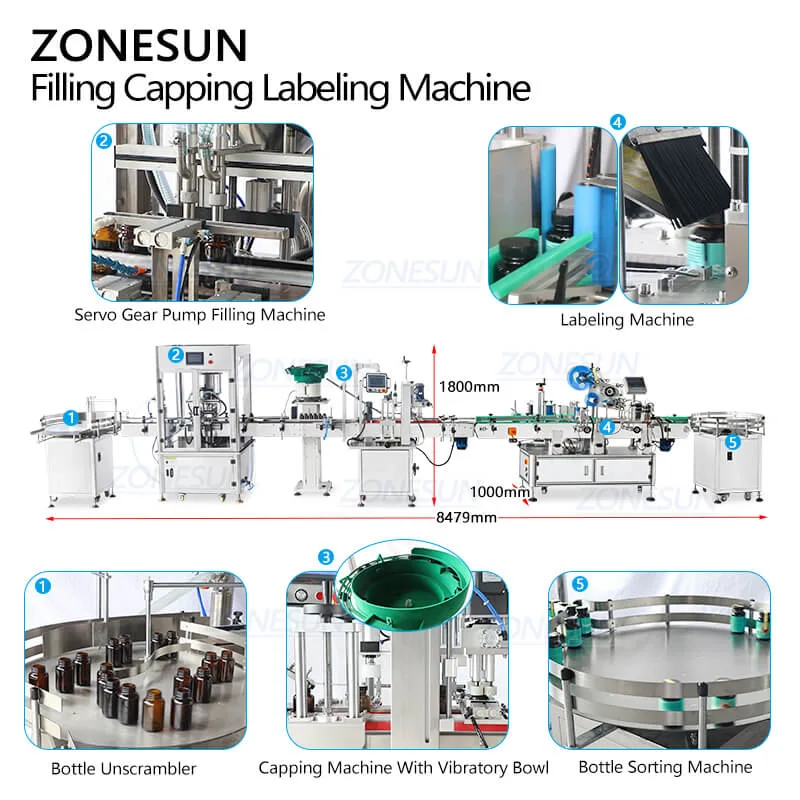

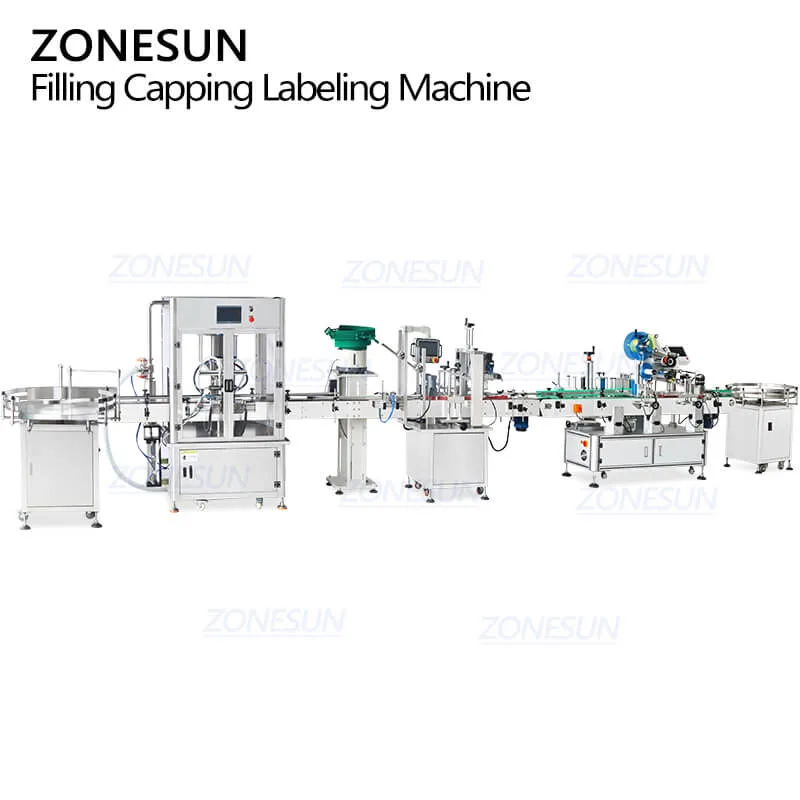

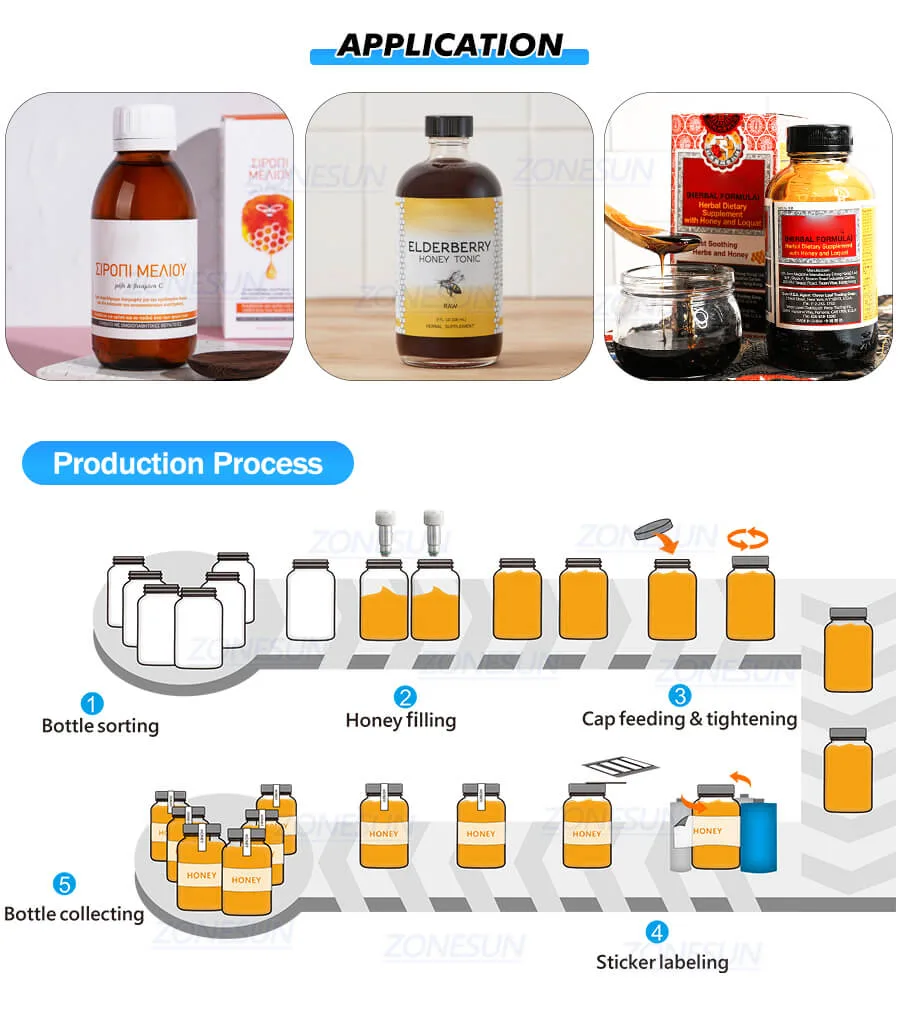

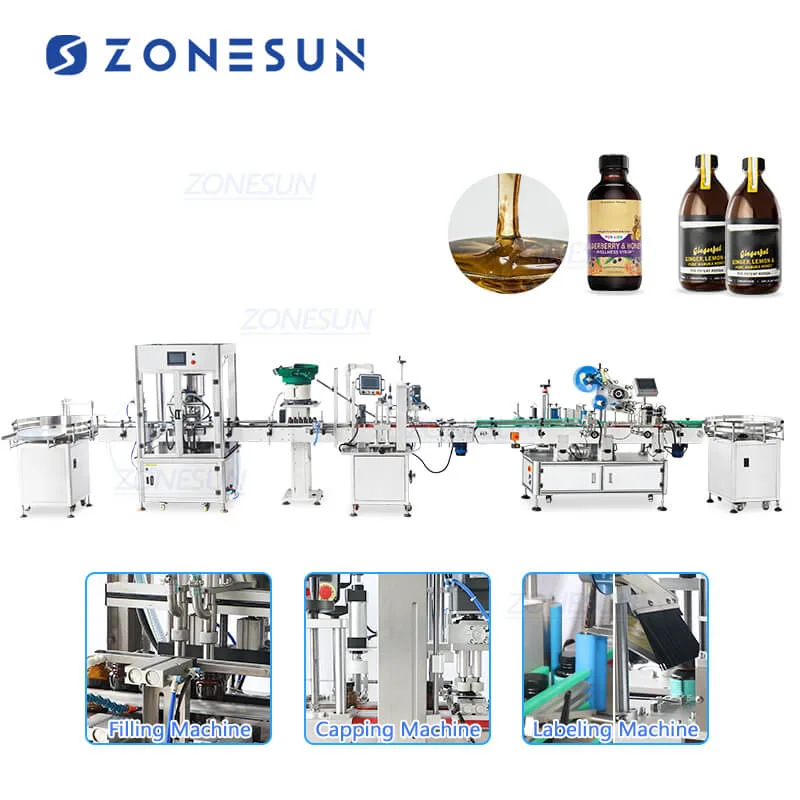

This paste filling line incorporates bottle unscrambling, filling, capping, labeling and sorting machines. Filling is controlled by servo gear pump,which can be used for packing viscous liquid or paste like honey, lotion, hand gel, etc. The machines can be customized according to your production need.

Product Parameters:

Model	ZS-LP800S	ZS-LP1000S
Turntable Diameter	800mm	1000mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60 bottles/min(depends on bottle size)
Power Supply	220V/110V 50-60Hz 200W
Package Size	About 1150*1000*1320mm	About 1350*1315*1235mm
Net Weight/Gross Weight	About 82kg/120kg	About 135kg/180kg

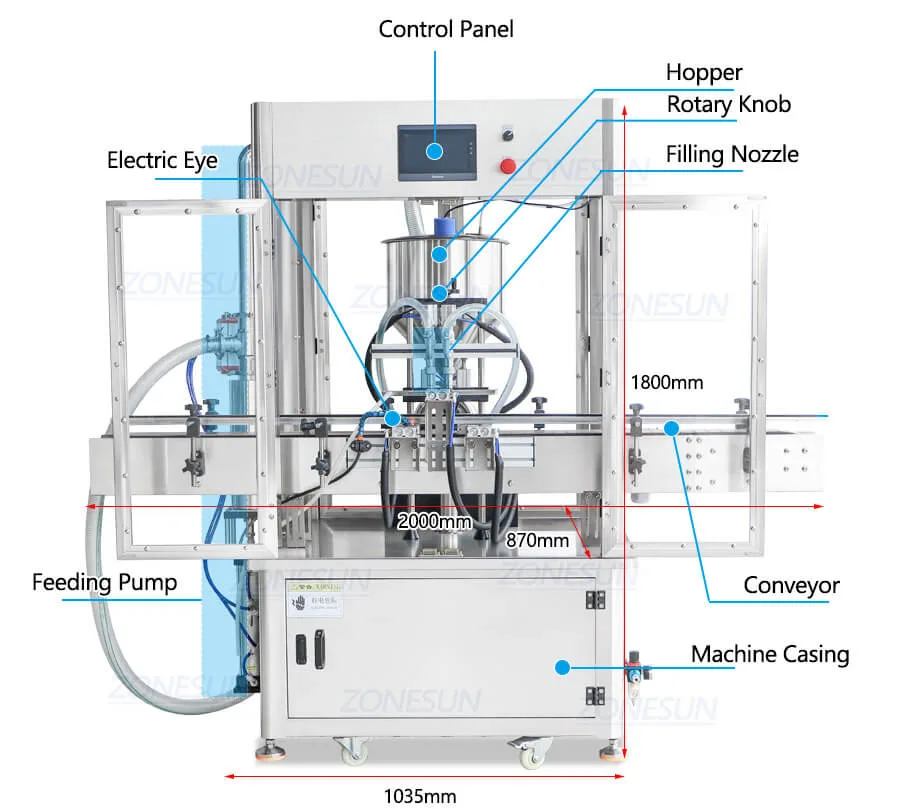

Machine Model	ZS-GPSV2
Machine Voltage	110/220V 50-60HZ 2KW

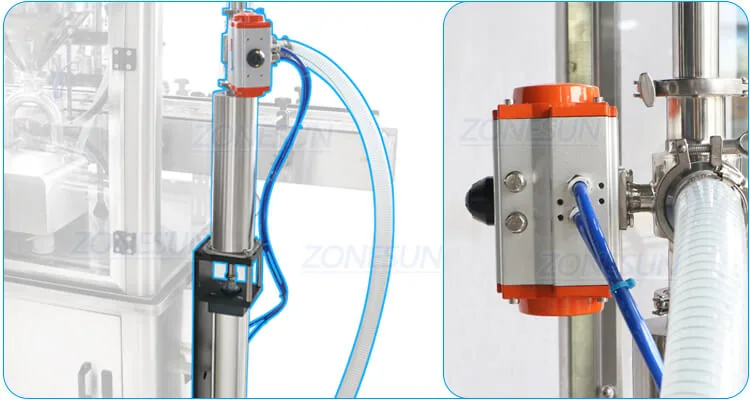

Filling Pump	Gear Pump
Filling Range	20-300ml
Filling Accuracy	±1%
Filling Speed	About 30-70 bottles/min (depending on filling materials and bottle size)
Machine Size	About 2000*870*1800mm
Package Size	About 2080*1000*1980mm

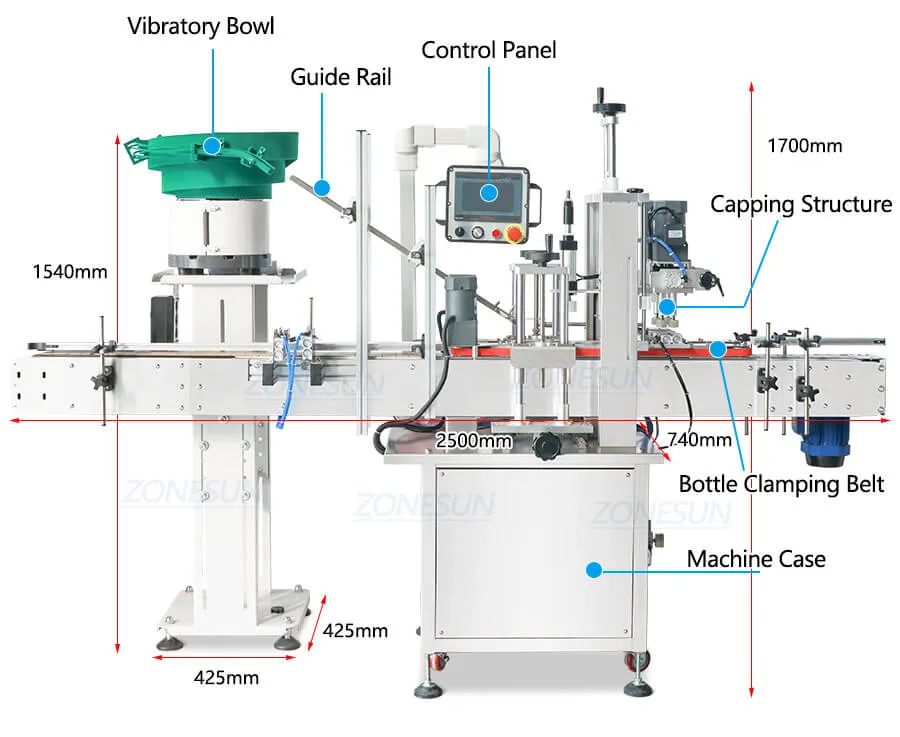

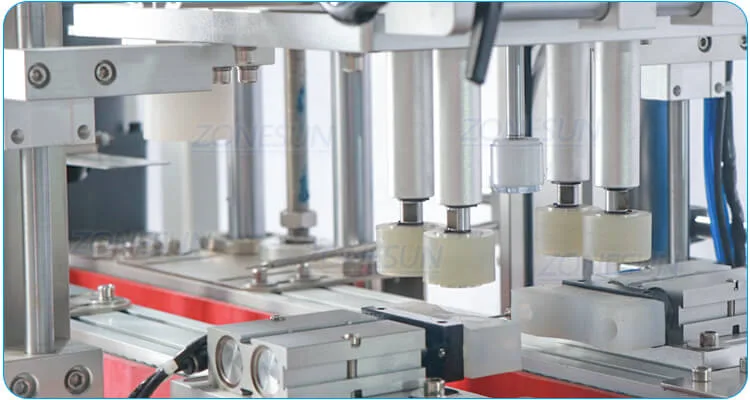

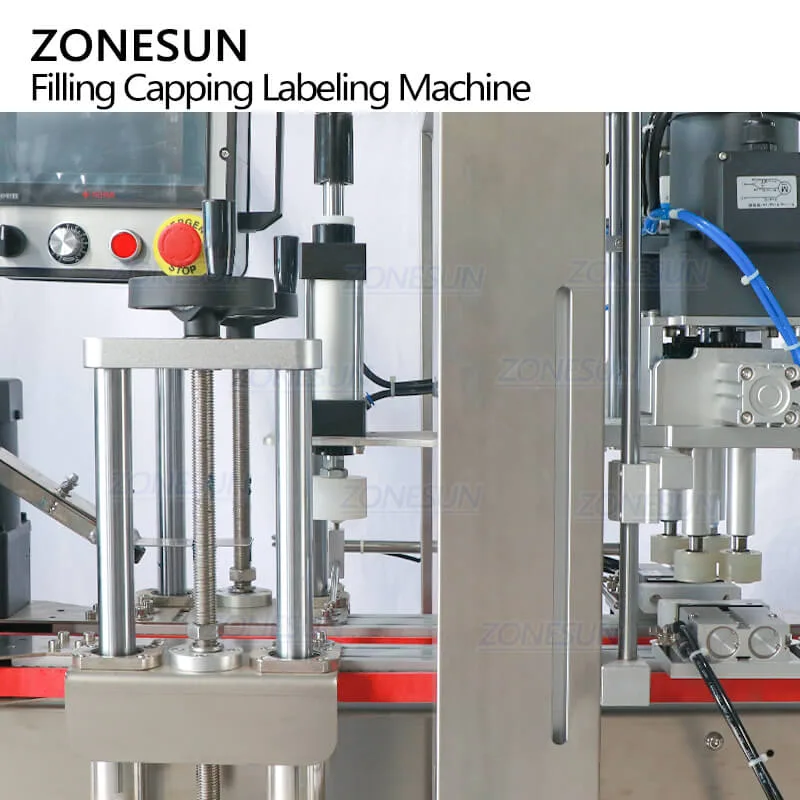

Machine Model	ZS-XG16P
Working Voltage	AC220V/110V 50-60HZ
Working Speed	20-60 bottles/min (Depending on bottle and cap size and shape)
Bottle Height	30-300mm
Cap Diameter	18-70mm(Can be customized)
Bottle Diameter	20-160mm
Working Pressure	0.4-0.6MPa

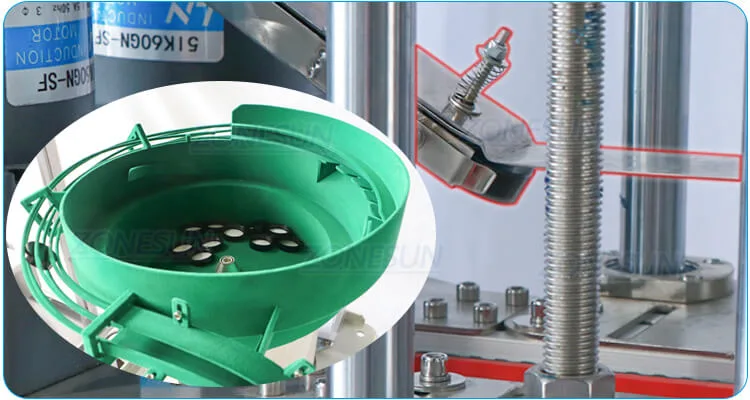

Machine Size	About 2500*650*1700mm(Capping Machine) About 425*425*1540mm(Vibratory Bowl)

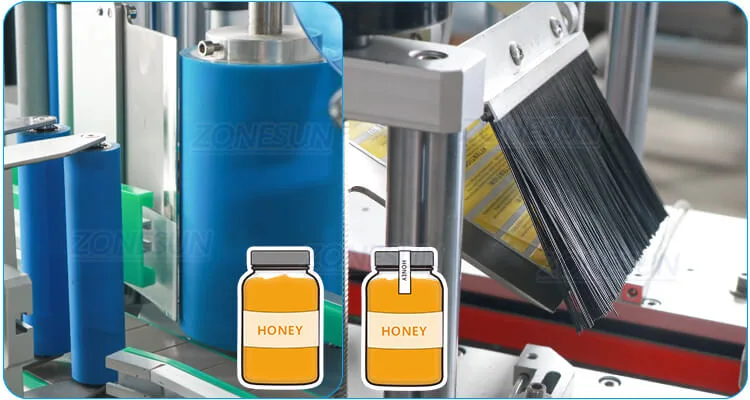

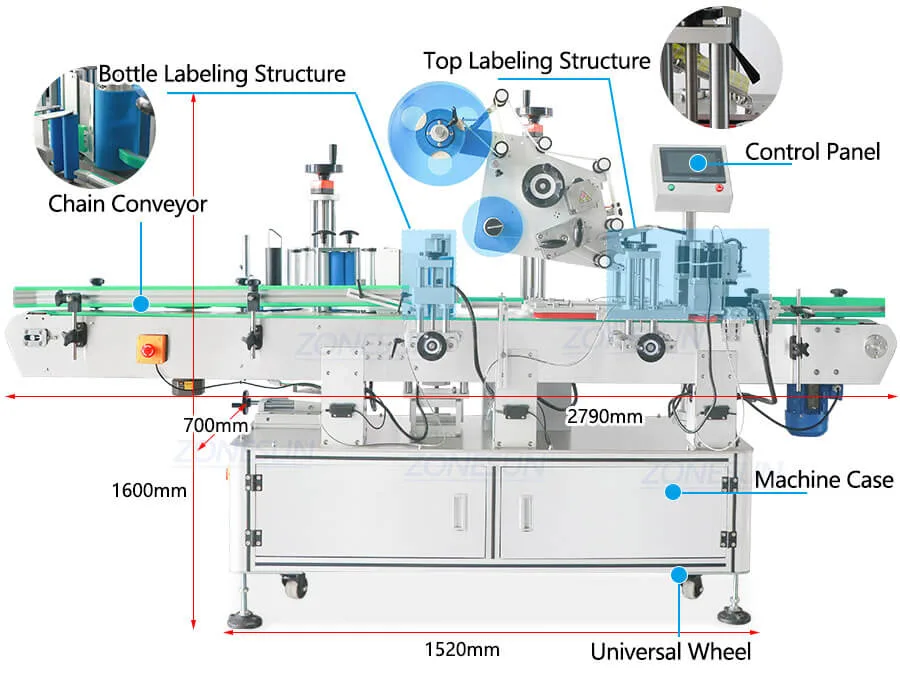

Machine Model	ZS-TB660
Voltage	220V/110V 50-60Hz
Power	570W
Labeling Speed	About 25-45pcs/min(depending on bottle and label size)
Label Size	(L)20mm-285mm*(W)20mm-150mm
Bottle Diameter	φ25mm-φ100mm
Bottle Height	25mm-300mm
Label Roll Inner Diameter	φ76mm
Label Roll Outer Diameter	Max φ280mm
Labeling Accuracy	±1mm
Conveying Speed	5-18m/min
Air Pressure	0.4-0.6Mpa
Machine Size	About 2790*700*1600mm

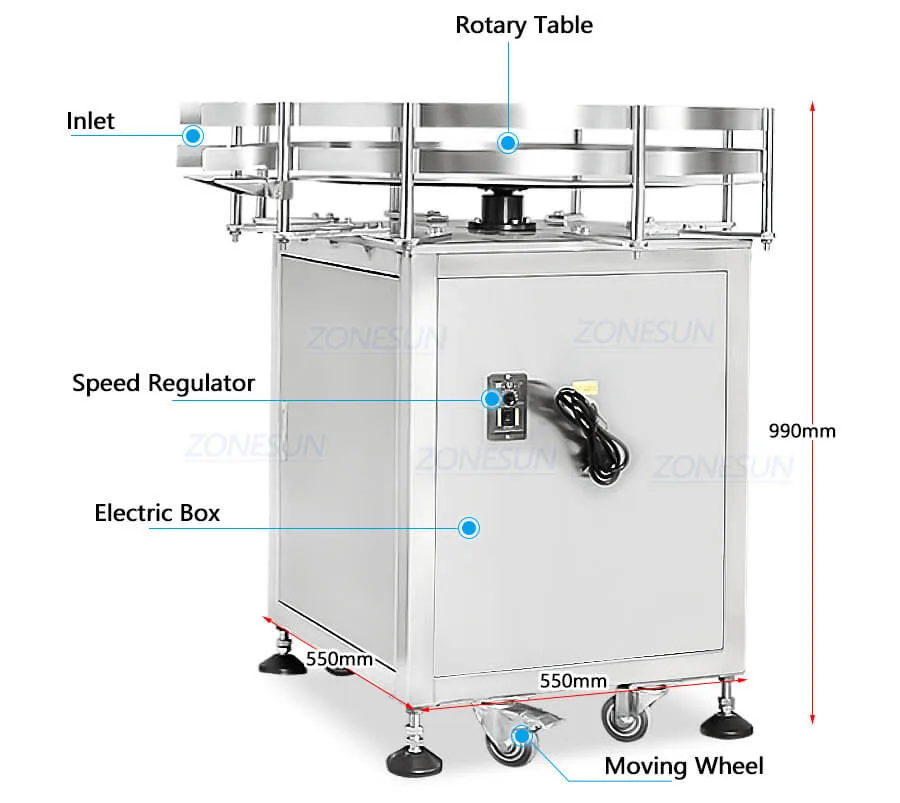

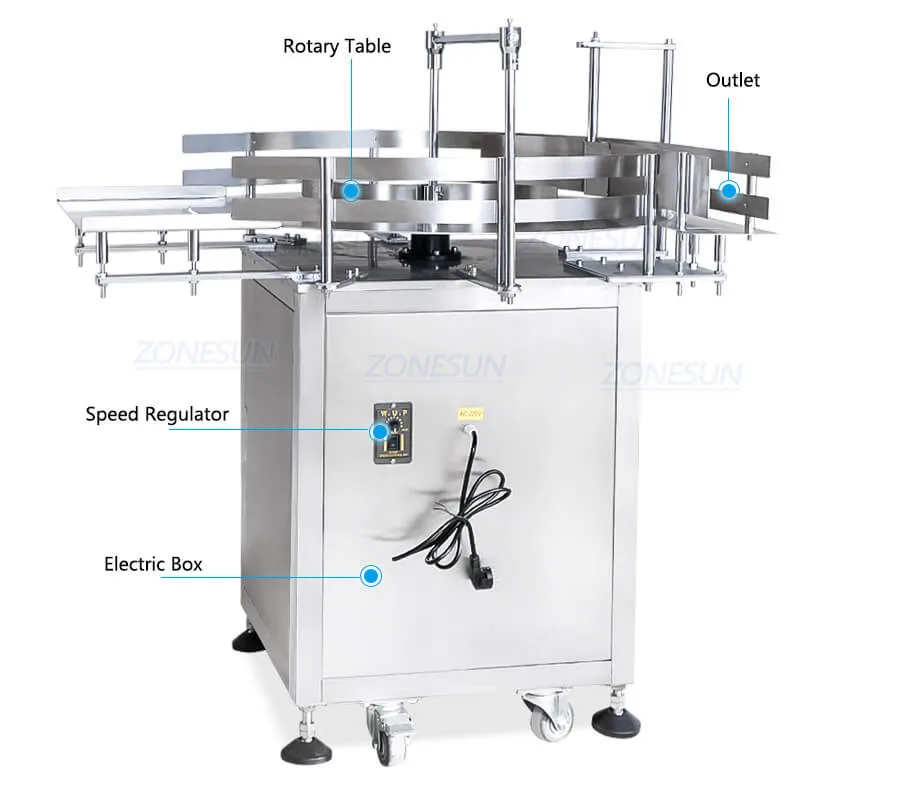

Bottle Specifications	Square bottle/round bottle
Conveying Speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power	200W

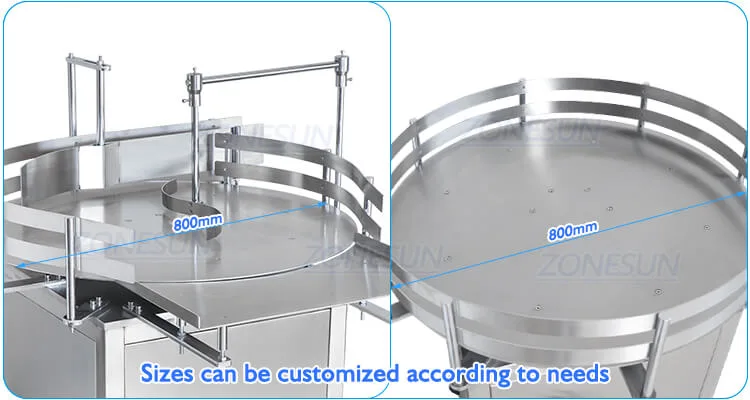

Turntable Diameter	800 mm Available
Machine Size	About 550*550*990mm
Package Size	About 1050*1000*1130mm
Net Weight/Gross Weight	About 93kg/120kg
