Product Parameter:

Machine Model	ZS-FS006U
Voltage	220V/110V 50-60Hz
Power	4.5kW
Working Speed	About 20-30pcs/min(depending on filling materials and tube size)
Filling Pump	Piston Pump
Filling Range	20ml-300ml (customized)
Filling Accuracy	±1%
Sealing Method	Ultrasonic Sealing
Ultrasonic Power	2.6kW
Suitable Tubes	Plastic tubes or aluminum-plastic tubes
Tube Size	Length: 50mm-250mm; Diameter: Φ16mm- Φ50mm
Air Pressure	0.5-0.8Mpa
Machine Size	About 1200*800*1500mm/ 47.2*31.5*59.1 inch
Machine Weight	About 220kg

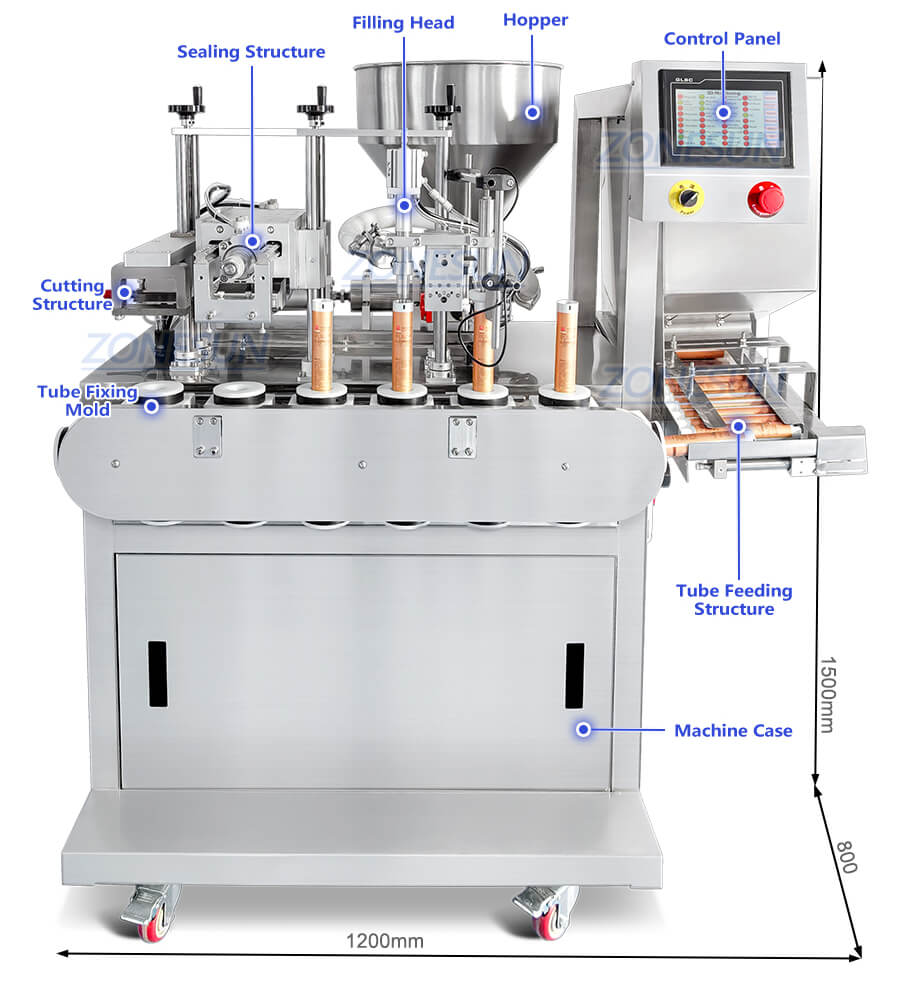

Product Details:

Tube Feeding Structure
Can feed tubes into fixing molds automatically, saving labor. It can be customized as your products.

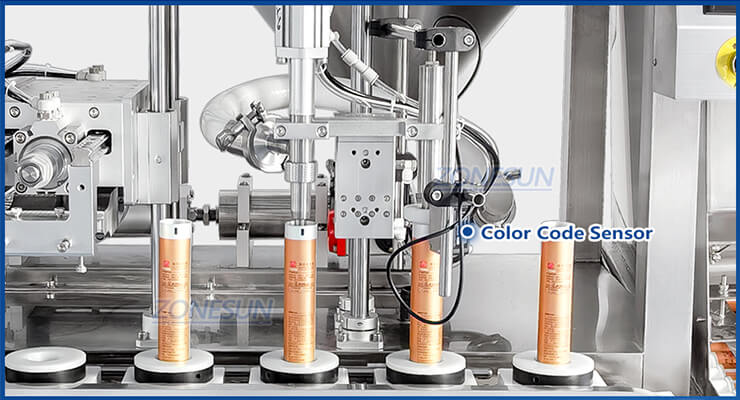

Pneumatic Filling Head
Driven by piston pump, it can fill paste accurately. Filling range of the pump can be customized.

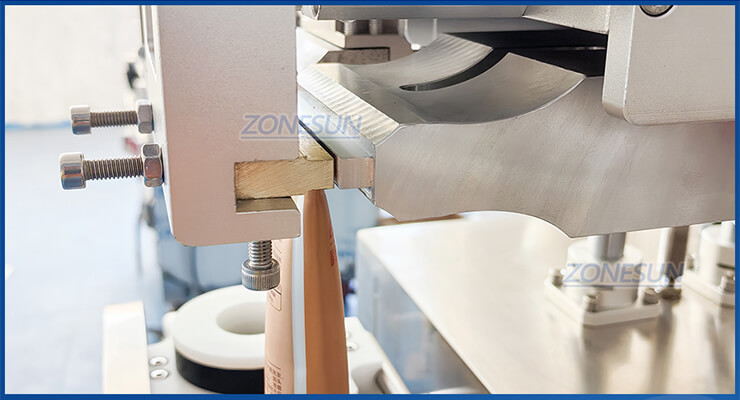

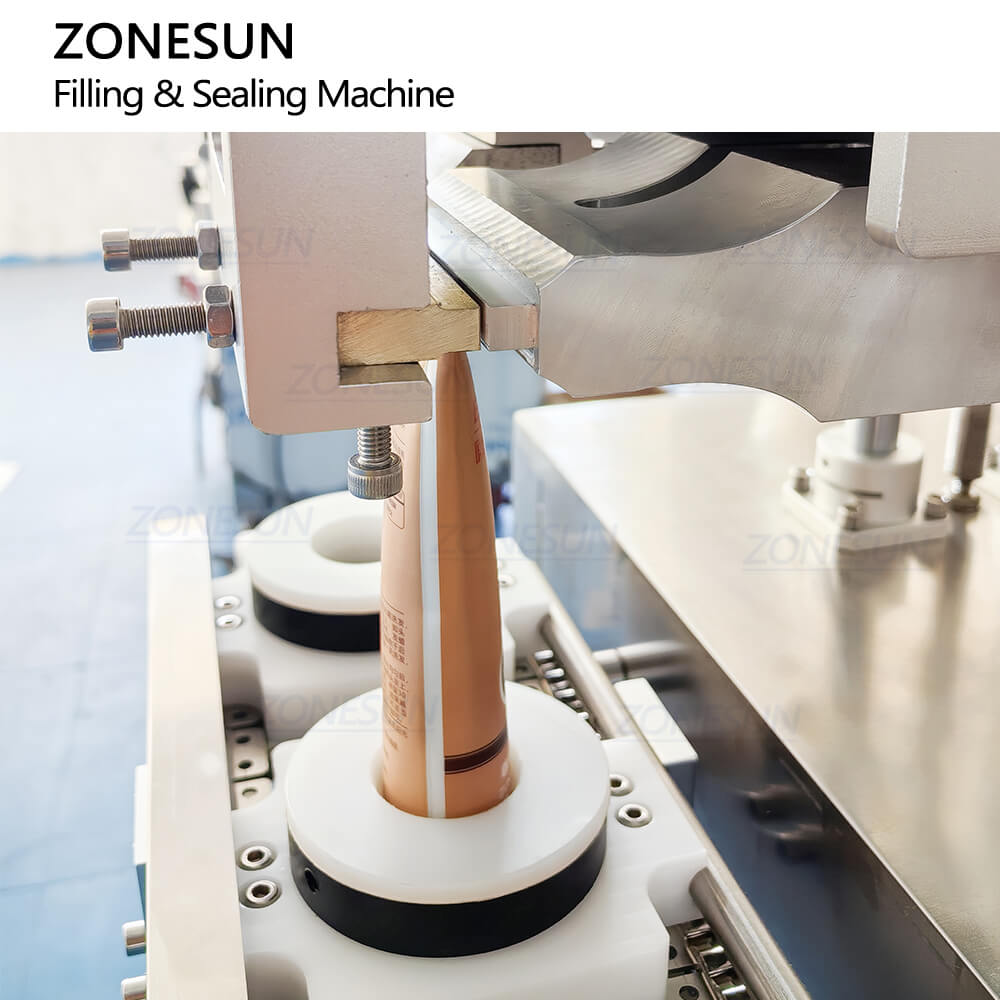

Ultrasonic Sealing Structure
It can be equipped with letter molds to print date or batch automatically.

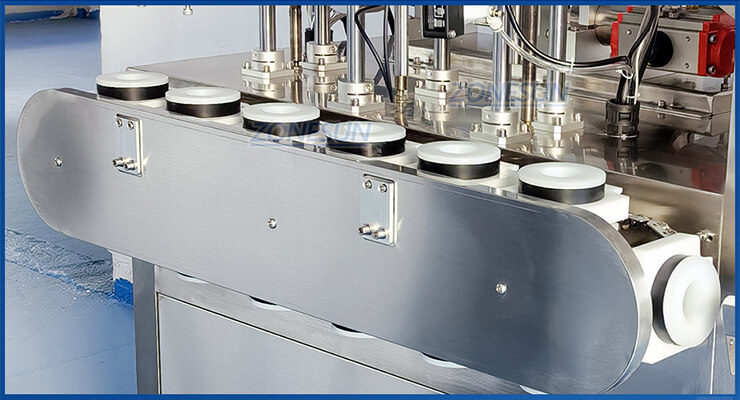

Fixing Mold
The size of fixing molds can be customized according to your product size.
