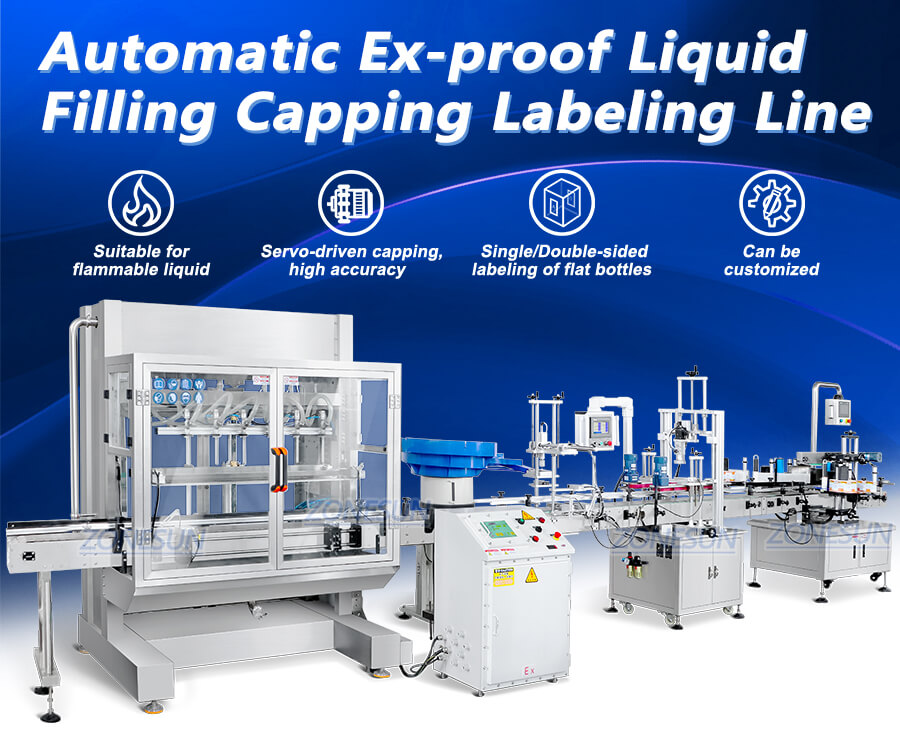

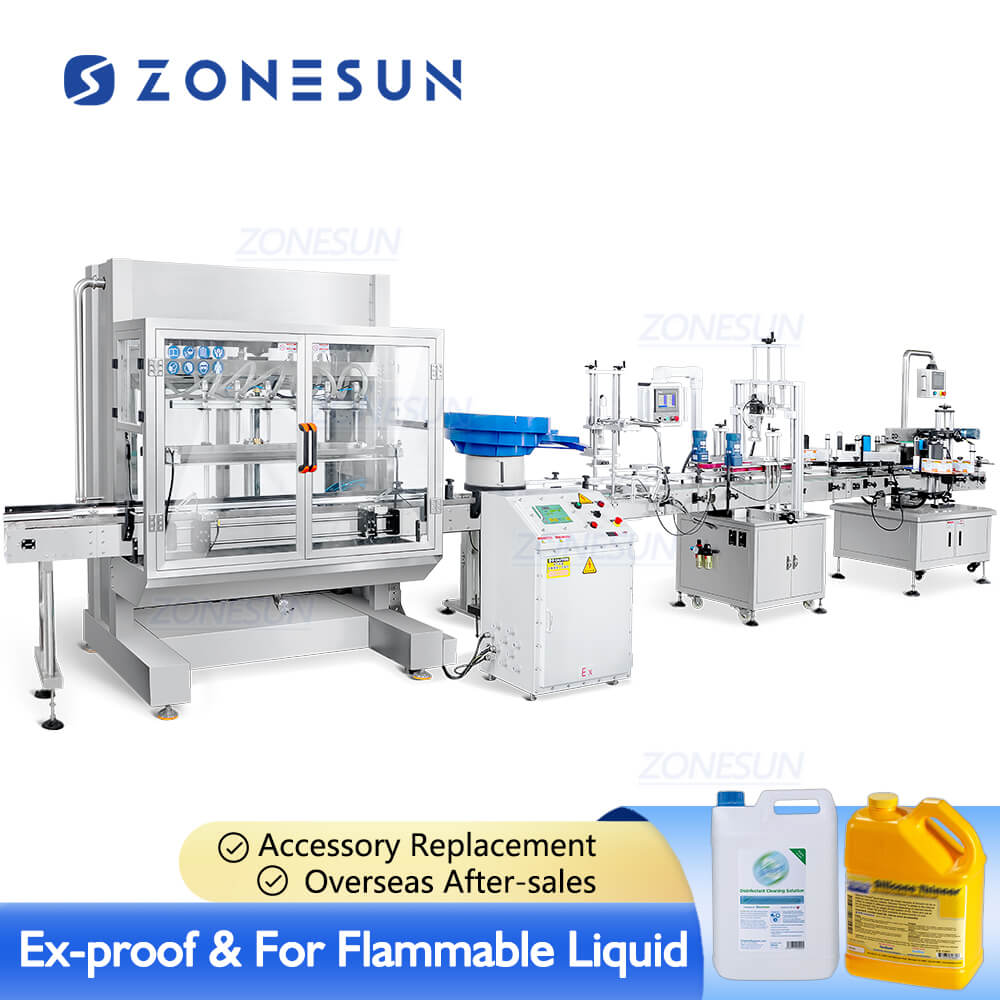

Automatic Ex-proof Liquid Filling Capping Labeling Line
The explosion-proof production line consists of an Ex-proof gravity filling machine, a servo cap feeding capping machine, and a labeling machine. It’s designed for fully automated production of flammable and explosive liquids like acetone, paint, and kerosene.
Share to
Product Description:
The explosion-proof production line consists of an Ex-proof gravity filling machine, a servo cap feeding capping machine, and a labeling machine. It’s designed for fully automated production of flammable and explosive liquids like acetone, paint, and kerosene.
Product Parameters:
| Machine Model | ZS-YTEX1 |
| Machine Voltage | 110/220V 1KW |
| Filling Range | 1000-5000ml |
| Filling Speed | About 10-30 bottles/min (depending on bottle size and filling materials) |
| Filling Nozzle Quantity | 6 (can be customized) |
| Air Consumption | 4kgs*30L |
| Machine Size | About 3000*900*2100mm |
| Machine Weight | About 350kg |
| Package Size | About 840*630*1180mm+2160*1280*2250mm |
| Package Weight | About 135kg+ 562kg |
| Machine Model | ZS-XG440H |
| Voltage | AC220V/110V 50- 60HZ |
| Power | About 1100W |
| Capping Speed | About 20-60 bottles/min(depending on bottle and cap size) |
| Bottle Height | 30-300mm |
| Cap Diameter | 18-70mm |
| Bottle Diameter | 20-160mm |
| Working Pressure | 0.4-0.6MPa |
| Machine Size | About 3110*1710*2000mm |
| Machine Model | ZS-TB300R |
| Voltage | 220V/110V 50-60Hz |
| Power | About 2500W |
| Labeling Speed | About 10-60 bottles/min (depending on bottle and label size) |
| Suitable Product Size | About 150-310mm(H)*150-250mm(W) |
| Label Size | 15-300mm(W)*15-200mm(H) |
| Label Roll Inner Diameter | Φ75mm |
| Label Roll Outer Diameter | Φ350mm |
| Machine Size | About 2020*1422*1859mm |
Machine Details:

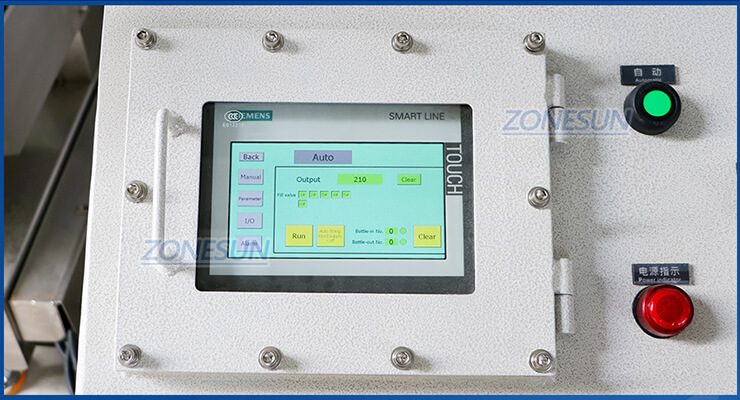

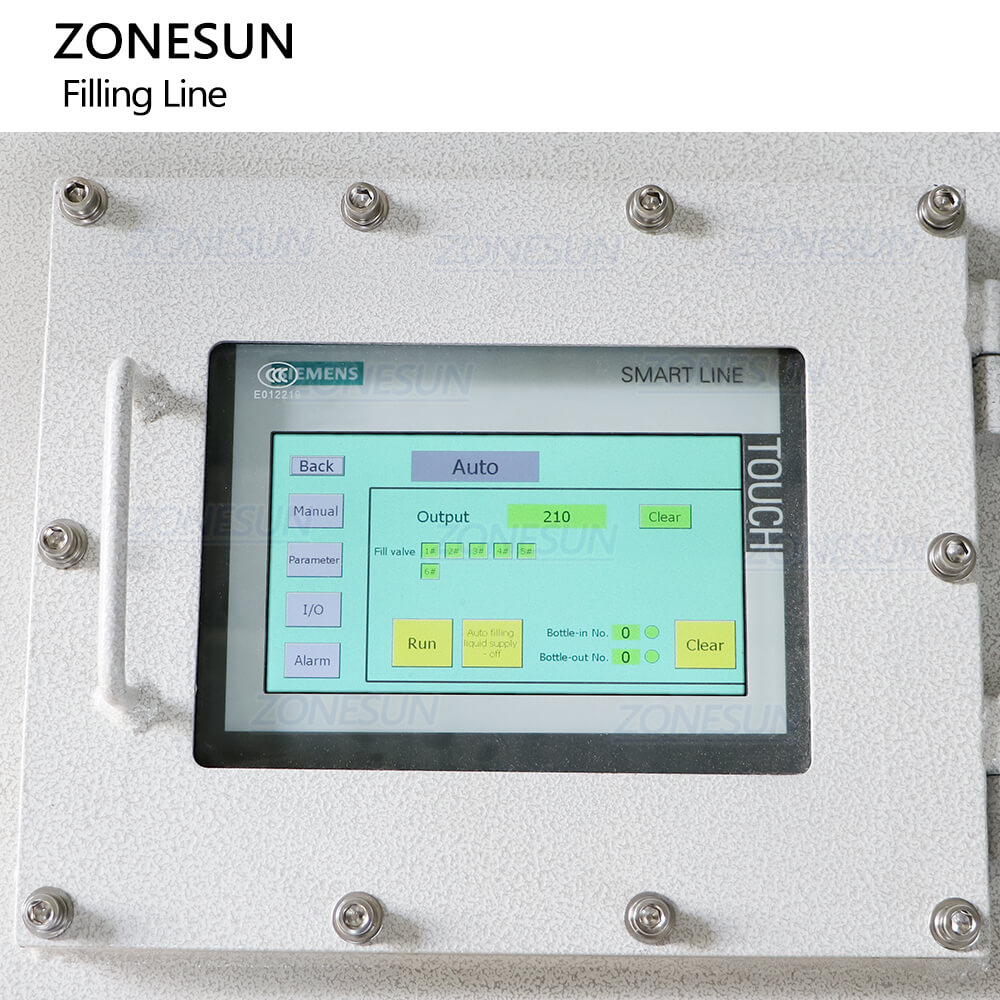

Touchscreen Panel
Intuitive panel for parameter setting. The language of panel can be customized.

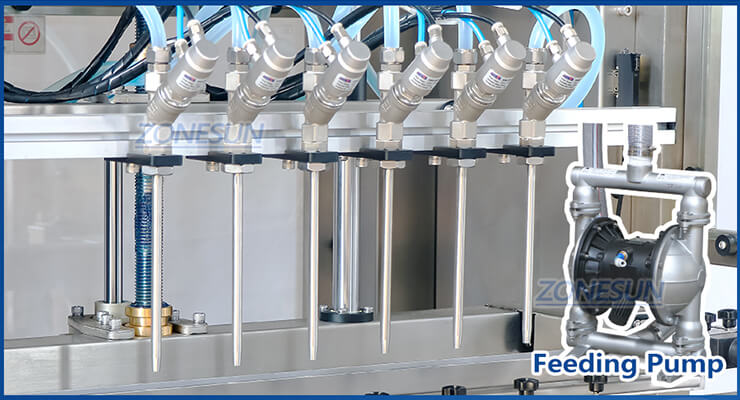

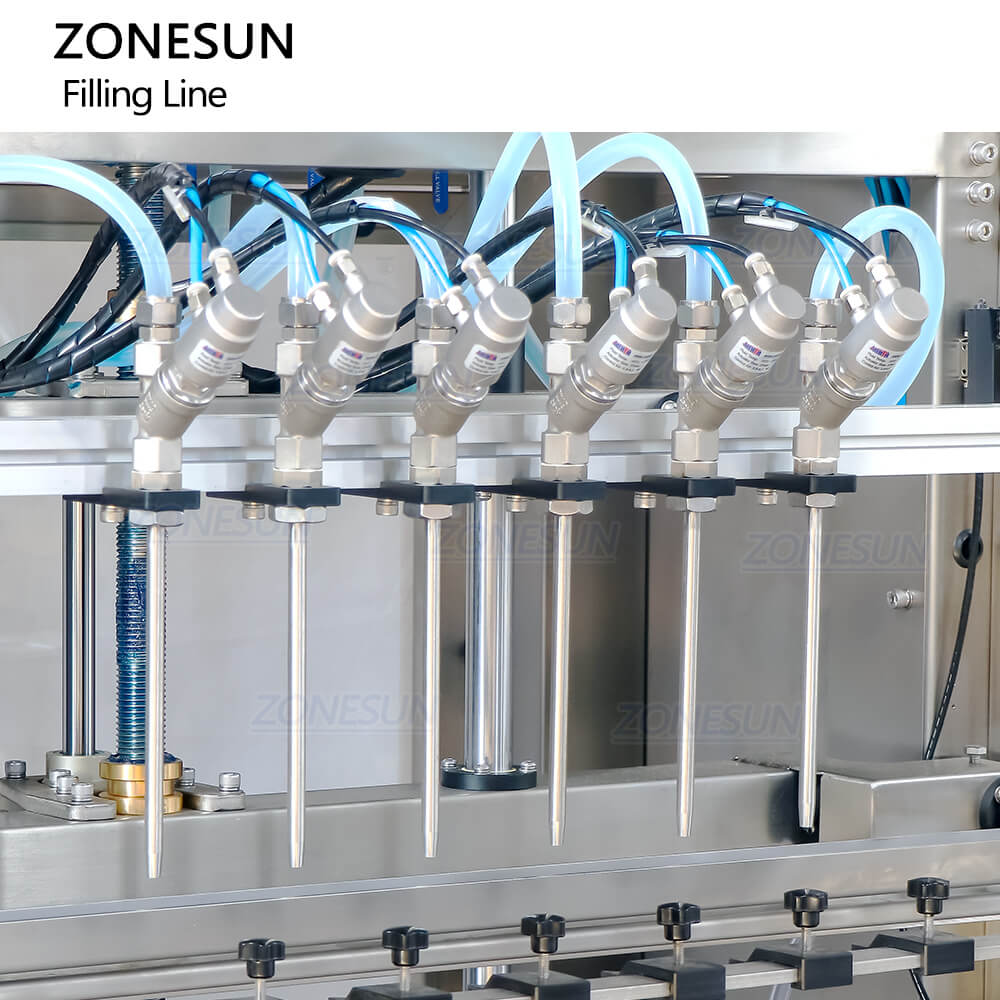

6 Filling Heads
The quantity of filling heads can be customized as production need.

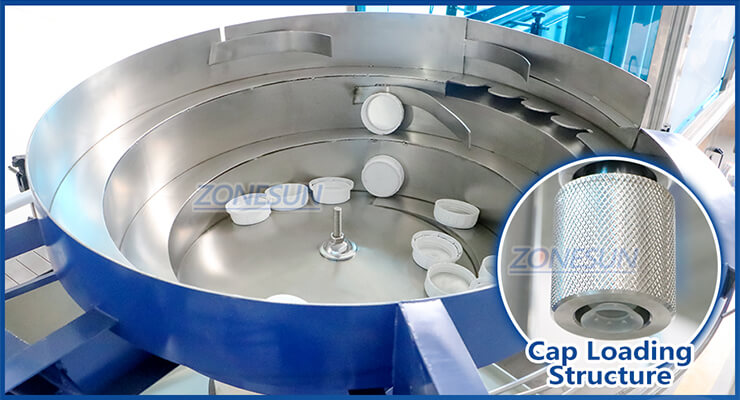

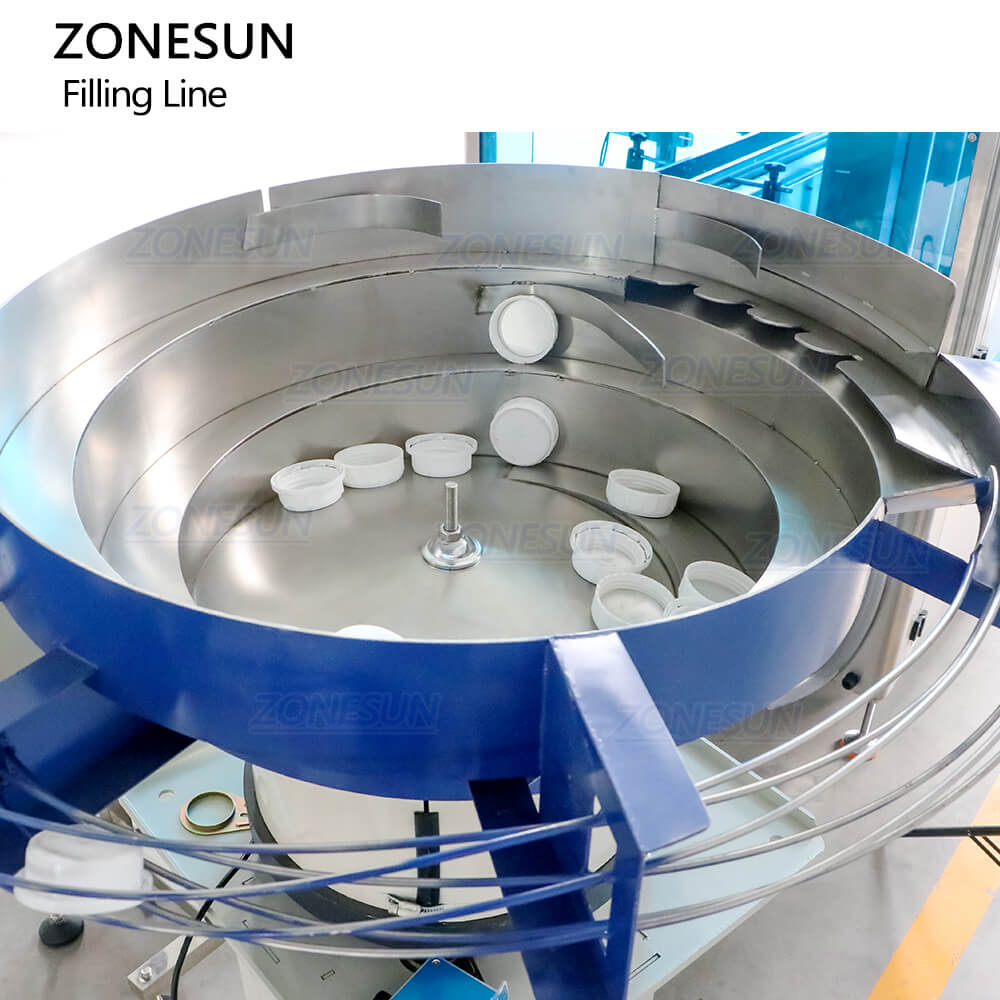

Vibratory Bowl
The size of vibratory bowl can be customized as your products.

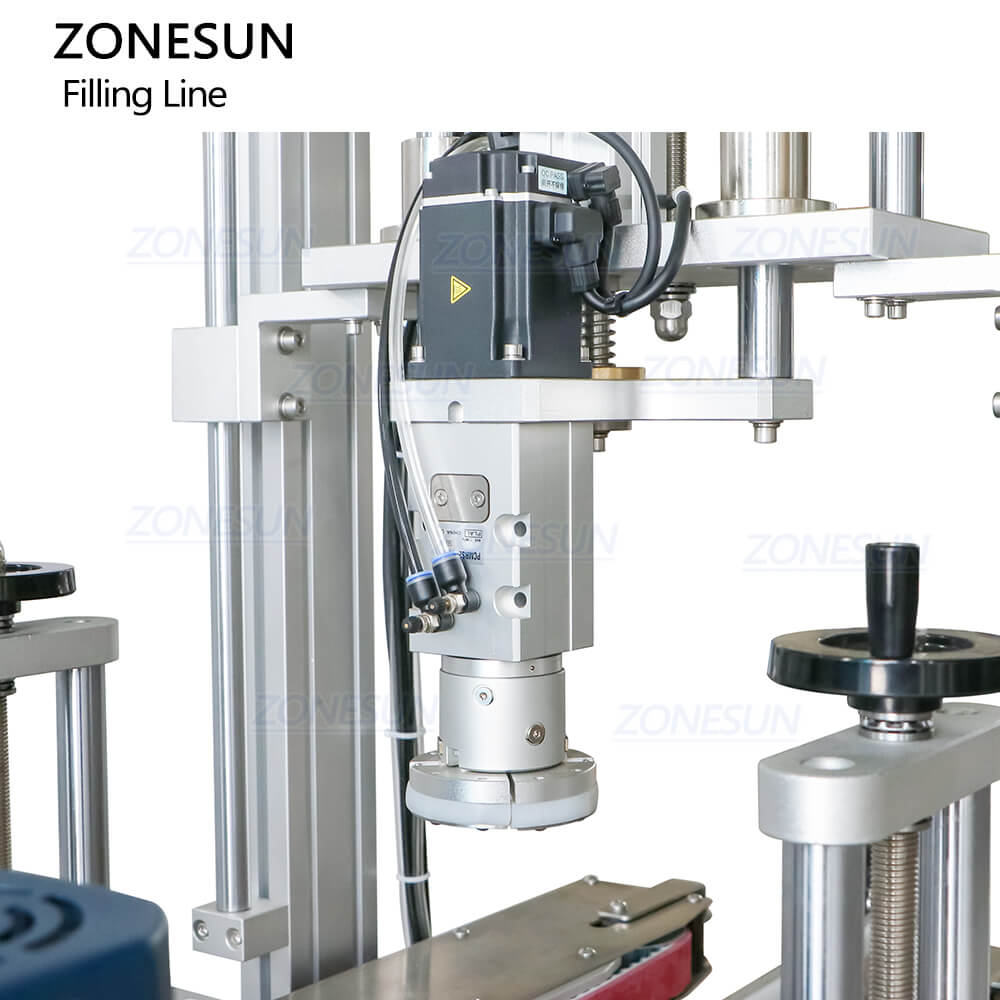

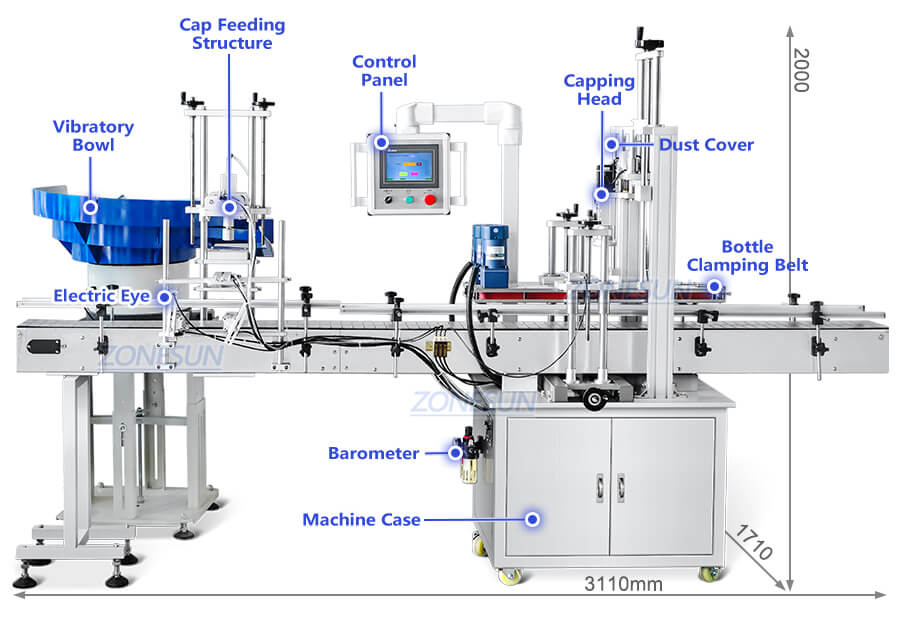

Servo Capping Structure
Servo-driven capping ensures good seal of bottle caps. The capping structure can be customized as your products.

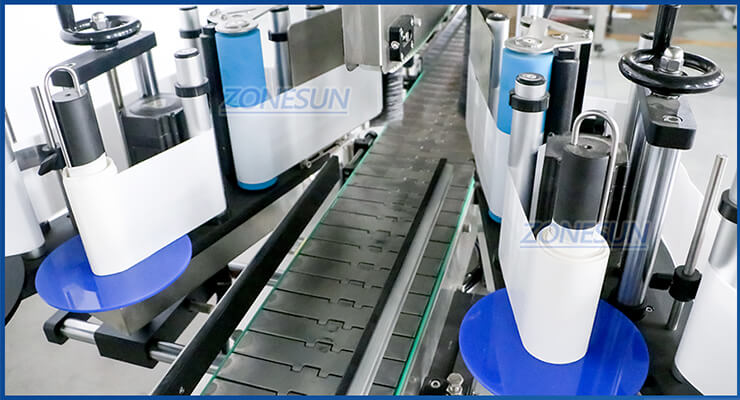

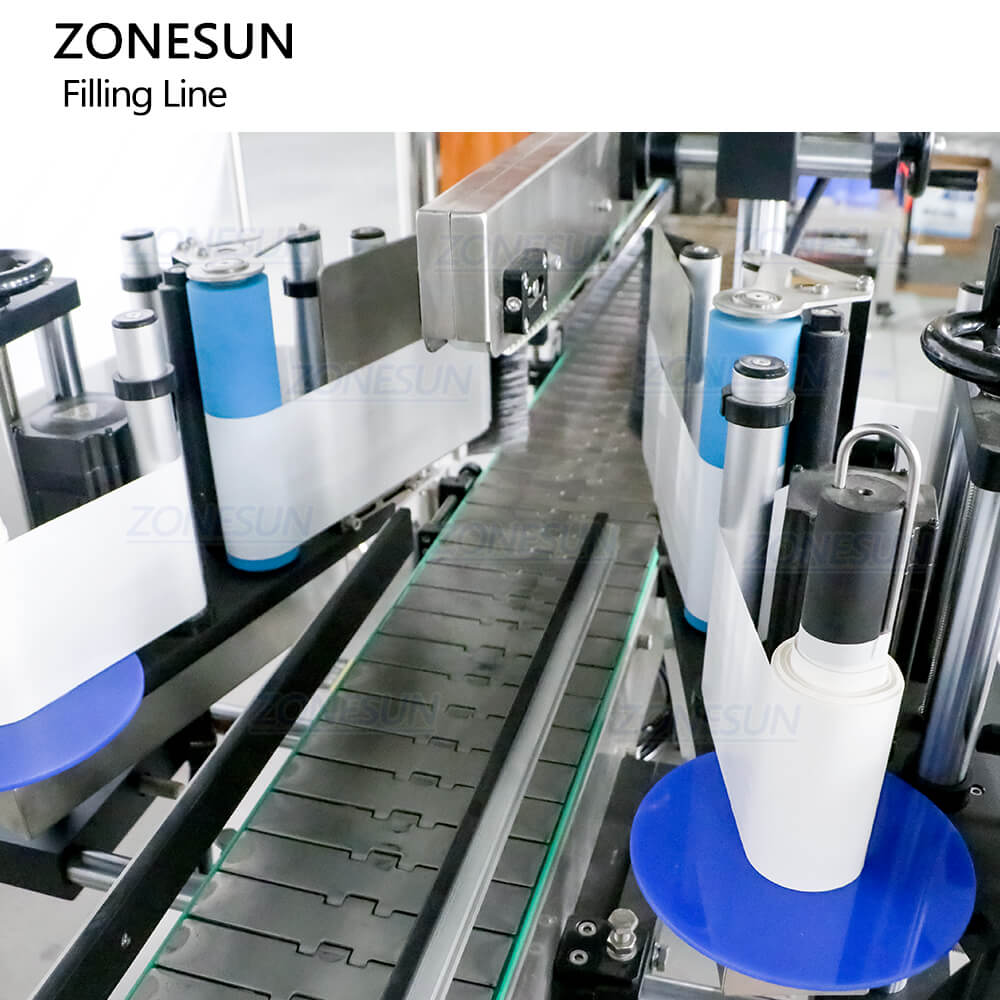

Double Labeling Structures
Suitable for single or double-sided labeling on square bottles. Date coder can be equipped to print date.
