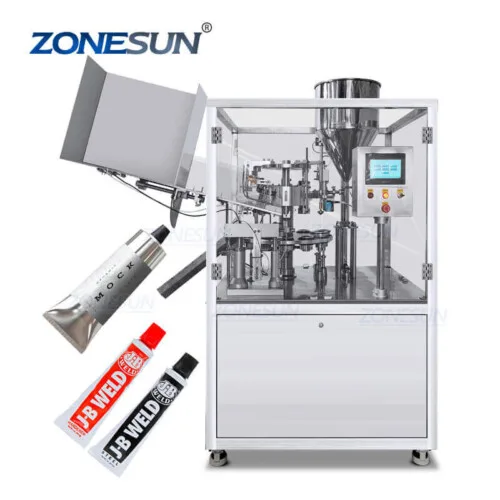

Aluminum Tube Filling Sealing Machine

Aluminum Tube Filling Sealing Machine

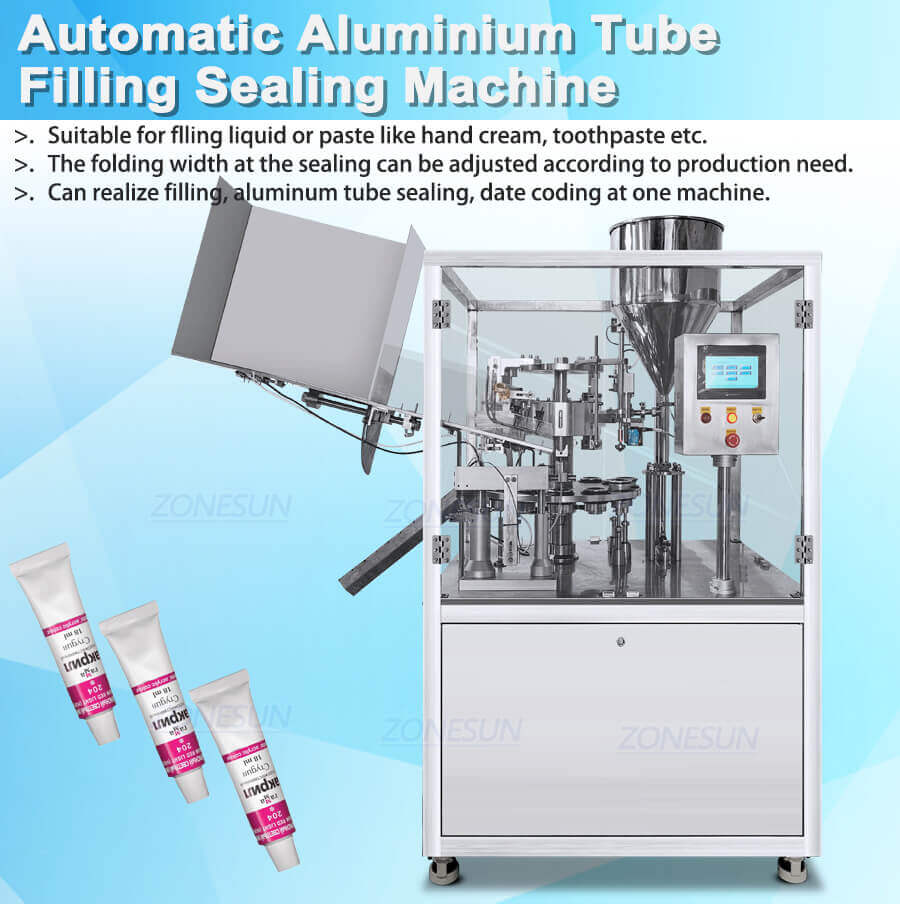

This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.

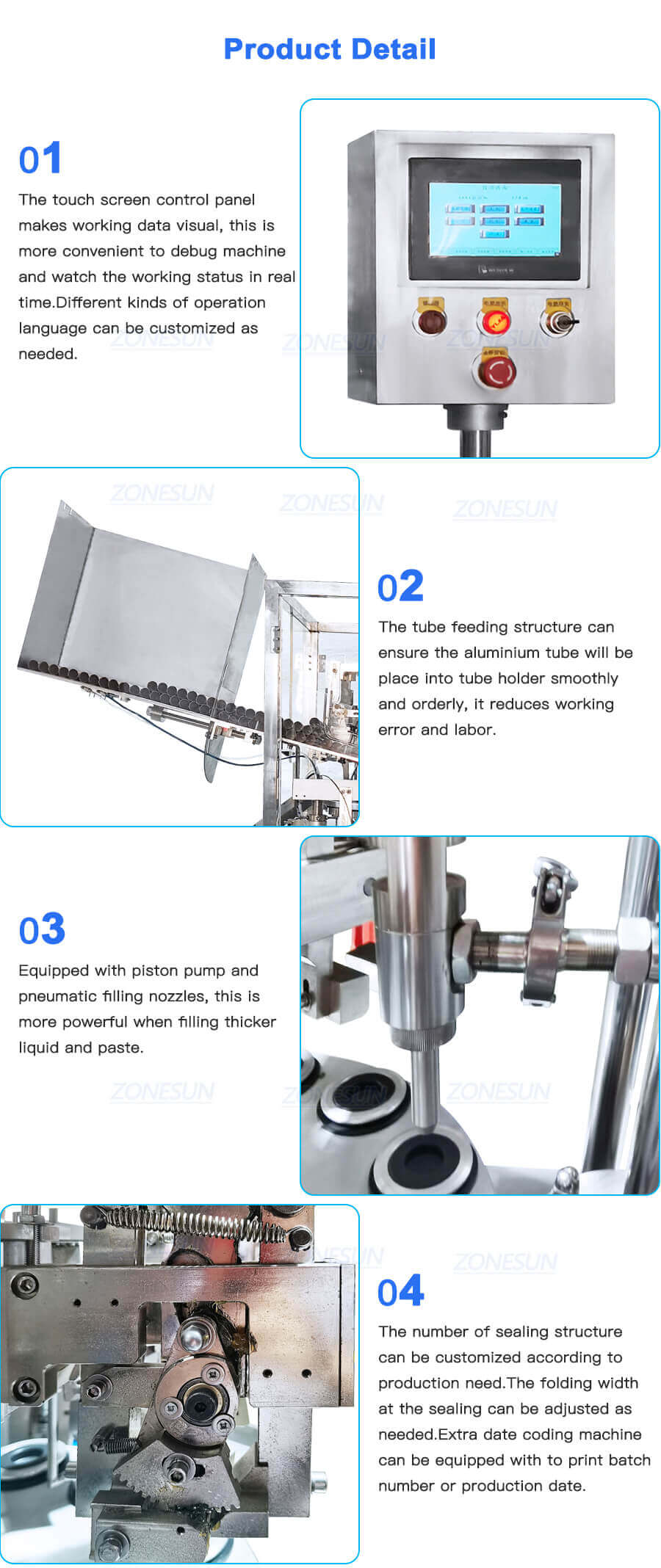

Product Detail

Product Tags

Aluminum Tube Filling Sealing Machine-ZONESUN TECHNOLOGY LIMITED

Description:
This filling sealing machine combines filling structure,sealing structure at one rotary workbench,it is designed for packaging aluminium tube products like toothpaste,hand cream,ointment etc.

Aluminum Tube Filling Sealing Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-FS009A
Machine voltage220/380V 2.6KW

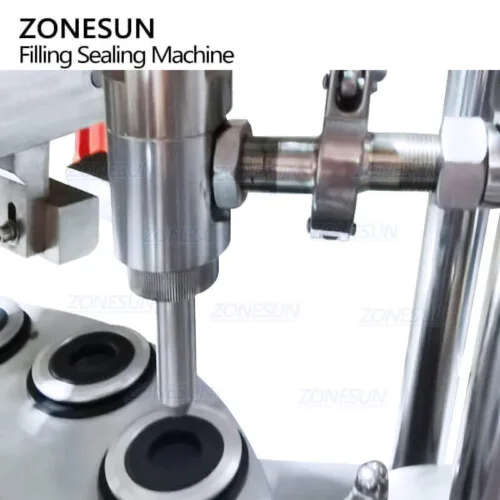

Filling pumpPiston pump
Filling accuracy±1%
Working speed20-50 pieces/min
Filling volume6-75ml/20-150ml/50-300ml (according to production need)
Aluminium tube length60-220mm(Can be customized)
Aluminium tube diameterφ13-40mm
Air pressure0.55-0.65MPa
Machine sizeAbout 2150*950*2000mm
Machine weightAbout 600kg
Machine Configuration
Machine ComponentBrandOrigin
PLCINOVANCEChina
Photoelectric SensorsPanasonicJapan
Color Mark SensorSick/PanasonicGermany/Japan
Relay/Air SwitchDelixi/CHINTChina

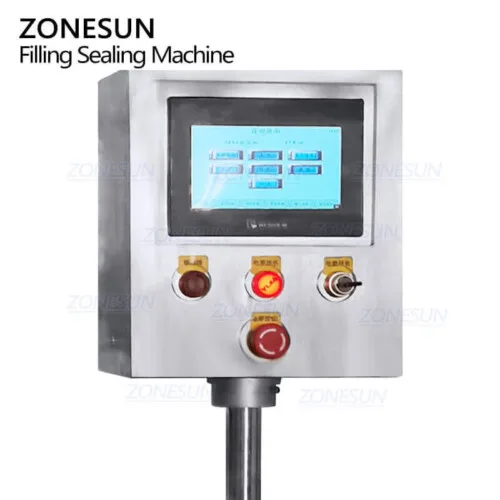

TouchscreenINOVANCEChina
Pneumatic ElementAirTACTaiwan,China
Motor InverterINOVANCEChina

Aluminum Tube Filling Sealing Machine-ZONESUN TECHNOLOGY LIMITEDAluminum Tube Filling Sealing Machine-ZONESUN TECHNOLOGY LIMITED
