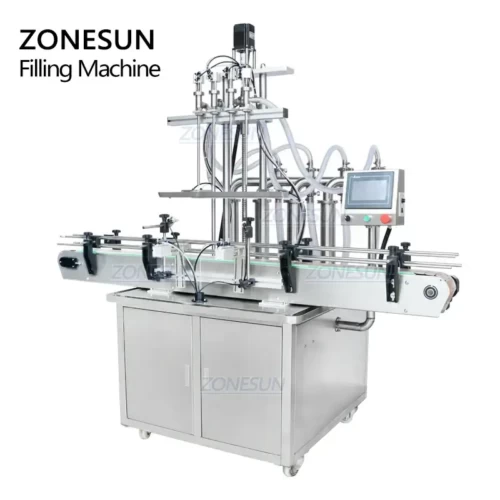

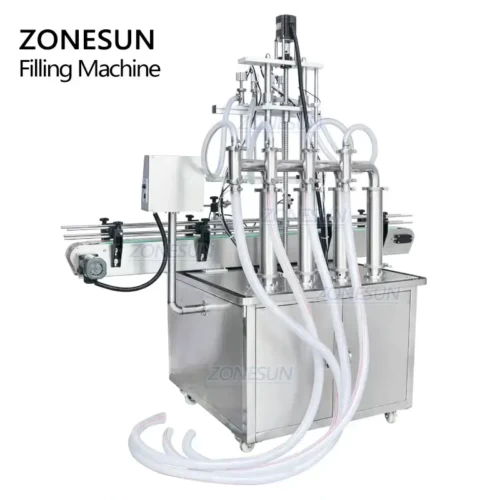

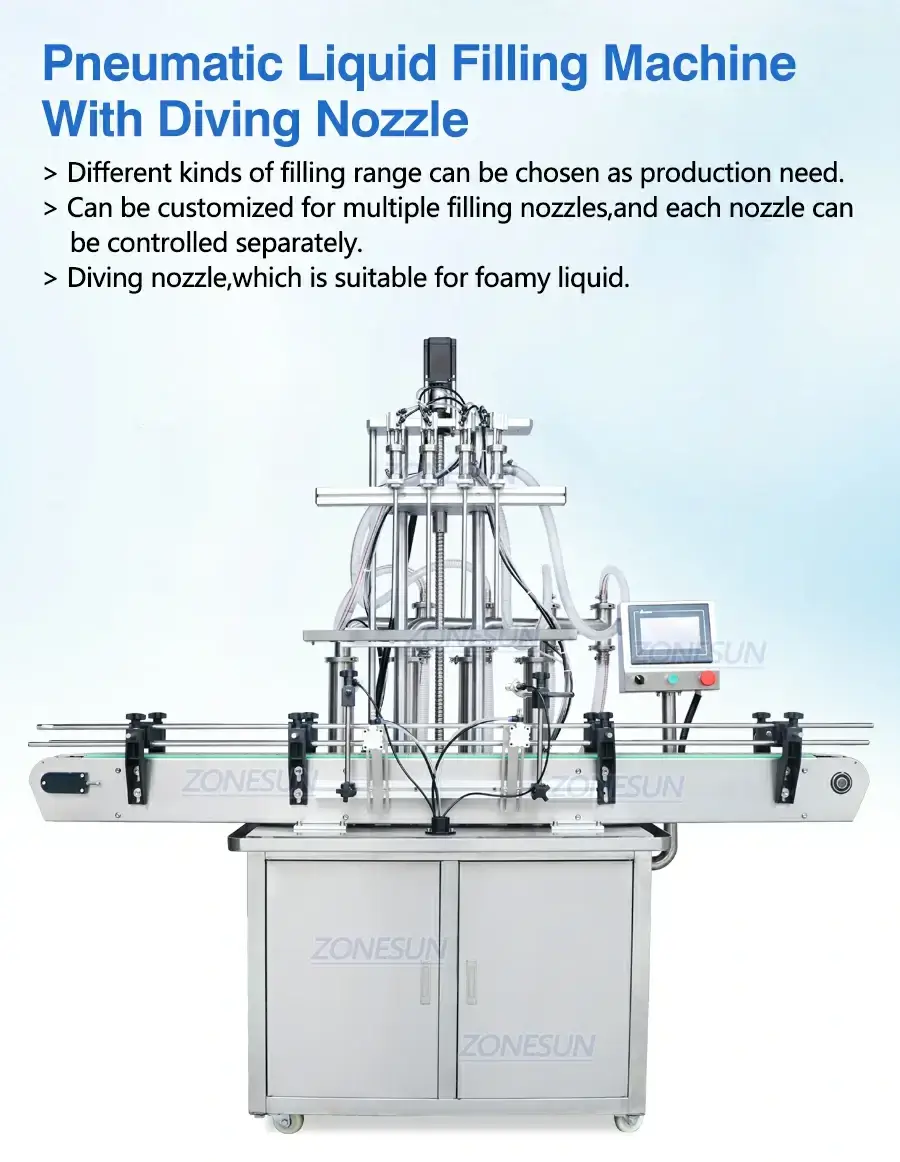

4 Diving Nozzles Liquid Filling Machine

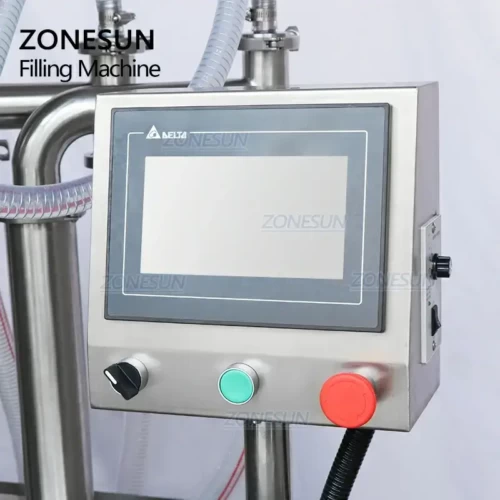

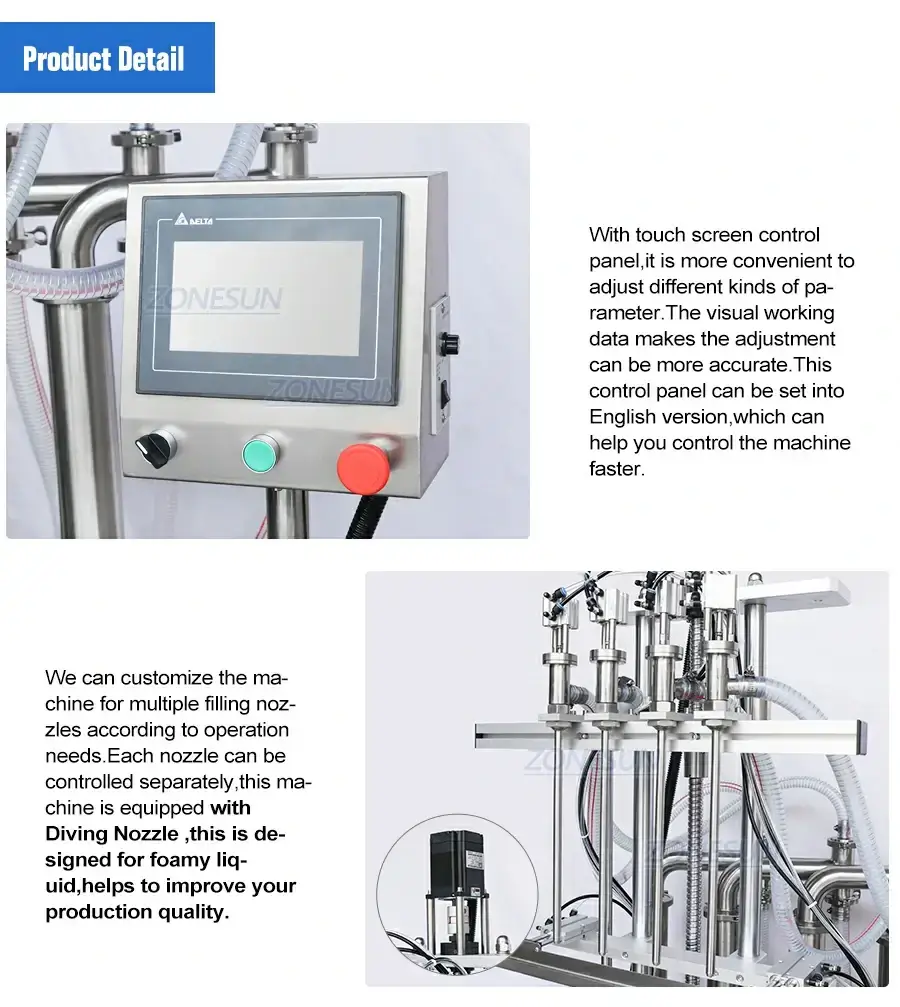

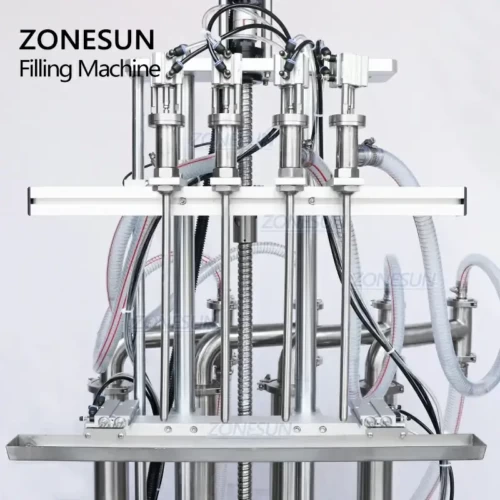

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.

Product Detail

Product Tags

Description:

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.

Parameter:

Model ZS-YT4T-4D
Voltage 110/220V 50-60HZ 600W
Filling Range 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed 20-35bottles/min
Filling Accuracy ≤±1%
Air Pressure 0.5-0.7MPa
Size Of Air Compressor Connector OD 10mm
Conveyor length 2050mm(standard )
Conveyor material Plastic(standard) / stainless steel(custom version)
Machine Size About 200*102.5*205cm(100-1000ML)
Package Size About 211*114*210cm (100-1000ML)
Net weight/Gross weight About 262kg/340kg(100-1000ML)
