With the continuous advancement of global manufacturing automation, the packaging process has become a critical factor affecting overall production efficiency and cost control. In industries such as food, pharmaceuticals, daily chemicals, and cosmetics, automated packaging equipment is increasingly widely adopted.
Among these systems, the cartoning machine has become an essential part of modern production lines due to its high efficiency, stability, and strong system compatibility. A standard automated packaging line can typically reach a speed of 60–300 boxes per minute, improving efficiency by more than 70% compared to manual packaging.
Therefore, selecting the right cartoning machine is a key decision for companies upgrading their production lines.
1. Basic Concept of a Cartoning Machine
Cartoning Machine refers to a packing equipment that has been designed and developed in order to perform all the actions of box formation, loading of goods, and packaging of boxes in a continuous cycle. Its core functions include:
- Automatic carton opening
- Product loading
- Carton folding
- Sealing and output
Modern systems usually adopt PLC control and HMI touch interfaces, ensuring stable operation and user-friendly control.
A cartoning machine can operate independently or be integrated with filling machines, labeling machines, and weighing systems to form a fully automated production line.
2. Types of Cartoning Machine Systems
2.1 Horizontal vs Vertical Cartoning Machine

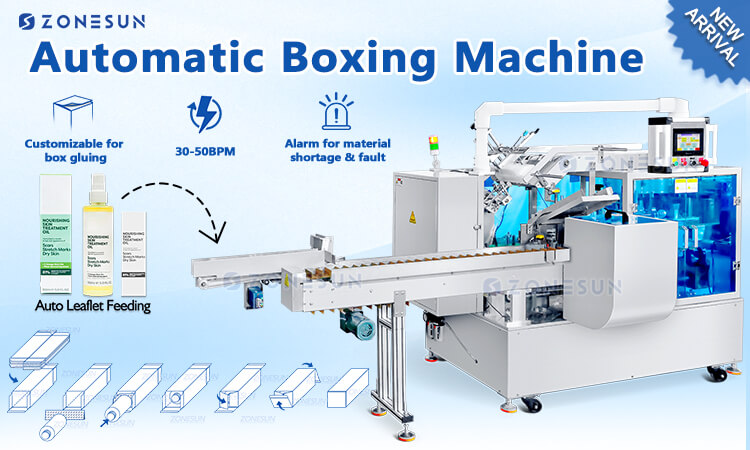

Horizontal Cartoning Machine
A horizontal cartoning machine refers to equipment where the products are inserted into the carton in a horizontal manner. This machine is generally used for regular-shaped items that need to be packed at high speed.
For example, the ZONESUN Automatic Cartoning Machine is widely used in the cosmetics industry for packaging facial masks and skincare products.
This cartoning machine performs a complete packaging cycle, including:
- box opening
- filling
- carton folding
- carton sealing
This machine is also capable of being integrated with weighing machines, filling machines, and sorting machines for achieving fully automated processes.
Key advantages include:
- Suitable for high-speed continuous production
- Strong compatibility with production lines
- High operational stability for large-scale manufacturing

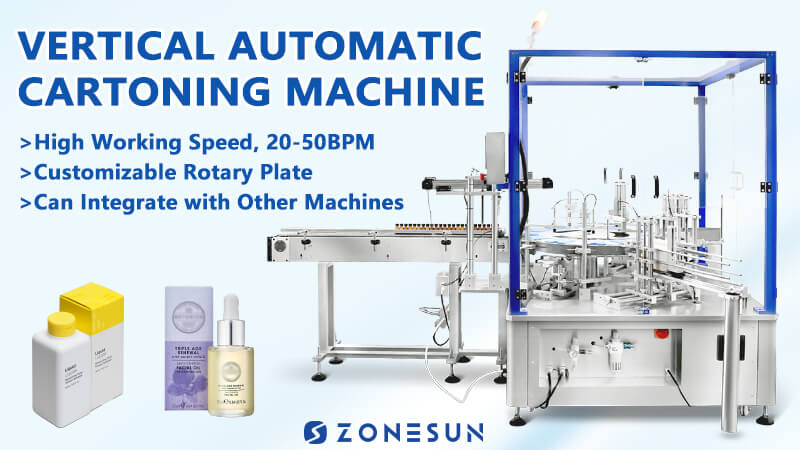

Vertical Cartoning Machine
A vertical cartoning machine completes the packaging process in a vertical direction and is more suitable for powder, granules, or irregular-shaped products.
For instance, the ZONESUN Vertical Cartoning Machine can be used for packaging milk powder and coffee powder, using a vertical feeding method to ensure stable and accurate filling performance. The working speed is about 20–50 boxes/min, making it suitable for small to medium-scale automated production lines.
It also performs:
- carton opening
- product filling
- carton folding
- sealing
The machine may also incorporate other capabilities of gluing, leaflet feeder, and date coding in order to make the automation more effective.
Key characteristics include:
- It can work with other machines to realize automated production.
- Strong adaptability for powder and loose materials
- Flexible configuration with optional functional upgrades
2.2 Classification by Automation Level
Cartoning machines can be divided into different levels based on automation requirements and production scale:
Semi-Automatic Cartoning Machine
Requires partial manual operation such as product feeding or carton placement. It is suitable for small production volumes, lower investment budgets, and flexible multi-product manufacturing setups.
Fully Automatic Cartoning Machine
A fully automatic cartoning machine completes the entire process from carton opening, product loading, folding, to sealing with minimal human intervention. It is commonly used in medium to large-production lines and can be integrated with other packaging equipment for continuous operation.
High-Speed Intelligent Cartoning System
Designed for large-scale industrial production, this advanced cartoning machine offers higher automation and monitoring functions. The speed can reach 200–300 boxes/min or more, with optional inspection and rejection systems to ensure stable output quality.
3. How to Choose the Right Cartoning Machine
Selecting a suitable cartoning machine requires evaluating several key factors:
3.1 Product Compatibility
Different products require different machine structures:
- Facial masks and skincare products → horizontal cartoning machine
- Milk powder and coffee powder → vertical cartoning machine
- Multi-SKU products → customized machine design
3.2 Production Capacity Requirements
| Production Scale | Recommended Machine Type | Speed Range |
| Small-scale | Semi-automatic machine | 30–60 boxes/min |
| Medium-scale | Standard automatic machine | 60–120 boxes/min |
| Large-scale | High-speed cartoning system | 120–300 boxes/min |
3.3 Automation Integration Capability
Modern cartoning machine systems can be integrated with:
- Filling machines
- Weighing machines
- Sorting machines
Such integration can improve overall production efficiency by 60%–80%, making it suitable for large-scale automated factories.
3.4 Machine Stability and Build Quality
High-quality cartoning machine systems typically feature:
- 304 stainless steel construction
- PLC intelligent control system
- Failure rate below 2%
- Quick changeover design (10–15 minutes)
4. Application Scenarios of Cartoning Machine
Cartoning machine systems are widely used across multiple industries:
- Food Industry
Used for packaging biscuits, chocolate, and tea bags, ensuring product hygiene and sealing quality. - Pharmaceutical Industry
Used for packing tablets, capsules, and medicinal products that need high precision and hygiene. - Cosmetics Industry
Primarily for skin-care products and facial masks, especially using horizontal cartoning machine systems. - Daily Chemical Industry
Suitable for soaps, detergents, and household products. - Powder Product Industry
Products such as milk powder or coffee powder are often processed using vertical cartoning machines for stable and accurate filling.
Conclusion
Choosing the right cartoning machine requires a comprehensive evaluation of product type, production capacity, automation level, and application scenarios.As global packaging automation continues to evolve, manufacturers are increasingly focusing on system stability and integration capability rather than only initial investment cost.
For companies looking for reliable packaging solutions or customized production line support, ZONESUN provides professional cartoning machine solutions tailored to different industry needs.
