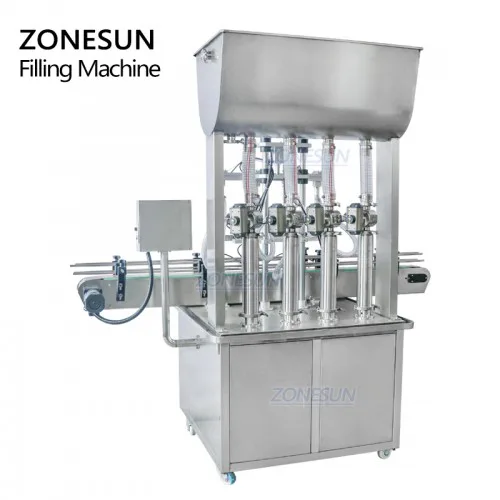

4Heads Paste Filling Machine

#N/A

Product Detail

Product Tags

Description:

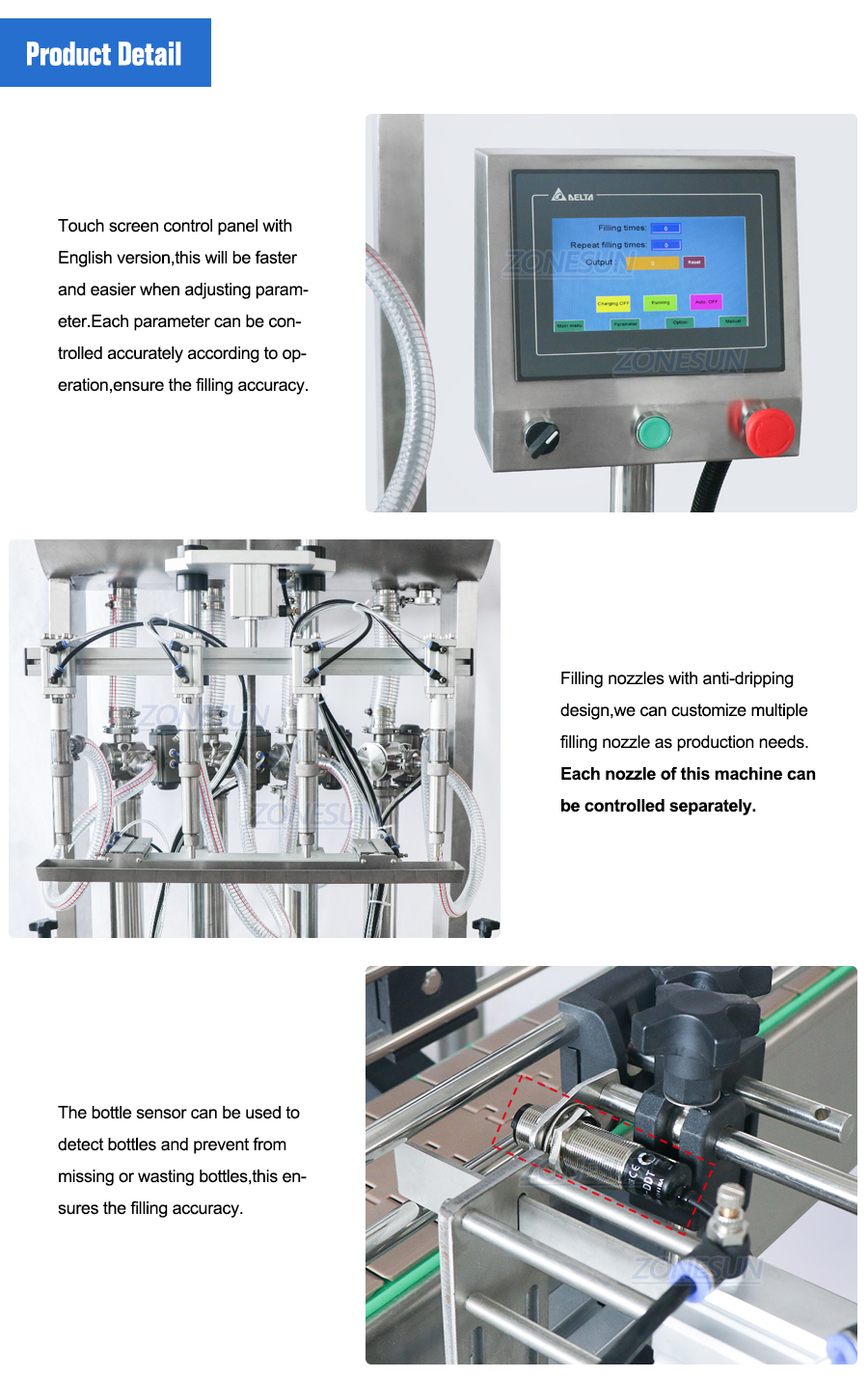

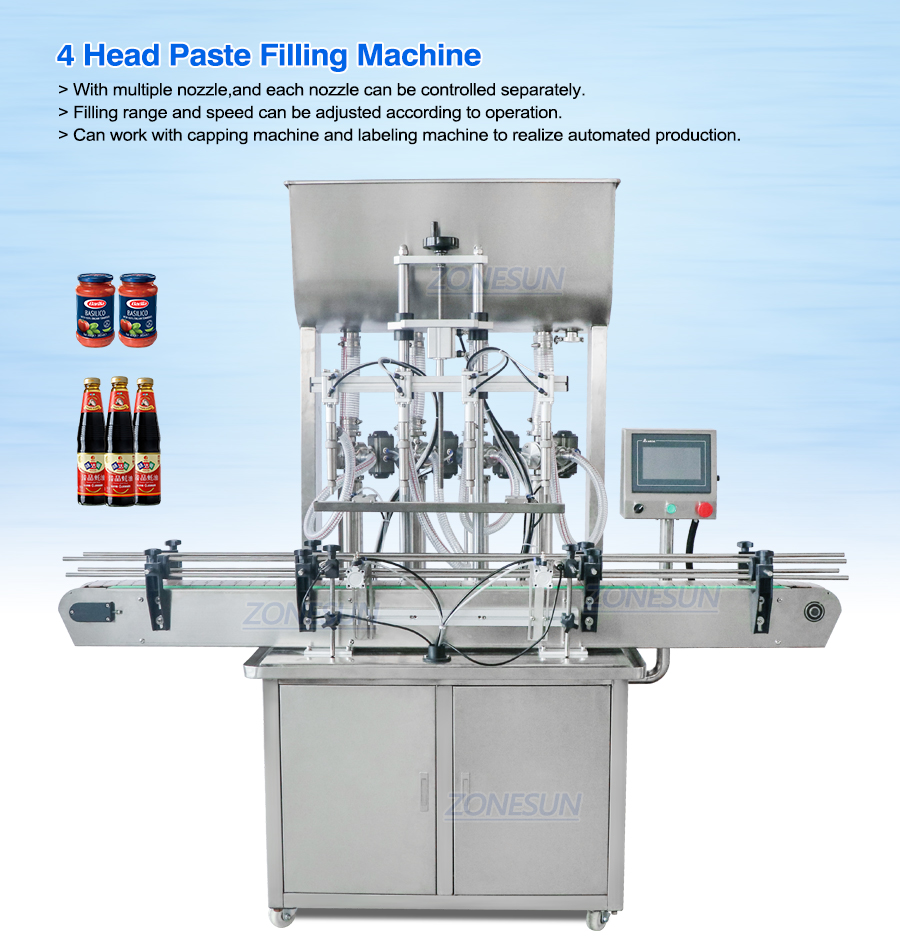

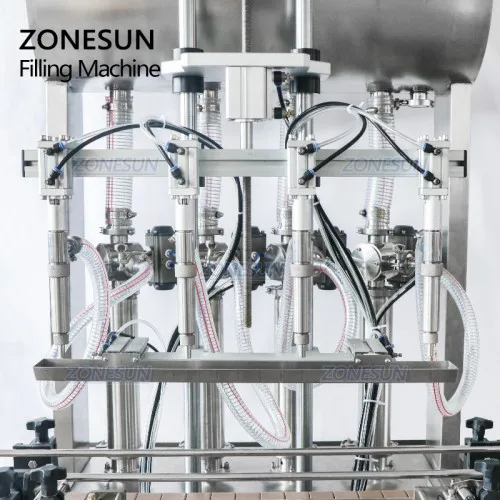

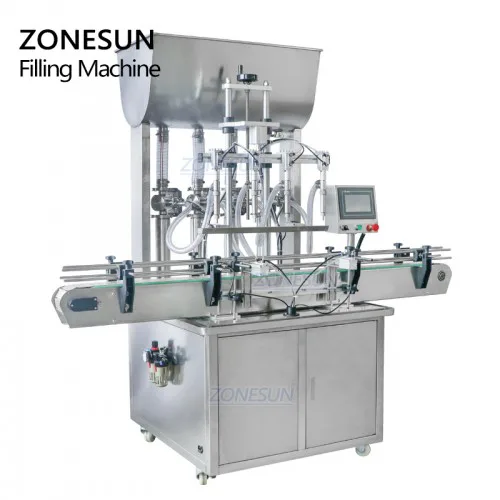

This 4 nozzles paste filling machine is designed for filling paste like curry paste,tomato sauce,pepper sauce,each nozzle can be controlled separately,the filling range and speed are adjustable according to operation.This machine can work with capping machine and labeling machine to realize automated production.

Application:

It is widely used in the flling of various semi-fluids,pastes,viscous bodies,sauces and various granule-containing materials,such as pulp-containing beverages,honey,jams,ketchup,chili sauce, bean paste,shrimp paste,apple Sauce,salad dressing,etc.

4Heads Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED

Model	ZS-YT2T-2P	ZS-YT4T-4P	ZS-YT6T-6P	ZS-YT8T-8P
Voltage	110/220V 50-60HZ800W
Filling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed (base on water)	10-40bottles/min	20-50bottles/min	30-70bottles/min	40-80bottles/min
Filling Accuracy	≤+1%

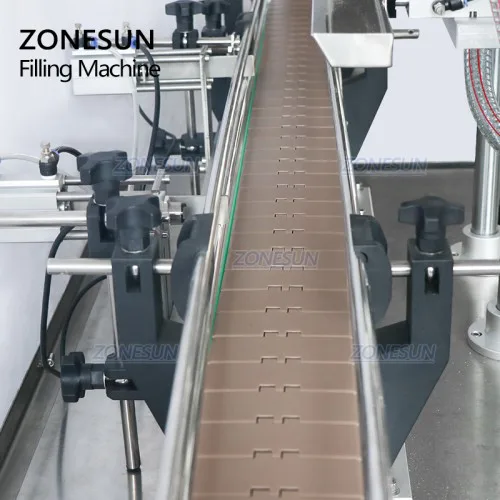

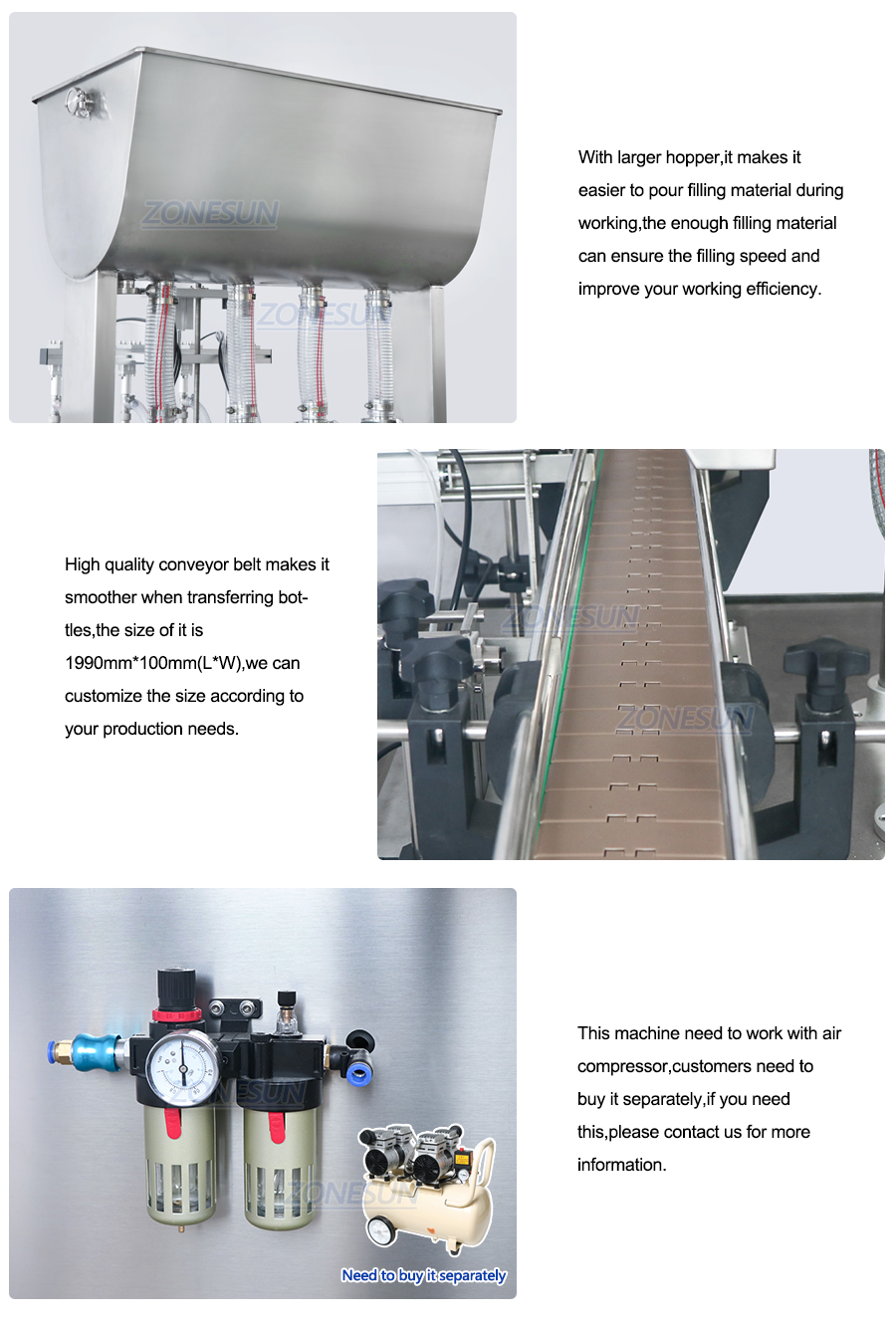

Conveyor Size	About 1990100mm(LW)
Size of filling nozzle	φ10mm
Size of air compressor connector	φ10mm
Machine size	About 19909501970mm(4 Heads)
Package weight	220kg	260kg	300kg	600kg
Package size	200012002300mm	200012002300mm	250013002300mm	280013002500mm
