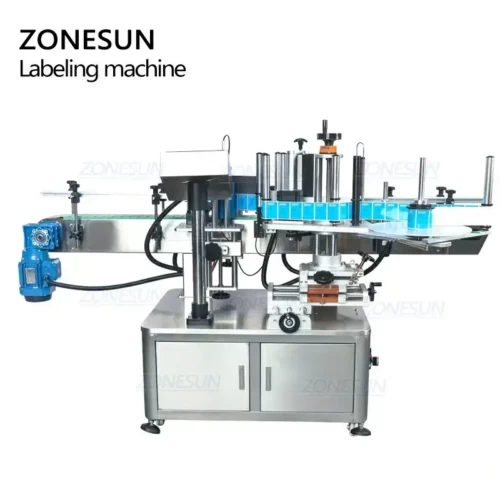

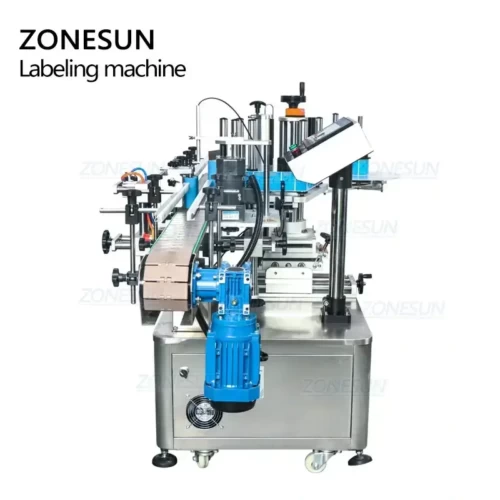

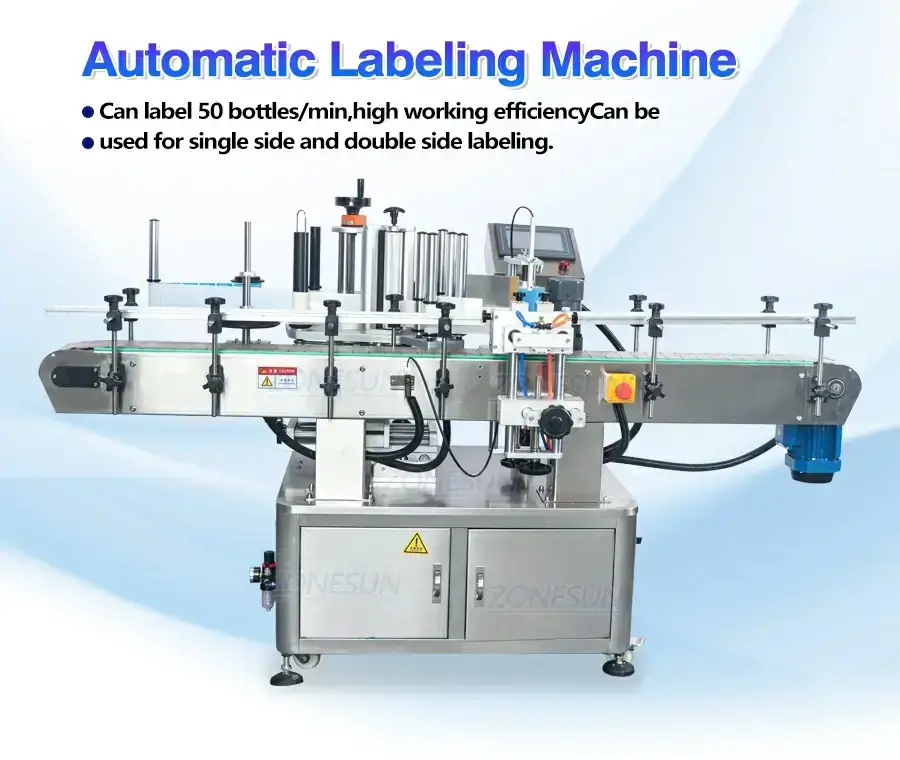

ZS-TB260 Full Automatic Round Bottle Labeling Machine
This full automatic bottle labeling machine can be used for single side and double side labeling.It can label about 40 bottles/min.This can help you improve working efficiency greatly.This machine is suitable for PET bottles,metal bottles,glass bottles etc.It is widely used in food,beverage,cosmetic pharmaceutical industries.
$4,769.00
Share to
|
Model
|
ZS-TB260
|
|||
|
Power supply
|
AC220V 50Hz/60Hz 1500W
|
|||
|
Labeling capacity
|
25-40PCS /min(depends on bottle size)
|
|||
|
Labeling accuracy
|
±1.0mm
|
|||
|
Suitable Botle Diameter
|
φ30-100mm
|
|||
|
Label size
|
(L)15-200mm (H)15-150mm
|
|||
|
Roll inside diameter
|
φ76mm
|
|||
|
Roll outside diameter
|
φ350mm
|
|||
|
Conveyor Size
|
1950(L)*100mm(W)
|
|||
|
Machine size
|
About 2000*1400*1300mm
|
|||
|
Packing Size
|
About 2120*940*1500mm
|
|||
|
Net Weight/Gross Weight
|
About 226kg/290kg
|
|||
|
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
|
||||

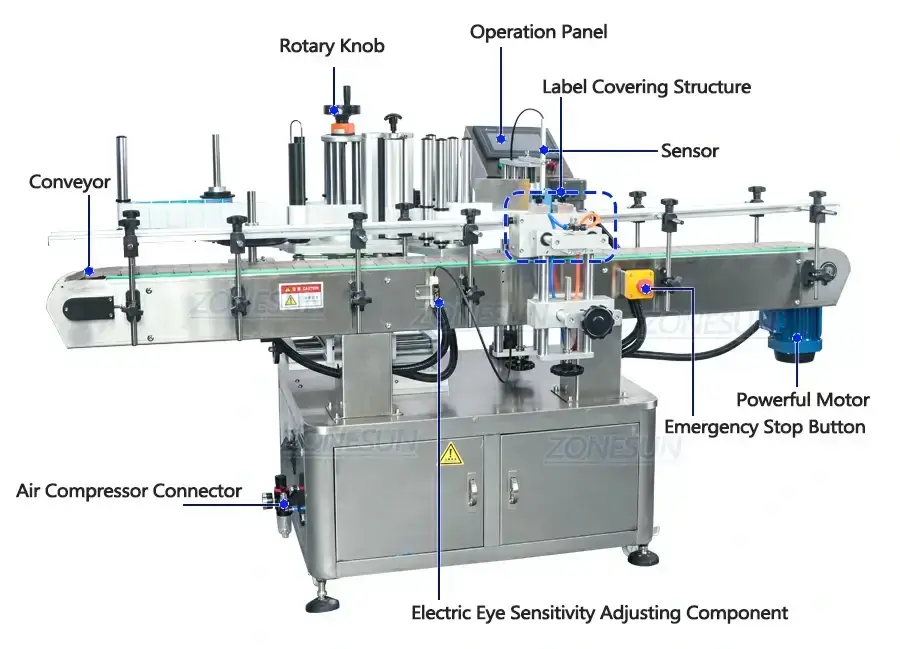

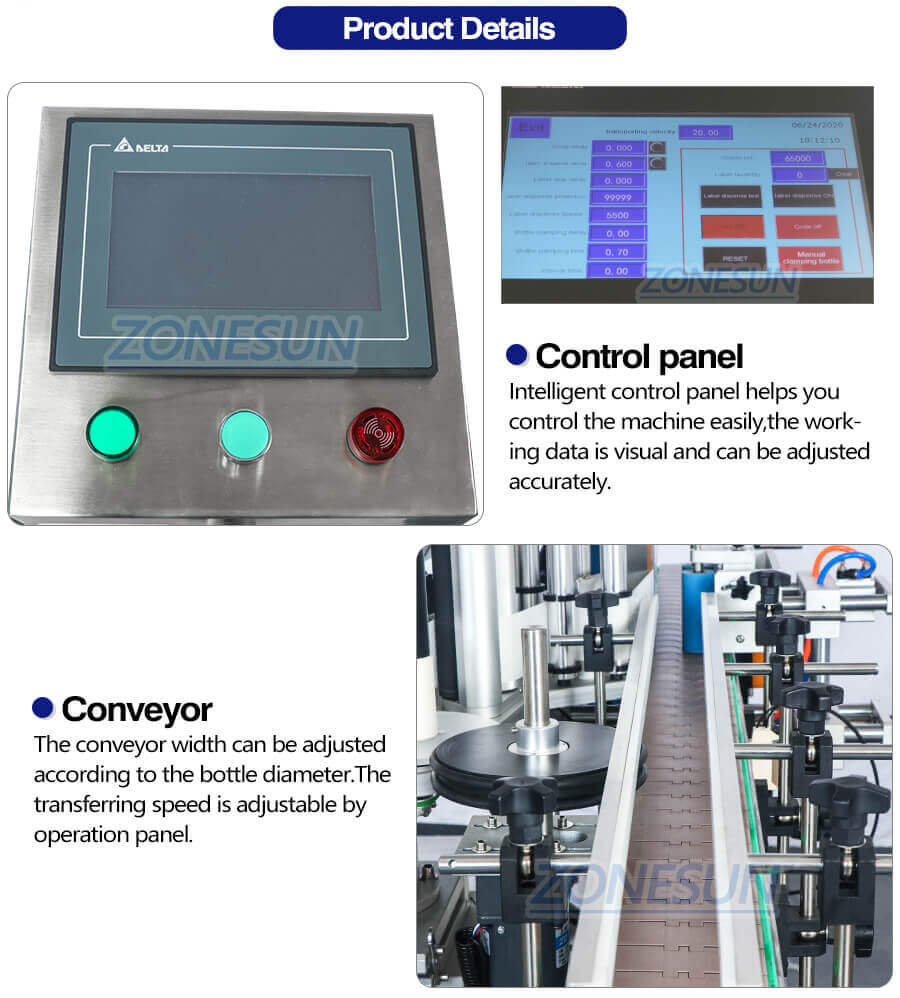

Control panel
Intelligent control panel helps you control the machine easily,the working data is visual and can be adjusted accurately.
Conveyor
The conveyor width can be adjusted according to the bottle diameter.The transferring speed is adjustable by operation panel.

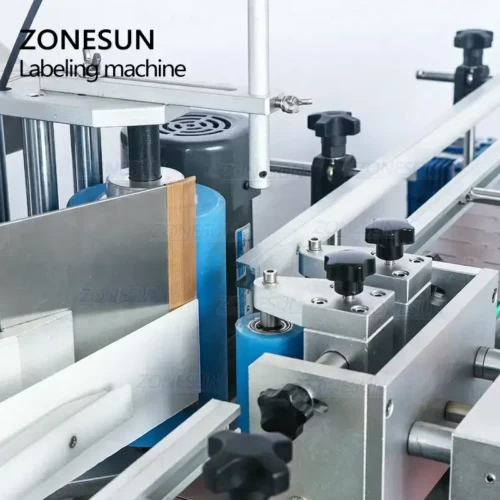

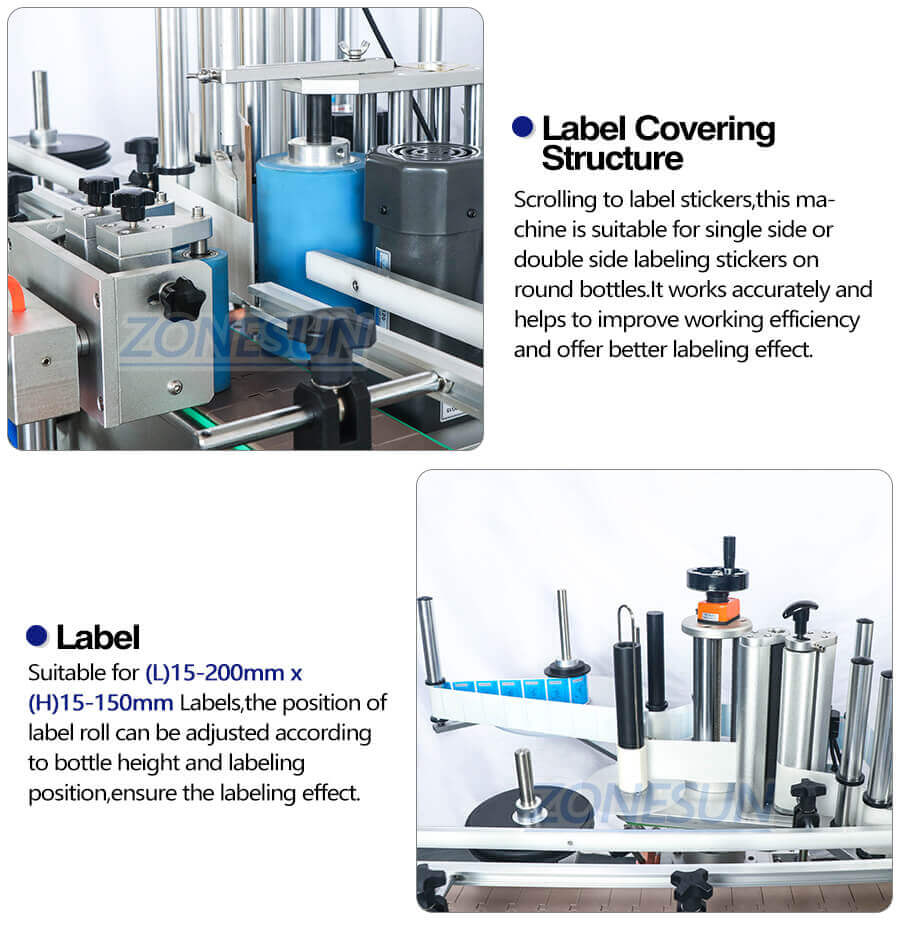

Label Covering Structure
Scrolling to label stickers,this machine is suitable for single side or double side labeling stickers on round bottles.It works accurately and helps to improve working efficiency and offer better labeling effect.

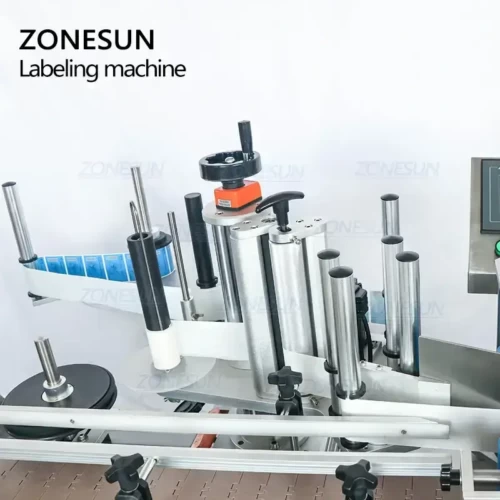

Label
Suitable for (L)15-200mm x(H)15-150mm Labels,the position of label roll can be adjusted according to botle height and labeling position,ensure the labeling effect.
Electric eye
It detects bottles by electric eye,prevent from missing bottles,the sensitity of electric eye can be adjusted according to production needs.lmprove labeling accuracy.
High Quality Motor
The powerful motor works stably and efficiently.It can works for a long time and easy to maintenance.
FAQ:
Q:How can I print the production code number on bottles?
A:This labeling machine can be equipped with an printing machine,please send us message if you need this,
Q:I am finding the double side labeling machine for my wine bottles,is this machine ok?
A:Yes.This machine can be used for your wine bottles,this machine is good for single side and double side labeling.
