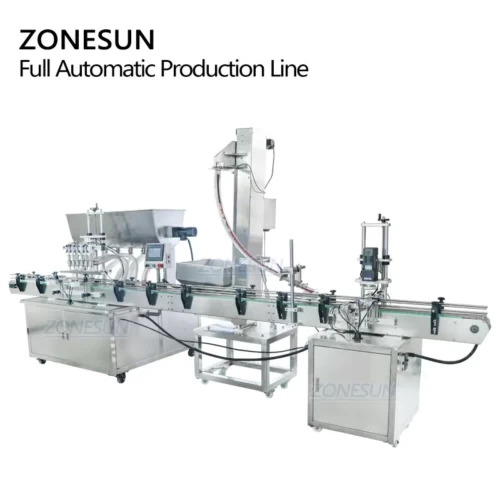

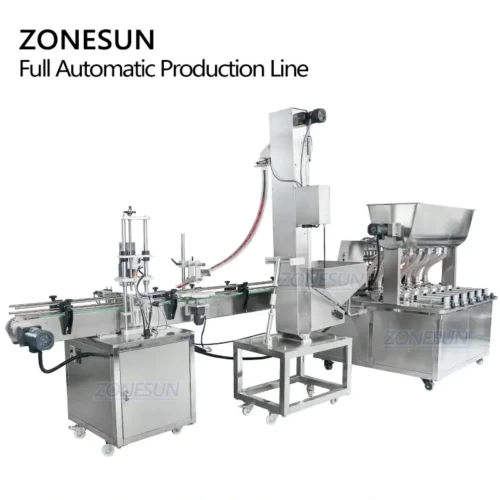

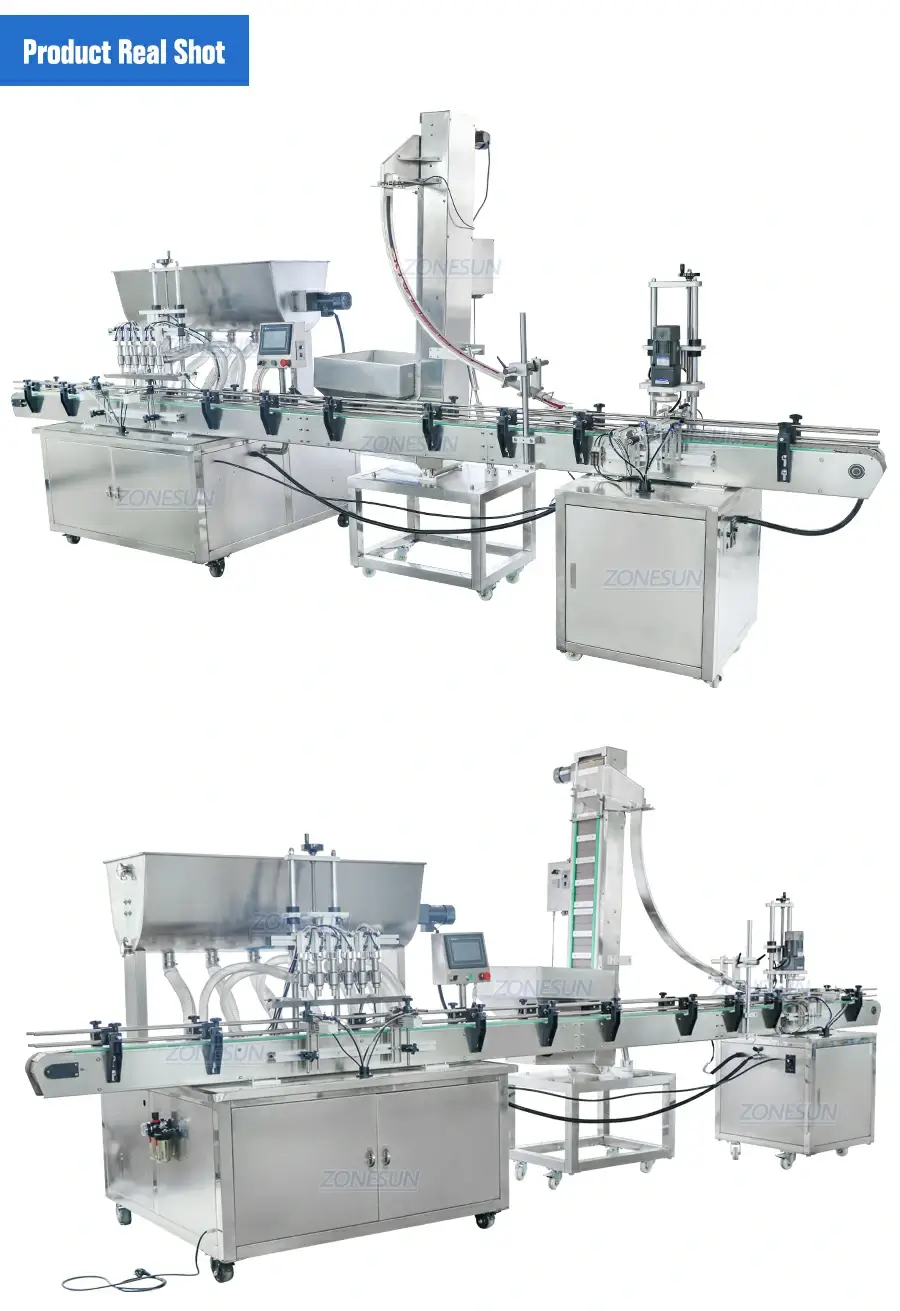

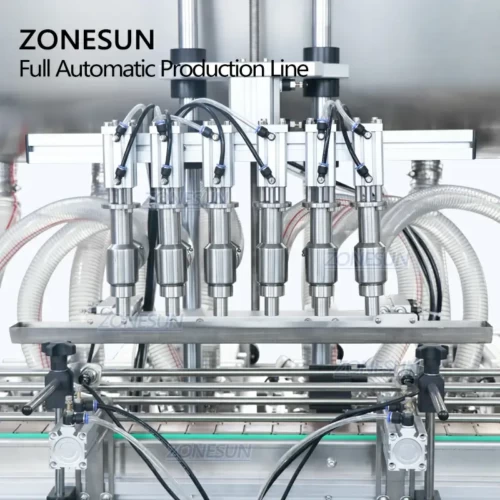

Automatic production line With Cap Feeding Elevator Machine
This full automatic production line is consist of filling machine,cap feeding machine and capping machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.
Share to
Description:

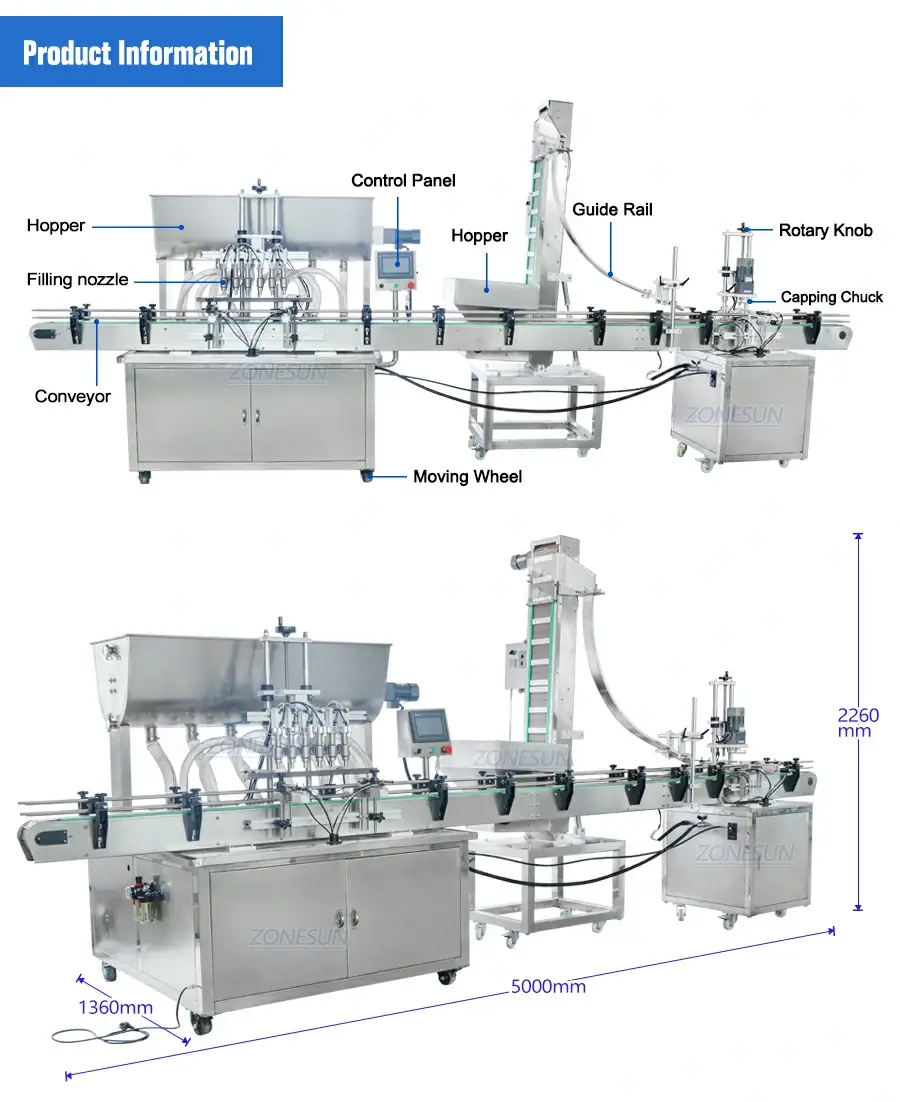

This full automatic production line is consist of filling machine,cap feeding machine and capping machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.
| Model | ZS-YT2T-2P | ZS-YT4T-4P | ZS-YT6T-6P | ZS-YT8T-8P |
| Voltage | 110/220V 50-60HZ 800W | |||
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml | |||
| Working Speed (base on water) |
10-40bottles/min | 20-50bottles/min | 30-70bottles/min | 40-80bottles/min |
| Filling Accuracy | ≤+1% | |||
| Conveyor Size | About 1990*100mm(L*W) | |||
| Size of filling nozzle | φ10mm | |||
| Size of air compressor connector | φ10mm | |||
| Package weight | 220kg | 260kg | 300kg | 600kg |
| Package size | 200*120*230cm | 200*120*230cm | 250*130*230cm | 280*130*250cm |
|

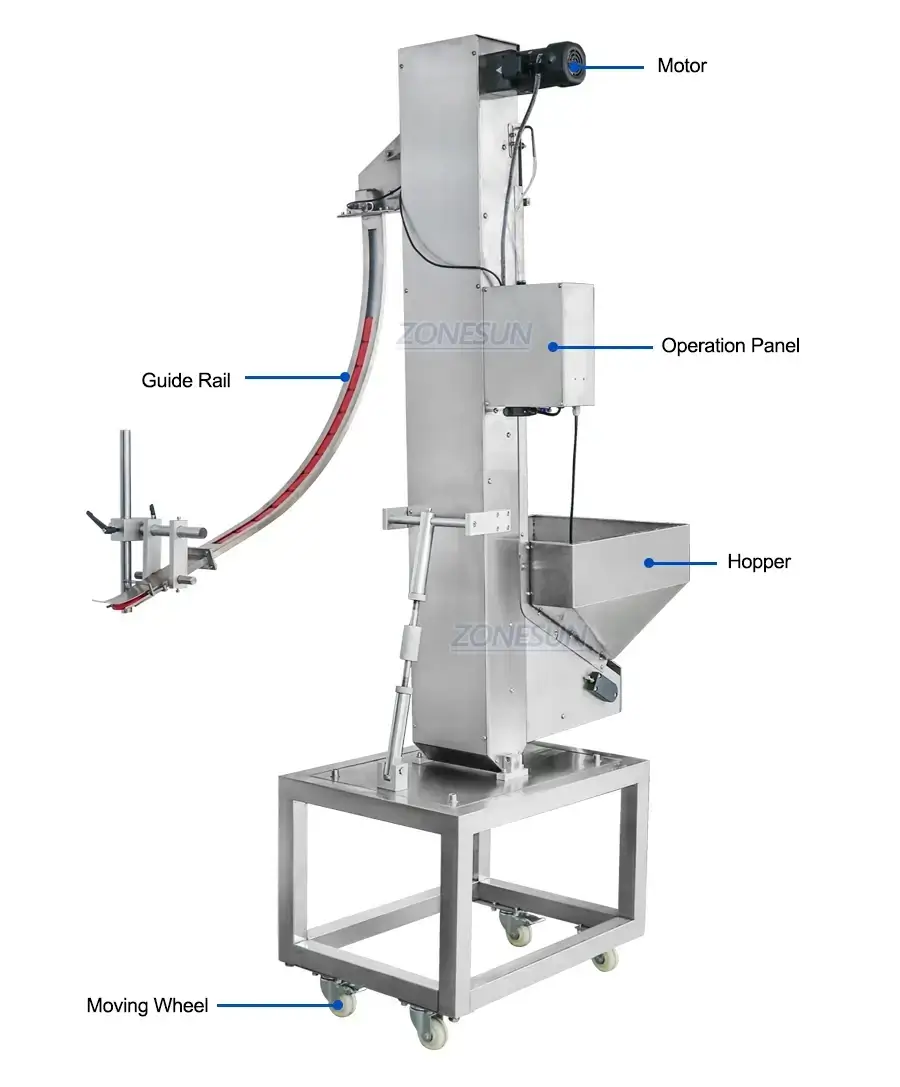

Model
|
ZS-SLJ1
|
|||
|
Capacity
|
60-120pcs/min
|
|||
|
Suitable Cap Size
|
Customized
|
|||
|
Voltage
|
AC220V 50HZ
|
|||
|
Power
|
0.37KW
|
|||
|
Machine Size
|
About 1300*600*2000mm
|
|||
|
Machine Weight
|
About 80kg
|
|||
| Machine Model | ZS-XG440D |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | ≤200mm |
| Bottle caps diameter | customize |
| Working speed | 20-30 bottles/minute(depending on bottle and caps) |
| Working pressure | 0.4-0.6 MPa |
| Conveyor size | 100mm(W)*1950mm(L) |
| Packagesize | 2000*820*1800mm |
| Package weight | 380kg |
