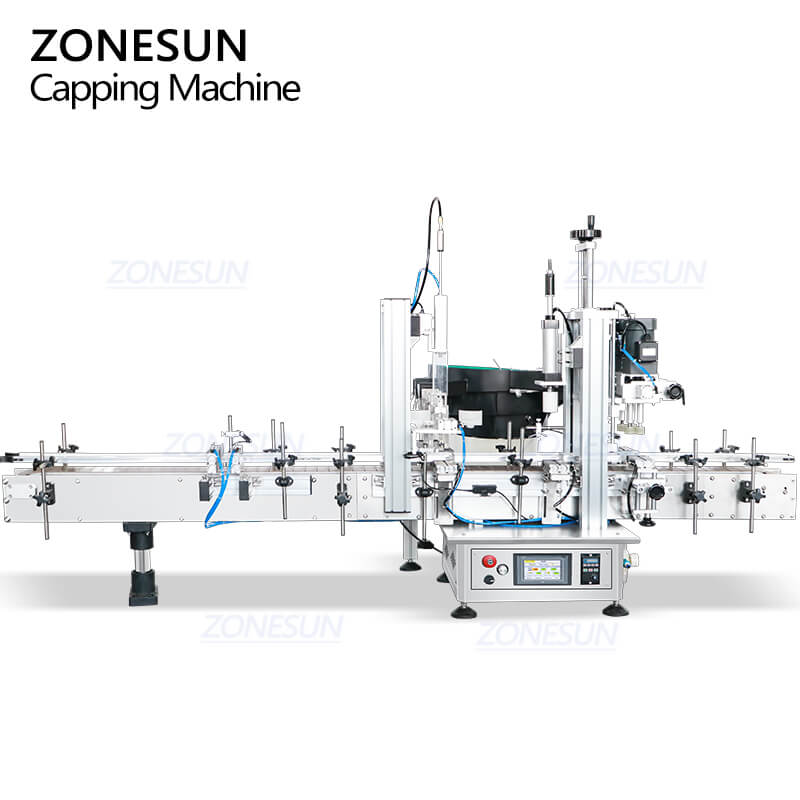

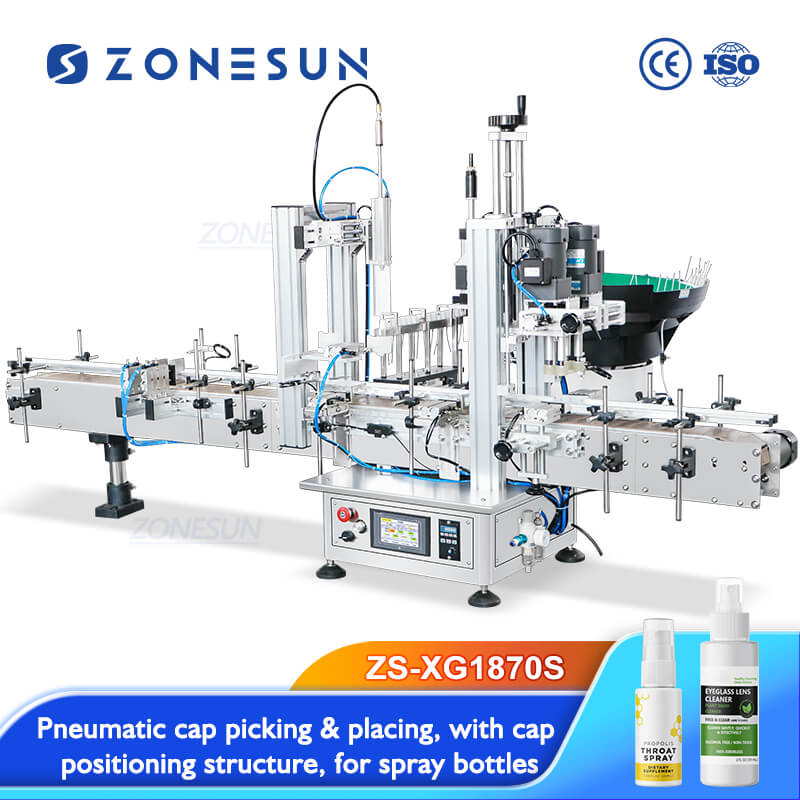

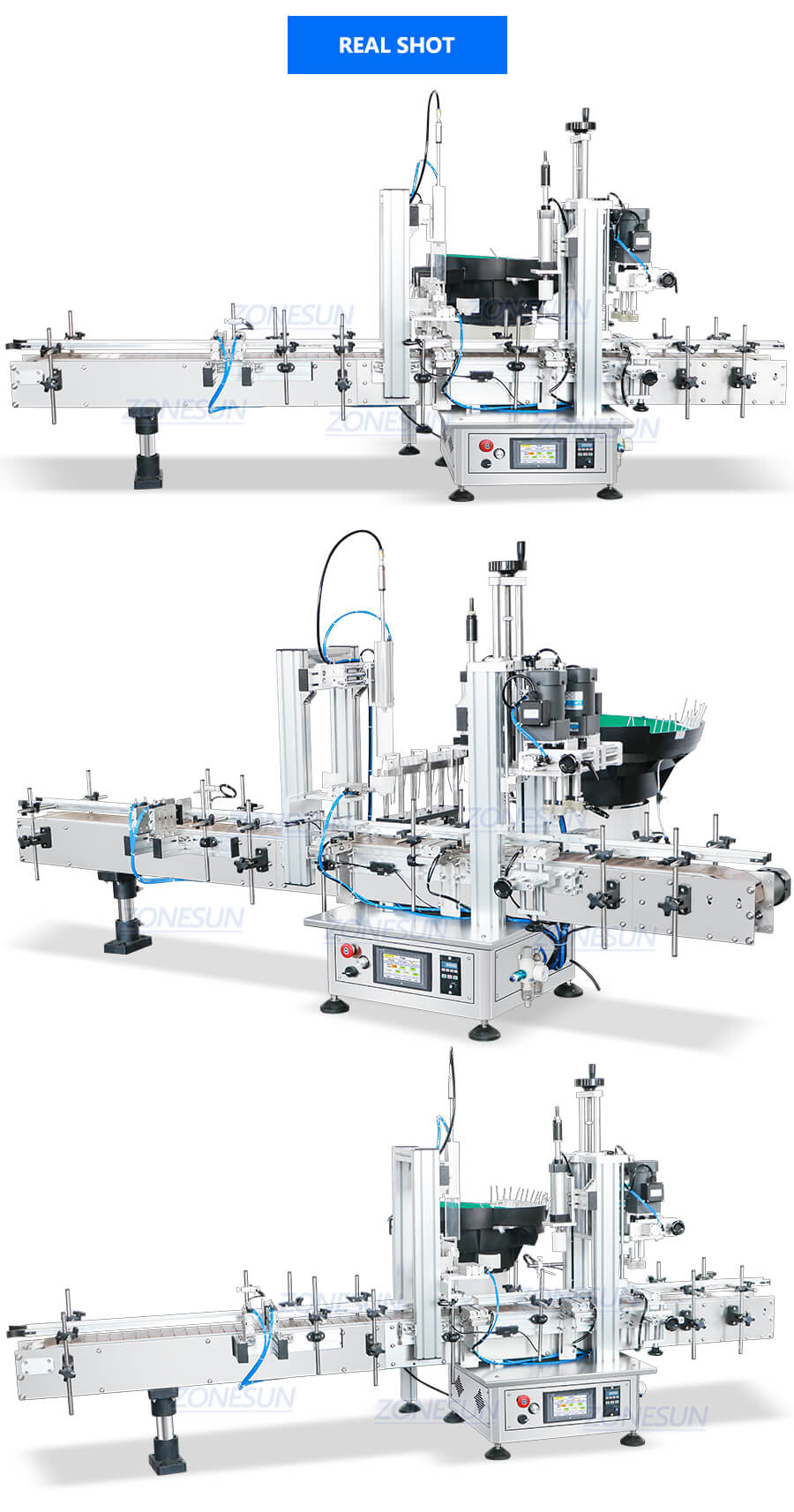

ZONESUN ZS-XG1870S Desktop Cosmetic Spray Bottle Capping Machine

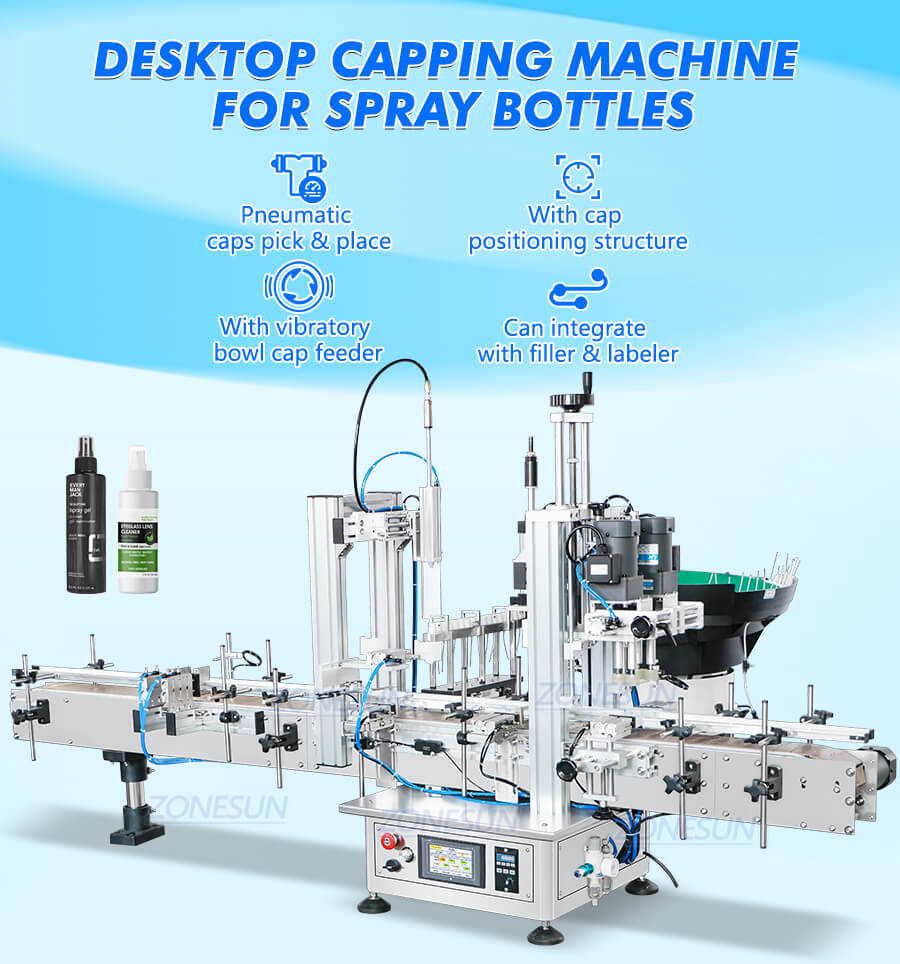

This desktop capping machine is specially designed for spray bottles. It uses a pneumatic suction system to pick and place caps with high precision. The cap positioning structure avoids cap misplacement caused by long spray tubes. Equipped with a vibratory bowl feeder, it ensures efficient cap feeding, ideal for hair oil, mosquito repellent, and cleaning sprays.
Original price was: $6,599.00.$6,199.00Current price is: $6,199.00.
Share to
This desktop capping machine is specially designed for spray bottles. It uses a pneumatic suction system to pick and place caps with high precision. The cap positioning structure avoids cap misplacement caused by long spray tubes. Equipped with a vibratory bowl feeder, it ensures efficient cap feeding, ideal for hair oil, mosquito repellent, and cleaning sprays.
| Machine model | ZS-XG1870S |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | 60-270mm |
| Bottle Caps diameter | 18-70mm |
| Working speed | 15-20 bottles/minute(depending on bottle and caps) |
| Working pressure | 0.4-0.6 MPa |
| Conveyor length | 2000mm |
| Size of air compressor connector | OD 8mm |

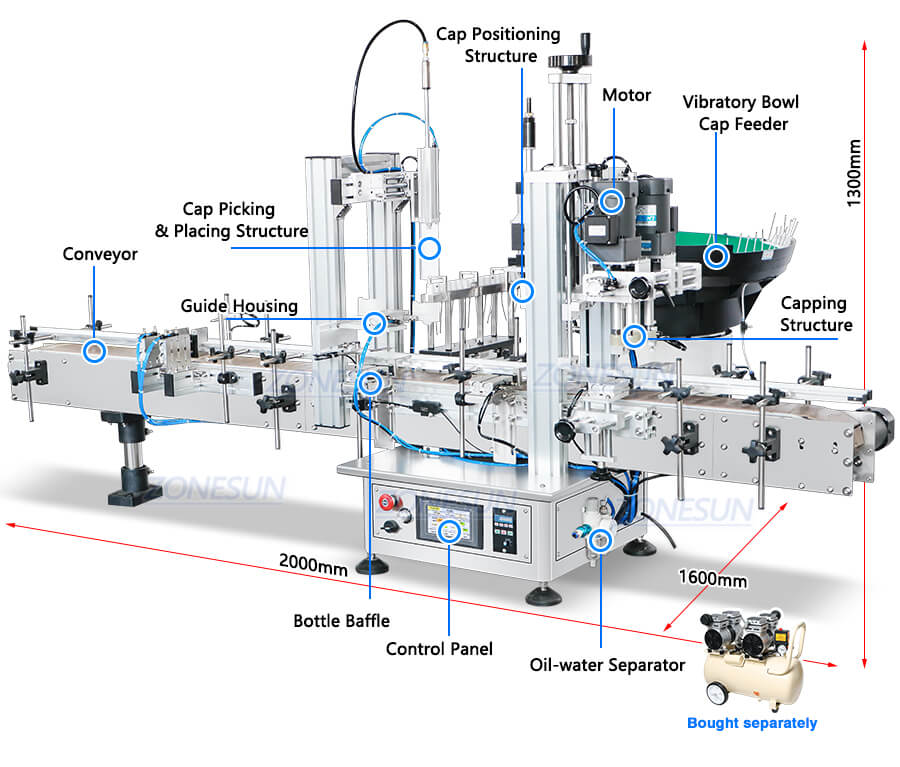

| Machine size | About 2000*1600*1300mm(L*W*H) |
| Package size | About 1170*780*1290mm(Main Machine) About 710*690*670mm(Vibratory Bowl Sorter) |
| Package weight | About 130kg(Main Machine) About 50kg(Vibratory Bowl Sorter) |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |

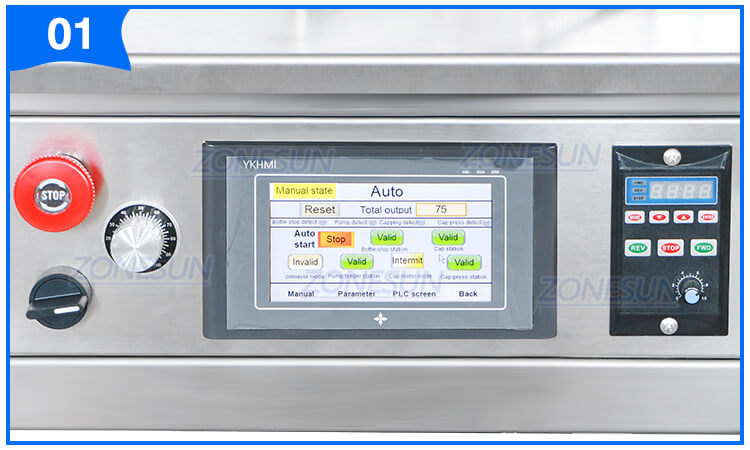

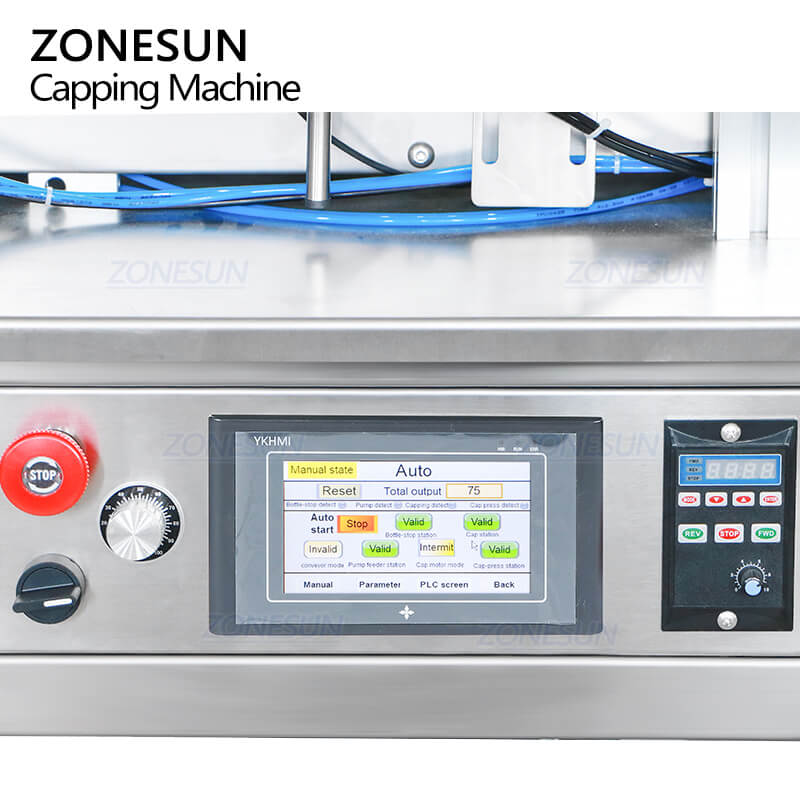

Control Panel
Touch screen control panel provides intuitive operation, allowing quick parameter adjustment for different bottle sizes & caps.

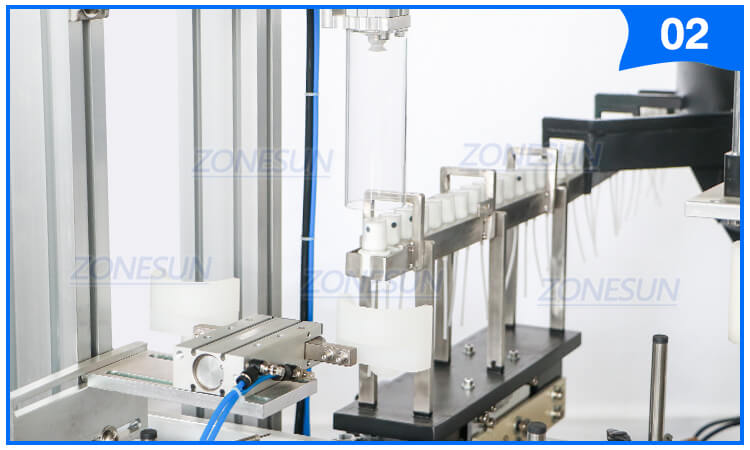

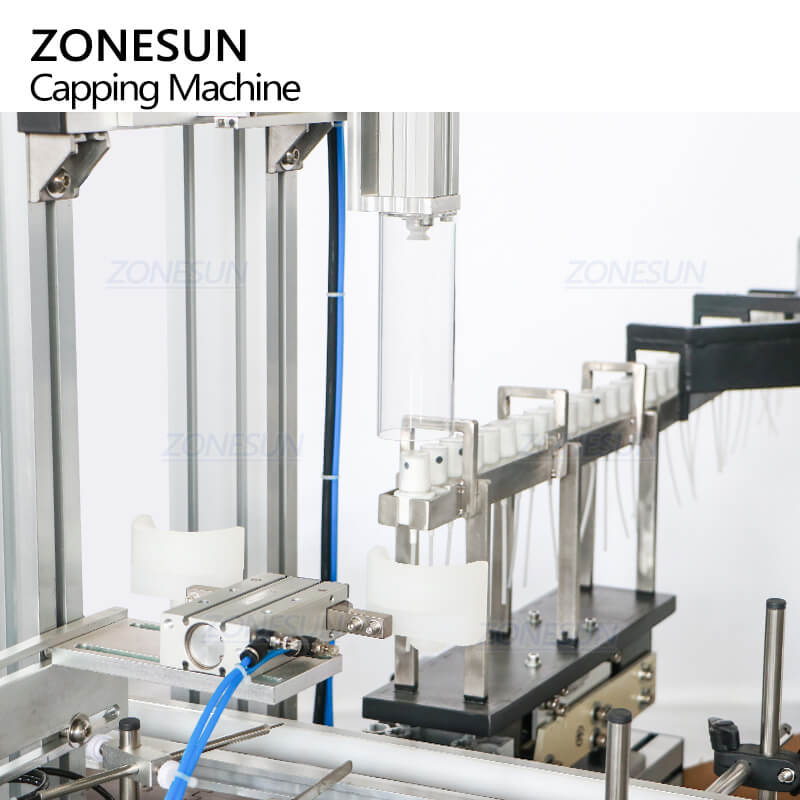

Cap Picking & Placing Structure
Uses suction cups to accurately pick and place caps, ensuring stable and precise capping.

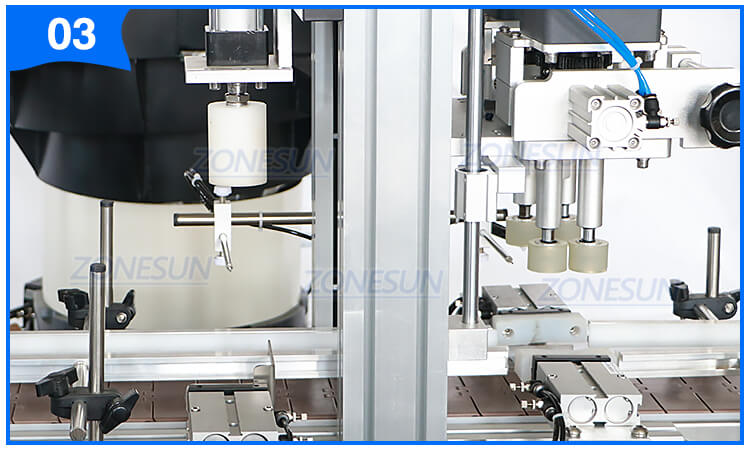

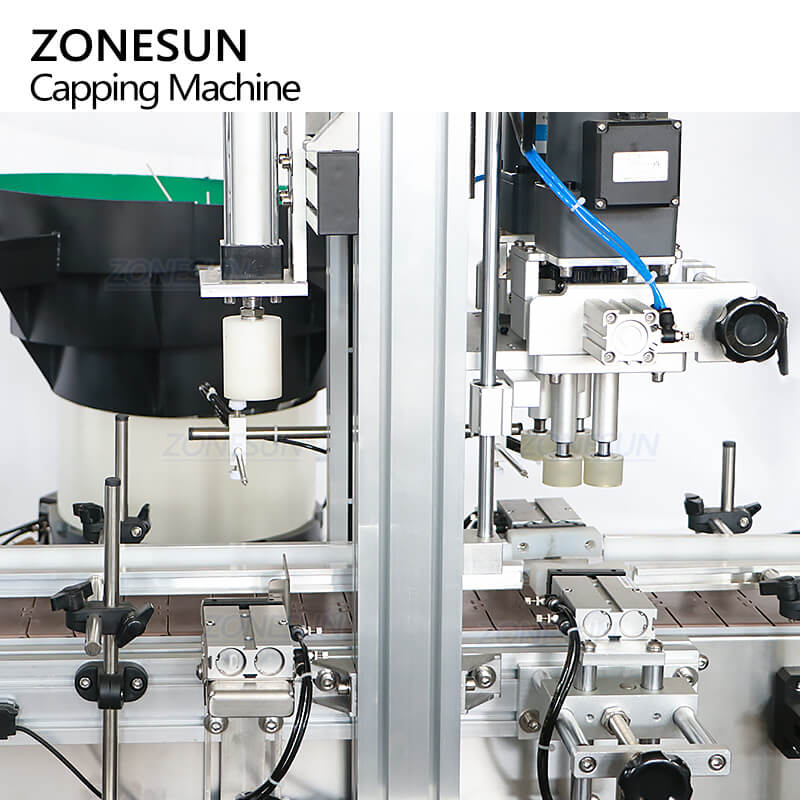

Cap Positioning & Capping Structure
Aligns bottles and corrects caps before final tightening, preventing misalignment caused by long spray tubes.

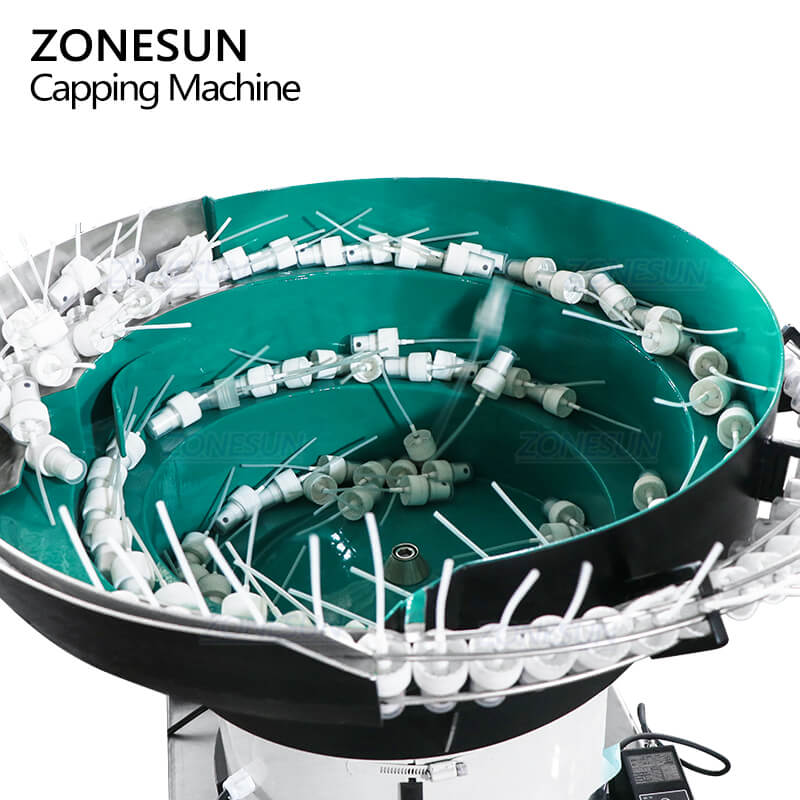

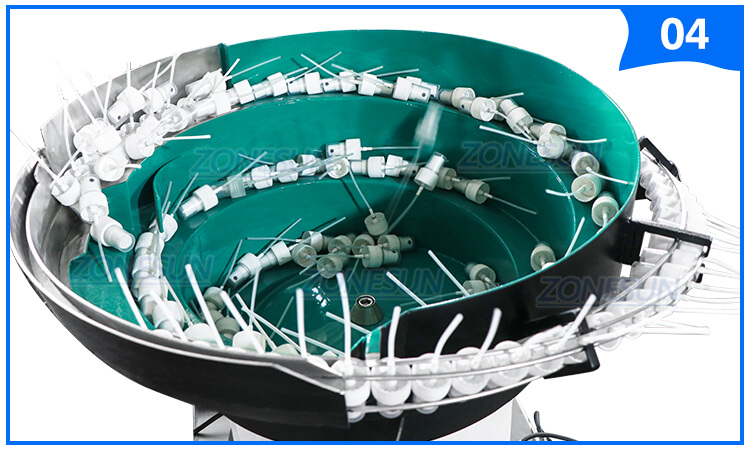

Vibratory Bowl Feeder
Automatically supplies caps in time, maintaining continuous operation without manual feeding.

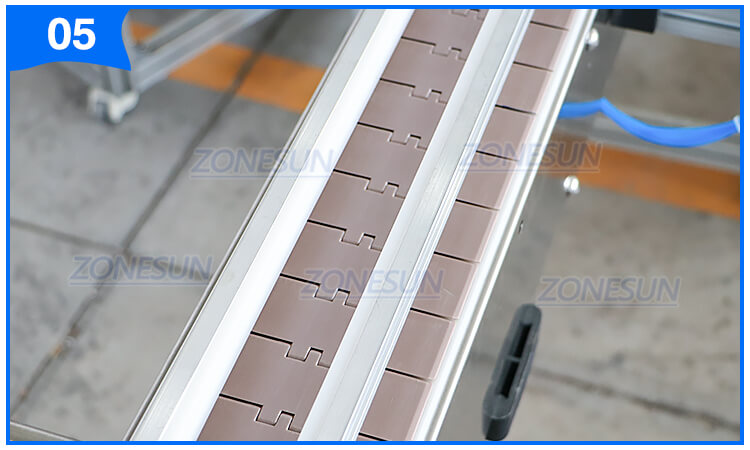

Chain Plate Conveyor
Smoothly transports bottles through the capping process, suitable for integration with filling and labeling lines.
