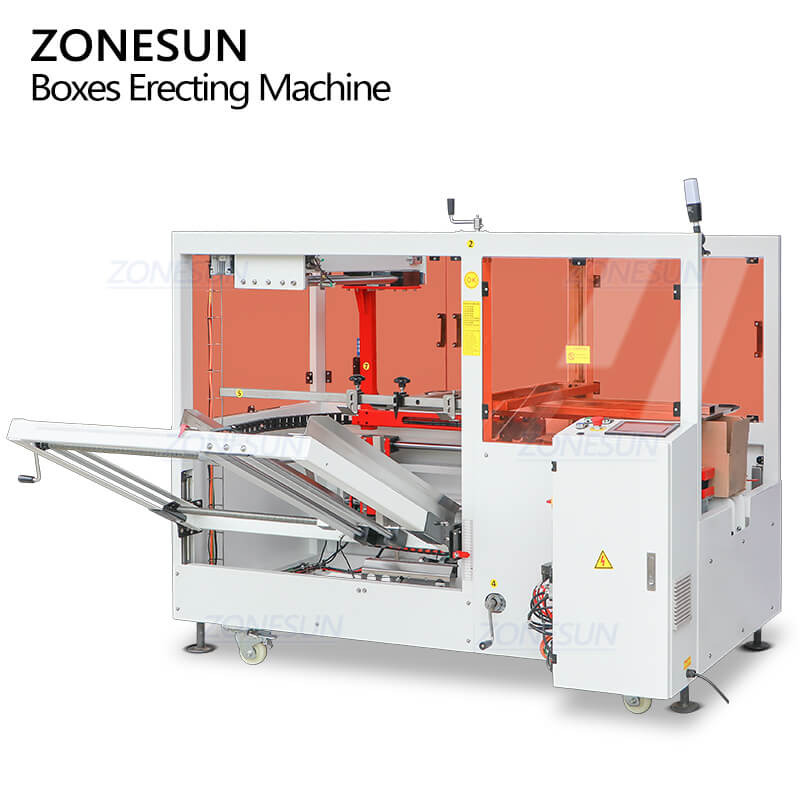

ZONESUN ZS-SVCF70H Servo Automatic Carton Folding Erector Machine
$7,399.00
Share to
This servo-driven carton erector ensures efficient and precise box forming, bottom sealing, with easier and quicker changeover for different carton sizes. It features alarm functions for missing tape or cartons, stable performance after adjustments. It is suitable for packaging lines in food, beverage, and industrial sectors.
|
Machine Model
|
ZS-SVCF70H
|
|
Power Supply
|
220V 50Hz 1.9KW
|
|
Air Pressure
|
5–6 kg/cm²
|
|
Air Consumption
|
280 NL/min
|
|
Applicable Carton Size
|
280–600*180–400*150–400 mm(L*W*H)
|
|
Tape Width
|
48–72 mm
|
|
Working Speed
|
5–15 cartons/min
|
|

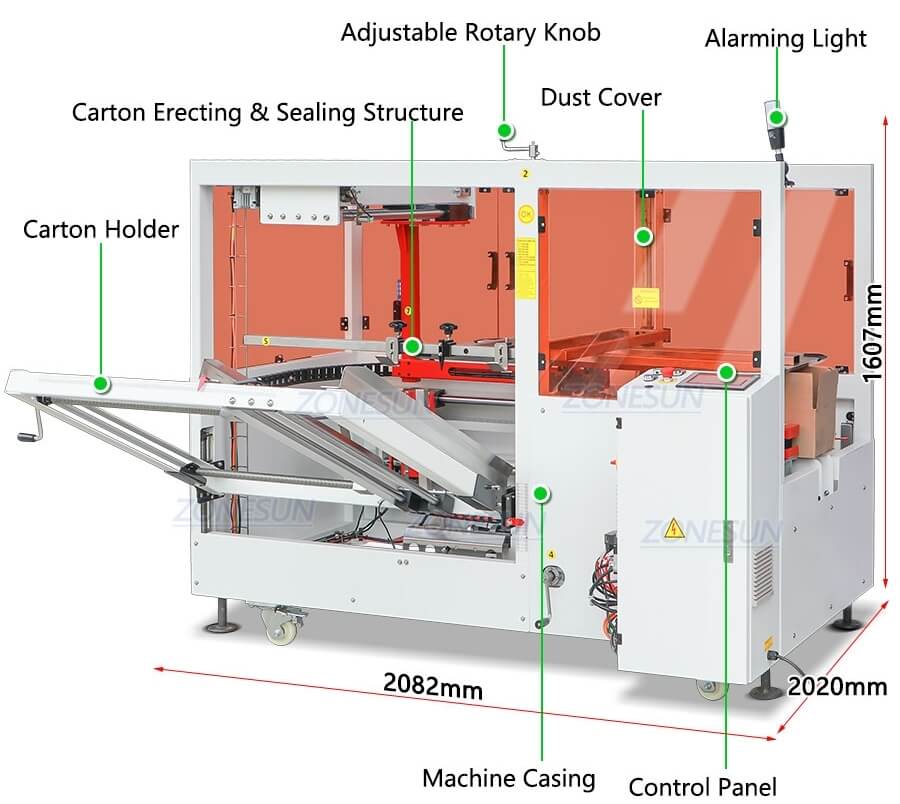

Machine Dimensions
|
About 2082*2020*1607 mm(L*W*H)
|
|
Package Size
|
About 2260*1420*1770mm(L*W*H)
|
|
Package Weight
|
About 730kg
|

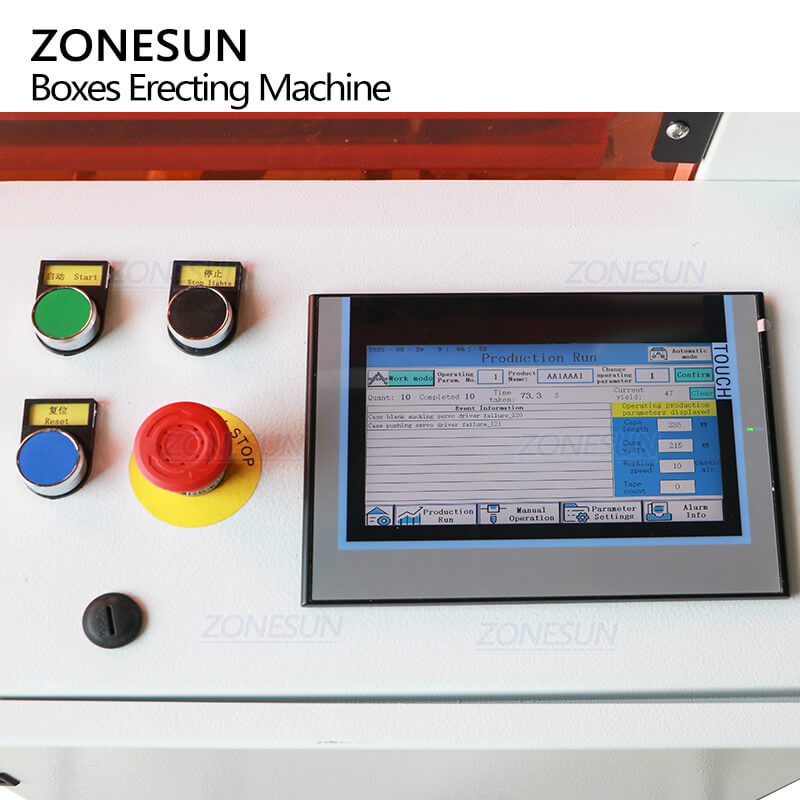

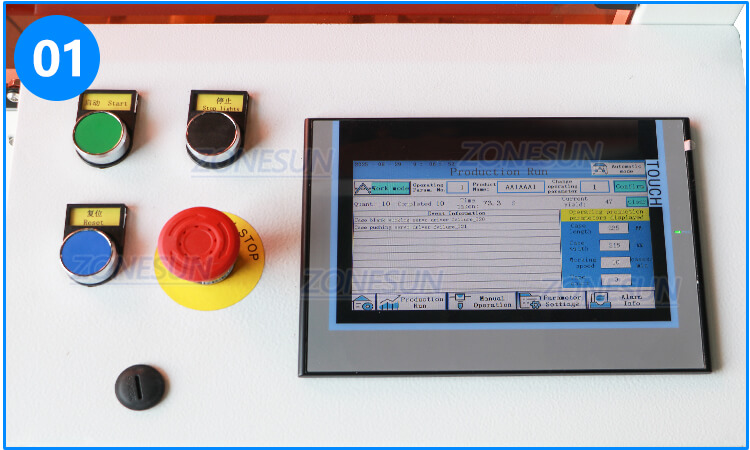

Touchscreen Panel
Intuitive interface for easy operation and quick size switching.

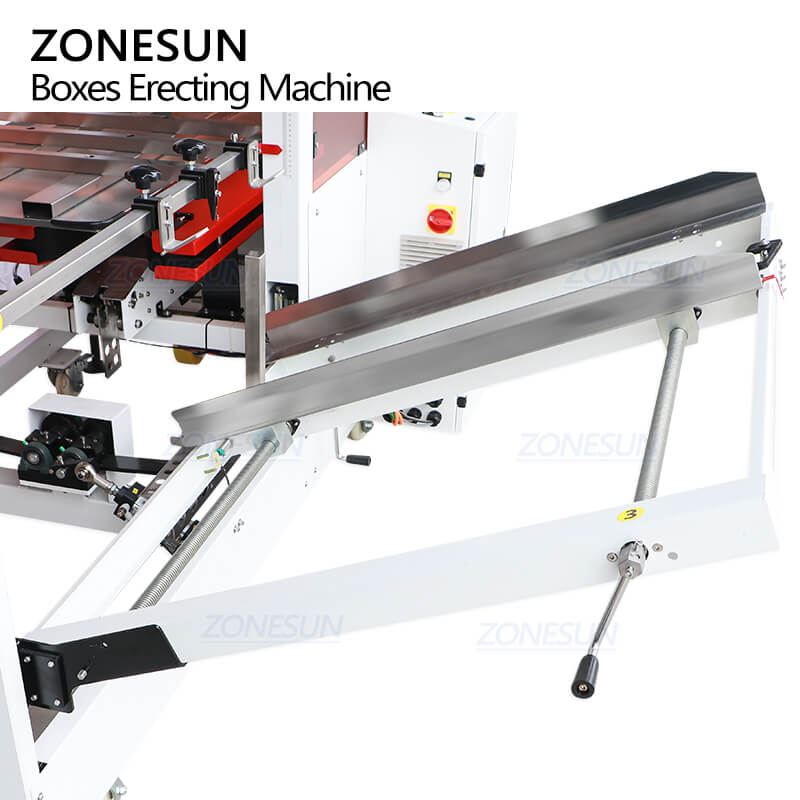

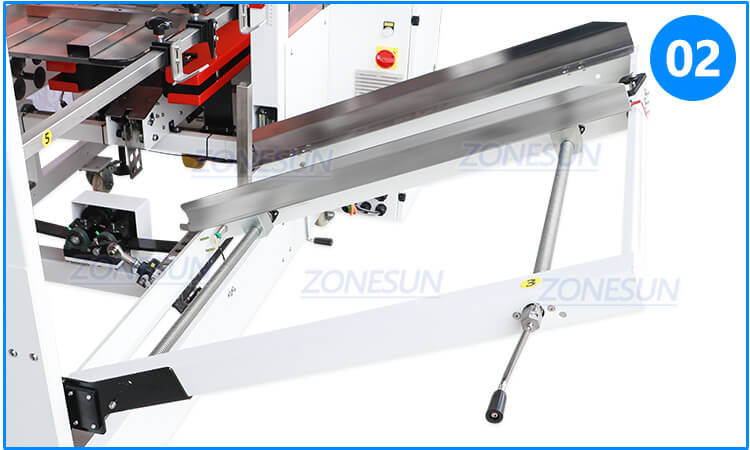

Carton Holder
Adjustable as carton size, holds up to 50 cardboard sheet, makes it refillable at any time.

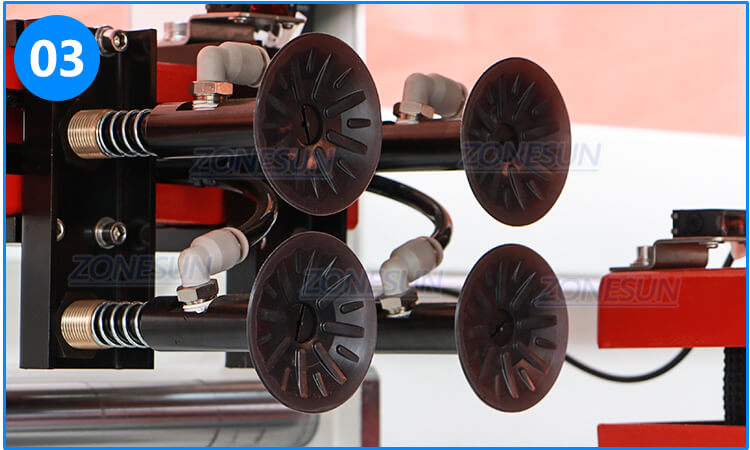

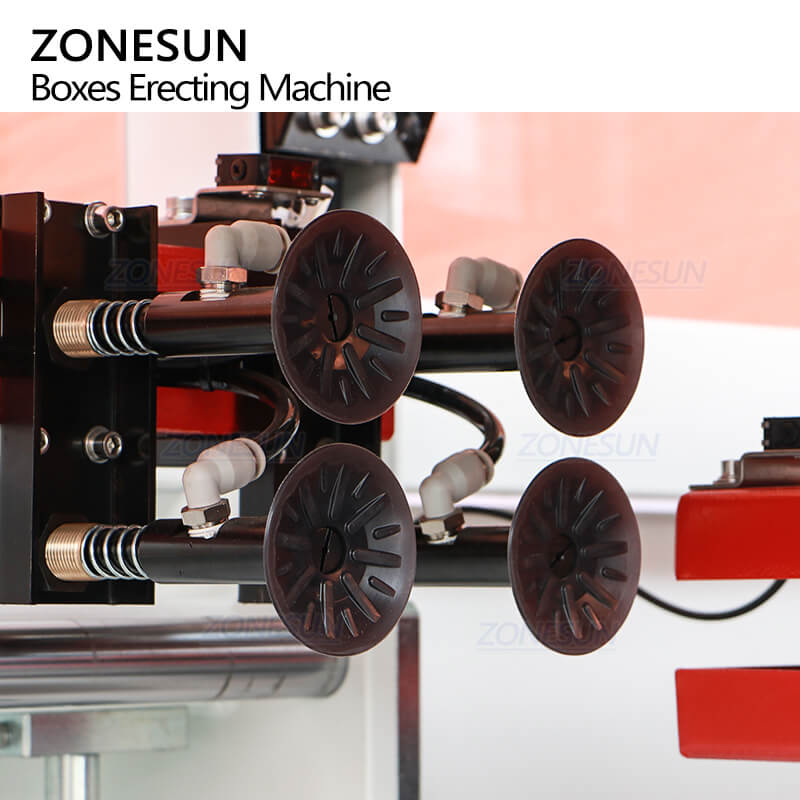

Suction Cup
Reliably pick up cardboard sheet and open them smoothly during the erecting process, ensuring accuracy and stability.

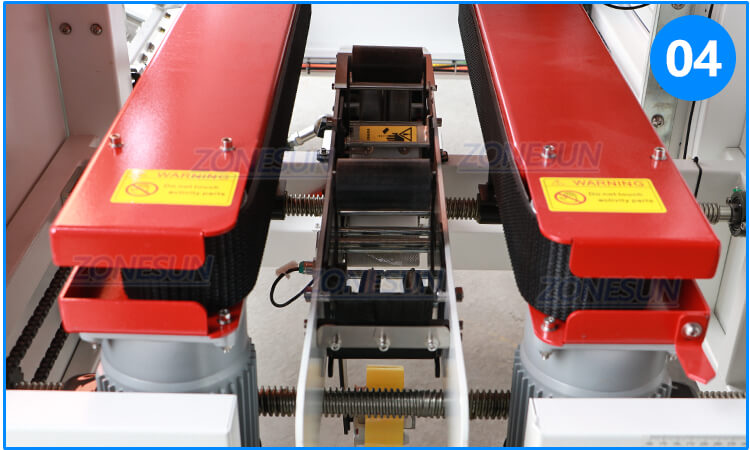

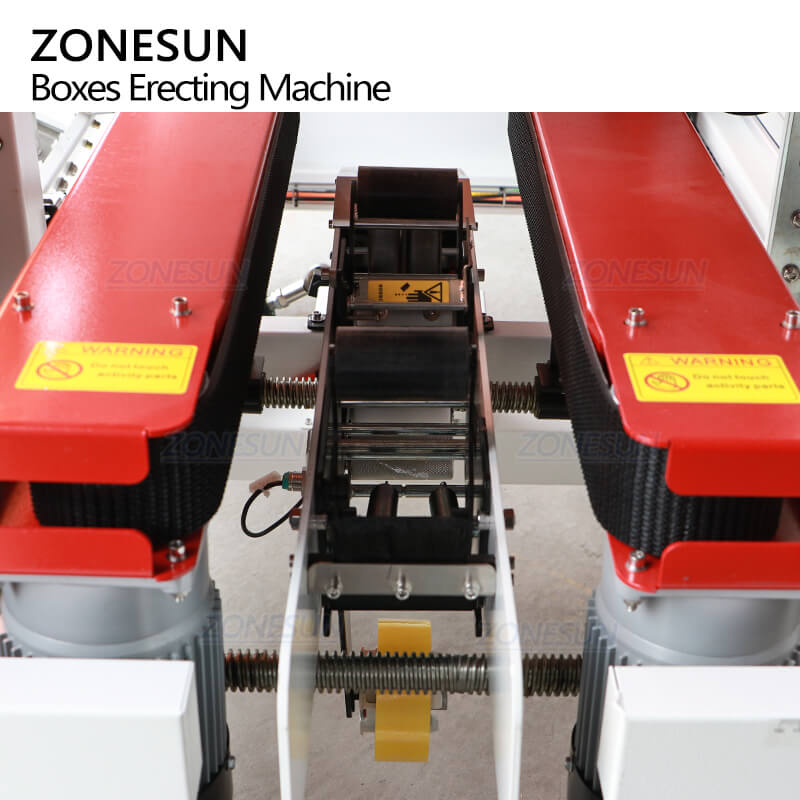

Sealing Structure
Applies tape neatly to seal carton bottoms, adjustable for different sizes of cartons.

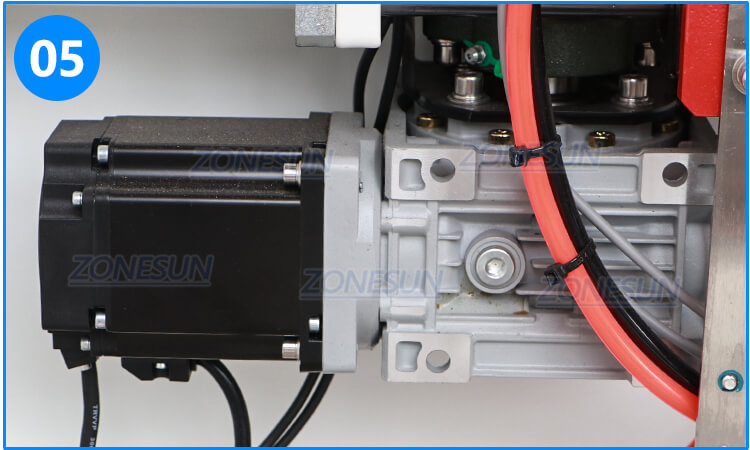

Servo Motor
Provide precise, flexible, and reliable motion control, offer higher working capacity.

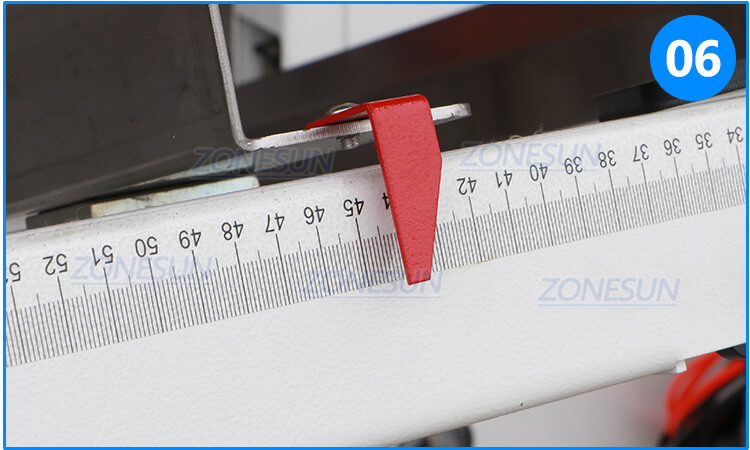

Frame Scales
Clear markings for manual adjustments of width and height.
