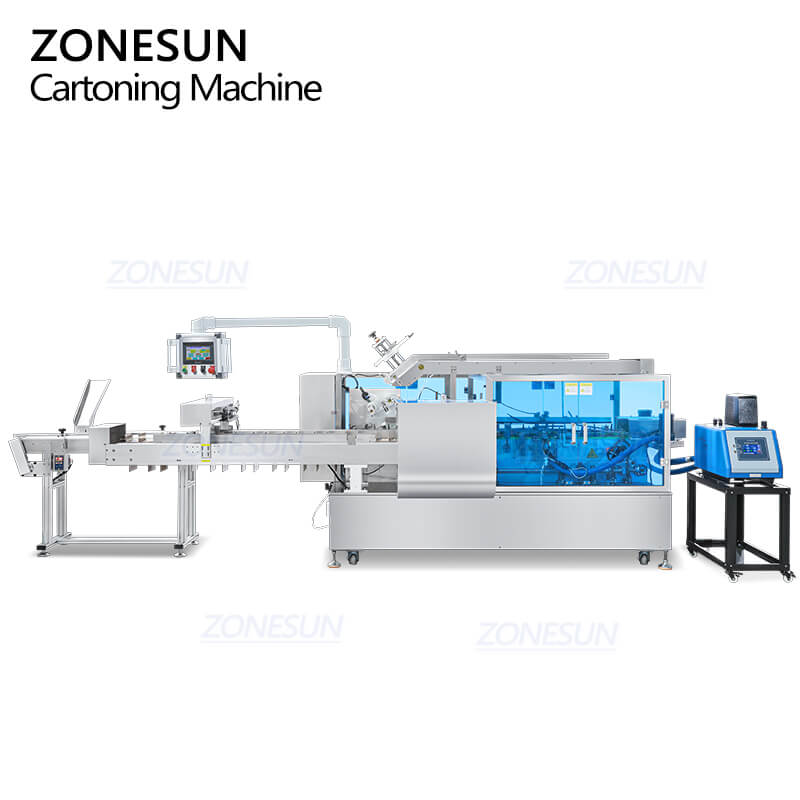

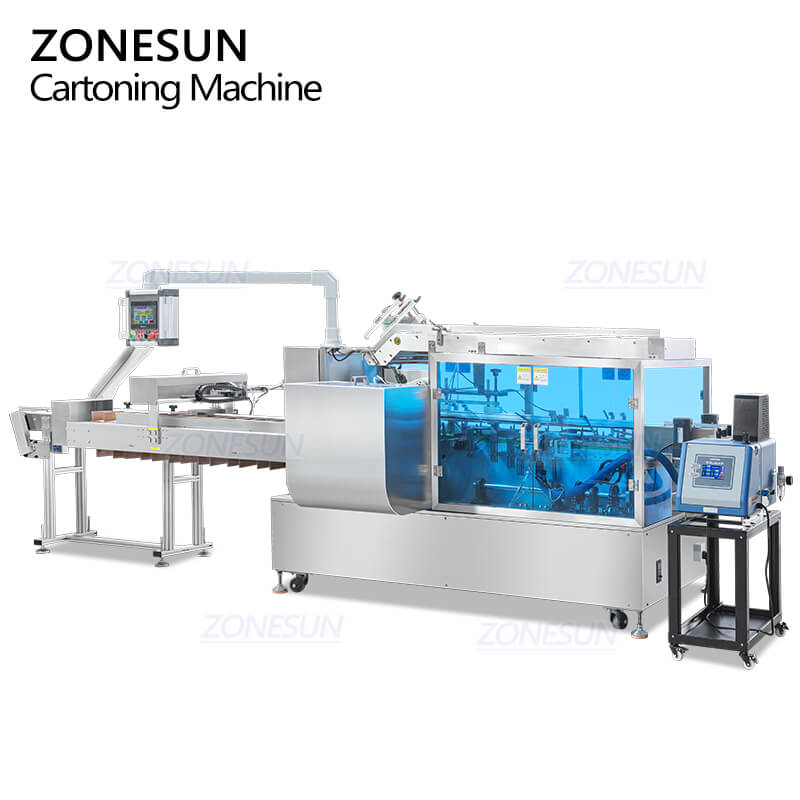

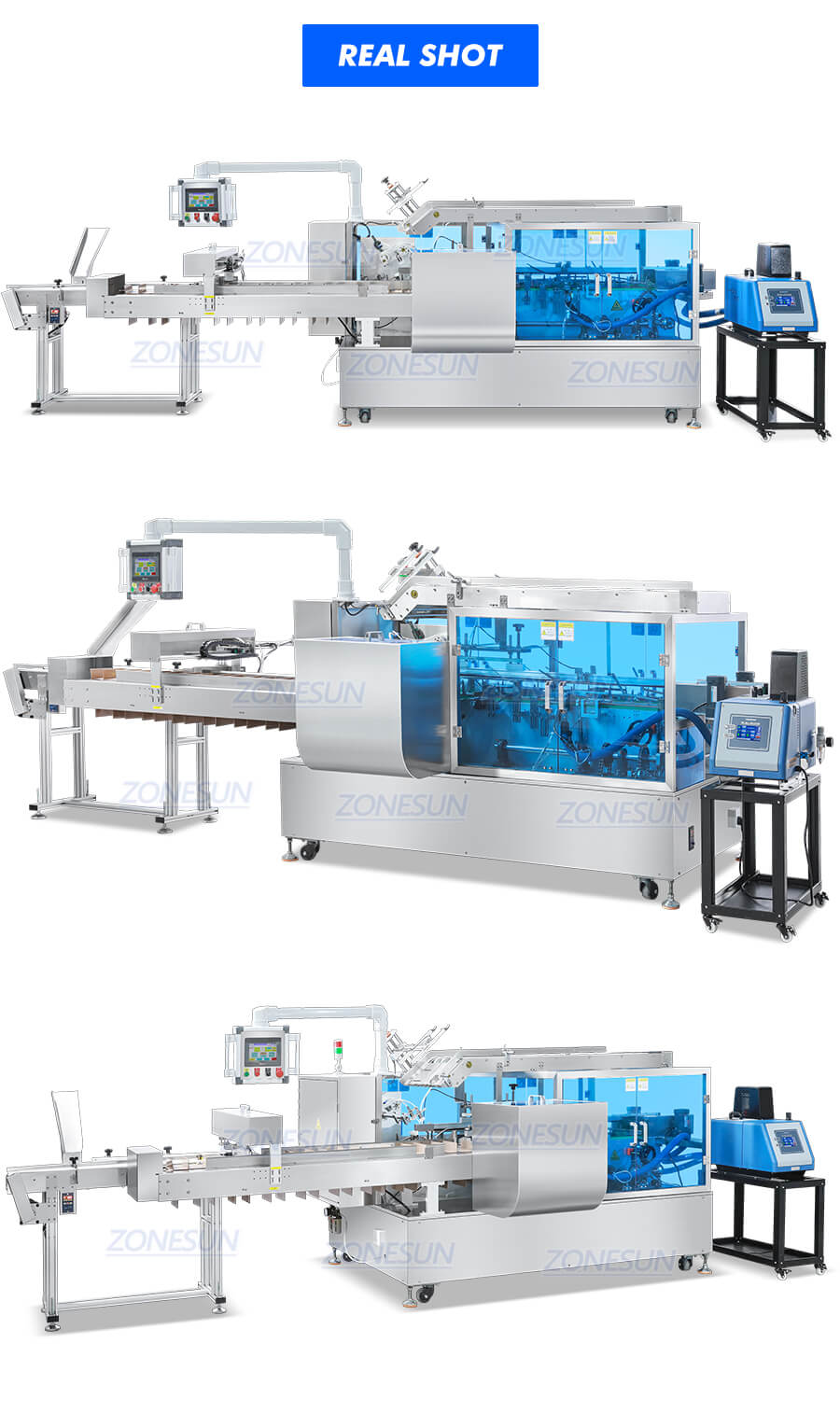

ZONESUN ZS-MSZH70 Hot Melt Glue Horizontal Cartoning Machine

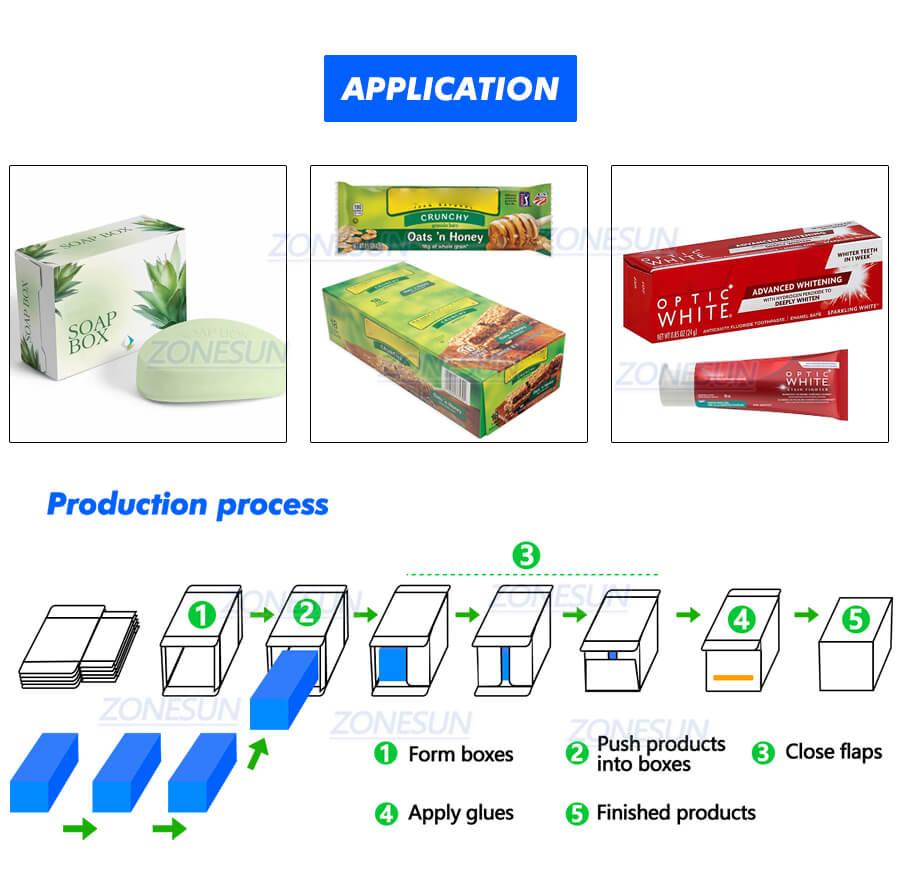

This automatic cartoning machine can complete product conveying, automatic box opening and feeding, automatic insertion of materials into the carton, and final sealing of both ends of the carton flaps. The machine’s transmission system is equipped with overload protection and an emergency stop device to ensure operator safety.
$35,999.00
Share to
This automatic cartoning machine can complete product conveying, automatic box opening and feeding, automatic insertion of materials into the carton, and final sealing of both ends of the carton flaps. The machine’s transmission system is equipped with overload protection and an emergency stop device to ensure operator safety.
| Machine Model | ZS-MSZH70 |
| Power Supply | 220V/110V 50-60Hz 1.5kW |
| Working Speed | About 80 boxes/min |
| Box Material Requirements | 300-450g/m²(350g/m² will be best) Carton indentation should be ≥0.4mm, with pre-folding effect) |
| Box Size | (L)90-200mm*(W)30-80mm*(H)20-50mm
(Can be customized according to customer requirements) |

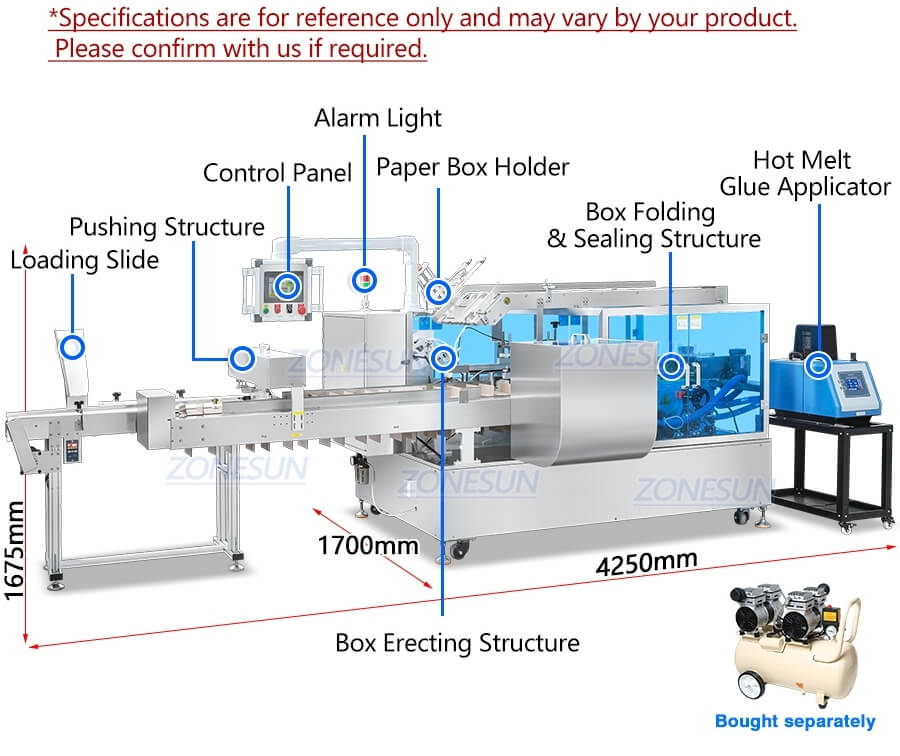

| Machine Size | About 4250*1700*1675mm(L*W*H) |
| Machine Weight | About 750kg |

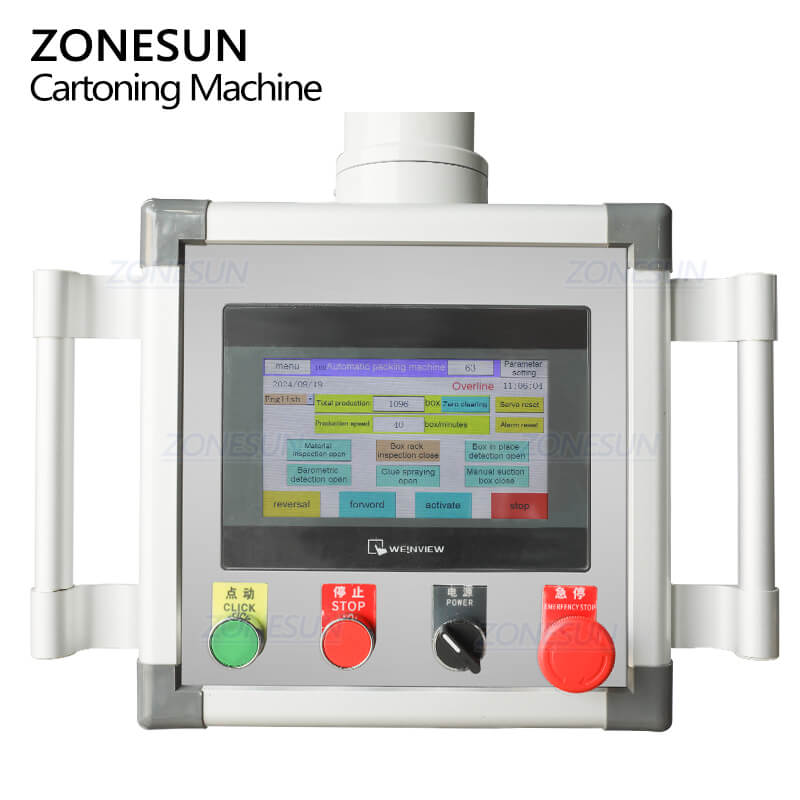

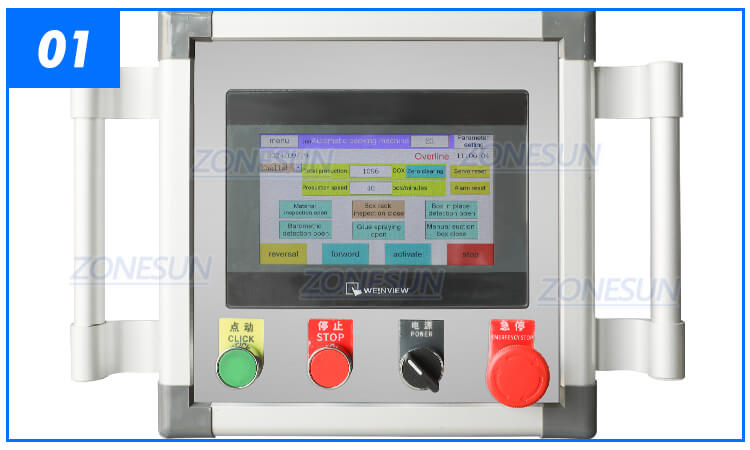

Swing Arm Control Panel
More convenient to test and adjust parameter settings. Customizable interface simplifies machine operation.

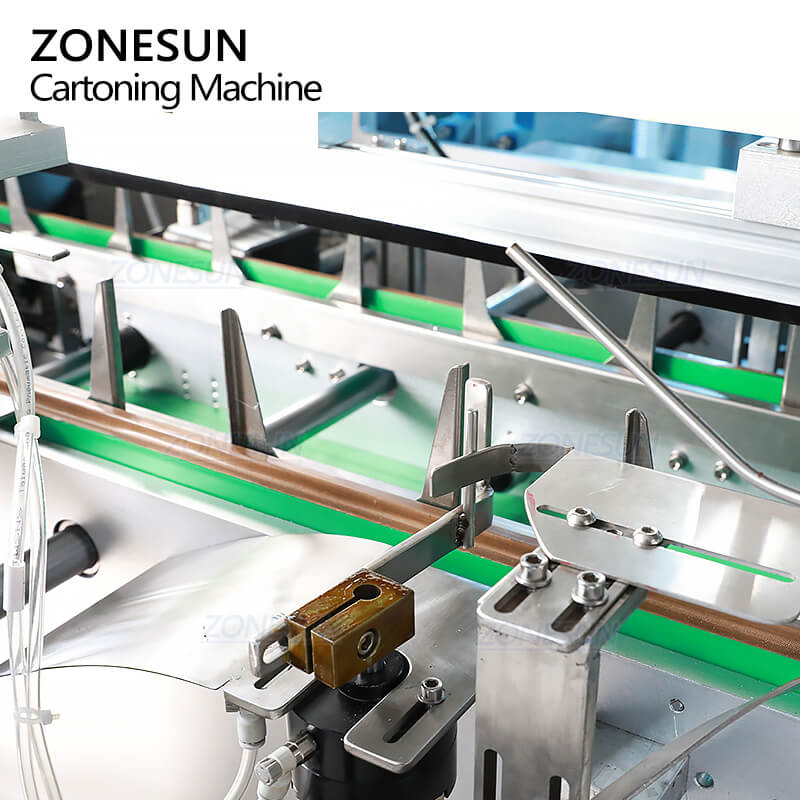

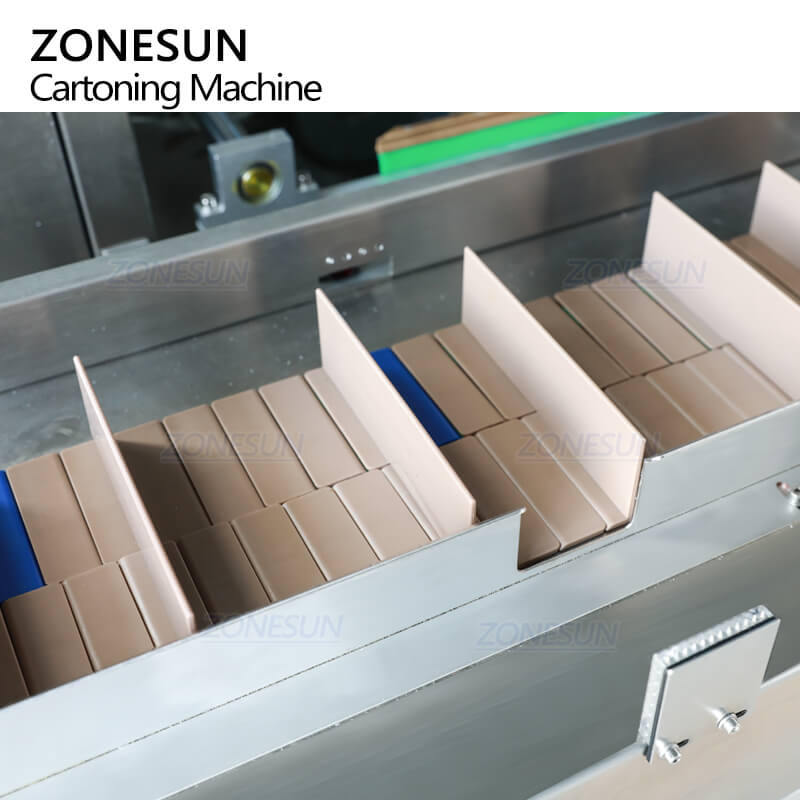

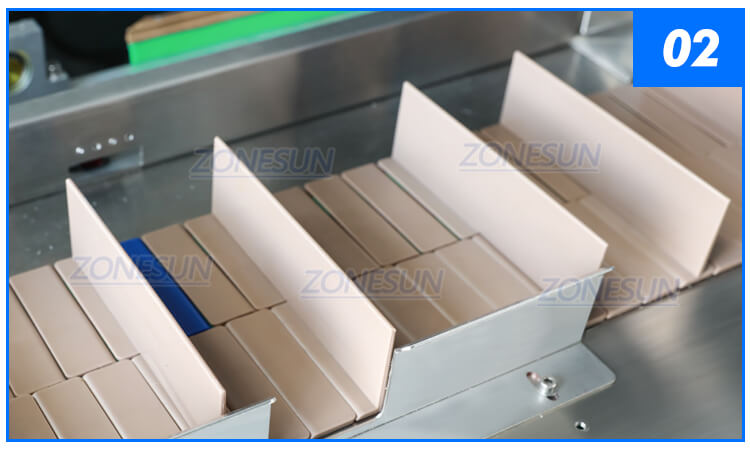

Material Positioning
Can fix packaging materials in a certain position to avoid displacement.

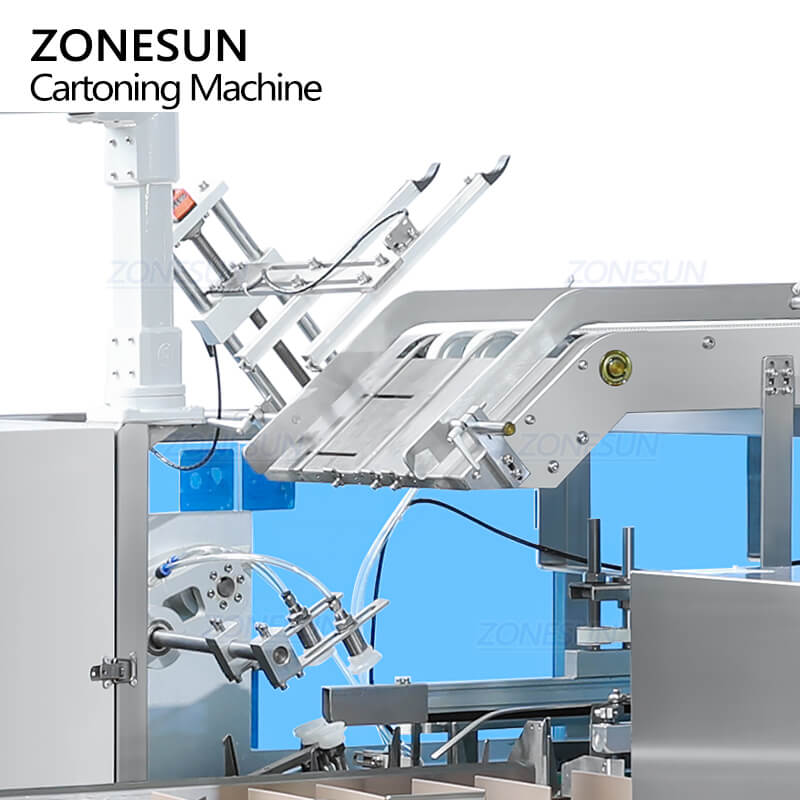

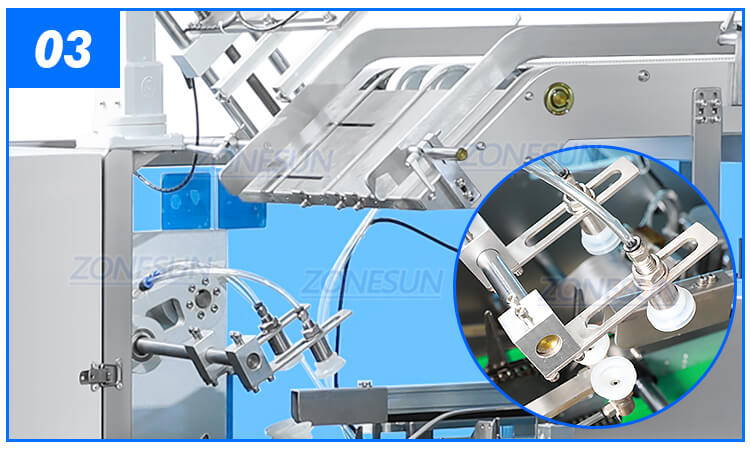

Box Holder
Can be adjusted according to box size. The suction cup helps to pull folded boxes and realize automated work.

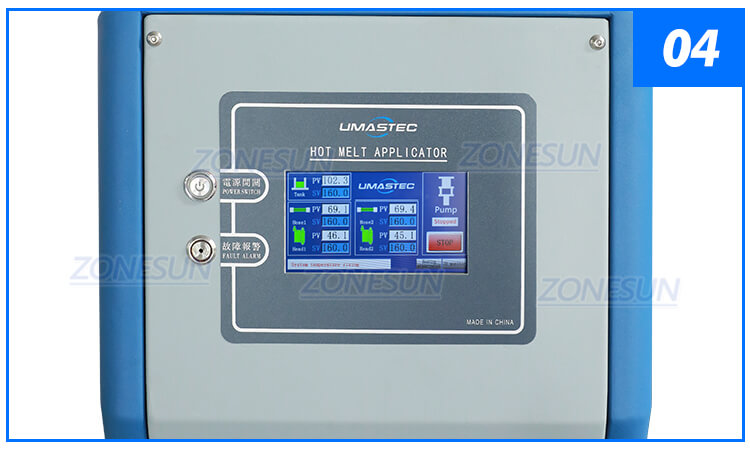

Hot Glue Applicator
Can heat glues automatically, and heating temperature can be adjusted as production need.

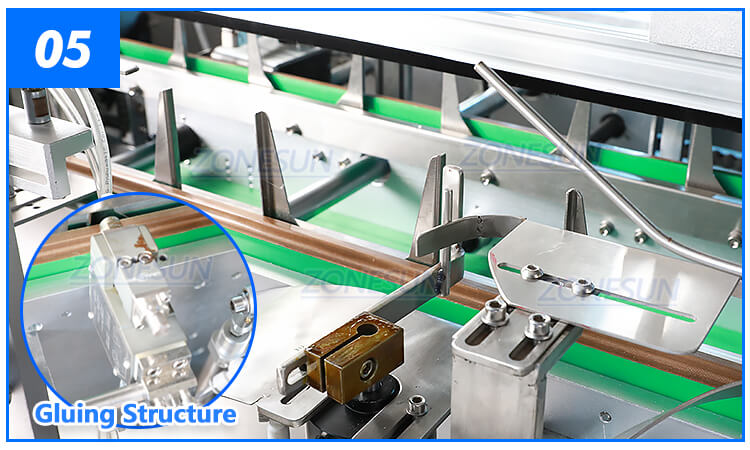

Box Sealing Structure
Can close the boxes and apply hot melt glue to flaps, ensuring secure sealing.
