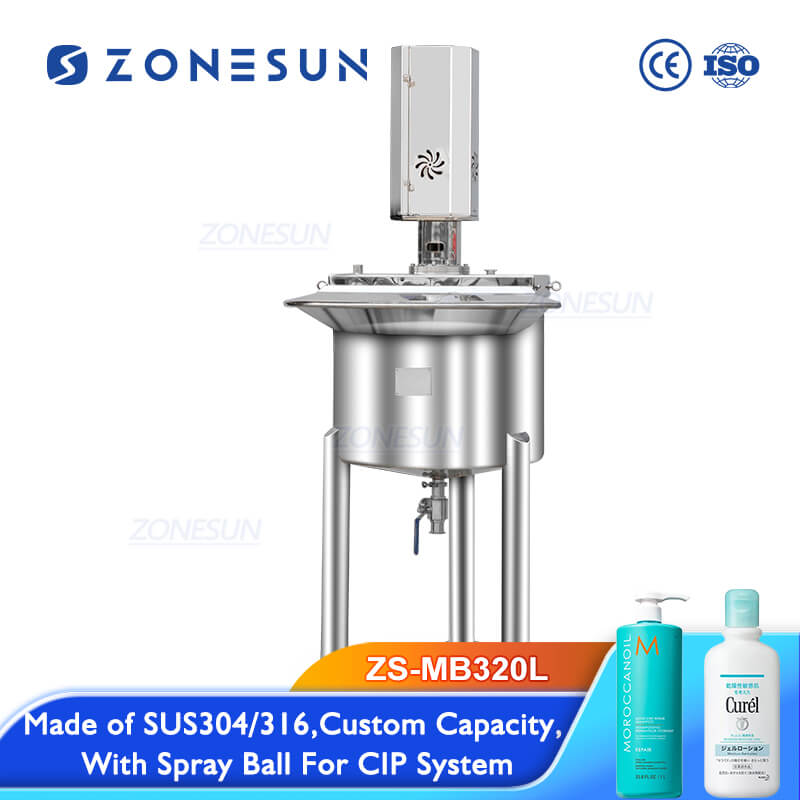

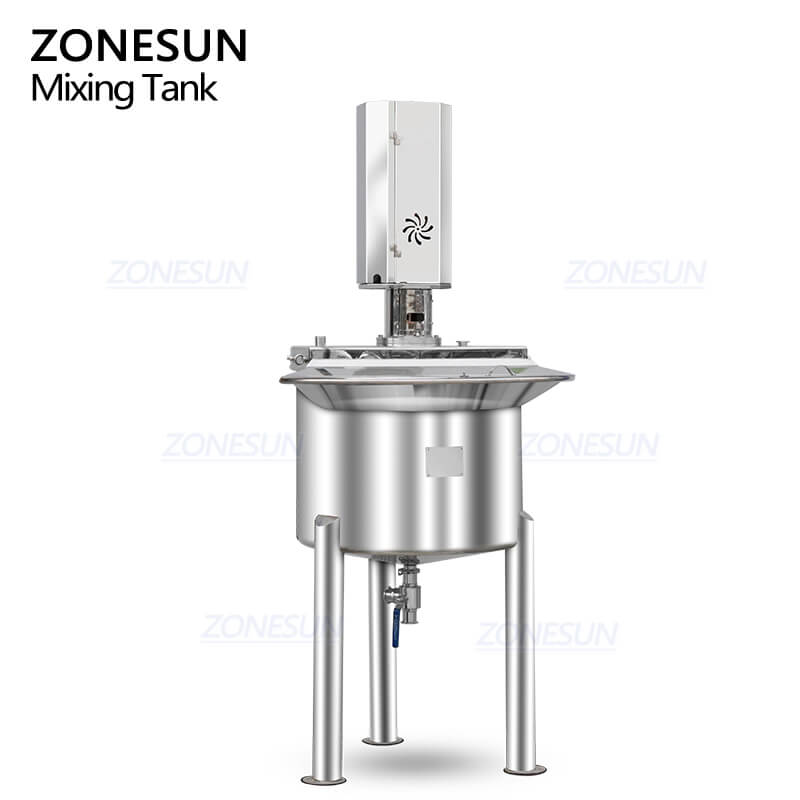

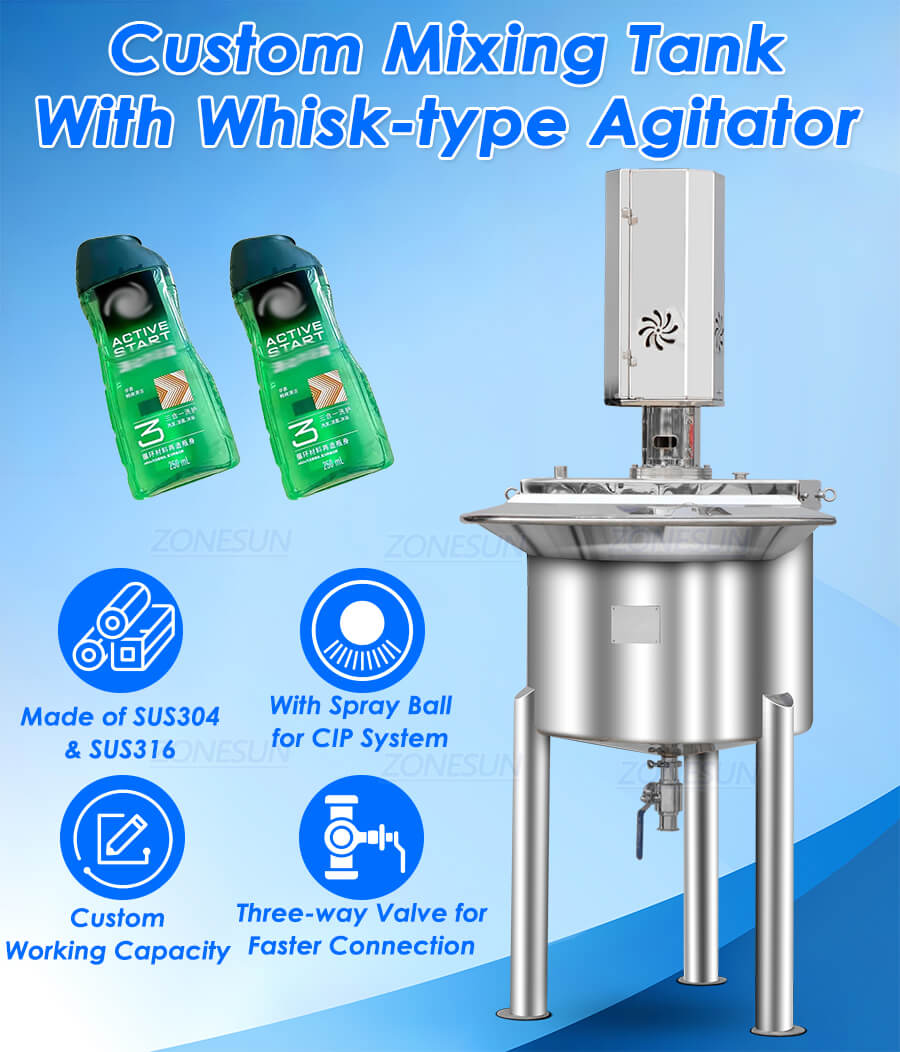

ZONESUN ZS-MB320L Mixing Tank With Whisk Type Agitator
This mixing tank features a whisk-type agitator and can be customized to different capacities. Made of SUS304 stainless steel, it is equipped with a quick-release bottom three-way valve for easier connection to filling machines or feeding pump. A built-in spray ball allows integration with a CIP system for cleaning process. This mixing tank suits pretreatment of dishwashing liquid, shampoo, lotion, cosmetic cream, sauces, and condiments.
$4,299.00
Share to
This mixing tank features a whisk-type agitator and can be customized to different capacities. Made of SUS304 stainless steel, it is equipped with a quick-release bottom three-way valve for easier connection to filling machines or feeding pump. A built-in spray ball allows integration with a CIP system for cleaning process. This mixing tank suits pretreatment of dishwashing liquid, shampoo, lotion, cosmetic cream, sauces, and condiments.
| Model | ZS-MB320L |
| Voltage | hree-phase 415V 50Hz(Customizable) |
| Capacity | 320L (Can be customized) |
| Wall Thickness | 3mm |
| Tank Material | SUS304(Body) SUS316(Feet) |
| Mixing Power | 2.2kW |
| Mixing Speed | 0-206r/min(Can be customized ) |
| Inlet & Outlet Diameter | ⌀25mm(inlet) ⌀40mm(outlet) |
| Spray Ball Diameter | ⌀25mm |
| Optional Functions | Emulsification/Explosion proof/Vacuum/Weighing |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

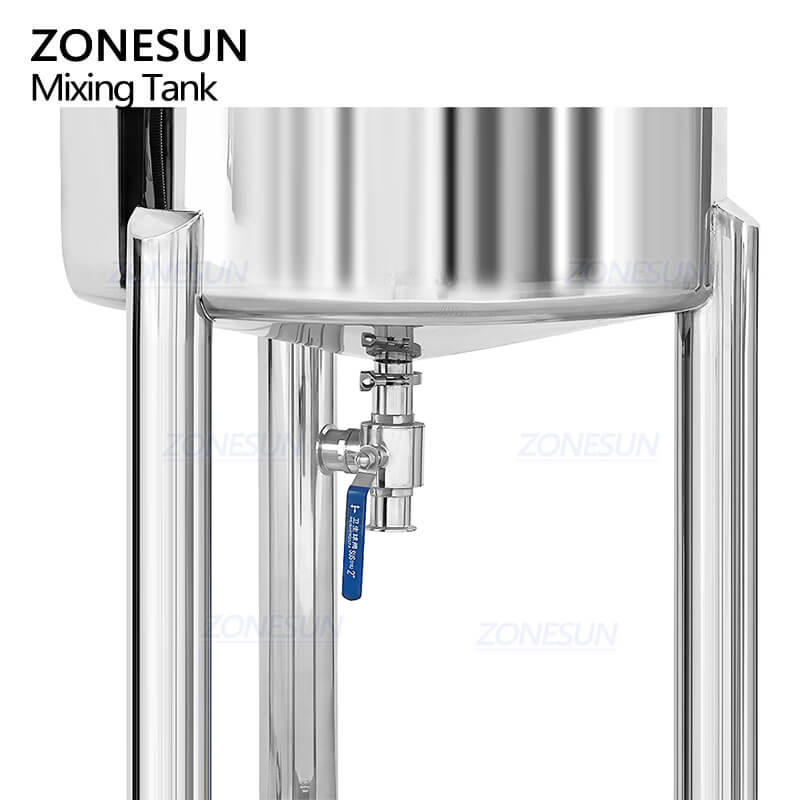

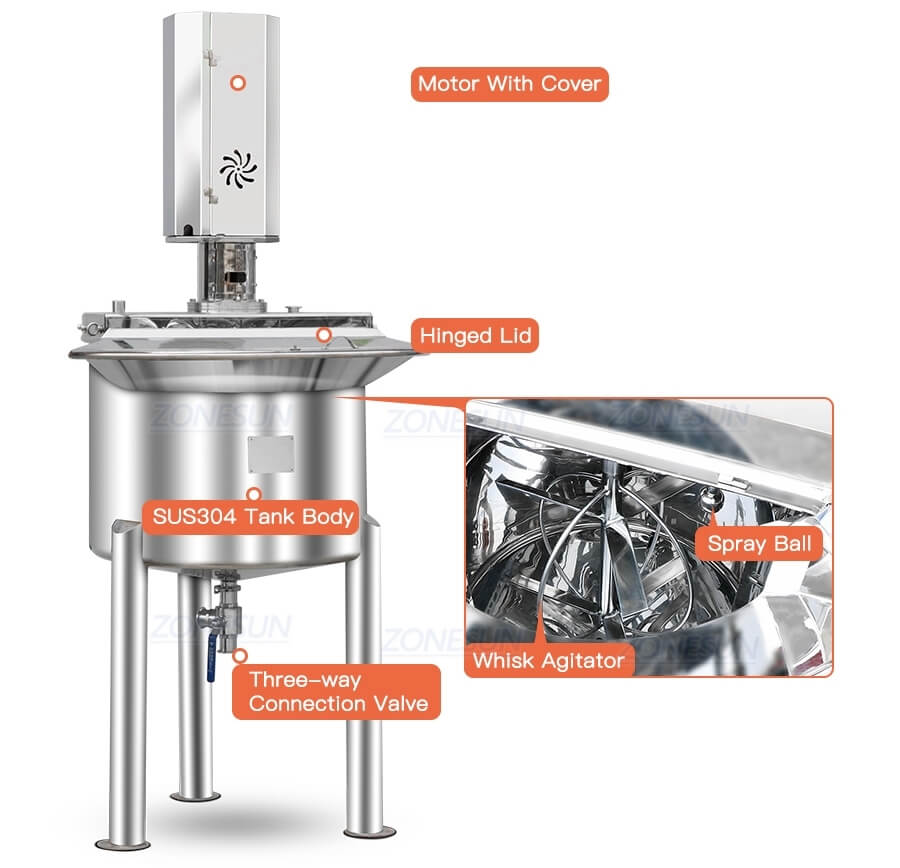

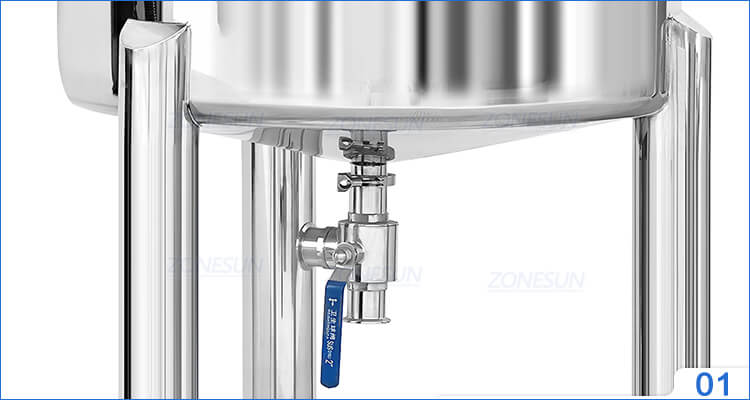

Three-way Valve
Quick-release design simplifies connections to filling machines or pumps.

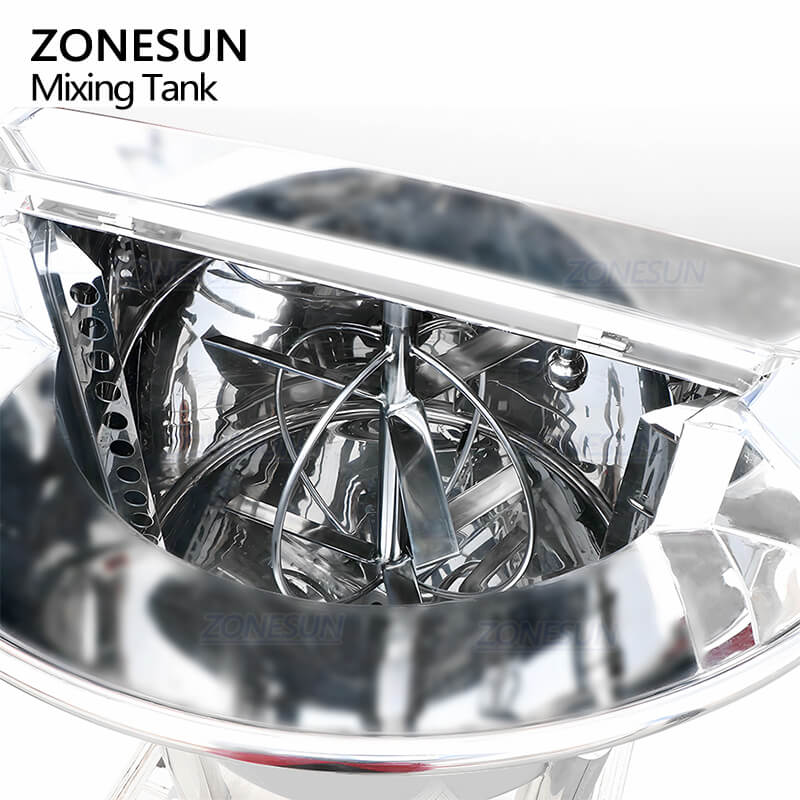

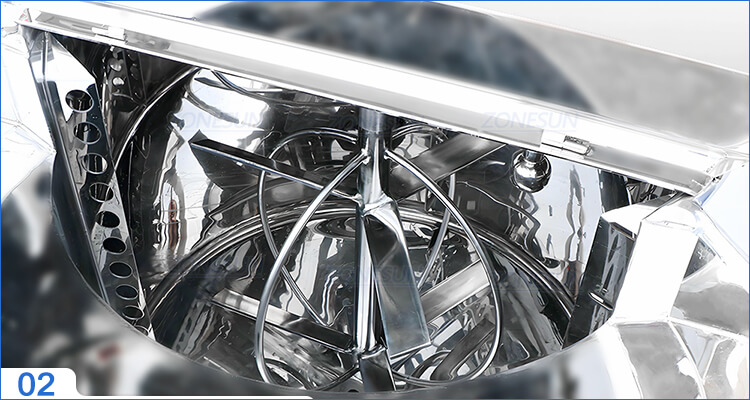

Whisk Agitator
Customizable agitator improves efficiency of pretreatment for liquid or semi-liquid products like cosmetic cream, shampoo, lotion.

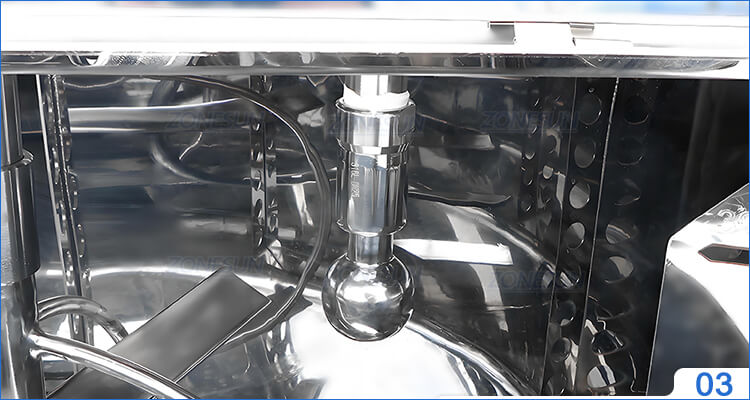

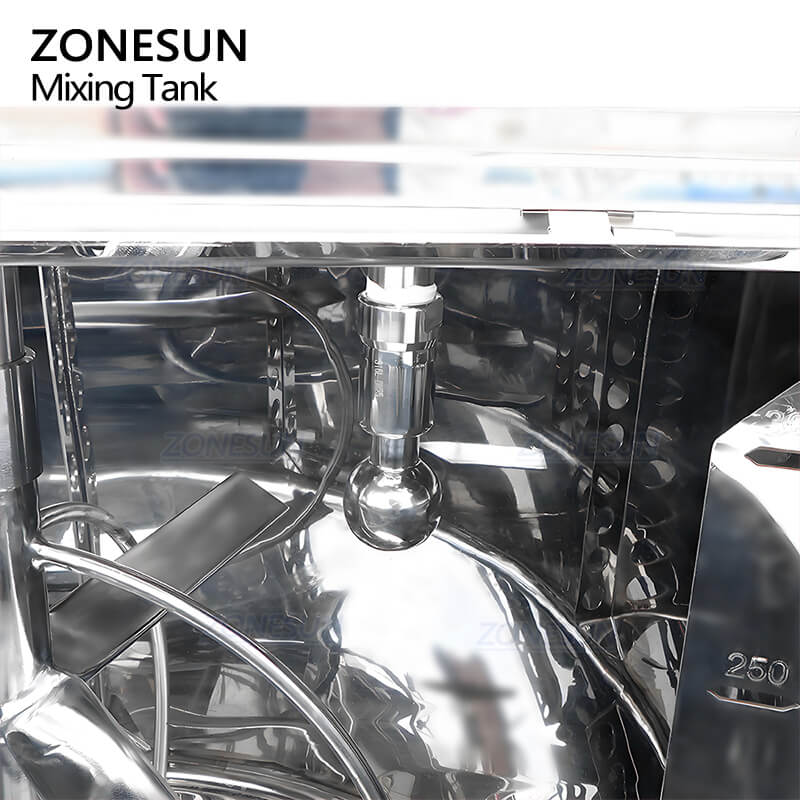

Spray Ball
This is optional for easy connection with CIP cystem, which is designed for cleaning process.

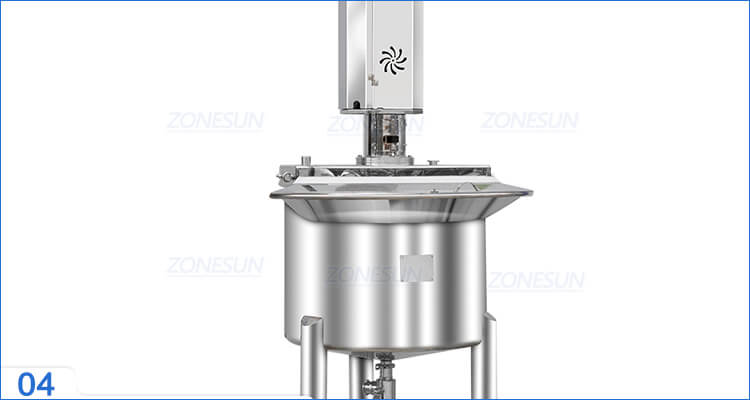

SUS304 Tank Body
Made of durable, food-grade 304 stainless steel, customizable working capacity.
