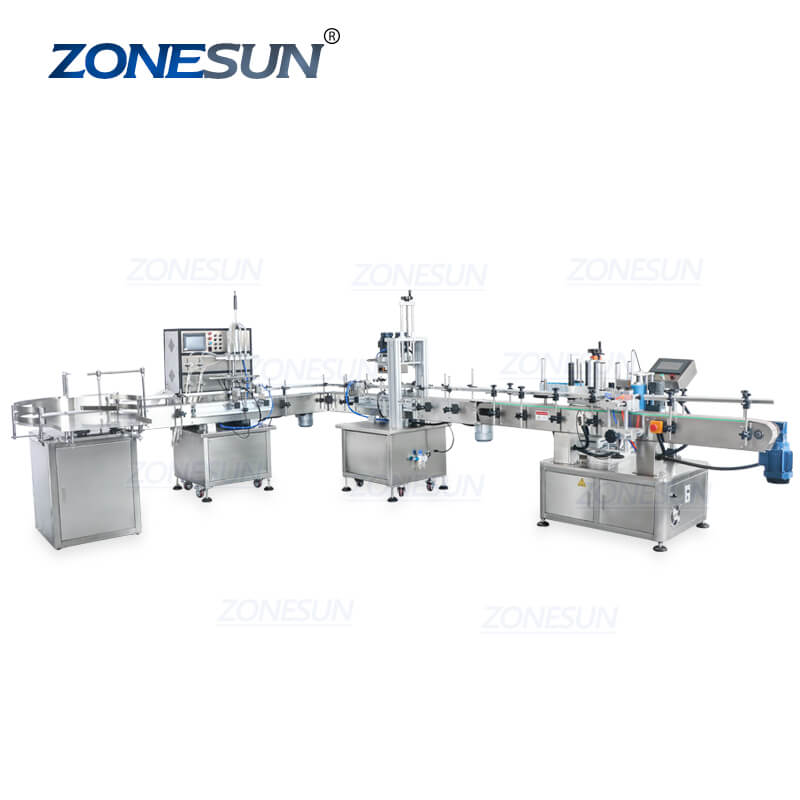

ZONESUN ZS-FAL90 L Configuration Automatic Liquid Filling Capping And Labeling Machine

Mode of transport：Express、Air transportation、Ocean shipping、Land transportation

Payment Options：Credit card、Paypal、Western Union、TT、Alipay、WeChat

Product Detail

Product Tags

Description

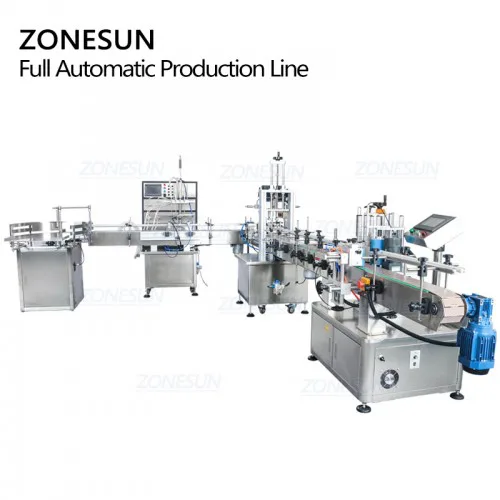

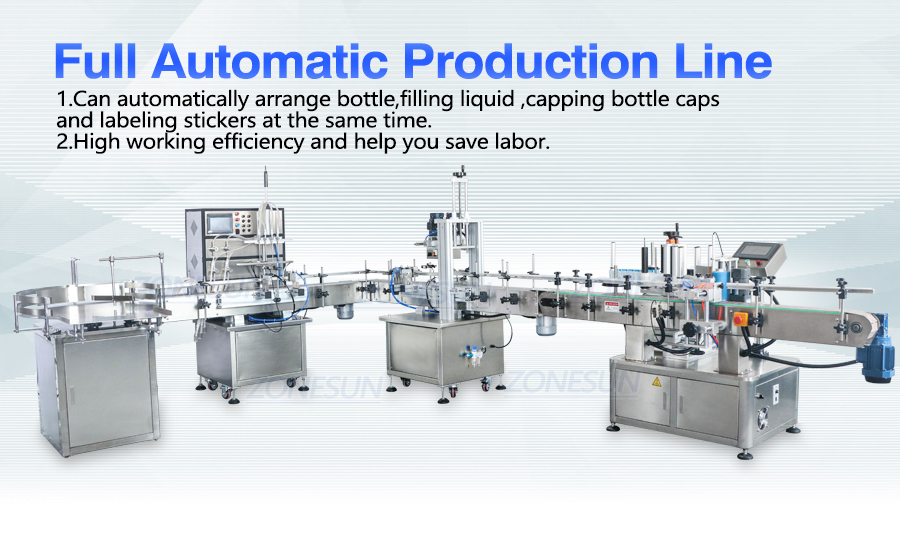

This production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries

ZONESUN ZS-FAL90 LConfiguration Automatic Liquid Filling Capping And Labeling Machine-ZONESUN TECHNOLOGY LIMITED

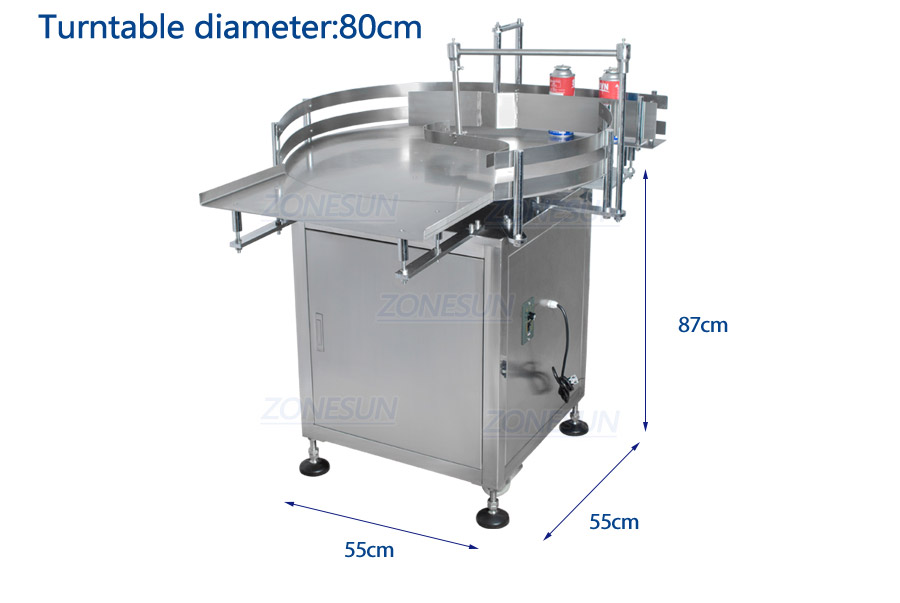

Bottle Unscrambler Parameter:

Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-120mm
Working Speed	10turn/min
Power	200W
Power Supply	220V/50-60HZ
Net weight	About 109.5kg
Package size	About 115100132cm
Gross weight	About 155kg

ZONESUN ZS-FAL90 LConfiguration Automatic Liquid Filling Capping And Labeling Machine-ZONESUN TECHNOLOGY LIMITED

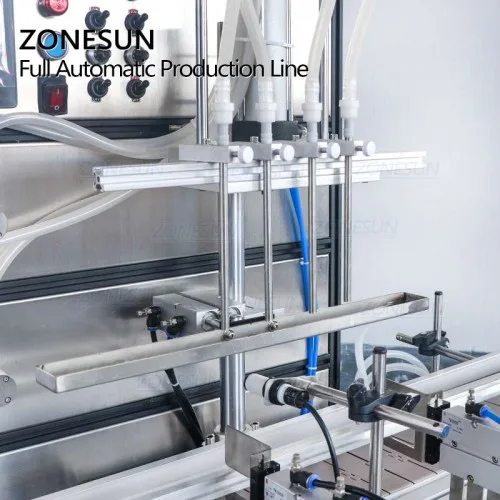

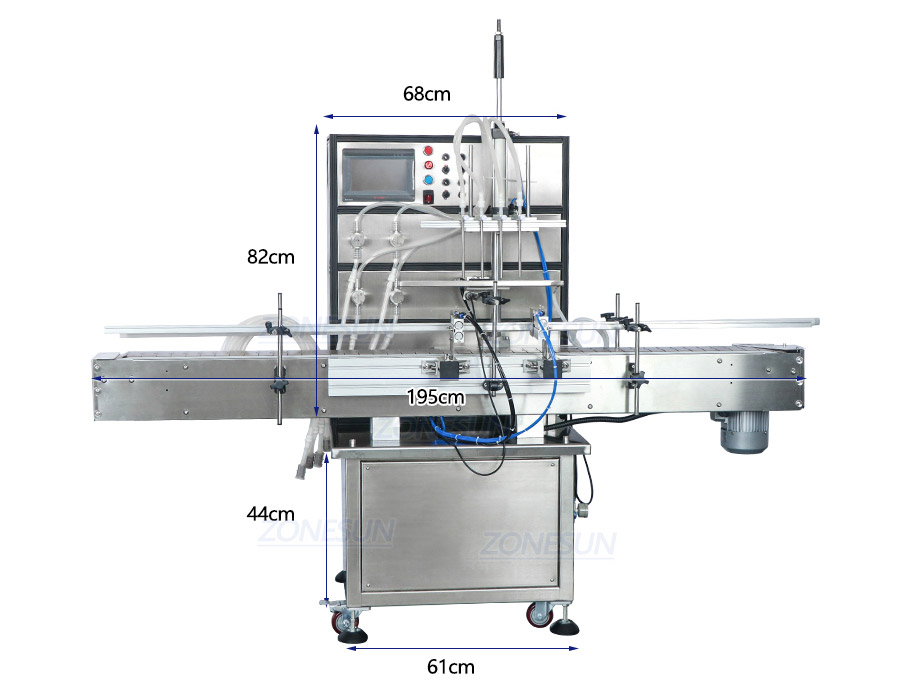

Full Automatic Liquid Filling Machine Parameter:

Container size	φ20-160mm H30- 300mm
Max flow rate	3000ml/min	5500ml/min	5500ml/min	7500ml/min
Material of pump	Plastic	304stainless steel	316stainless steel
Filling accuracy	≤100ml deviation ≤±1ml > 100ml deviation ≤±1% ( based on water)
Filling speed	20-40pcs/min	20-50pcs/min	20-50pcs/min	25-60pcs/min
Power supply	220V-50HZ/110V-60HZ
The whole machine power	2KW
Net weight	About 114.5kg
Gross weight	About 195.5kg
Package size	About 20008001560mm

ZONESUN ZS-FAL90 LConfiguration Automatic Liquid Filling Capping And Labeling Machine-ZONESUN TECHNOLOGY LIMITED

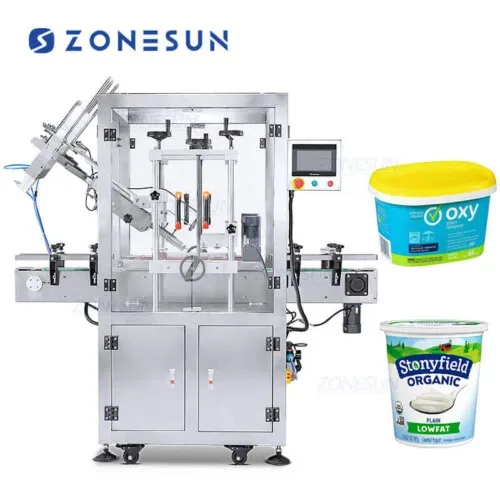

Full Automatic Capping Machine Parameter:

Bottle height	30-300mm
Bottle diameter	18-70mm
Working speed	20-60 bottles / minute (depending on bottle and cap size and shape)
Working voltage	AC220V/110V 50-60HZ
Working pressure	0.4-0.6 MPa
Dimension	19307401600mm
Package size	20008201760mm
Net weight	113kg
Gross weight	192.5kg

ZONESUN ZS-FAL90 LConfiguration Automatic Liquid Filling Capping And Labeling Machine-ZONESUN TECHNOLOGY LIMITED

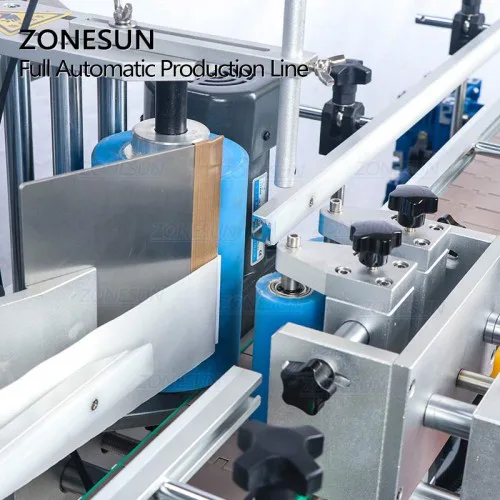

Full Automatic Labeling Machine Parameter:

Labeling capacity	25-50PCS /min(depends on bottle size)
Labeling accuracy	±1mm
Bottle Diameter	φ30- 100mm
Label size	(L)15-200mm (H)15-150mm
Roll inside	φ76mm
Roll outside diameter	φ350mm
Power supply	AC220V 50Hz/60Hz 1500W
Package Size	2110x1040x1400mm
Net weight	223.5kg
Gross weight	280kg
