ZONESUN ZS-FAL180V9 Food Sauce Paste Tracking Bottling Line

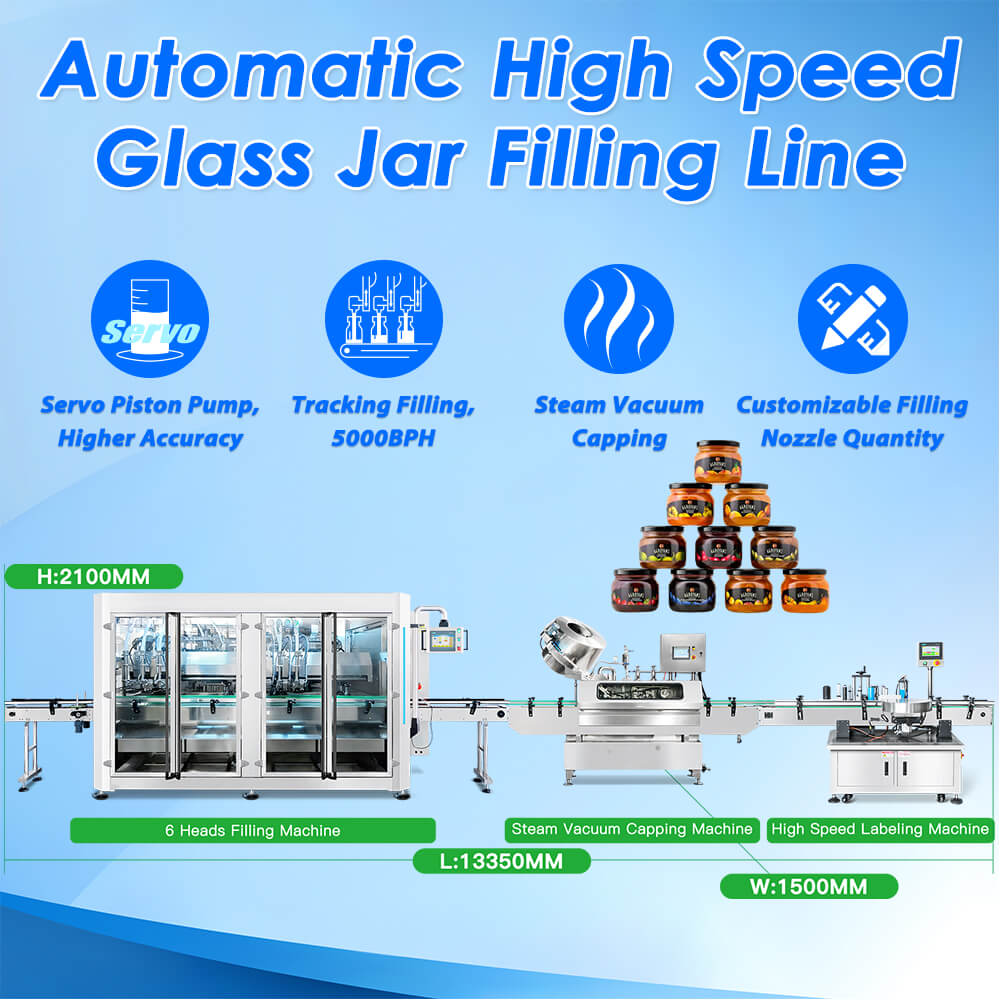

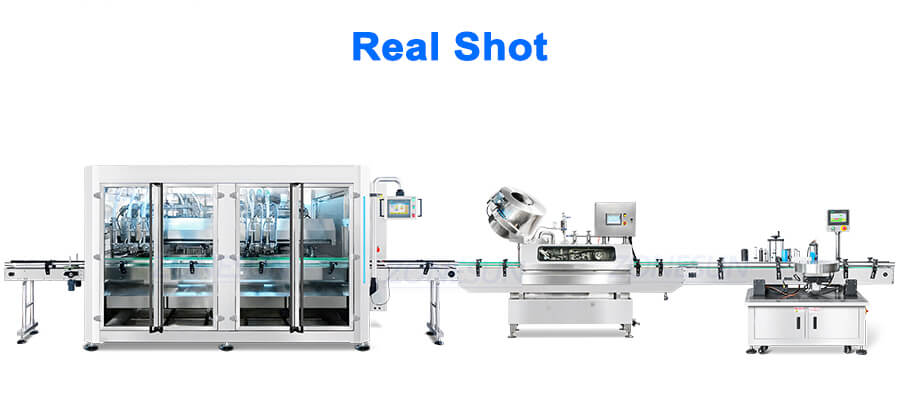

This automatic filling line is designed for packaging sauce or jam into twist off glass jar.It consists of 6 heads servo piston filling machine(with tracking filling nozzles), steam vacuum capping machine and high speed round bottle labeling machine.Working capacity can reach 5000BPH, it is suitable for medium or large production scale.
$70,399.00
Share to
This automatic filling line is designed for packaging sauce or jam into twist off glass jar.It consists of 6 heads servo piston filling machine(with tracking filling nozzles), steam vacuum capping machine and high speed round bottle labeling machine.Working capacity can reach 5000BPH, it is suitable for medium or large production scale.
6 Heads Filling Machine
| Machine Model | ZS-VTPF6 |
| Voltage | 380V/220V/110V 50-60Hz(Customizable) |
| Power | 6 kW |
| Filling Speed | About 2000-5000BPH(based on filling volume & filling material) |
| Filling Range | 100-1000 ml(Customizable for larger filling range) |
| Filling Accuracy | ± 1% |
| Filling Pump | Servo Piston Pump |
| Air Supply | 0.6-0.7MPa 0.6-0.7m³/min |
| Machine Size | About 8000*1500*2100 mm |
| Machine Weight | About 1200kg |
Steam Vacuum Capping Machine
| Machine model | ZS-XG01 |
| Power supply | 110/220V 50-60HZ 3.12KW |
| Working capacity | About 4000BPH |
| Suitable cap size | Customized |
| Suitable bottle size | Customized |
| Steam consumption | 180-230kg/h |
| Steam pressure | ≤0.4MPa |
| Maximum vacuum degree | 34-67KPa |
| Machine size | About 3250*1050*2010mm |
| Machine weight | About 500kg |
High Speed Labeling Machine
| Model | ZS-TB700 Labeling Machine |
| Power supply | AC220V 50H-60HZ 2000W |
| Labeling capacity(bottles/min) | 60-100 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | Φ30-100mm H 30-120mm |
| Label size(mm) | (L)20-300mm (H)15-130mm(Can be customized) |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) (Can be customized) |
| Machine size | About 2100*1230*1380mm(L*W*H) |
| Machine weight | About 200kg |
| Package size | About 2060*1070*1550mm(L*W*H) |
| Package weight | About 304kg |

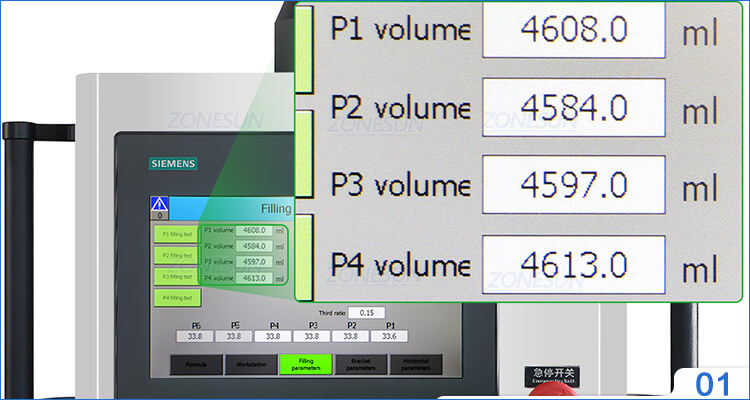

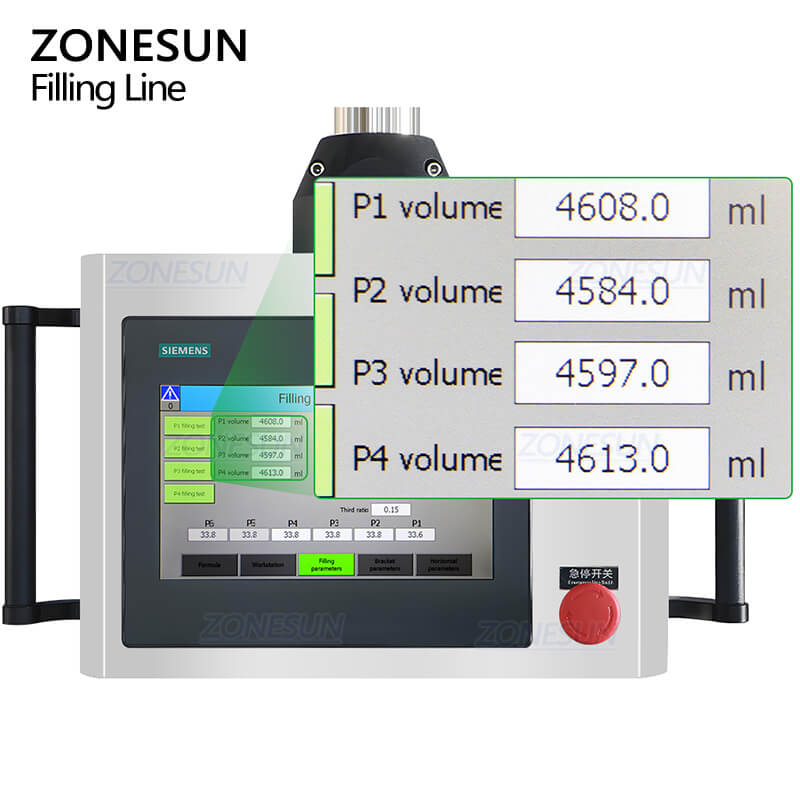

Operation Panel
Parameters like filling volume can be set easily. Paramter setting can be showed more intuitively.

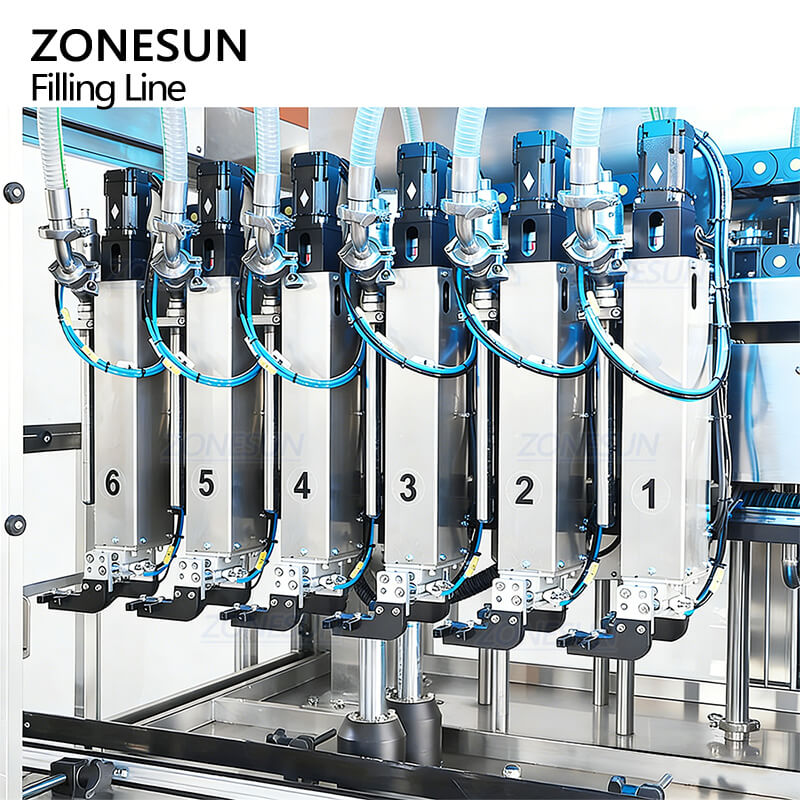

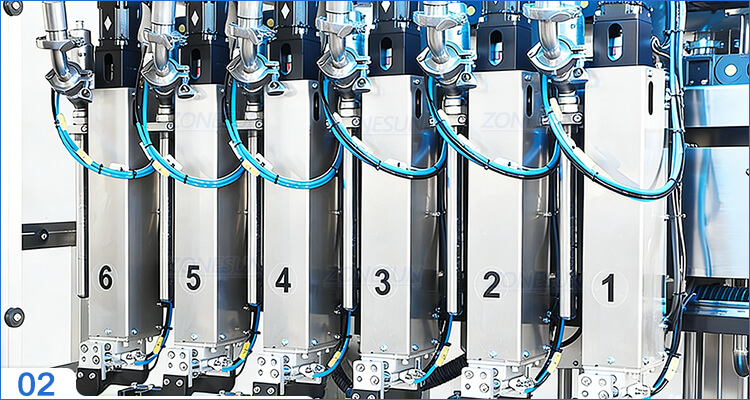

6 Filling Heads
Quantity of tracking filling nozzle is customizable, filling is controlled by precise servo piston pump.

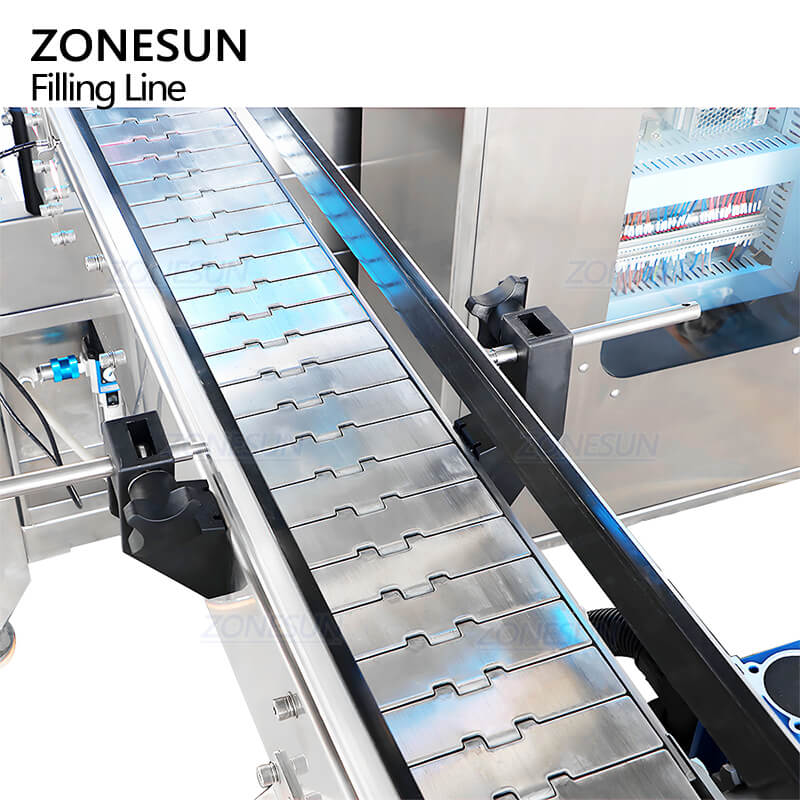

Conveyor Belt
Made of stainless steel, it has large loading capacity. Length and width of conveyor can be customized.

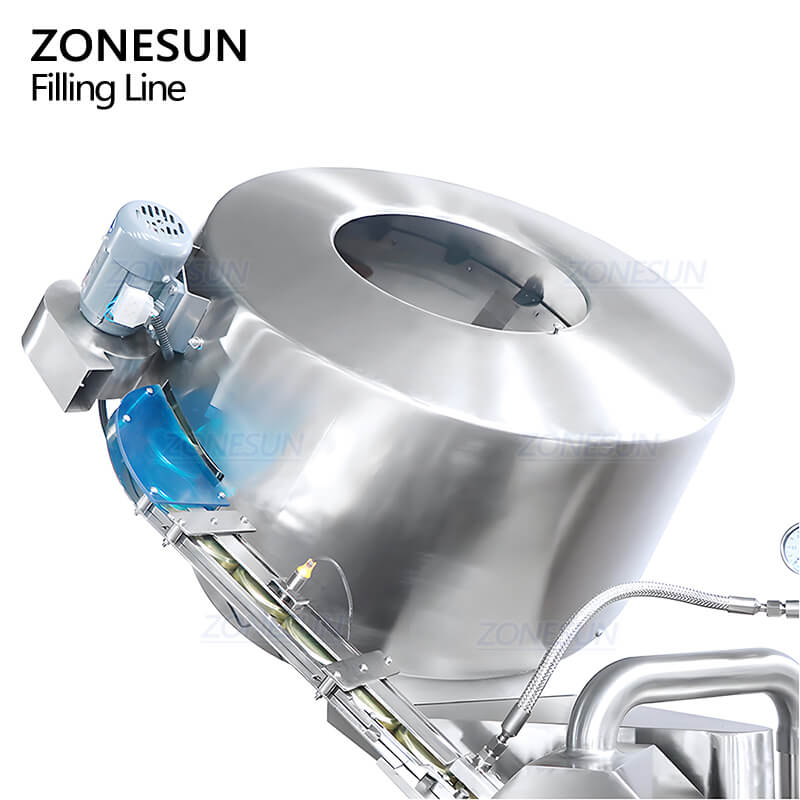

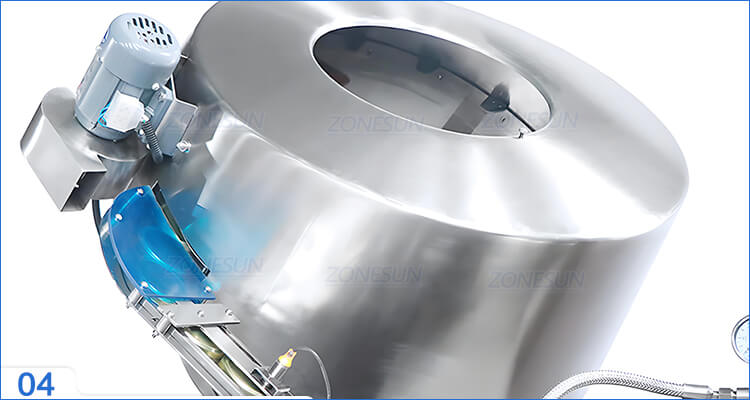

Cap Sorter
Using electric rotation cover sorting method offers lower operating noise and smoother cap alignment.

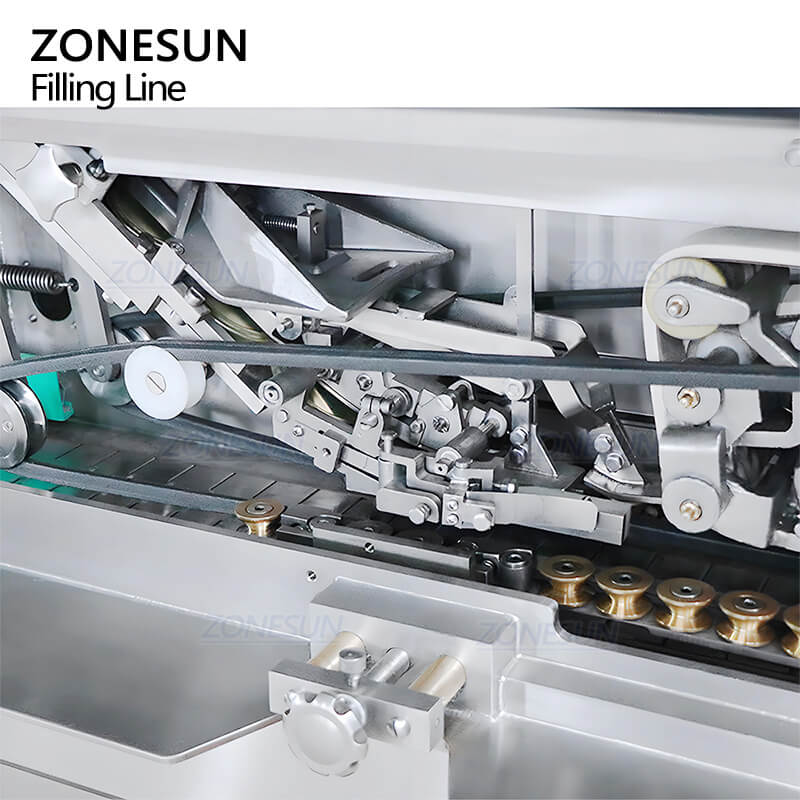

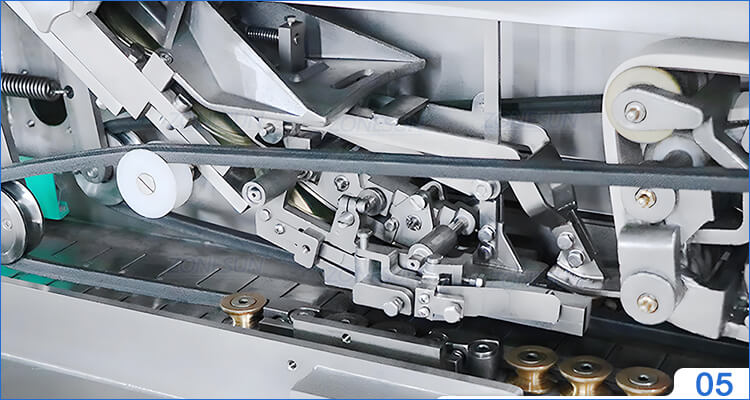

Capping Structure
Before sealing, steam displaces headspace air, then dual belts tighten the cap for efficient, high-quality capping.

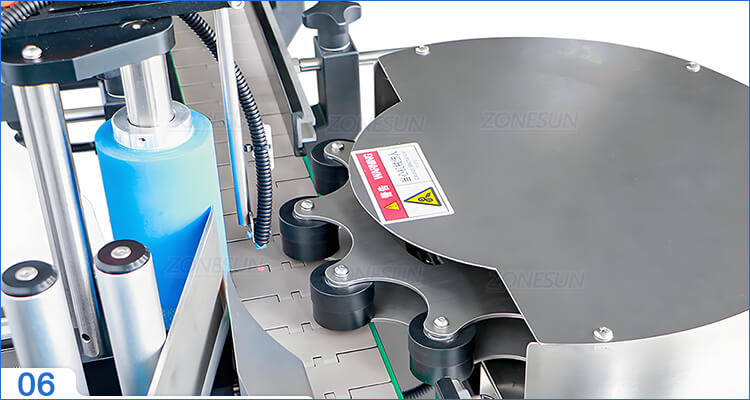

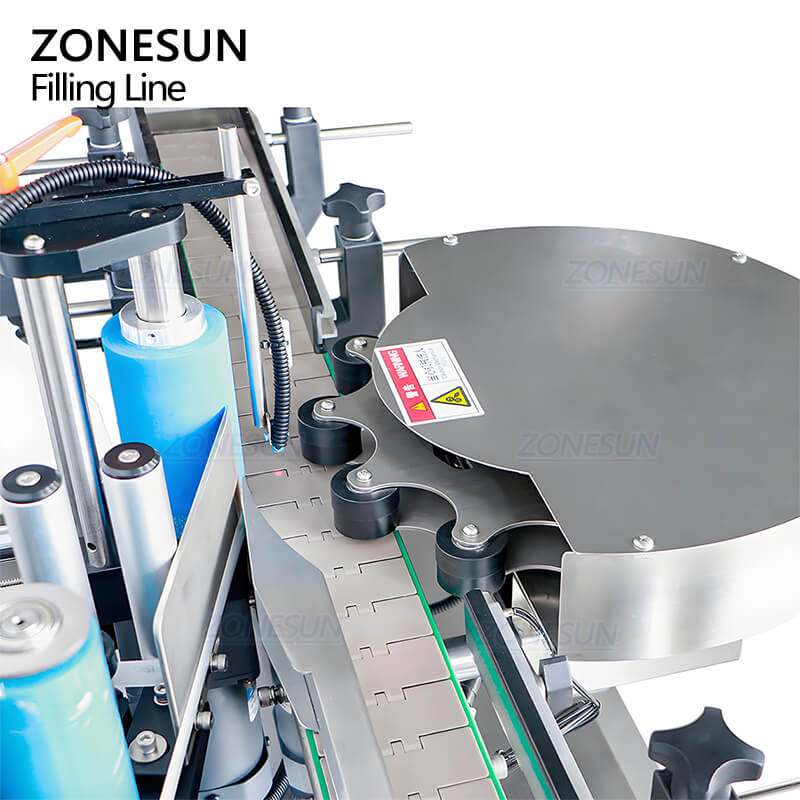

Labeling Structure
The star wheel can separate bottles efficiently, it suits single side, double sides and wrap-around labeling.
