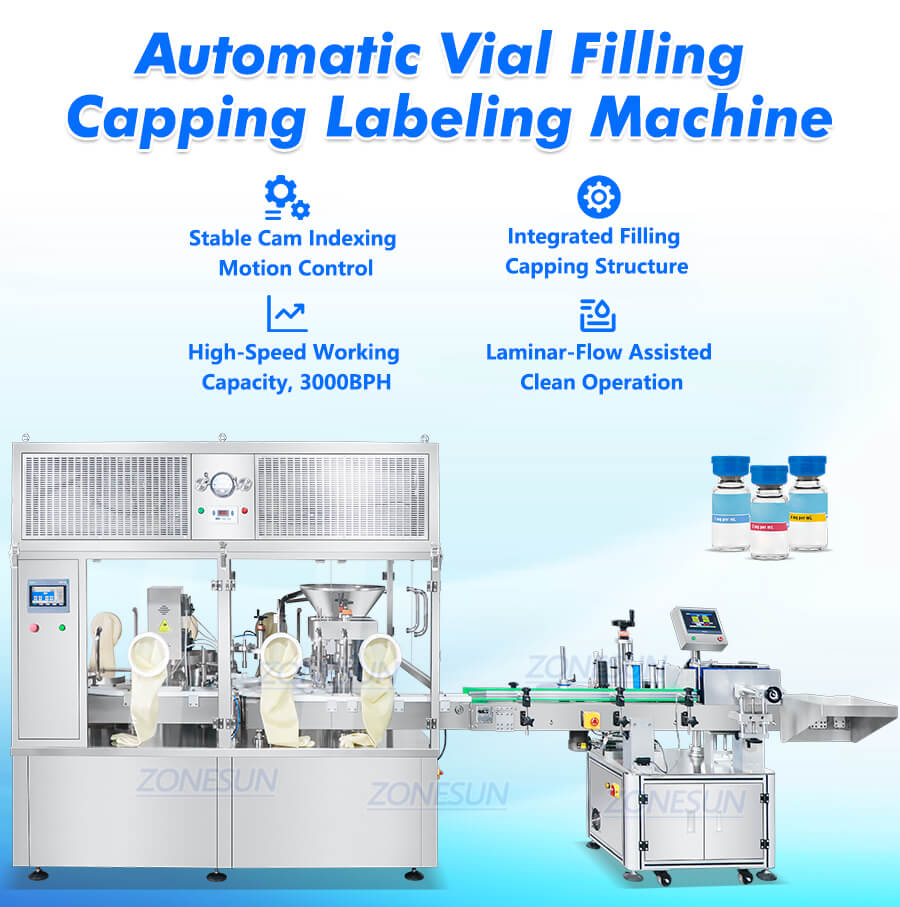

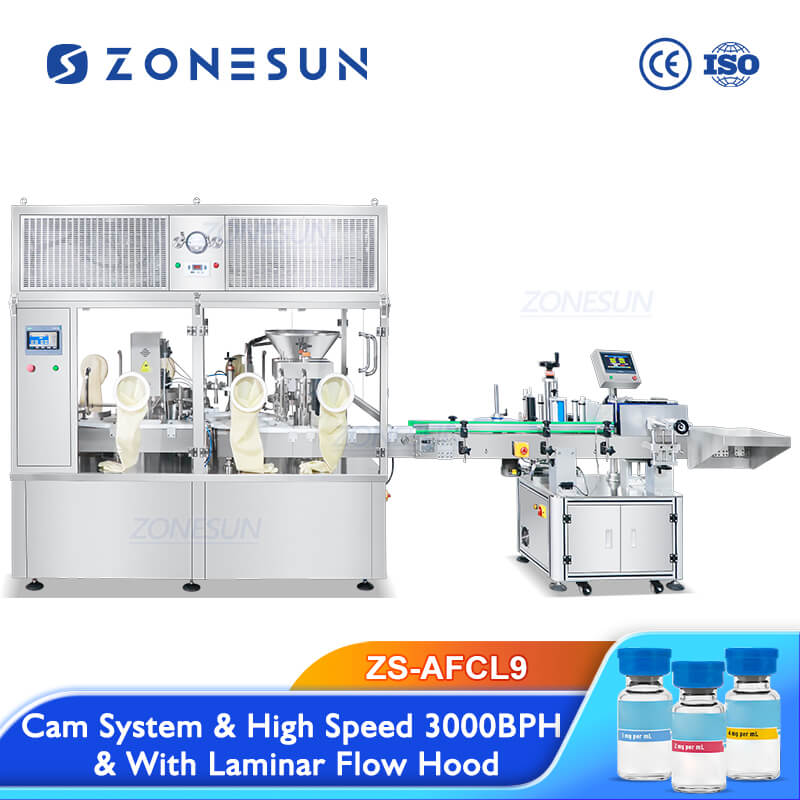

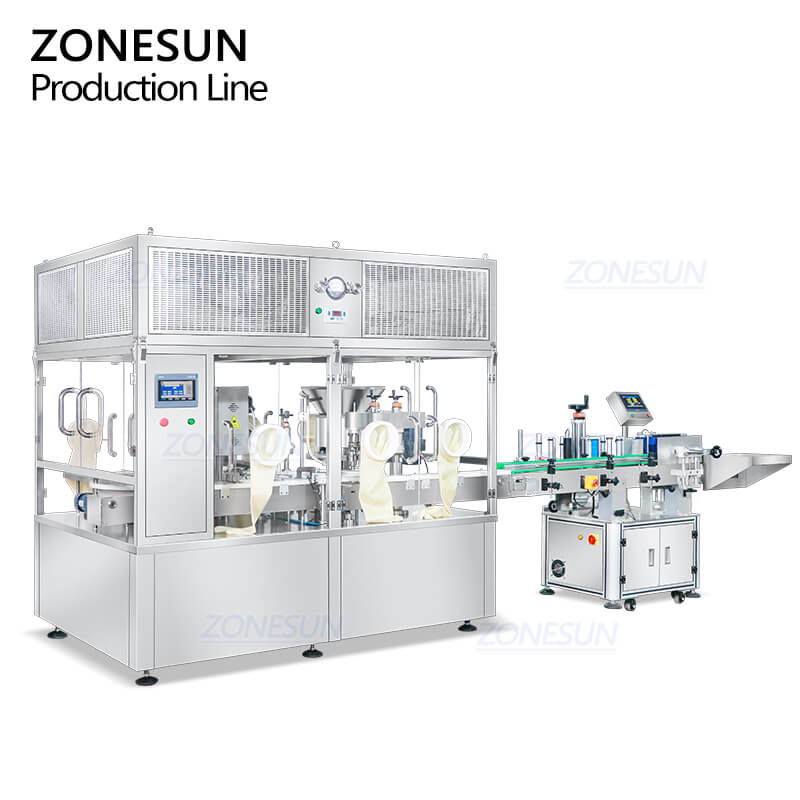

ZONESUN ZS-ACFL9 Servo High Speed Liquid Vials Bottling Line
This production line combines an automatic filling capping machine with a side belt labeling machine to process vial packaging efficiently. The rotary filling system driven by a high-precision cam indexer and servo peristaltic pumps ensures accurate filling, while the integrated capping structure completes stopper feeding, cap placing, and sealing. Equipped with a laminar flow hood to improves packaging quality, the line reaches up to 3600 BPH, ideal for vial filling and packaging.
$47,499.00
Share to
This production line combines an automatic filling capping machine with a side belt labeling machine to process vial packaging efficiently. The rotary filling system driven by a high-precision cam indexer and servo peristaltic pumps ensures accurate filling, while the integrated capping structure completes stopper feeding, cap placing, and sealing. Equipped with a laminar flow hood to improves packaging quality, the line reaches up to 3600 BPH, ideal for vial filling and packaging.
| Machine Model | ZS-AFC39 |
| Voltage | 110/220V 50-60 HZ |
| Power | ＜3000W/h |
| Working Capacity | About 30-60BPM(based on filling volume) |
| Filling Pump | Peristaltic pump |
| Filling Nozzle quantity | 2 |
| Filling Range | Customized |
| Filling Accuracy | ±3% |

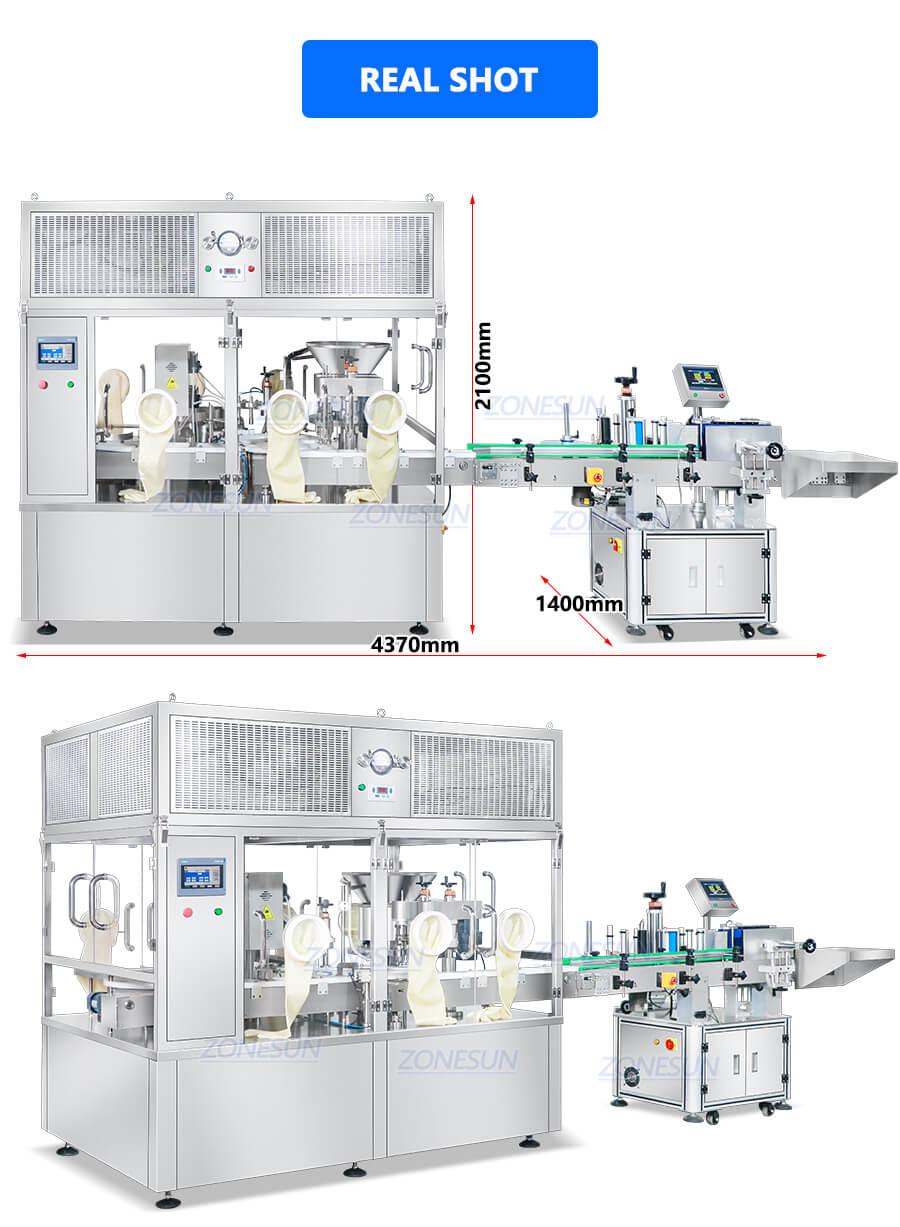

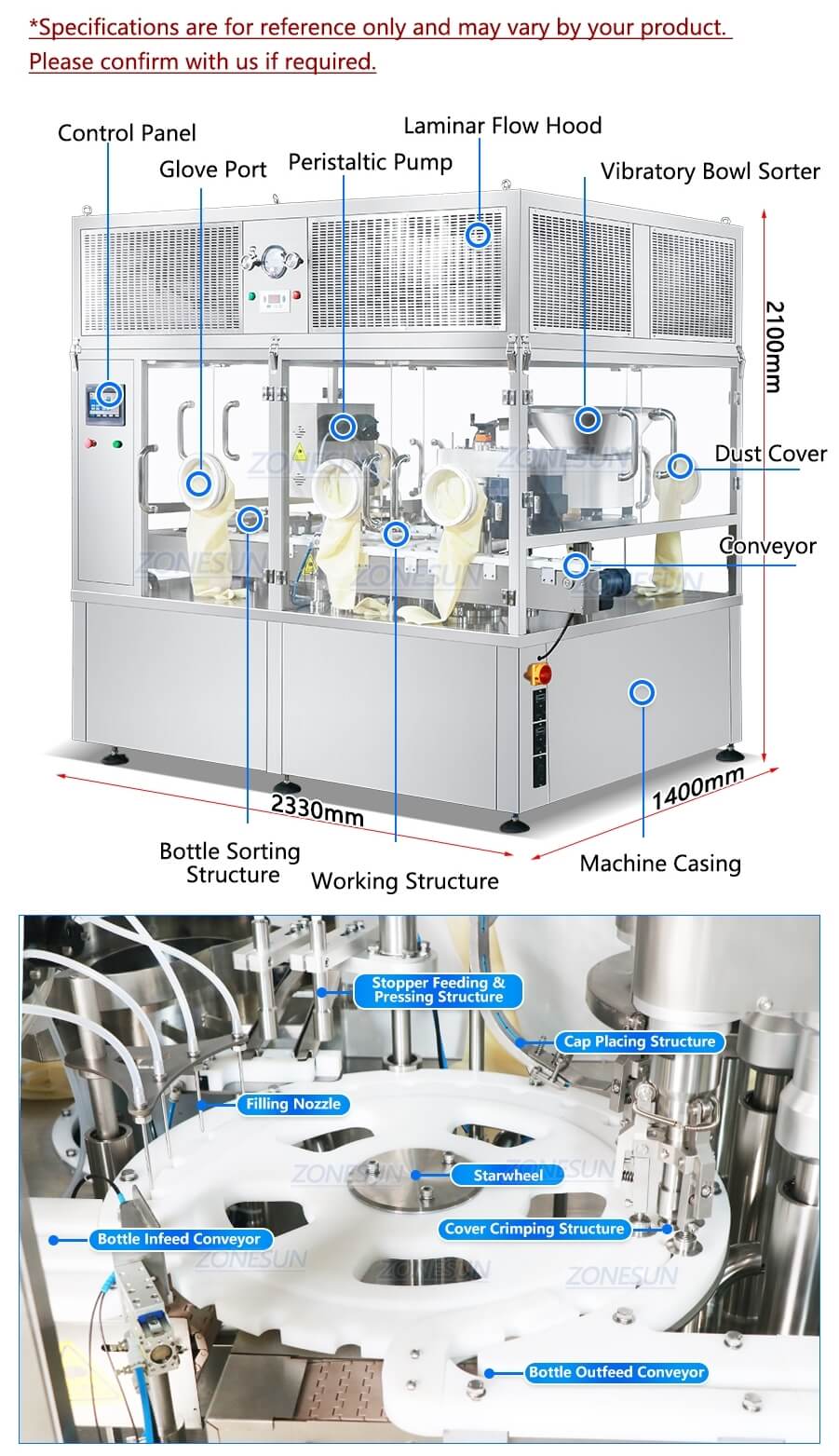

| Machine size | About 2330*1400*2100mm(L*W*H) |
| Machine weight | About 900kg |
| Package size | About 2530*1700*1930mm(Main Machine) About 2200*1270*1680mm(Laminar Flow Hood) |
| Package weight | About 1407kg(Main Machine)+418kg(Laminar Flow Hood)=1825kg |
| Machine Model | ZS-TB821 |
| Voltage | 220V/110V 50-60Hz |
| Power | 570W |
| Labeling Accuracy | ±1.0mm |
| Labeling Speed | About 40-120 bottles/min
(depending on label size) |
| Applicable Product Size | φ25-φ120mm (Round bottle) |

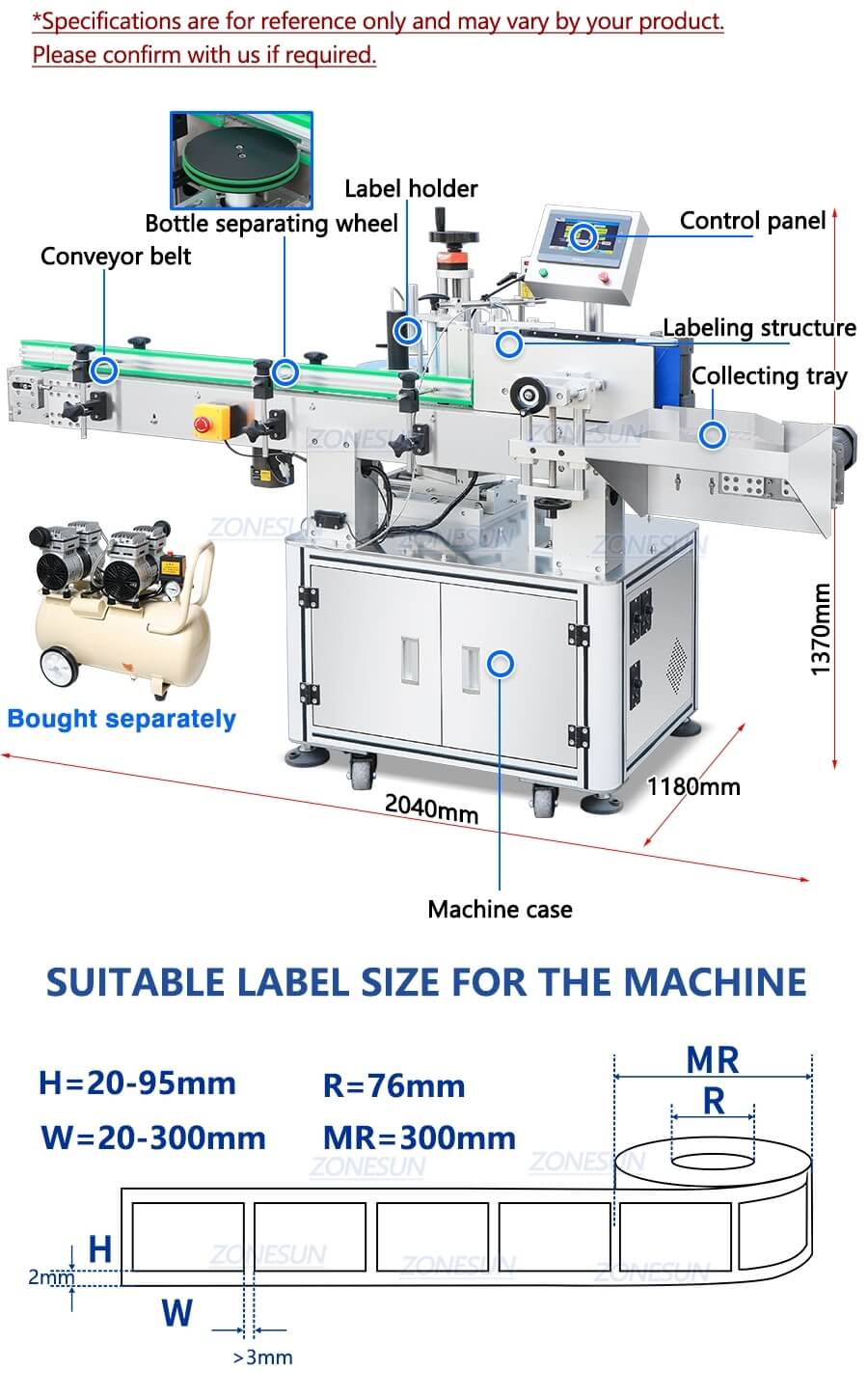

| Label Size | (W)20-300mm*(H)20-95mm |
| Label Roll ID | φ76mm |
| Label Roll OD | φ300mm |
| Machine Size | About 2040*1180*1370mm(L*W*H) |
| Package Size | About 2070*890*1550mm(L*W*H) |
| Package Weight | About 260kg |

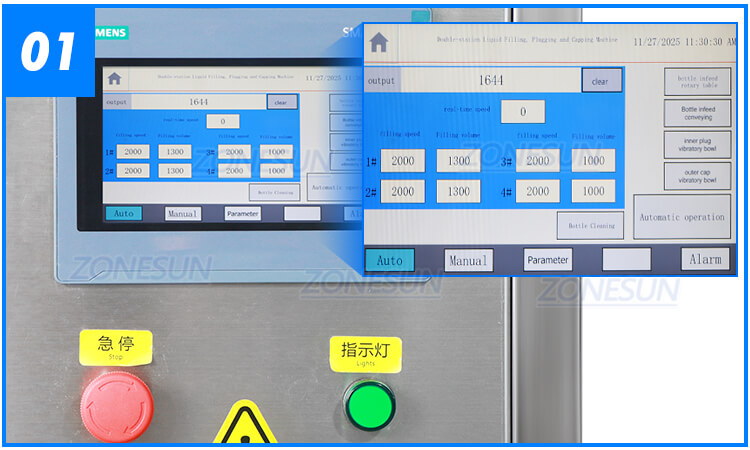

Touchscreen Control Panel
Provides intuitive parameter setting and real-time operation monitoring.

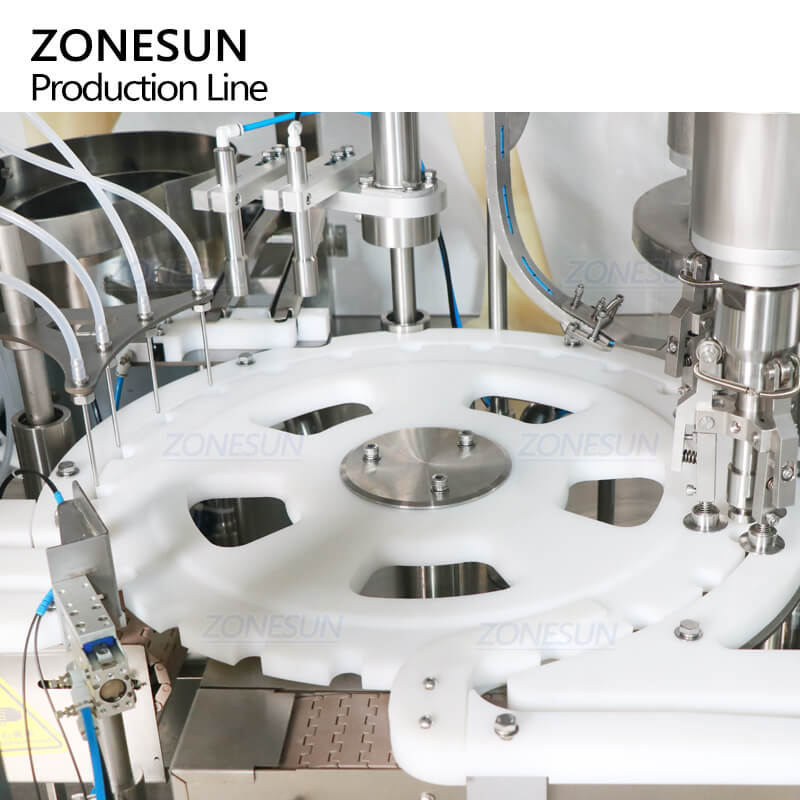

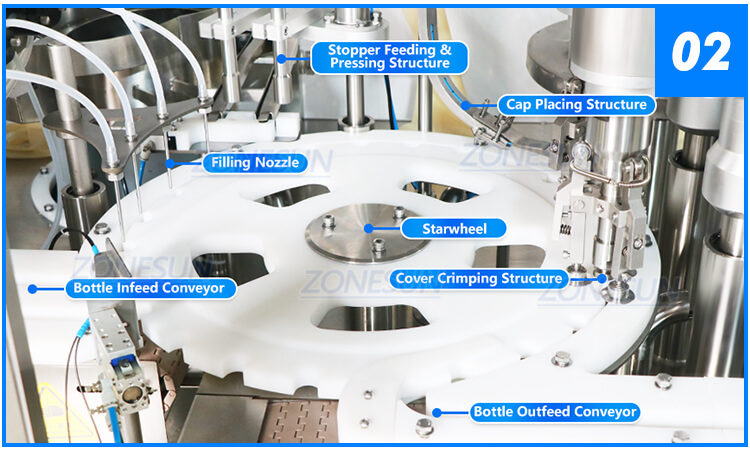

Integrated Filling Capping Module
Combines dosing, stoppering, and capping into a compact rotary system.

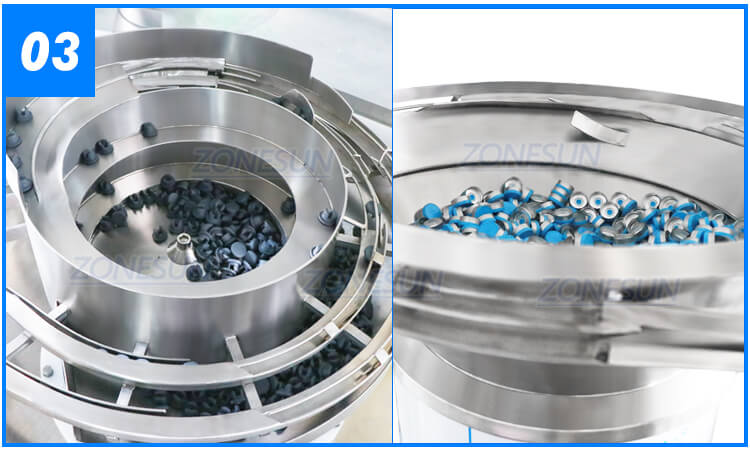

Vibratory Bowl Feeding System
Automatically orients and feeds stoppers and caps for continuous production.

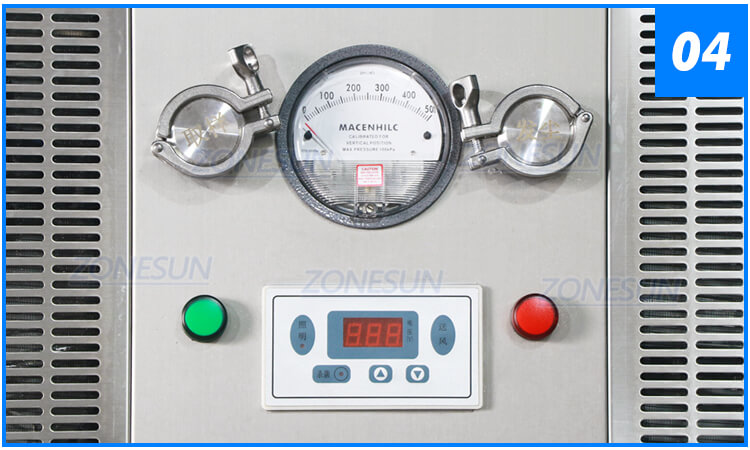

Laminar Flow Hood
Delivers clean airflow over critical areas to protect product quality.

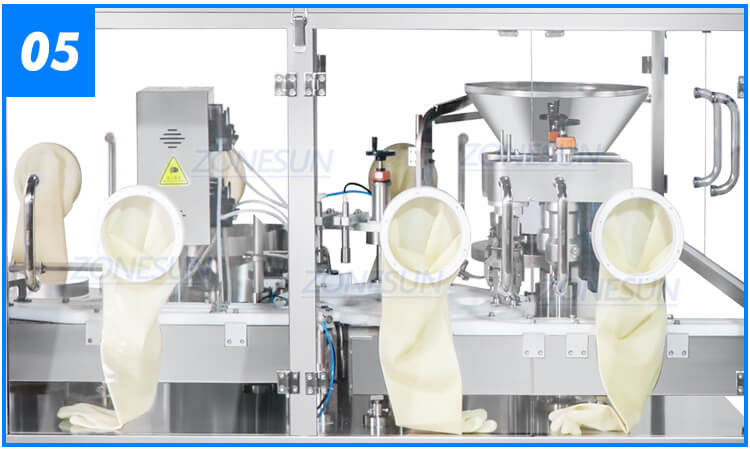

Dust-Protection Enclosure
Reduces external contamination and improves overall line cleanliness.

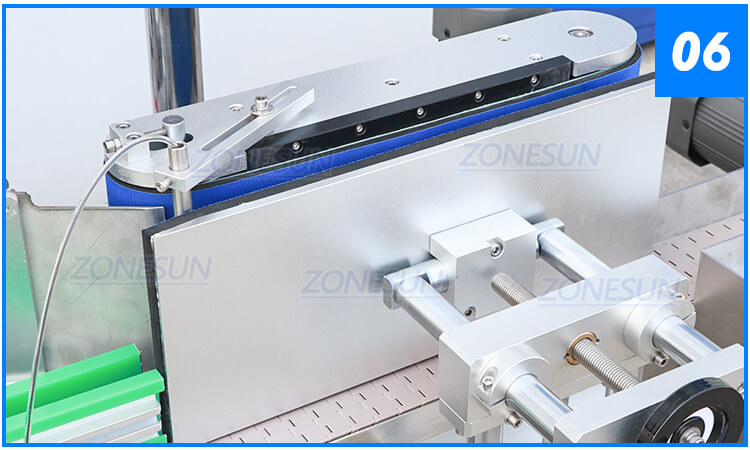

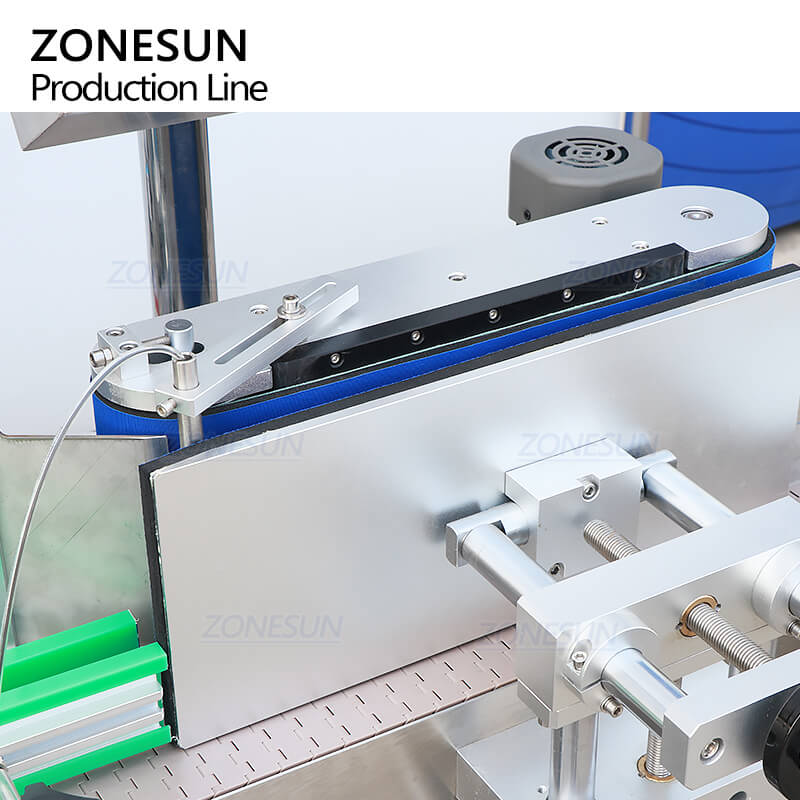

Side-belt Labeling Station
Applies high-speed wrap-around labels to small vials with precision.

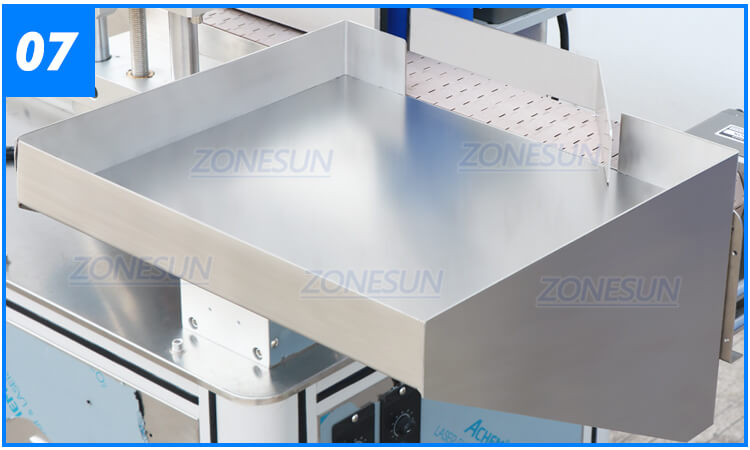

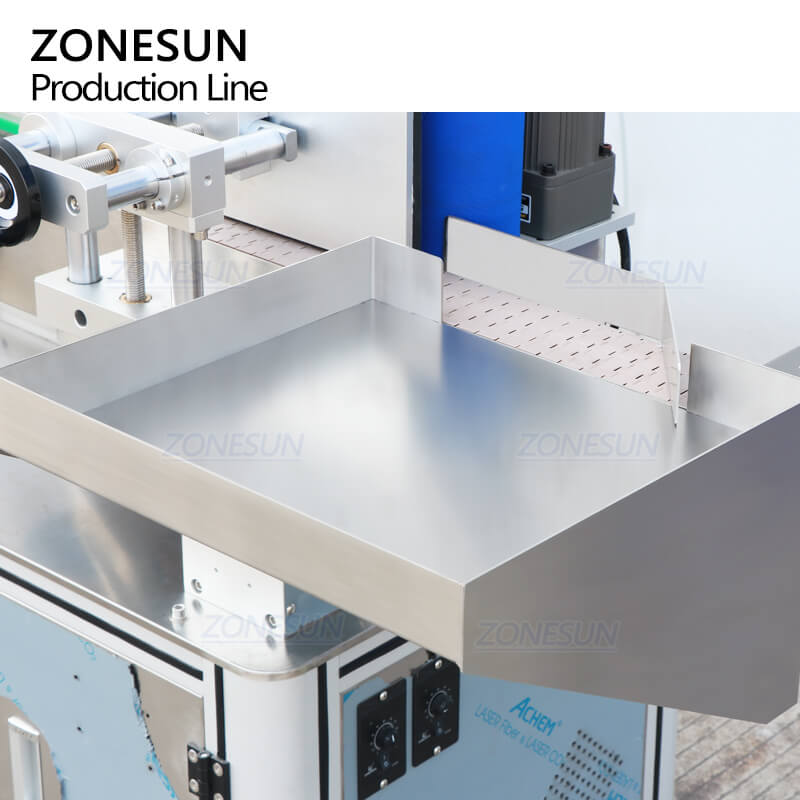

Collection Tray
Gathers finished vials for easy packing and downstream handling.
