ZONESUN Automatic 4 Head Peristaltic Pump Filling Machine

Mode of transport：Express、Air transportation、Ocean shipping、Land transportation

Payment Options：Credit card、Paypal、Western Union、TT、Alipay、WeChat

Product Detail

Product Tags

Description

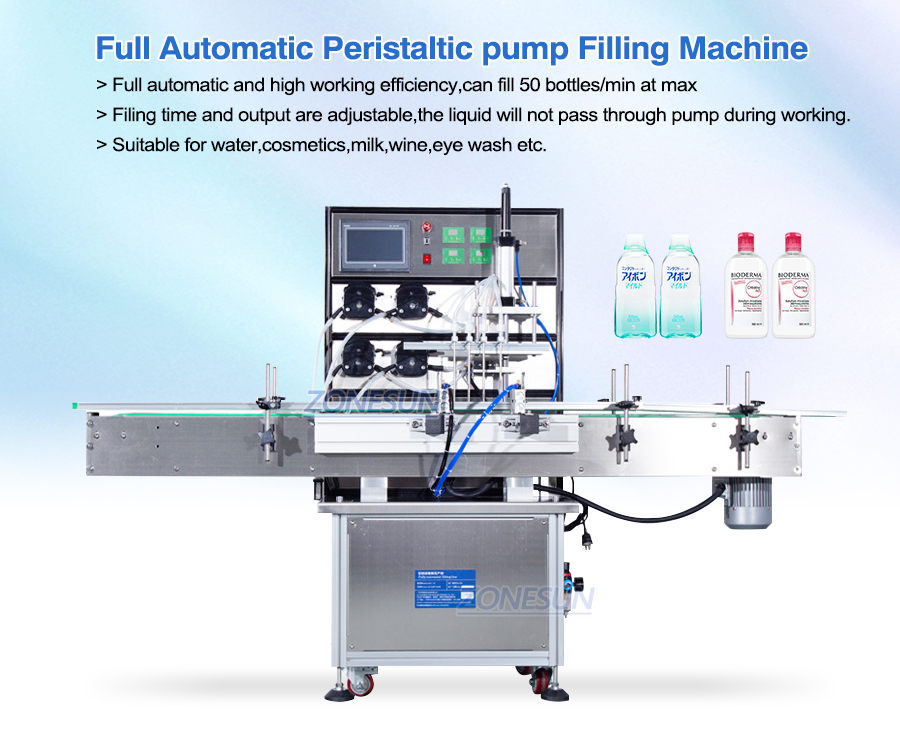

Equipped with peristaltic pump,this liquid filling machine can work automatically,it can fill about 30-50 bottles/min.Each filling nozzle of this machine can be controlled separately,additionally the liquid will not pass through the pump during filling,ensure the liquid is clean after filling.

ZONESUN Automatic 4 Head Peristaltic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter

Container size	φ20-160mm H30-300mm
Max flow rate	2500ml/min for each nozzle(based on water)
Filling accuracy	≤??1%( for water)
Filling speed	30-50 pcs/ min
Filling speed	(depending on bottles and filling liquid)
Power supply	220V-50HZ/110V-60HZ
The pump power	60W(For Each Nozzle)
Packing weight	150Kg
Packing size	2000 x 820 x 1580mm

ZONESUN Automatic 4 Head Peristaltic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Advantage

1.Full automatic and high working efficiency,can fill 50 bottles/min at max
2.Filing time and filling output are adjustable,the liquid will not pass through pump during working.
3.Easy to change filling hose compared with other peristaltic pump filling machine,this is especially suitable for filling various fragrant perfume or multiple kinds of beverage.

ZONESUN Automatic 4 Head Peristaltic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

FAQ
Q:How to change the filling hose?
A:There is a handle and two clips,please pull up the handle and loose two clips,If you need,we can send you video showing how to do this
Q:Can this machine run dry?
A:The peristaltic pump can be run for a long time without water, and it can also transport air.When the peristaltic pump is running, the maximum speed is mostly within 600 rpm,even if it transports air,the pump will not become too hot
