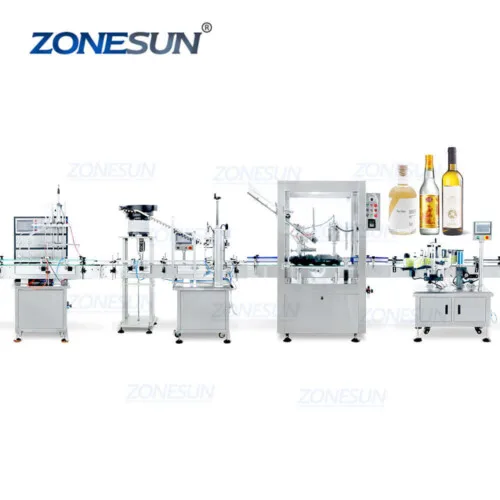

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line

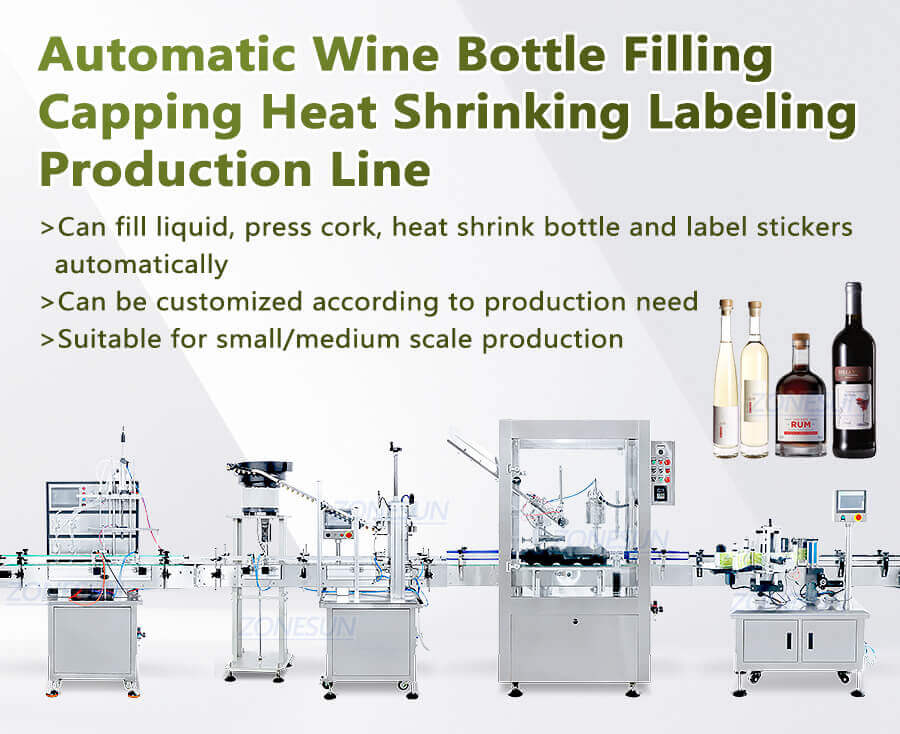

This packaging system is consiste of magnetic pump filling machine,bottle corking machine,heat shrinking machine,and round bottle labeling machine.This packaging system can finish the complete outer packaging production of wine bottles.

Machine Video Click Here:

Product Detail

Product Tags

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line-ZONESUN TECHNOLOGY LIMITED

Description:
This packaging system is consiste of magnetic pump filling machine,bottle corking machine,heat shrinking machine,and round bottle labeling machine.This packaging system can finish the complete outer packaging production of wine bottles.

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line-ZONESUN TECHNOLOGY LIMITED

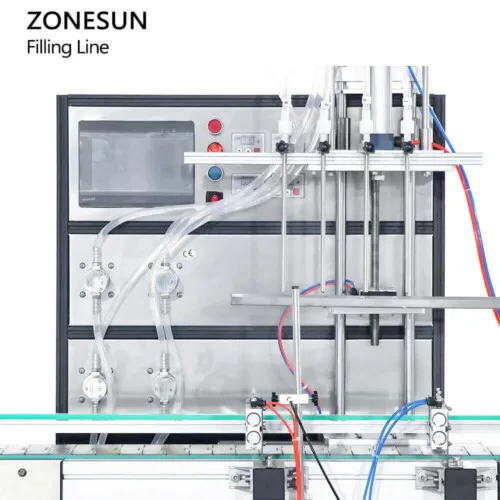

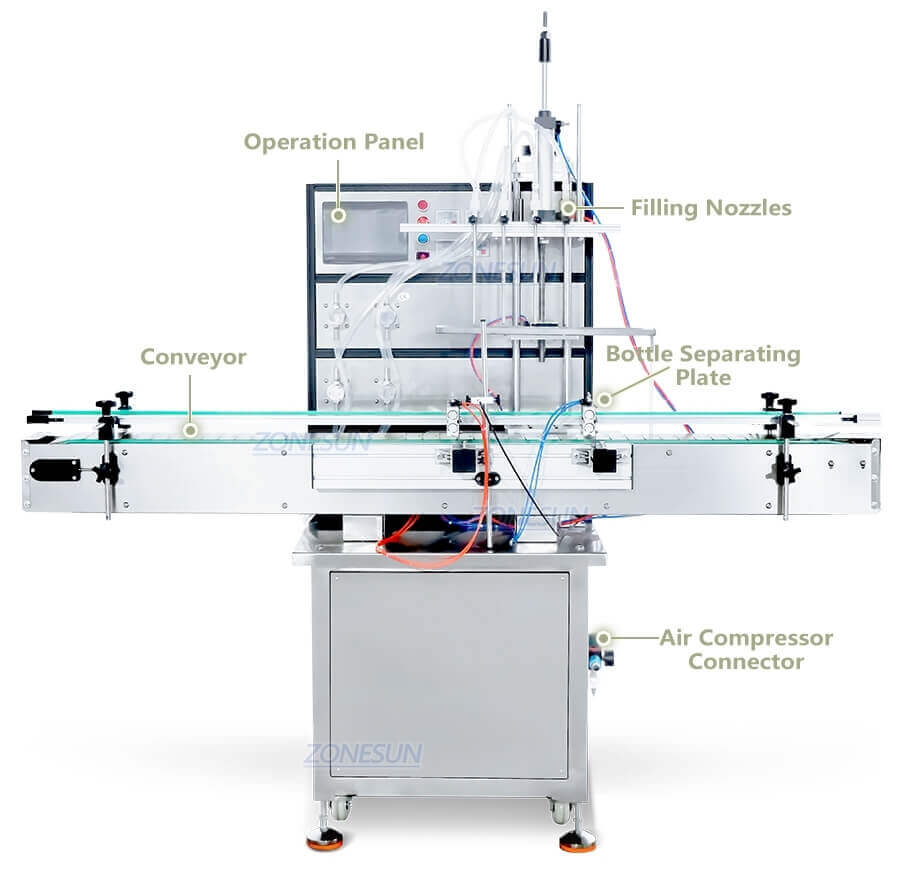

Machine model
ZS-VTMP80C
Power supply
110/220V 50-60HZ 2000W
Container size
φ20-160mm H30-300mm
Max flow rate
6000ml/min
7500ml/min
12000ml/min

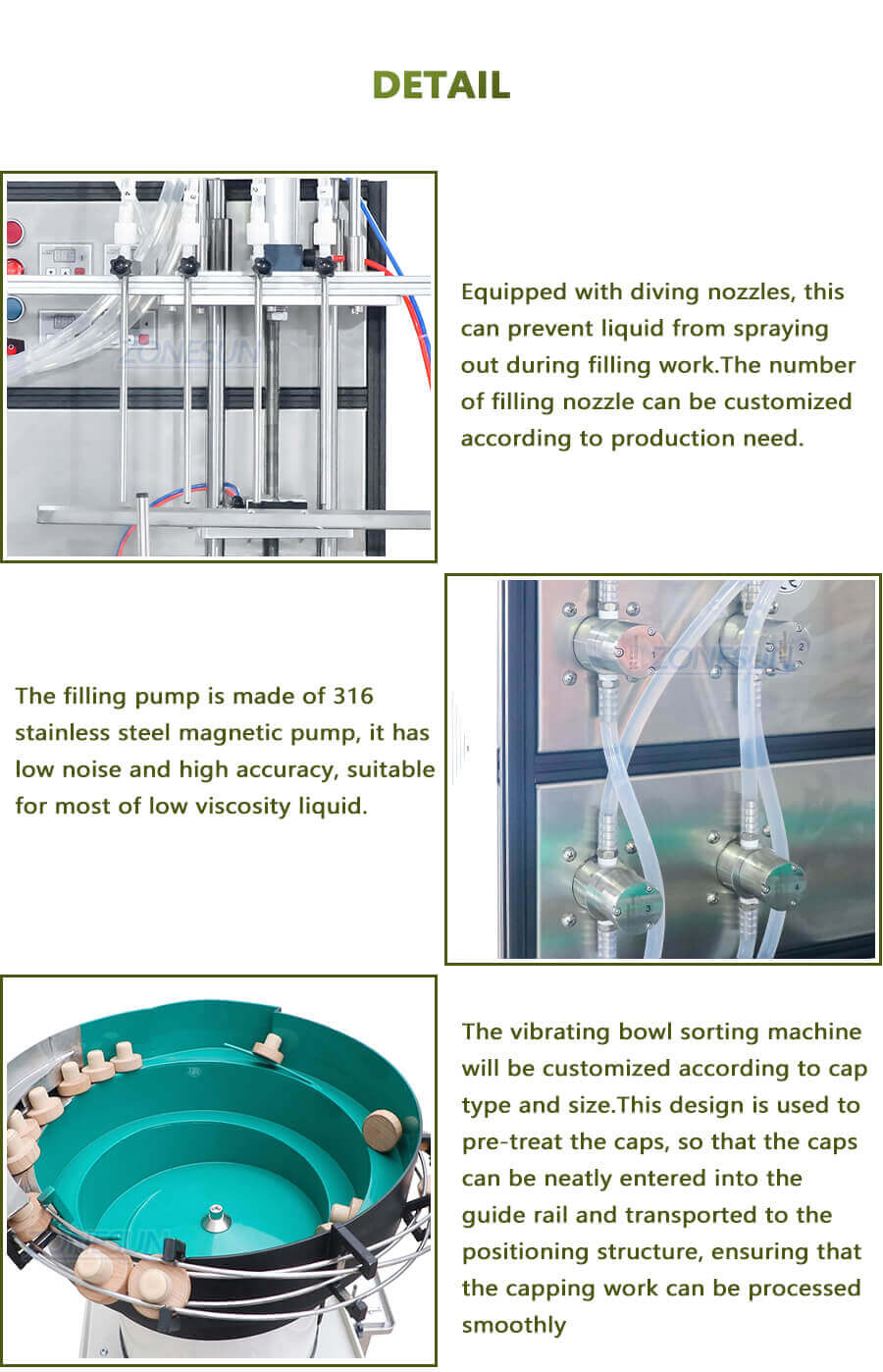

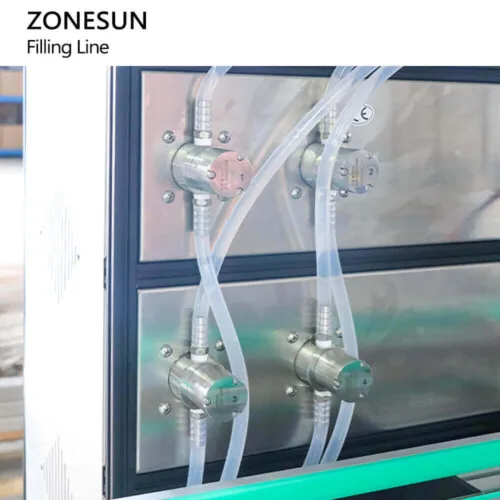

Material of pump
316stainless steel magnetic pump
Filling accuracy
≤100ml deviation≤±1ml
> 100ml deviation≤±1% ( based on water)
Filling speed
20-50pcs/min
25-60pcs/min
40-65pcs/min
(depending on bottles and filling liquid)
Power supply
220V-50HZ/110V-60HZ
Size of air compressor connector
OD8mm
Packing weight
About 150kg
Packing size
About 2000*820*1580mm

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line-ZONESUN TECHNOLOGY LIMITED

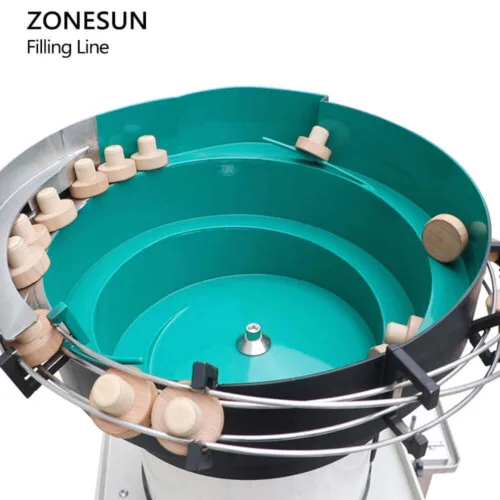

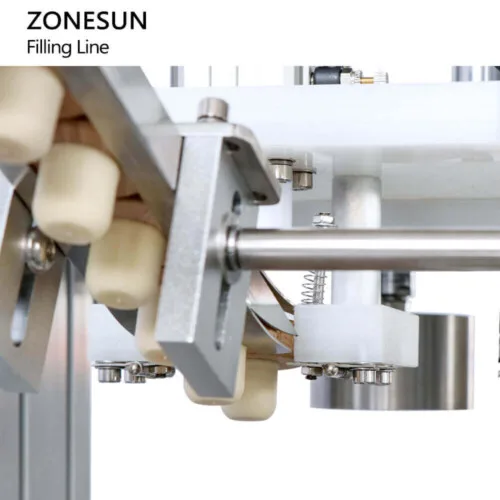

Machine Model
ZS-XG16D3
Working Voltage
AC220V/110V 50-60HZ
Bottle Height
30-300mm
Bottle Caps Diameter
18-70mm
Bottle Diameter
30-100mm
Working Speed
20-30 bottles/minute(depending on bottle and caps)
Working Pressure
0.4-0.6 MPa
Size Of Air Compressor Connector
OD 8mm
Conveyor Length
115mm(W)*1020mm(L)
Machine Size
About 2190*950*1860mm

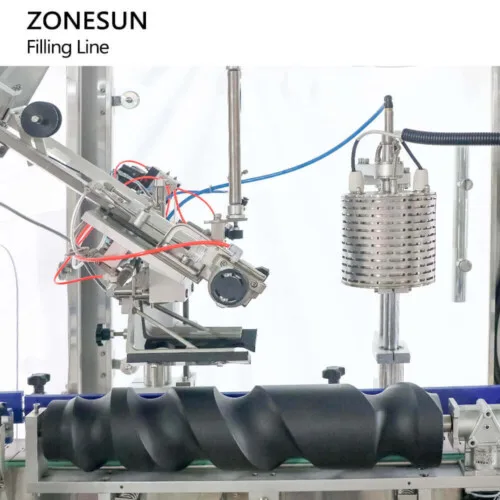

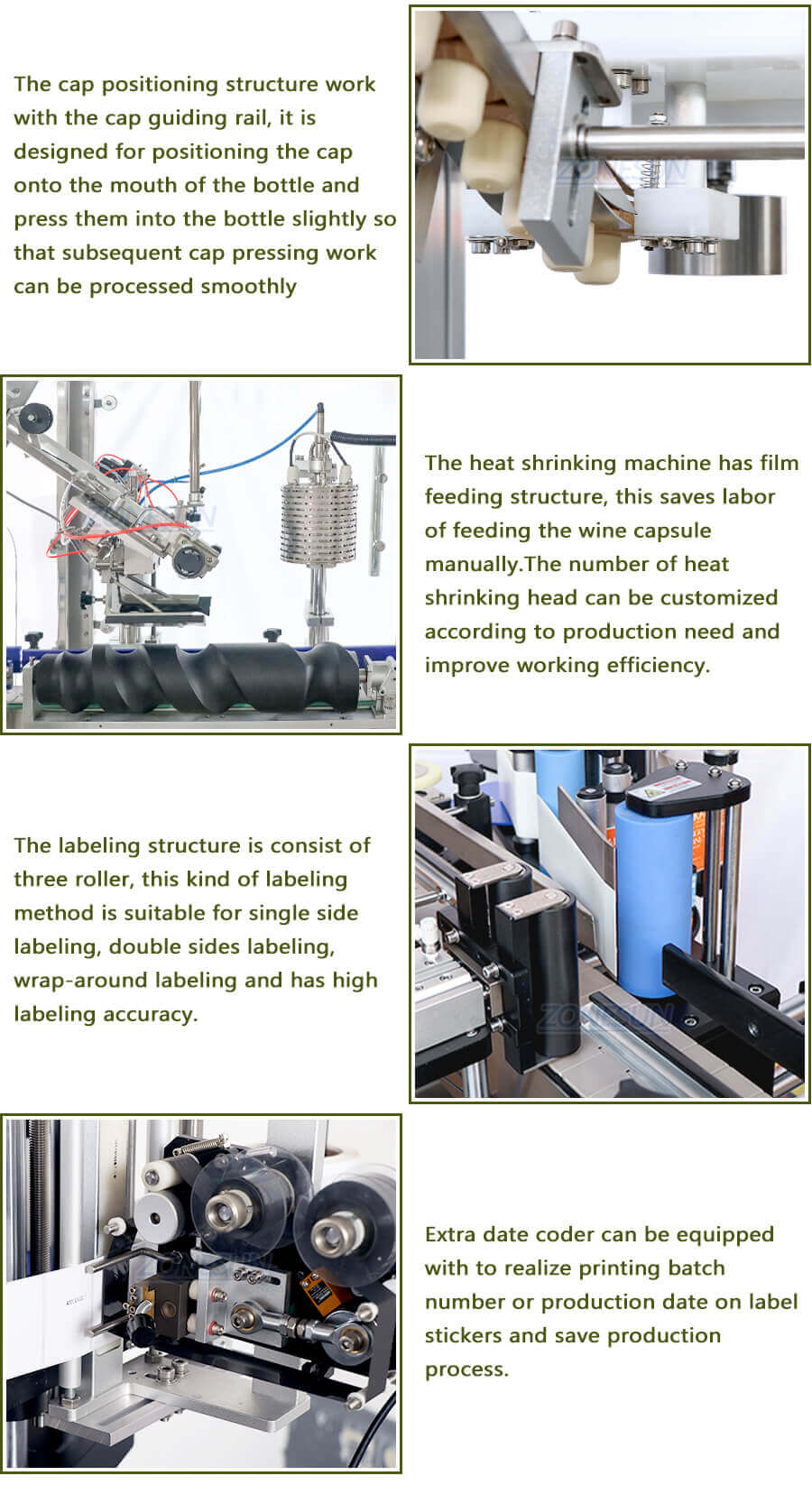

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line-ZONESUN TECHNOLOGY LIMITED

Machine Model
ZS-SXRS1
Power Supply
110/220/380V 50-60HZ 4KW
Bottle Height
180-350mm
Wine Capsule Size
L=30-70mm D=30-50mm
Bottle Diameter
60-100mm
Working Capacity
2000BPH
Temperature Range
0-300℃
Size Of Air Compressor Connector
OD 8mm
Machine Size
About 2190*950*1860mm
Package Size
About 1850*1120*2180mm
Package WeightAbout 483kg

Wine Bottle Filling Capping Heat Shrinking Labeling Production Line-ZONESUN TECHNOLOGY LIMITED

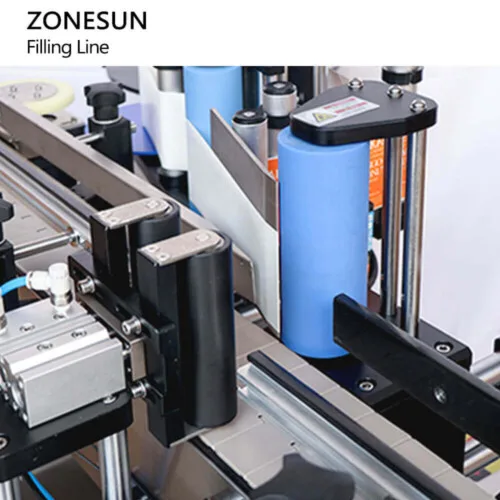

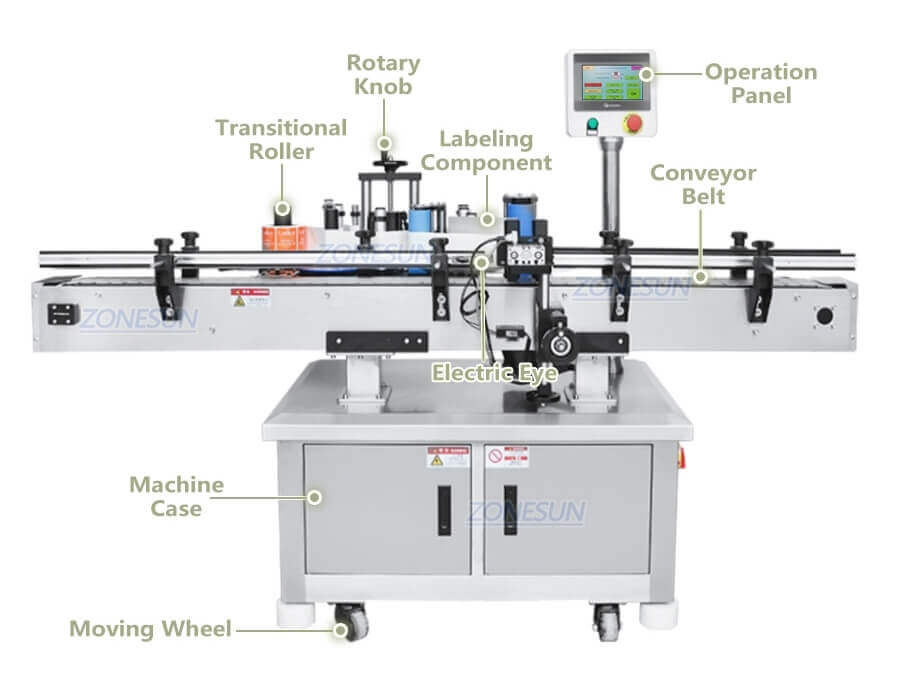

Model
ZS-TB260R Labeling Machine
Power supply
AC220V 50Hz/60Hz 1000W
Labeling capacity(bottles/min)
25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm)
±1.0mm
Suitable bottle Diameter
φ12-100mm
Label size(mm)
(L)20-300mm (H)15-150mm(Can be customized)
Roll inside diameter(mm)
φ76mm
Roll outside diameter(mm)
φ350mm
Conveyor size
112*2000mm(W)
Machine size
About (L)2000*(W)820*(H)1380(mm)
Machine weight
About 180kg
Packing size
About (L)2100*(W)890*(H)1520(mm)
Package weight
About 250kg
