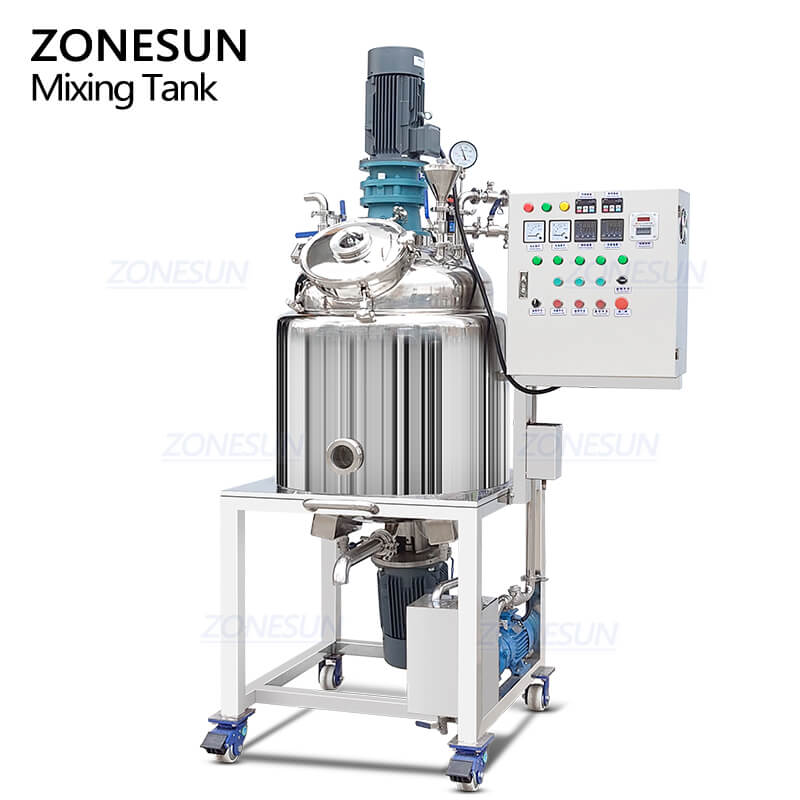

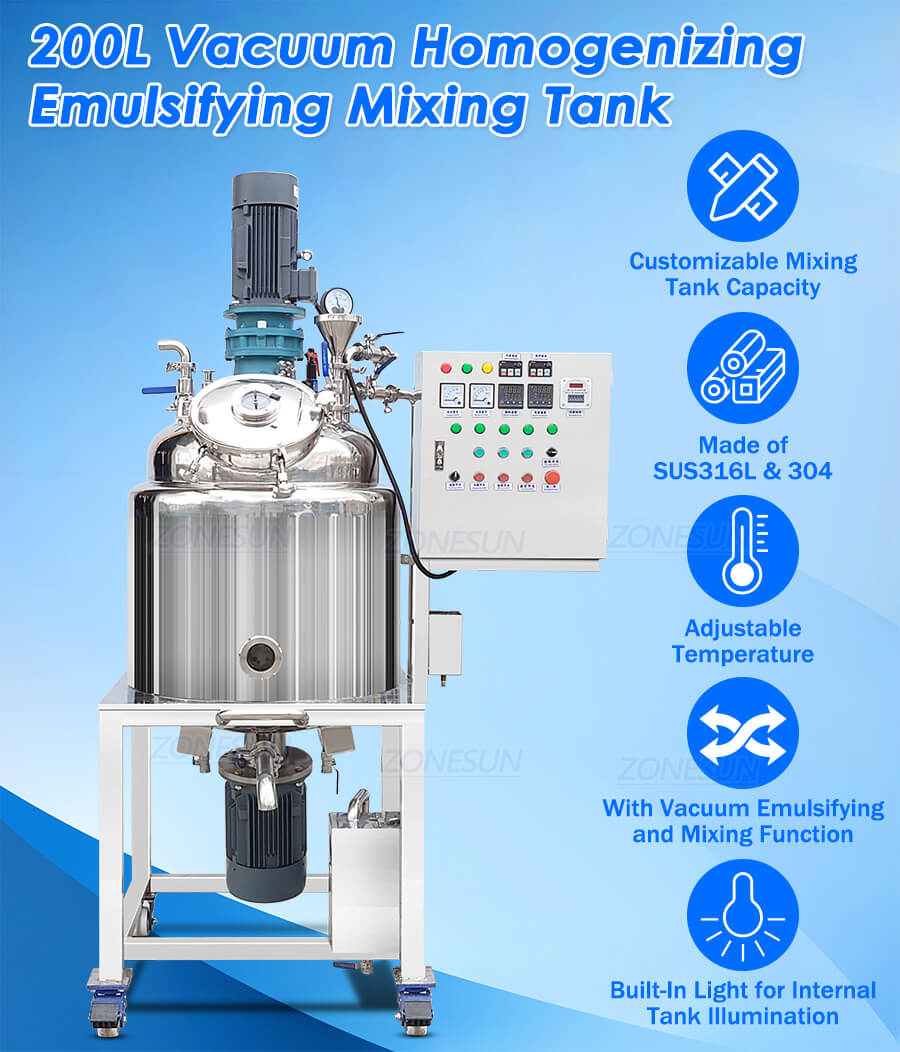

Vacuum Homogenizing Emulsifying Mixing Tank
This vacuum mixing equipment features a sealed tank with integrated scraping-wall mixing mechanism, high-efficiency homogenization/emulsification system, and jacketed heating/cooling capabilities. Enhanced by vacuum operation that prevents air entrapment, the machine delivers superior homogenizing and emulsifying performance. Additional functionalities include temperature control, internal LED lighting, and a heavy-duty support frame for industrial durability.
Share to
Product Description:
This vacuum mixing equipment features a sealed tank with integrated scraping-wall mixing mechanism, high-efficiency homogenization/emulsification system, and jacketed heating/cooling capabilities. Enhanced by vacuum operation that prevents air entrapment, the machine delivers superior homogenizing and emulsifying performance. Additional functionalities include temperature control, internal LED lighting, and a heavy-duty support frame for industrial durability.
Product Parameters:
| Machine Model | ZS-VMB200RH |
| Voltage | 220V 50-60Hz |
| Tank Capacity | 200L (customizable upon request) |
| Wall Thickness | Inner layer: 5 mm Middle layer: 4 mm Outer layer: 3 mm |
| Tank Material | Inner layer made of 316L stainless steel; middle and outer layers made of 304 stainless steel |
| Heating Power | 18 kW |
| Mixing Motor Power | 2.2 kW |
| Mixing Speed | Frequency-controlled, adjustable from 0 to 62 RPM |
| Homogenizing Emulsifier Power | 5.5 kW |
| Homogenizing Speed | Frequency-controlled, adjustable from 0 to 2,930 RPM |
| Vacuum Pump Power | 1.45 kW |
| Working Pressure | Vacuum pressure range: -0.09 to -0.02 MPa;Positive pressure: ≤ 0.3 MPa |
| Dimension | About 1512*1026*2619mm |
| Package Size | About 1350*1060*2230mm |
| Package Weight | About 591kg |
Product Details:

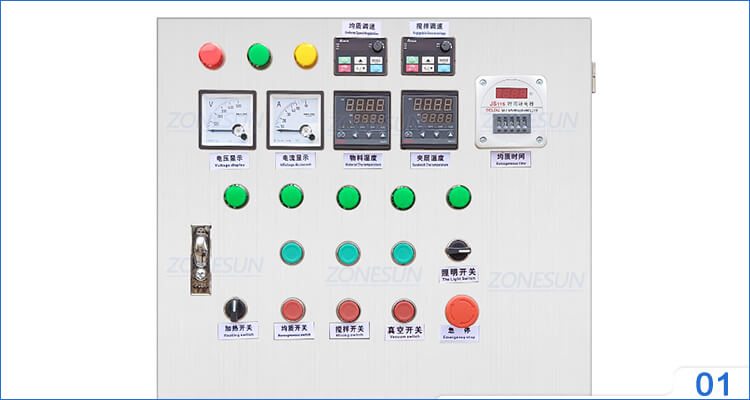

Control Panel
User-friendly interface with clearly labeled functions. Dual temperature control system allows for precise and stable temperature regulation.

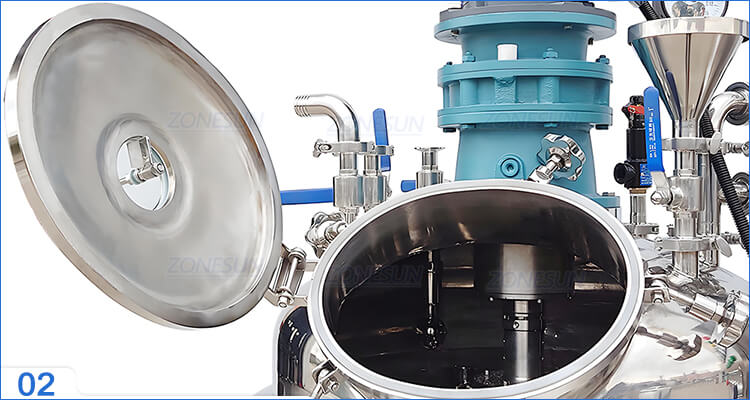

Top Manway Cover
300×350 mm manway for manual feeding and easy cleaning of the mixing tank.

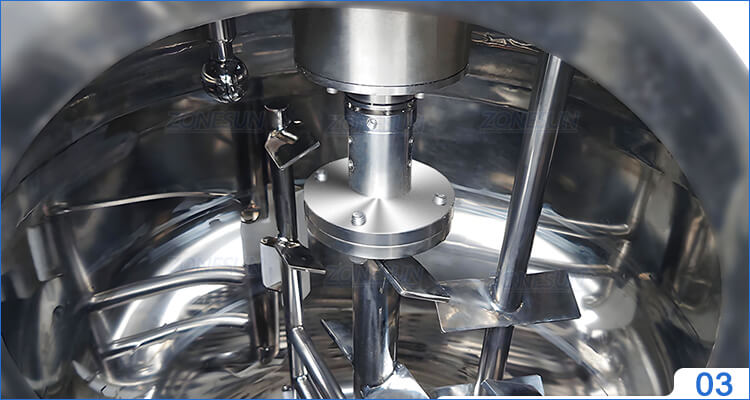

Frame-Type Wall-Scraping Agitator
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.

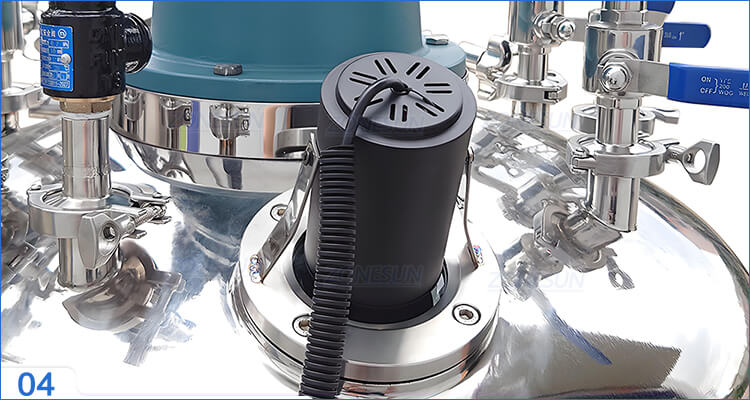

LED Illumination
Integrated 3W LED light provides clear internal visibility during operation.

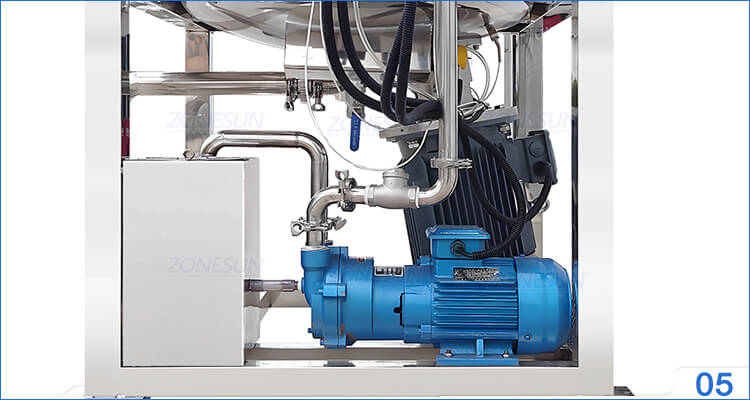

Vacuum Pump
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.
