Product Description:

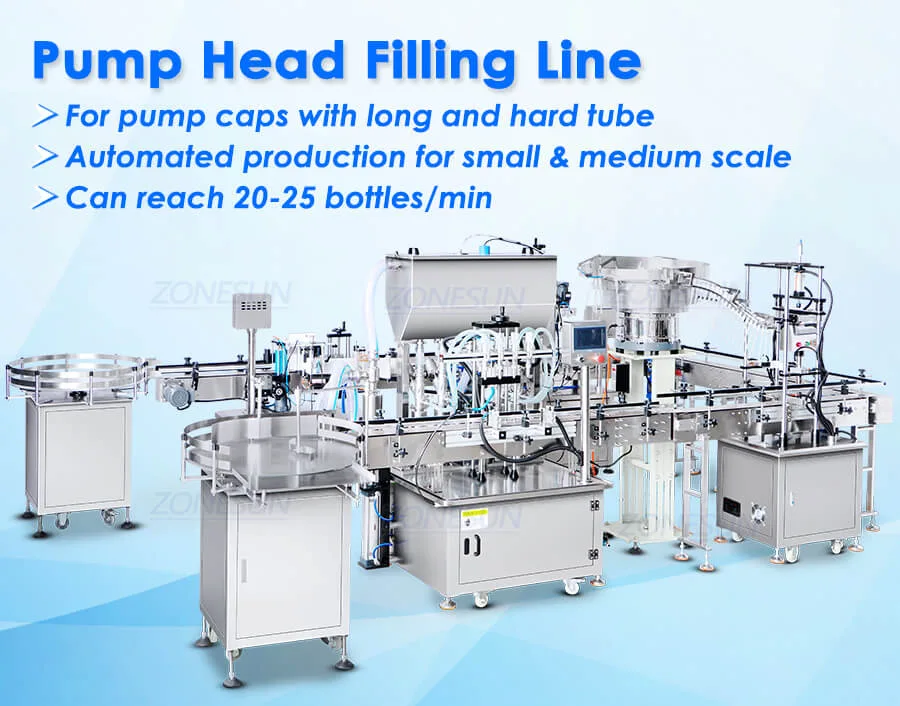

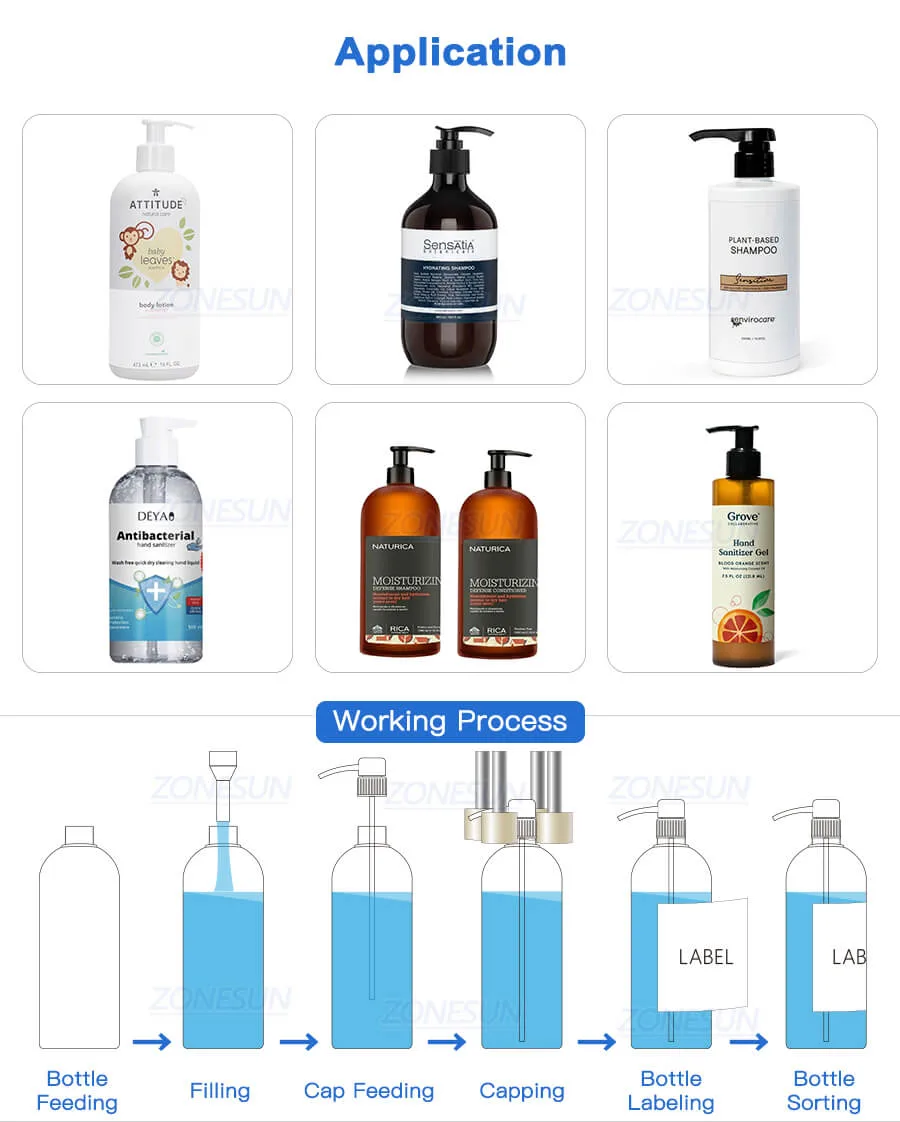

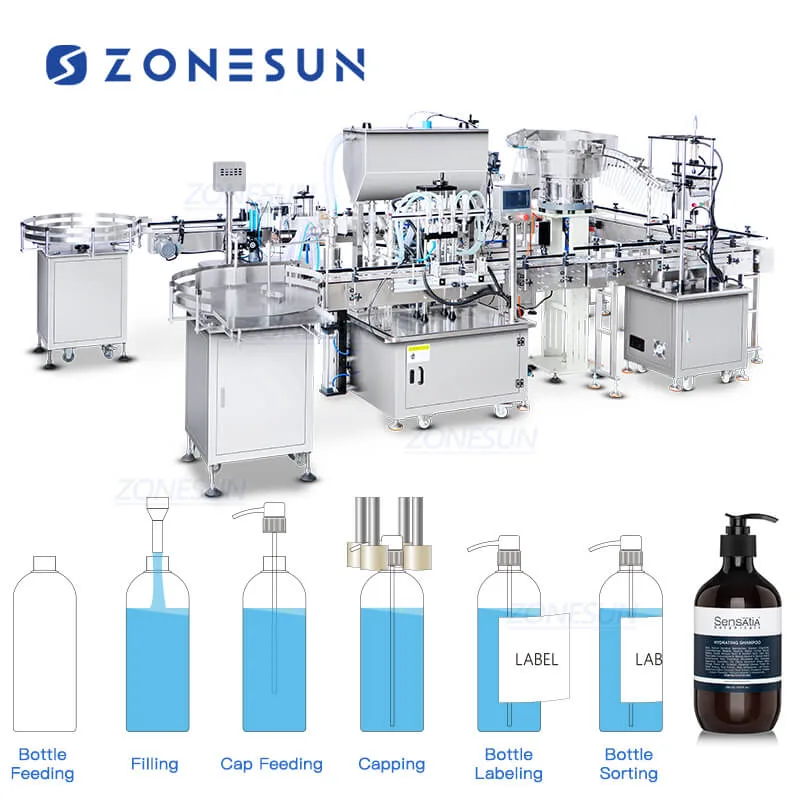

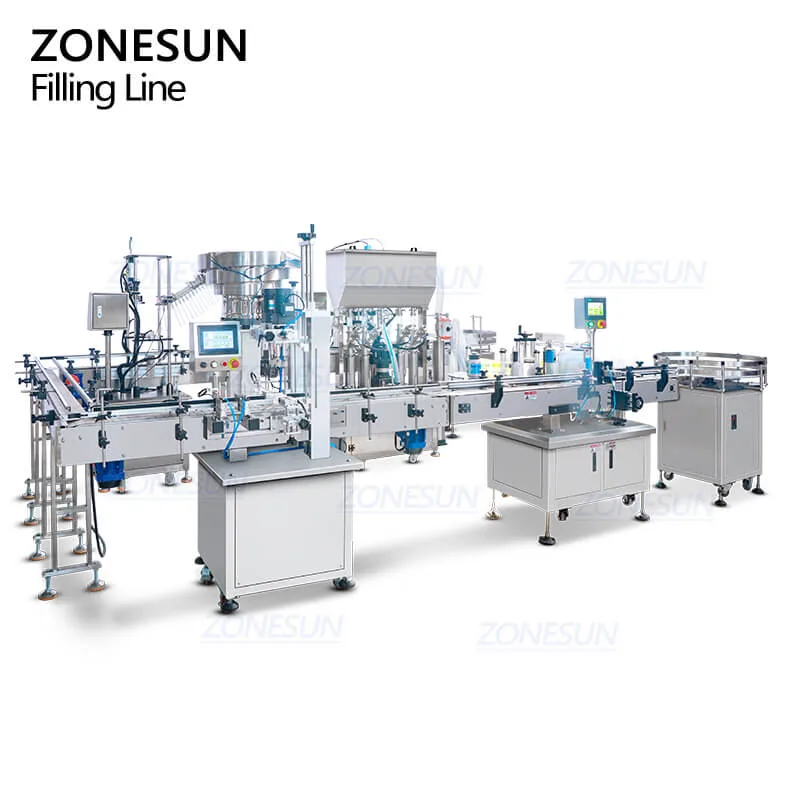

This filling line is tailored for packaging bottles with pump caps, such as shampoo and body lotion. It consists of a filling machine, cap feeding machine, capping machine, labeling machine, and bottle turntable machine. It’s ideal for small to medium scale productions.

Product Details:

Model	ZS-LP800S	ZS-LP1000S
Turntable Diameter	800mm	1000mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60 bottles/min(depends on bottle size)
Power Supply	220V/110V 50-60Hz 200W
Package Size	About 1150*1000*1320mm	About 1350*1315*1235mm
Net Weight/Gross Weight	About 82kg/120kg	About 135kg/180kg

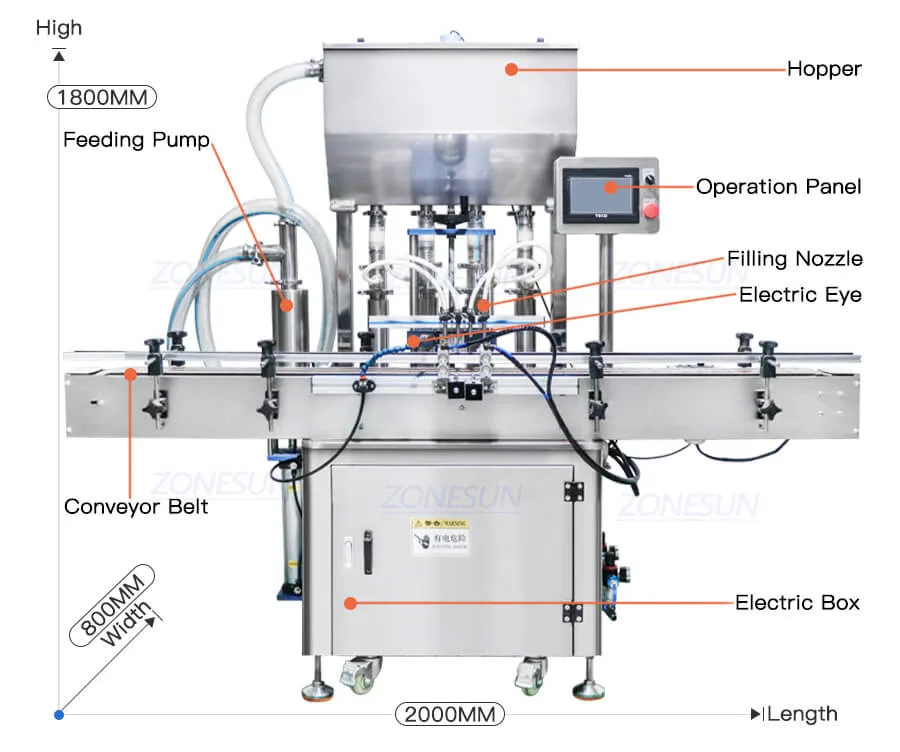

Machine Model	ZS-YT4T-4PX
Voltage	110/220V 50-60HZ 1KW
Filling Range	10-180ml/30-500ml/100-1000ml
Working Speed	About 30-50bottles/min
Filling Pump	Piston pump
Air Pressure	0.6-0.8MPa
Filling Accuracy	±1%
Filling Nozzle	4(can be customized)
Machine Size	About 2000*800*1800mm
Machine Weight	About 200kg
Packaging Size	About 2070*960*2010mm(100-1000ml)
Packaging Weight	About 392kg(100-1000ml)

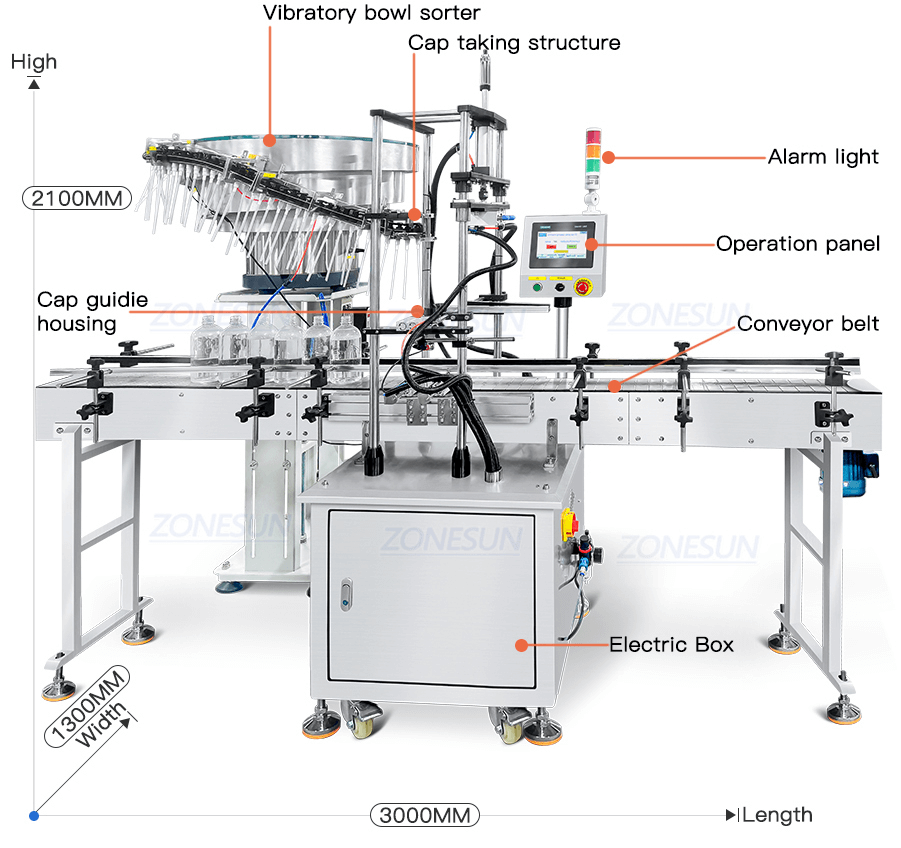

Machine Model	ZS-XG445S
Voltage	110/220V
Power	1.5KW
Capacity	5-25 Bottle/Min(based on bottle and cap size)
Air Pressure	0.5-0.8Mpa
Suitable Bottles	Customize according to sample
Cap Feeding Way	Pneumatic fetch
Machine Size	About 3000*1300*2100mm(L*W*H)
Packaging Size	About 1090*640*1960mm(machine) About 1060*970*1570mm(Vibratory bowl sorter)
Packaging Weight	About 210kg(machine) About 106kg(Vibratory bowl sorter)

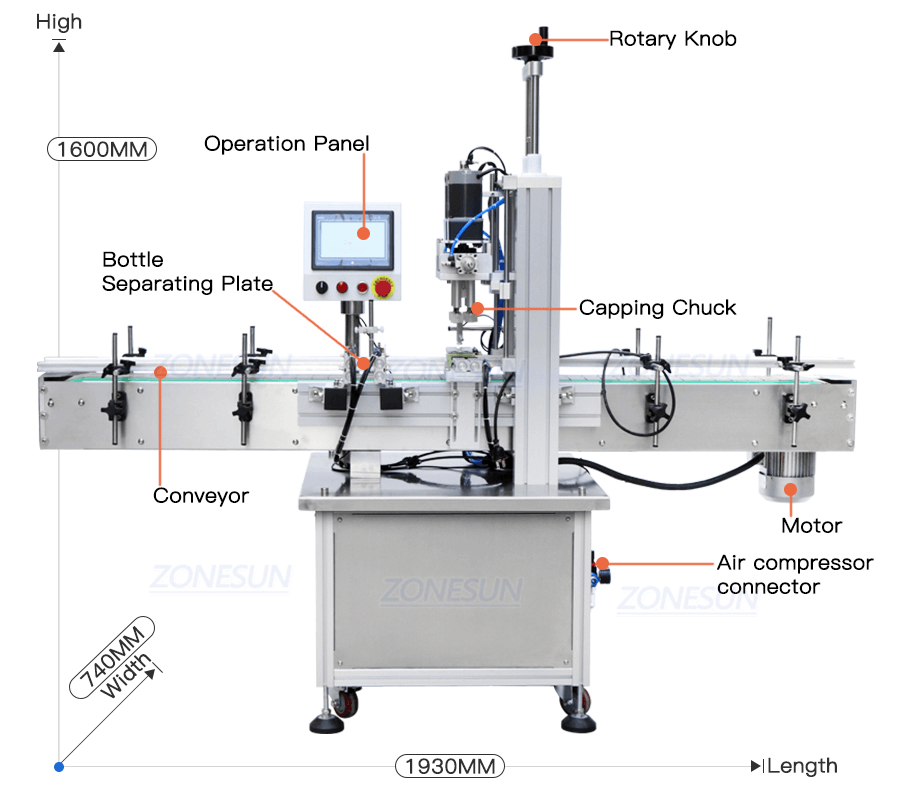

Machine model	ZS-XG16
Power supply	AC220V/110V 50-60HZ 1.1KW
Bottle height	30-300mm
Cap Diameter	18- 70mm
Bottle Diameter	20-160mm
Working speed	20-50 bottles / minute (depending on bottle and cap size and shape)
Working pressure	0.4-0.6 MPa
Dimension	1930x740x1600mm
Packing size	2000x820x1760mm
Weight	150kgs

Model	ZS-TB260R Labeling Machine
Power Supply	AC220V 50Hz/60Hz 1000W
Labeling Capacity(bottles/min)	25-50 bottles/min(depends on bottle size)
Labeling Accuracy(mm)	±1.0 mm
Suitable Bottle Diameter	Φ12-100 mm
Label Size(mm)	(L)20-300 mm (H)15-150 mm(Can be customized)
Roll inside Diameter(mm)	Φ76mm
Roll outside Diameter(mm)	Φ350mm
Conveyor Size	112*2000mm(W)
Machine Size	About (L)2000*(W)820*(H)1380(mm)
Machine Weight	About 180kg
Packing Size	About (L)2100*(W) 890*(H)1520(mm)
Package Weight	About 250 kg

Bottle Specifications	Square bottle/round bottle
Conveying Speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power Supply	200W
Turntable Diameter	800 mm Available
Dimensions	About 550*550*990mm
Package Size	About 1050*1000*1130mm
Net weight/Gross weight	About 93kg/120kg

Product Details:

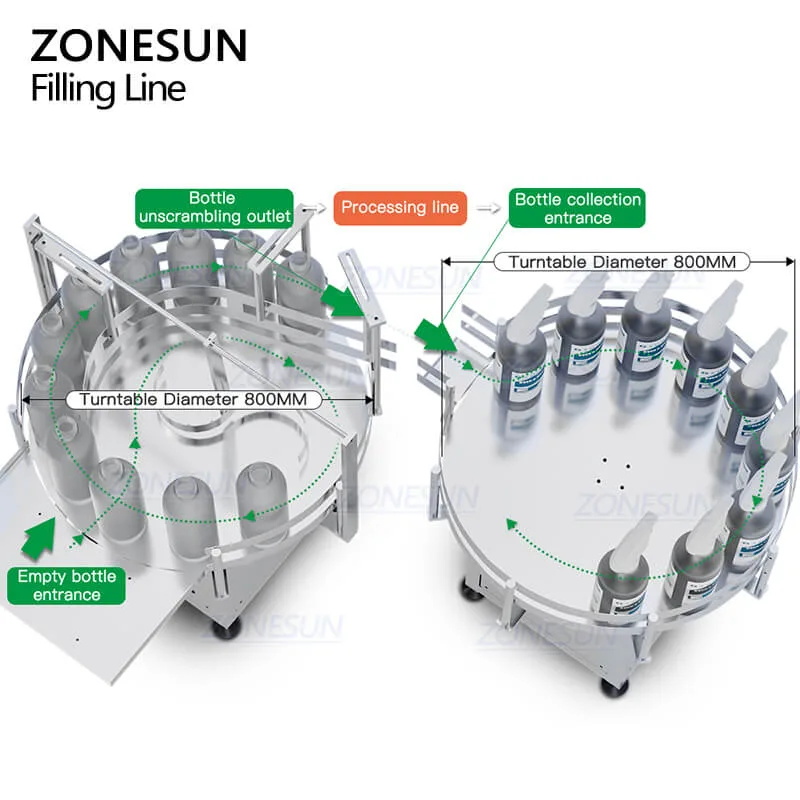

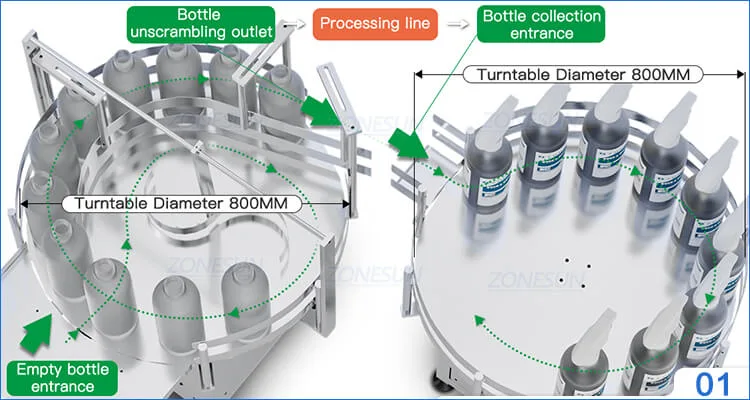

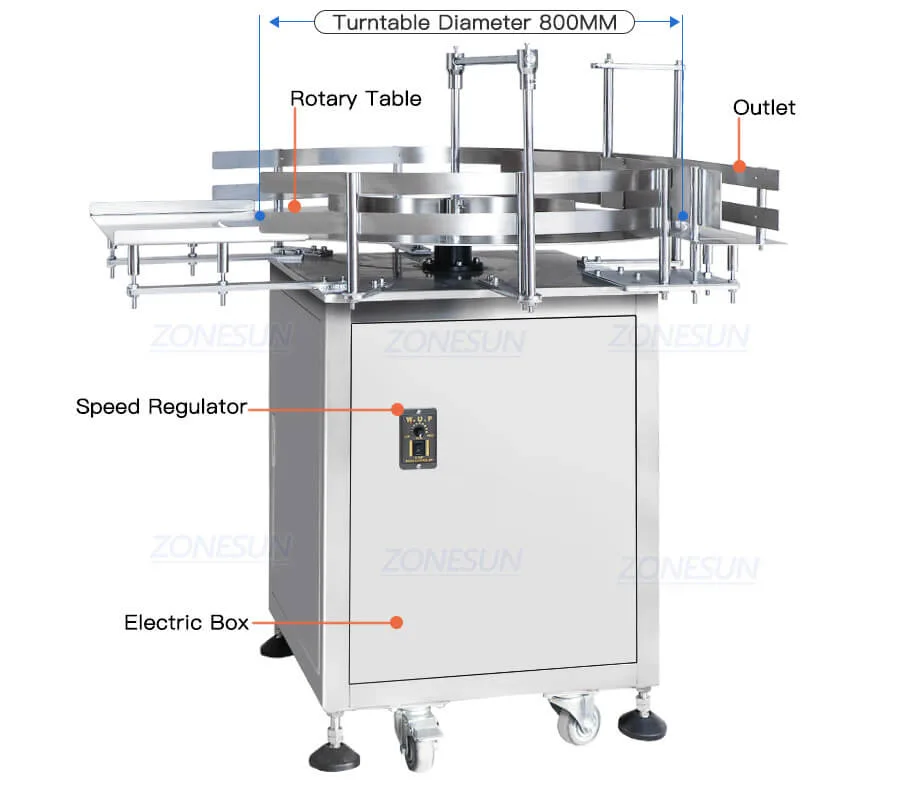

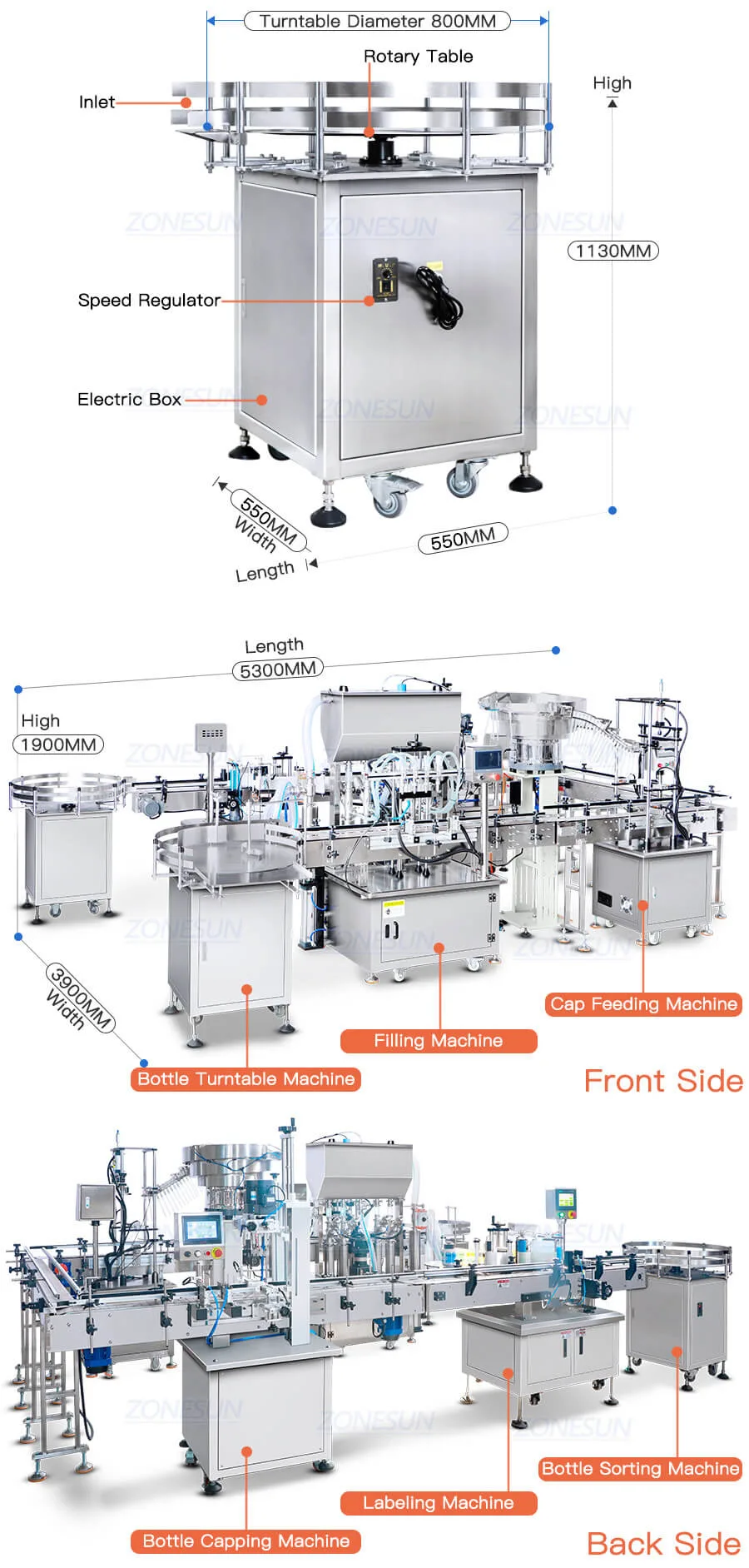

Turntable Machine
Diameter can be customized based on production need.

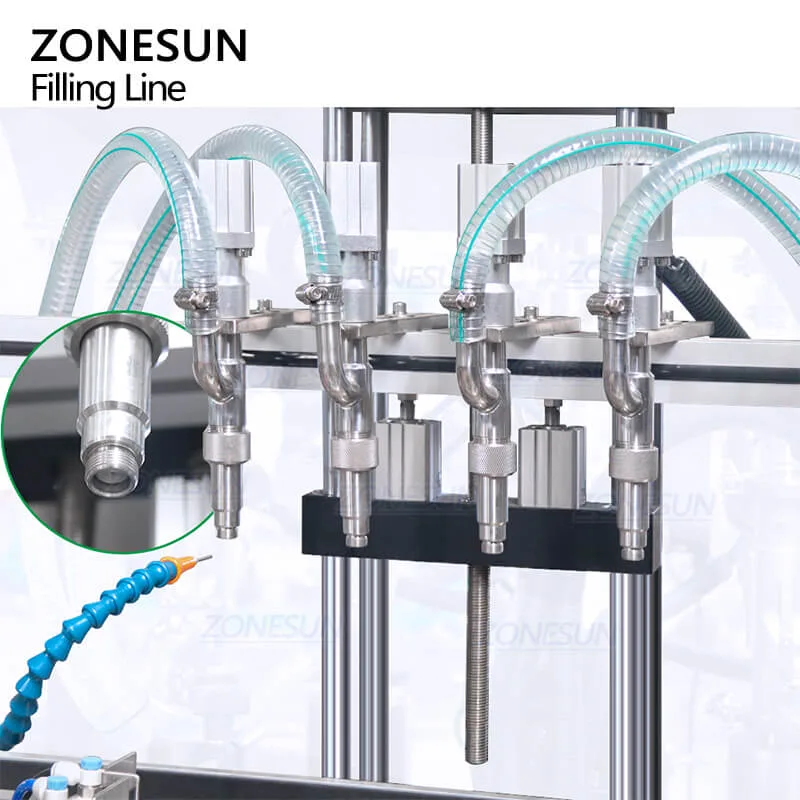

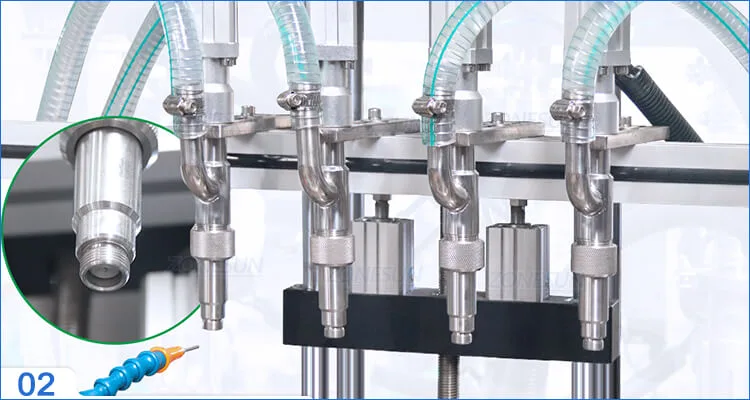

Anti-dripping Filling Nozzle
Can efficiently prevent liquid beverage from dripping onto the exterior of the containers or the filling machinery.

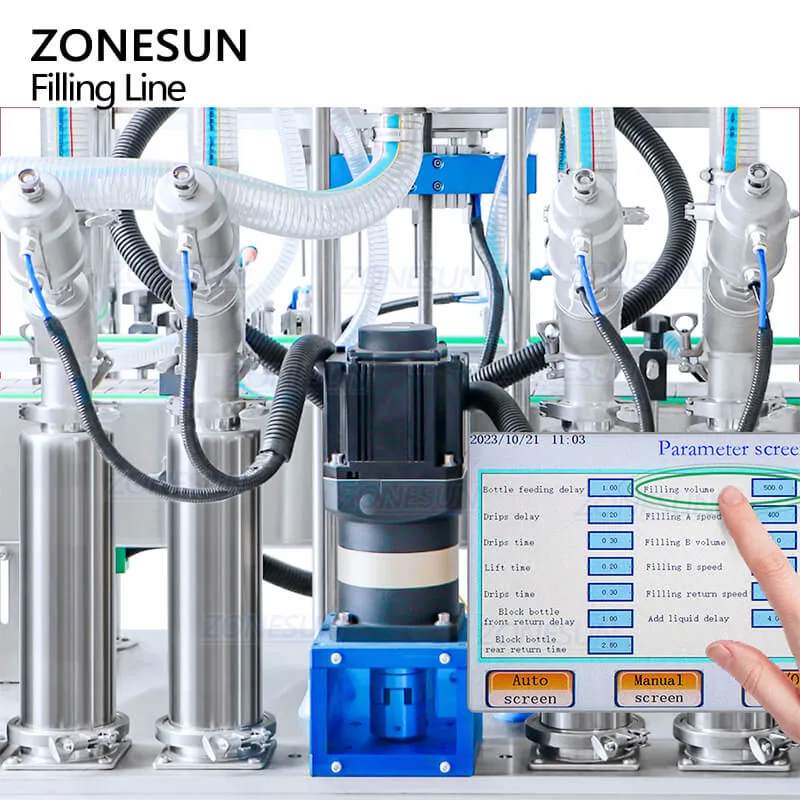

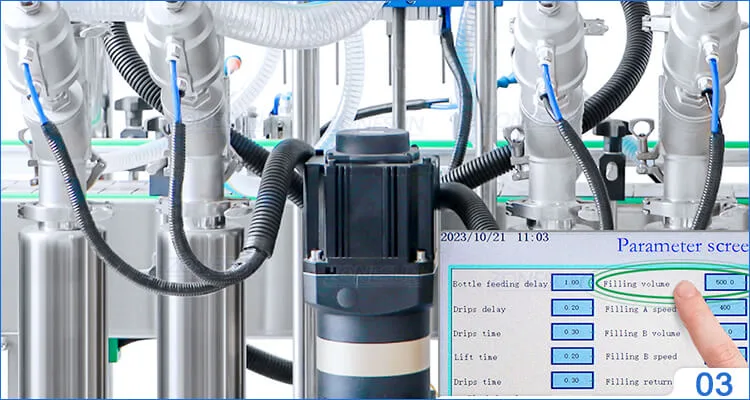

Servo Motor
Servo motor controls liquid filling work, machine operation will be easier and has high filling accuracy.

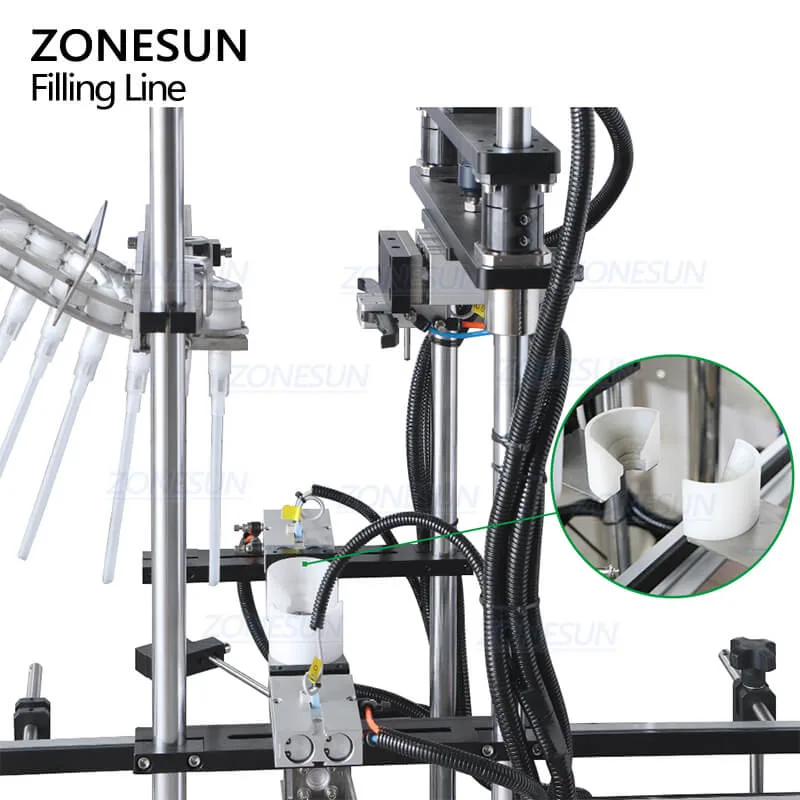

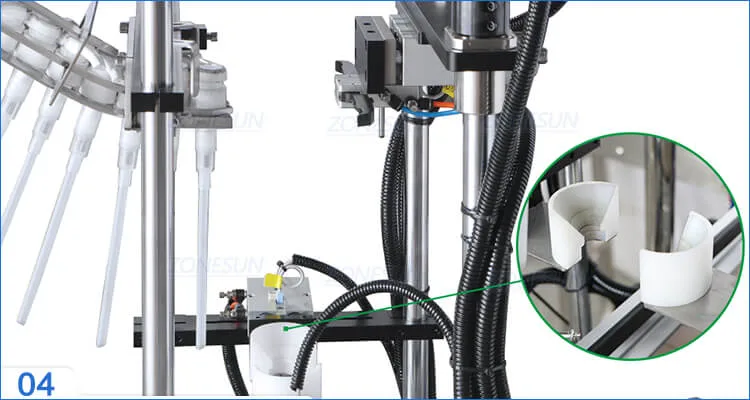

Cap Feeding Structure
Designed for pump caps with long & hard tube, imitate human hands to take caps and accurately place caps.

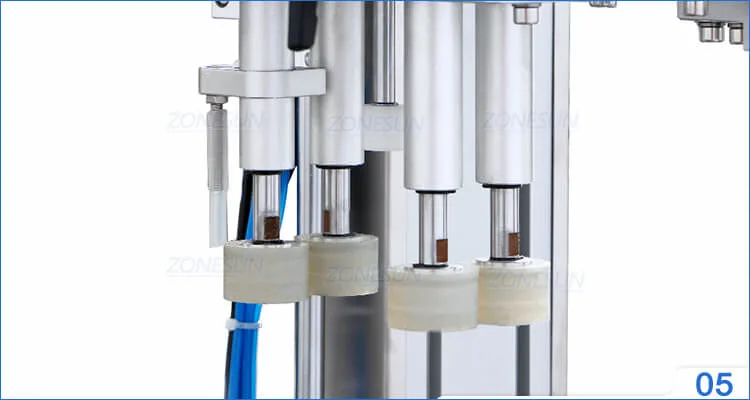

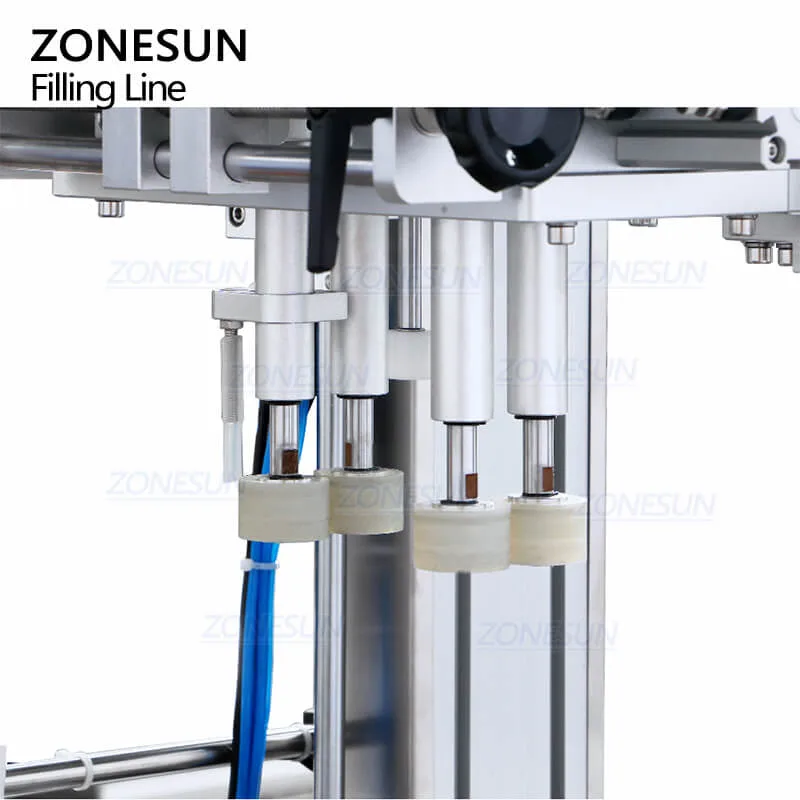

Capping Structure
Suitable for screw-on bottle caps, capping structure can adjusted according to cap size.

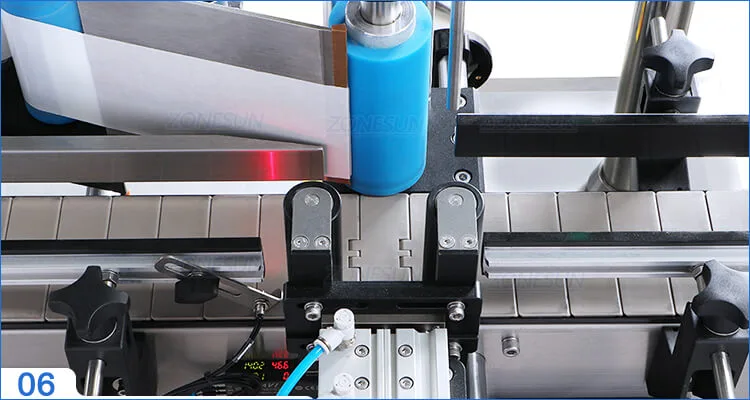

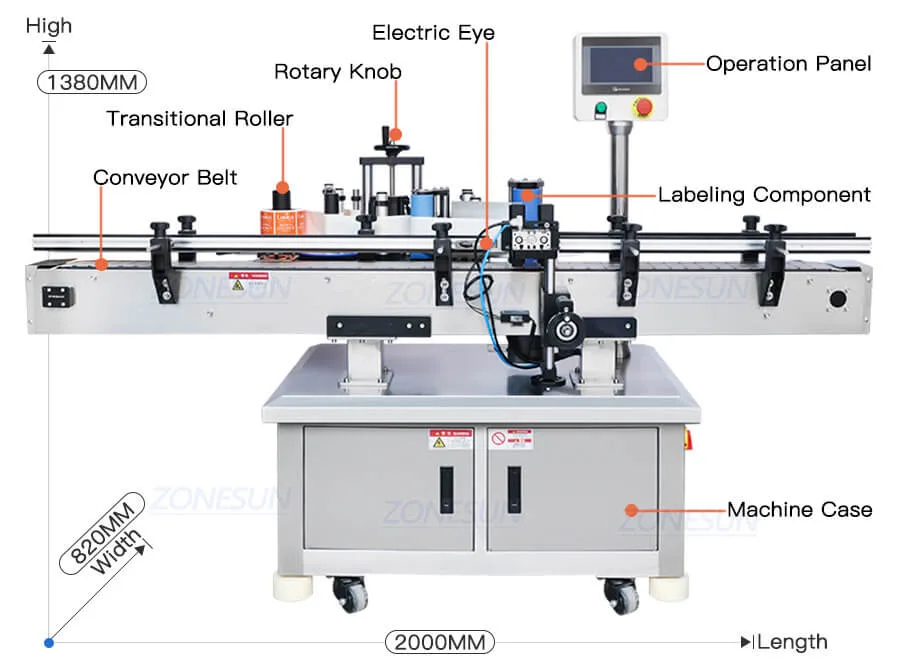

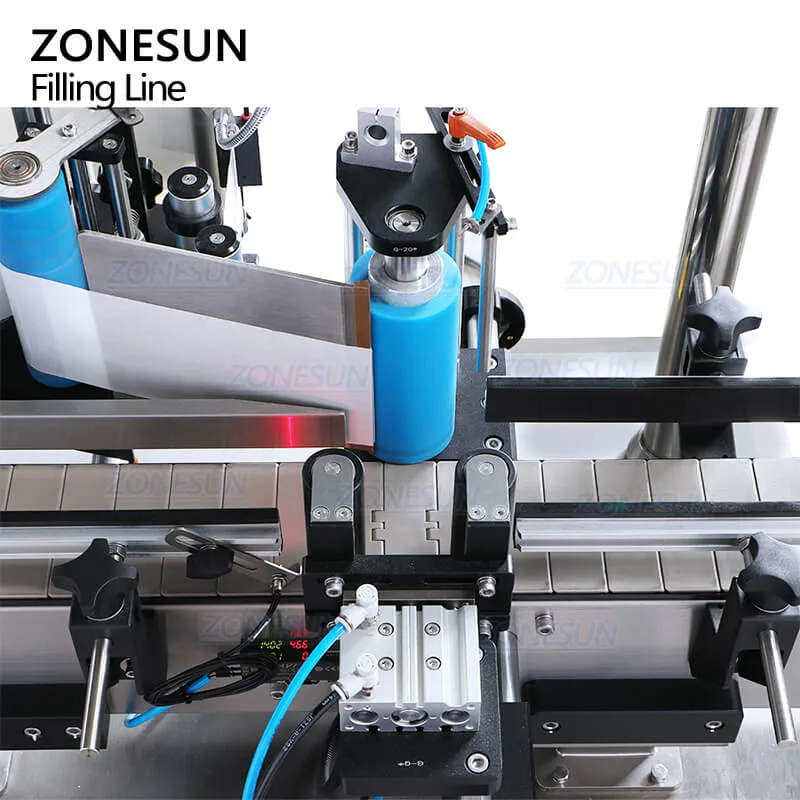

Labeling Structure
Good for single side, double sides and wrap-around labeling of round bottles.

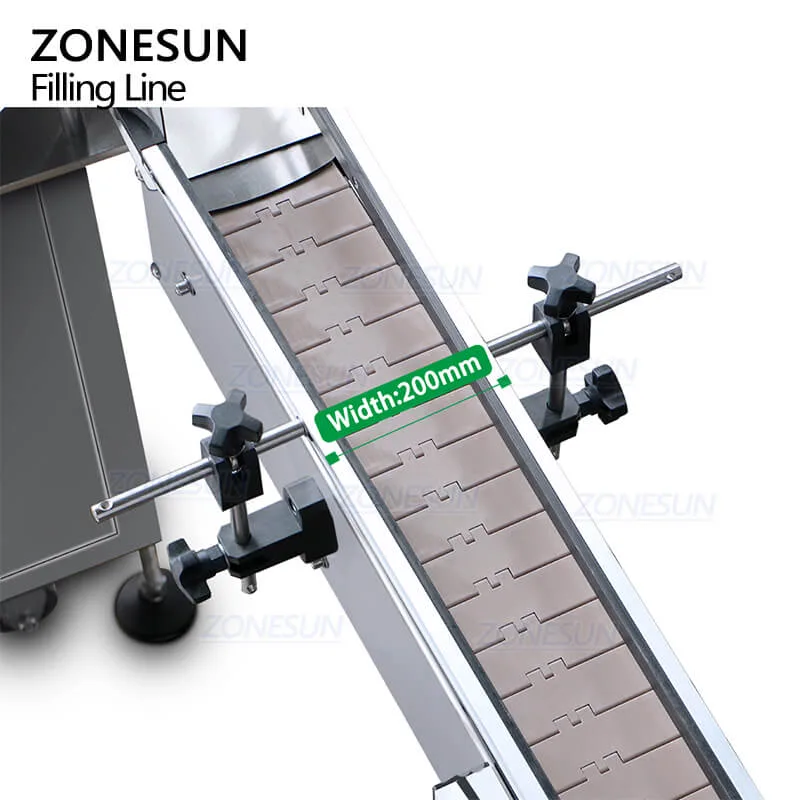

Chain Conveyor
With Larger weight capacity, the length and width can be customized as needed.
