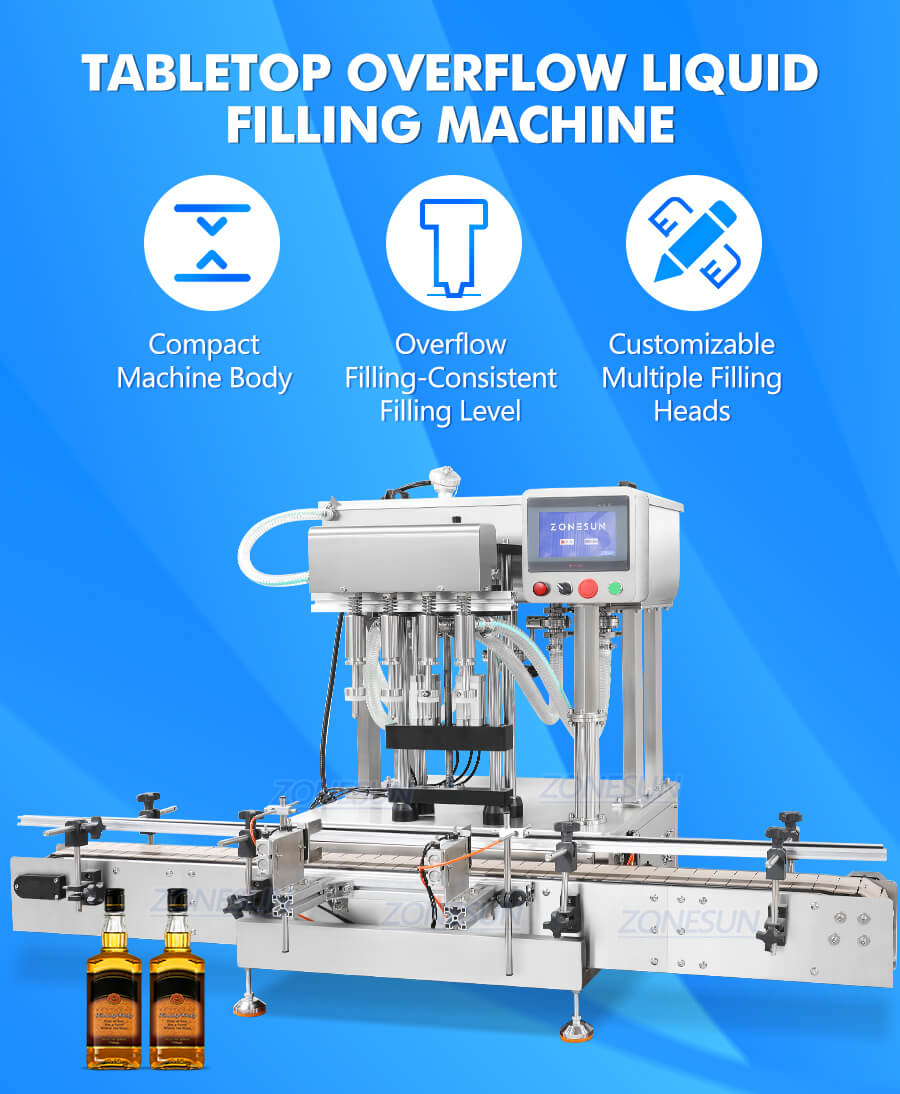

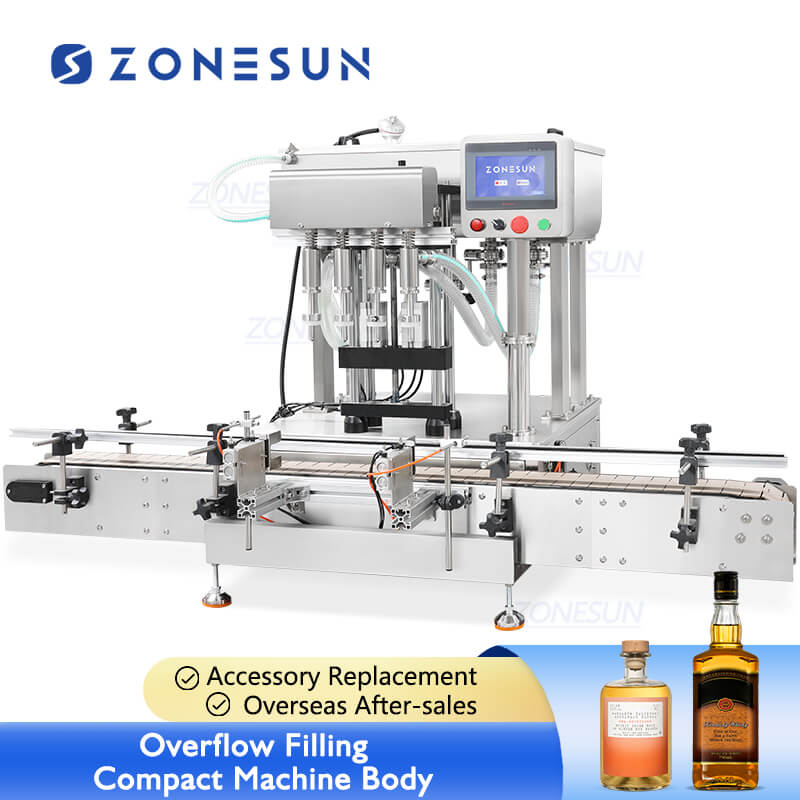

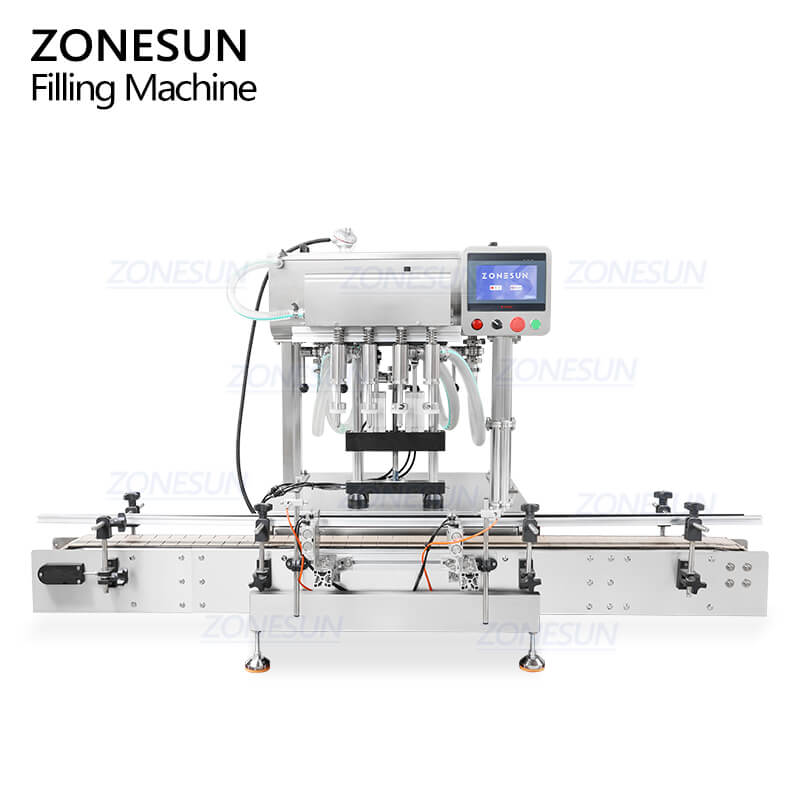

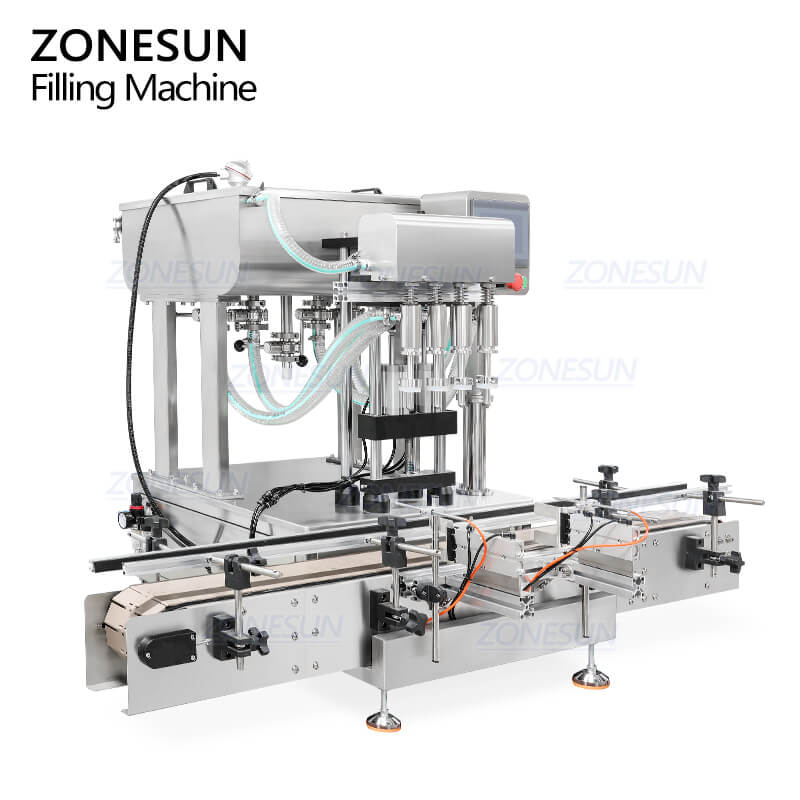

Product Description:
The tabletop machine body is designed to save working space. This overflow filling machine can fill liquid slightly above the intended fill line, allowing excess liquid to overflow, ensuring consistent filling levels. It is ideal for whiskey, vodka, rum, and other alcoholic beverages.

Product Parameters:

Machine model	ZS-DTGZ400
Machine voltage	110/220V 50-60HZ 150W
Quantity of filling nozzle	4
Working capacity	About 12-20BPM(based on filling volume)
Hopper size	70L
Air pressure	0.4-0.6MPA
Suitable filling volume	≤1500ml/bottle
Suitable bottle diameter	Φ=50-80mm
Conveyor height from ground	About 236mm+100mm
Suitable bottle height	200-300mm
Suitable bottle opening mouth	20-35mm
Machine size	About1810*1040*1000mm(L*W*H)

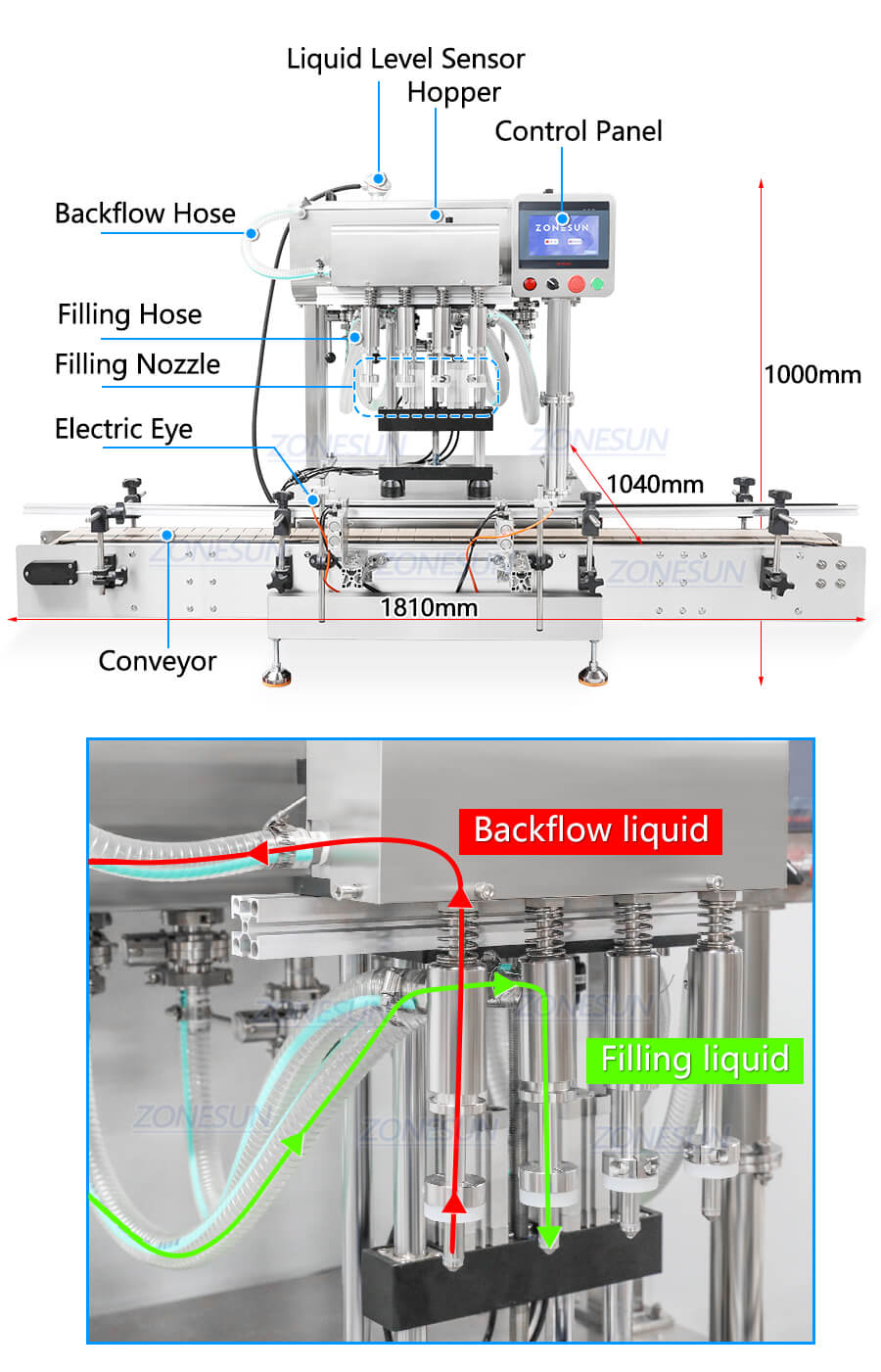

Product Details:

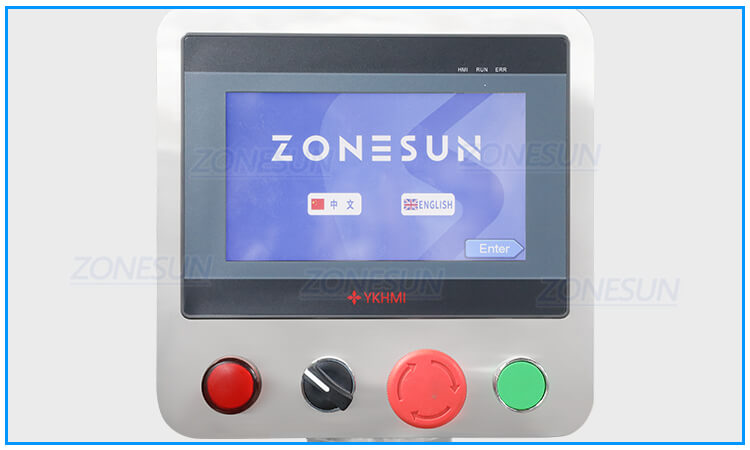

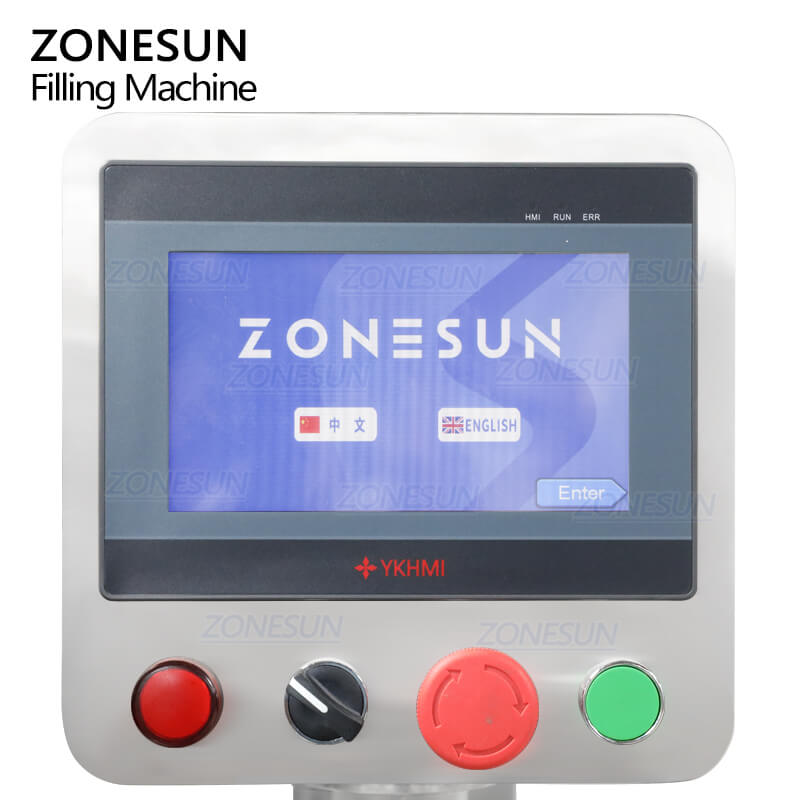

Touch Screen Control Panel
Makes parameter setting more intuitively, simplifies machine debugging and operating.

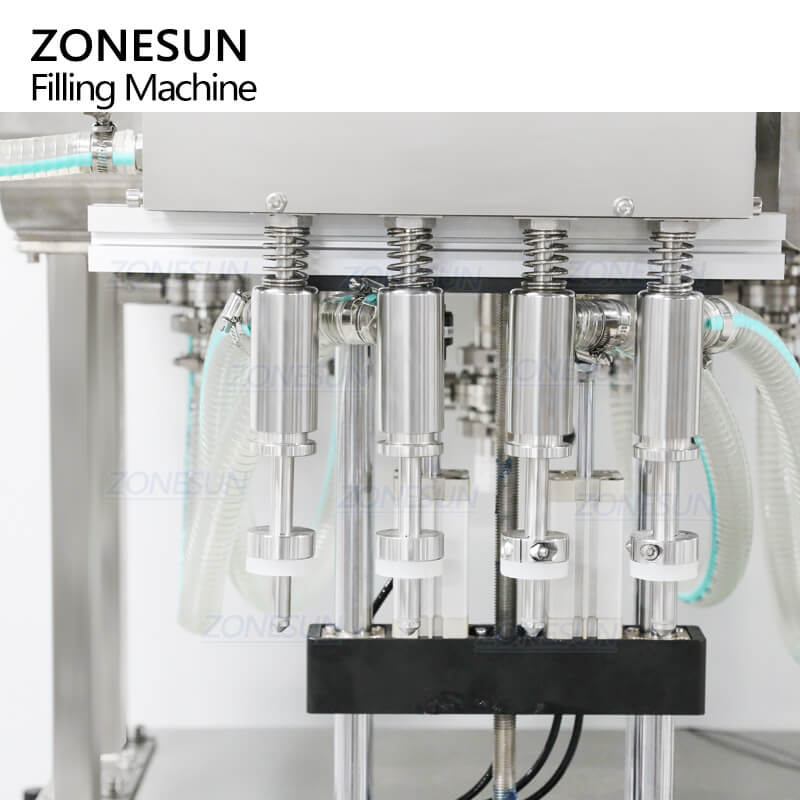

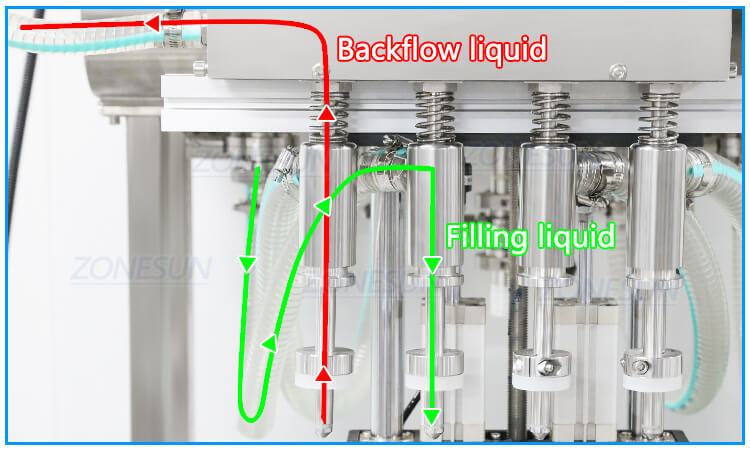

Filling Nozzle
Filling nozzles allows the excess liquid to flow out of the bottle neck and back into the reservoir.

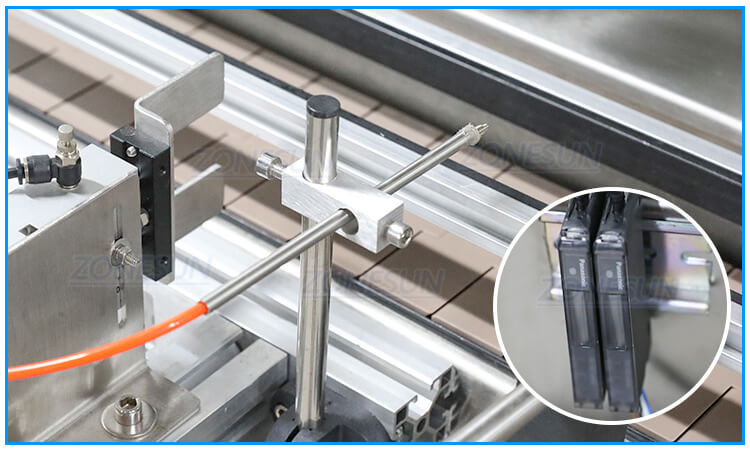

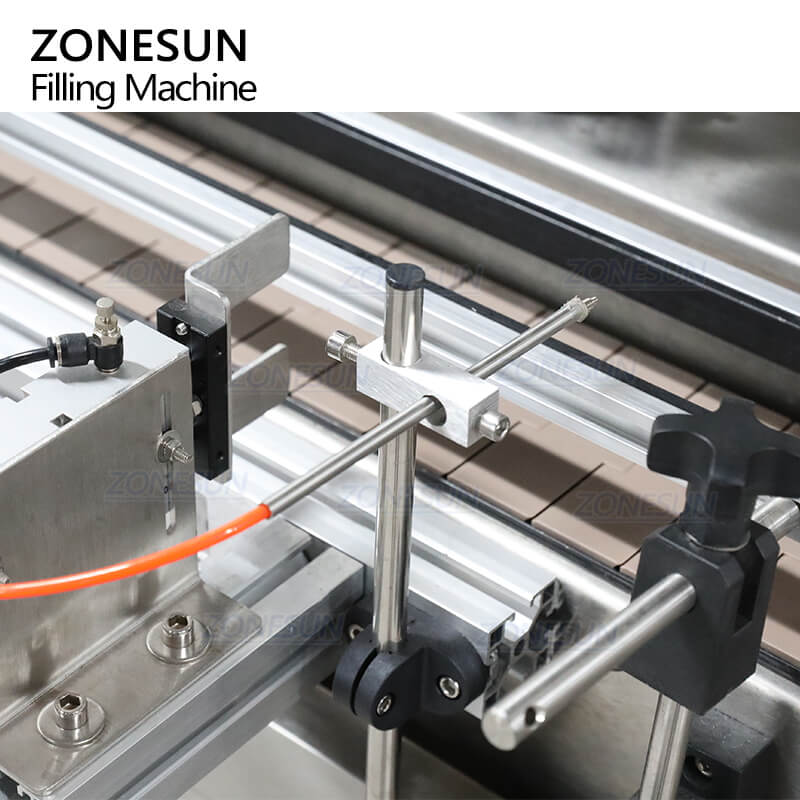

Electric Eye
Detect passing by bottles and realize automated filling work

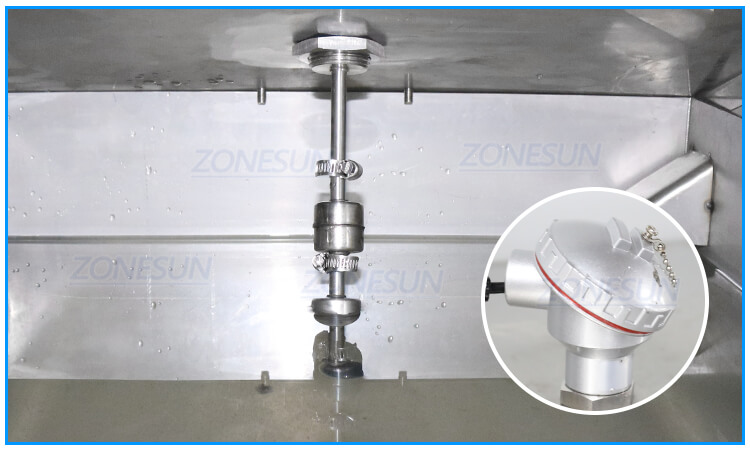

Liquid Level Sensor
It can monitor liquid level and allows for immediate filling material supplying adjustments.

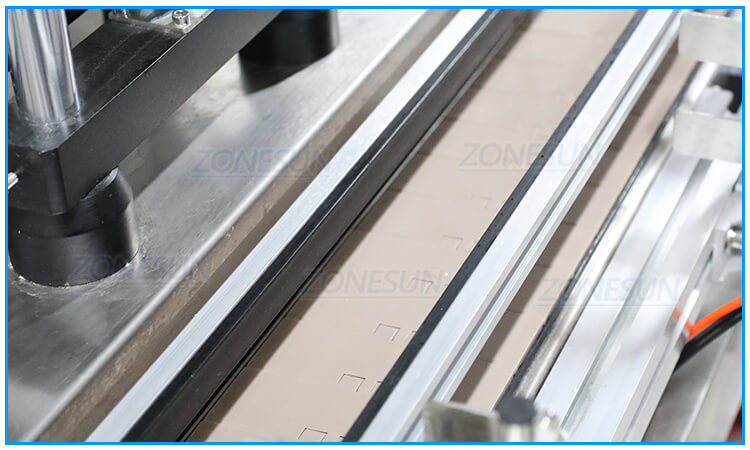

Chain Conveyor
Can integrate with capping, labeling machine and has large weight capacity.
