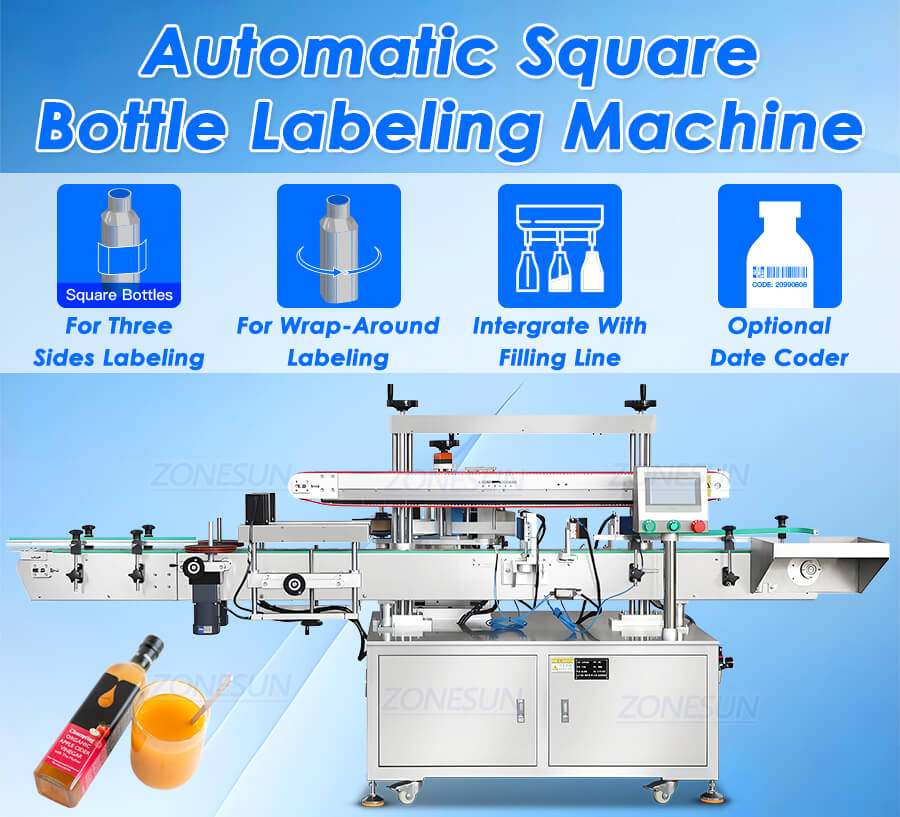

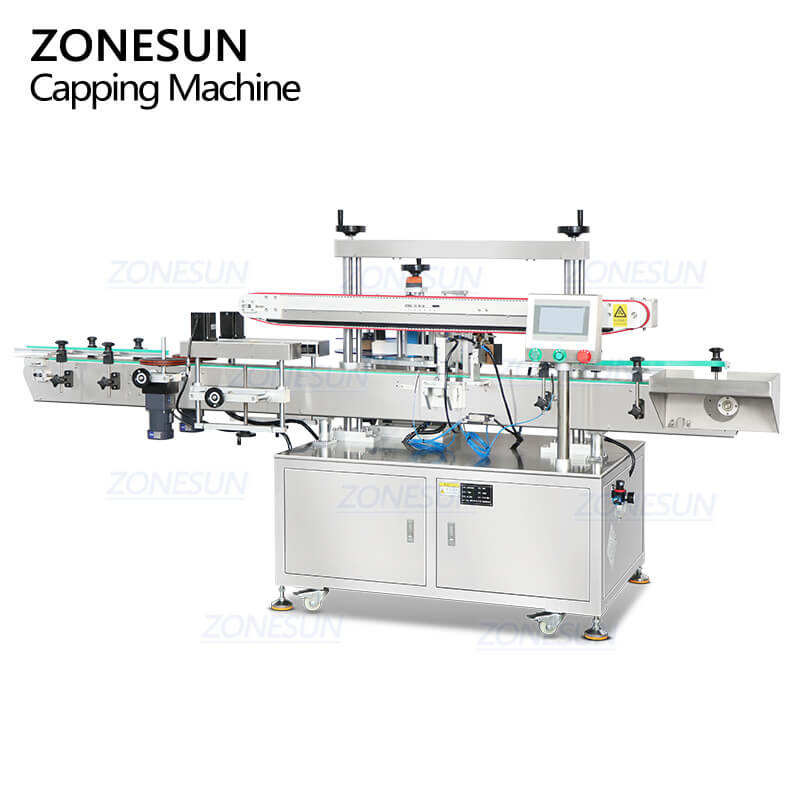

Product Description:
This automatic labeling machine can label self-adhesive sticker onto square bottle, it is suitable for the three sides labeling and wrap-around labeling.It is widely used in food, daily chemical and cosmetics industries.

Product Parameters:

Machine Model	ZS-TB900
Voltage	110/220V 50-60HZ
Label Width	20-200mm
Label Height	15-160mm
Suitable Bottle Size	20-100mm*30-100mm*60-280mm(L*W*H can be customized)
Outside Diameter Of Standard Roll	φ350mm
Inside Diameter Of Standard Roll	φ76mm
Labeling Accuracy	±1.0mm
Labeling Speed	20-60 bottles/min

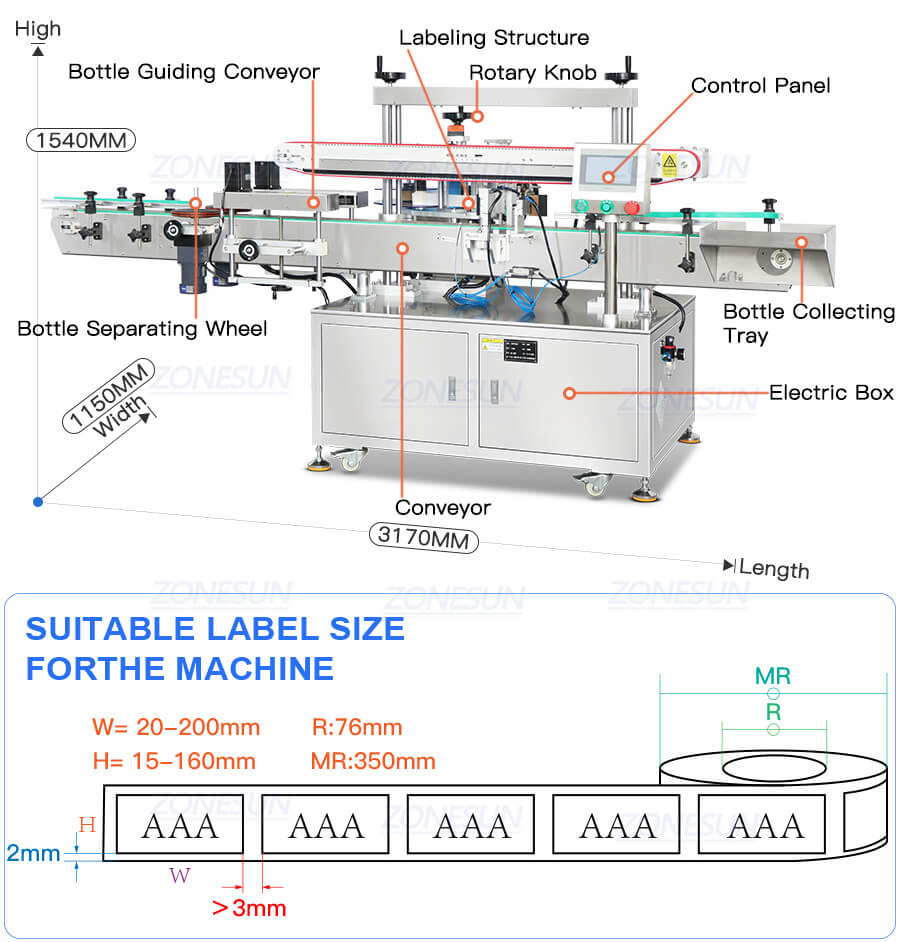

Machine Size	About 3170*1150*1540mm(L*W*H)
Machine Weight	About 300kg
Packaging Size	About 3240*1350*1740mm(L*W*H)
Package Weight	About 601kg

Product Details:

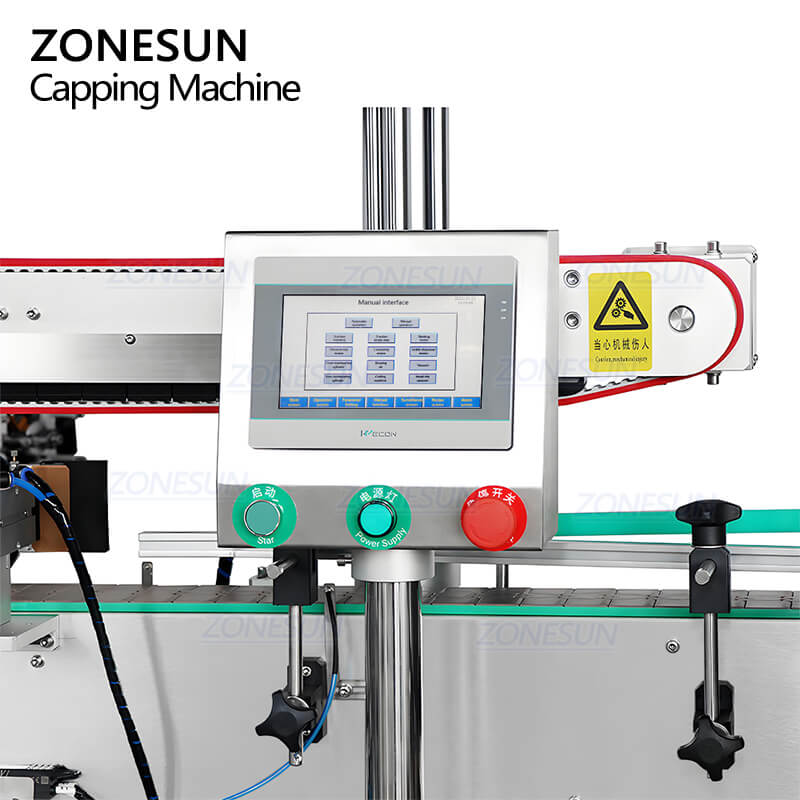

Control Panel
Customizable interface simplifies machine operation, multi operating languages are customizable.

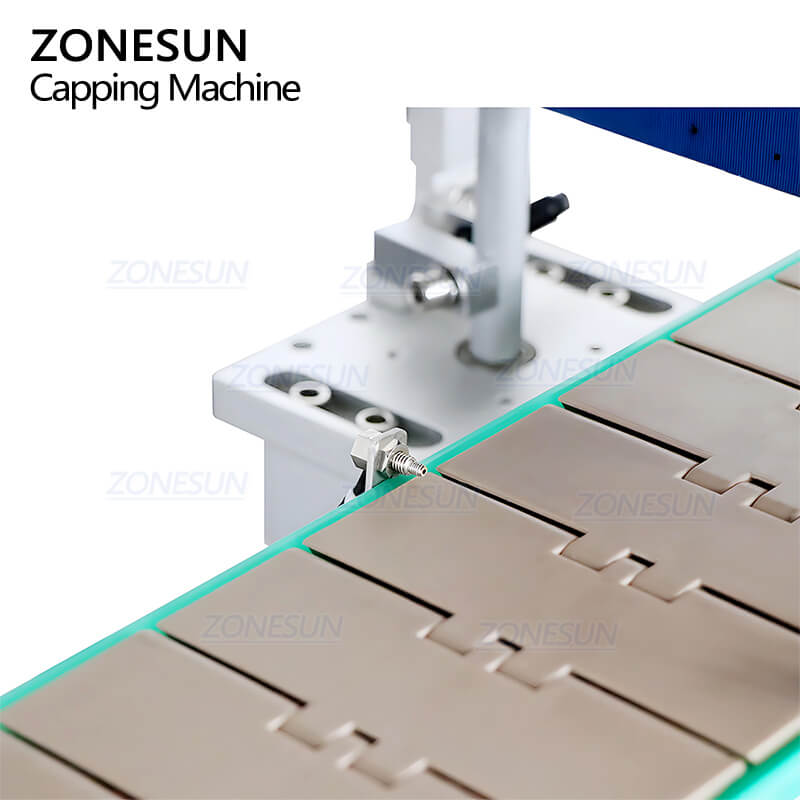

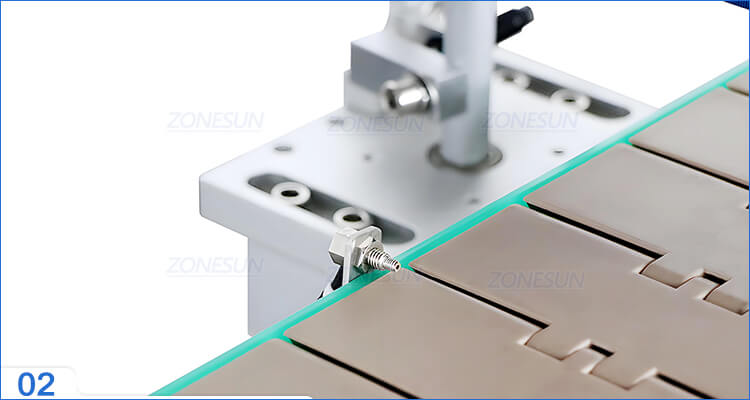

Electric Eye
Using for detecting passing by bottles to realize automated production and improves accuracy.

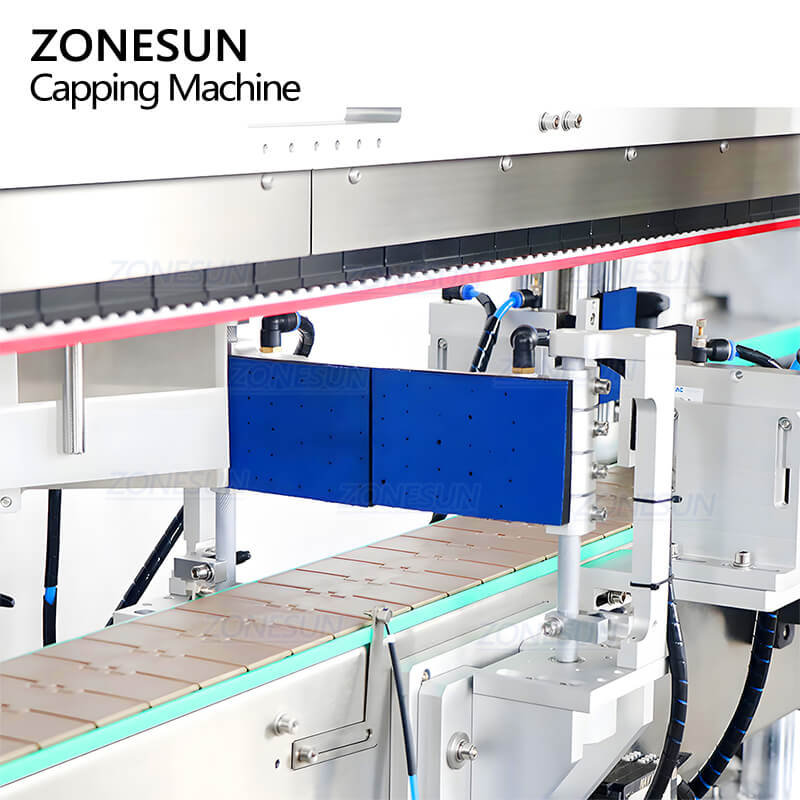

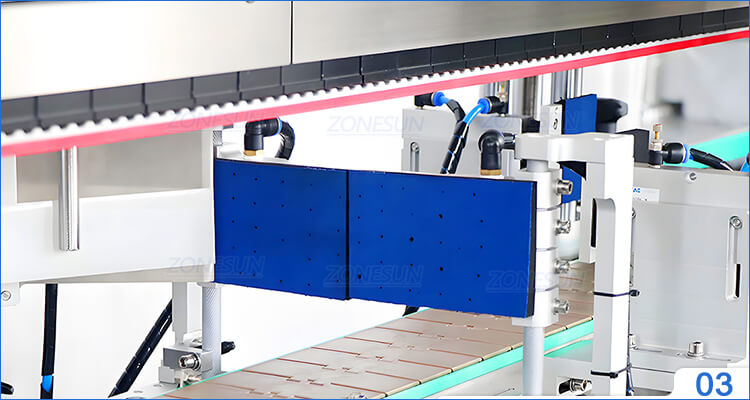

Labeling Structure
Can be used for three sides and wrap-around labeling of square bottles, top conveyor can ensures smooth labeling work.

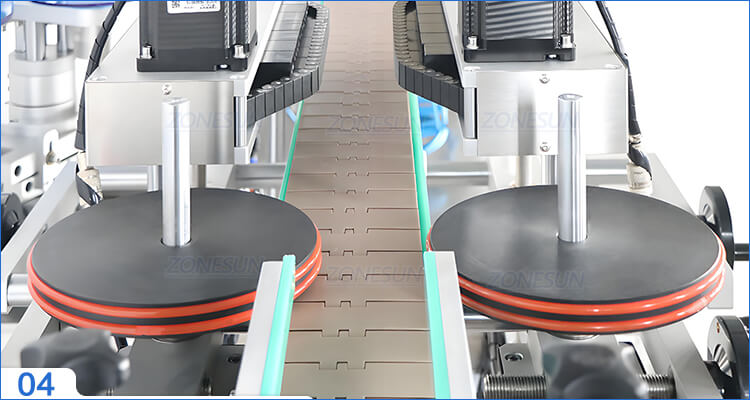

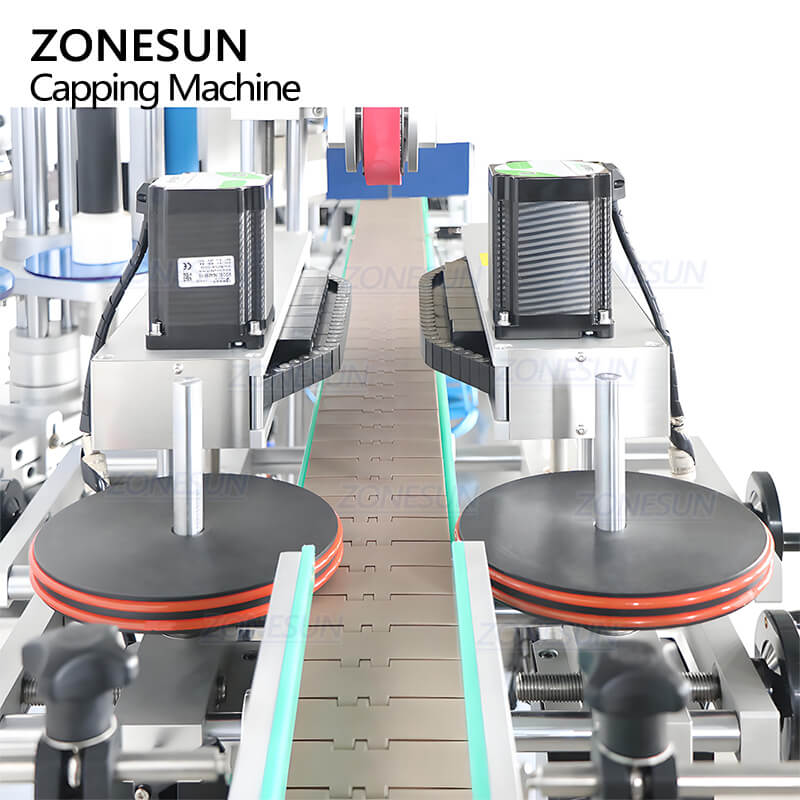

Bottle Separating Wheel
The wheel spaces out bottles evenly to ensure machine works stably .

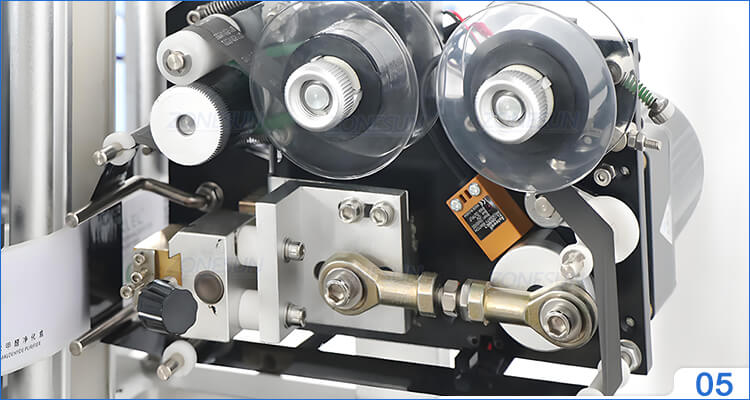

Date Coder
Optional coding machine can print batch number or production date on self-adhesive stickers to simplify packaging process.
