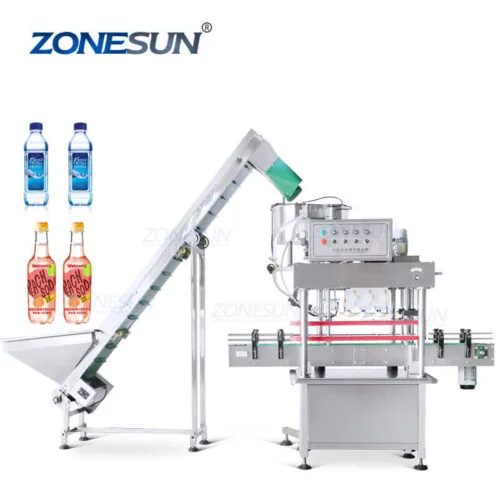

Spindle Capping Machine

Spindle Capping Machine

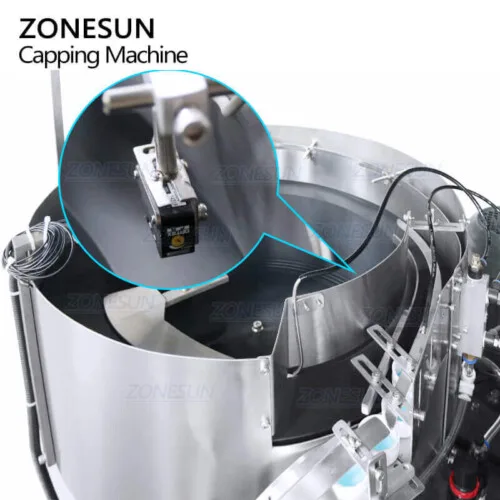

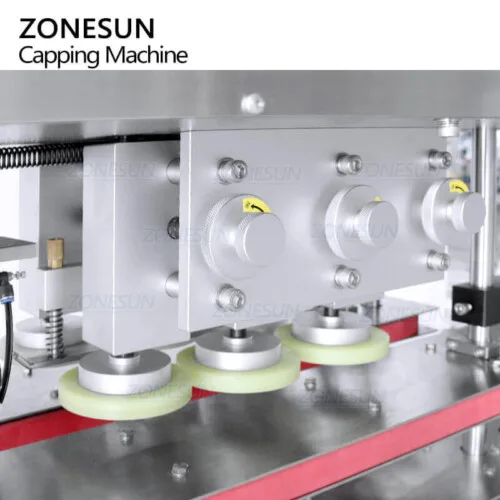

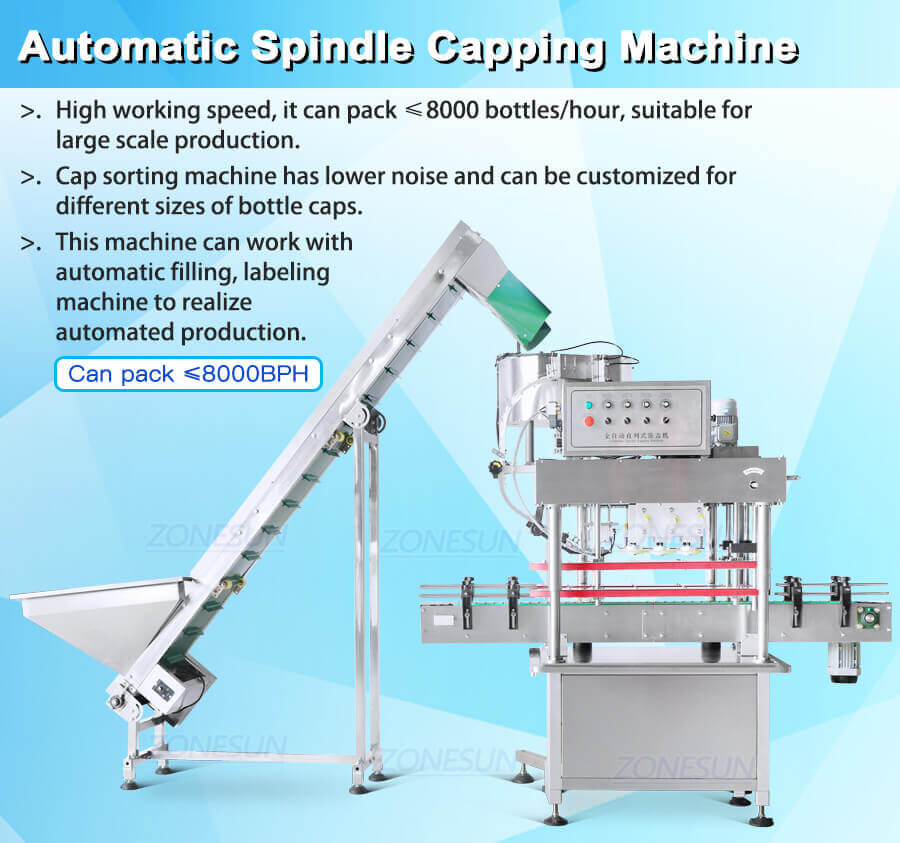

This bottle capping machine is equipped with cap sorting machine,which has lower noise and faster working speed when compared with the vibrating bowl sorting machine.The capping structure is consist of multiple sets of rubber capping wheels,this makes several bottles can be tightened at the same time.It is suitable for packaging screw-on caps in food,beverage, cosmetics and dailyt chemical industries.

Machine Video Click Here:

Product Detail

Product Tags

Spindle Capping Machine-ZONESUN TECHNOLOGY LIMITED

Description:

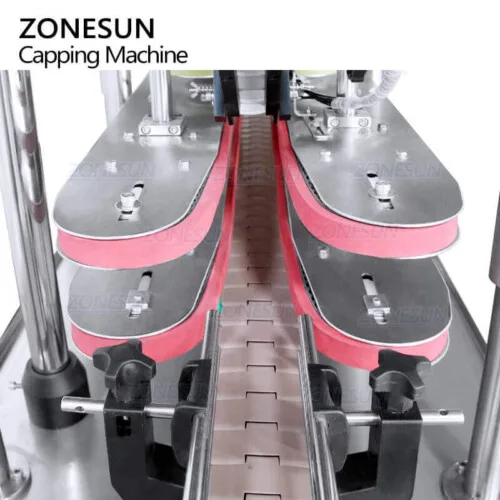

This bottle capping machine is equipped with cap sorting machine,which has lower noise and faster working speed when compared with the vibrating bowl sorting machine.The capping structure is consist of multiple sets of rubber capping wheels,this makes several bottles can be tightened at the same time.It is suitable for packaging screw-on caps in food,beverage,cosmetics and dailyt chemical industries.

Spindle Capping Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-FXZ101
Voltage110/220V 50-60HZ 2KW
Working speed≤8000 bottles/hour(based on product size)
Bottle diameterAbout φ35-96 mm
Bottle heightAbout 80-230mm
Bottle caps diameterAbout φ12-50mm
Bottle caps heightAbout 15-40mm
Air pressure0.5-0.7MPa

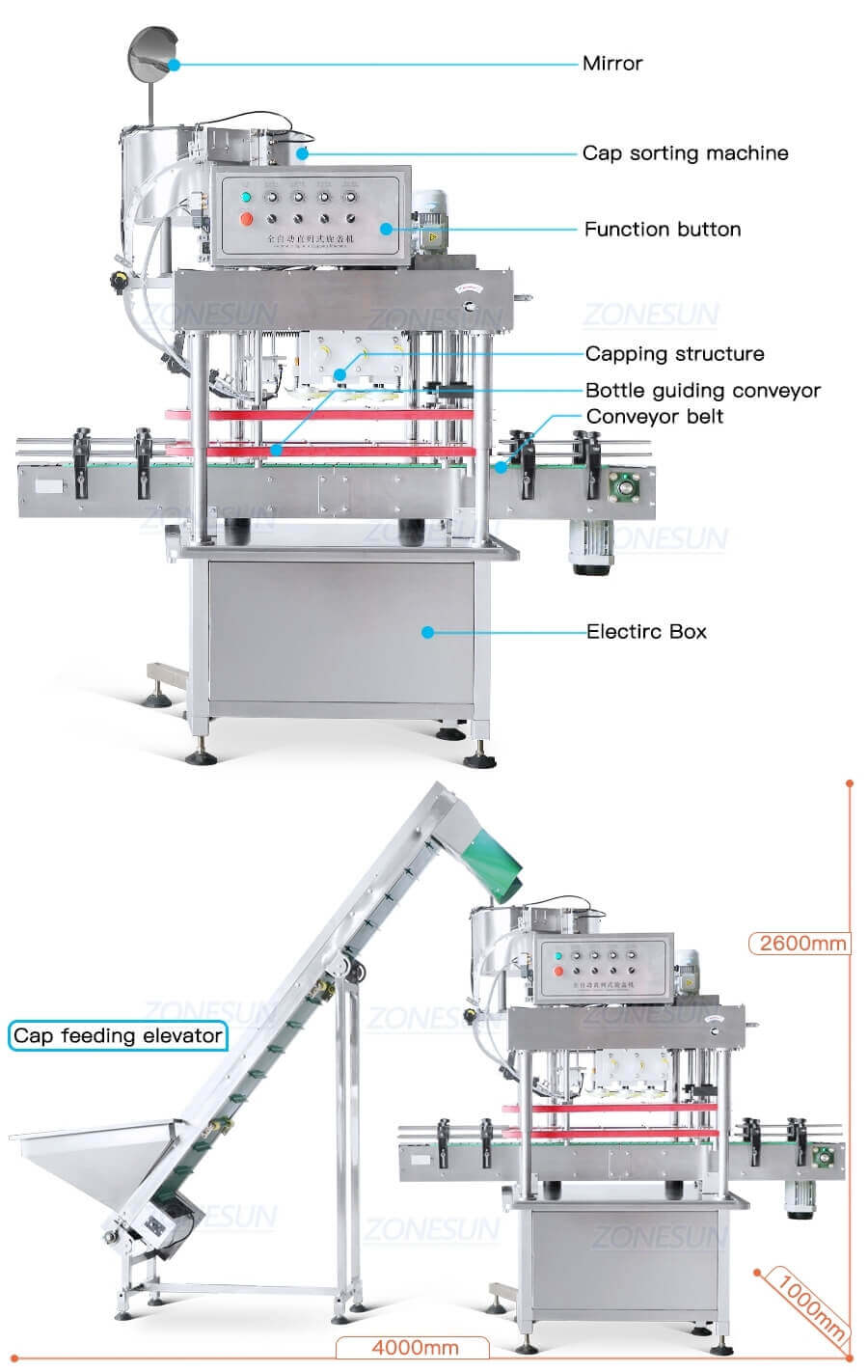

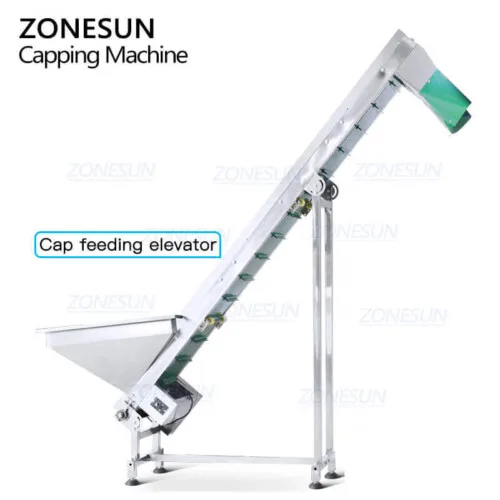

Machine size(L*W*H)2000*1000*2400mm(Capper)+2420*500*2600mm(Cap feeding elevator)
Machine weightAbout 650kg(Capper)

Spindle Capping Machine-ZONESUN TECHNOLOGY LIMITEDSpindle Capping Machine-ZONESUN TECHNOLOGY LIMITEDSpindle Capping Machine-ZONESUN TECHNOLOGY LIMITED
