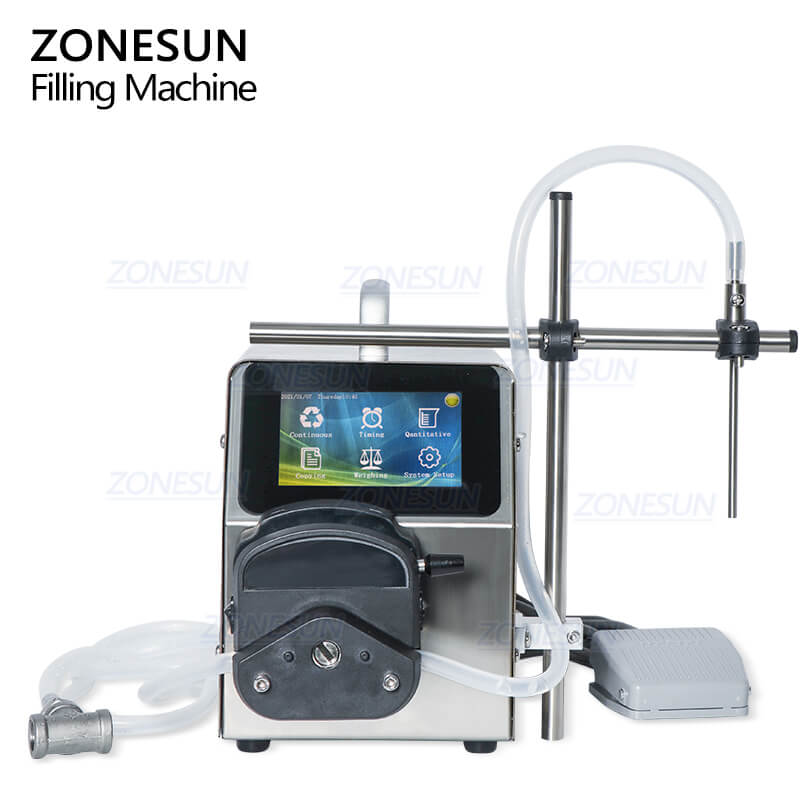

Product Description:

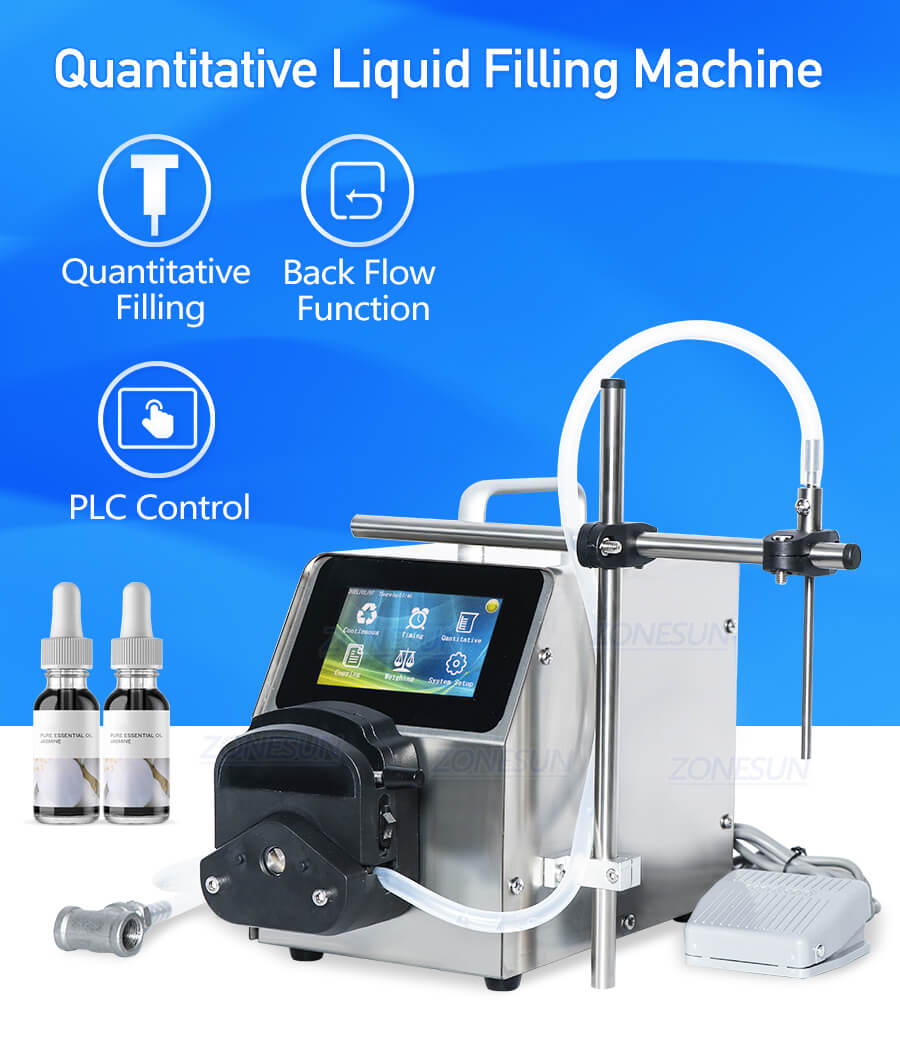

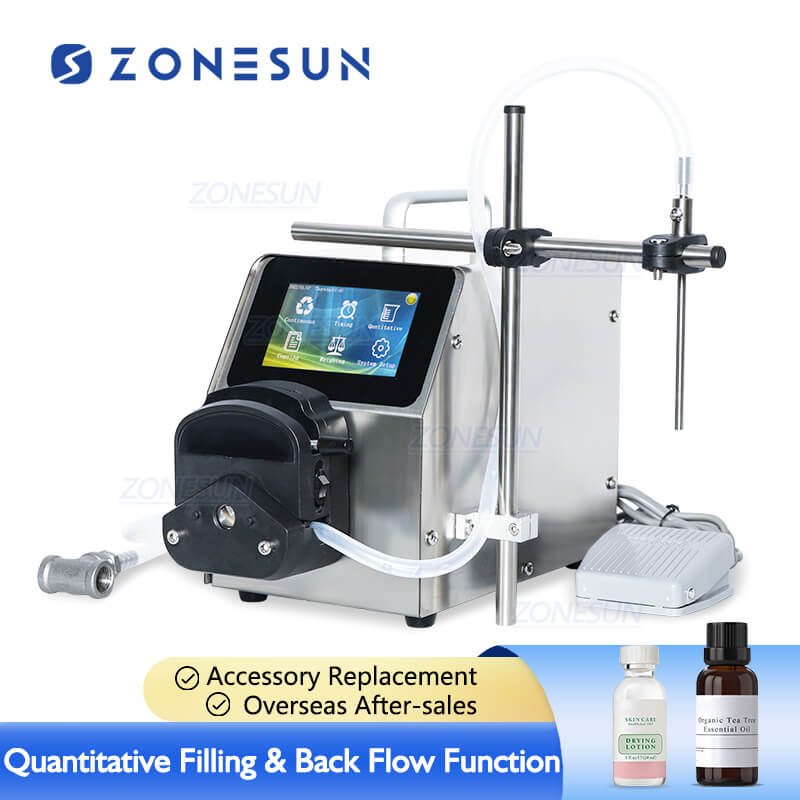

This peristaltic pump liquid filling machine is equipped with a PLC control panel, allowing for easy parameter adjustment. Simply input the desired number to set the filling range and accuracy. No need to test filling time or speed. It’s widely used in the drinks, cosmetics, and daily chemical industries.

Product Parameters:

Machine model	ZS-YTPP6001
Rotate speed	0.1-600rpm
Speed resolution	0.01 rpm
Flow resolution	0.01 μ L
Recommend filling range	1-100ml
Flow rate	0.29-1500ml/min
Filling accuracy	±0.5%
Suction angle	1-720 degrees
Outlet pressure	≤ 0.55MPa
Power consumption	< 180W
Applicable power supply	110 / 220V 50-60Hz

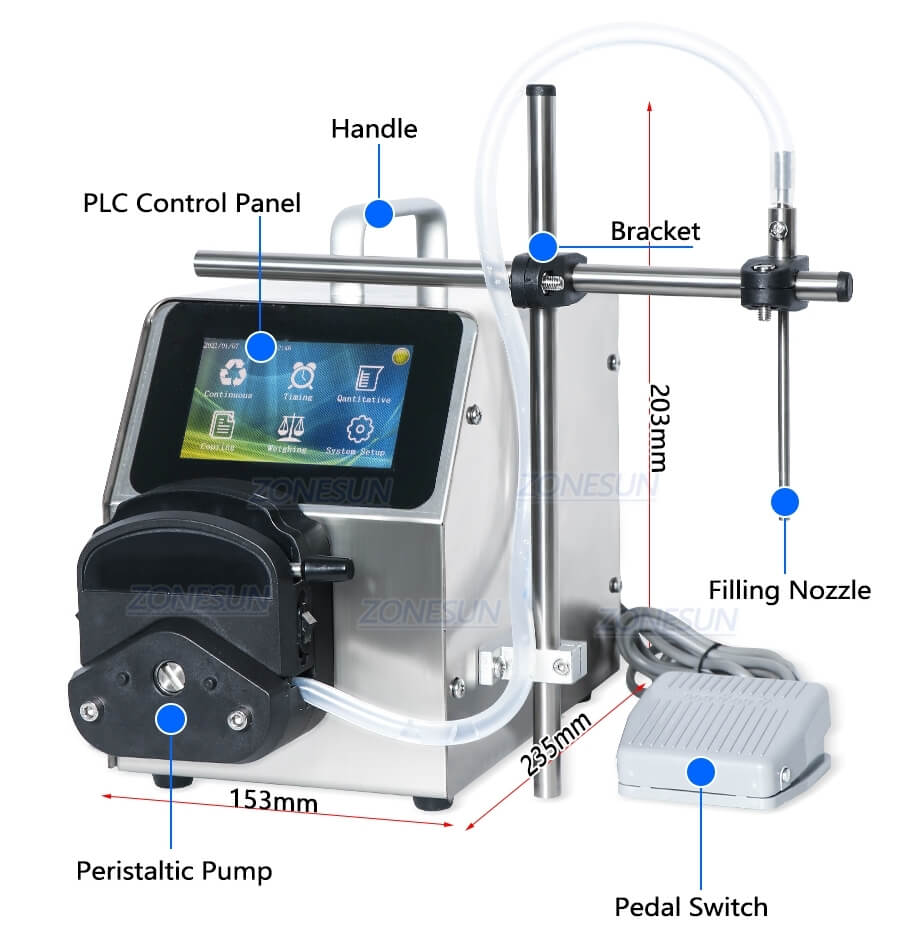

Machine size	About 153*235*203mm
Machine weight	About 6.5kg
Package size	About 400*250*320mm
Package weight	About 7.3kg

Product Details:

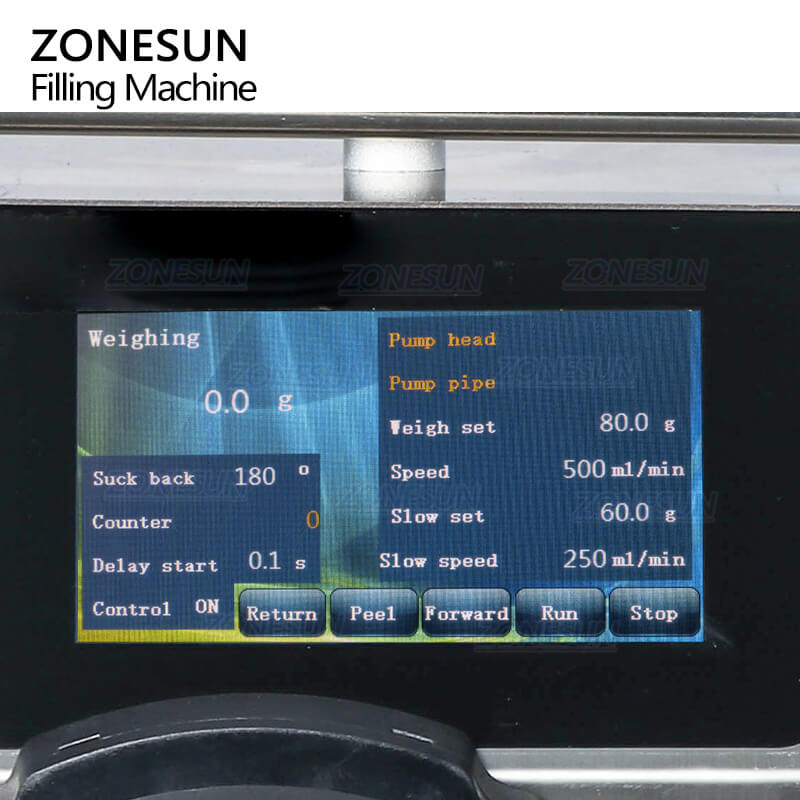

TOUCH SCREEN
The machine is equipped with a touch screen control panel, allowing for easy adjustment of parameters such as filling range and accuracy.

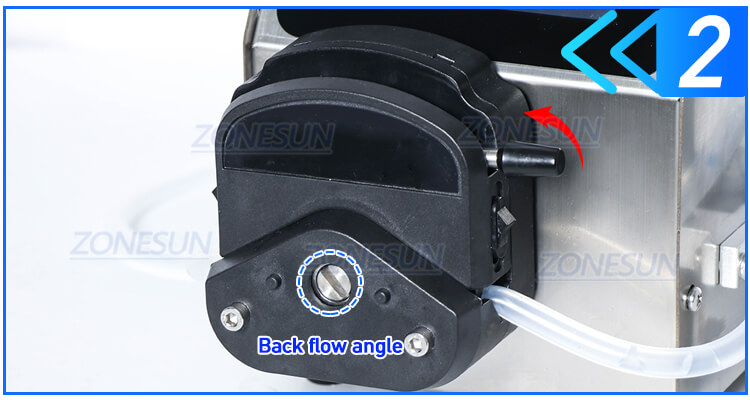

PERISTALTIC PUMP
The machine is equipped with a high-accuracy peristaltic pump and features a backflow function. You can adjust the backflow angle based on your operational needs.

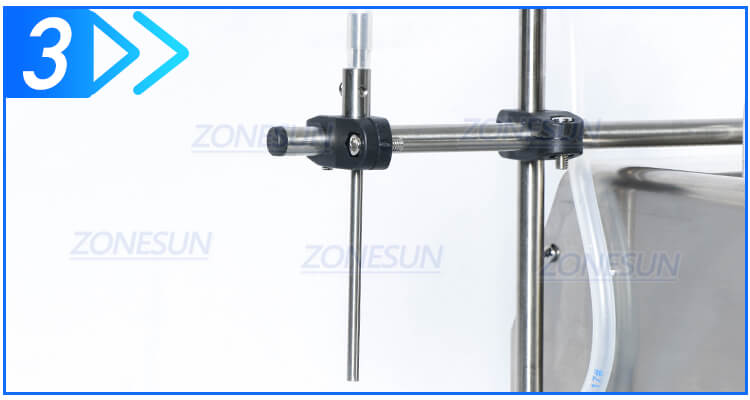

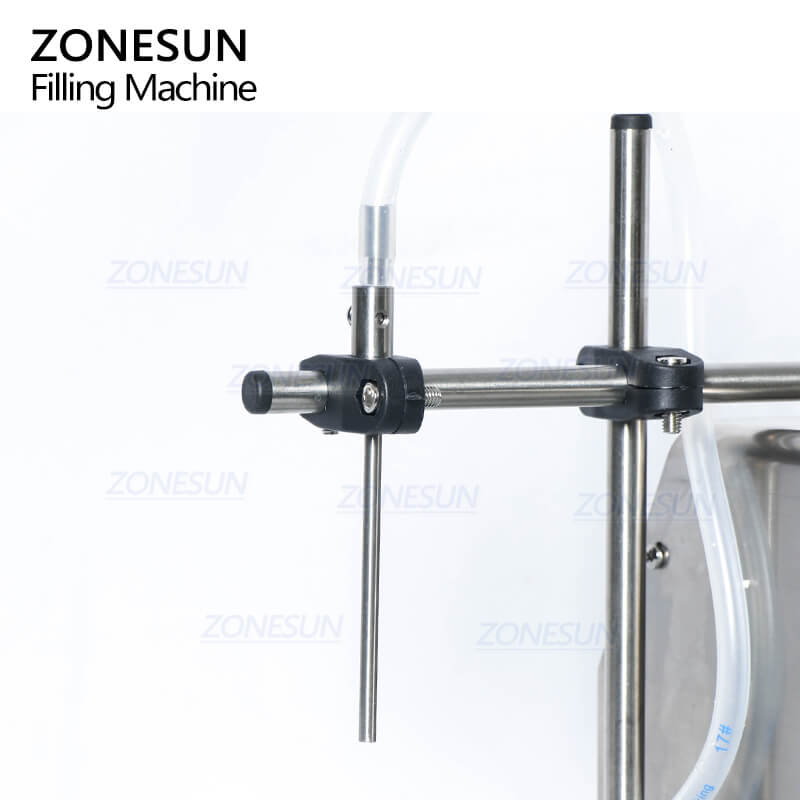

FILLING NOZZLE
The OD 4mm filling nozzle ensures high filling accuracy, and this machine can be customized with multiple filling nozzles.

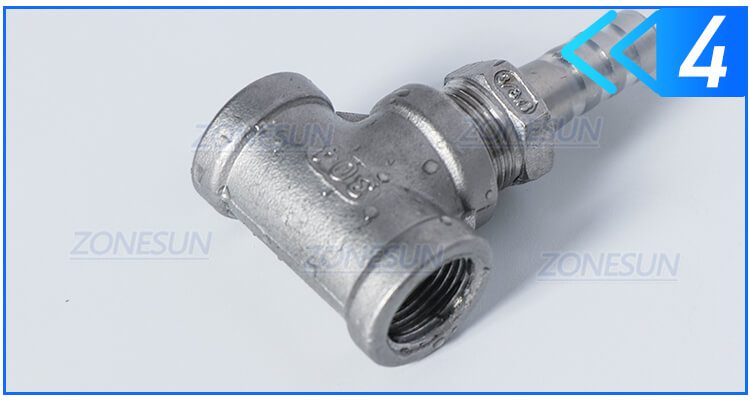

SUBMERGED METAL
Constructed from submerged metal, this ensures easy and efficient liquid pumping.

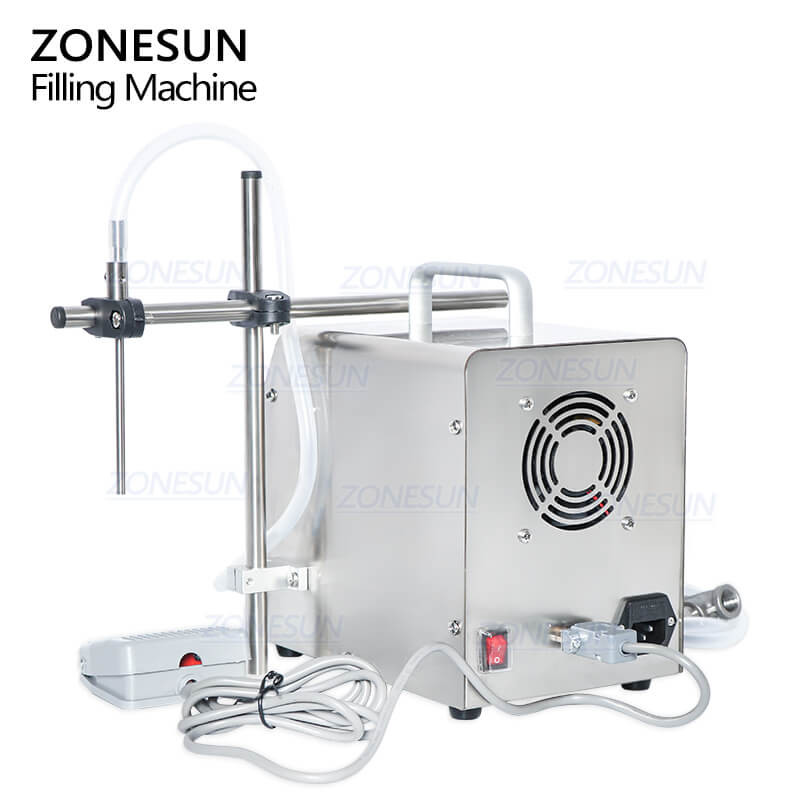

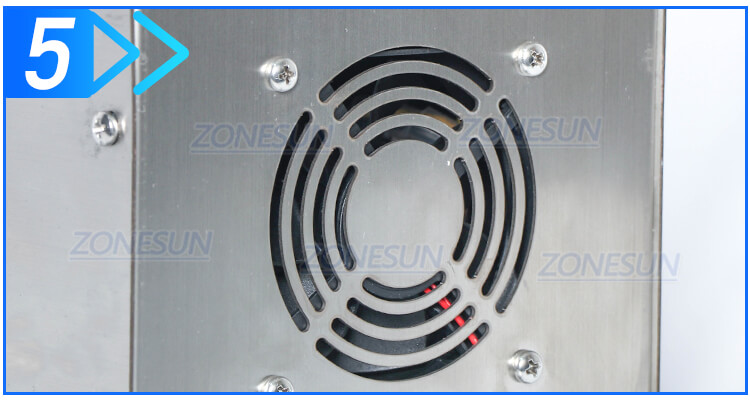

COOLING DESIGN
The cooling design ensures that the machine operates stably and provides a longer service life.

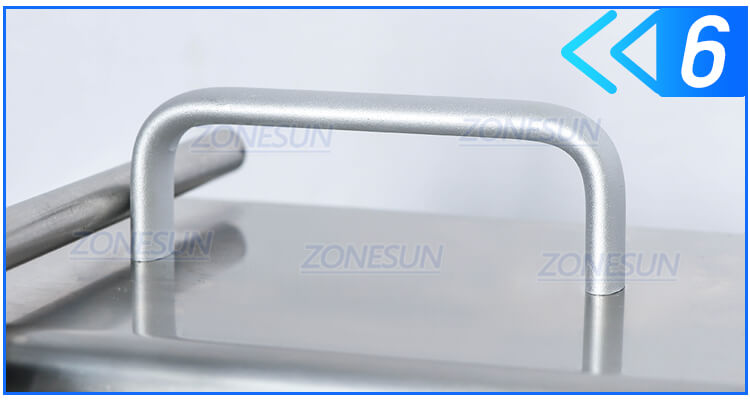

HANDLE
This machine is designed efficiently, with a compact body and a handle, making it easy to transport.
