Product Description:

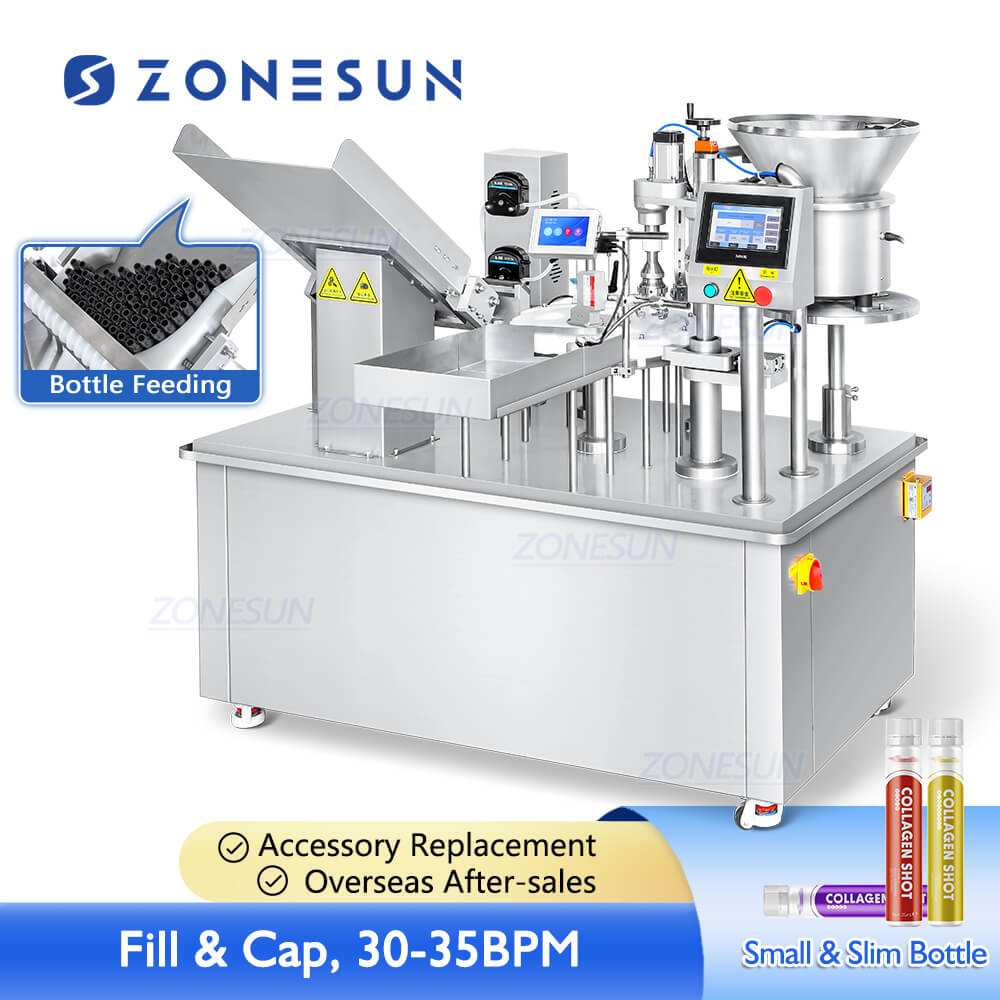

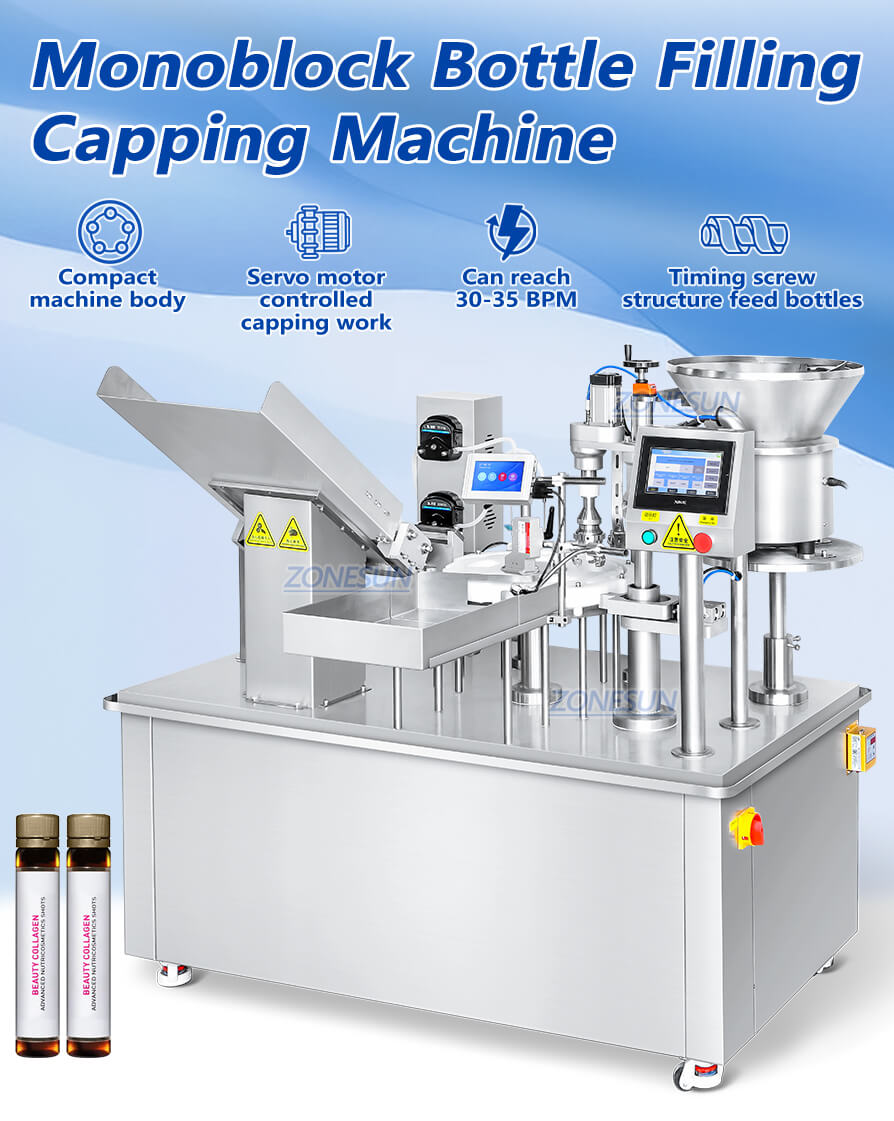

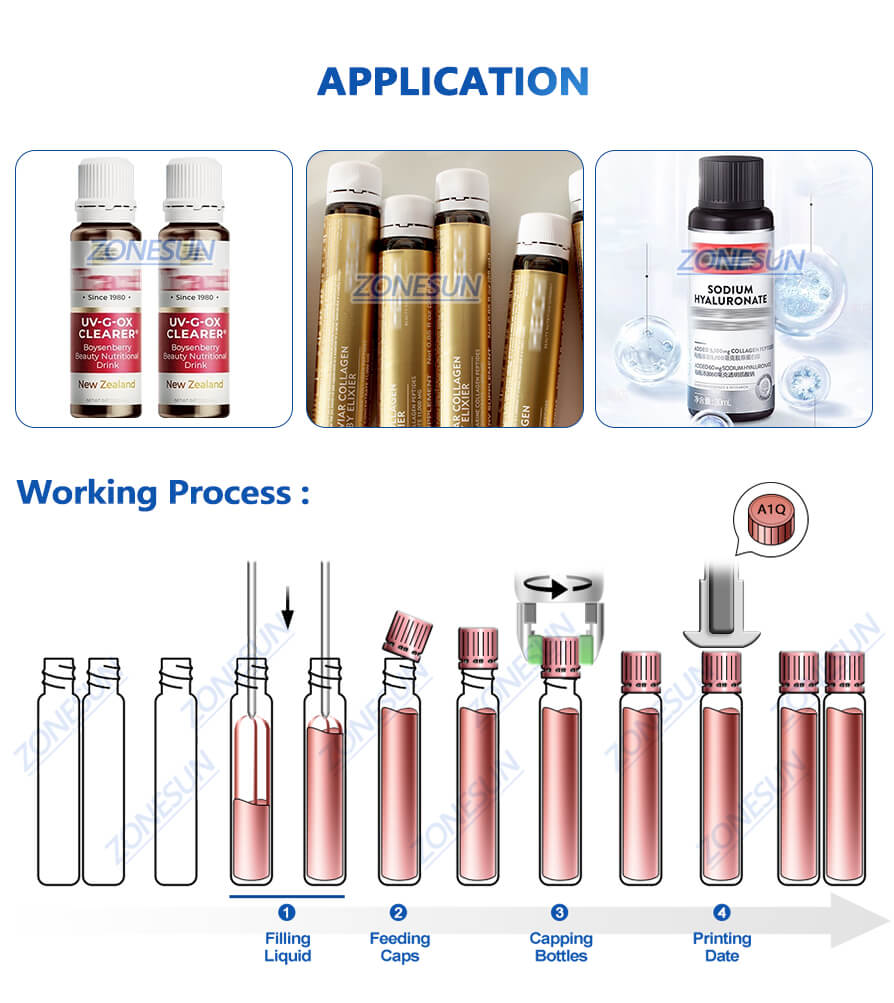

This monoblock machine combines filling and capping into a single starwheel, boasting a compact body to save workspace. Its customized bottle feeding structure is tailored for small bottles that may struggle to stand upright during filling, reducing operational errors. The peristaltic pump ensures that liquid only passes through the hose, allowing each workstation to function simultaneously, enhancing productivity.

Product Parameters:

Machine model	ZS-AFC37
Machine voltage	110/220V 50-60HZ
Filling volume	25ml(Can be customized)
Filling accuracy	±1%
Filling pump	Peristaltic pump
Filling hose	#17
Working capacity	30-35BPM

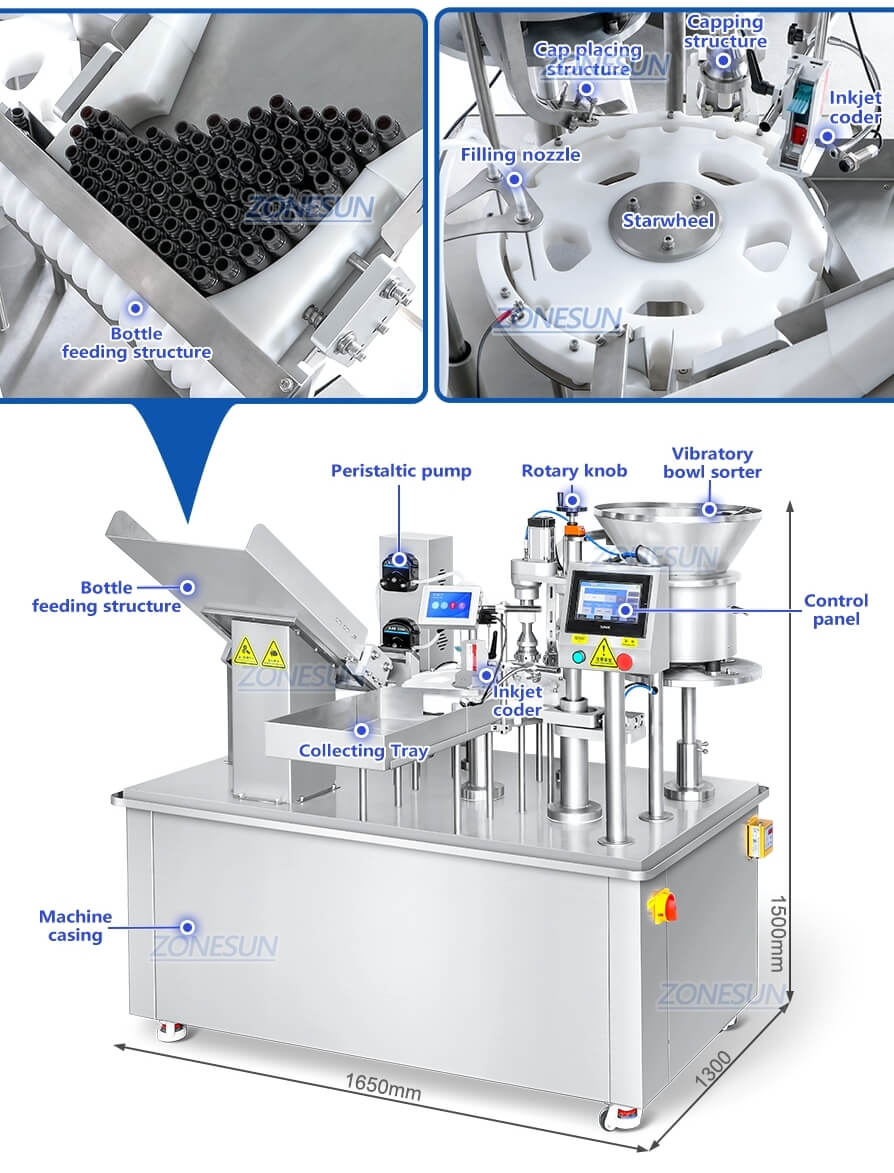

Machine size	About 1650*1300*1500mm
Package size	About 1470*1650*1700mm
Package weight	About 644kg

Product Details:

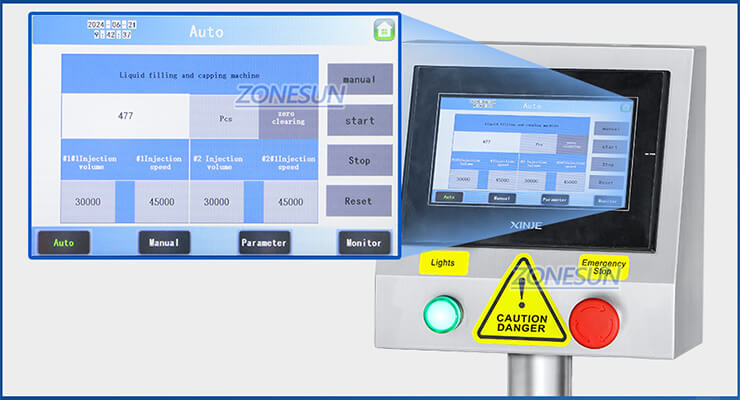

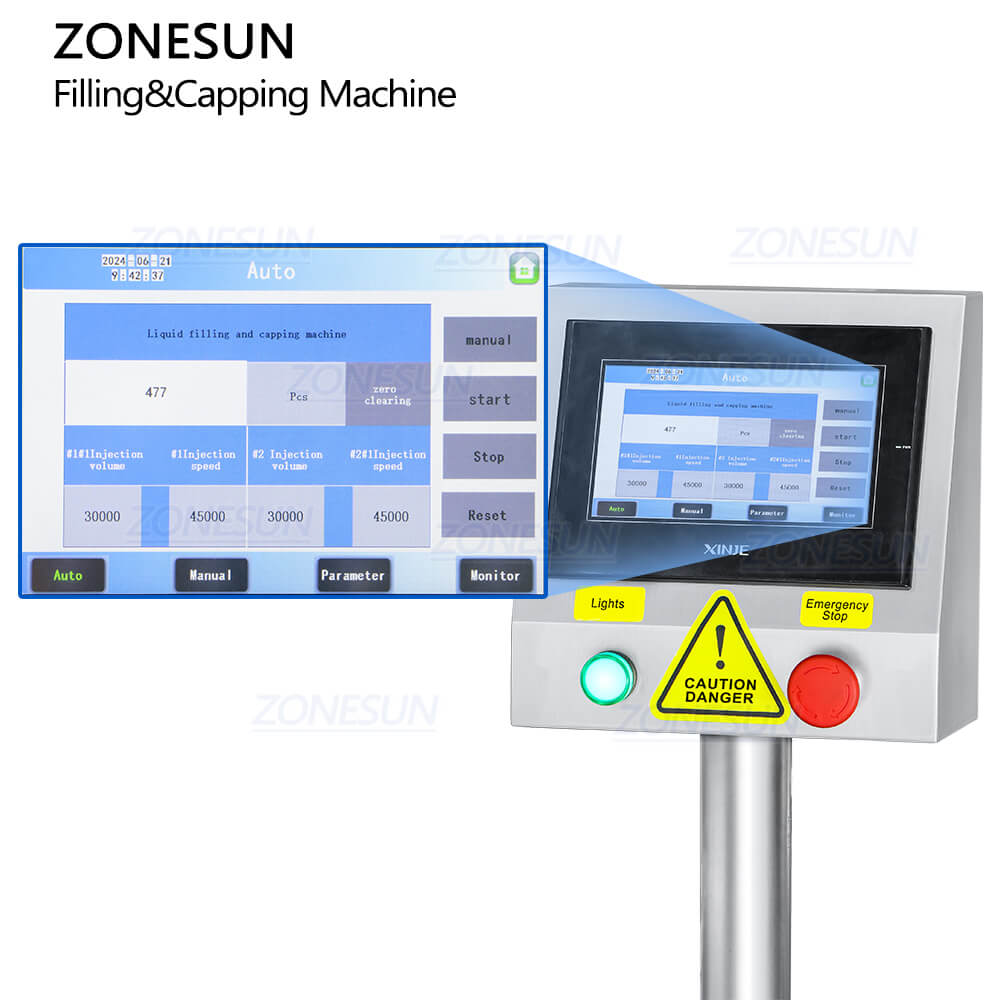

Touch Screen Control Panel
Multi-language can be customized

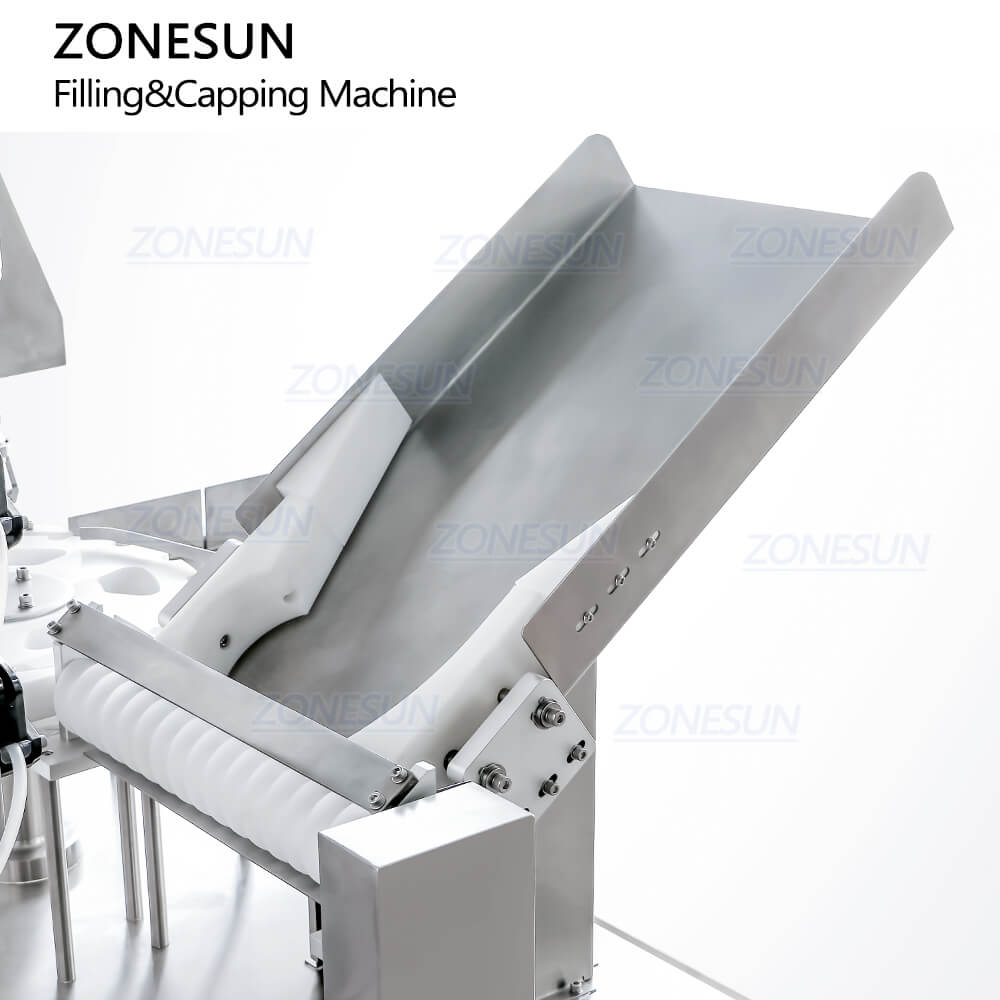

Custom Bottle Feeding Structure
Supply small and tall bottles orderly and vertically in time

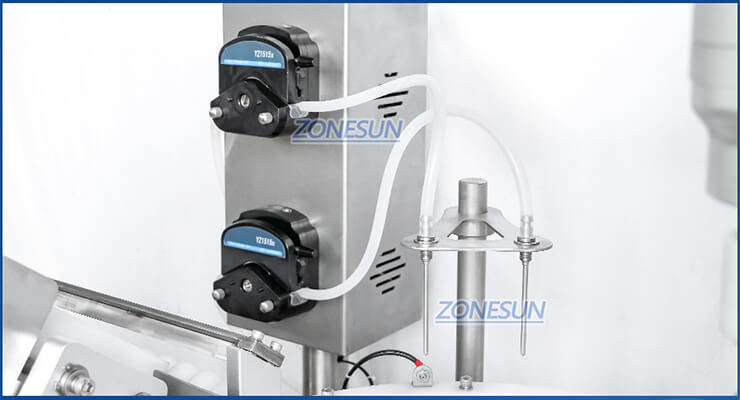

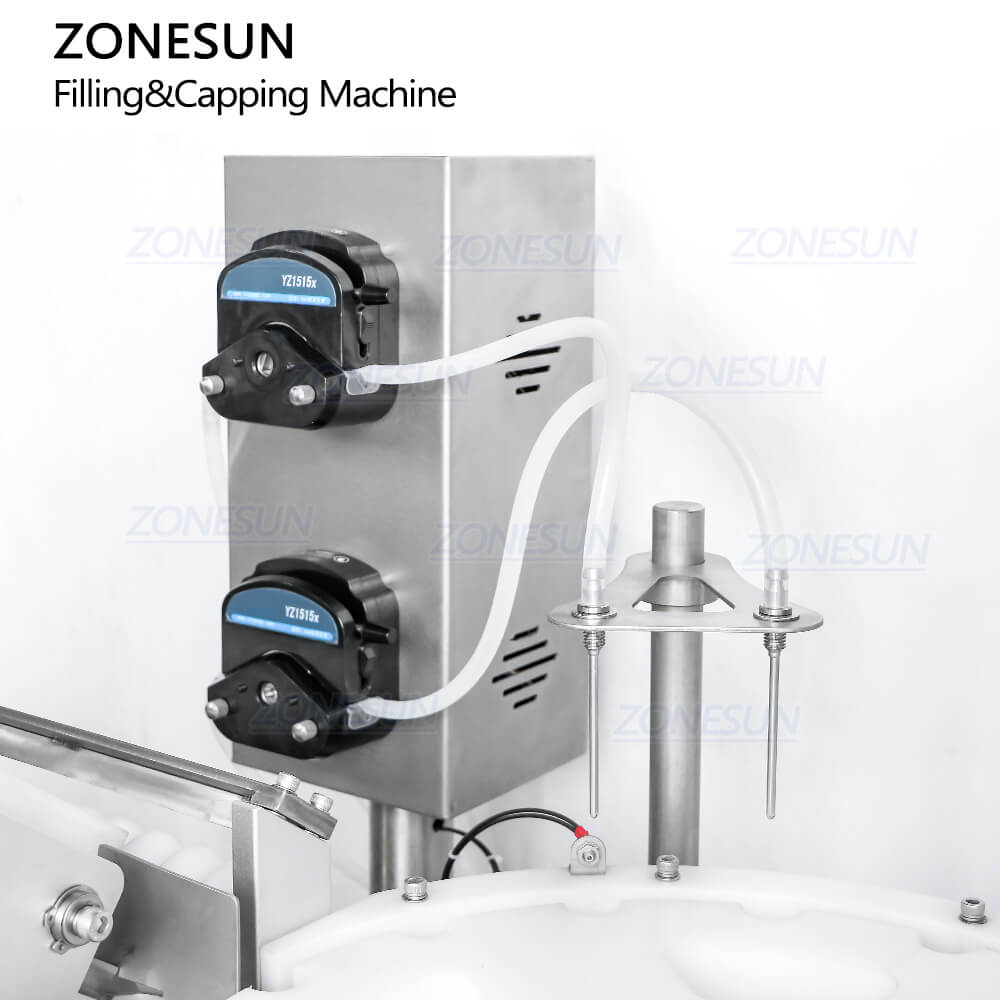

Pump & Nozzle
Peristaltic pump ensures liquid only pass through hose,customized SUS304 filling nozzles has high filling accuracy

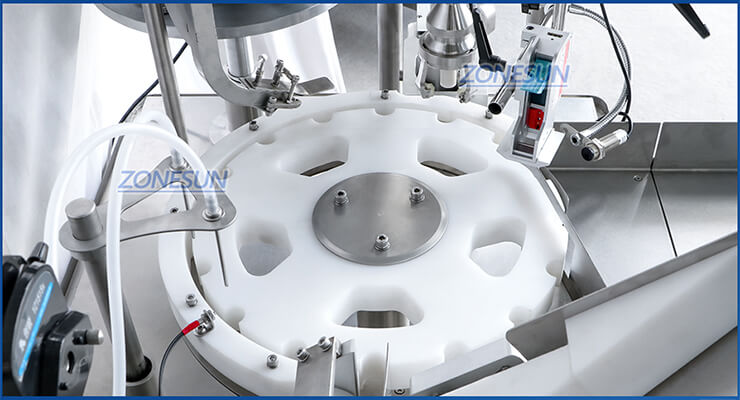

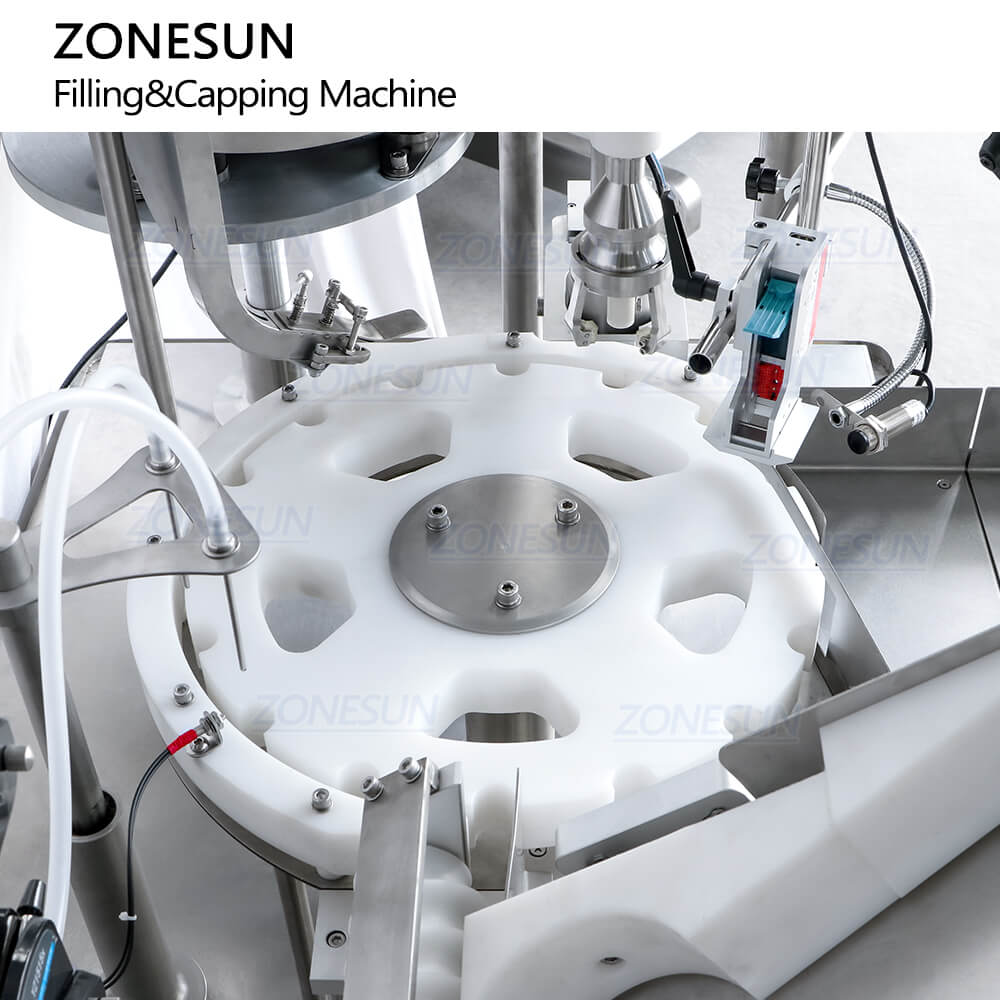

Starwheel
Compact machine body,each working station can work at the same time to improve working efficiency

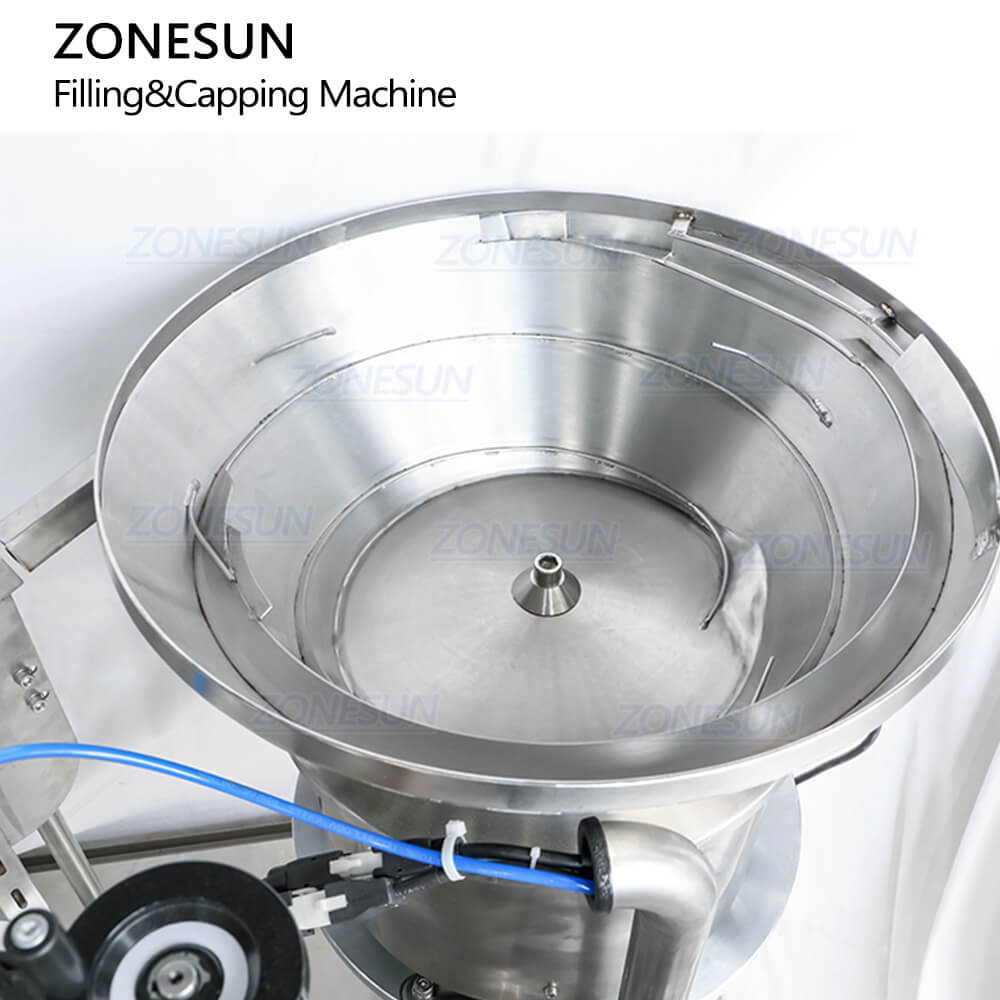

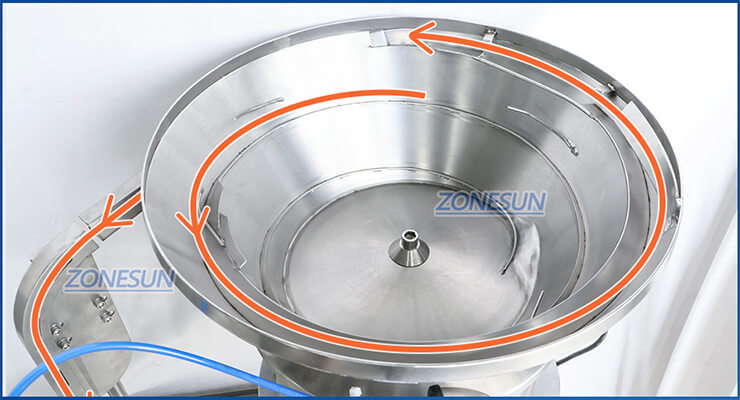

SUS304 Vibratory Bowl Sorter
Convey outer covers to the cap feeding structure in time

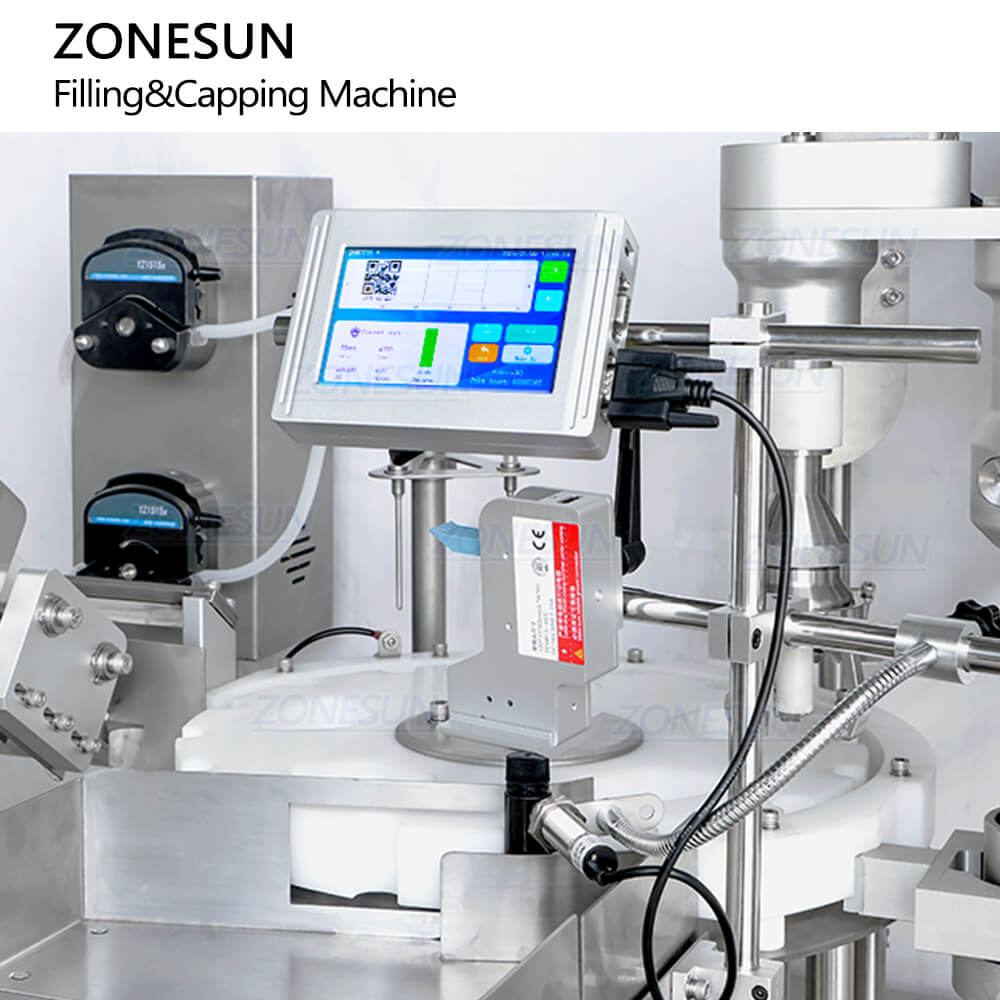

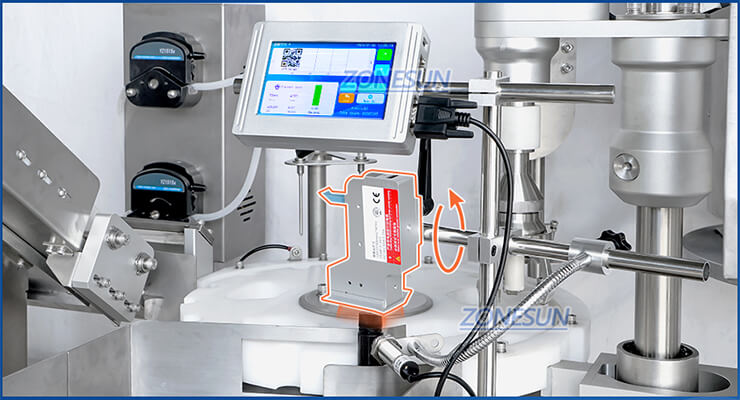

Inkjet Coder
Can print multi kinds of information includes QR code,logo,barcode,angle can be adjusted easily

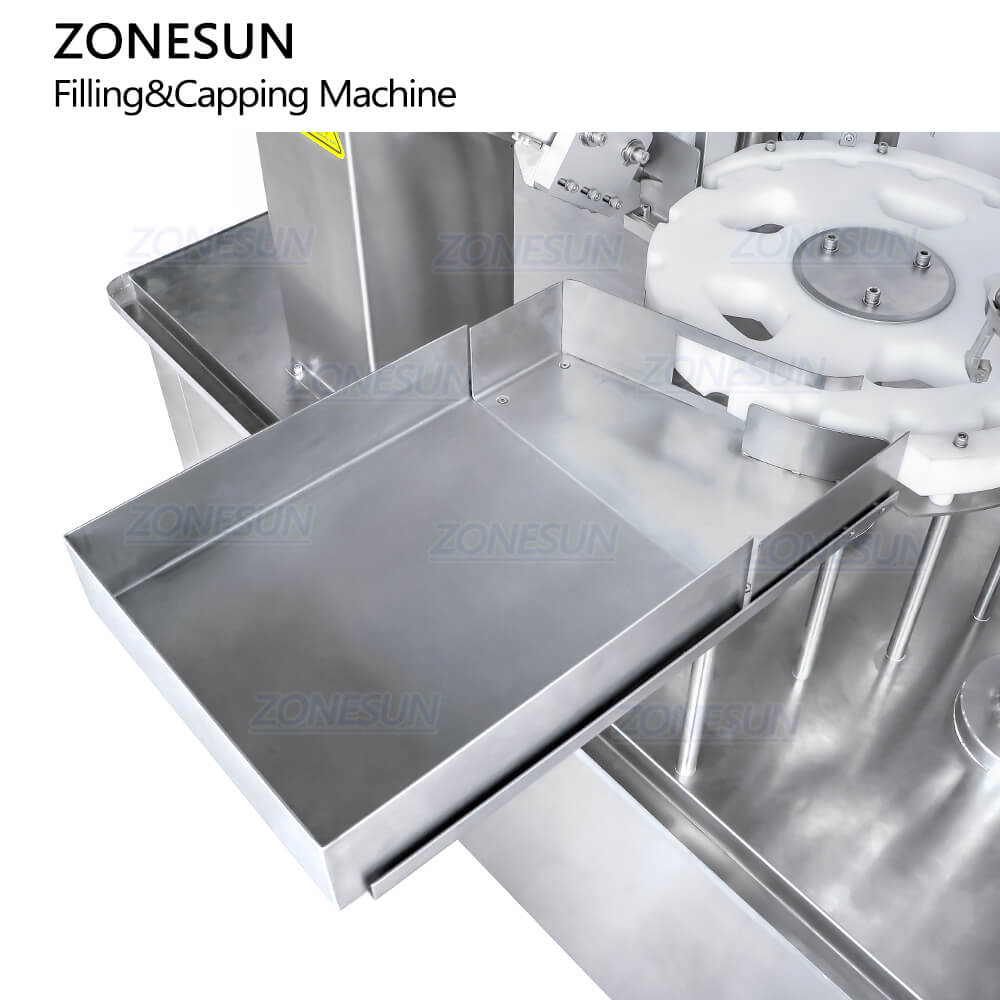

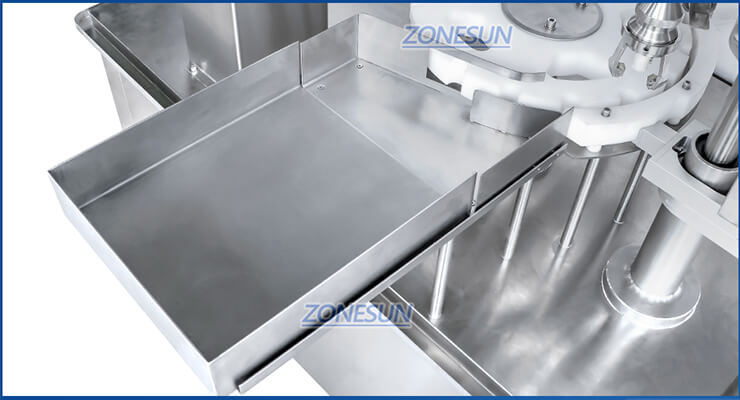

Collecting Tray
Finished products will be collected together for the smooth production
