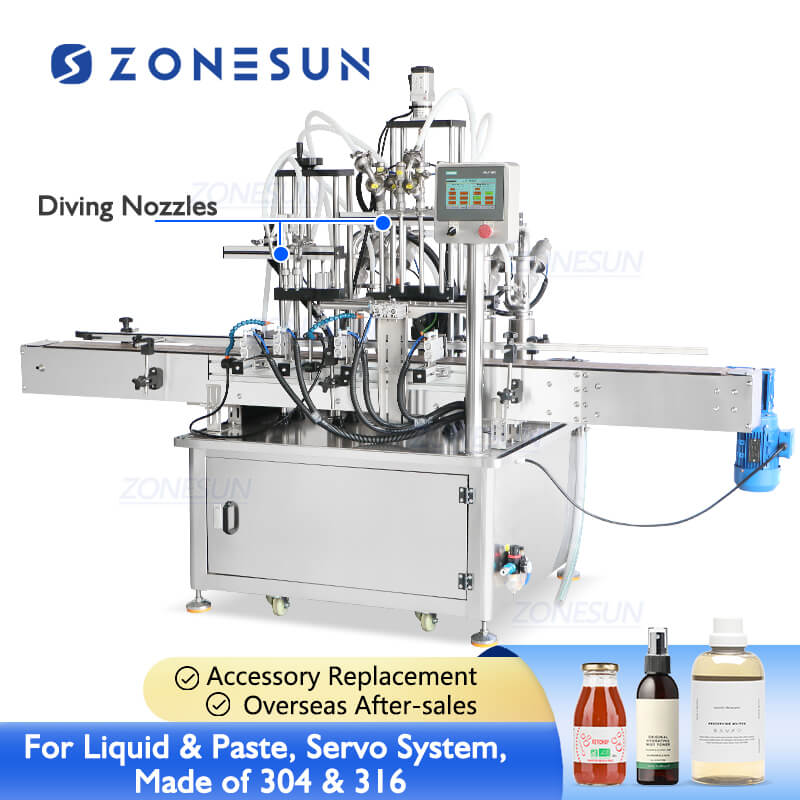

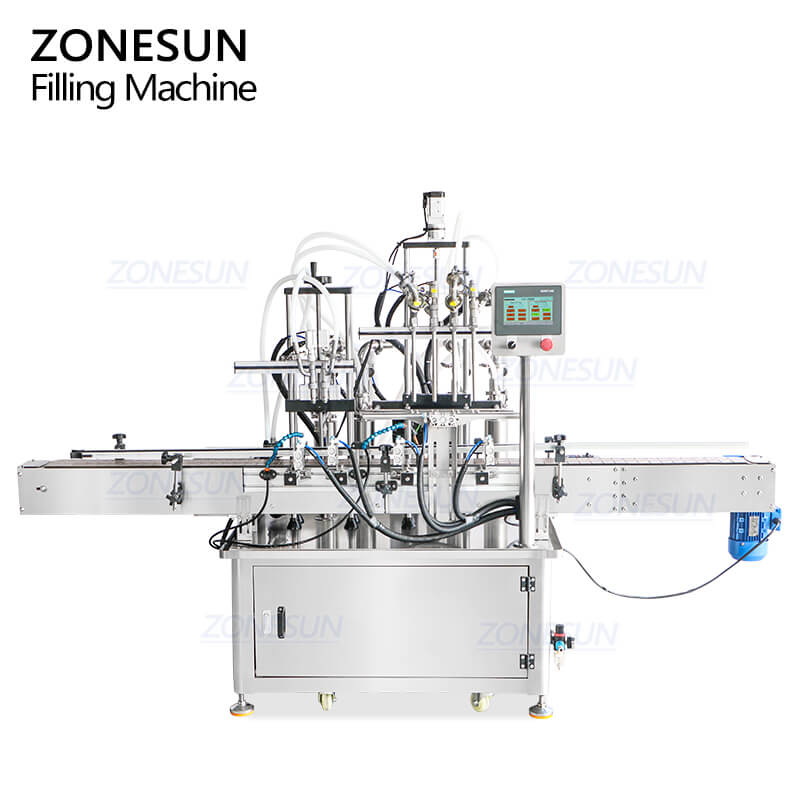

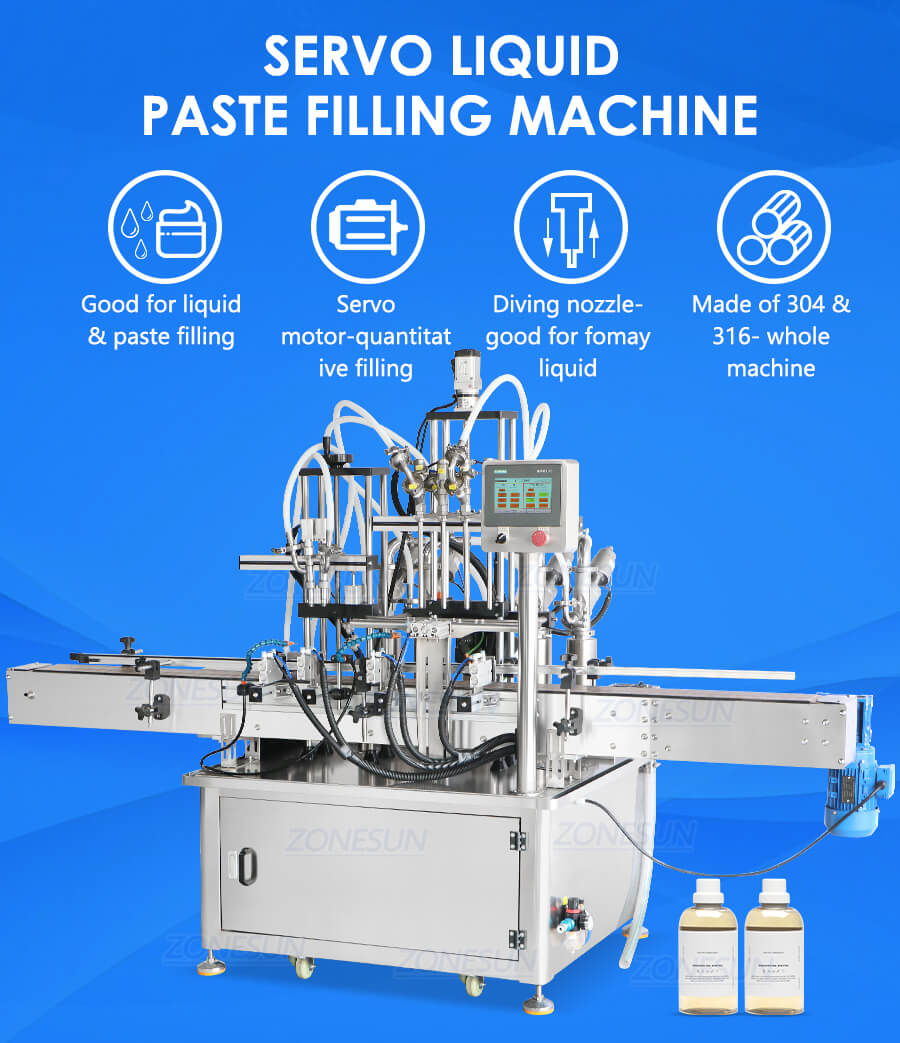

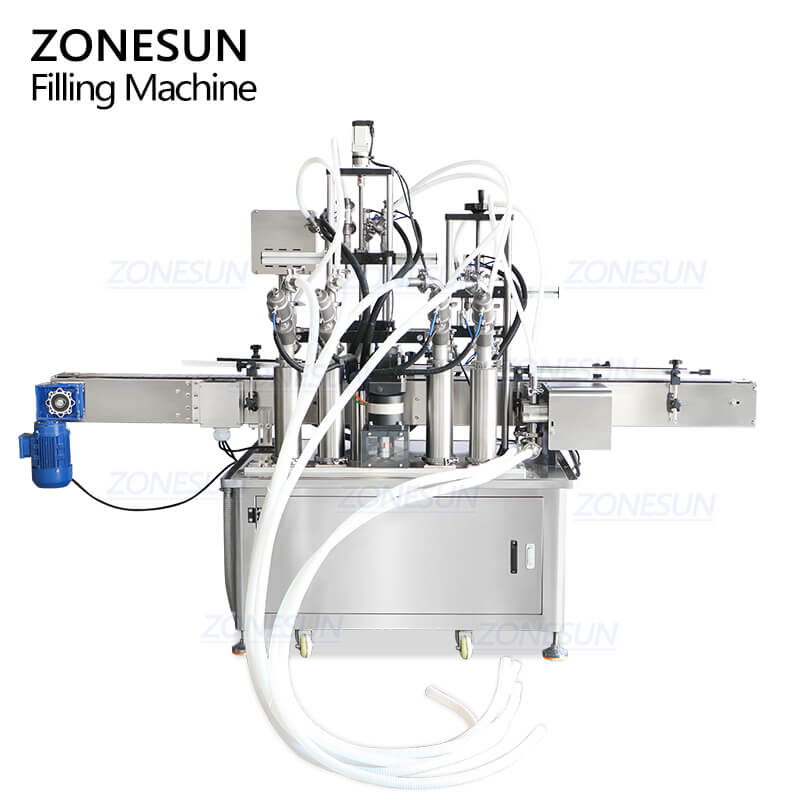

Product Description:
This filling machine is equipped with both a piston pump and a magnetic pump, making it suitable for filling both thin liquids and thick pastes simultaneously. It is controlled by a servo motor, allowing you to set the filling volume directly through the control panel for simplified operation.

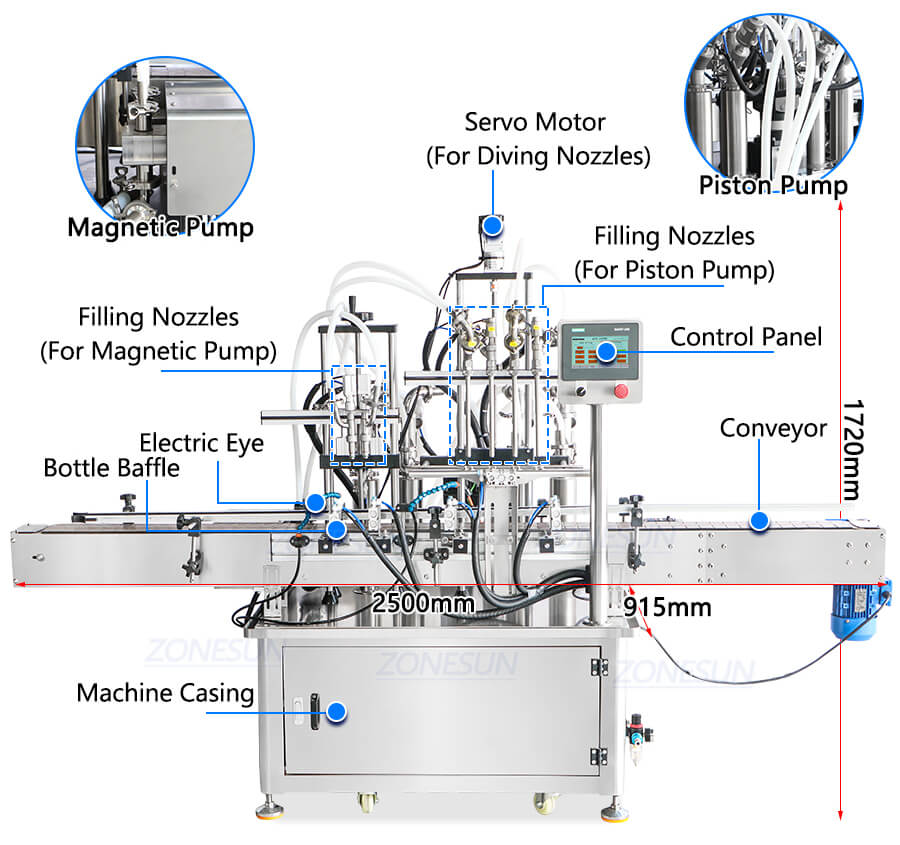

Product Parameters:

Machine model	ZS-SVYT4D
Machine voltage	110/220V 50-60HZ 4KW
Filling pump	Magnetic Pump	Piston Pump
Filling nozzle quantity	2	4
Filling range	50-1000ml(can be customized)
Working capacity	About 20-70 BPM
Filling accuracy	±1%
Air pressure	0.5-0.8 Mpa
Machine size	About 2500*915*1720mm
Package size	About 2140*1000*1920mm
Package weight	About 480kg

Product Details:

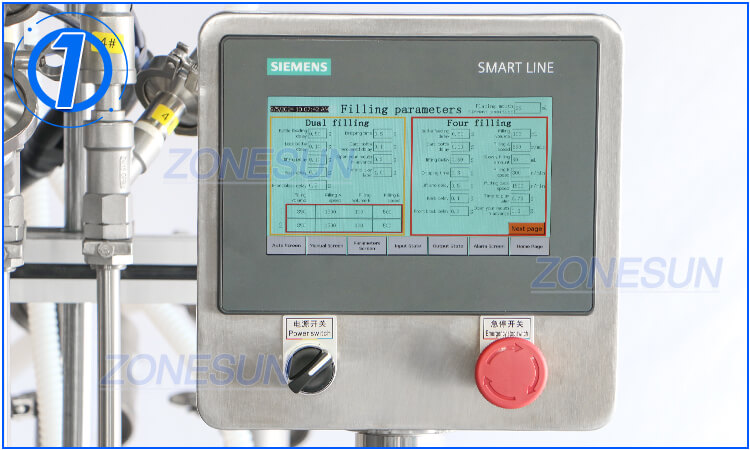

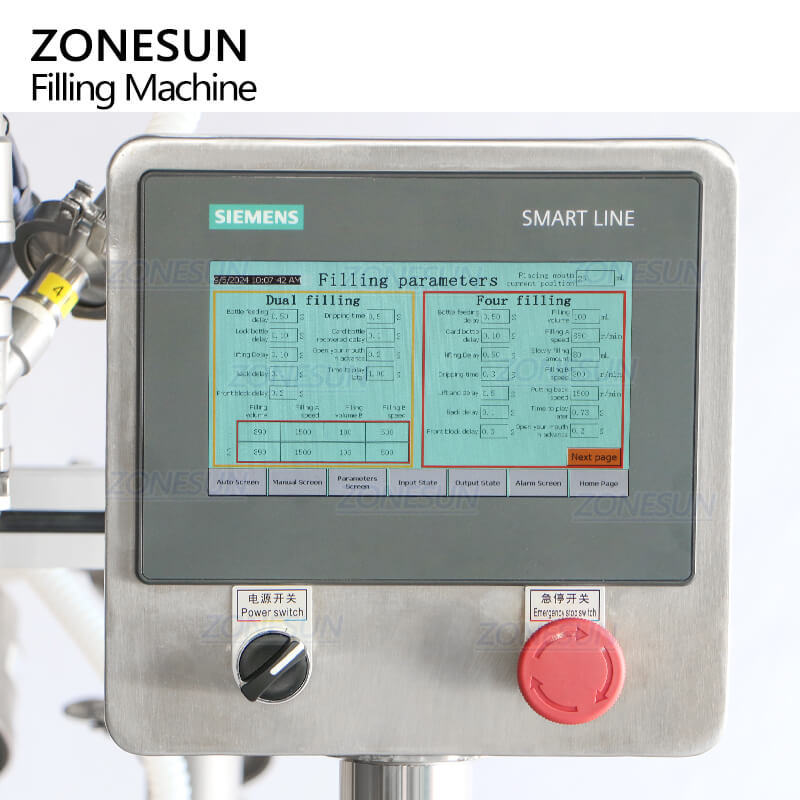

Touch Screen Control Panel
Set filling volume through control panel directly, customizable interface simplifies machine operation.

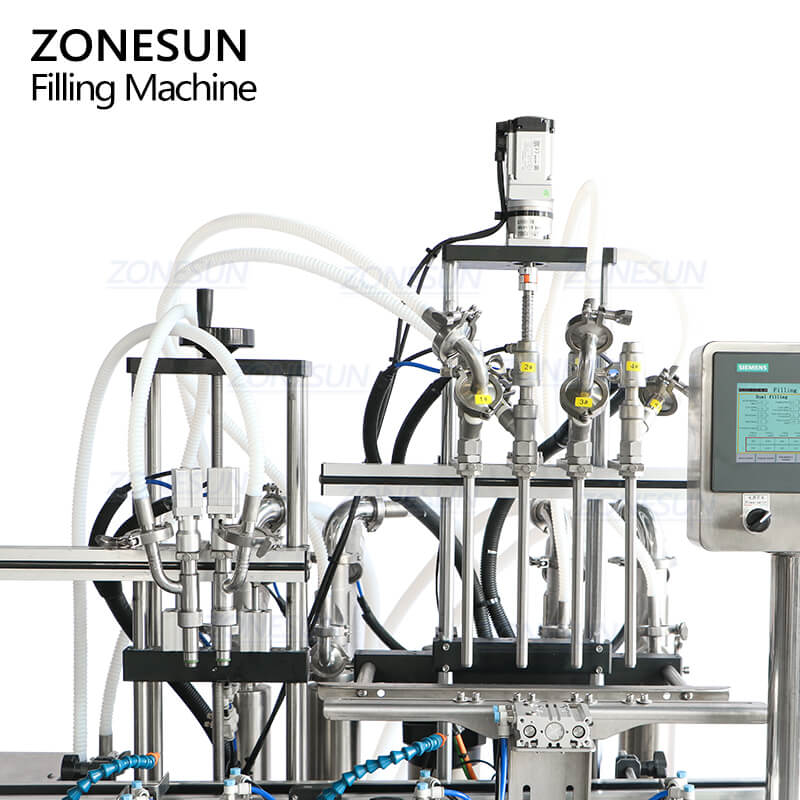

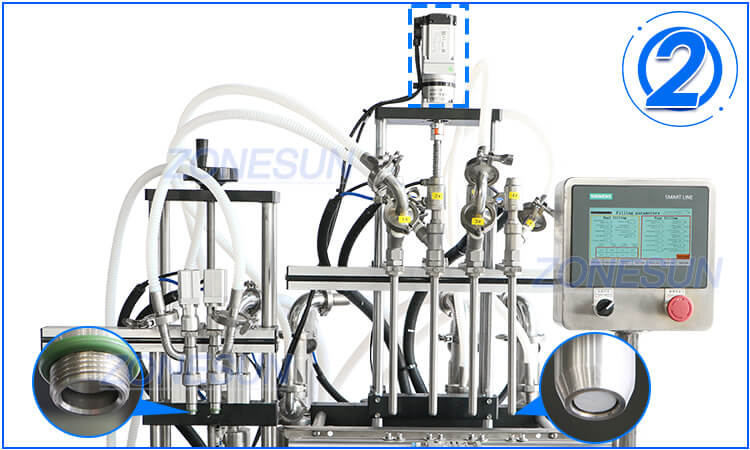

Anti-dripping Filling Nozzle
Servo motor can also controls the up and down of the filling nozzles (for paste) to prevent material from spraying out.

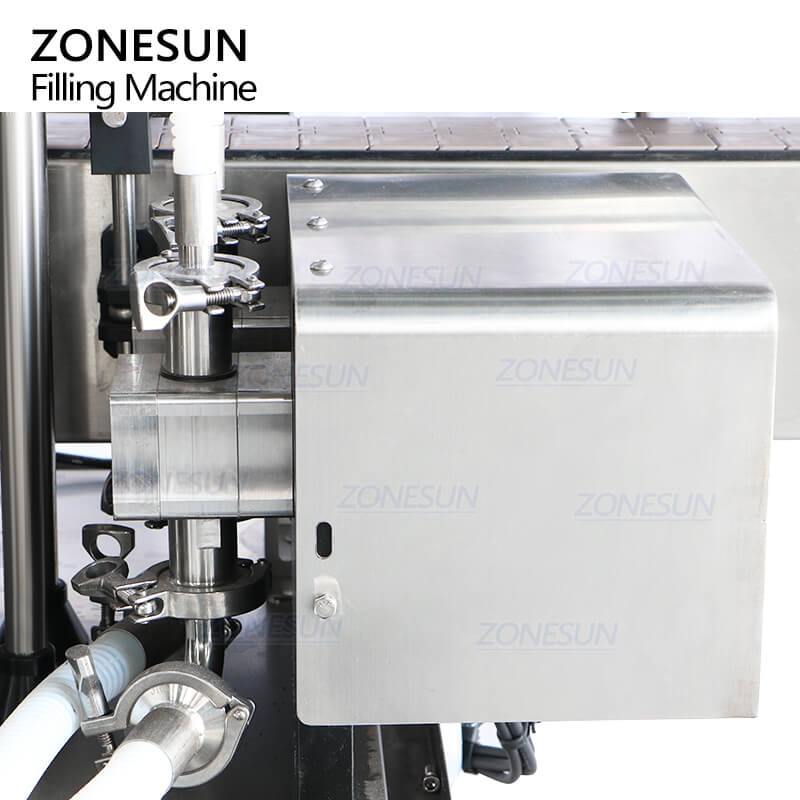

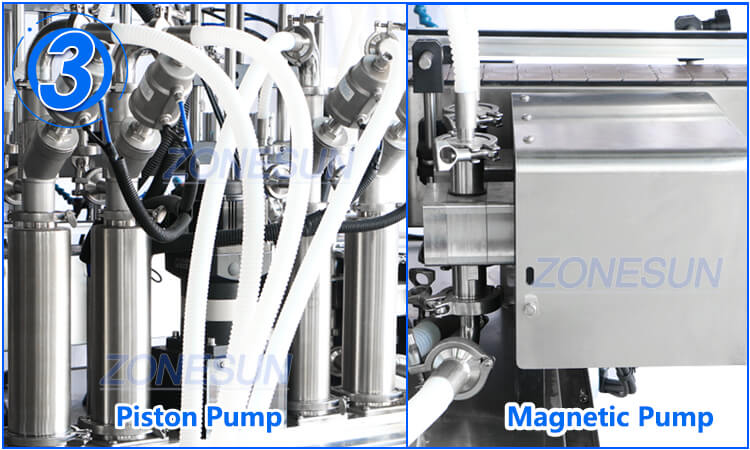

Filling Pump
Equipped with magnetic pump and piston pump at the same time, it is good for accurate filling of liquid and paste.Choose one of them to work during filling.

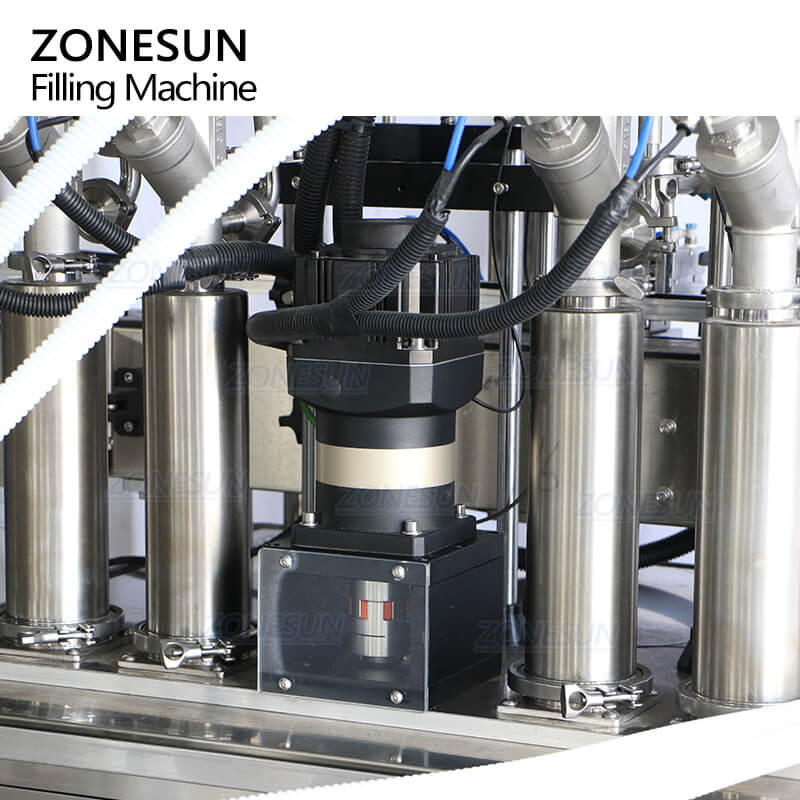

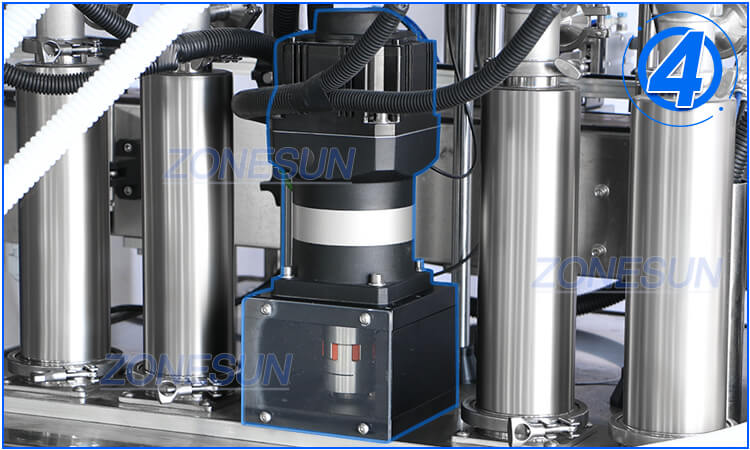

Servo Motor
Makes machine operation more conveniently and improves filling accuracy.

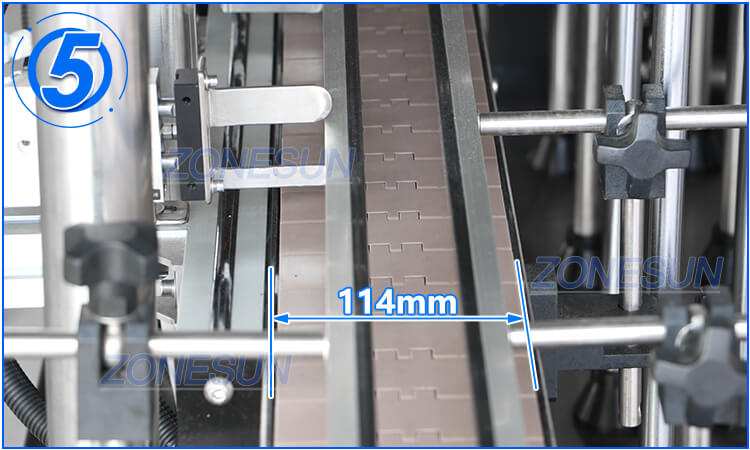

Chain Conveyor
Length and width can be customized as need. It has higher weight capacity.
