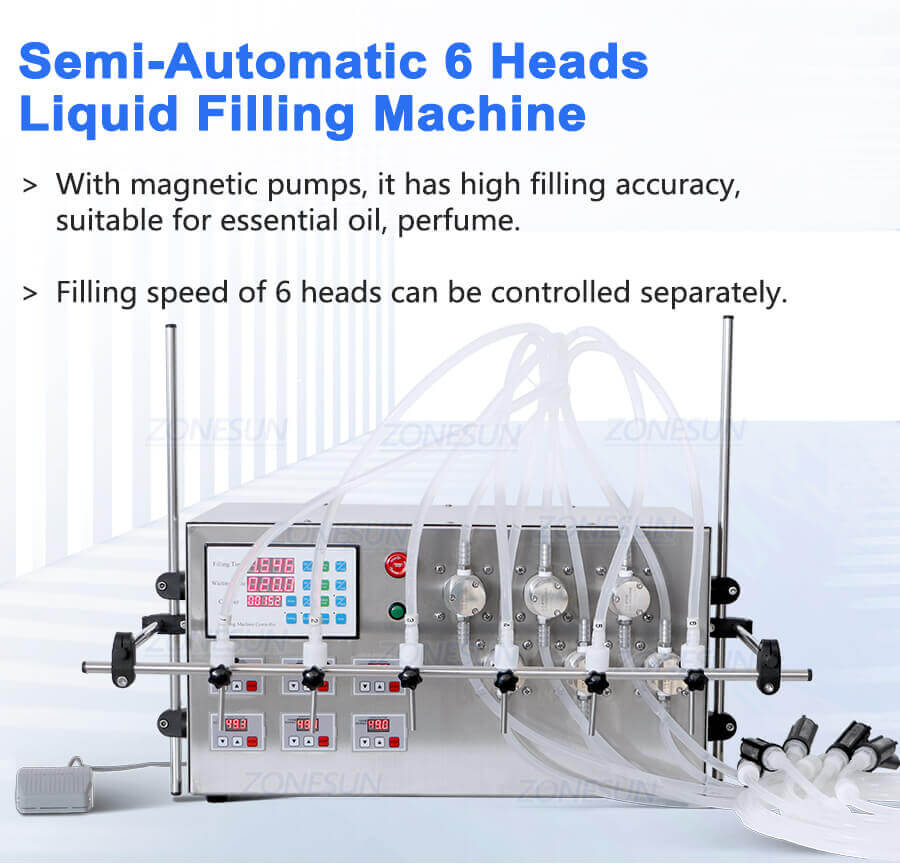

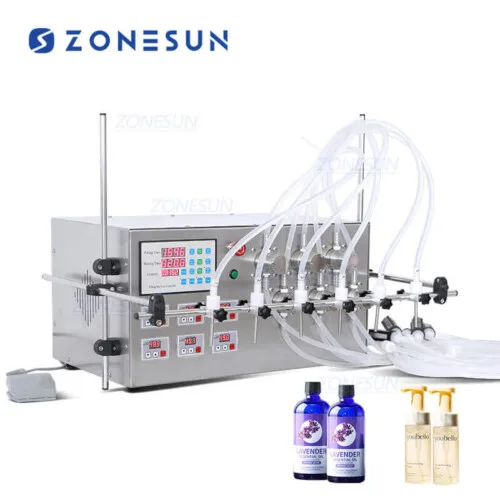

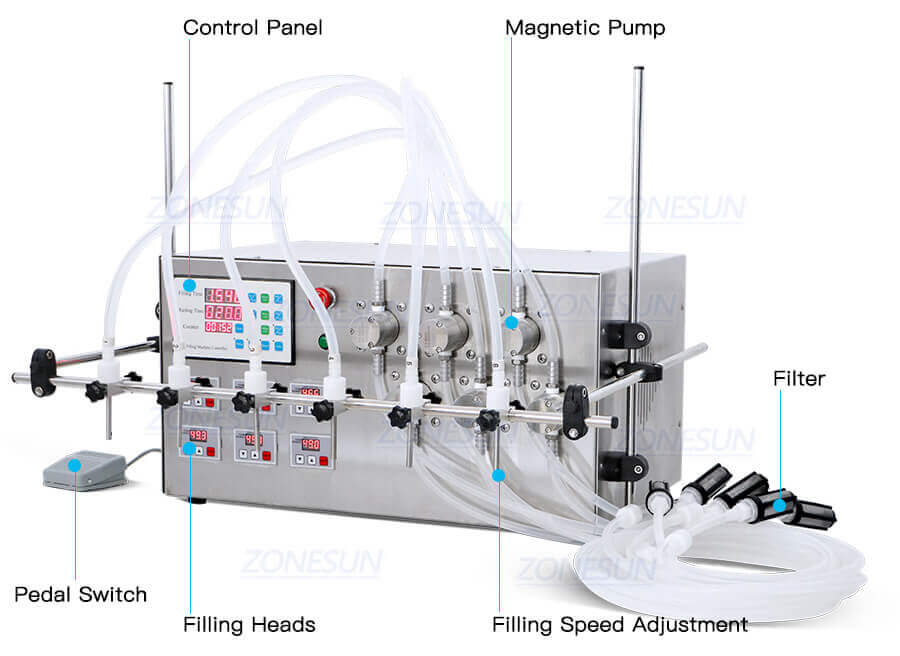

Semi Automatic 6 Heads Magnetic Pump Liquid Filling Machine
Product Description:
This magnetic pump filling machine is suitable for corrosive liquid and low viscosity liquid without particles like eyewash, toner, milk, water, solvent etc. It fills liquid accurately and each nozzle can be controlled separately. This machine can be also used to fill high temperature liquid.
Product Parameters:
Machine Model | ZS-MP5000 |
Voltage | 220V/110V 50-60Hz |
Power | 880W |
Pump Material | 316 Stainless Steel |
Filling Range | 10-6000ml*6 |
Max Flow Rate | 6L/min*6(based on water) |
Max Suction Distance | 2m |
Filling Nozzle Diameter | OD 4mm&6mm |
Repetitive Error Smaller Than | 0.5%(depending on product's density) |
Anti-dripping Function | Available |
Memory Function | Available |
Machine Size | About 630*400*305mm(L*W*H) |
Machine Weight | About 26.5kg |
Product Details:

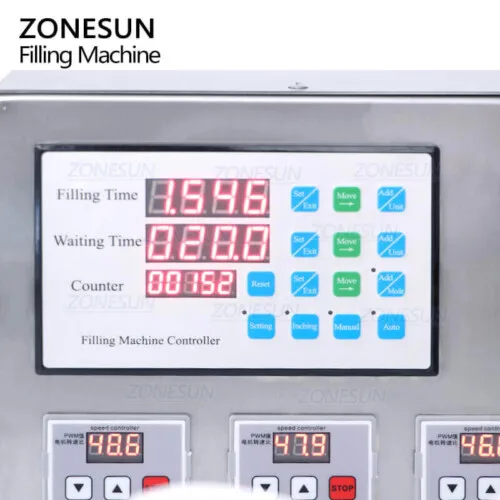

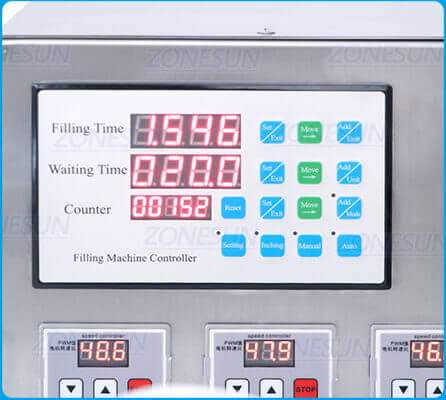

Through digital panel, it is easy to set or adjust working parameters like filling time. It is with inching button, good for testing machine. The quantity of filled bottles can show on panel, visual and accurate.

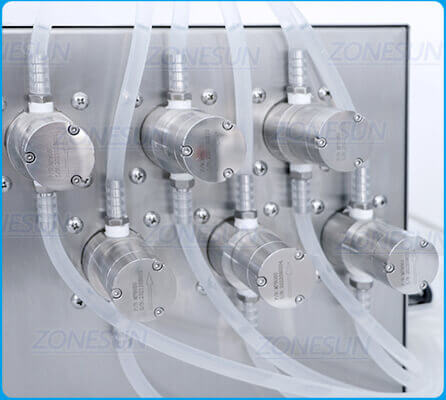

The magnetic pump has the feature of high filling accuracy, suitable for filling essential oil, toner. It is also suitable for 3≤PH≤9 corrosive liquid.

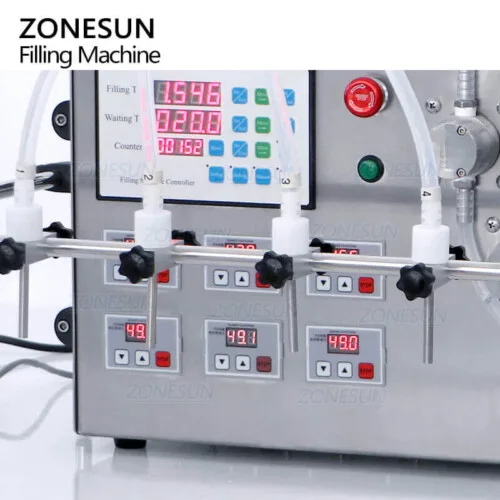

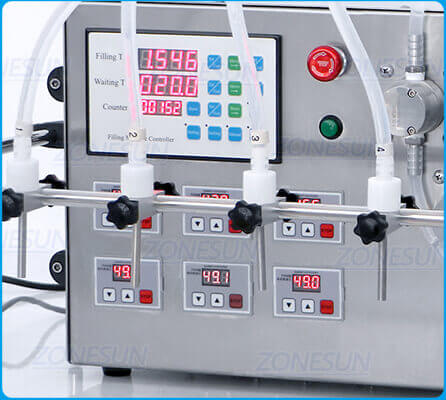

With anti-dripping function, it can fill liquid accurately. The filling speed of 6 nozzles can be controlled separately, easy to operate. Different sizes of nozzles can be offered if you need.

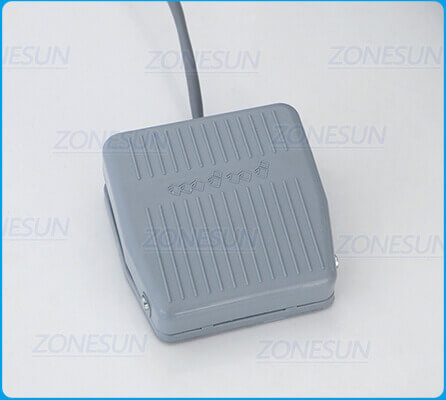

This machine has automatic working mode and manual mode, which can be switched freely. In manual mode, you can press pedal switch to control machine to run. Easy and convenient.

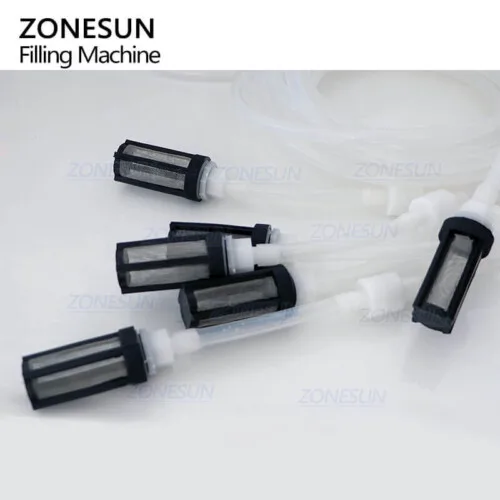

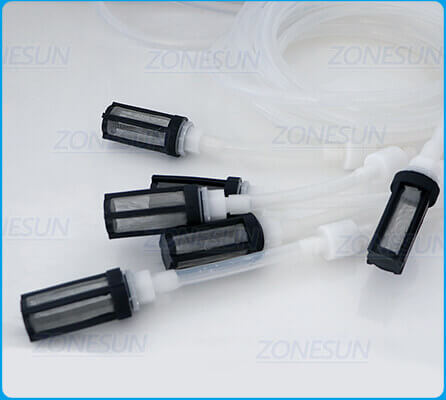

High-quality filters can help to filter impurities during filling, ensuring production quality and preventing pump from getting clogged.
