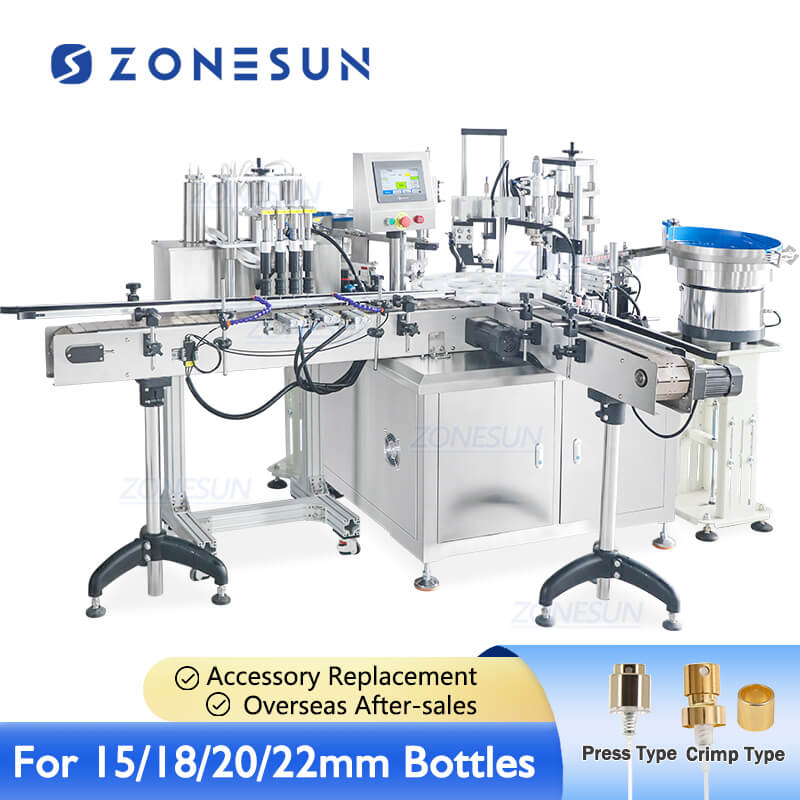

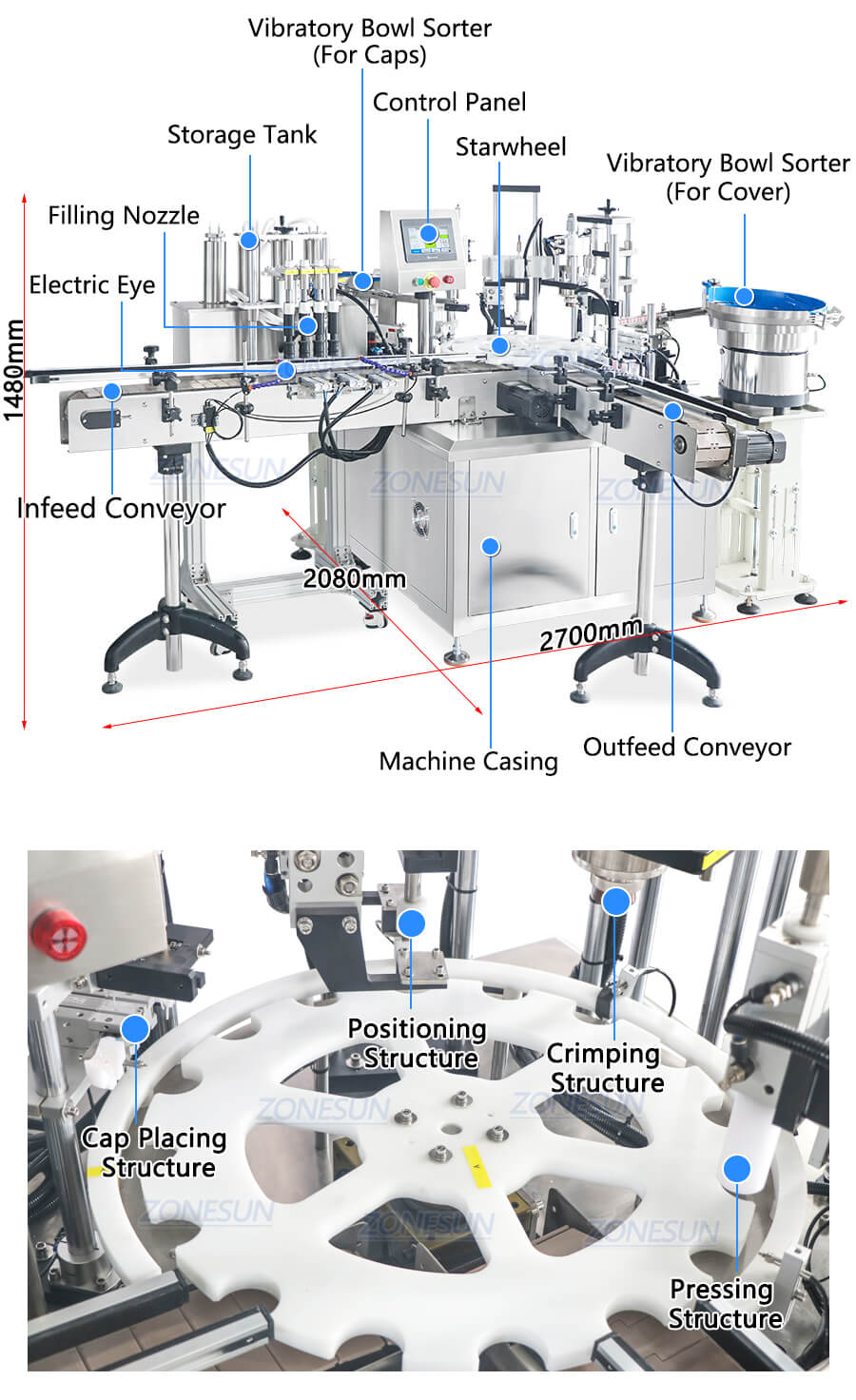

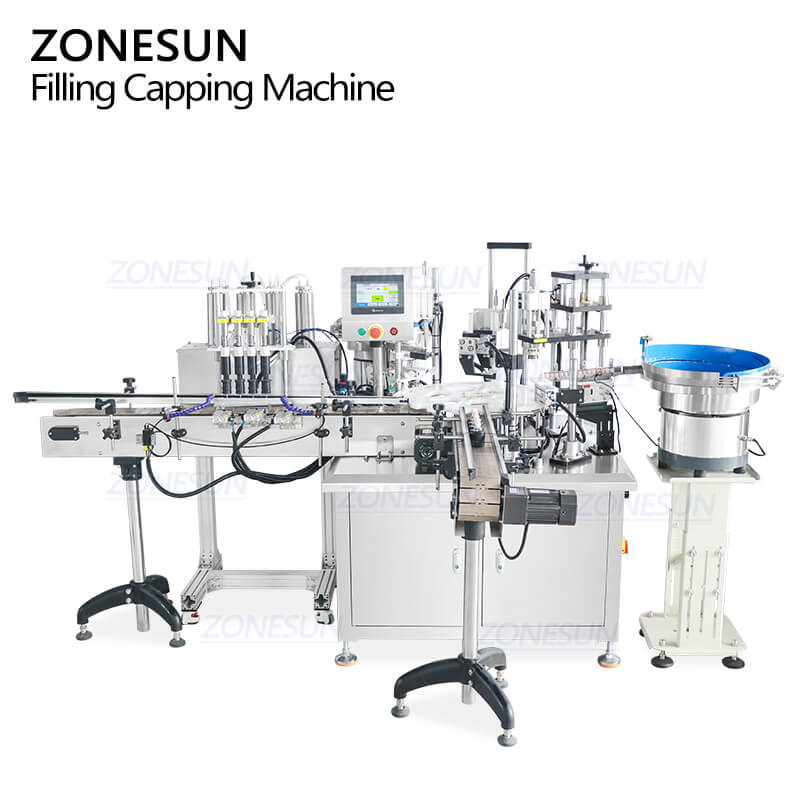

Product Description:

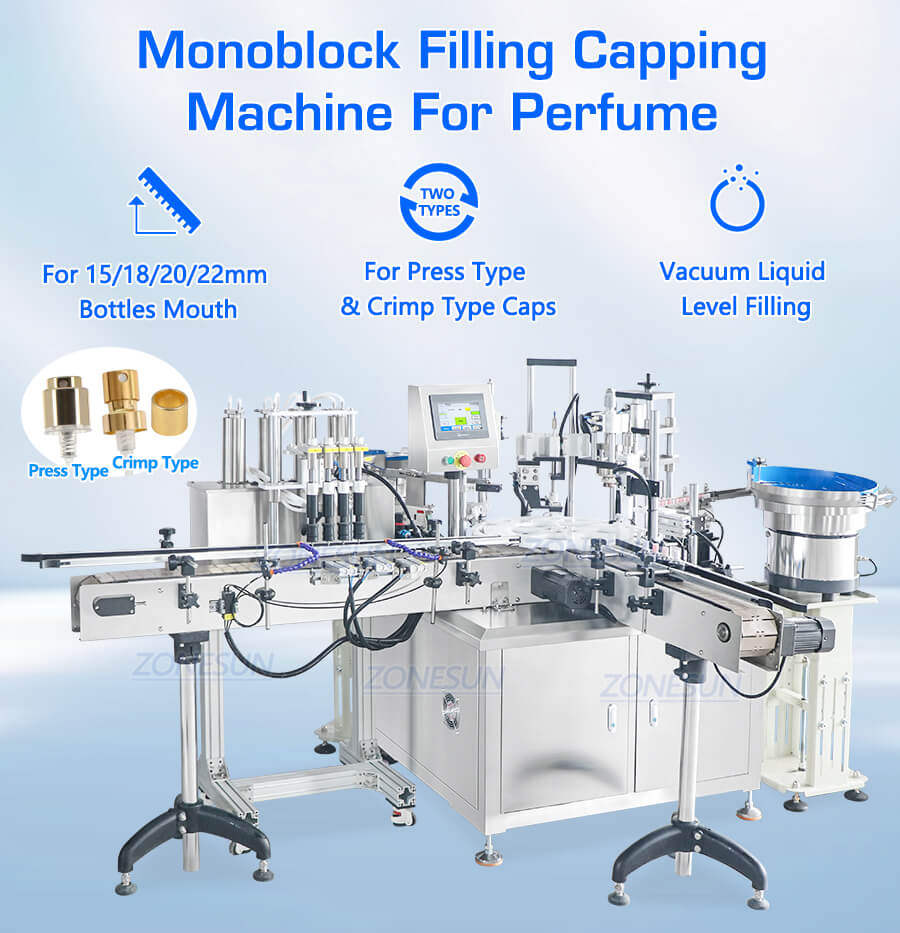

This monoblock filling machine has compact machine body and can realize filling, cap feeding, capping at the same time. It is suitable for small scale production of perfume with 15/18/20/22mm bottle opening mouth.

Product Parameters:

Machine model	ZS-AFC9L
Voltage	220V/110V 50-60Hz
Power	1300W
Filling principle	Vacuum liquid level
Filling Heads	4 Heads(Can be customized)
Production capacity	About 15 bottles/min(depending on filling material and bottle size)
Filling range	10-200ml(Can be customized)
Max flow rate	2L/min per head
Applicable bottle size	φ=25-100mm H≤300mm(Customizable)
Applicable bottle cap size	φ≥10mm(customizable)
Machine size	About 2700*2080*1480mm(Main Machine)+340*340*1100mm(Vibratory Bowl Sorter)+340*340*1130mm(Vibratory Bowl Sorter)
Package size	About 2440*1800*1670mm
Package weight	About 680kg

Product Details:

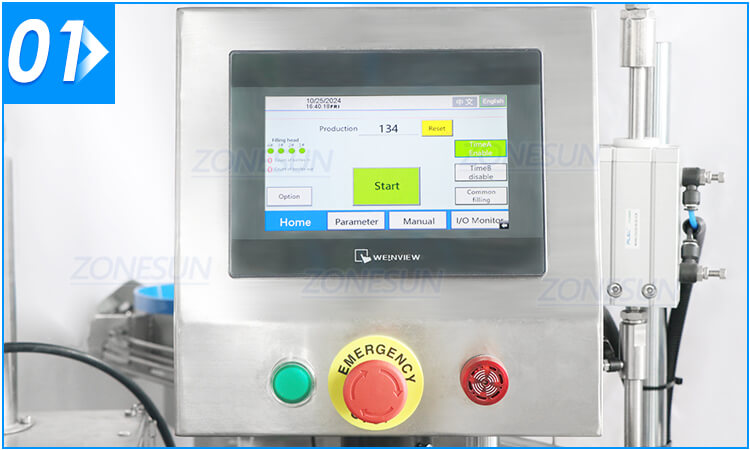

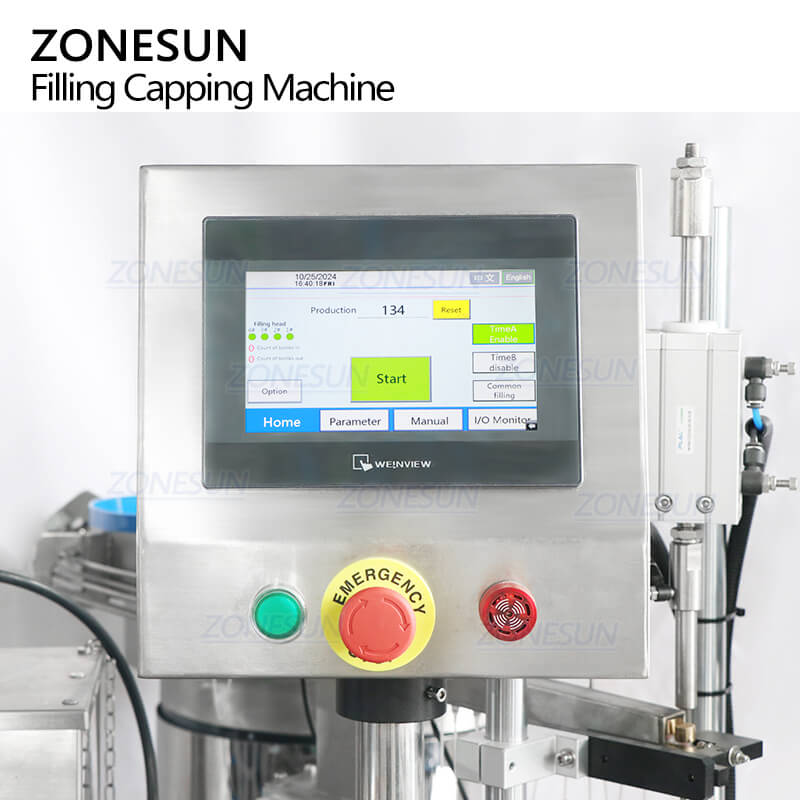

Control Panel
Set parameter through touch screen control panel, makes machine debugging & operating more convenient.

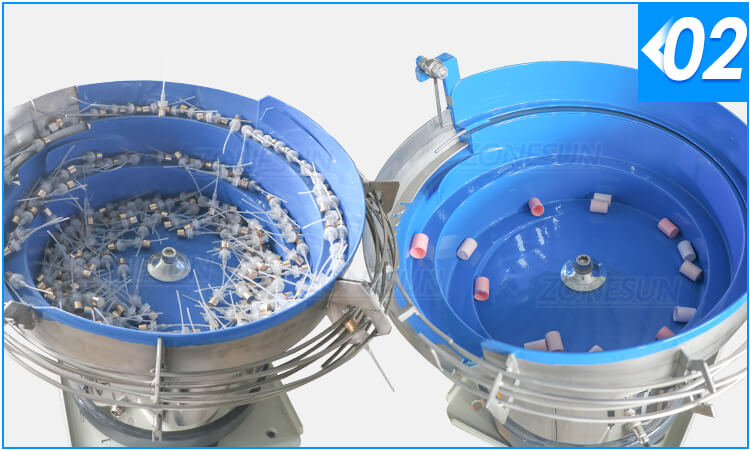

Vibratory Bowl Sorter
The vibratory bowl sorter can arrange caps be in order before capping work.These are customizable based on cap size.

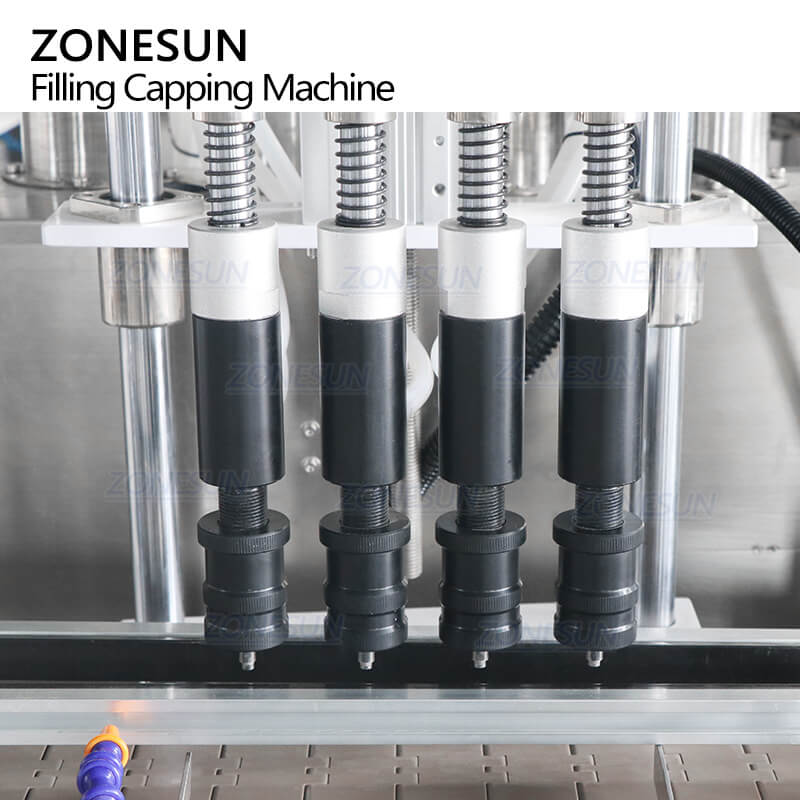

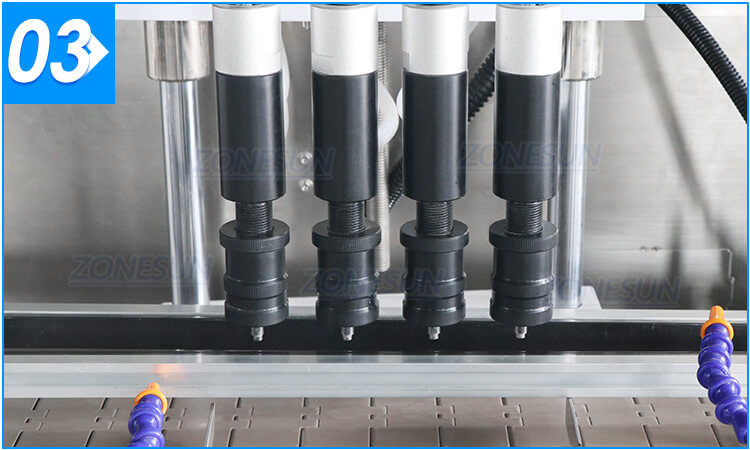

Vacuum Filling
Based on liquid level filling principle, extra liquid will flow back to the storage tank to ensure filling accuracy.

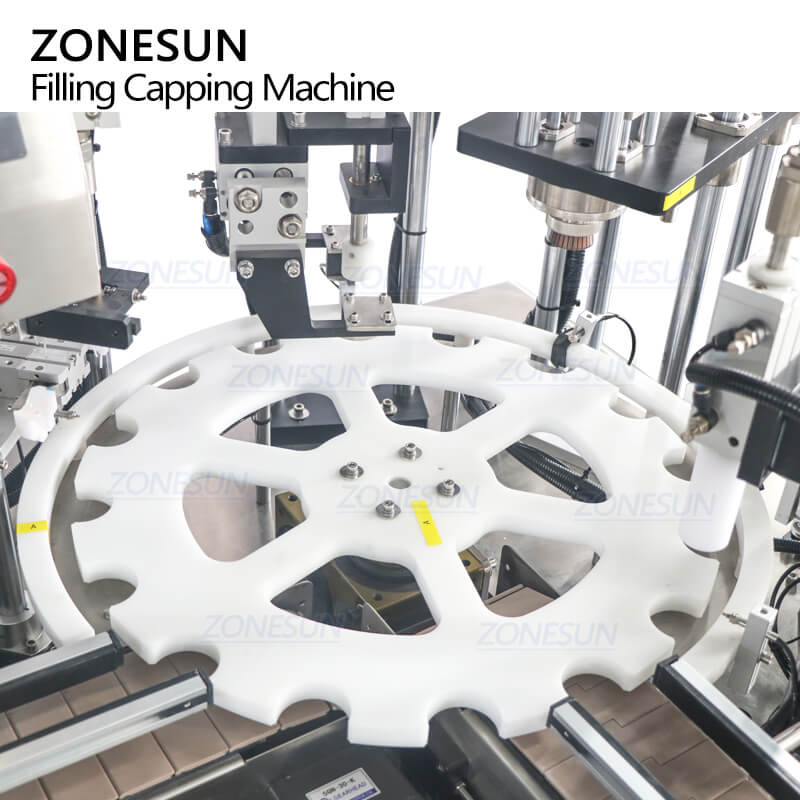

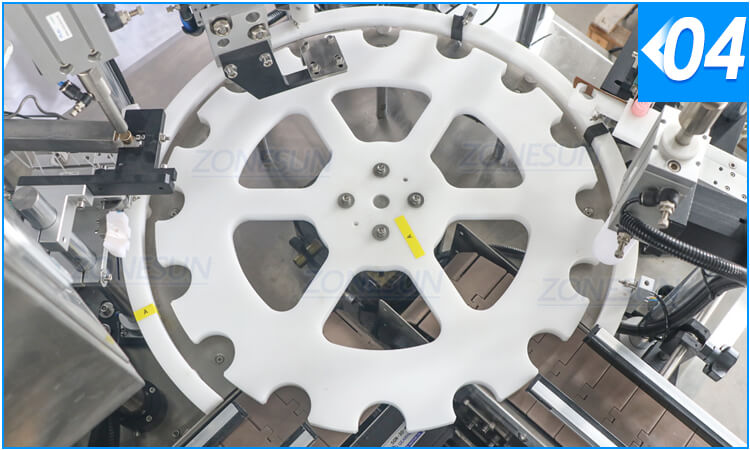

Starwheel
This is customizable based on bottle size to ensure smooth conveying.

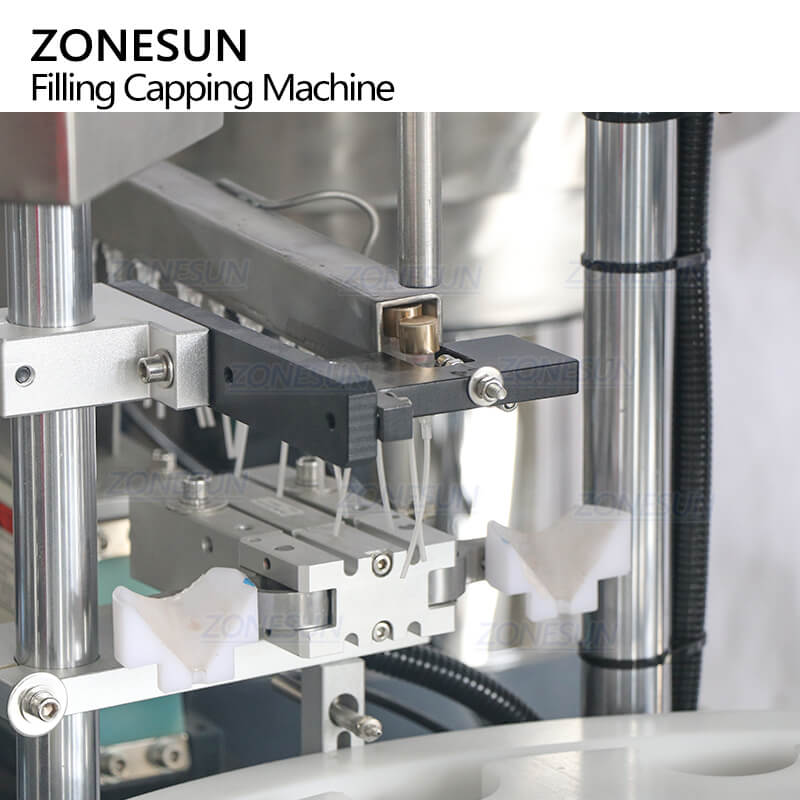

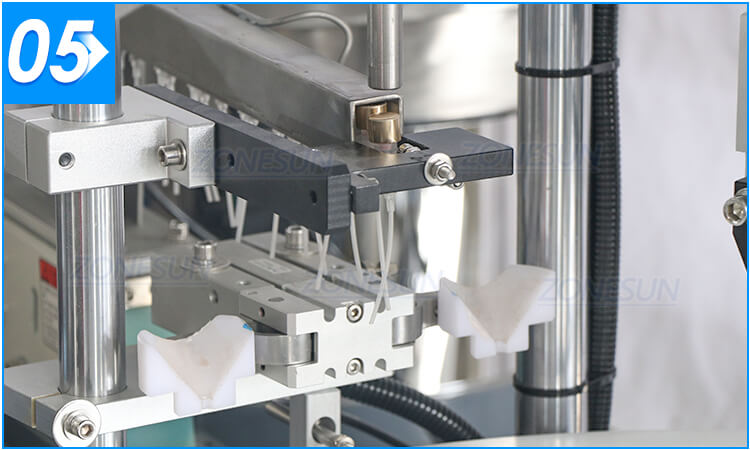

Guiding House
Designed for spray caps, this can ensure placing caps accurately into bottles.

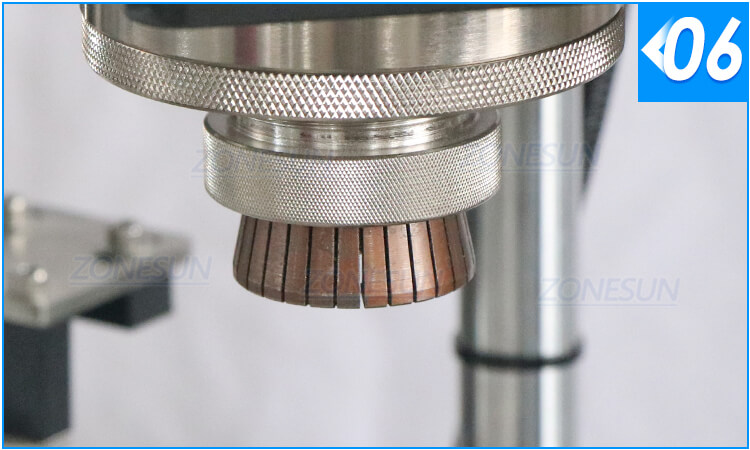

Crimping Structure
Changing crimping molds can be suitable for different sizes of bottle opening mouth.
