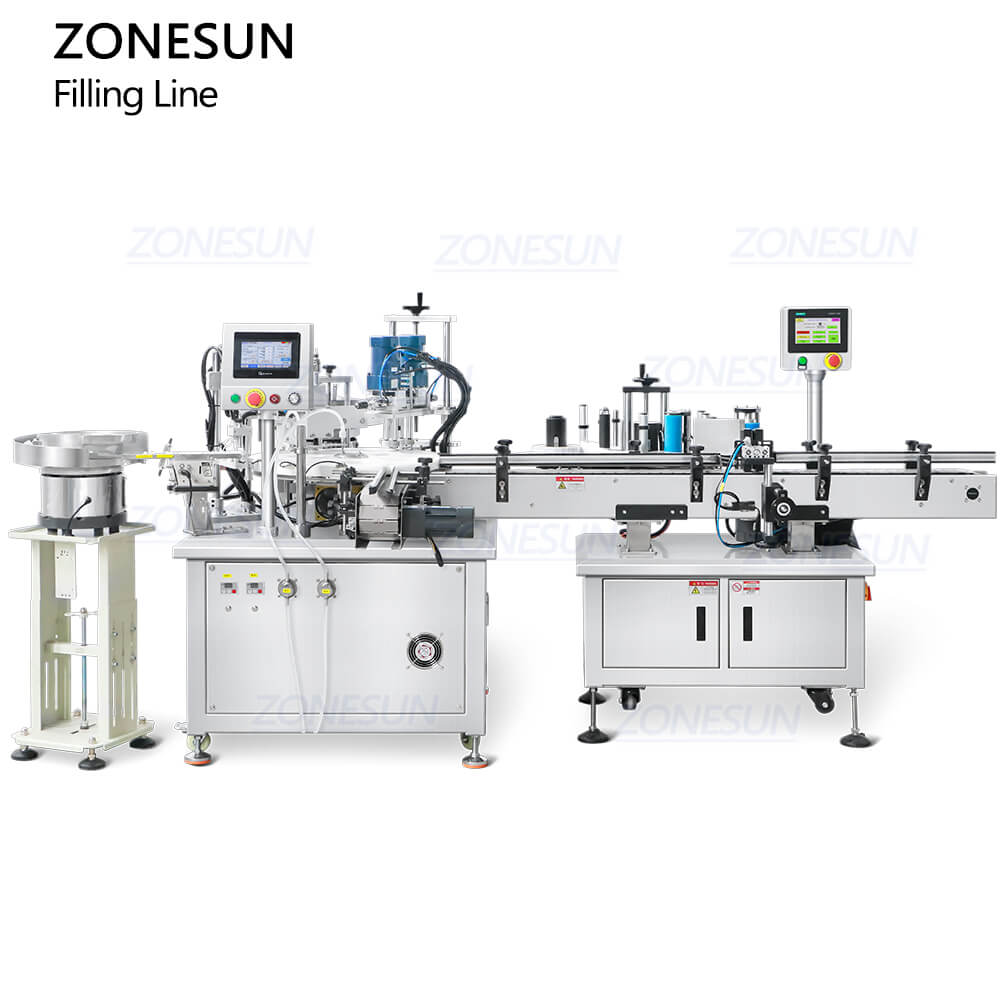

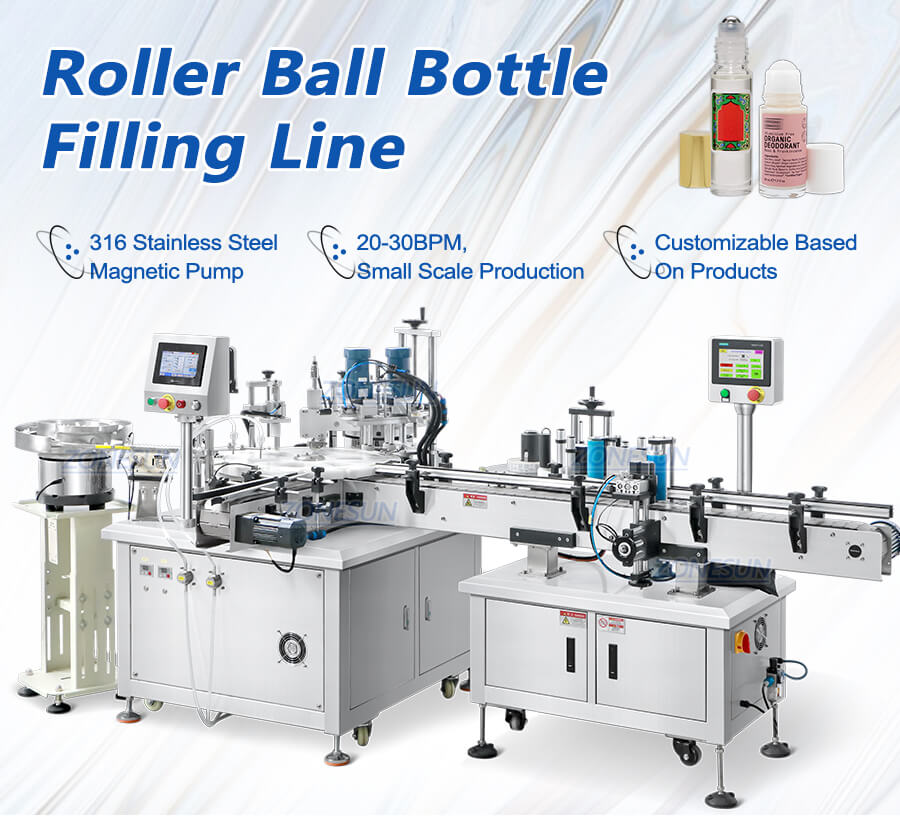

Product Description:

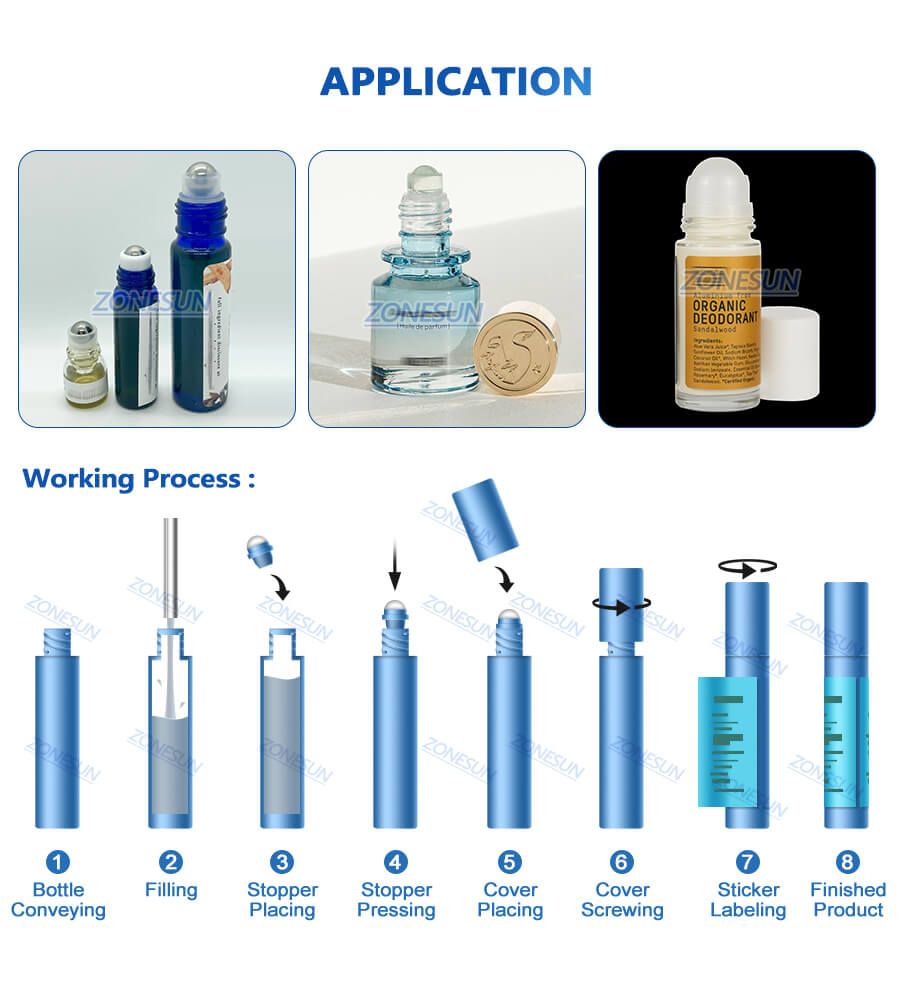

This packaging system consist of monoblock machine and label applicator. It can finsih filling, capping and labeling work at the same time.This packaging system is good for packaging liquid products into roller ball bottles like perfume oil, deodorant etc.

Product Parameters:

Monoblock Filling Capping Machine

Machine Model	ZS-AFC11
Voltage	220V/110V 50-60Hz
Power	2500W
Filling Pump	316 Stainless Steel Magnetic Pump
Working Speed	25-30bottles/min(depending on bottle size and liquid)
Max Flow Rate	4L/min*2(based on water)
Suitable Bottle Size	Customized
Bottle Cap Diameter	Customized
Package Size	About 2040*1660*1650mm
Package Weight	About 535kg

Labeling Machine

Model	ZS-TB260R
Power supply	AC220V 50Hz/60Hz 1000 W
Labeling capacity(bottles/min)	25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm)	±1.0 mm
Suitable Bottle Size	Φ=30-100 mm H=30-200mm

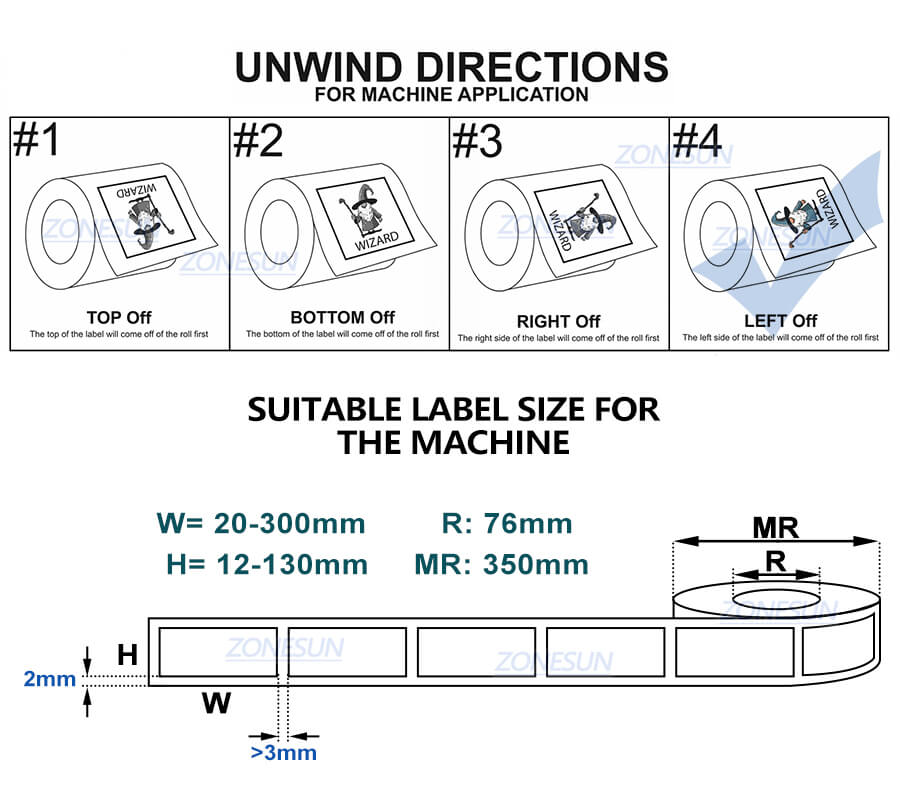

Label size(mm)	(L)20-300 mm (H)12-130 mm(Can be customized)
Roll inside diameter(mm)	Φ76mm
Roll outside diameter(mm)	Φ350mm
Conveyor Size	112*2000mm(W)
Machine size	About (L)2000*(W)820*(H)1380(mm)
Machine weight	About 180kg
Packing Size	About (L)2100*(W) 890*(H)1520(mm)
Package weight	About 250 kg

Product Details:

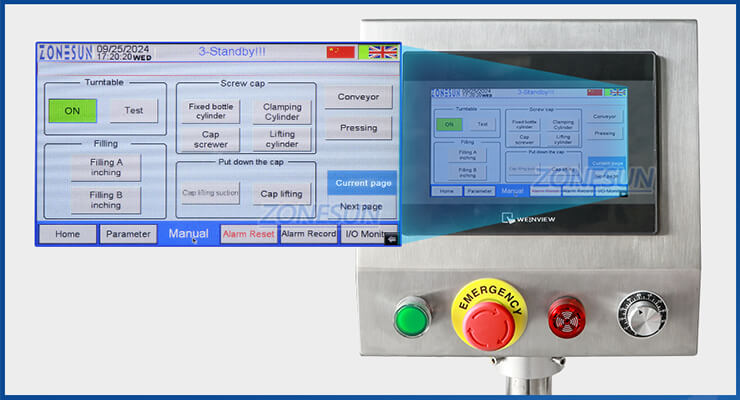

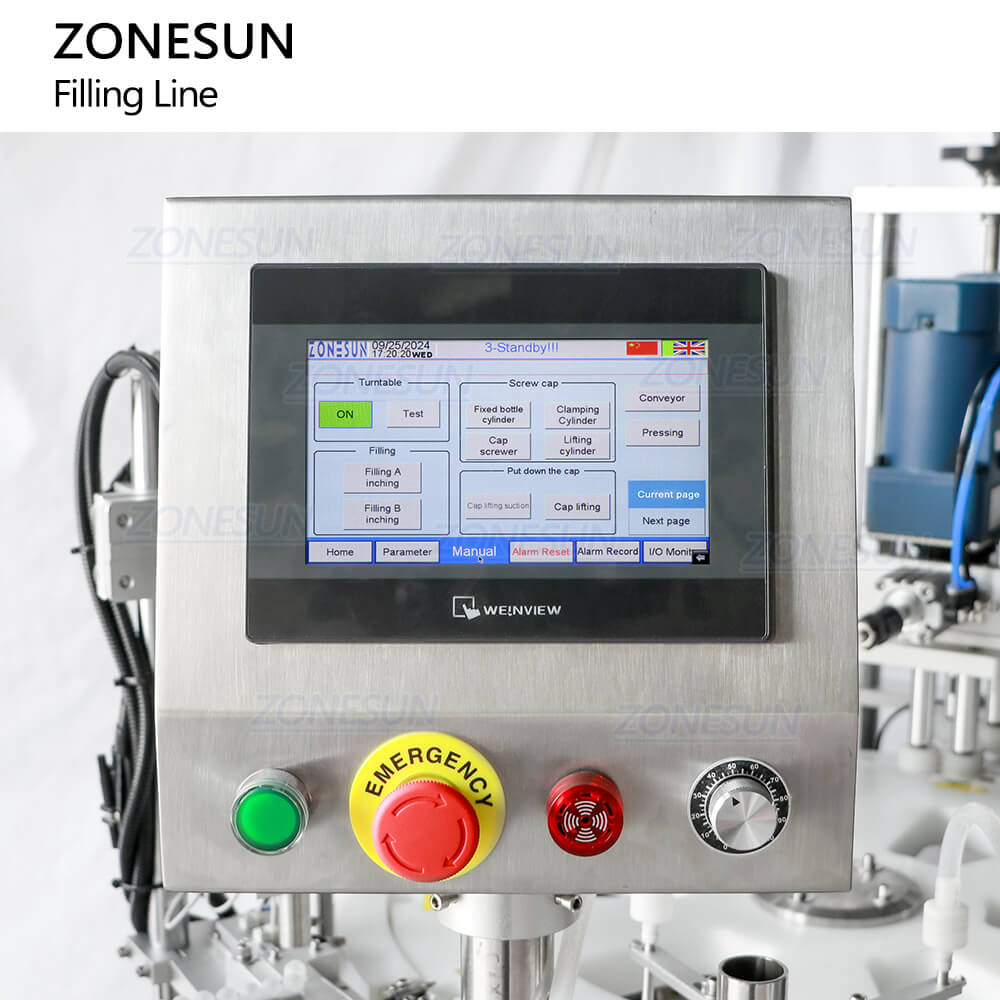

Control Panel
Touch screen control panel makes parameter setting more intuitively, simplies machine operation and debugging.

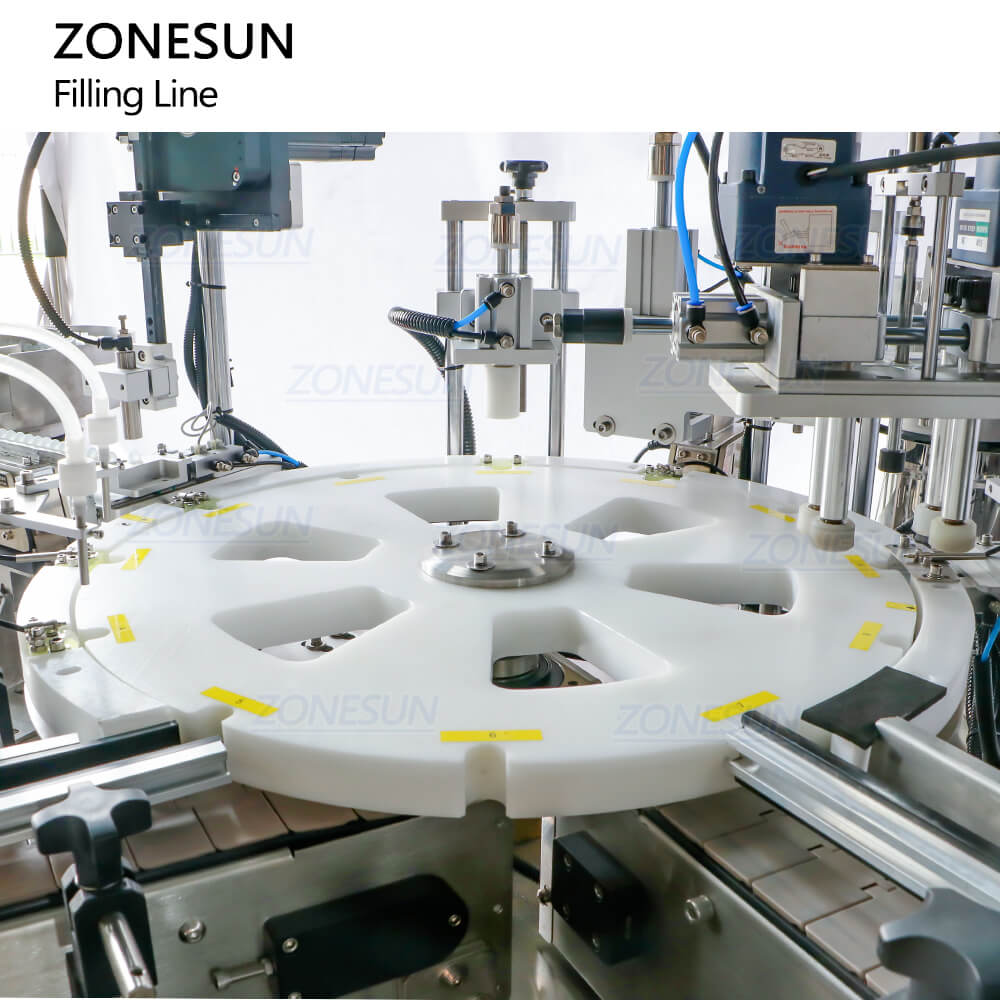

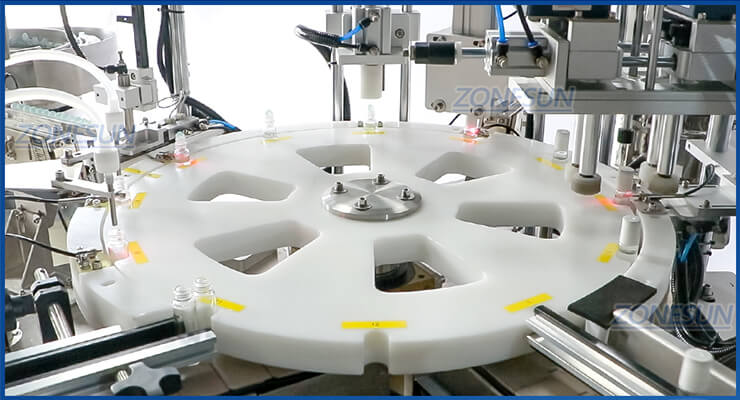

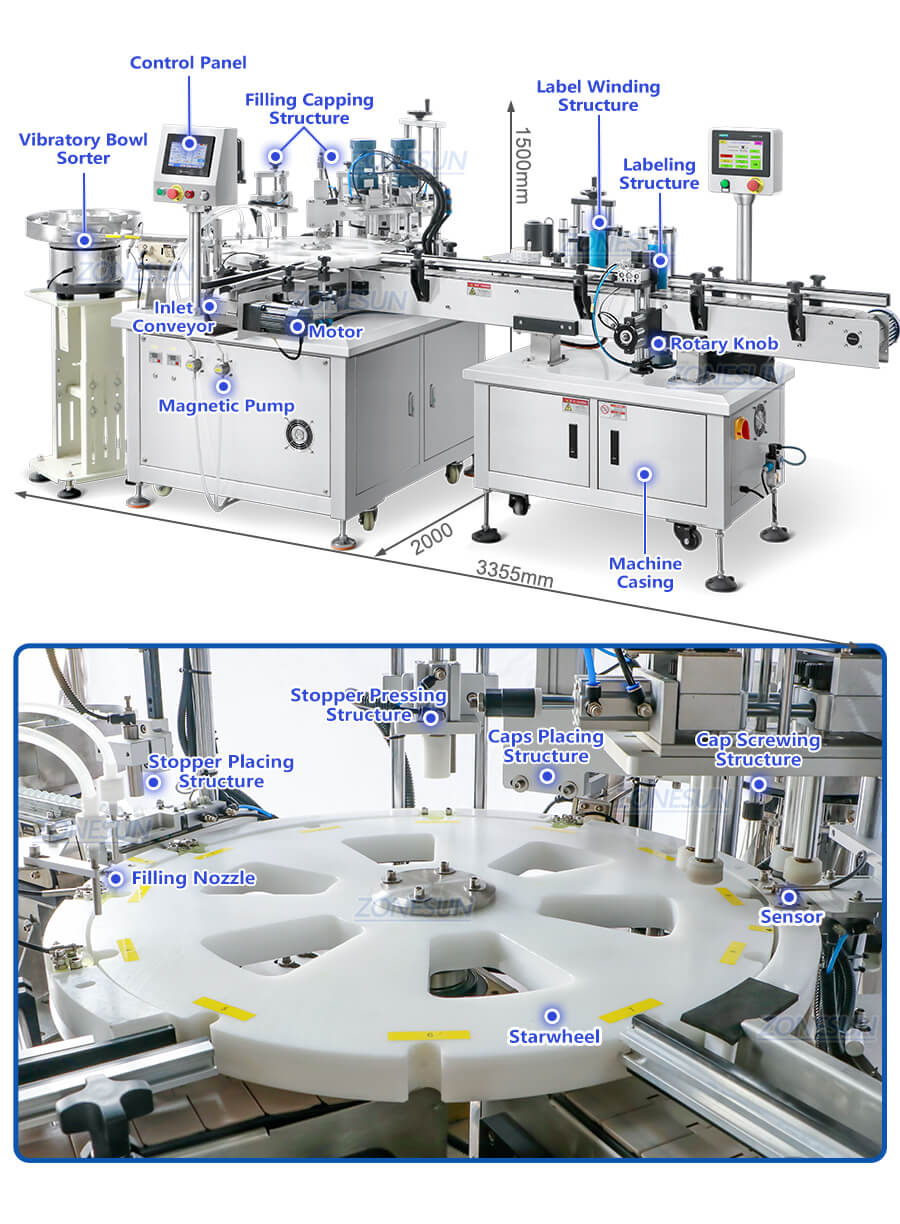

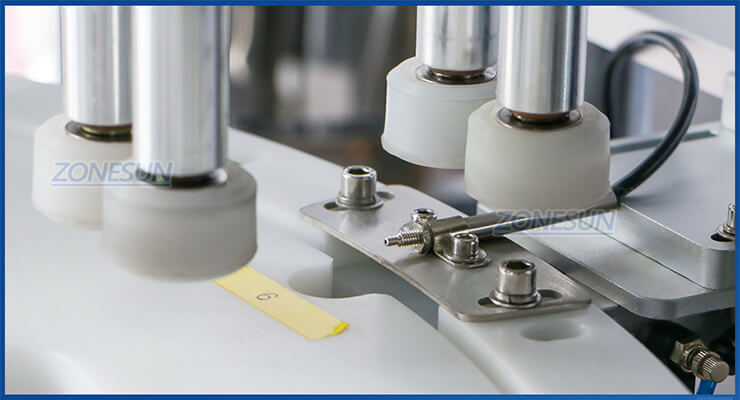

Filling Capping Structure
Starwheels is customizable based on bottle size, compact machine body saves working space.

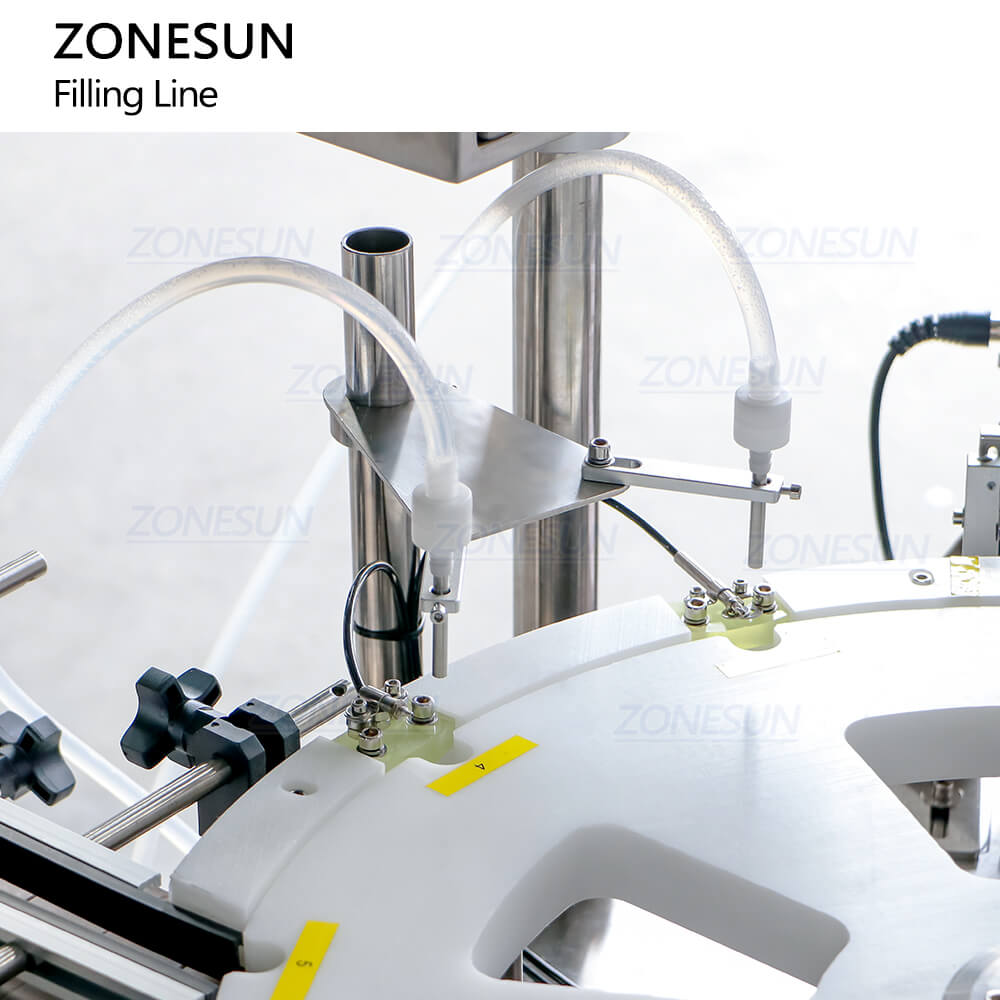

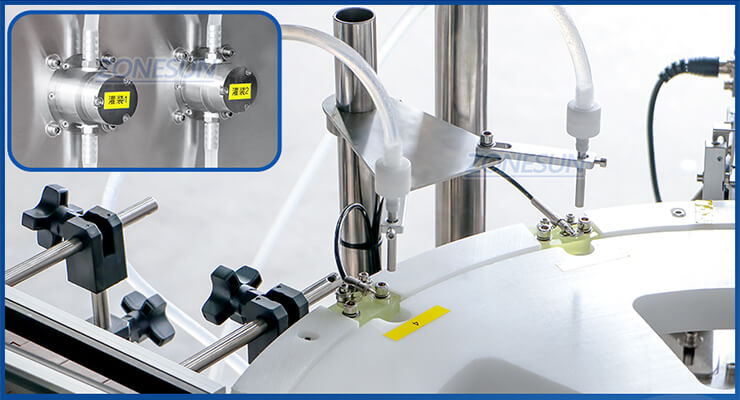

Filling Structure
Equipped with 316 stainless steel magnetic pumps, it can fill liquid accurately.

Sensor
Each working station has a sensor to detect passing by bottles and realize automated work.

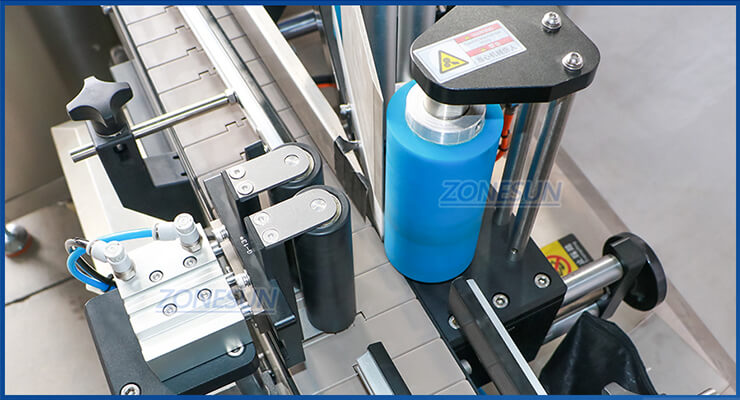

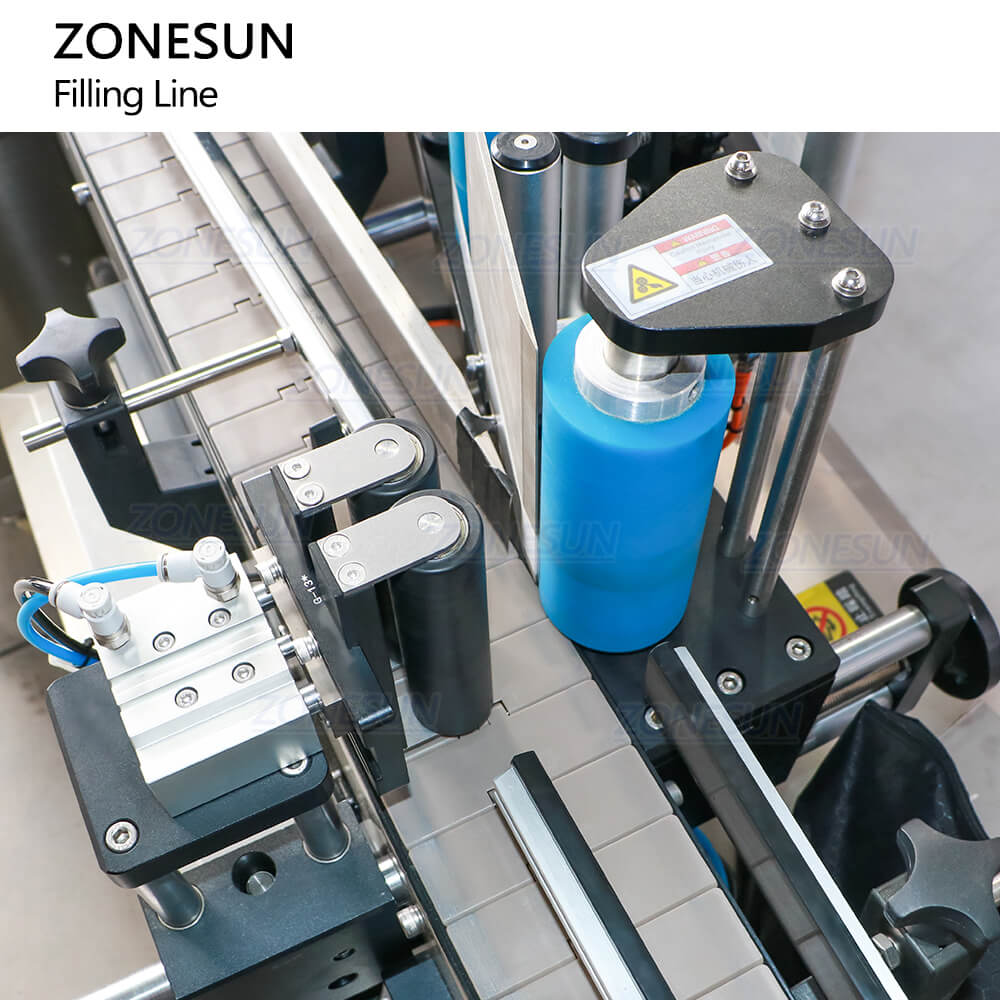

Labeling Structure
Use three rollers to stick labels on bottles, it suits single side, double sides and wrap-around labeling.

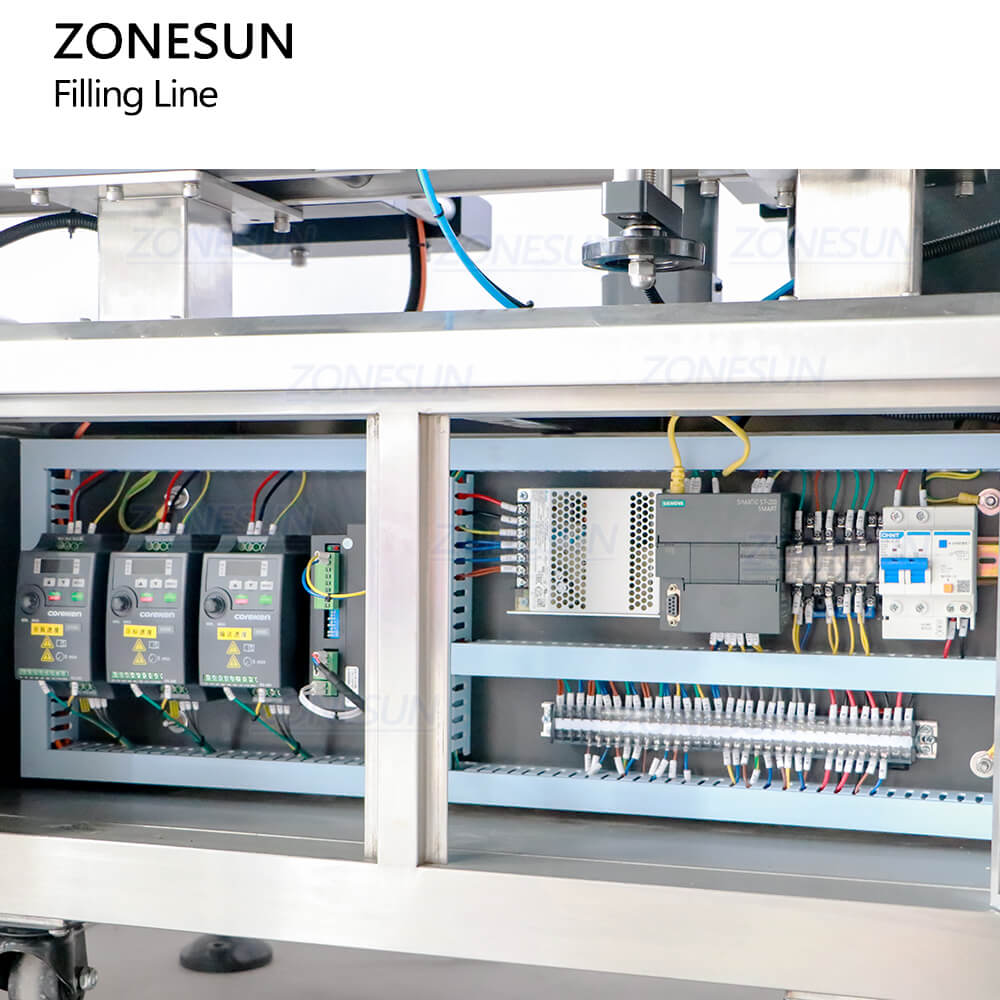

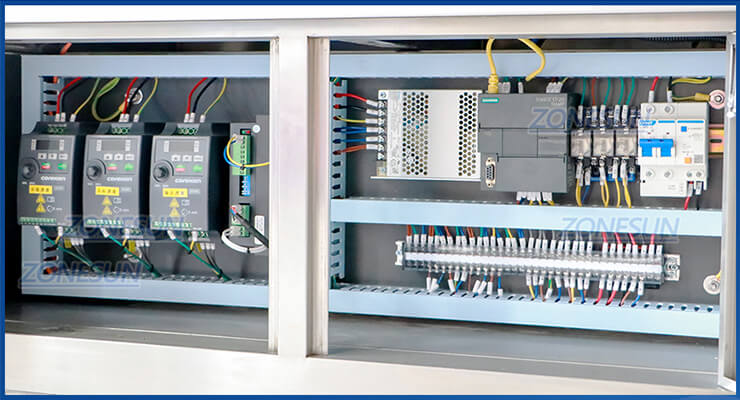

Circuit
Electric circuit are connected neatly, ensures machine work stably.
