Product Parameters:
| Model | ZS-MD20A | ZS-MD20B | ZS-MD30A |
| Payload capacity | 20kg | 20kg | 30kg |
| Working radius | 1460mm | 1460mm | 1600mm |
| Palletizing height(pallet excluded) | 1750mm | 2300mm | 1750mm |
| Palletizing height(pallet included) | 1900mm | 2450mm | 1900mm |
| Pallet size | 1200mm*1200mm | 1200mm*1200mm | 1200mm*1200mm |
| Palletizing speed | 8 pallets/min | 8 pallets/min | 8 pallets/min |
| Applicable carton | Length:200-500mm Width:180-450mm Height:200-400mm |
Length:200-500mm Width:180-450mm Height:200-400mm |
Length:200-500mm Width:180-450mm Height:200-400mm |
| Power | 220V, 2.5KW | 220V, 2.5KW | 220V, 2.5KW |
| Weight | 82kg | 82kg | 82kg |
Product Details:

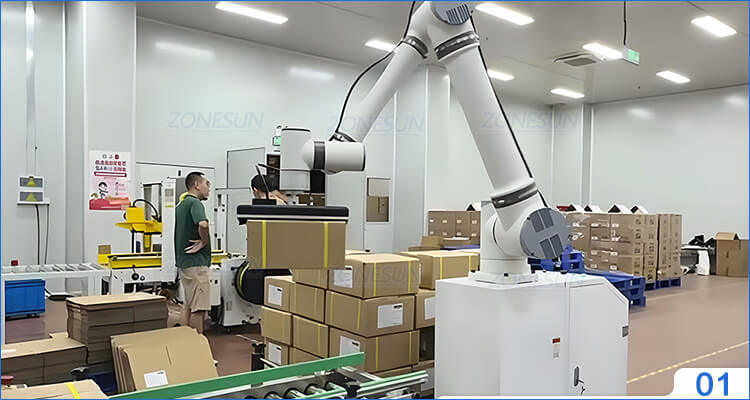

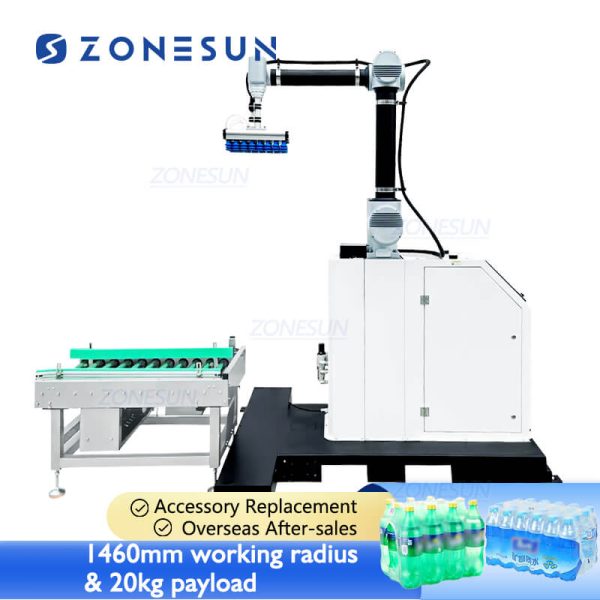

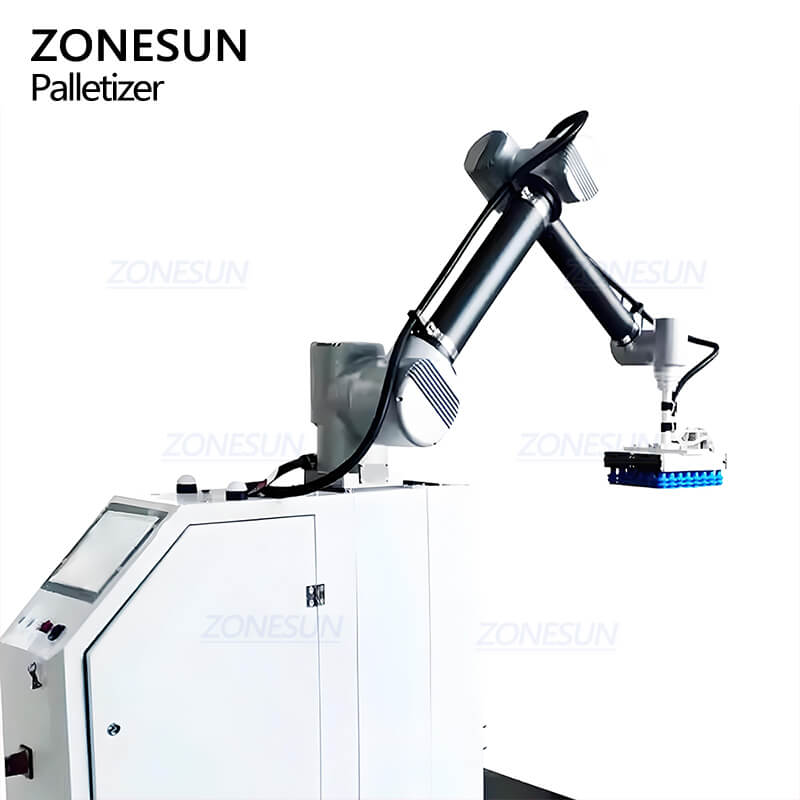

Easily grasp objects without manual operation.

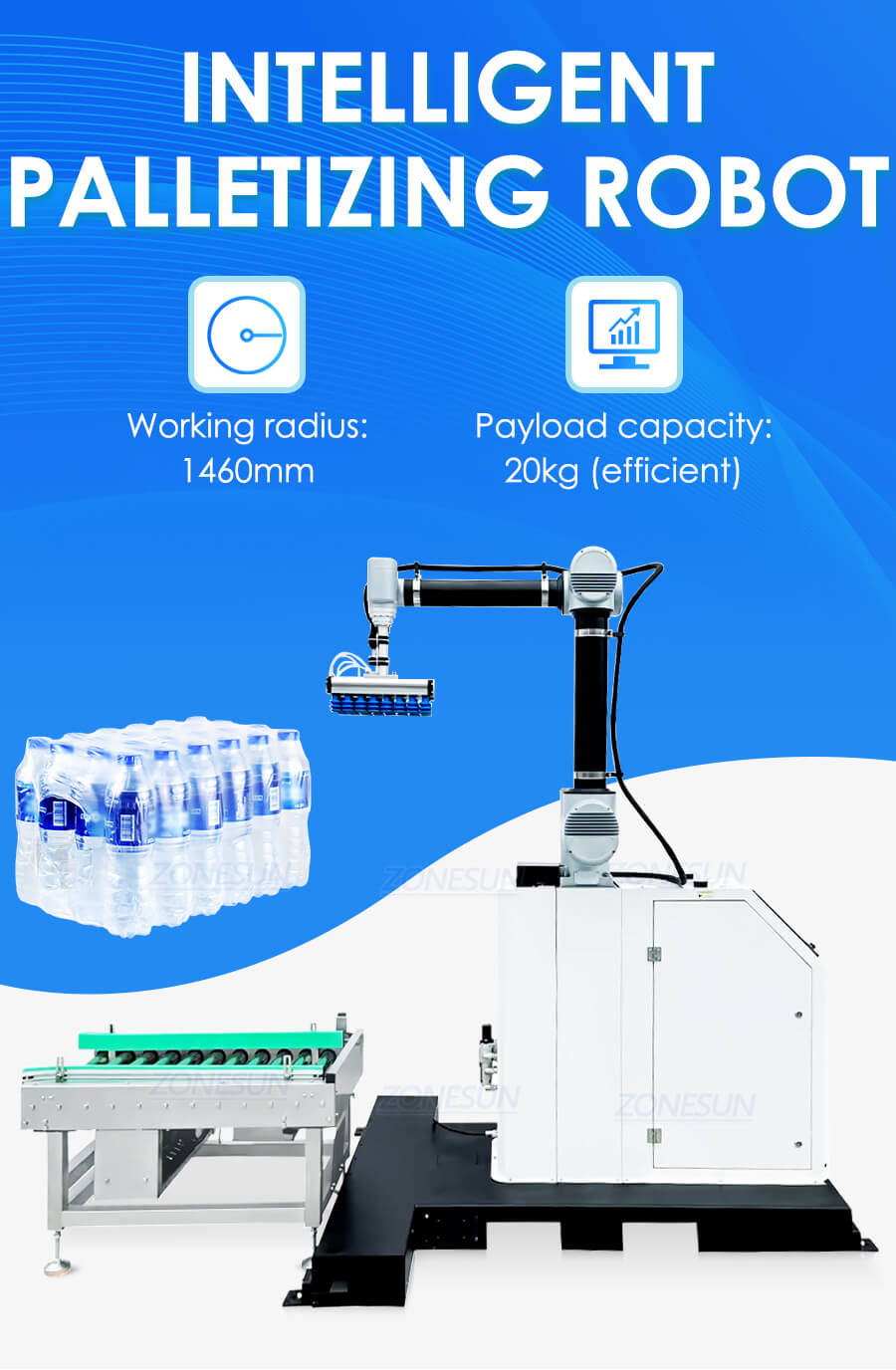

Large working radius of 1460mm.
