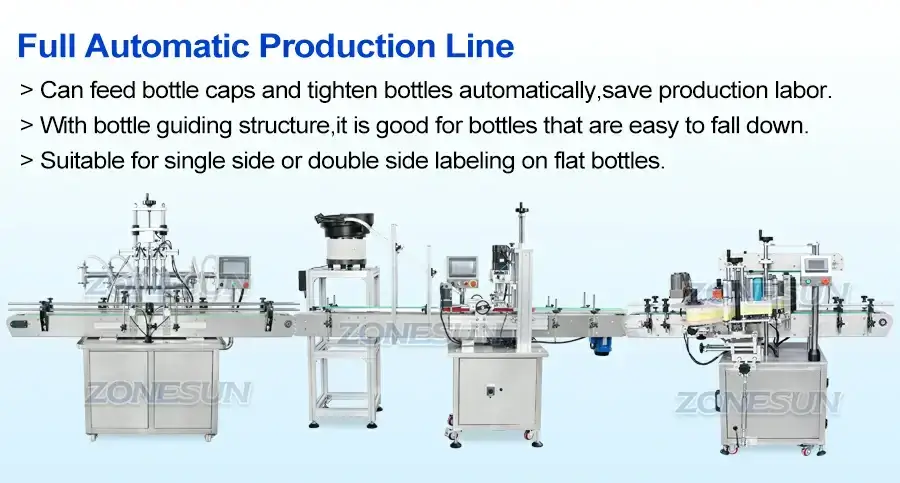

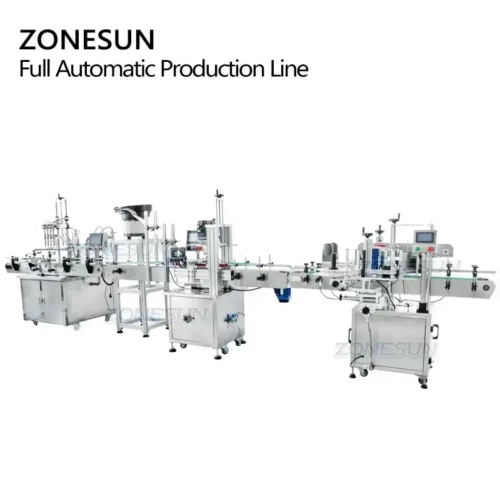

ZS-FAL180X5 Production Line

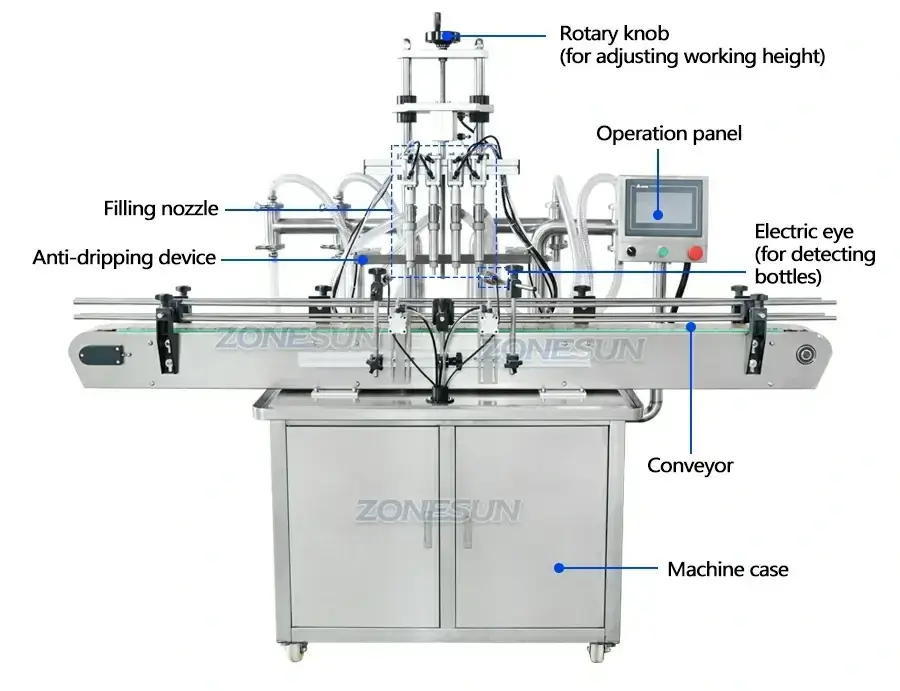

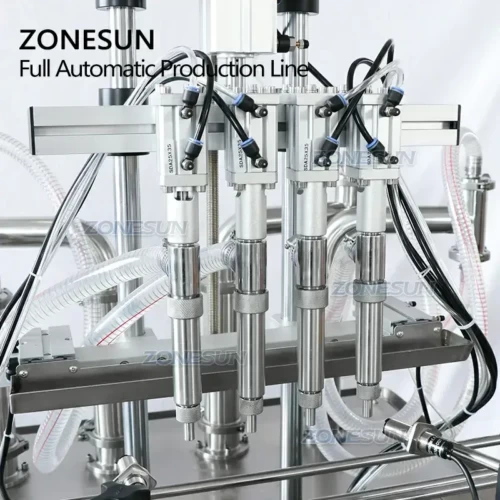

| Model | ZS-YT4T-4Y |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed | 20-35bottles/min |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7MPa |
| Size Of Air Compressor Connector | φ10mm |
| Conveyor length | 2050mm(standard ) / 3050mm(wider version) |
| Conveyor material | Plastic(standard) / stainless steel(custom version) |

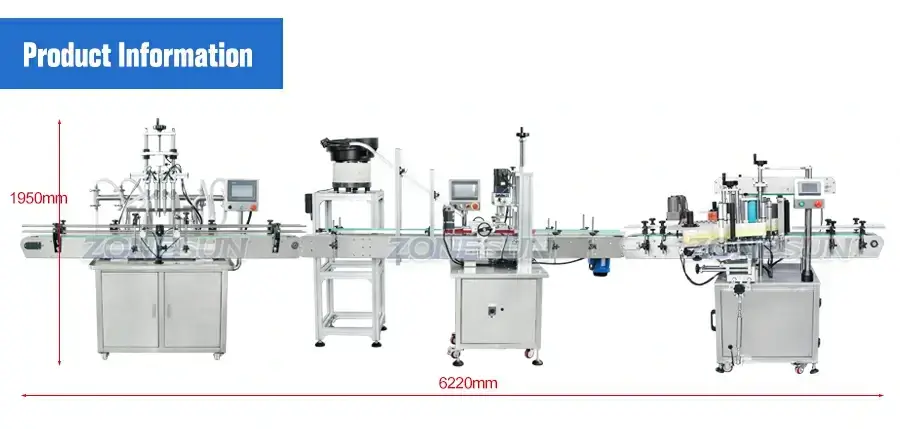

| Machine Size | About 2000*1020*1950mm |
| Package Size | About 1270*1150*2010mm |
| Net Weight/Gross Weight | About 242kg/300kg |

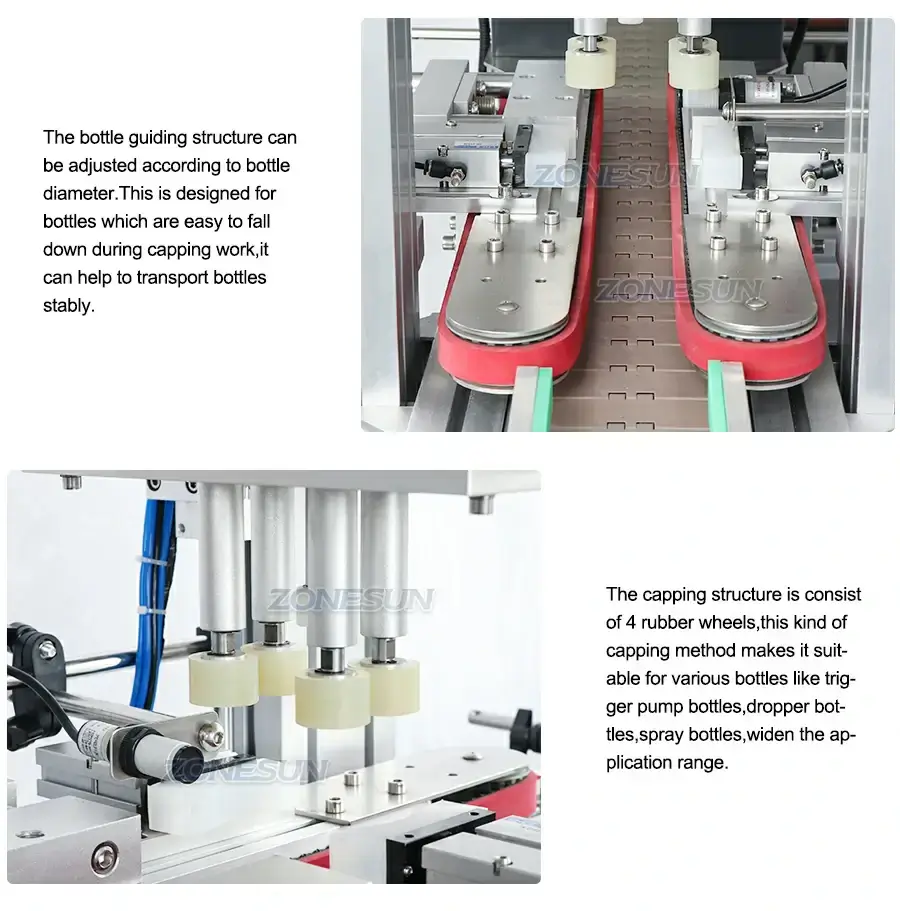

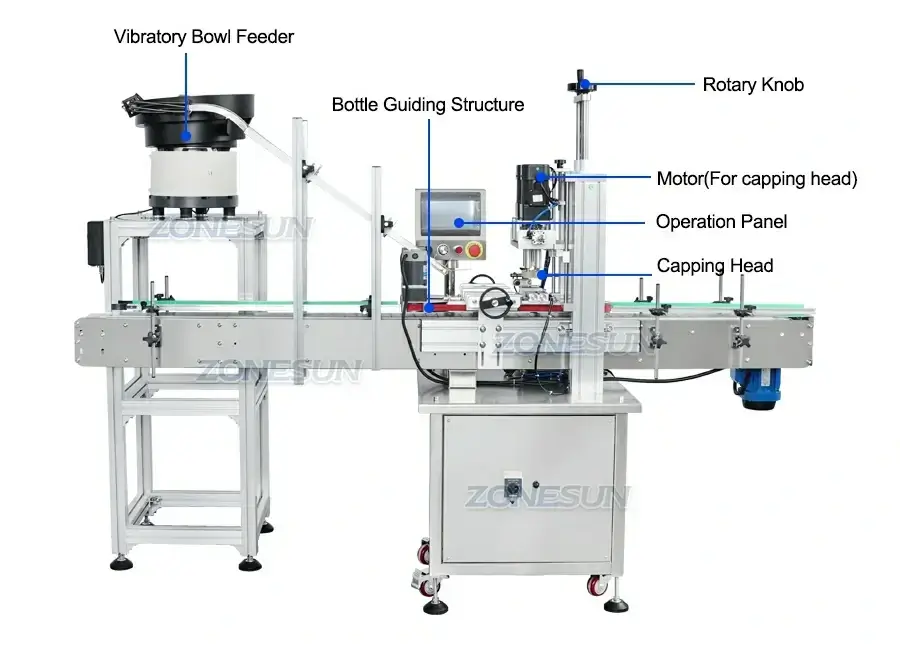

| Machine model | ZS-XG16P |
| Bottle height | 30-300mm |
| Cap Diameter | 18-70mm |
| Botle Diameter | 20-160mm |
| Working speed | 20-60 bottles / minute (Depending on bottle and cap size and shape) |
| Working voltage | AC220V/110V 50-60HZ |
| Wokingn pressure | 0.4-0.6MPa |

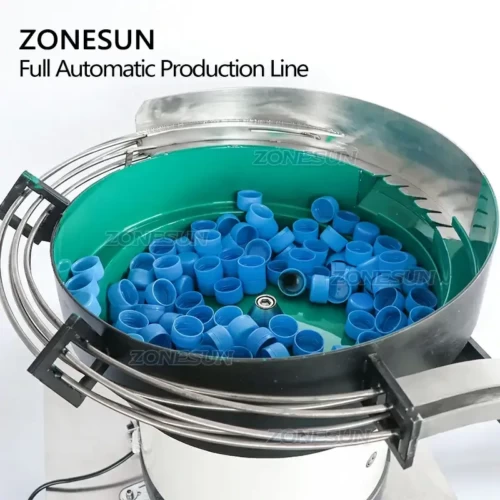

| Machine size | About 2420*680*1700mm(Machine) About 500*500*1640mm(vibratory sorter) |
| Machine weight | About 138kg (Machine) About 75kg(vibratory sorter) |
| Package size | About 1970*770*1790mm |
| Package weight | About 213kg |

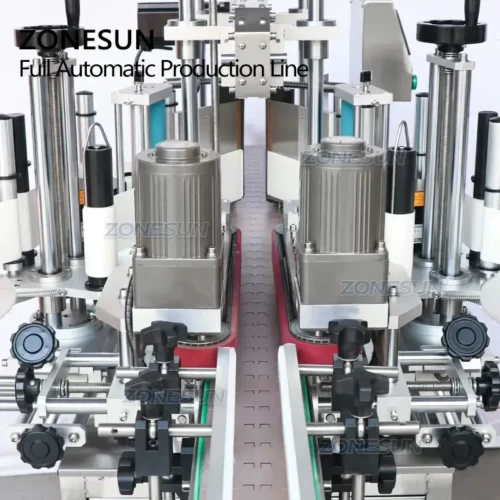

| Machine model | ZS-TB300V |
| Voltage | 110V-60HZ/220V-50HZ |
| Power | 3100W |
| Working speed | 30-100 bottles/min |
| Labeling accuracy | ±0.5mm |
| Suitable labeling Size | ≤200mm(W)(Can be customized ) |
| Roll inside diameter(mm) | φ75mm |
| Roll outside diameter(mm) | φ250mm |
| Suitable bottle diameter | φ≤100mm H≤350mm |
| Conveyor size | About 1800*100mm |
| Machine size | About 1800*1250*1450mm(L*H*W) |
| Package size | About 1850*1135*1560mm(L*H*W) |
| Net weight/Gross weight | About 213kg/268kg |
