ZS-FAL180P10 Production Line

ZS-FAL180P10 Production Line

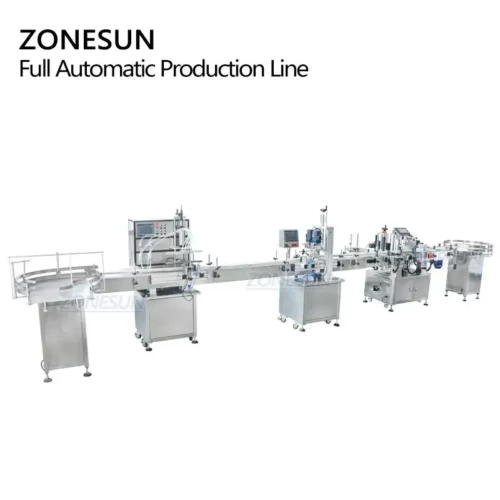

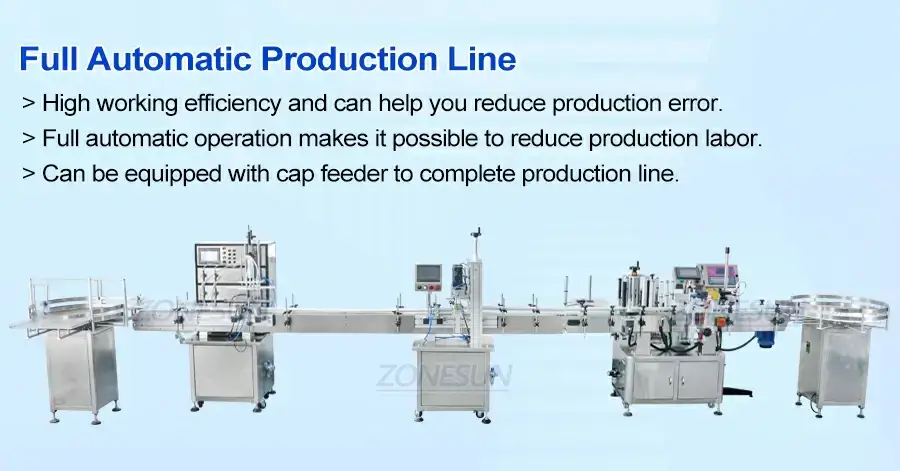

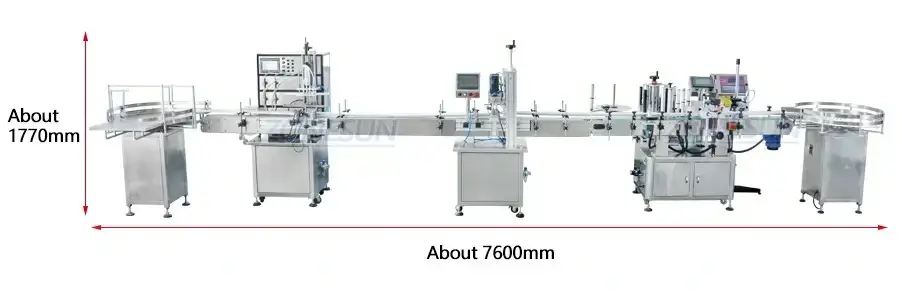

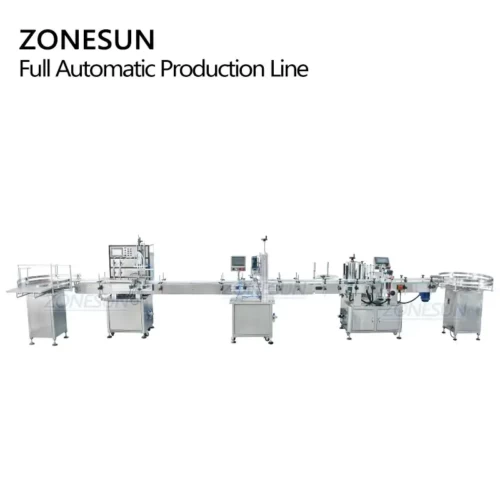

This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better.It is widely used in food,beverage,cosmetics and daily chemical industries.

Machine Video Click Here:

Product Detail

Product Tags

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

Description:

This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better.It is widely used in food,beverage,cosmetics and daily chemical industries.

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

Parameter:

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

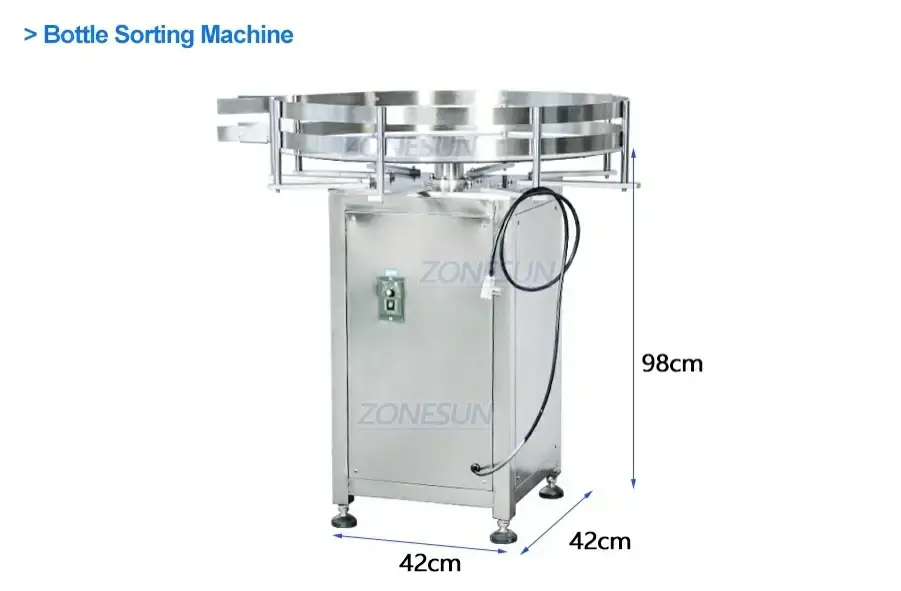

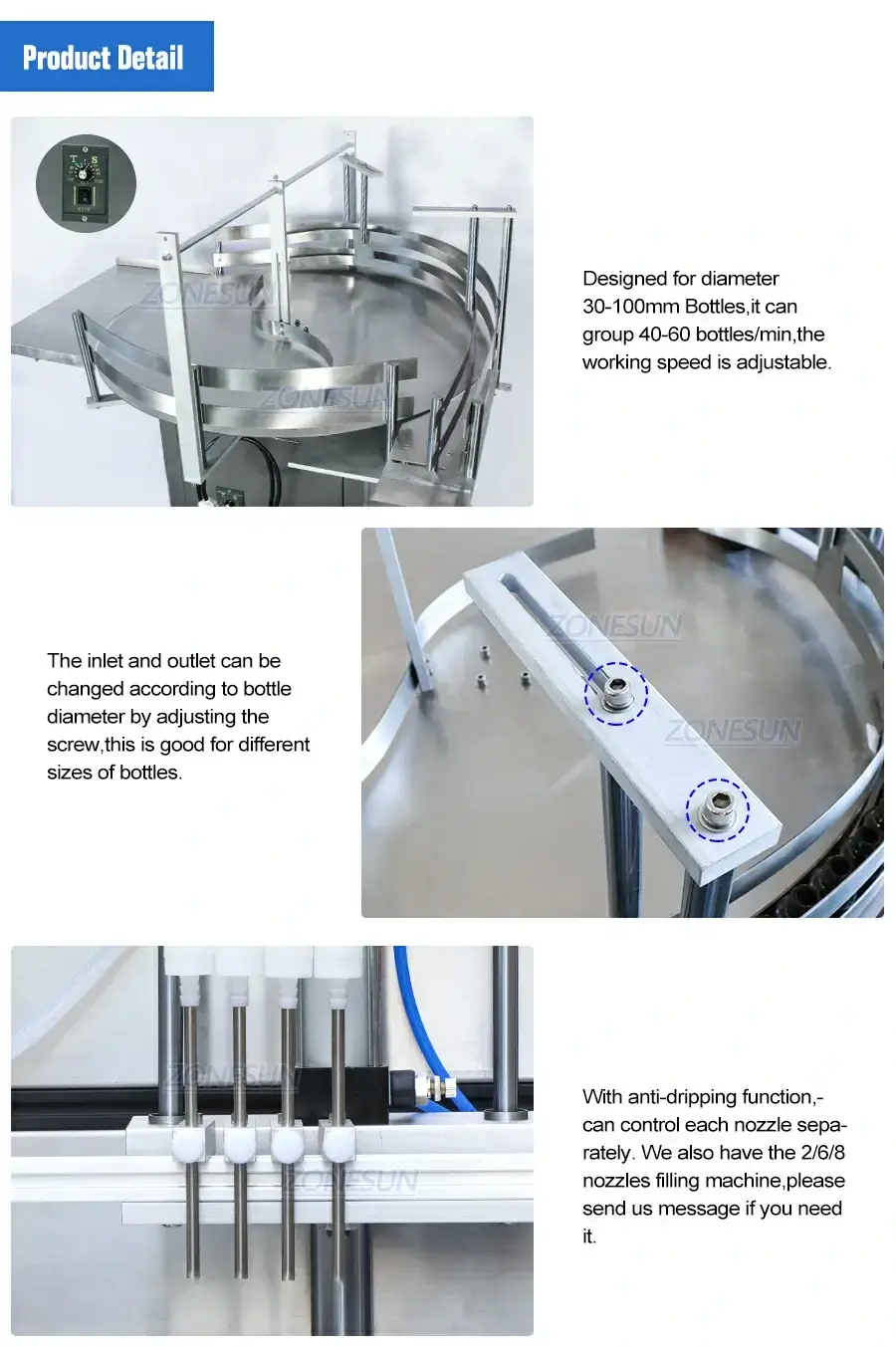

ModelZS-LP800ZZS-LP1000Z
Turntable Diameter800mm1000mm
Suitable Bottle Diameter20-100mm
Suitable Bottle Height30-320mm
Working Speed40-60 bottles/min(depends on bottle size)
Motor Power50W
Power Supply220/110v 50-60HZ
Net weightAbout 50kgAbout 135kg
Package sizeAbout 115*110*132cmAbout 135*131.5*123.5cm
Gross weightAbout 65kgAbout 180kg

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

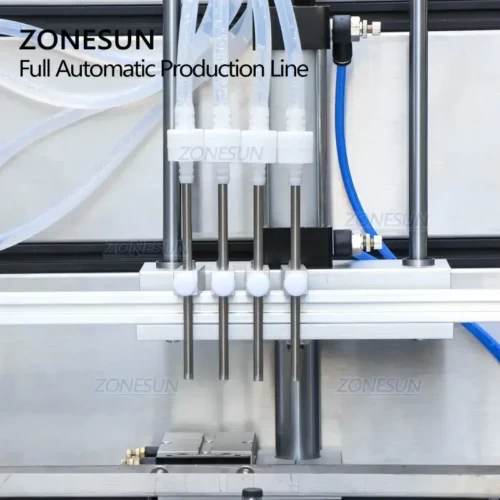

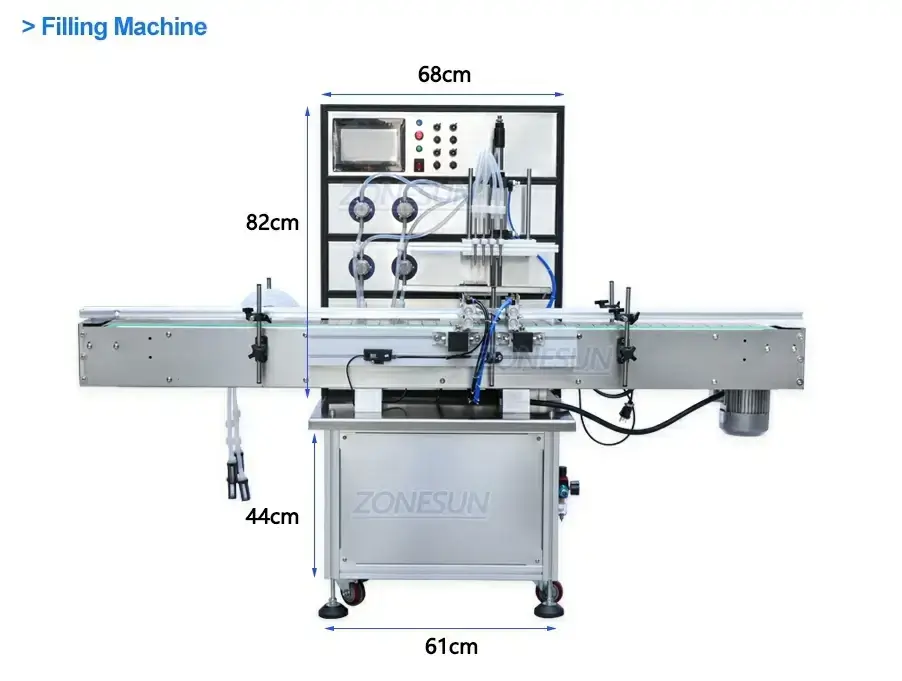

Container sizeφ20-160mm H30-300mm
Max flow rate6000ml/min7500ml/min12000ml/min
Material of pump316stainless steel
Filling accuracy
≤100ml deviation≤±1ml
> 100ml deviation≤±1%
( based on water)
Filling speed20-50pcs/min25-60pcs/min40-65pcs/min
(depending on bottles and flling liquid)
Power supply220V-50HZ/110V-60HZ
The whole machine power2000W
Packing weightAbout 150kg
Packing sizeAbout 2000*820*1580mm
Size of air compressor connectorOD8mm

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

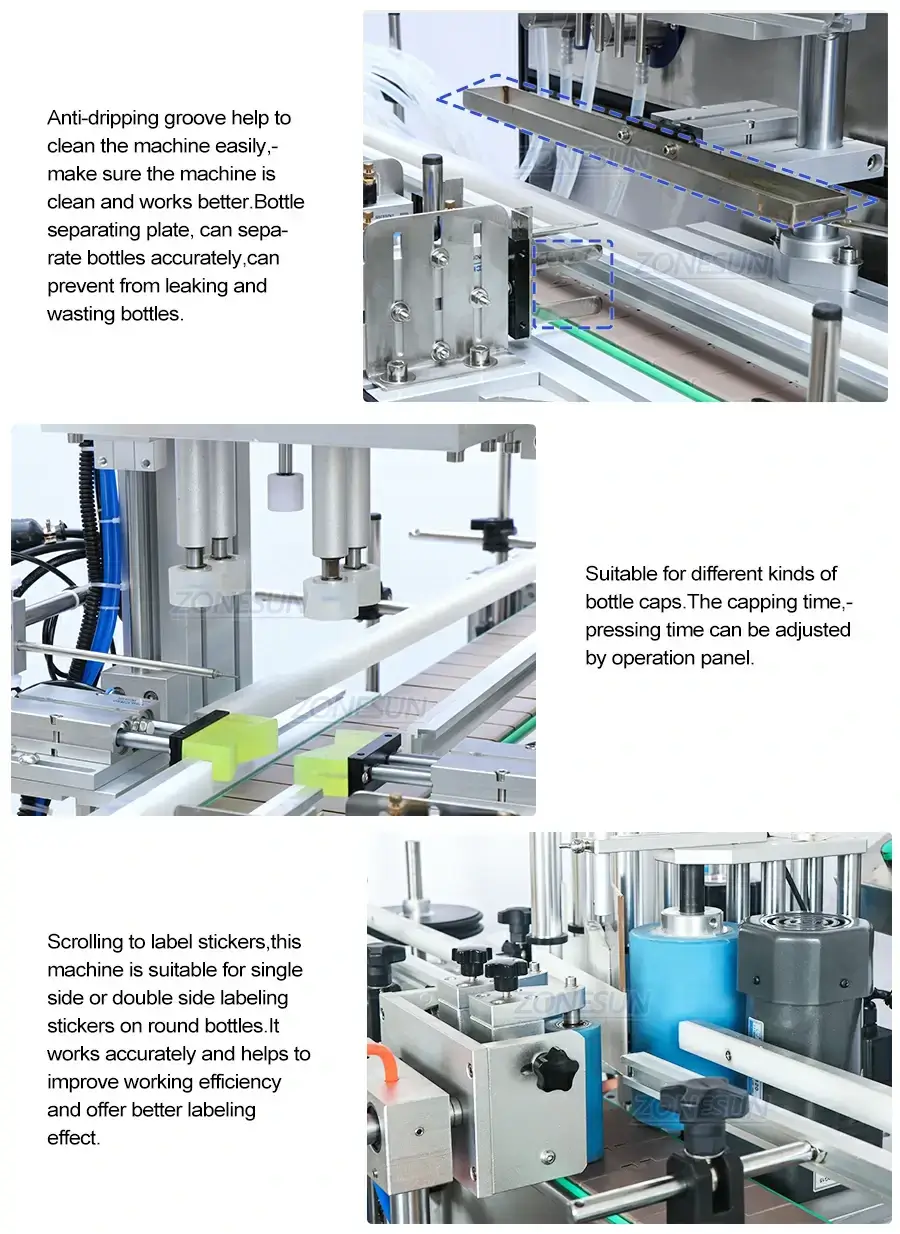

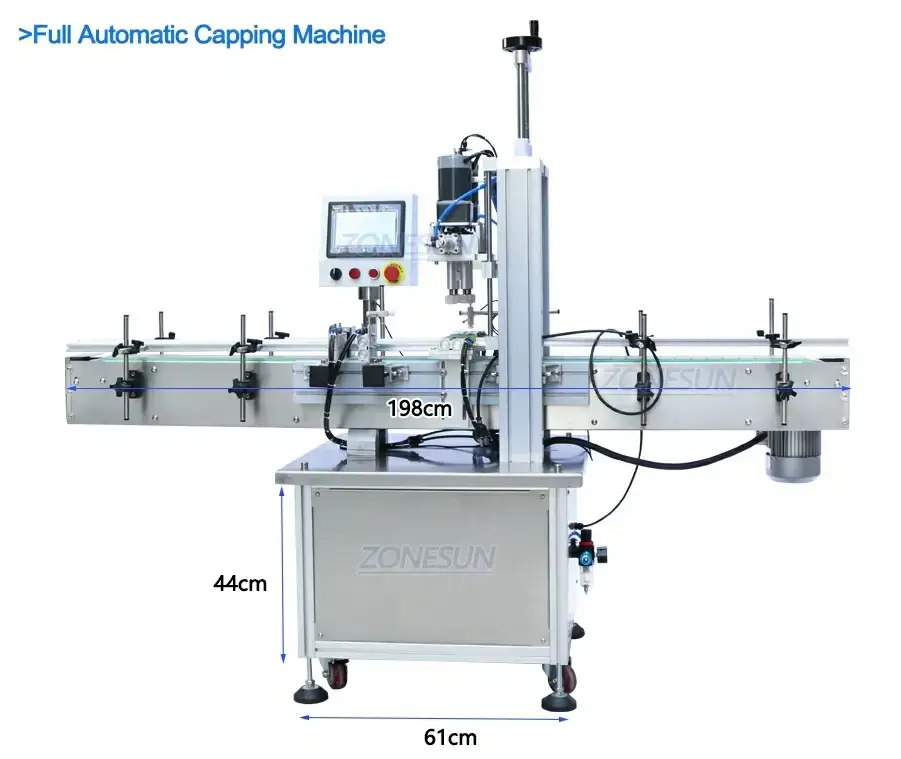

Machine modelZS-XG16
Bottle height30-300mm
Cap diameter18-70mm
Bottle diameter20-160mm
Working speed
20-60 bottles / minute
(depending on bottle and cap size and shape)
Working voltageAC220V/110v 50-60HZ
Working pressure0.4-0.6MPa
Size of air compressor connectorOD 8mm
DimensionAbout 1930x740x1600mm
Packing sizeAbout 2000x820x1760mm
Net Weight/Gross WeightAbout 113kg/192.5kg

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

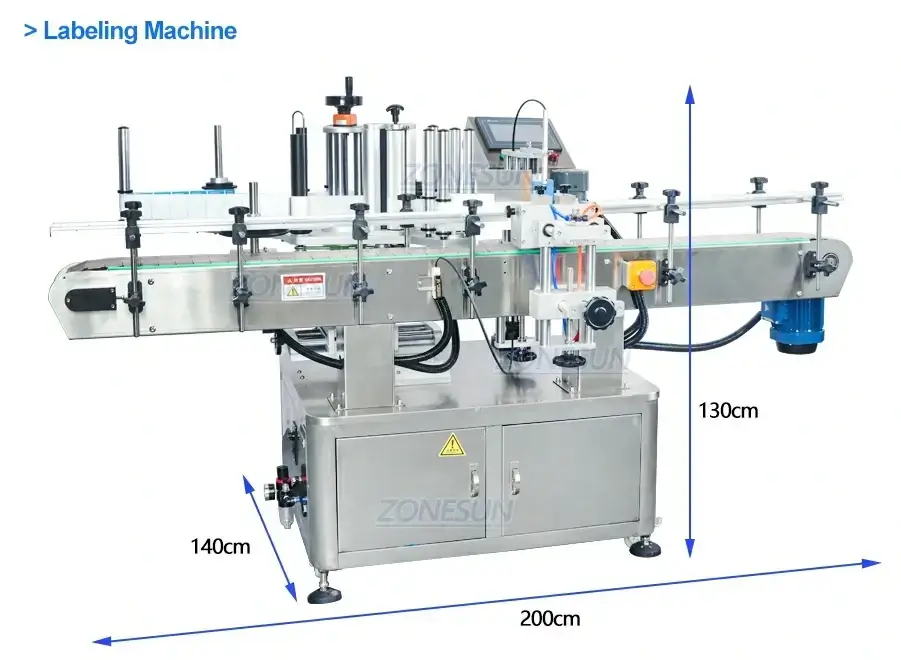

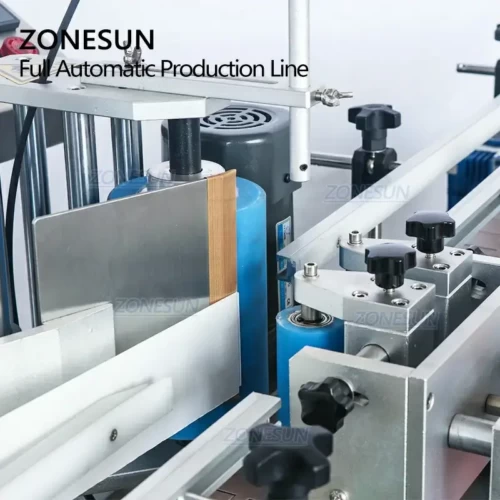

ModelZS-TB260 Labeling Machine
Power supplyAC220V 5OHz/60Hz 1500W
Labeling capacity25-50PCS /min(depends on bottle size)
Labeling accuracy±1.0mm
Suitable Bottle Diameterφ30-100mm
Label size(L)15-200mm (H)15-150mm
Roll inside diameterφ76mm
Roll outside diameterφ350mm
Conveyor Size1950(L)*100mm(W)
Machine sizeAbout 2000*1400*1300mm
Packing SizeAbout 2120*940*1500mm

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

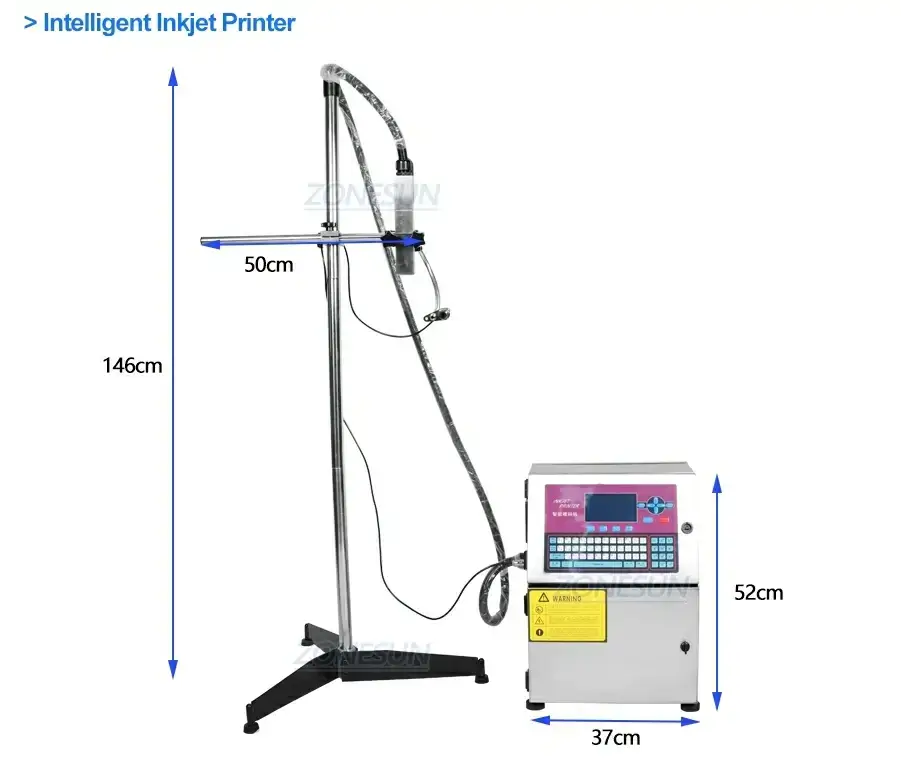

Power supply220V/50HZ, 150VA
Number of lines printed1-4 lines
Character height1.5-18mm
Printing speed1024 seconds (5*7)
Printing directionPositive sequence/reverse order/reverse
Printing distanceThe nozzle and the object to be sprayed are kept within 3cm
Printing materialspaper,plastic products,pipes,food bags,metal,glass,paper cups,etc
Store informationThe system can store 1000 print information
Font dotAlphanumeric 5x7 16x16
InterfaceRS232 serial interface
Ink consumption70 million words per print (5*7)

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED

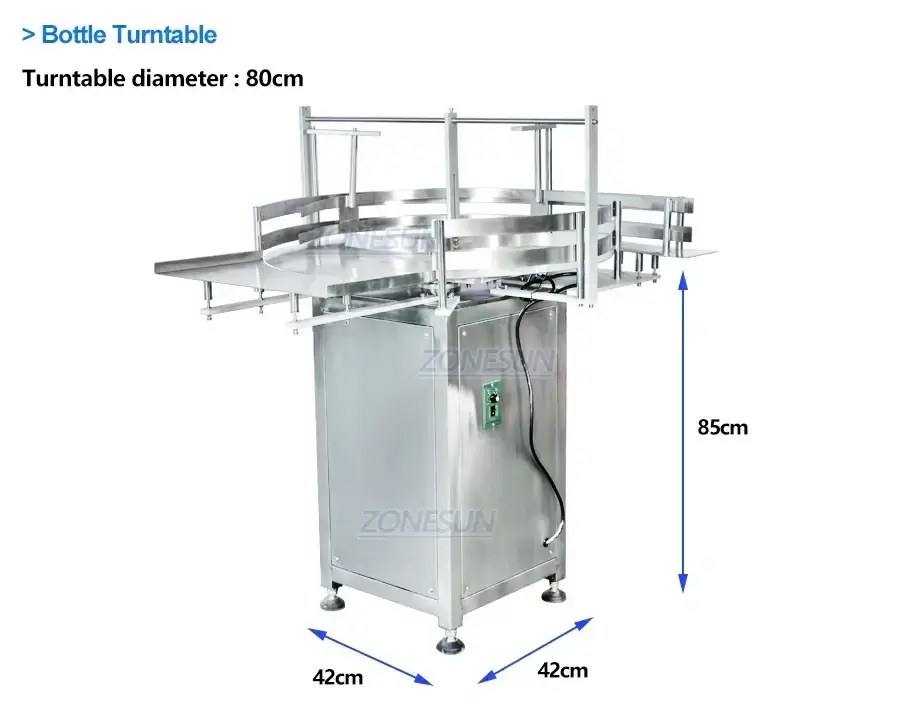

Bottle specificationsSquare bottle/round bottle
Conveying speed0-20 revolutions per minute(adjustable)
Voltage200V 50Hz(110v can be customized)
Power supply50W
Turntable diameter800 mm Available
Package sizeAbout 1050*1000*1130mm
Net weightAbout 63kg
Gross weightAbout 73kg

ZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITEDZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITEDZS-FAL180P10 Production Line-ZONESUN TECHNOLOGY LIMITED
