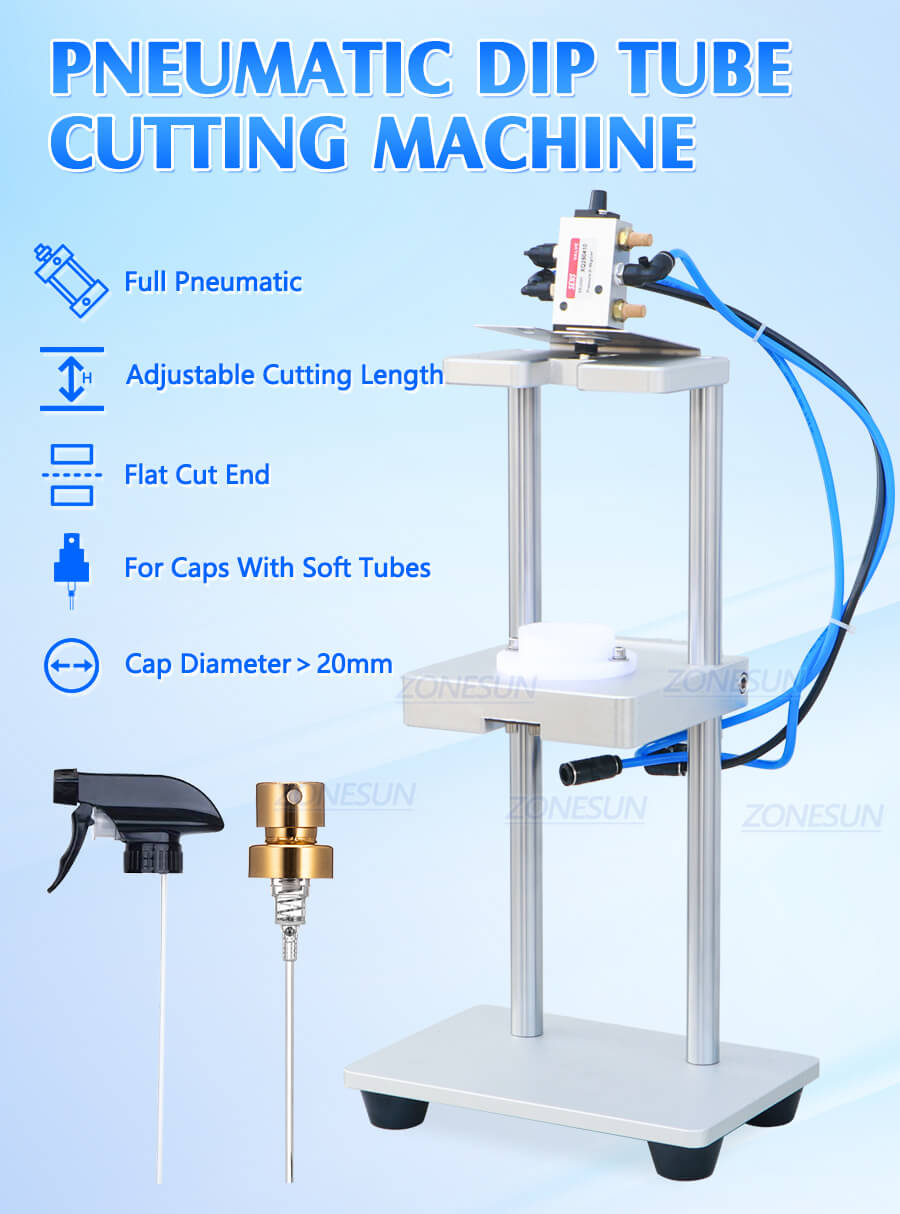

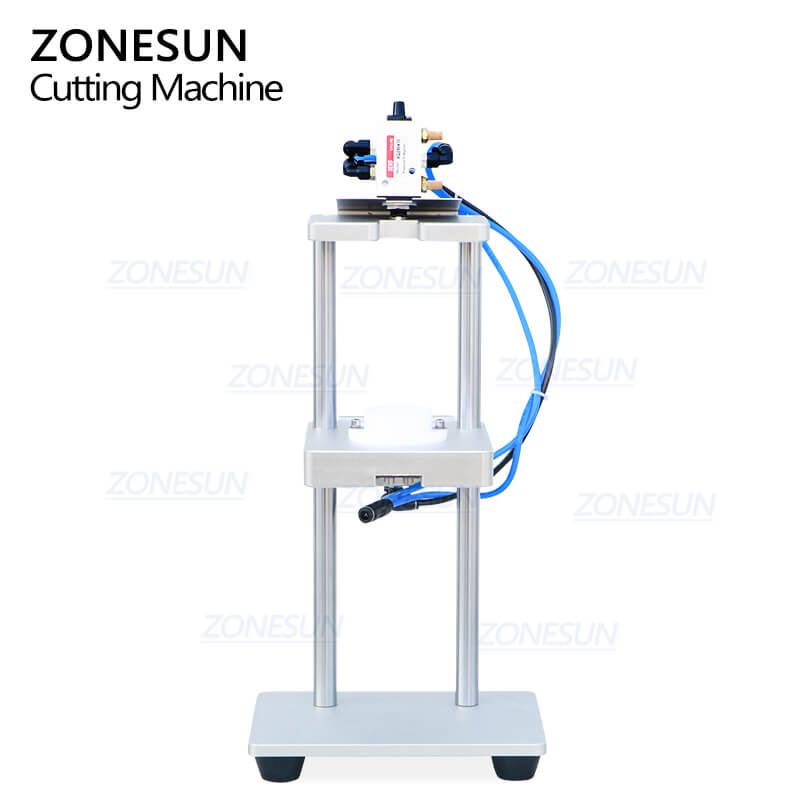

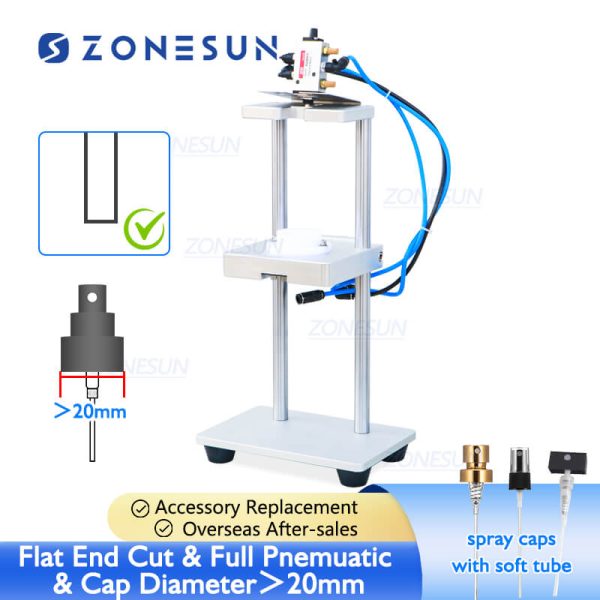

Pneumatic Dip Tube Cutting Machine
This dip tube cutting machine is mainly used for cutting hose of bottle. It has small machine body and really easy to operate. The working height of this machine can be adjusted according to operation need.
Share to
Product Description:
This dip tube cutting machine is mainly used for cutting hose of bottle. It has small machine body and really easy to operate. The working height of this machine can be adjusted according to operation need.
Product Parameters:
| Machine Model | ZS-JG300 |
| Suitable Tube Diameter | ≤9.5mm |
| Desired Length | 65-380mm |
| Cap Diameter | ＞20mm (≤20mm needs to be customzied) |
| Suitable Tube Length (Before Cutting) | 90-400mm |
| Tube Length (After Cutting) | 70-380mm |
| Length Cutting Range | 0-310mm |
| Machine Size | About 240*160*550mm (L*W*H) |
| Machine Weight | About 6kg |
| Package Size | About 580*270*275mm (L*W*H) |
| Package Weight | About 11kg |
Product Details:

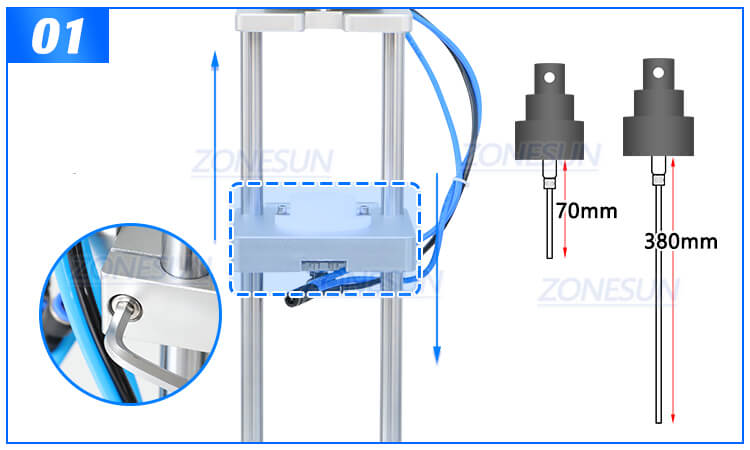

Adjustable Cutting Structure
Easily adjust the cutting height (70mm – 380mm) to accommodate tubes of different lengths.

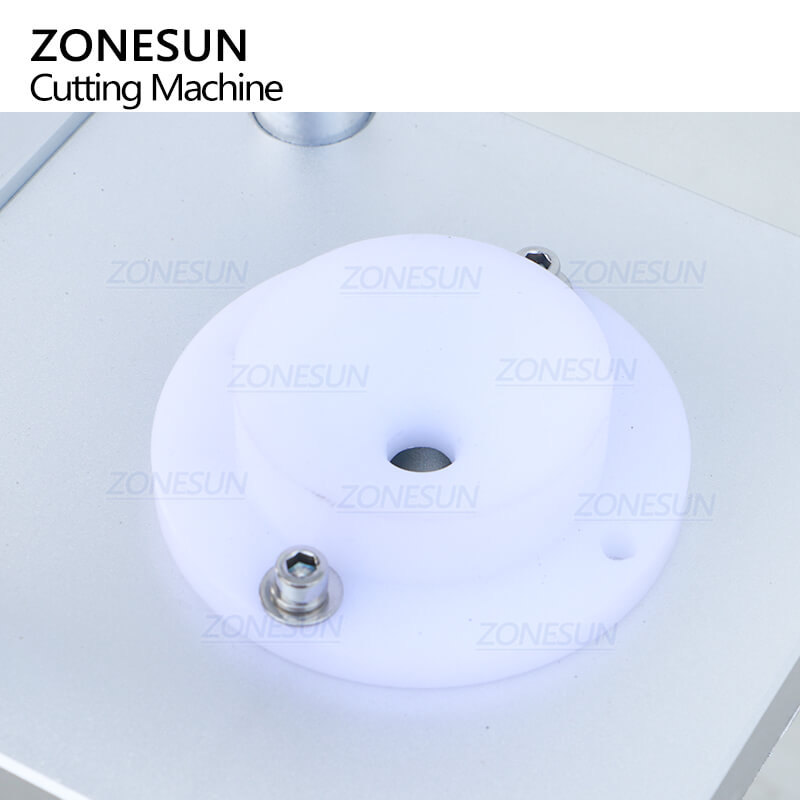

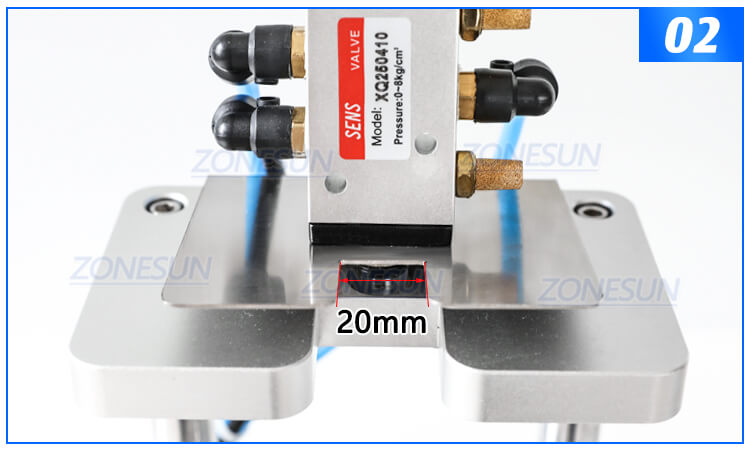

Cap Placing Component
Designed to accommodate caps with a minimum diameter of 20mm, ensuring compatibility with a wide range of tube sealing applications.

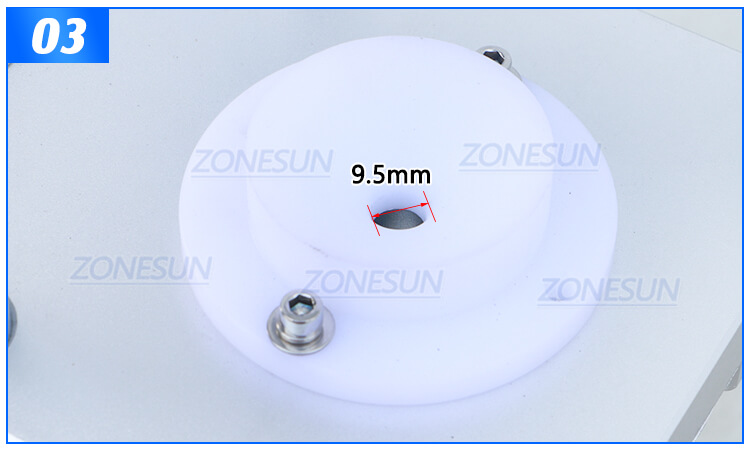

Pipe Limiter
Precisely designed to accommodate dip tubes with a maximum diameter of 9.5mm, ensuring a secure and accurate cutting process.

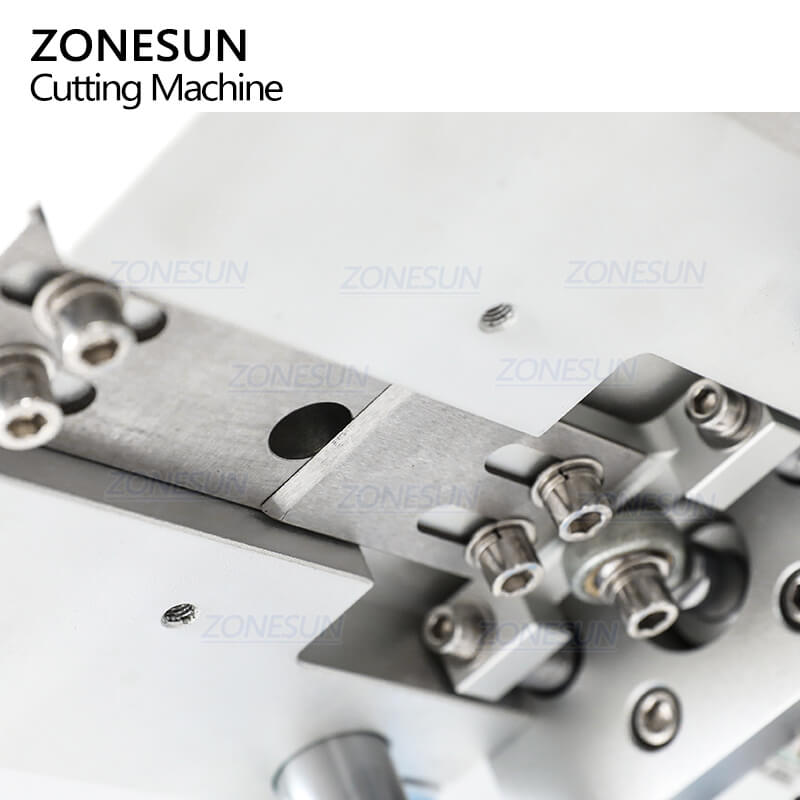

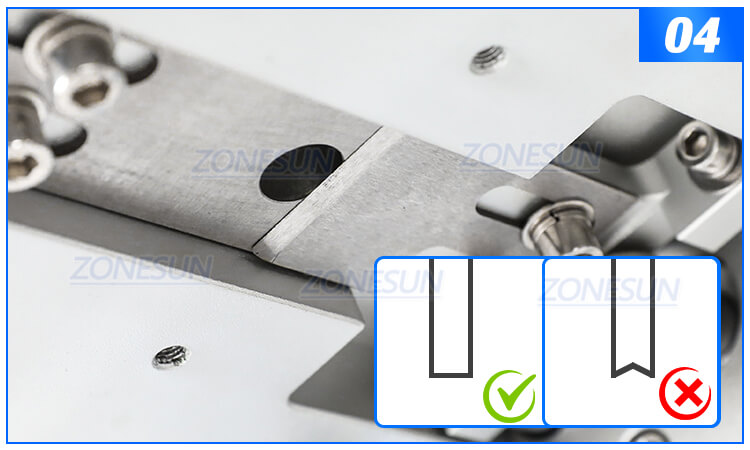

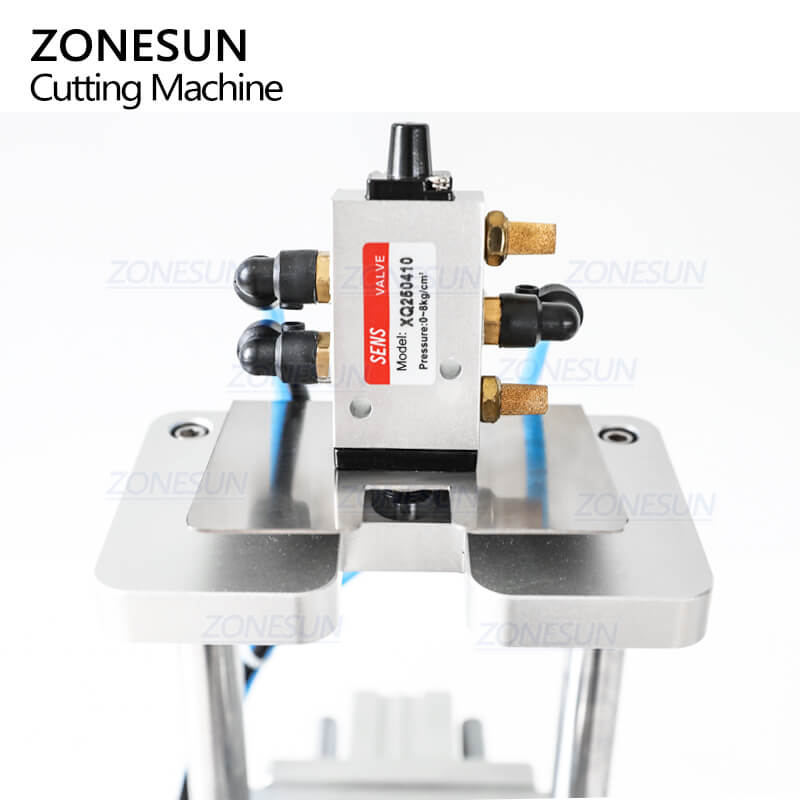

Dip Tube Cutting Device
Precise cutting ensures the flatness of the tube and ensures product consistency.

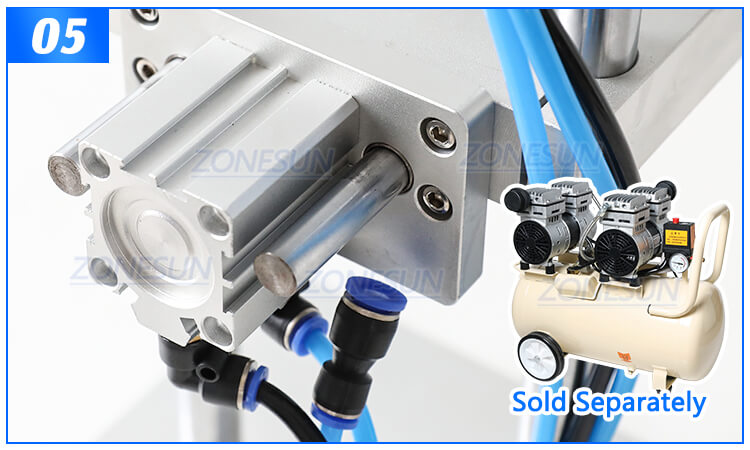

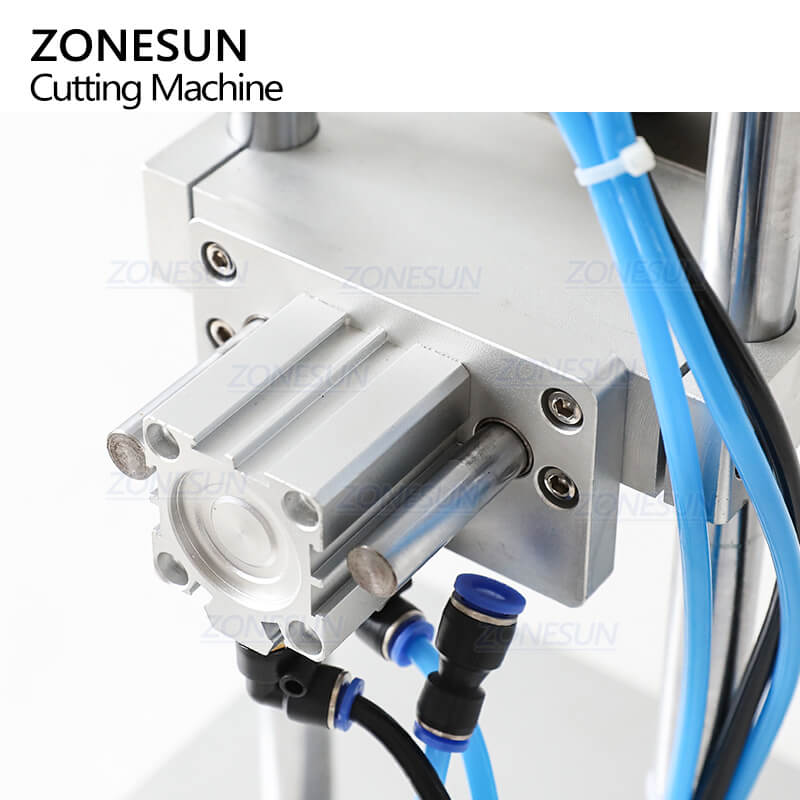

Pneumatic Control System
The machine is driven by an air compressor to ensure reliable power. The air compressor needs to be equipped additionally.
