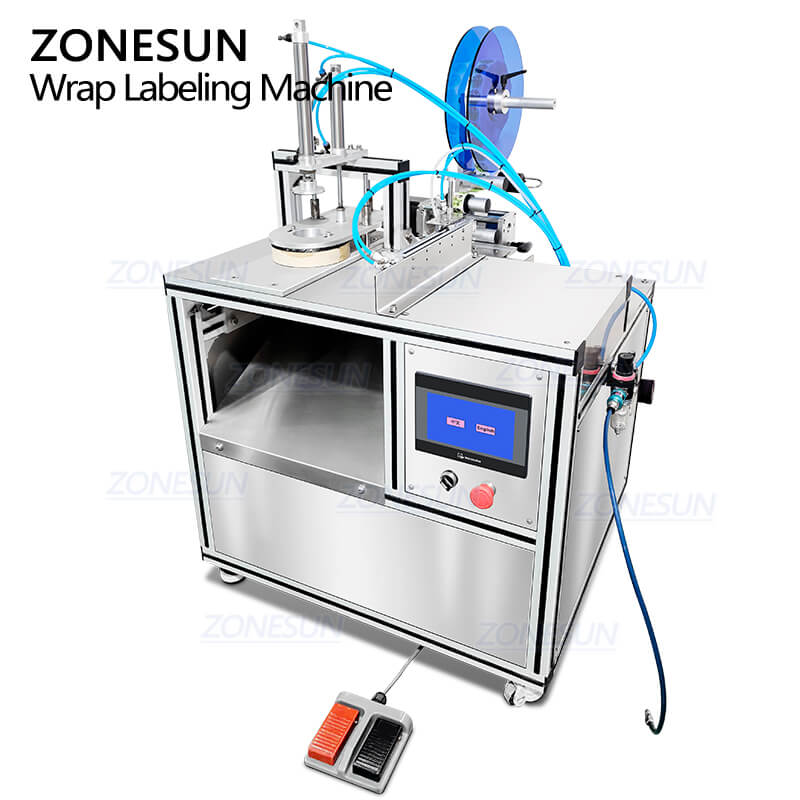

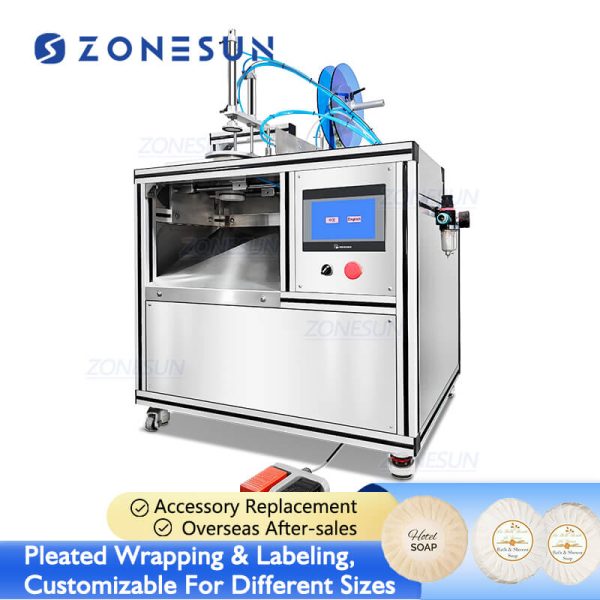

Pleat Soap Packaging Machine
This packaging machine is used for pleated wrapping round soaps and labeling stickers on them.Compact machine body saves working space, it can be customized with different sizes of packaging mold for different sizes of packaging product.
Share to
Product Description:
This packaging machine is used for pleated wrapping round soaps and labeling stickers on them.Compact machine body saves working space, it can be customized with different sizes of packaging mold for different sizes of packaging product.
Product Parameters:
| Machine Model | ZS-PK910 |
| Voltage | 110/220V 50-60Hz |
| Power | 200W |
| Operating Air Pressure | 0.6MPA |
| Packaging Speed | 15-18 pieces/min (depends on manual operation speed, with automatic labeling) |
| Packaging Product Size | Φ=40mm70mm H=5-40mm ( different molds for different sizes) |
| Label Specification | Roll type |
| Optional Accessories | Molds |
| Packaging Film Materials | Pearlescent film, laminated paper, eco-friendly paper, sulfuric acid paper, etc. |
| Packaging Film Thickness | 0.022-0.03mm |
| Label Roll Inner Diameter | Φ75mm |
| Label Roll Maximum Outer Diameter | Φ300mm |
| Machine Weight | 60Kg |

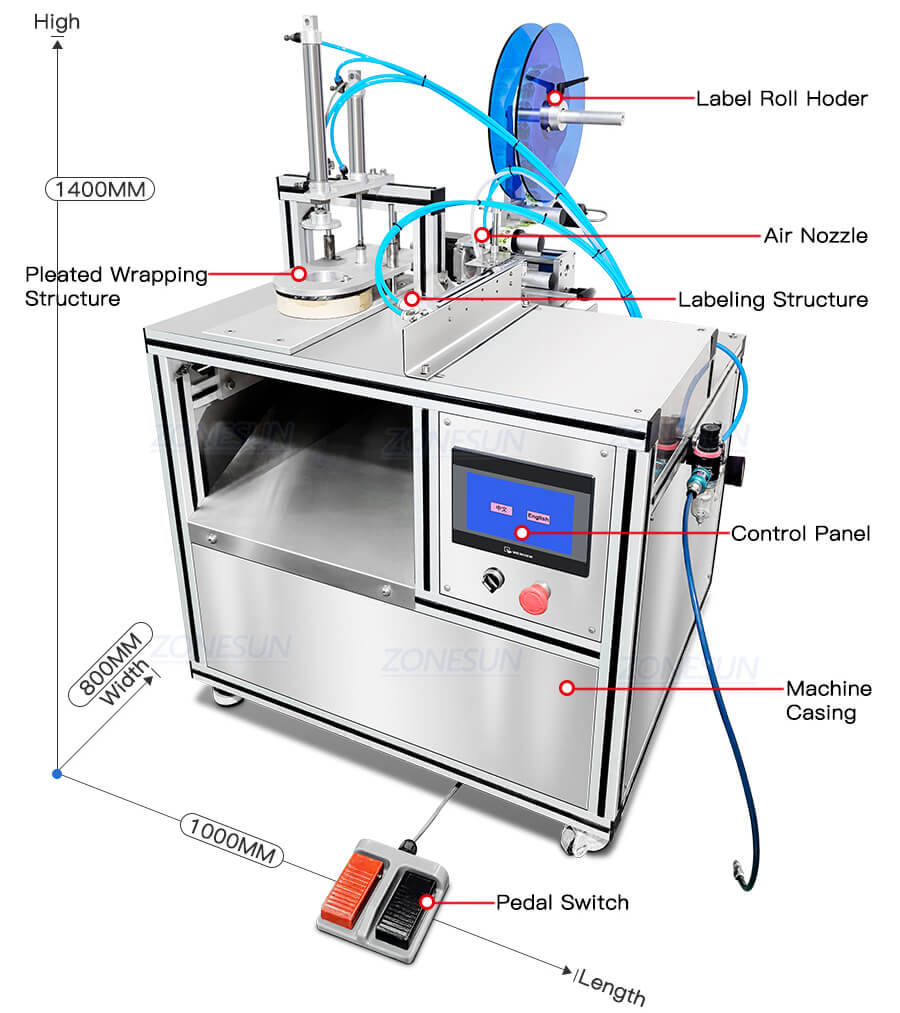

| Machine Size | About 900*700*1200mm(L×W×H ) |
| Package Size | About 1000*800*1400mm(L×W×H ) |
Product Details:

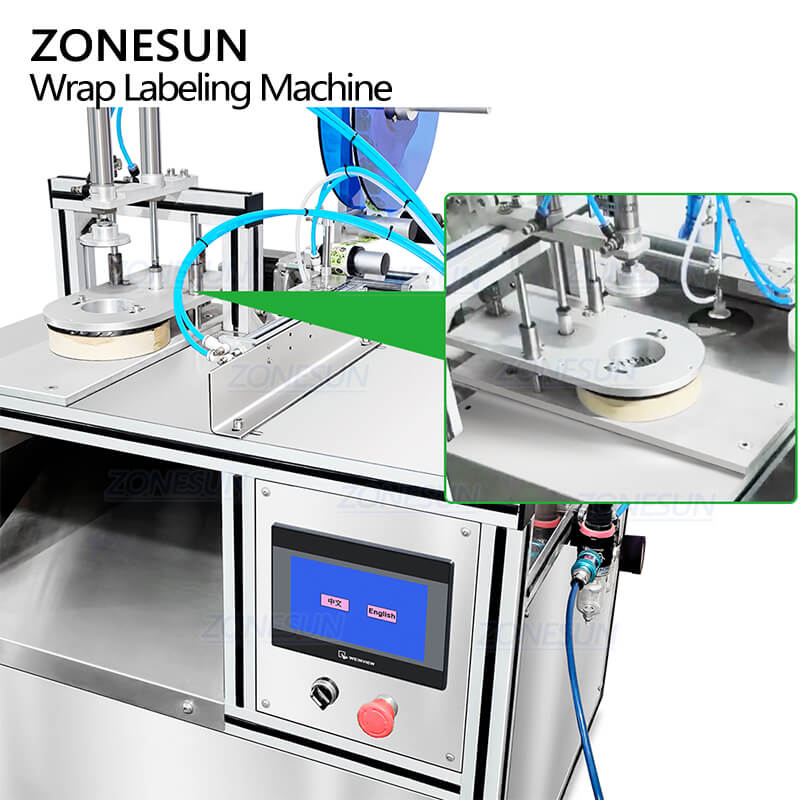

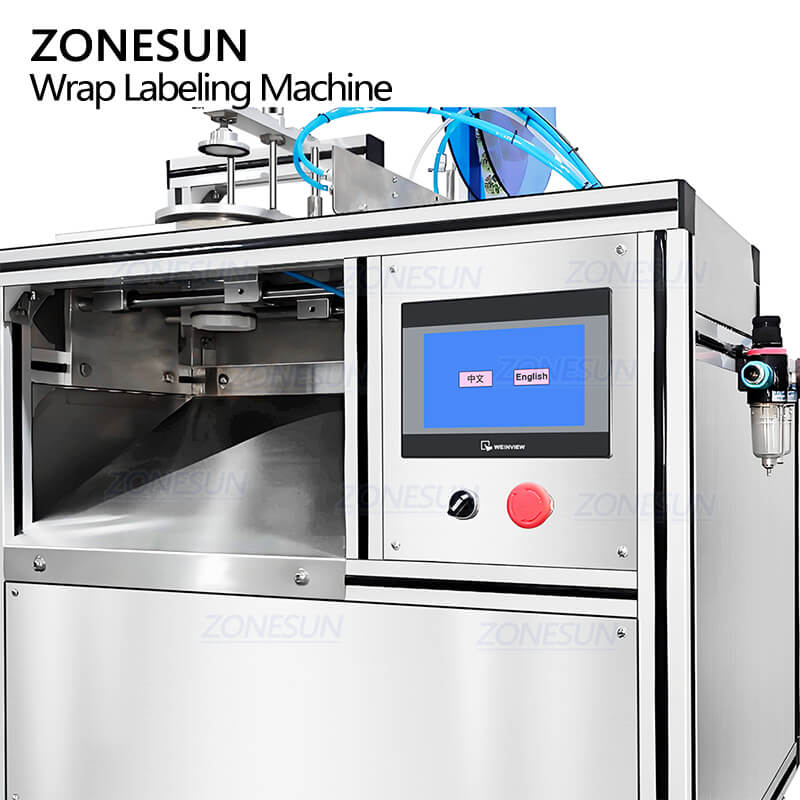

Control Panel
Touch screen control panel makes parameter setting more intuitively, customizable as needed.

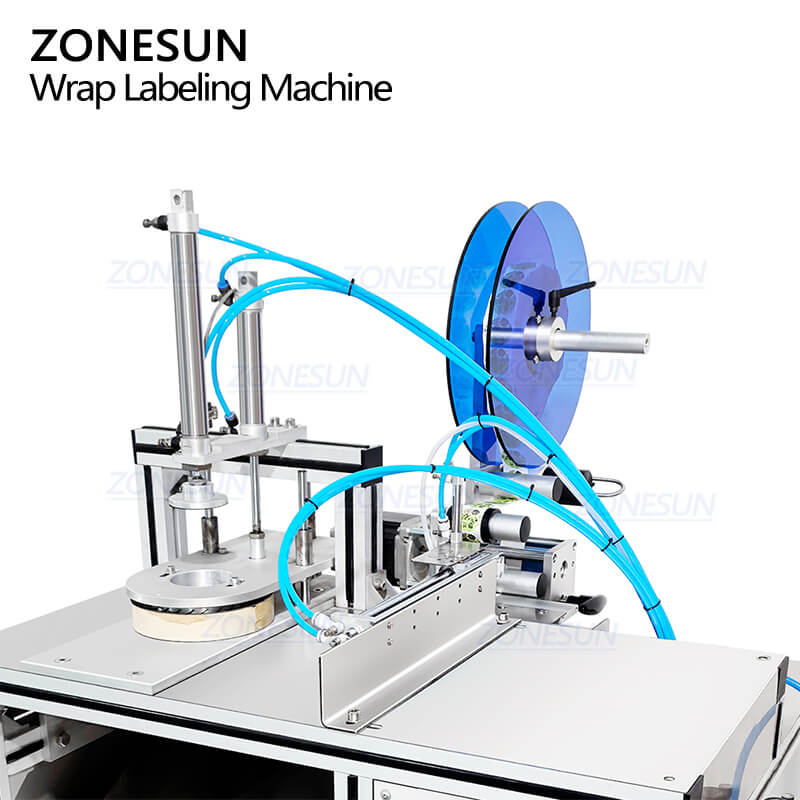

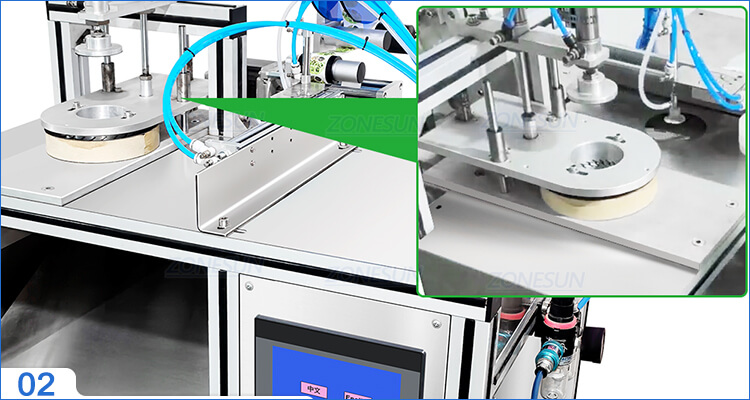

Wrapping & Labeling Structure
Molds are changable for different sizes of soap, using air nozzles to stick label on top side.

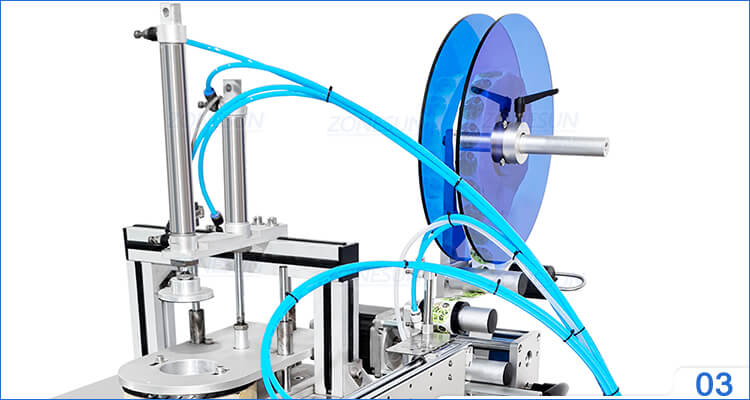

Label Roll Holder
Designed to hold and dispense labels automatically, ensures smooth label feeding.

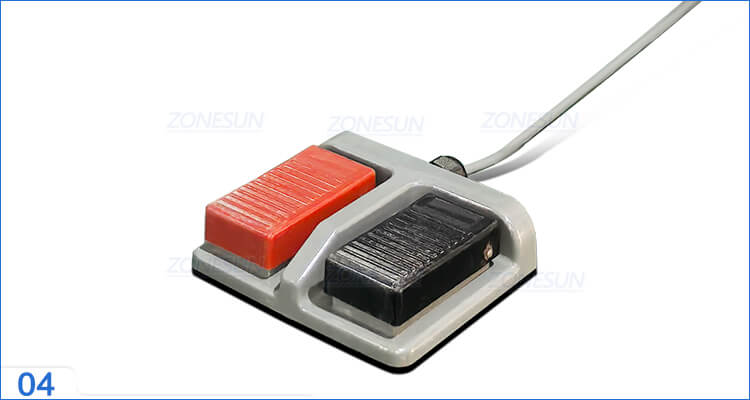

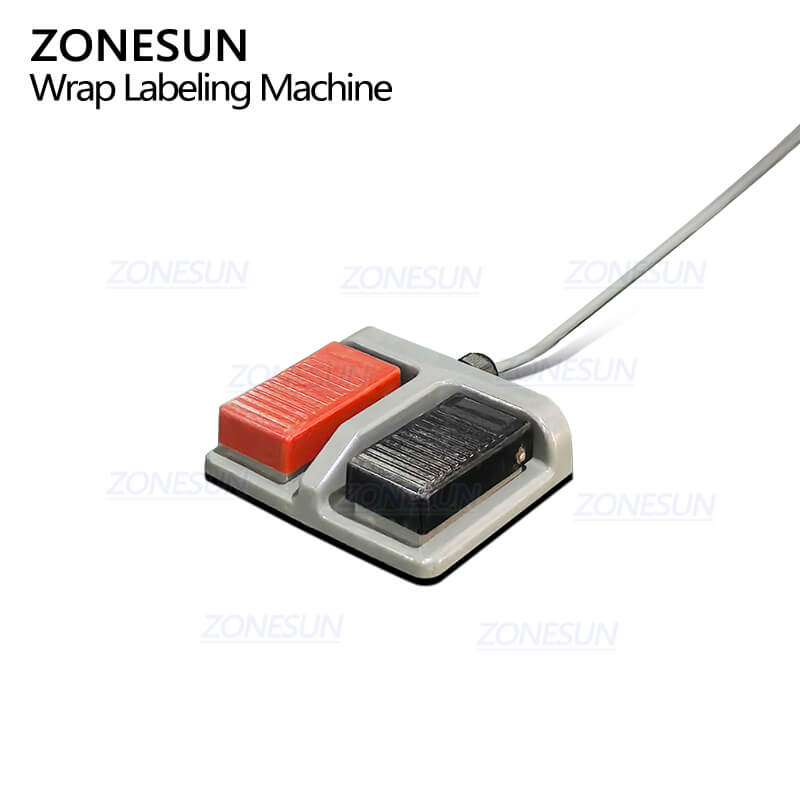

Pedal Switch
Can control packaging work by pedal switch ,free operators hands to improves efficiency.
