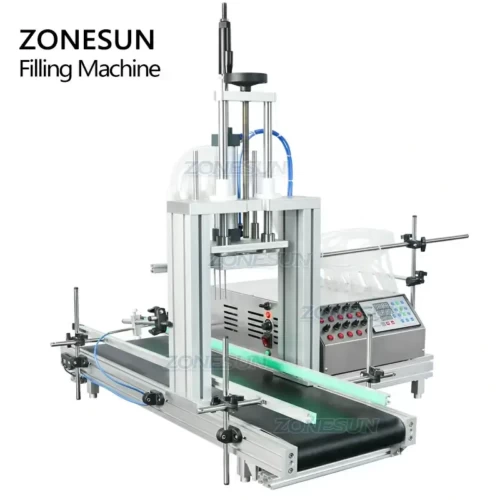

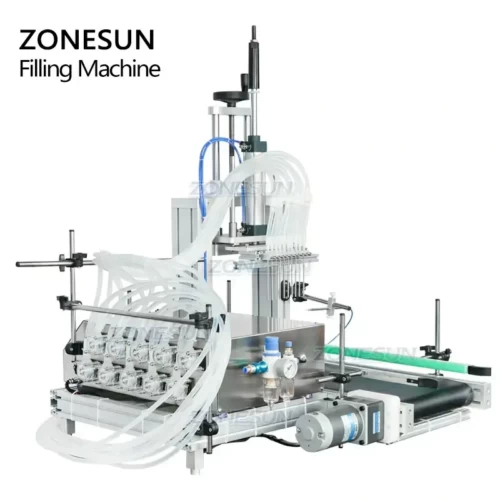

Small Bottles Filling Machine
Description:

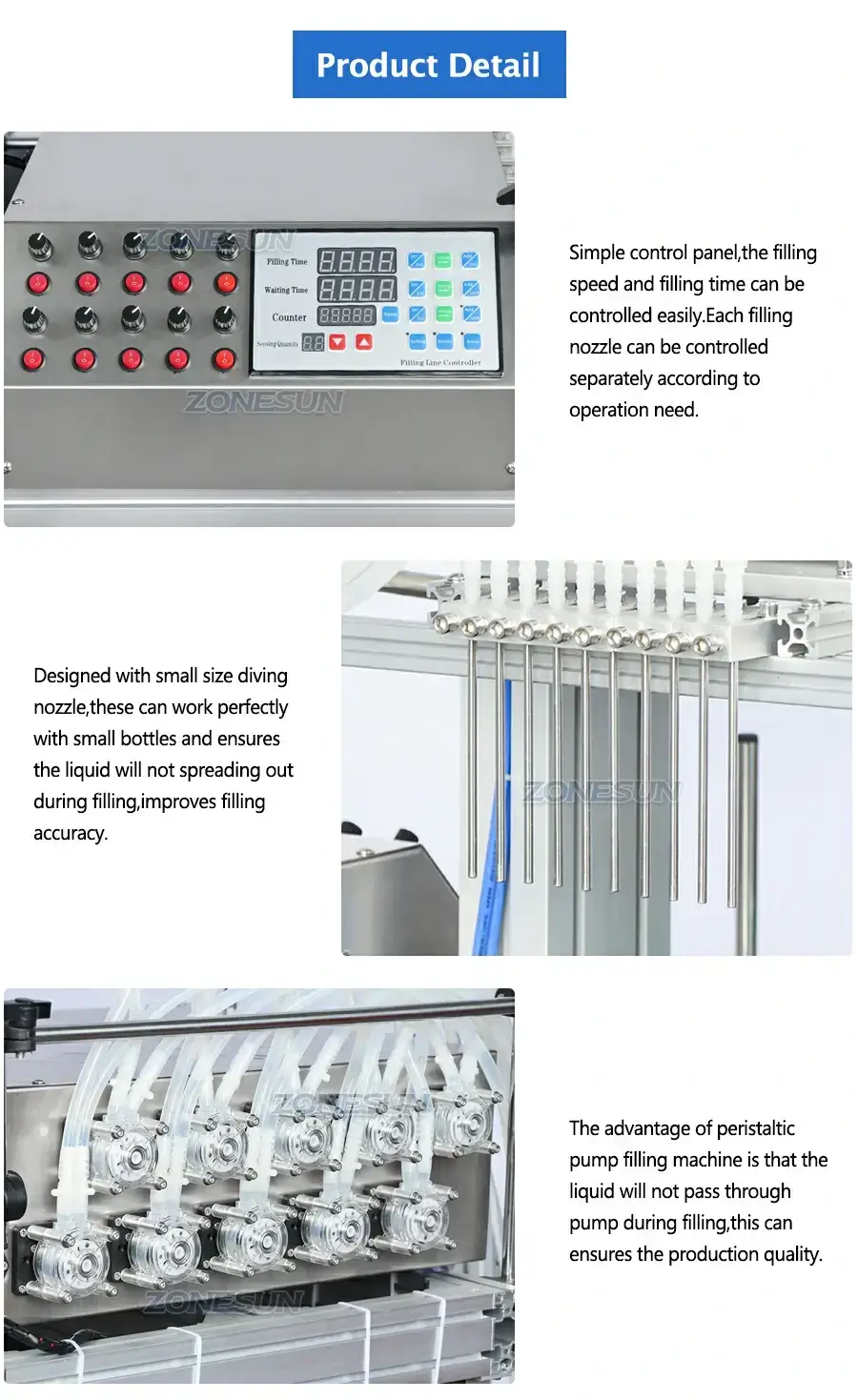

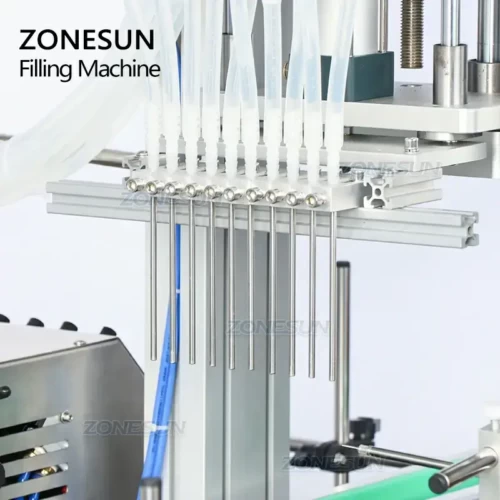

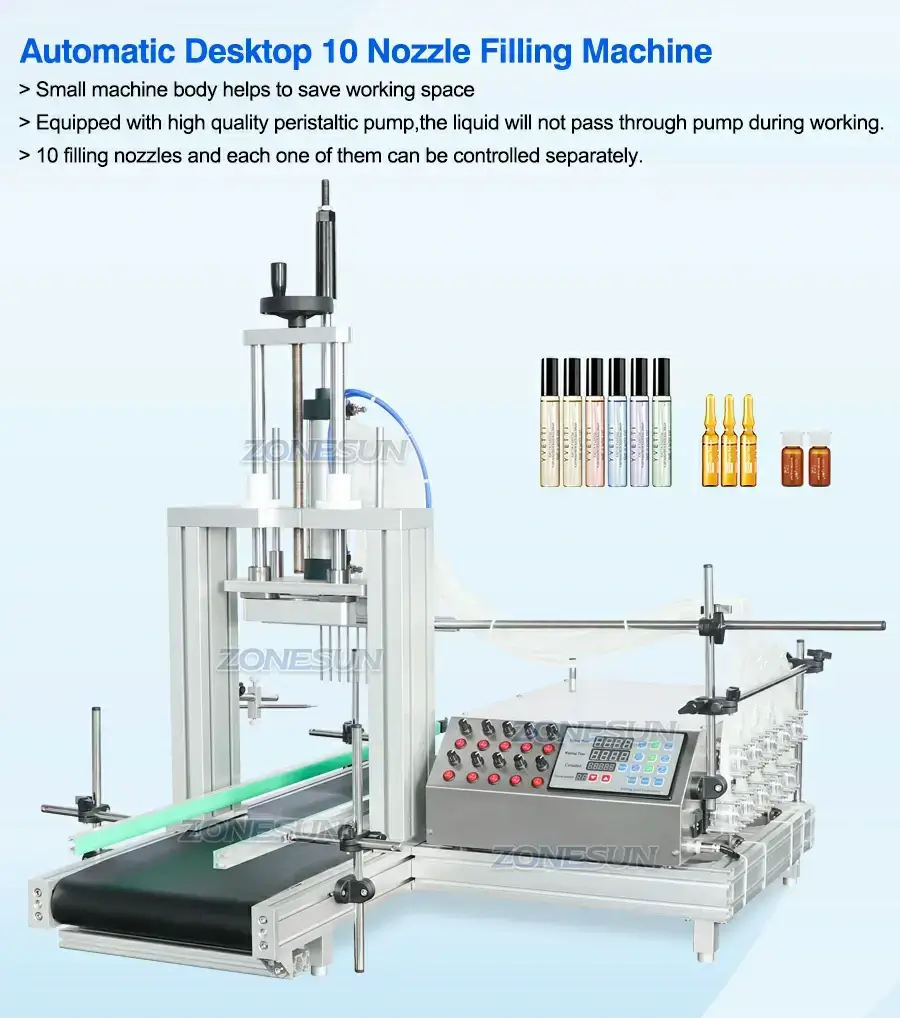

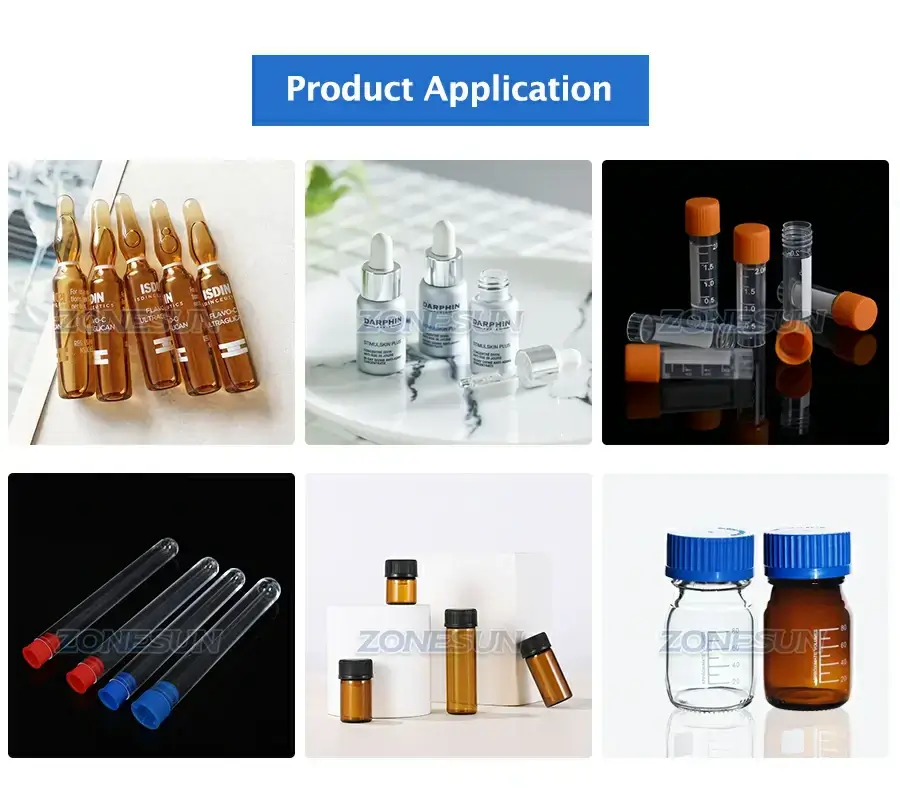

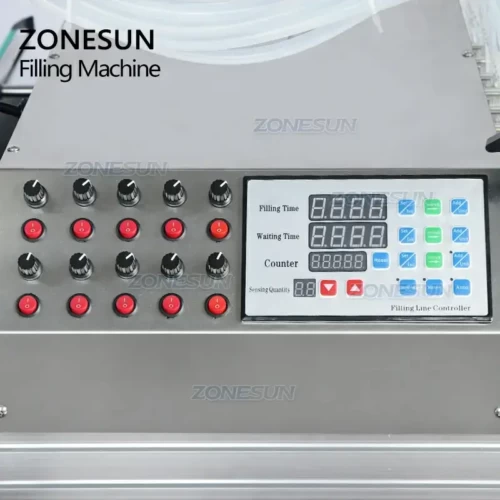

The 10 nozzle peristaltic pump filling machine is designed with automatic conveyor belt to realize automated production.The diving nozzle can prevent from spreading out liquid during working.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid quality and filling accuracy.
Product Information:
| Machine model | ZS-DTPP10D |
| Power supply | AC110V/220V 50Hz-60Hz 60W*10 |
| Filling Range | ≤50ml |
| Maximum flow | 650ml/min for each nozzle (based on water ) |
| Filling nozzles | 10(we can customize nozzles based on your demands) |
| Working speed | 70-90 bottles/min(based on 50ml-water) |
| Filling accuracy | ≤±1% (For water) |
| Diameter of filling nozzle | 4mm |
| Delay range | 0.01-999.9s |

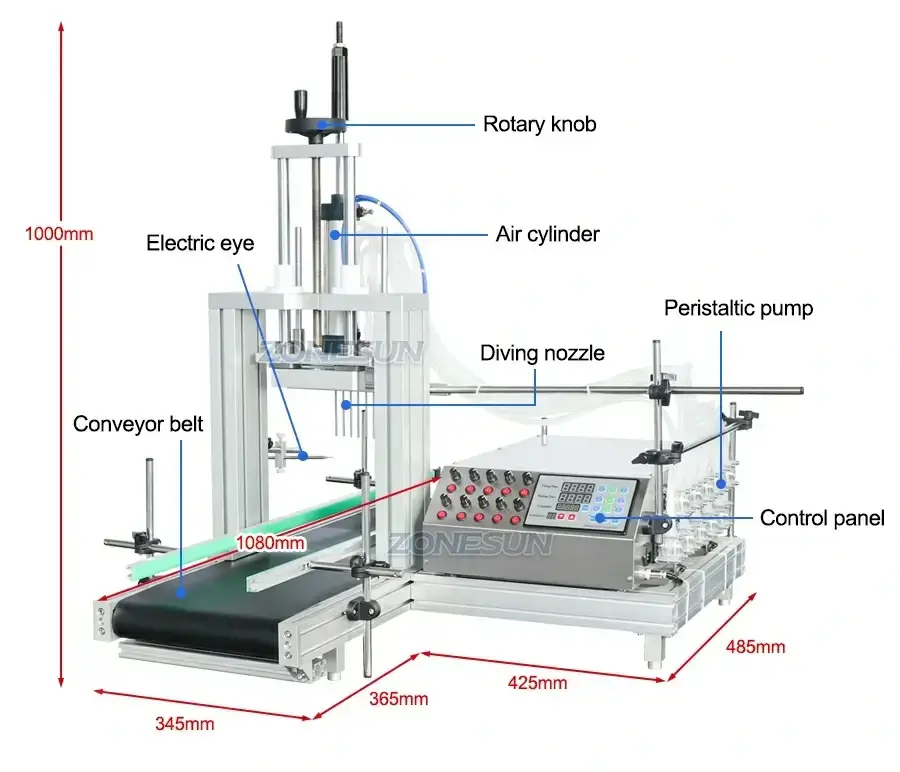

| Conveyor size | 1080*350mm(L*W) |
| Machine size | About 380*490*300mm(Without conveyor belt) |
| Net weight | About 38kg |
| Package size | About 1120*880*370mm |
| Package weight | About 56kg |
