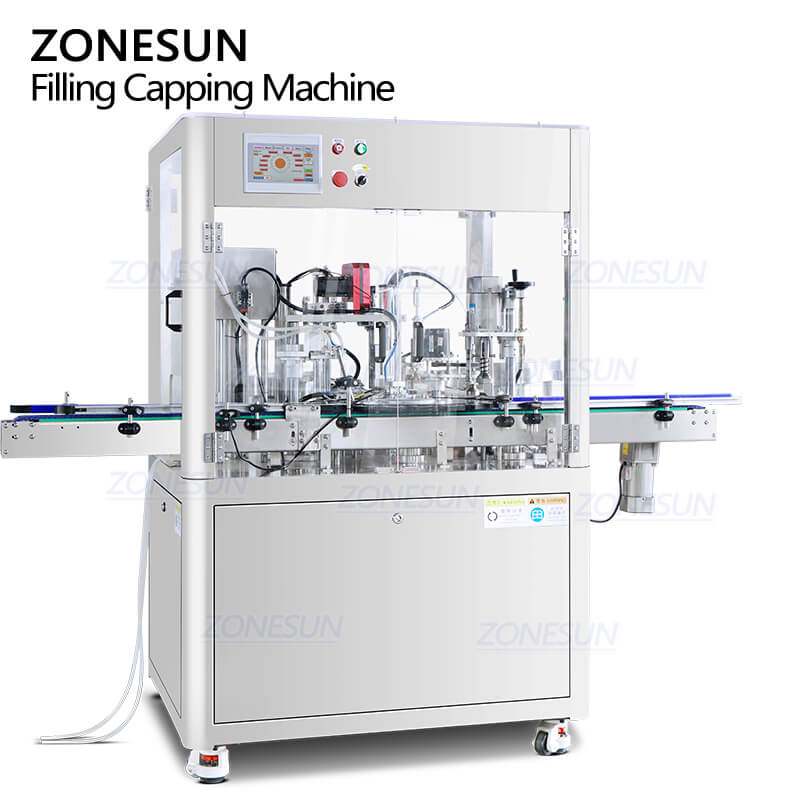

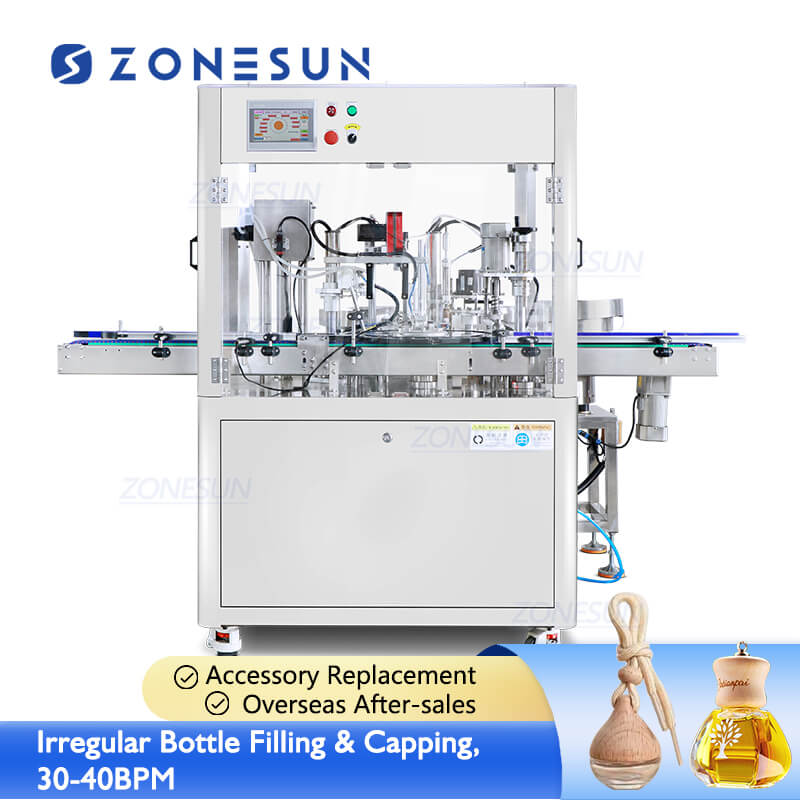

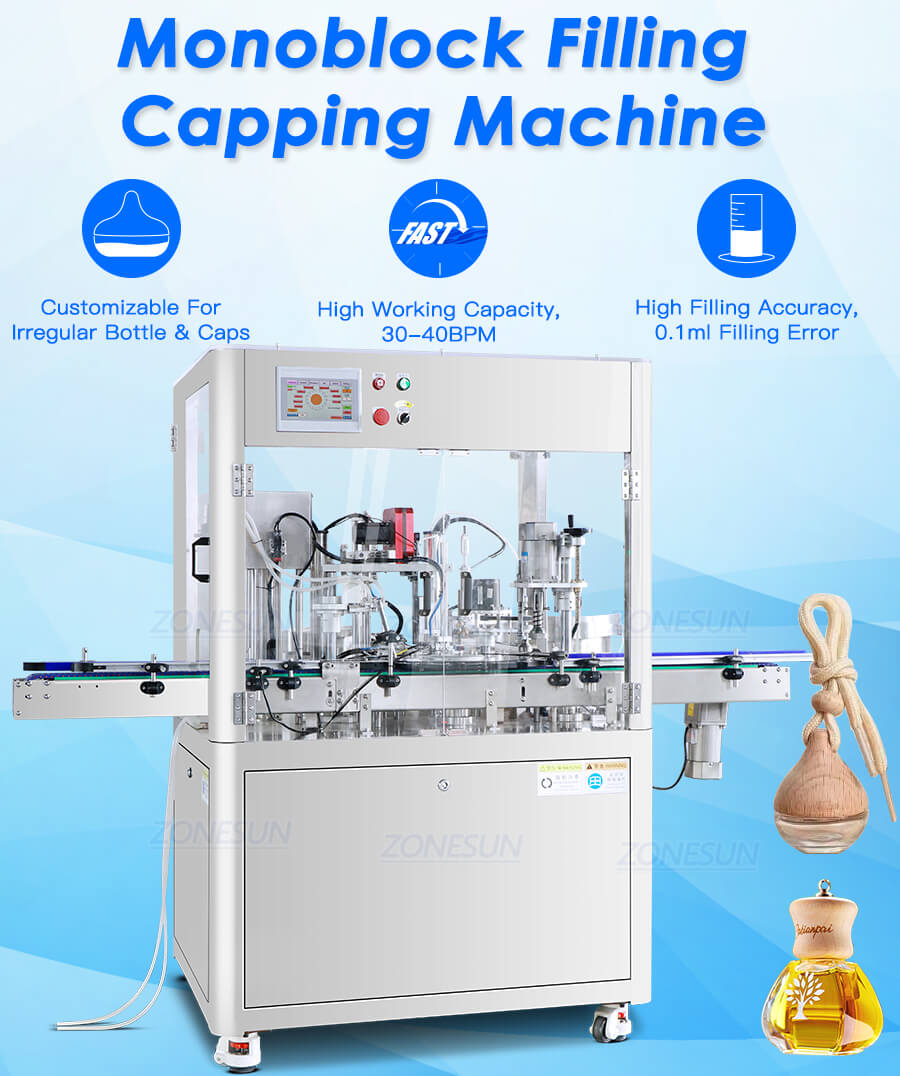

Monoblock Small Bottles Filling Capping Machine
The monoblock machine controls filling and capping work by cam system, each working station can work at the same time. It has higher working capacity, it can reach 30-40BPM, suits liquid products in small containers like car perfume, massage oil, machines can be customized for irregular bottles and caps.
$14,799.00
Share to
The monoblock machine controls filling and capping work by cam system, each working station can work at the same time. It has higher working capacity, it can reach 30-40BPM, suits liquid products in small containers like car perfume, massage oil, machines can be customized for irregular bottles and caps.
|
Machine model
|
ZS-AFC28A
|
|
Machine voltage
|
110/220V 50-60HZ 2.5KW
|
|
Filling pump
|
Peristaltic Pump
|
|
Filling range
|
4-20ml (Adjustable)
|
|
Filling error
|
±0.1ml(based on filling range and material)
|
|
Working capacity
|
30-40BPM
|
|
Suitable bottle size
|
φ25mm*59mm & φ35mm*30mm (Customizable)
|
|
Suitable stopper size
|
φ35mm*30mm(Customizable)
|
|
Suitable cap size
|
φ35mm*32mm (Customizable)
|
|
Air pressure
|
0.5-0.7MPa
|
|

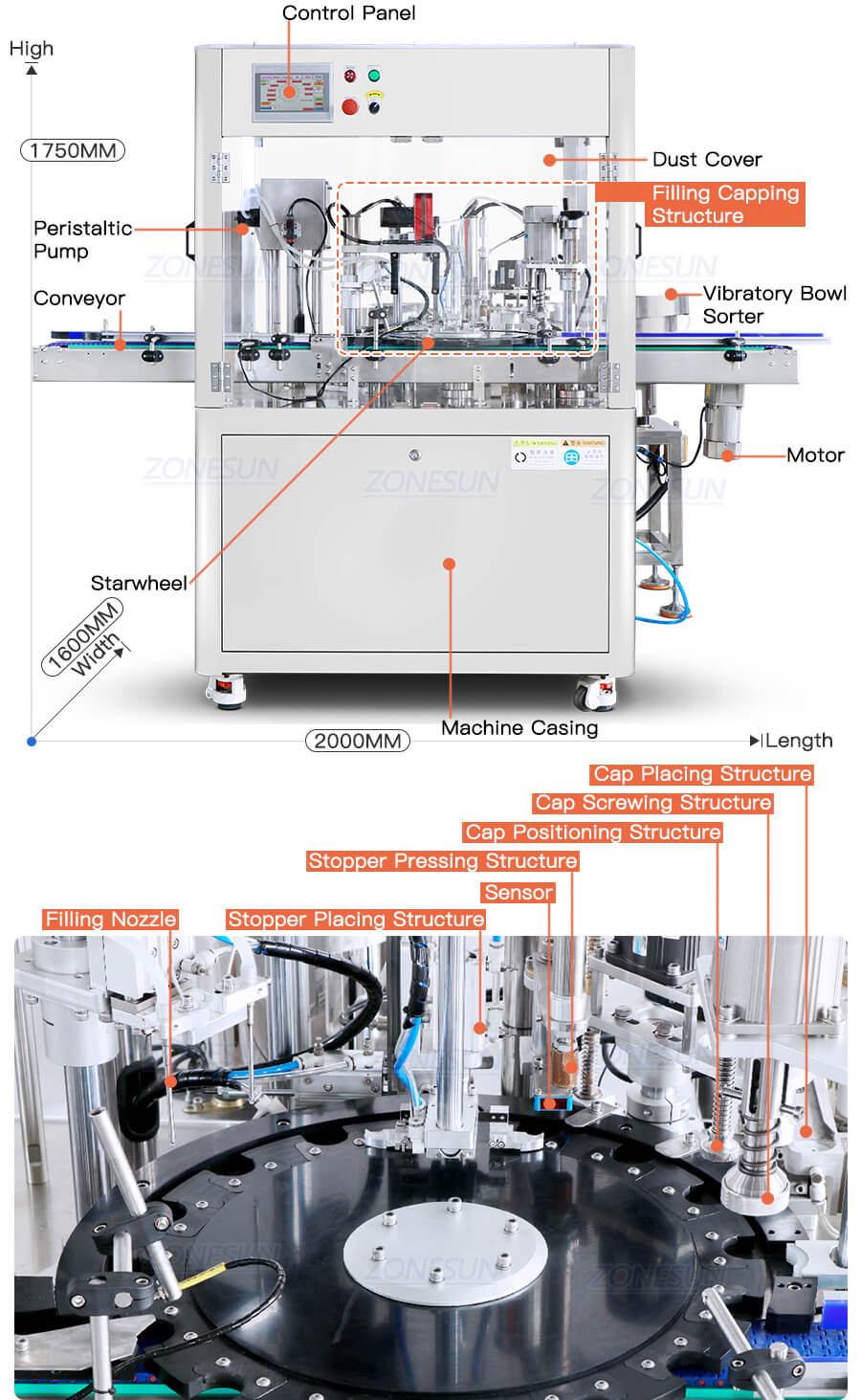

Machine size
|
About 2000*1600*1750mm / 78.4*62.99*68.9 inch
|
|
Machine wieght
|
About 700kg
|

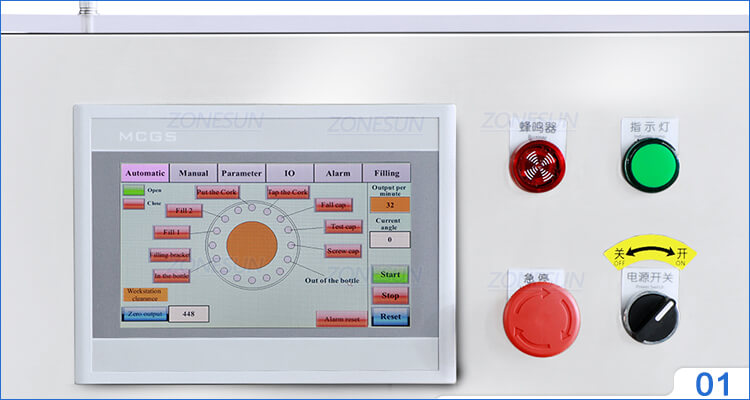

Control Panel
Touch screen control panels shows parameter setting intuitively, operation language is customizable.

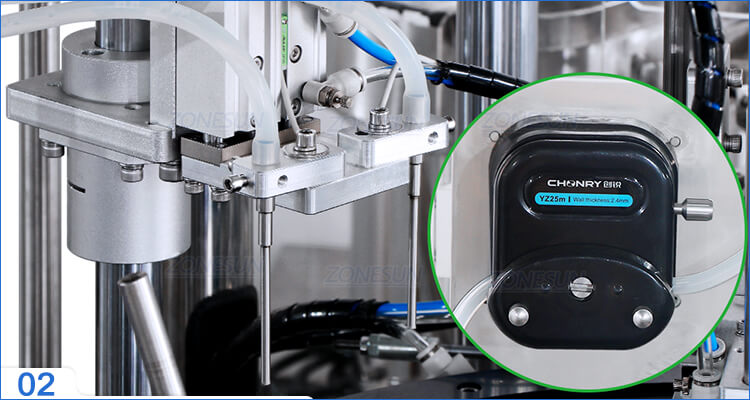

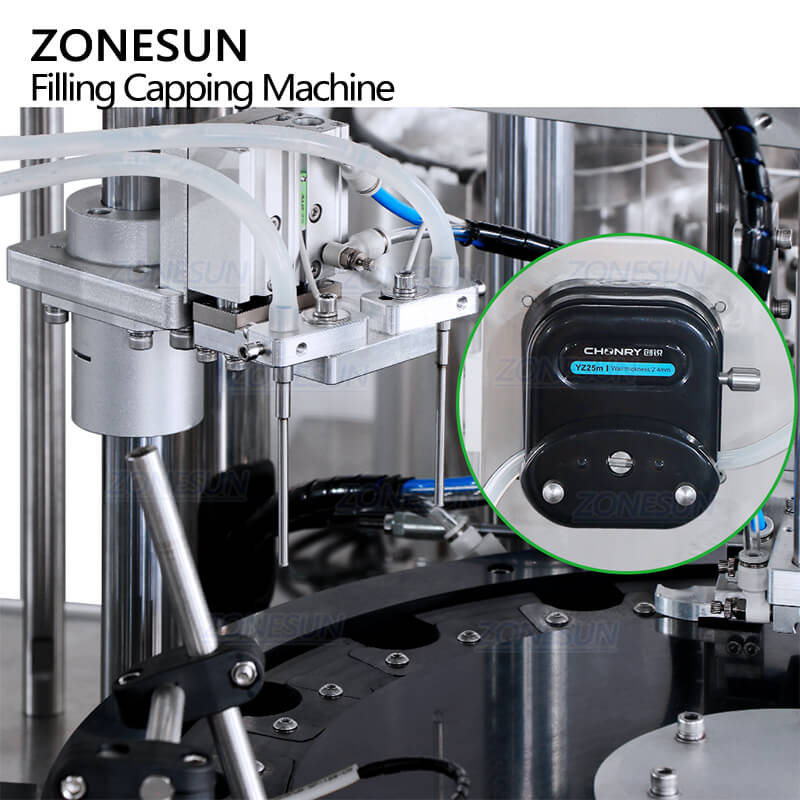

Filling Structure
Quantity of filling nozzles is customizable, peristaltic pump ensures liquid only pass through hose, production is cleaner.

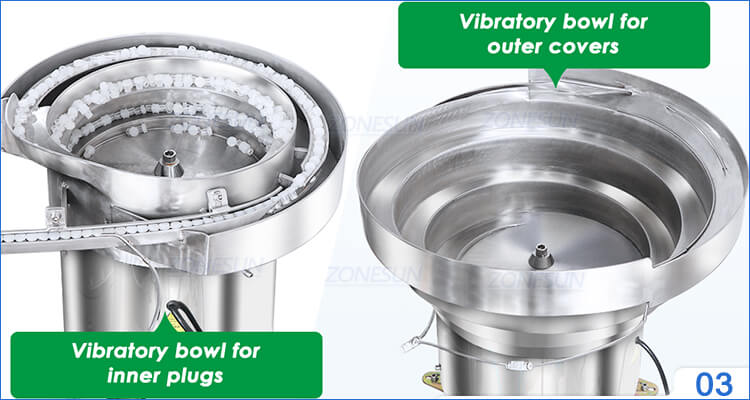

Double Vibratory Bowl Sorter
For arranging stoppers and outer caps in order, it is customizable based on products size.

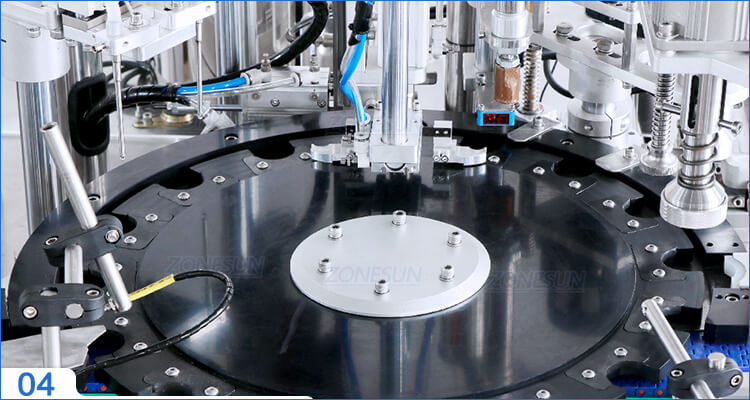

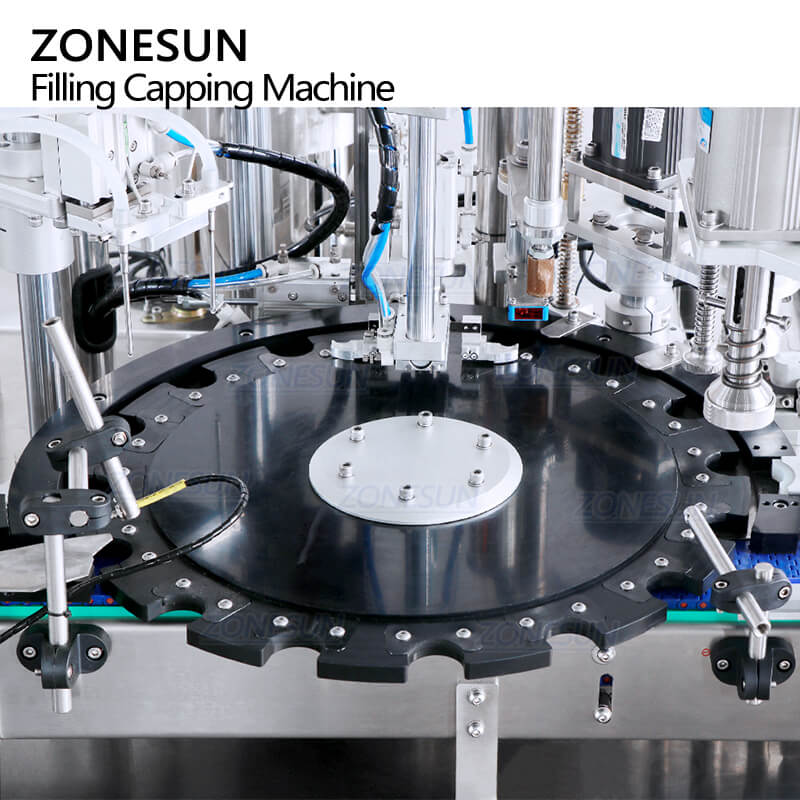

Working Station
Cam system controls packaging work, each working station can work at the same time, it can reach 30-40BPM.

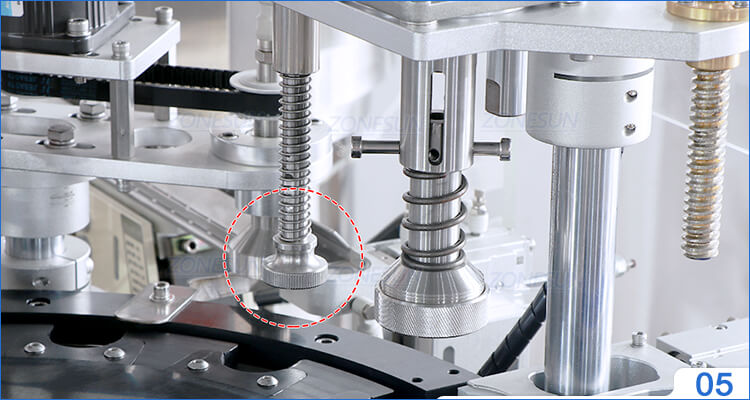

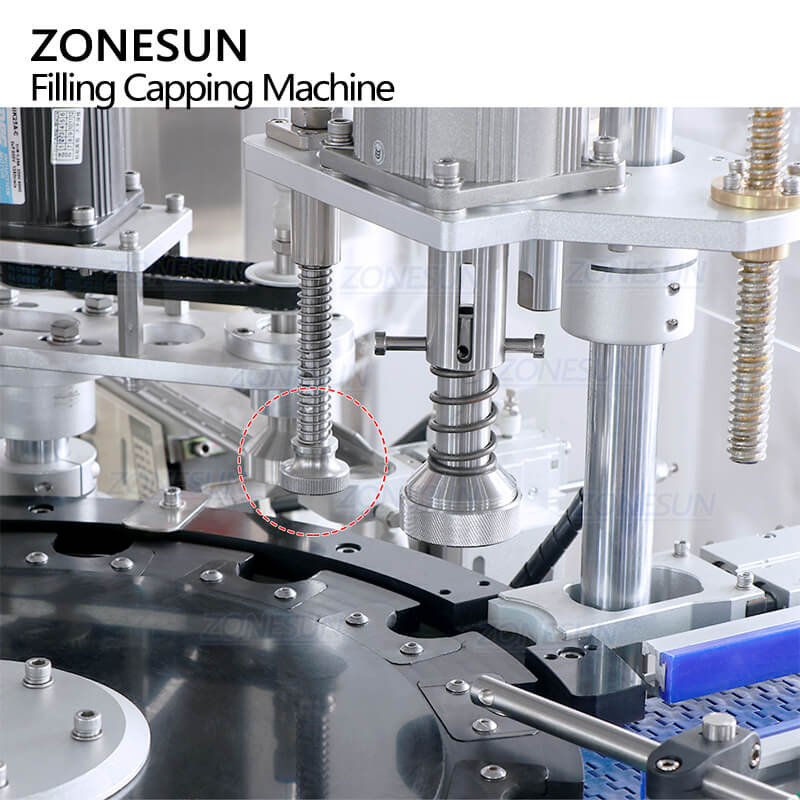

Cap Positioning Structure
It can position caps before capping work, improves capping accuracy.

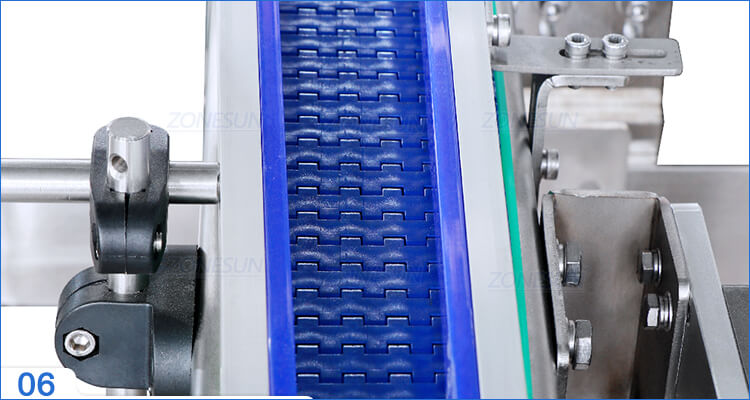

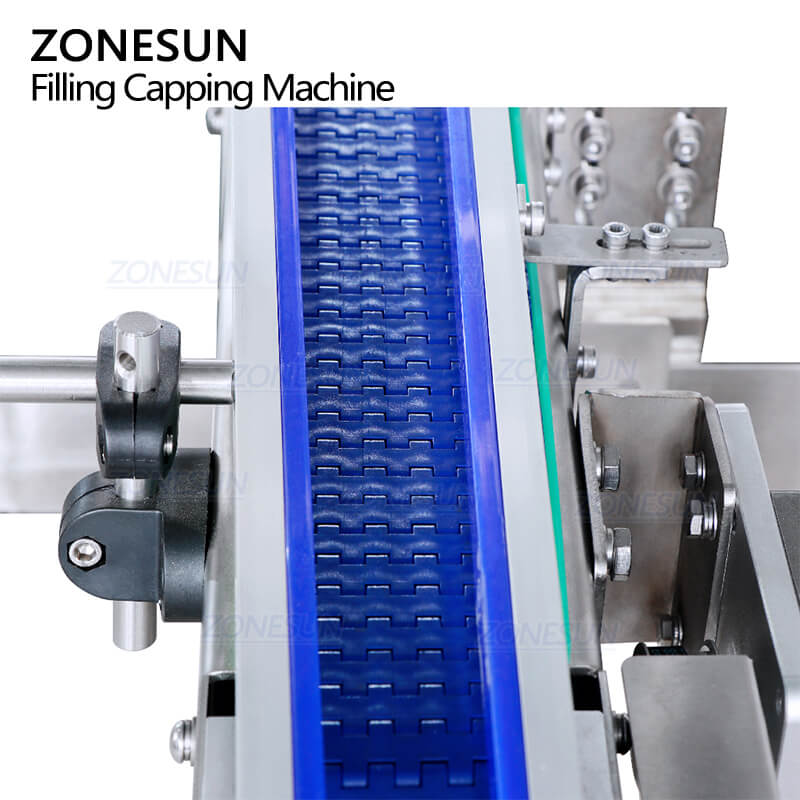

Chain Conveyor
Width and length are customizable based on production need, it ensures smooth working status.
