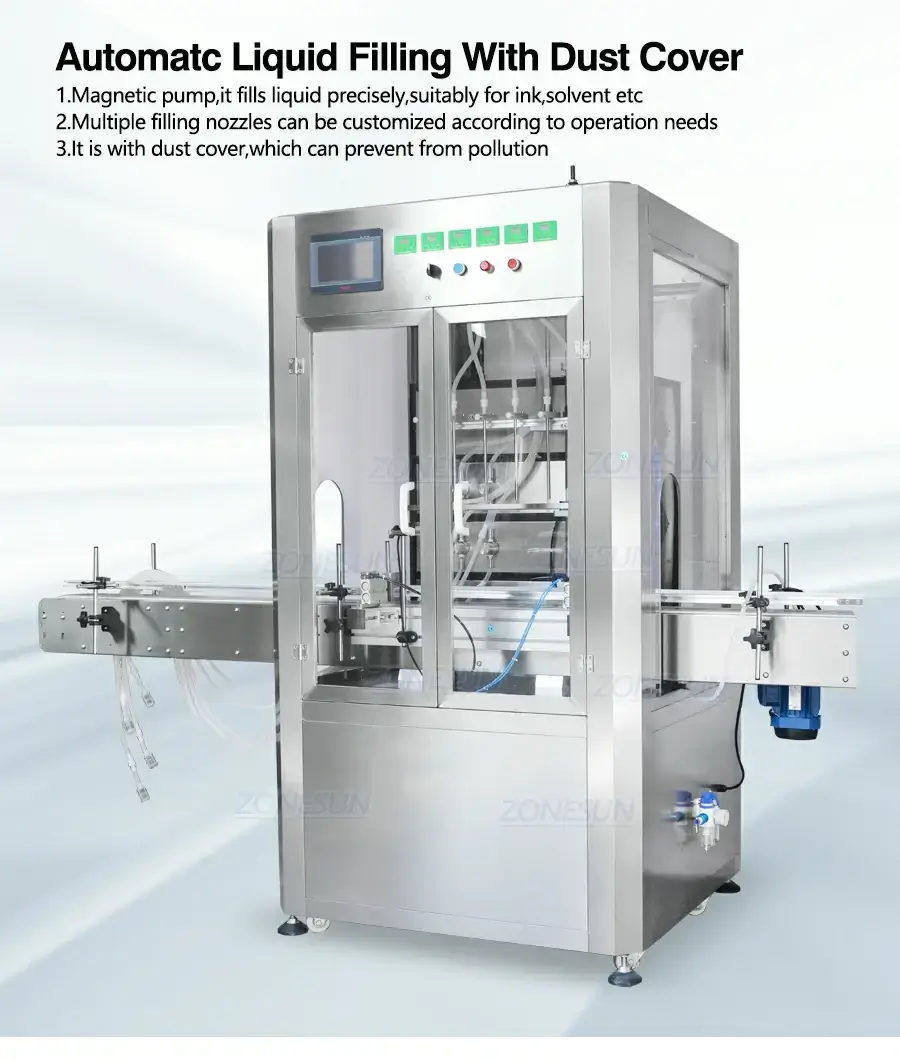

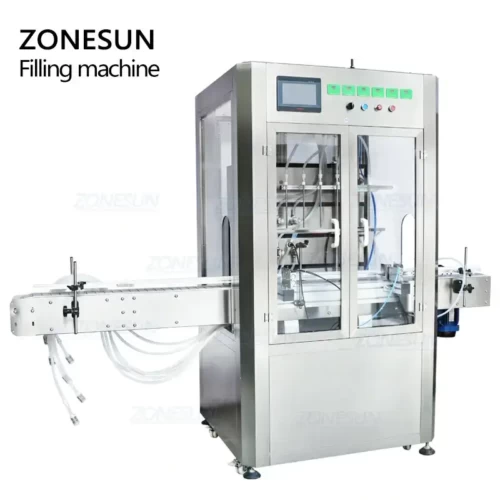

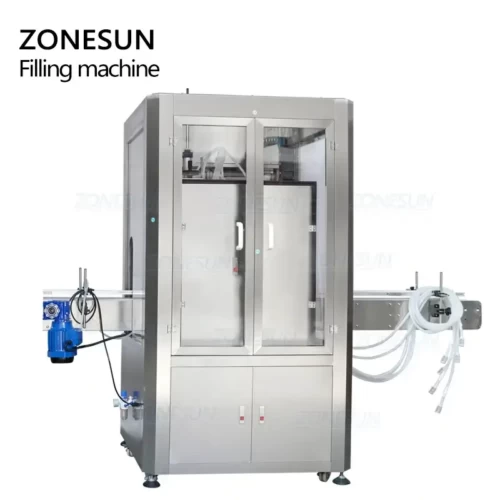

Magnetic Pump Filling Machine With Dust Cover

This magnetic pump liquid filling machine is designed with a dust cover,which can prevent from pollution during producing.It fills liquid accurately and can work with automatic capping machine,labeling machine to realize full automated production.We can customize multiple filling nozzles according to operation needs.

Machine Video Click Here:

Send email to us

Product Detail

Product Tags

Magnetic Pump Filling Machine With Dust Cover-ZONESUN TECHNOLOGY LIMITED

Description:
This magnetic pump liquid filling machine is designed with a dust cover,which can prevent from pollution during producing.It fills liquid accurately and can work with automatic capping machine,labeling machine to realize full automated production.We can customize multiple filling nozzles according to operation needs. Magnetic Pump Filling Machine With Dust Cover-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine model	ZS-VTMP80D
Container size	φ20-160mm H30-300mm
Max flow rate	6000ml/min	7500ml/min	12000ml/min
Recommend filling volume	10-500ml	30-1000ml	100-3000ml

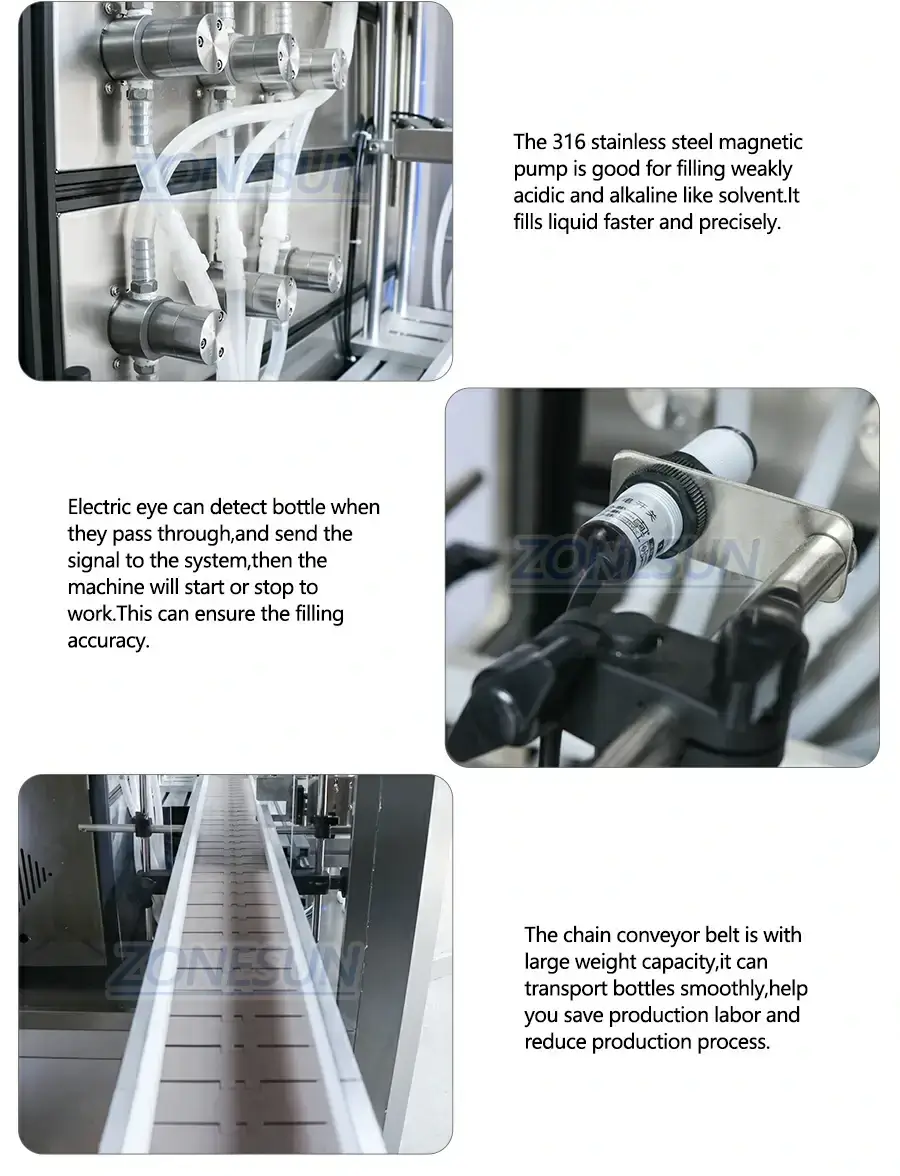

Material of pump	316stainless steel magnetic pump
Filling accuracy	≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water)
Filling speed	About 20-40BPM(depending on filling volume & material)
Power supply	220V-50HZ/110V-60HZ
The whole machine power	2000W
Size of air compressor connector	OD8mm
Machine weight	About 285kg
Machine size	About 10009001860mm
Packing weight	About 390kg
Packing size	About 197010202050mm
