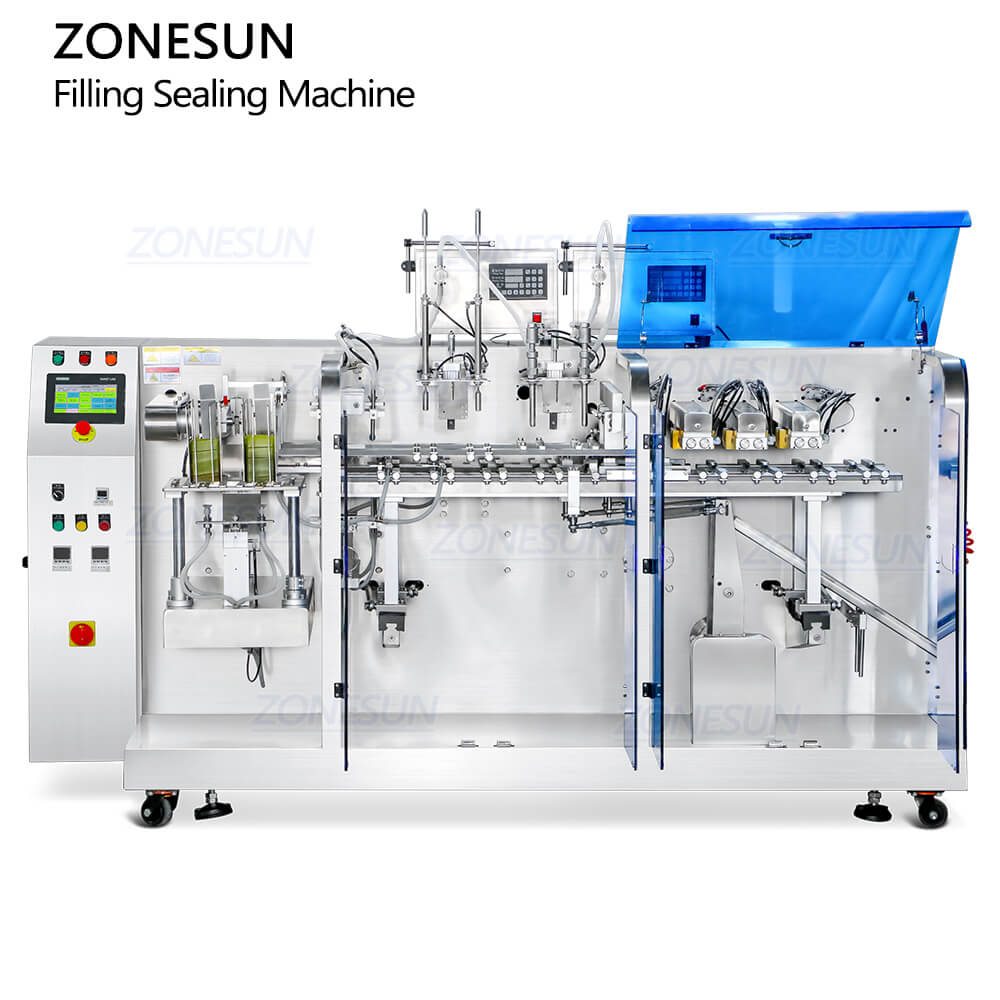

Product Description:

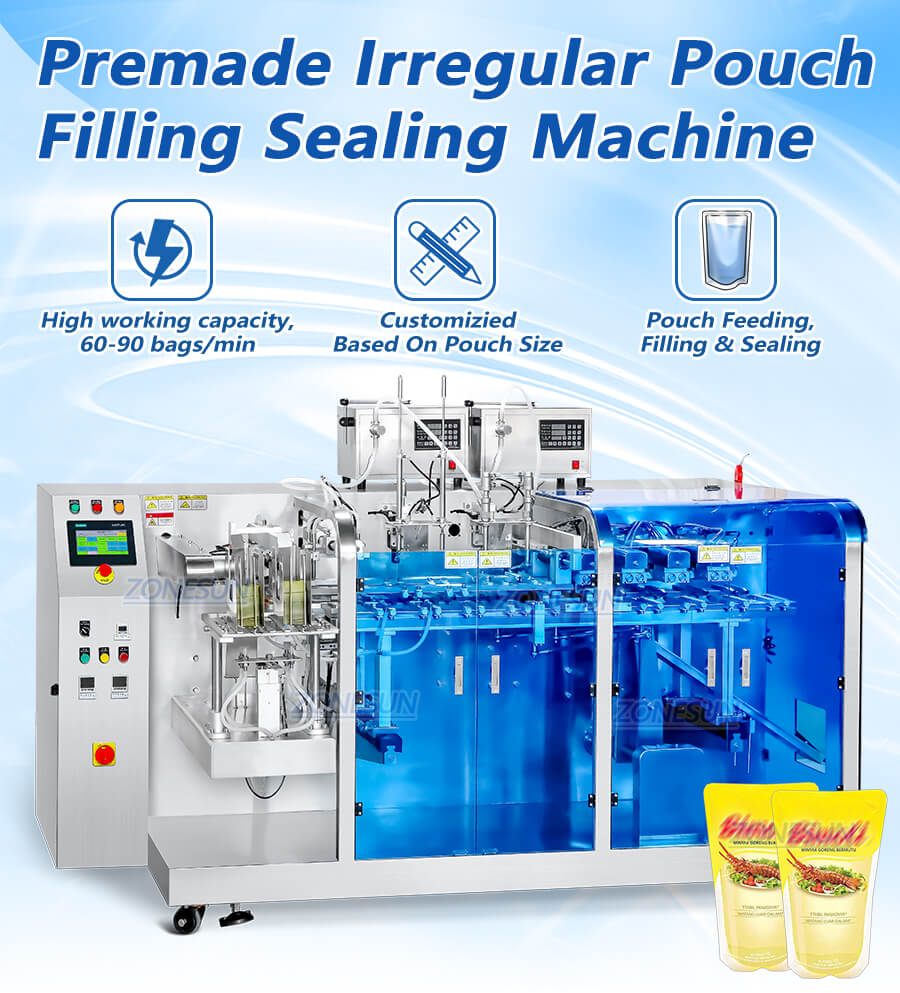

This packaging machine is designed for irregular premade pouches. It can handle pouch feeding, opening, liquid filling, sealing, and product discharge. It’s ideal for packaging energy drinks, cosmetics samples, and personal care products.

Product Parameters:

Machine model	ZS-AFS03L
Machine voltage	220/380V 50-60HZ 5KW
Filling pump	Magnetic pump
Recommend filling volume	10-400g
Working capacity	60-90 bag/min
Suitable pouch size	W45-85mm*L 100-250mm
Air consumption	0.7m³/min

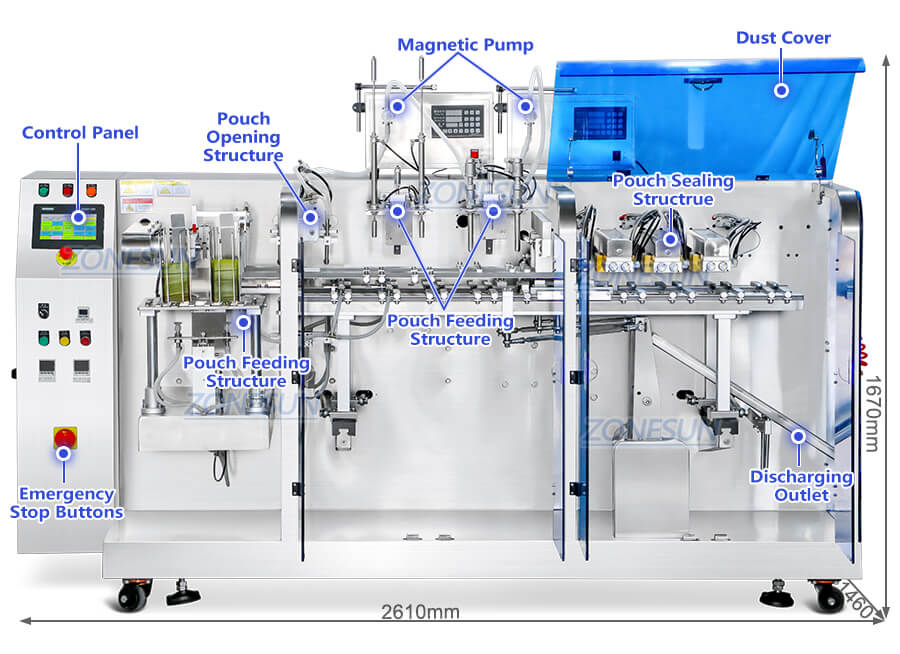

Machine size	About 2350*1350*1300mm/About 92.6*53.2*51.2 in
Machine weight	About 800kg
Package size	About 2610*1460*1670mm/ About 102.8*57.5*65.8 in
Package weight	About 1272KG

Product Details:

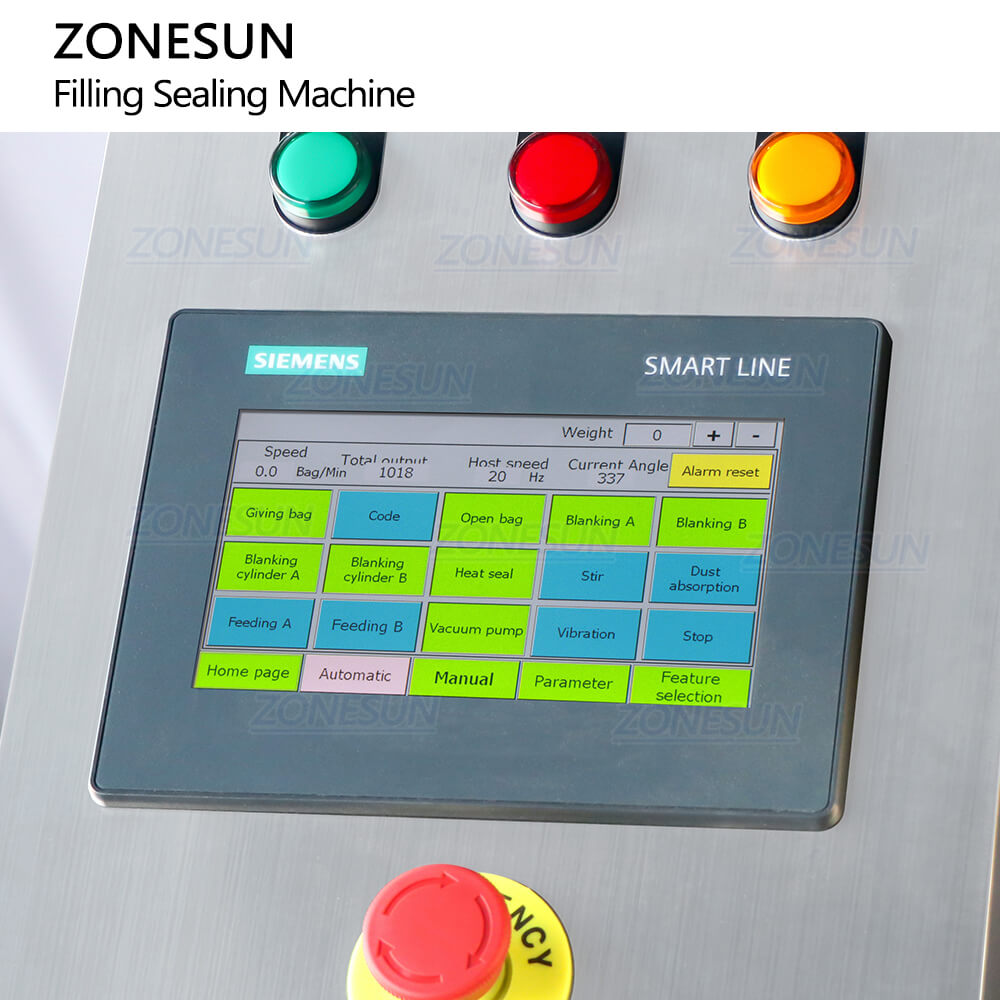

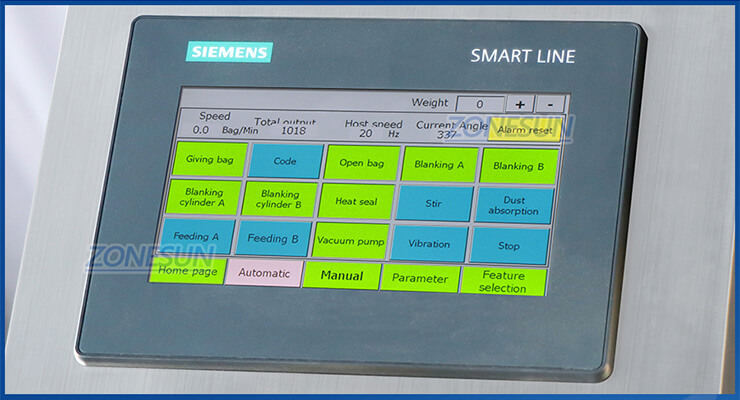

Touch Screen Control Panel
Makes parameter setting more intuitively, customizable interface simplifies machine operation.

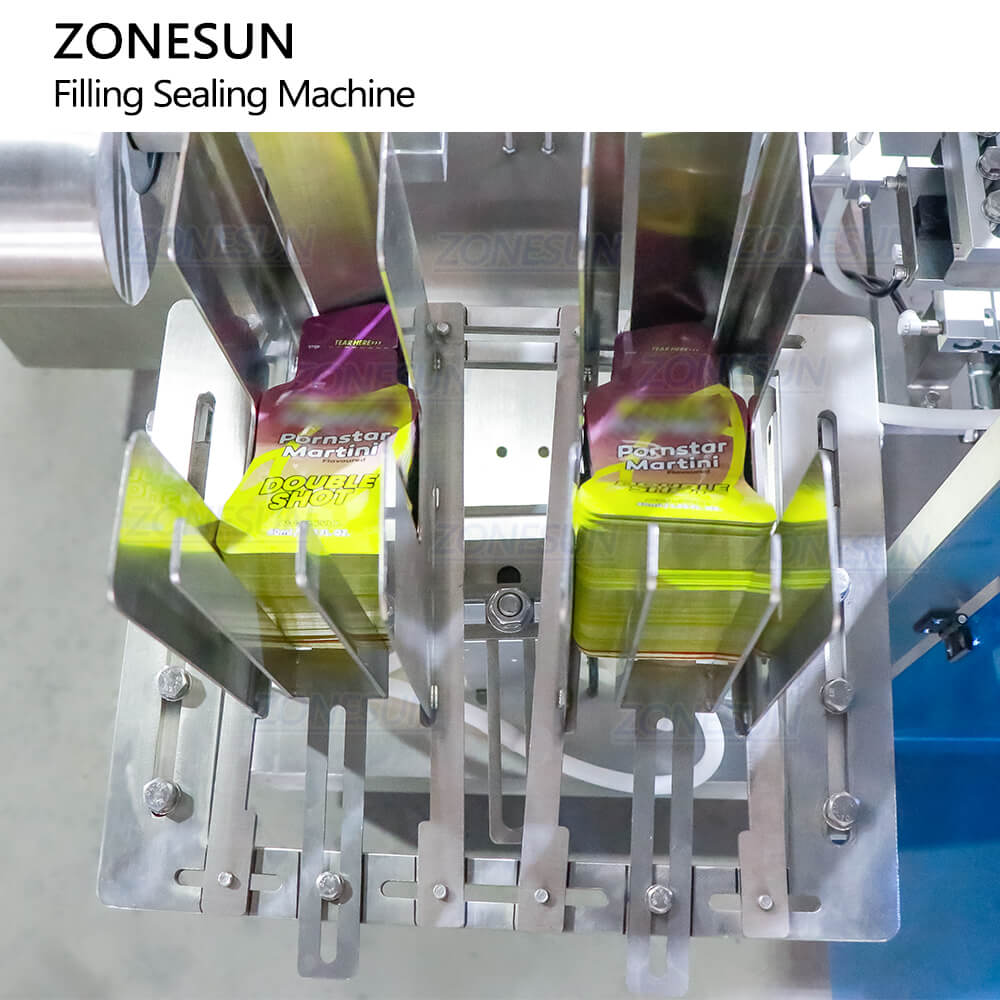

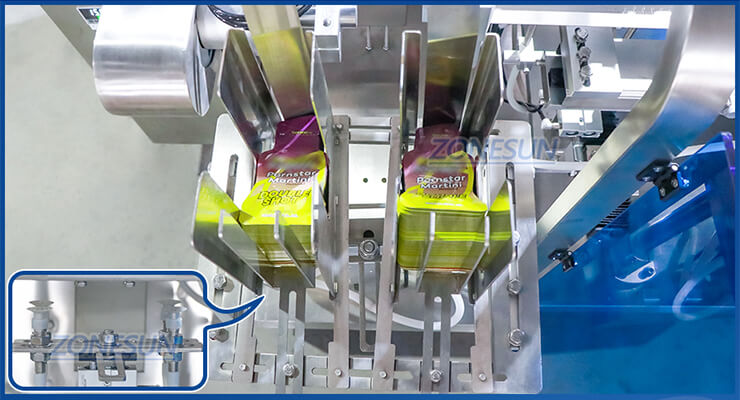

Pouch Holder & Feeding Structure
Can be adjusted according to pouch size, using suctions cups to pass premade pouches to next working process.

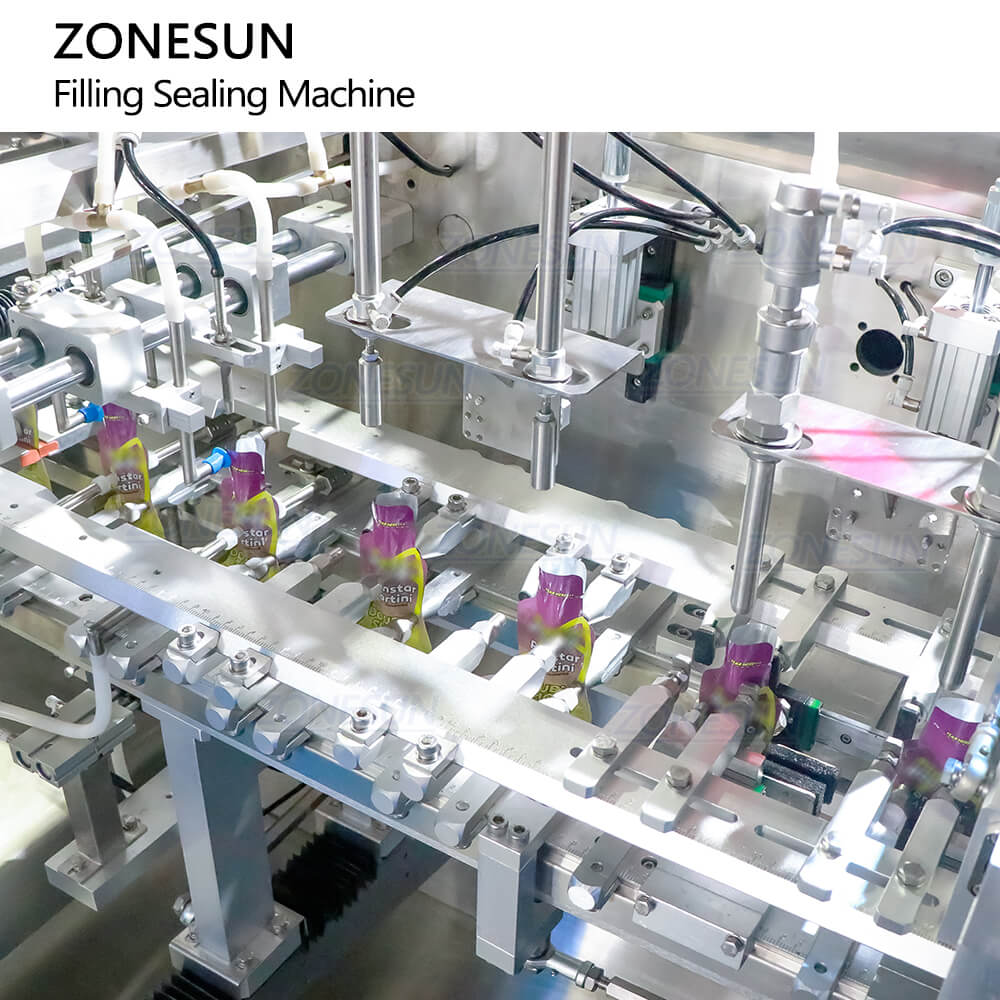

Pouch Opening Structure
Using bars and suction cups to open pouches before filling work.

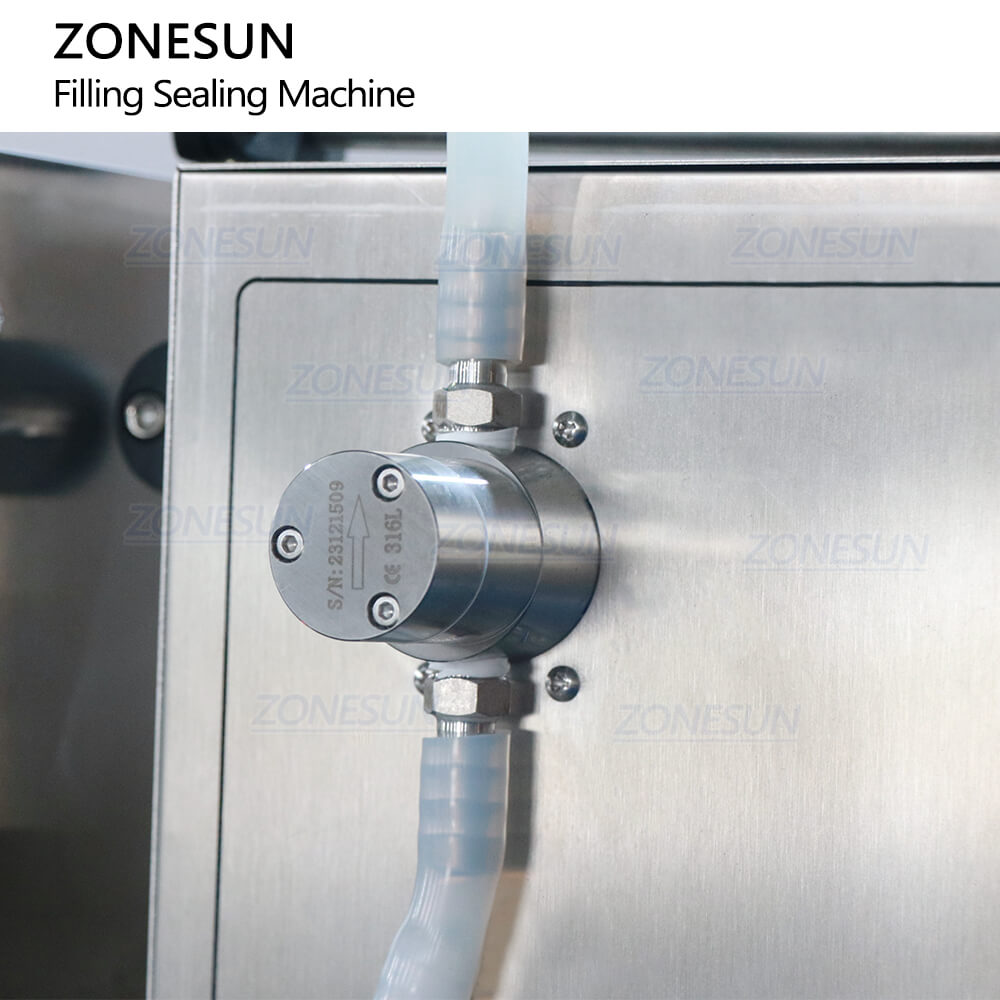

Magnetic Pump Filler
Filling work is controlled by double heads, it has high filling accuracy.

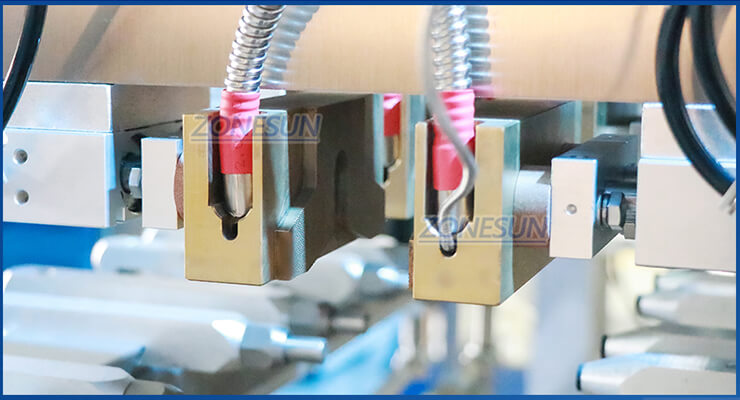

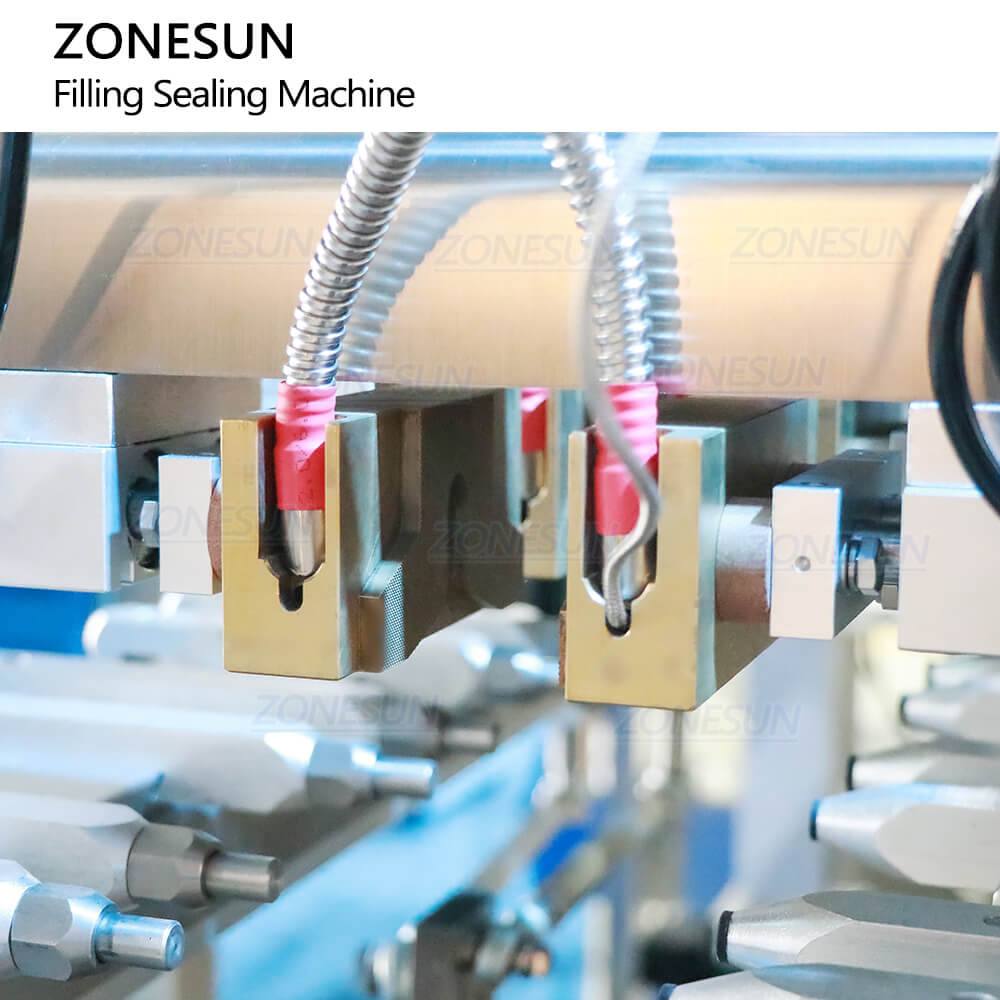

Sealing Structure
Designed for heat sealable pouches, heating temperature can be adjusted easily.Sealing pattern can be customized
