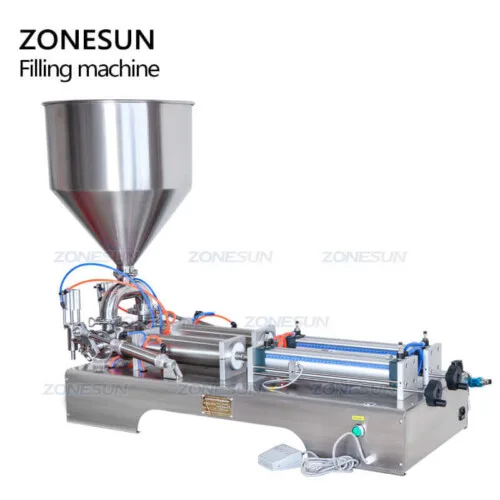

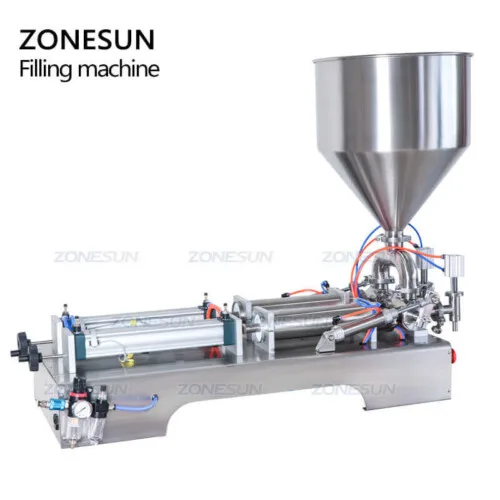

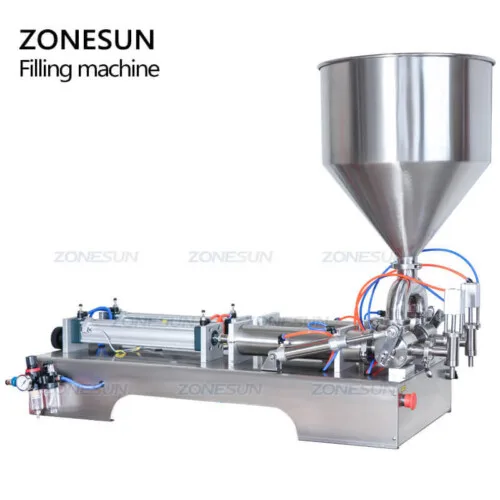

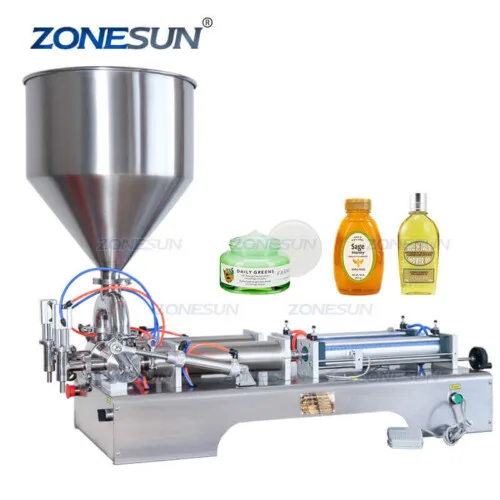

Horizontal Paste Filling Machine
Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.
Description:
Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.
Parameter:
|
Model
|
ZS-GT2
|
|||
|
Voltage supply
|
220V/110V 50/60Hz
|
|||
|
Power
|
10W
|
|||
|
Filling accuracy
|
≤±1%
|
|||
|
Filling speed
|
About 4-60Bottles/min(take water for example)
|
|||
|
Filling volume
|
10-100/10-200/30-300/50-500/100-1000/500-2500/1000-5000ml
|
|||
|
Equipped with air pressure
|
0.4-0.6 MPa
|
|||
|
Size of air compressor connector
|
OD 8mm
|
|||
