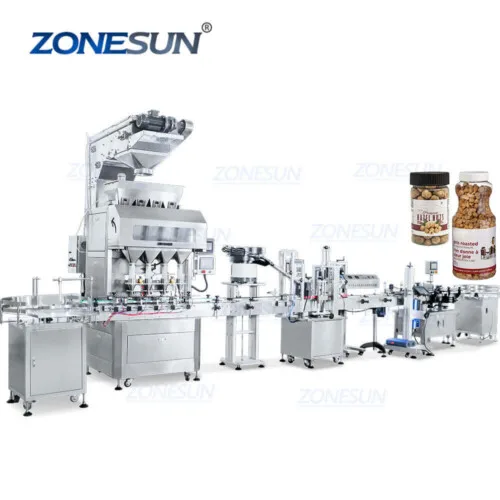

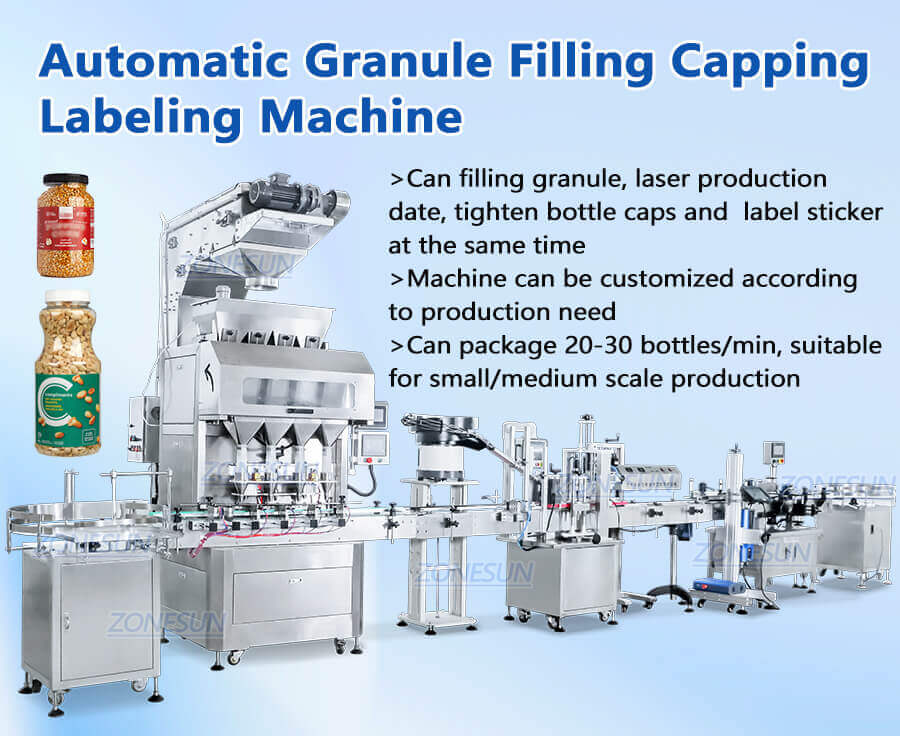

Granule Weighing Filling Line

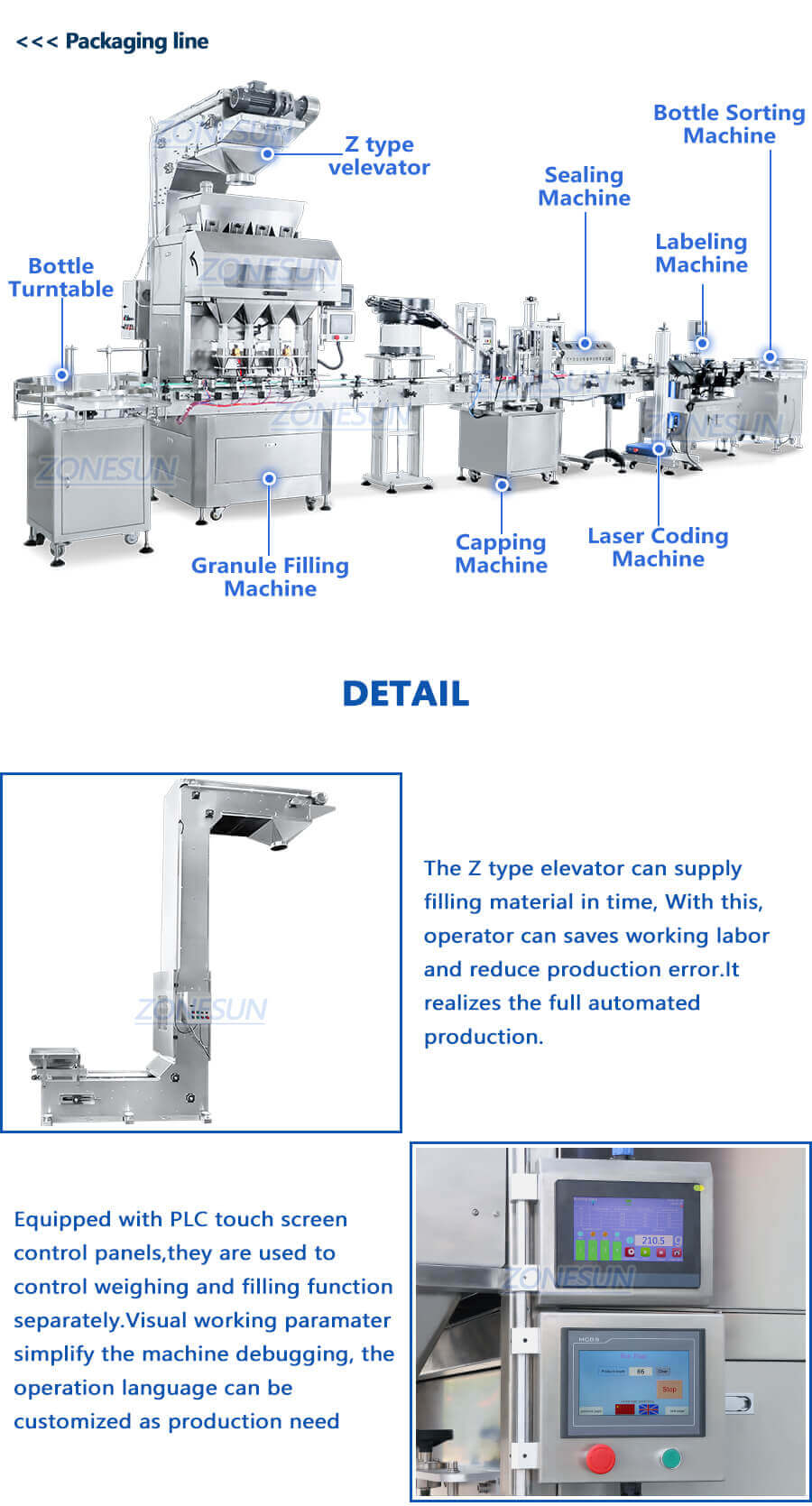

This full automated filling packaging system is designed for filling granule into bottles,tighten bottle caps and label self-adhesive sticker onto round bottles.Simple and automated operation can improve packaging efficiency greatly.
Description:
This full automated filling packaging system is designed for filling granule into bottles,tighten bottle caps and label self-adhesive sticker onto round bottles.Simple and automated operation can improve packaging efficiency greatly.

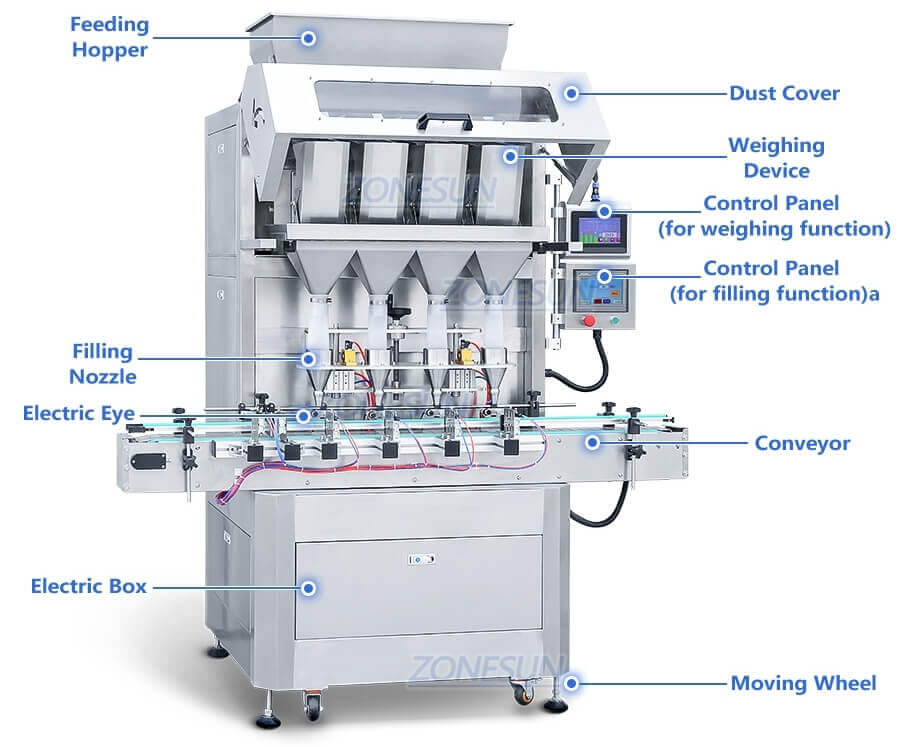

| Machine Model | ZS-GW5 |
| Voltage | 110/220V 50-60Hz |
| Power About | 3kW |
| Working Speed | About 20-30 bottles/min (depending on bottle size and filling material) |
| Weighing Range | 2-50g/10-1000g/10-2000g/10-3000g/100-10000g (can choose other weighing range) |
| Weighing Error | ±1-2g(depends on filling range) |
| Air Pressure | 0.4-0.6MPa |
| Machine Size | About 1950mm*1100mm*2270mm |
| Package Size | About 1970*1170*2230mm(Filling Machine)+4150*700*2150mm(Feeding Machine) |
| Package Weight | About 492kg(Filling Machine)+635kg(Feeding Machine) |

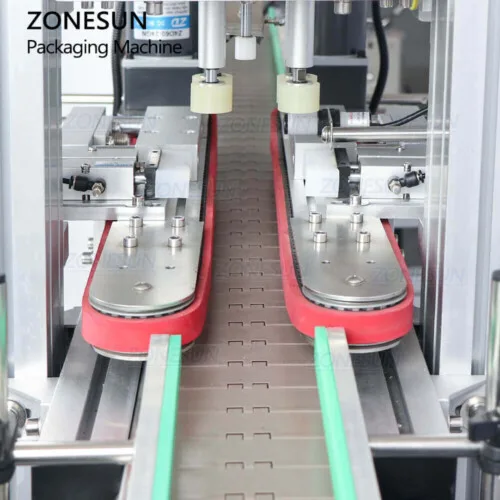

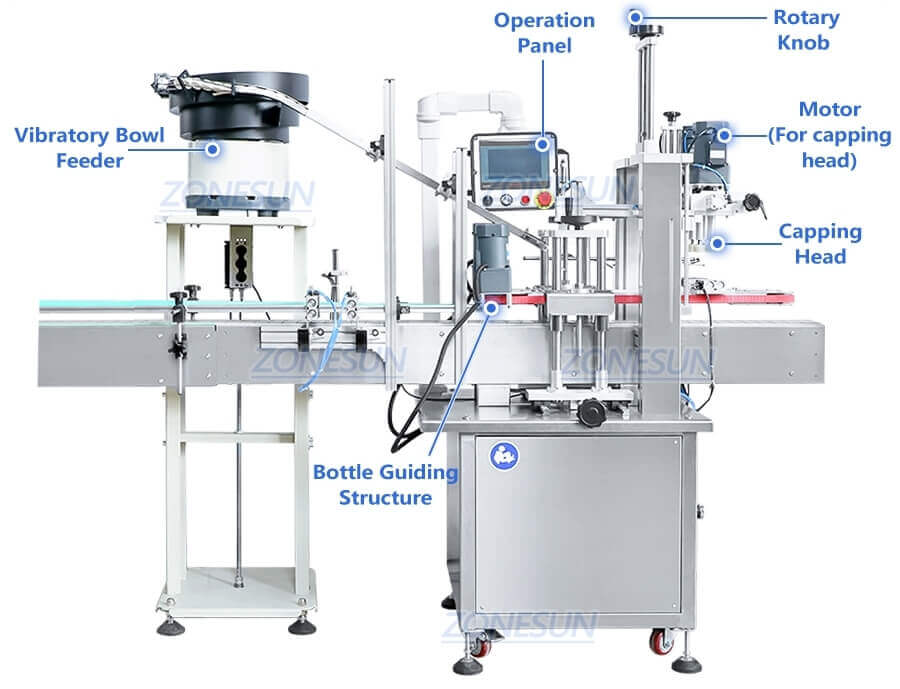

| Machine model | ZS-XG16P |
| Bottle height | 30-300mm |
| Cap Diameter | 18-70mm |
| Bottle Diameter | 20-160mm |
| Working speed | 20-60 bottles / minute (depending on bottle and cap size and shape) |
| Working voltage | AC220V/110V 50- 60HZ |
| Working pressure | 0.4-0.6MPa |
| Machine size | 2420*680*1700mm (machine)+500*500*1640mm( vibratory sorter) |
| Machine weight | 138kg(machine)+75kg( vibratory sorter) |
| Package Size | About 1710*820*1760mm(Capping Machine)+710*690*700mm (Vibrating Machine) |
| Gross weight | About 130kg(Capping Machine)+81kg (Vibrating Machine) |

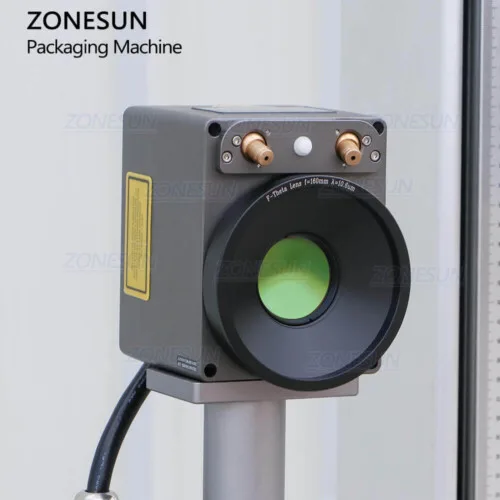

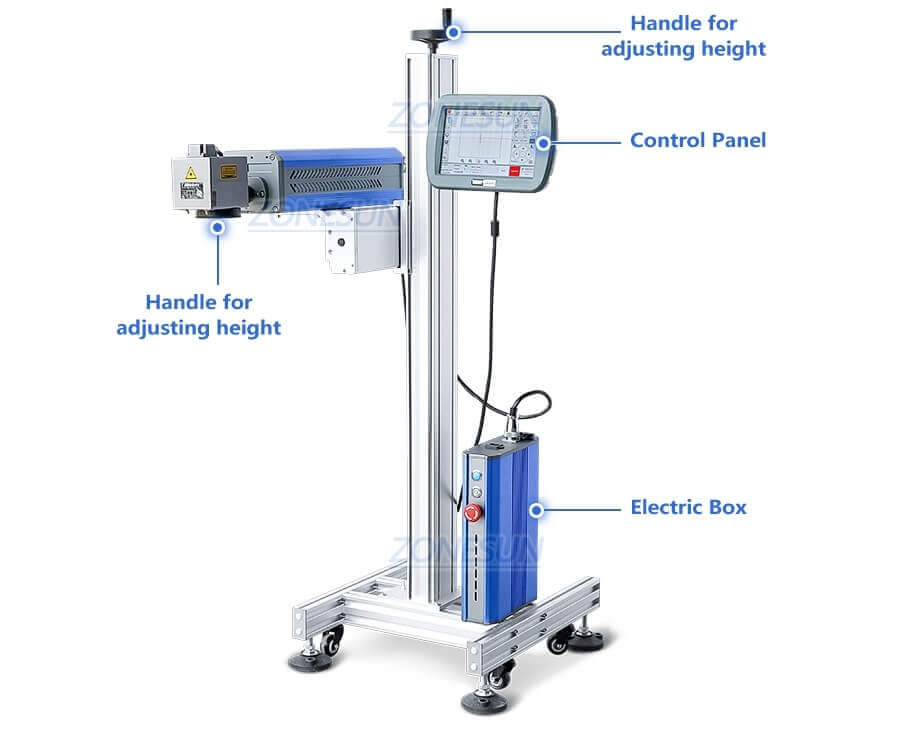

| Machine Model | ZS-LMC1 |
| Voltage | 220V/110V 50-60Hz |
| Power | 30W |
| Working Speed | PVC tubes: 40 m/min
PET bottles: 20000 bottles/h Coated cartons: 35 m/min |
| Marking Area | 70*70/90*90/110*110/140*140mm |
| Marking Depth | 3mm(depending on materials) |
| Repeat Frequency | 20-200Hz |
| Cooling Method | Air Cooling |
|

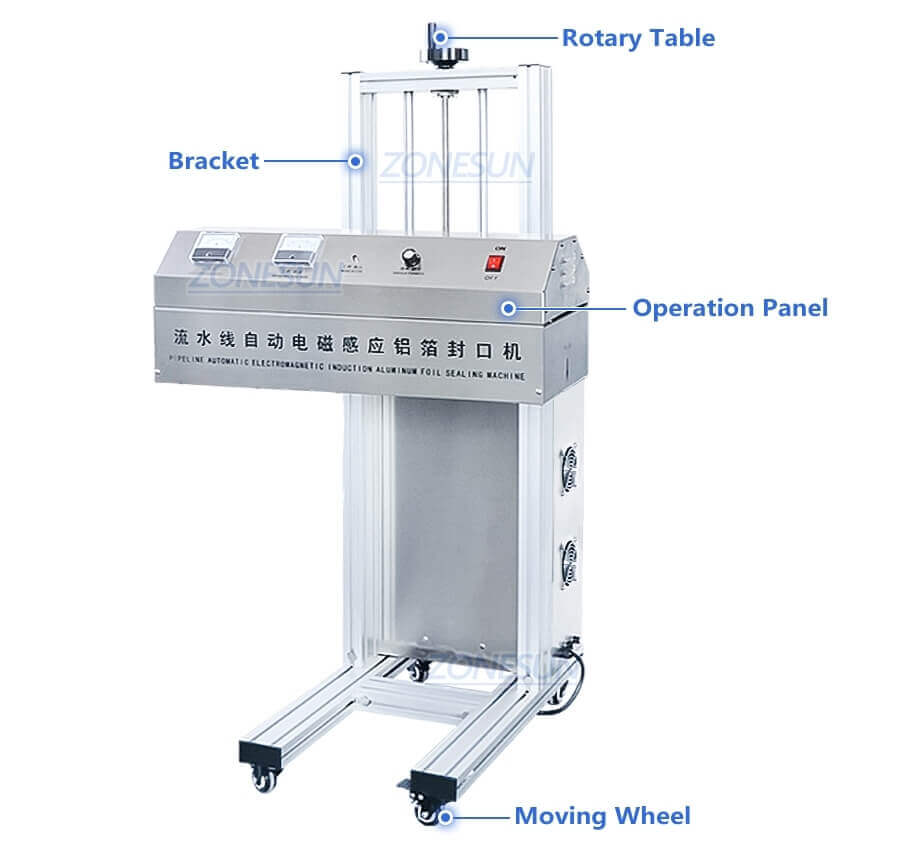

Machine model
|
ZS-FK4200V
|
||||
|
Power supply
|
220V 50HZ 4200W
|
||||
|
Sealing diameter
|
15-60mm
|
20-70mm
|
35-85mm
|
50-120mm
|
60-130mm
|
|
Sealing speed
|
0-260bottles/min
|
||||
|
Suitable bottle height
|
10-300mm(based on 900mm height conveyor belt)
|
||||
|
Machine size
|
About 700*690*1450mm
|
||||
|
Machine weight
|
About 43kg
|
||||
|
Package size
|
About 850*650*1590mm
|
||||
|
Package weight
|
About 92kg
|
||||

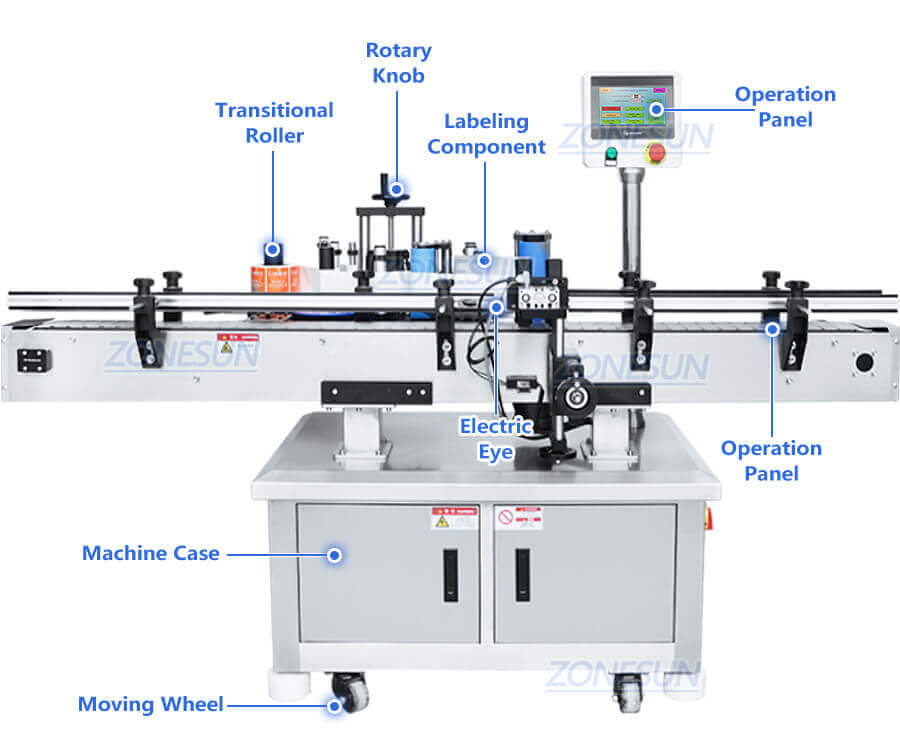

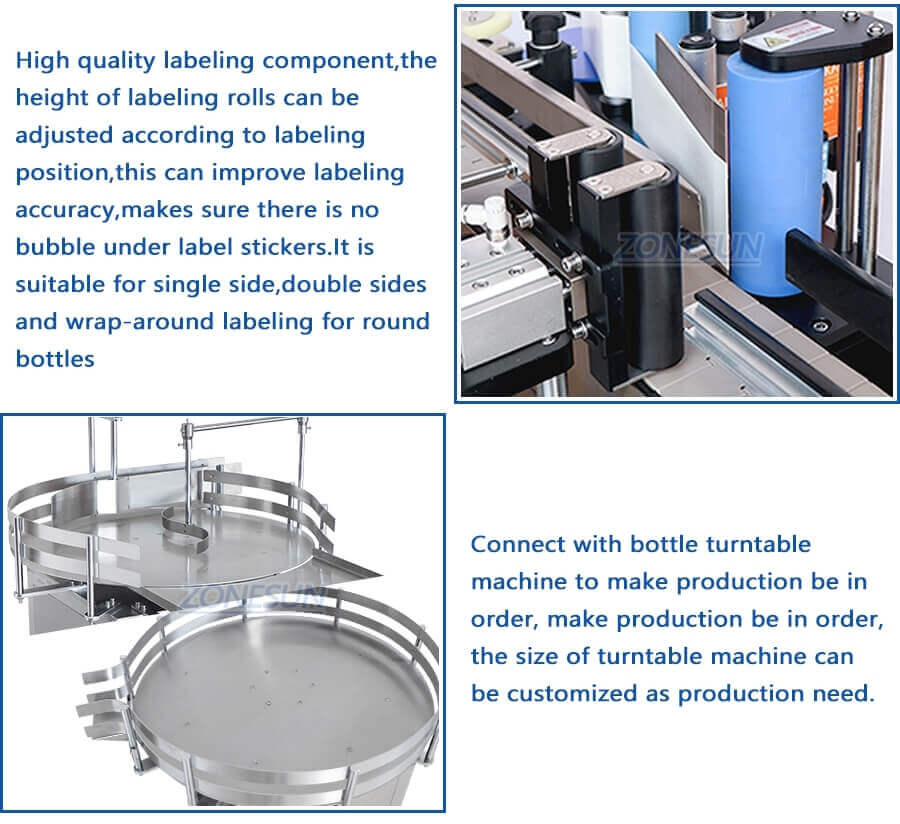

| Model | ZS-TB260R |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm(Can be customized) |
| Roll inside diameter(mm) | φ76mm |
| Roll outside diameter(mm) | φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W)890*(H)1520(mm) |
| Package weight | About 250kg |
