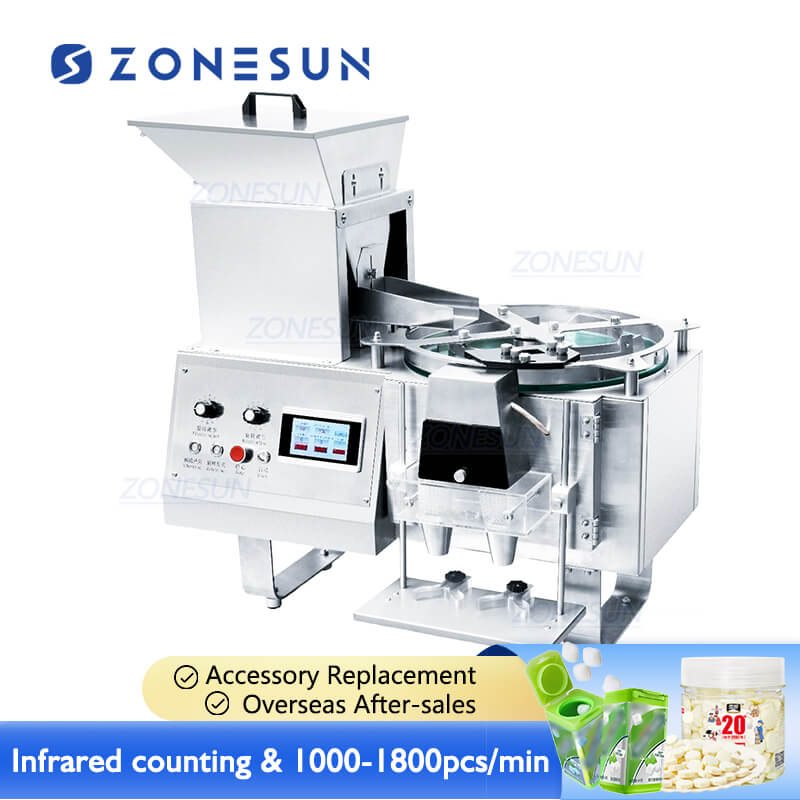

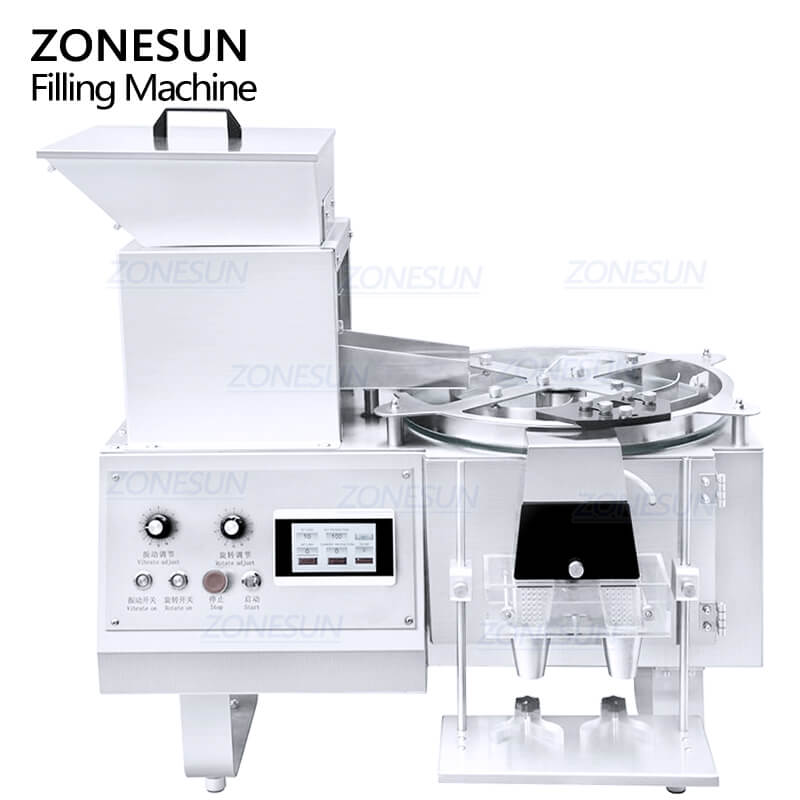

Product Description:
This advanced machine utilizes advanced technologies to automate the counting process, ensuring high accuracy, speed, and reliability. Its user-friendly control panel and intuitive design make operation simple and efficient. With its infrared counting sensor, precise positioning filling system, and intelligent induction technology, the Granule counting machine is a valuable asset for any production line.

Product Parameters:

Model	ZS-YL2
Applicable material	Tablet Diameter:2-25mm Capsule:#00-#5
Discharging port	2
Capacity	1000-1800pcs/min
Power	150W
Voltage	110V-220V 50-60Hz
Suitable bottles	Diameter:25-75mm Height≤240mm
Dimension	About 900*660*760mm
Net weight	About 65kg

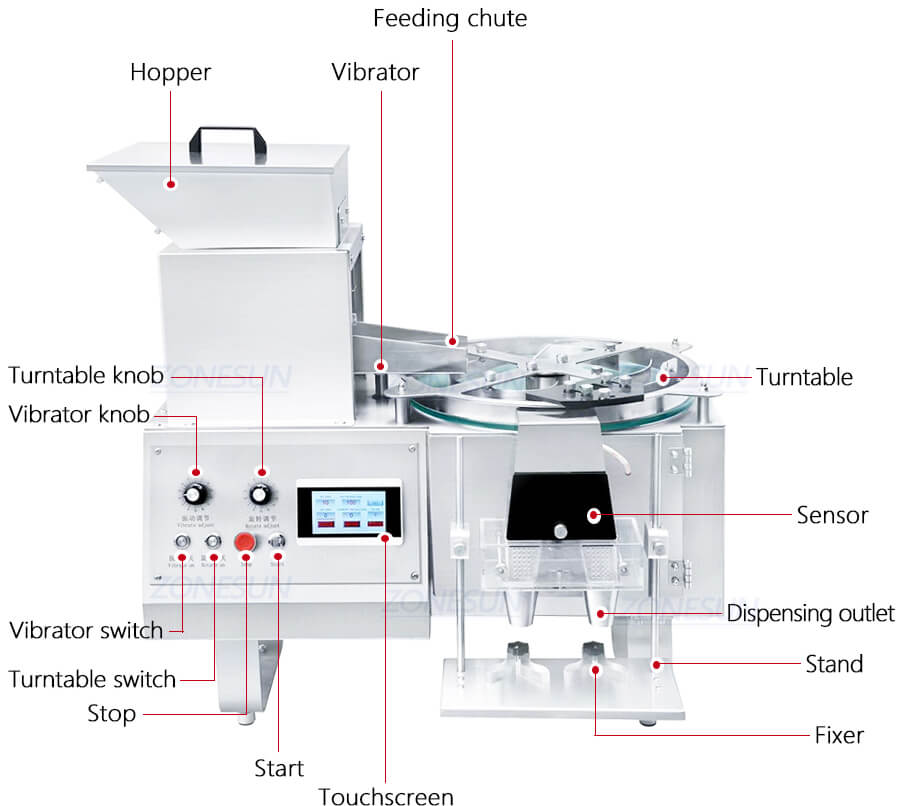

Product Details:

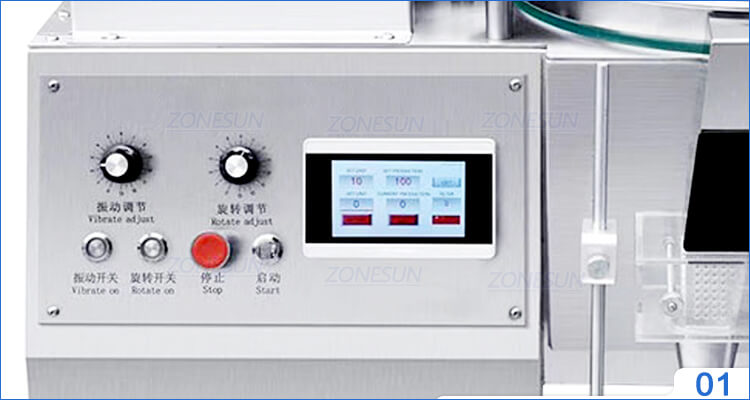

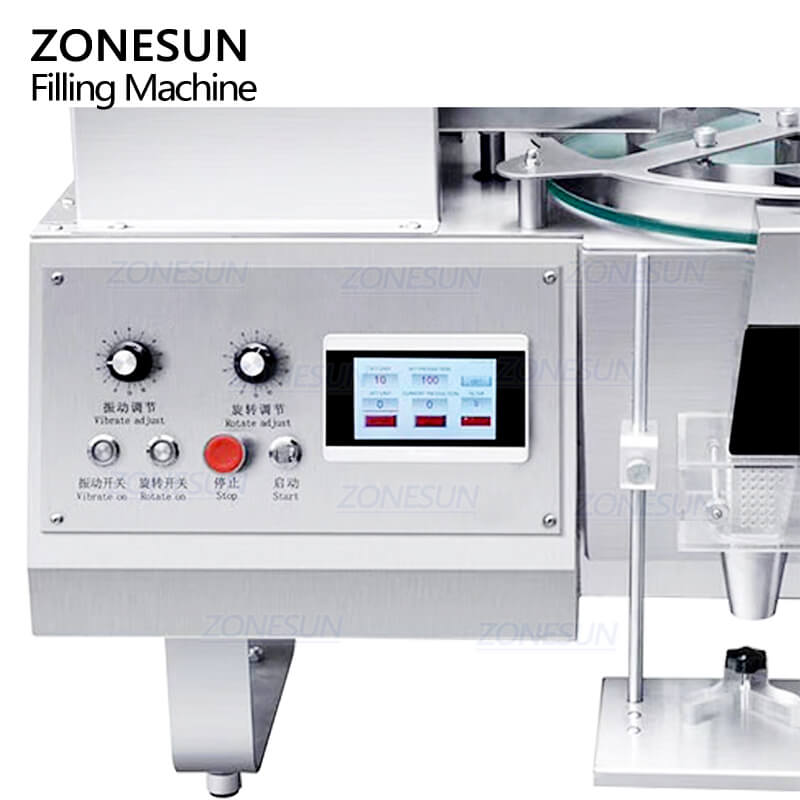

Control Panel
A user-friendly control panel featuring a vibration speed controller, turntable speed controller,and a touch screen for controlling the machine’s functions. The panel is designed for intuitive operation and easy understanding.

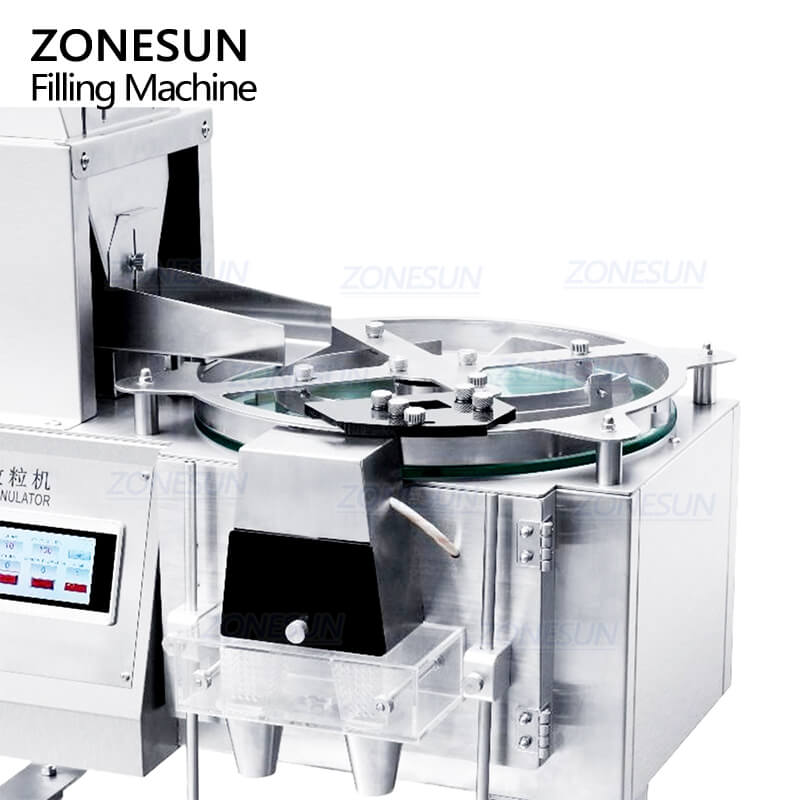

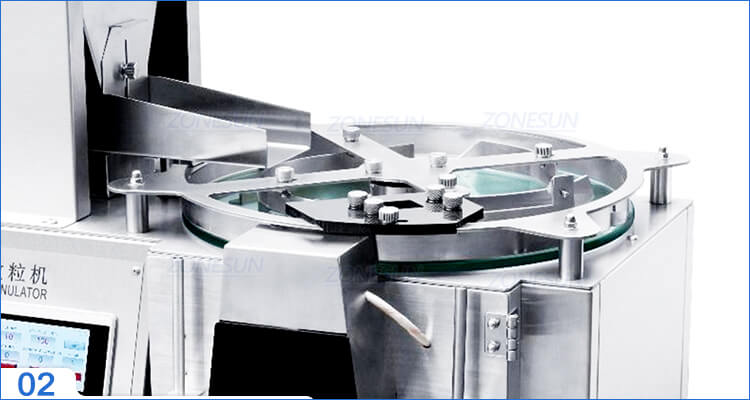

Turntable
Guide rails on the turntable precisely align the capsules as they move towards the counting module. The counting technology includes an infrared counting sensor and an electronic eye protection device which work together to precisely detect and count each capsule.

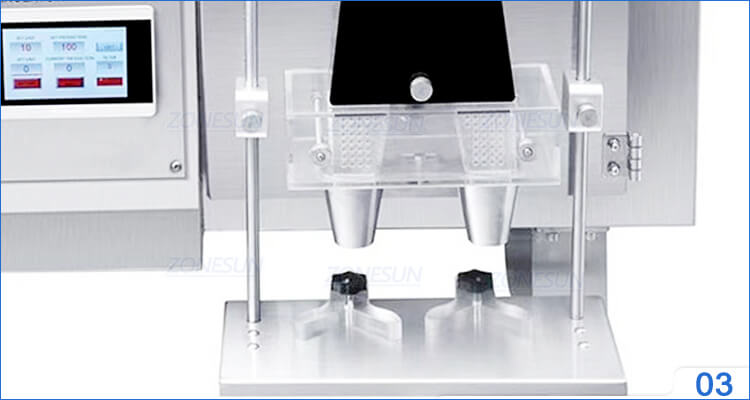

Discharging
The machine features two discharge ports, allowing for continuous filling of multiple bottles. This design significantly increases productivity and efficiency, especially when dealing with large production batches.

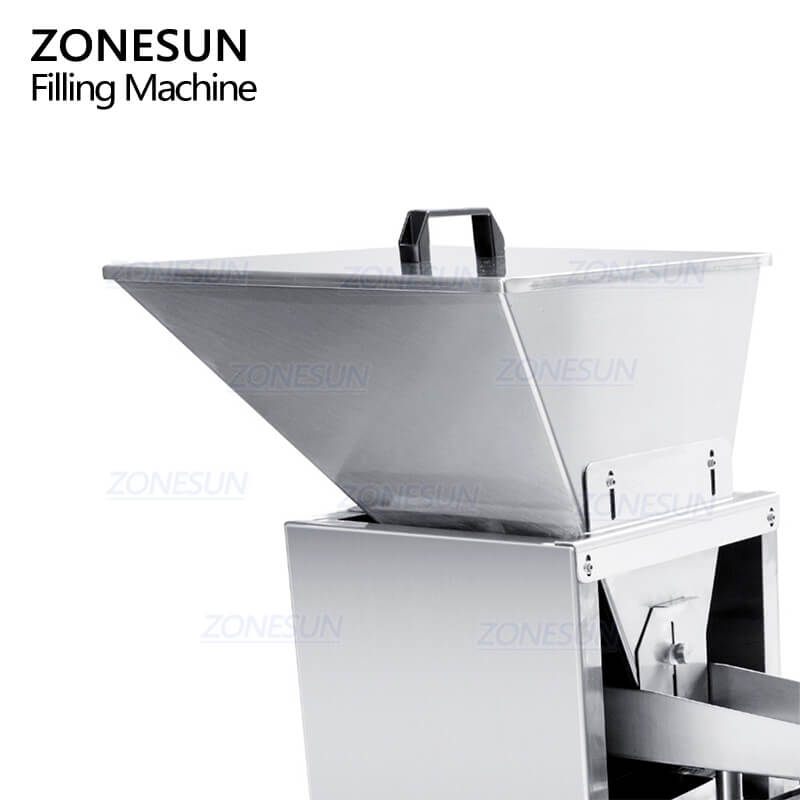

Feeding
The machine features a well-designed hopper and vibration system that ensures smooth and efficient material flow. The hopper is designed to accommodate various capsule sizes and shapes, while the vibration system gently guides the capsules onto the turntable for accurate sorting and counting.
