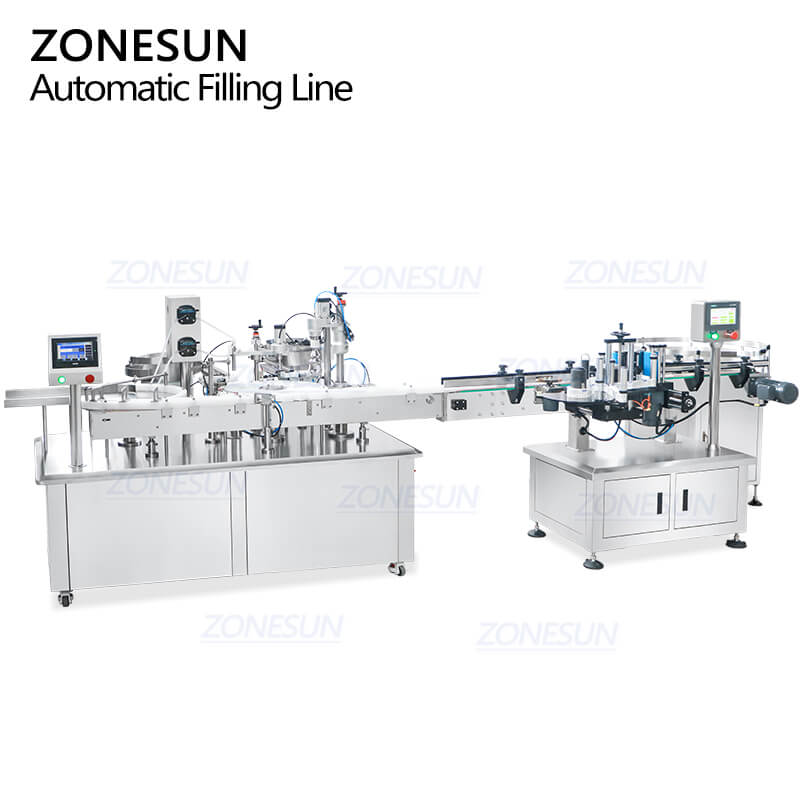

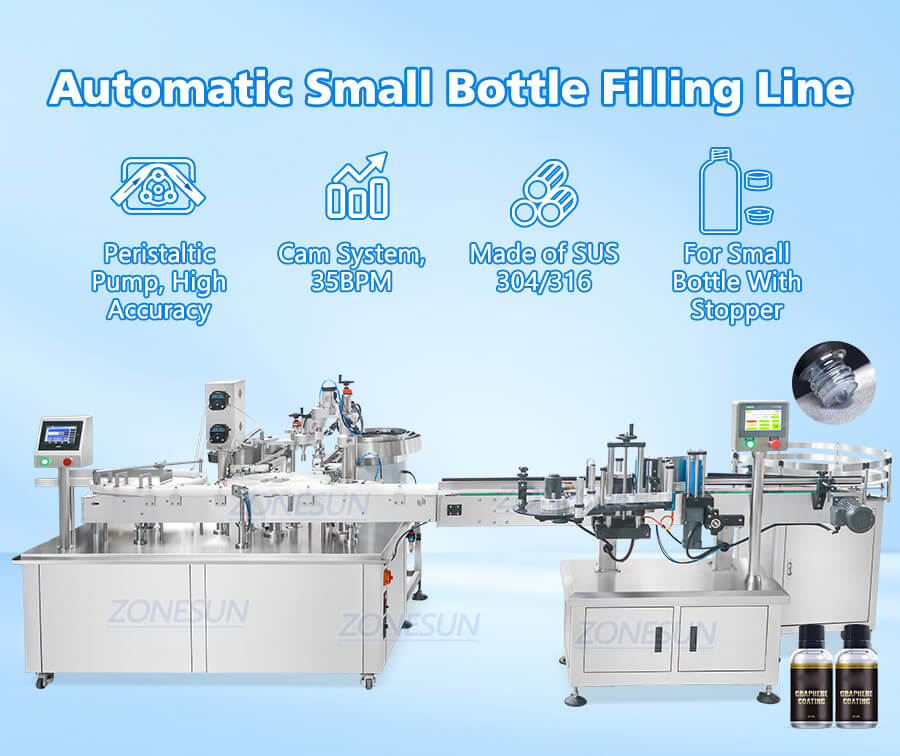

Product Description:

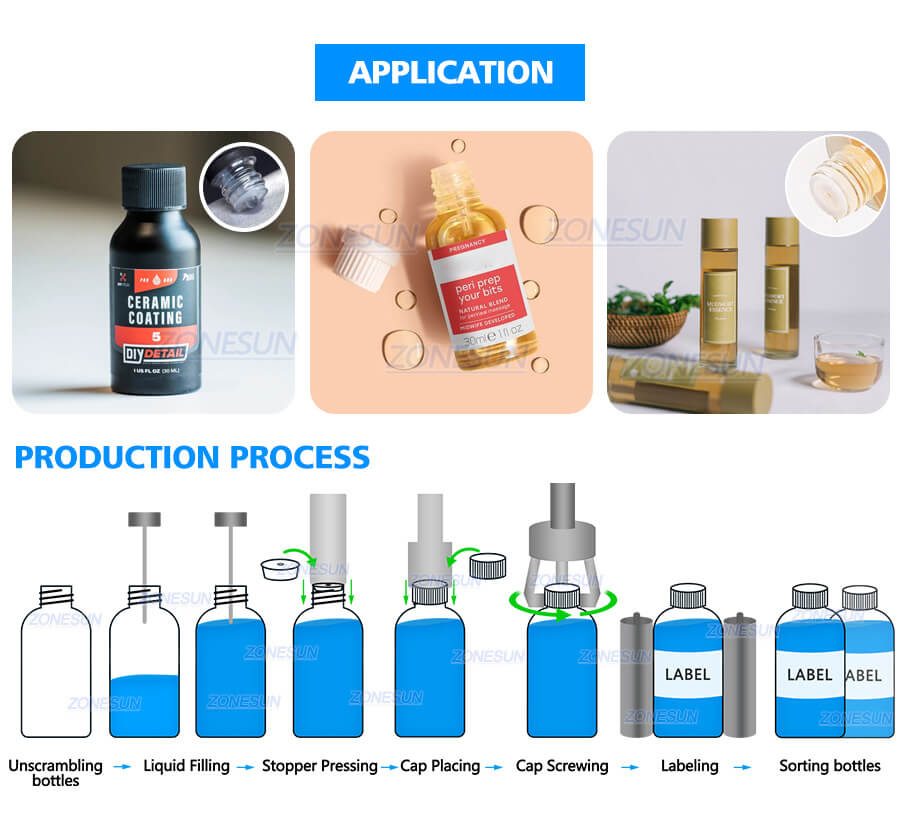

This filling system is consist of monoblock filling capping machine and labeling machine, it suits packaging small bottle with stoppers like essential oil, cleaning oil etc.This filling system can reach 35BPM, this is suitable for small or medium scale production.

Product Parameters:

Monoblock Machine

Machine model	ZS-AFC43
Voltage	110/220V 50-60HZ 3KW
Filling pump	Peristaltic pump
Working capacity	30-45BPM(based on filling range)
Filling accuracy	±1%
Suitable bottle size	customizable
Suitable cap size	customizable

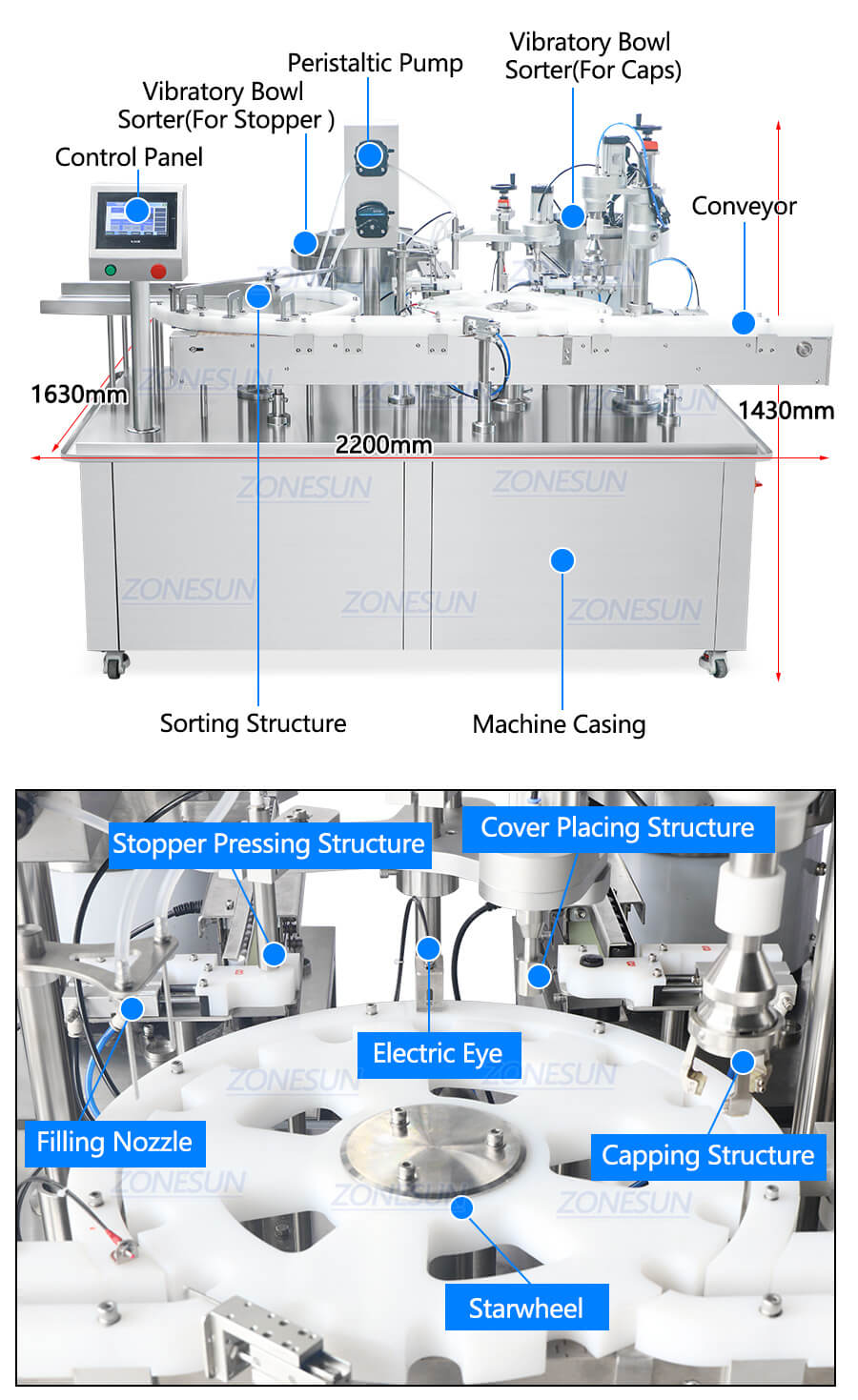

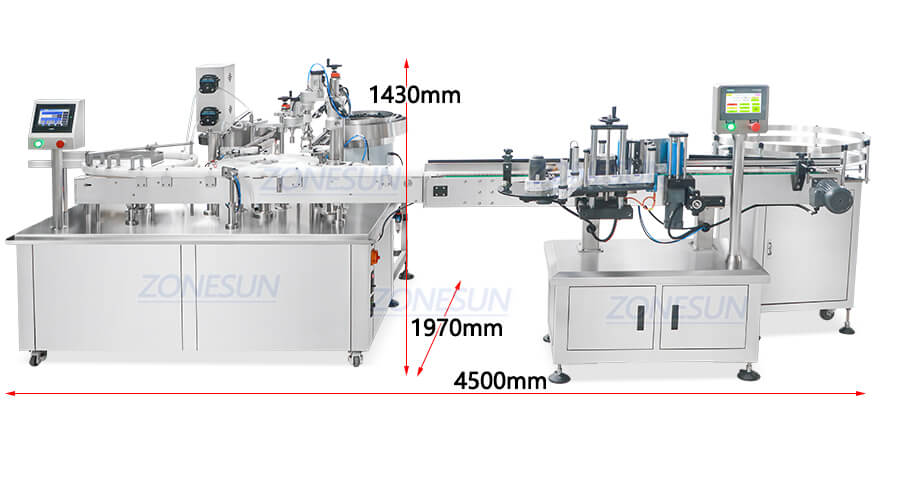

Machine size	About 2200*1630*1430mm(Main Machine) About 605*455*1040mm(Vibratory Bowl Sorter For Stopper) About 605*455*1070mm(Vibratory Bowl Sorter For Caps)
Total Machine weight	≤ 600kg

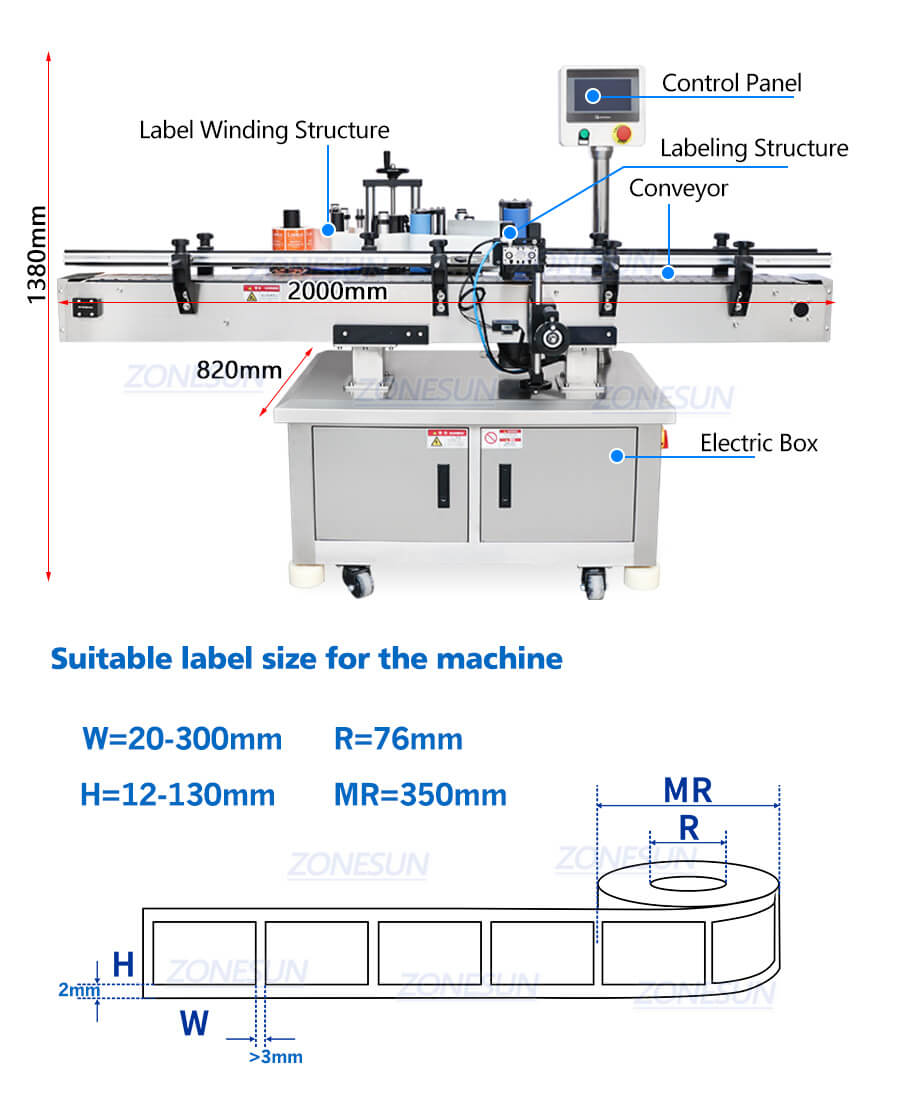

Labeling Machine

Model	ZS-TB260R Labeling Machine
Power supply	AC220V 50Hz/60Hz 1 KW
Labeling capacity	25-50 bottles/min(depends on bottle size)
Labeling accuracy	± 1.0 mm
Suitable Bottle Diameter	Φ30-100 mm H=30-200 mm
Label size	(L)20-300 mm (H)12-130 mm
Roll inside diameter	Φ76 mm
Roll outside diameter	Φ350 mm
Conveyor Size	112*2000 mm(W)
Machine size	About (L)2000*(W)820*(H)1380(mm)
Machine weight	About 180 kg
Packing Size	About (L)2100*(W)890*(H)1520(mm)
Package weight	About 250 kg

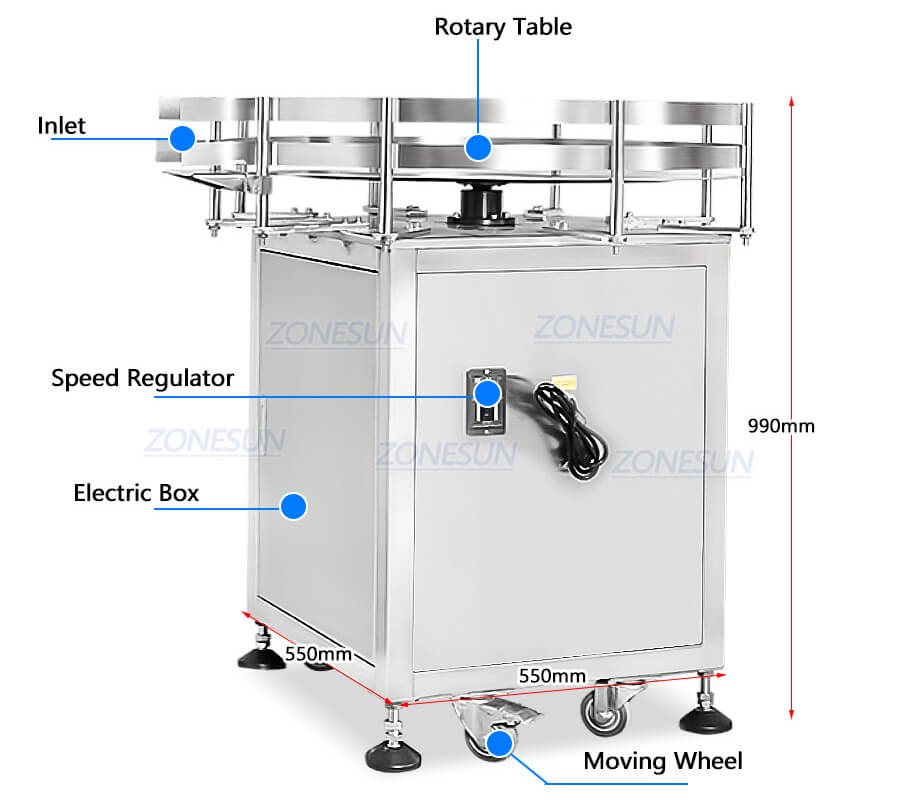

Bottle Sorting Machine

Machine model	ZS-SP800S
Bottle specifications	Square bottle/round bottle
Conveying speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power supply	200W
Turntable diameter	800 mm Available
Machine size	About 550*550*990mm
Package size	About 1050*1000*1130mm
Net weight/Gross weight	About 93kg/120kg

Product Details:

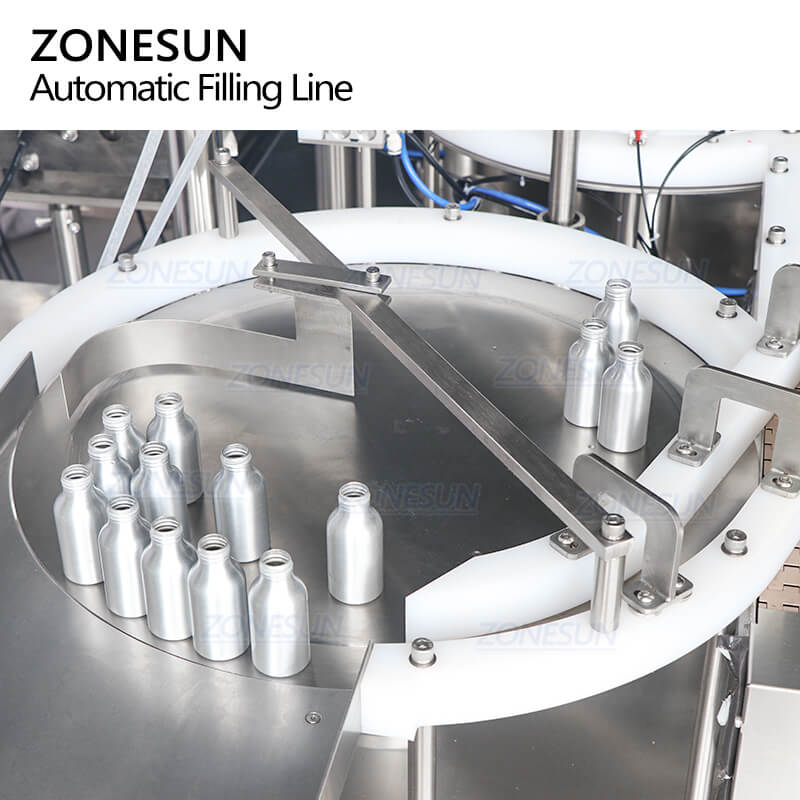

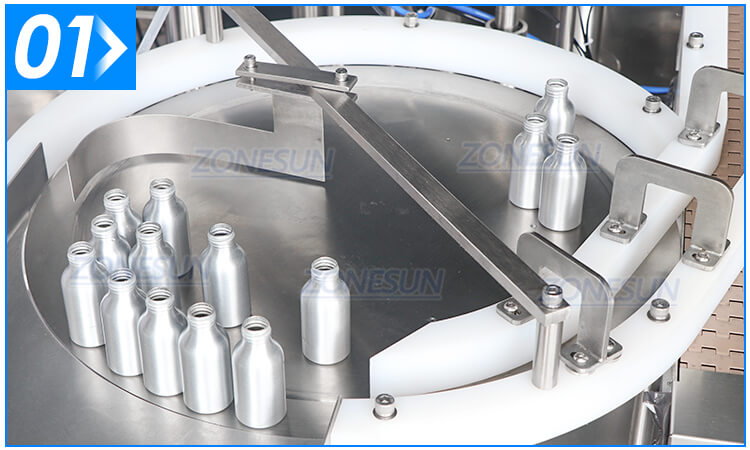

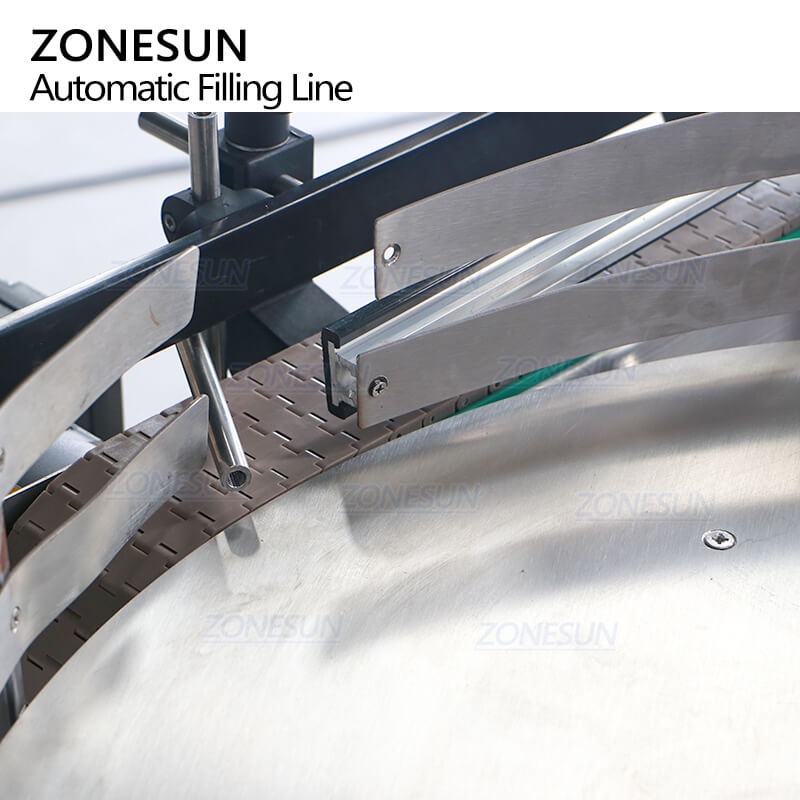

Bottle Sorting Structure
Make bottles be in order before filling & capping work, saves working space.

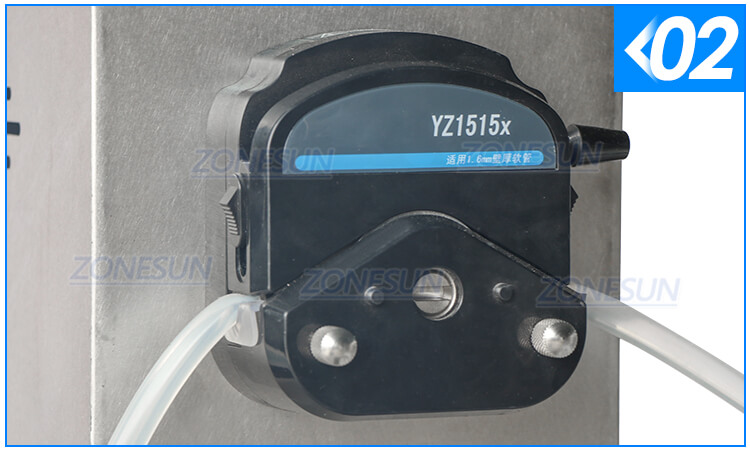

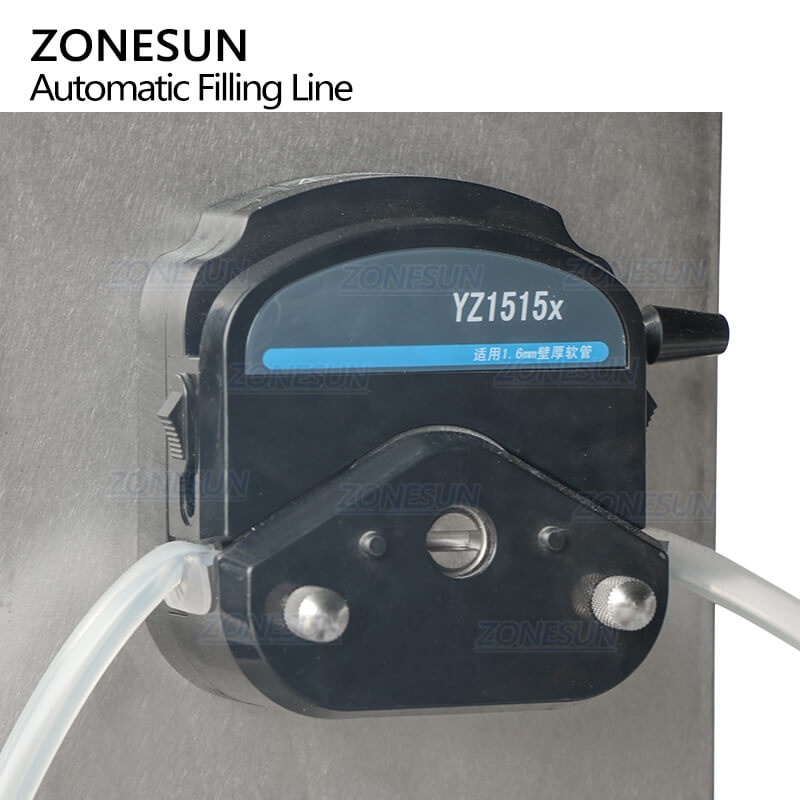

Peristaltic Pump
Liquid only pass through filling hose, improves packaging quality.

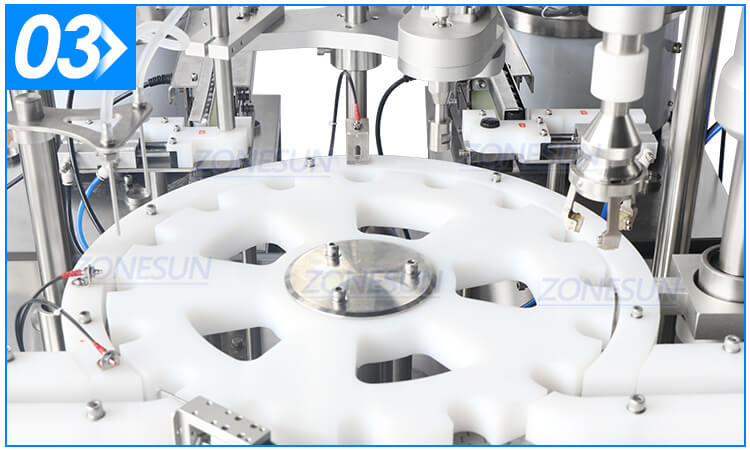

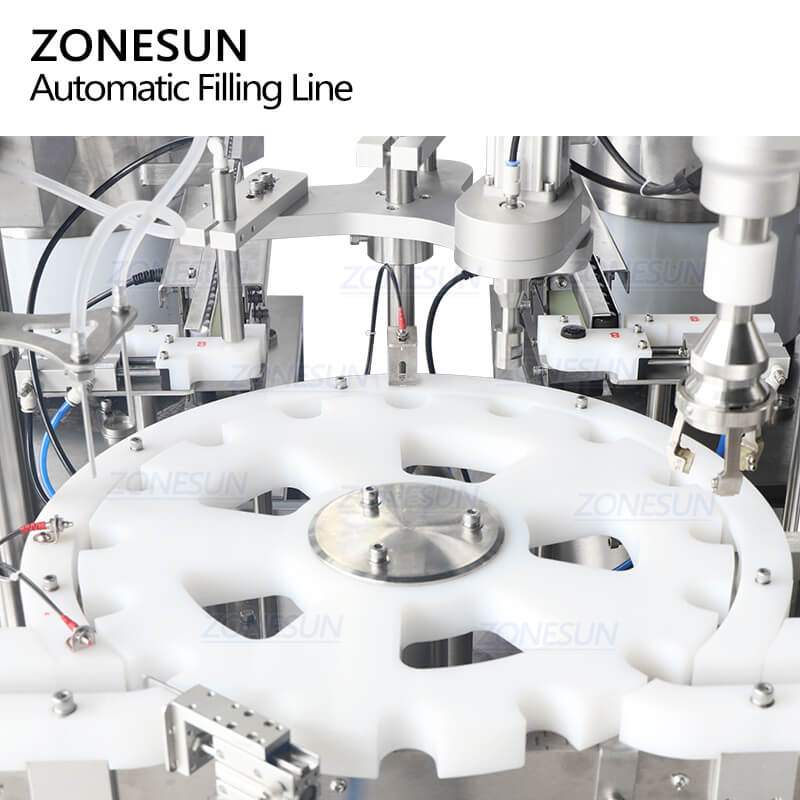

Cam System
Use cam system to control filling & capping work, each working station can work at the same time to improve efficiency(35-40BPM)

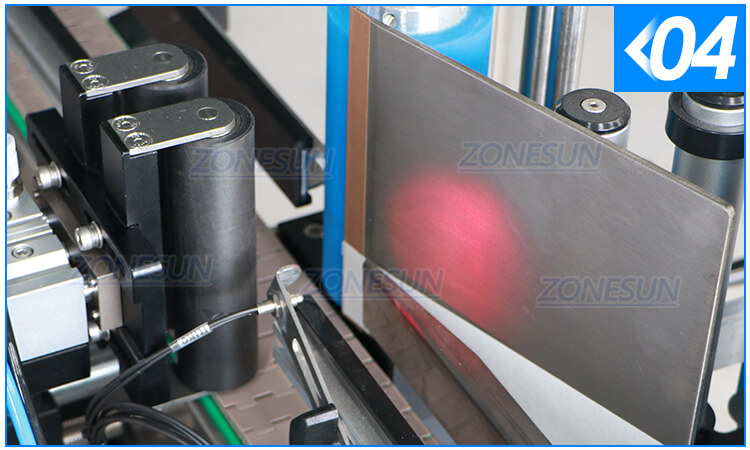

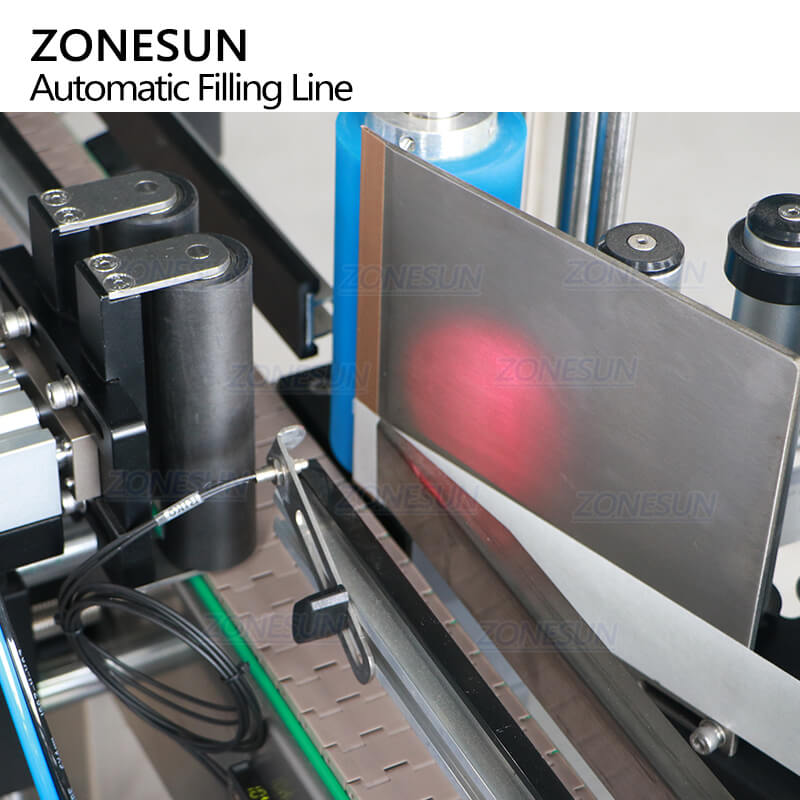

Labeling Structure
Using three roller labeling structure, this suits single side, double sides and wrap-around labeling.

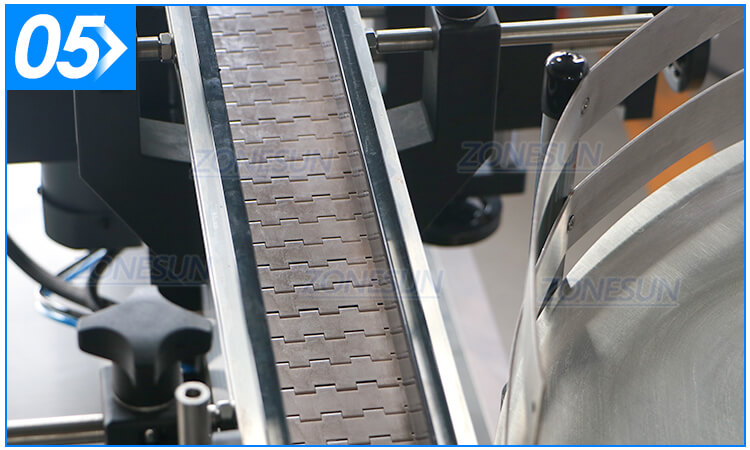

Chain Conveyor
Width and length are customizable based on product size, it ensures smooth conveying.

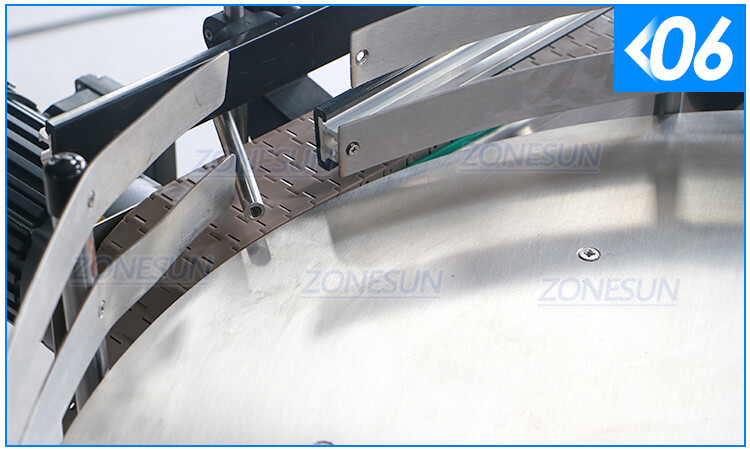

Bottle Sorting Machine
Can collect finished products and makes it easier to move to next production process.
