Product description:
The packaging system consists of a servo gear pump filler, an F-style bottle capper, and a single side labeler. It’s designed for automated production of engine oil on a small to medium scale.

Product Parameters:

Machine model	ZS-VTGP8D
Machine voltage	220/380V 3KW
Filling range	5-10L
Working capacity	8-16BPM(based on filling volume)
Filling pump	Gear Pump
Drive mode	Servo System
Filling nozzle quantity	8
Air consumption	4kgs*30L
Machine size	About 5800*1730*2550mm

Filling Machine Configuration
Machine Component	Brand	Origin
PLC	Siemens	Germany
Control Panel	Siemens	Germany
Pneumatic Components	Airtac	Taiwan,China
Intermediate Relay	APT	China
Servo Motor	Inovance	China
Fiber Optic Sensor	Panasonic	Japan

Machine model	ZS-XG441F
Machine voltage	110/220V 50-60HZ 2KW
Suitable cap size	30-120mm(Can be customized)
Suitable bottle height	Customized
Air pressure	0.7MPa
Working capacity	5-15BPM
Machine size	About 5000*1680*2350mm

Capping Machine Configuration
Machine Component	Brand	Origin
PLC	Mitsubishi/Siemens	Japan/Germany
Control Panel	Siemens	Germany
Pneumatic Components	Airtac	Taiwan,China
Intermediate Relay	Omron	Japan

Machine model	ZS-TB600R
Machine voltage	110/220V 50-60HZ 1500W
Labeling speed	About 40-100bottles/min(depending on bottle and label size)
Suitable product Size	About 30-200mm(H)*12-100mm(W)
Label size	20-300mm(W)*15-100mm(H)
Labeling accuracy	±1mm
Label roll inner diamete	φ75mm
Label roll outer diameter	φ350mm
Machine size	About 3030*1050*1540mm

Labeling Machine Configuration
Machine Component	Brand	Origin
PLC	Siemens	Germany
Control Panel	Siemens	Germany
Pneumatic Components	Airtac	Taiwan,China
Label Sensor	Sick	Germany

Product Details:

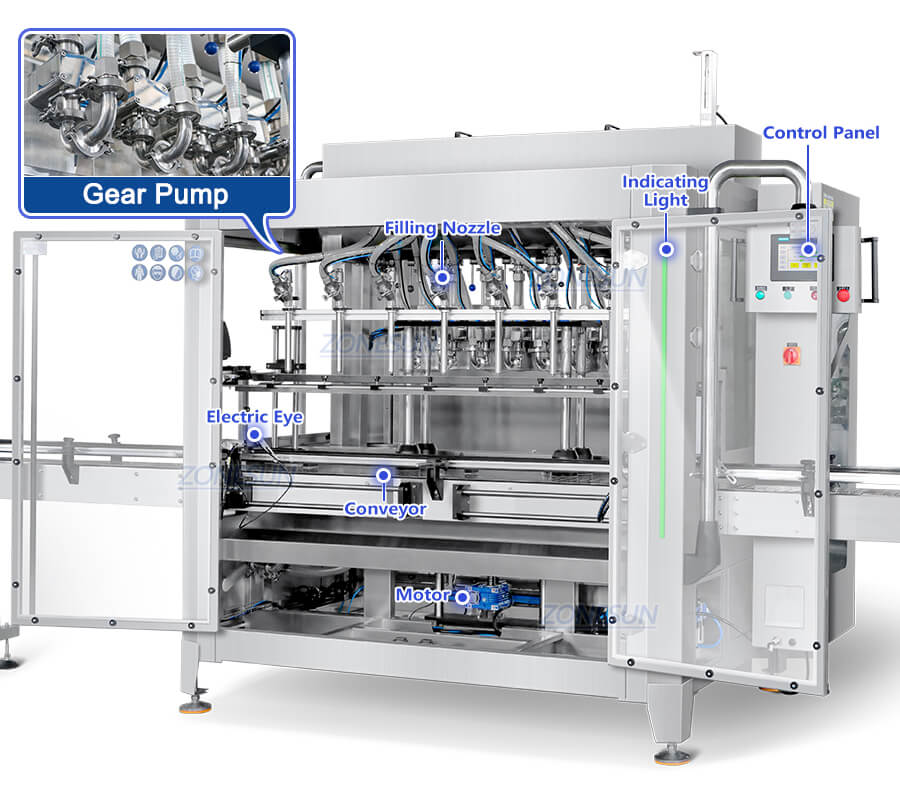

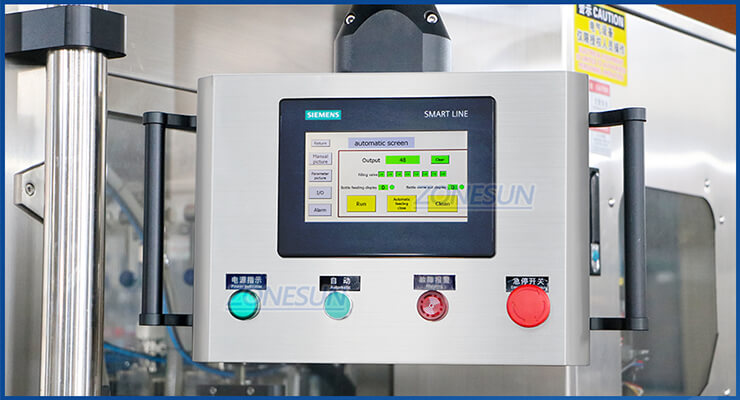

PLC Control Panel
Filling volume can be set easily, customizable interface makes machine debugging more conveniently.

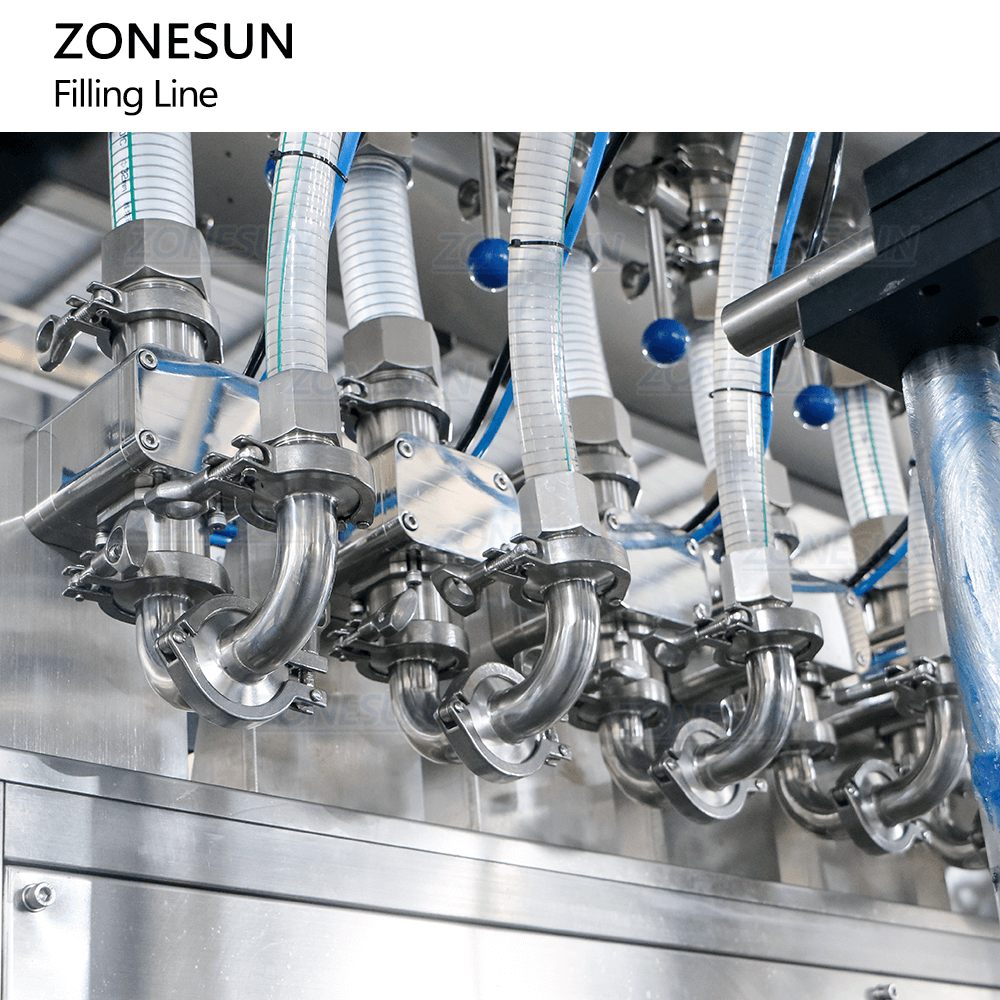

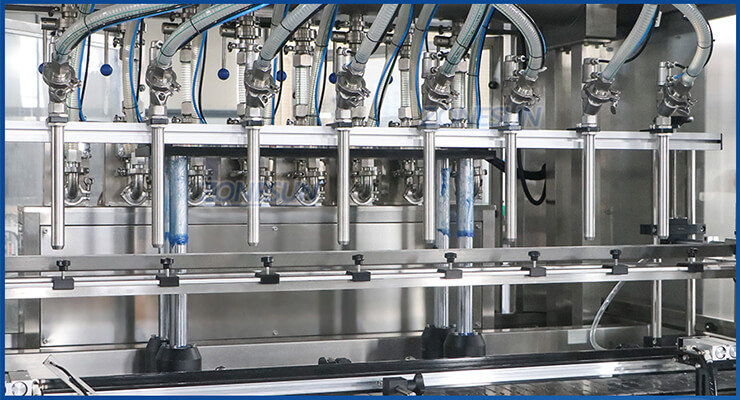

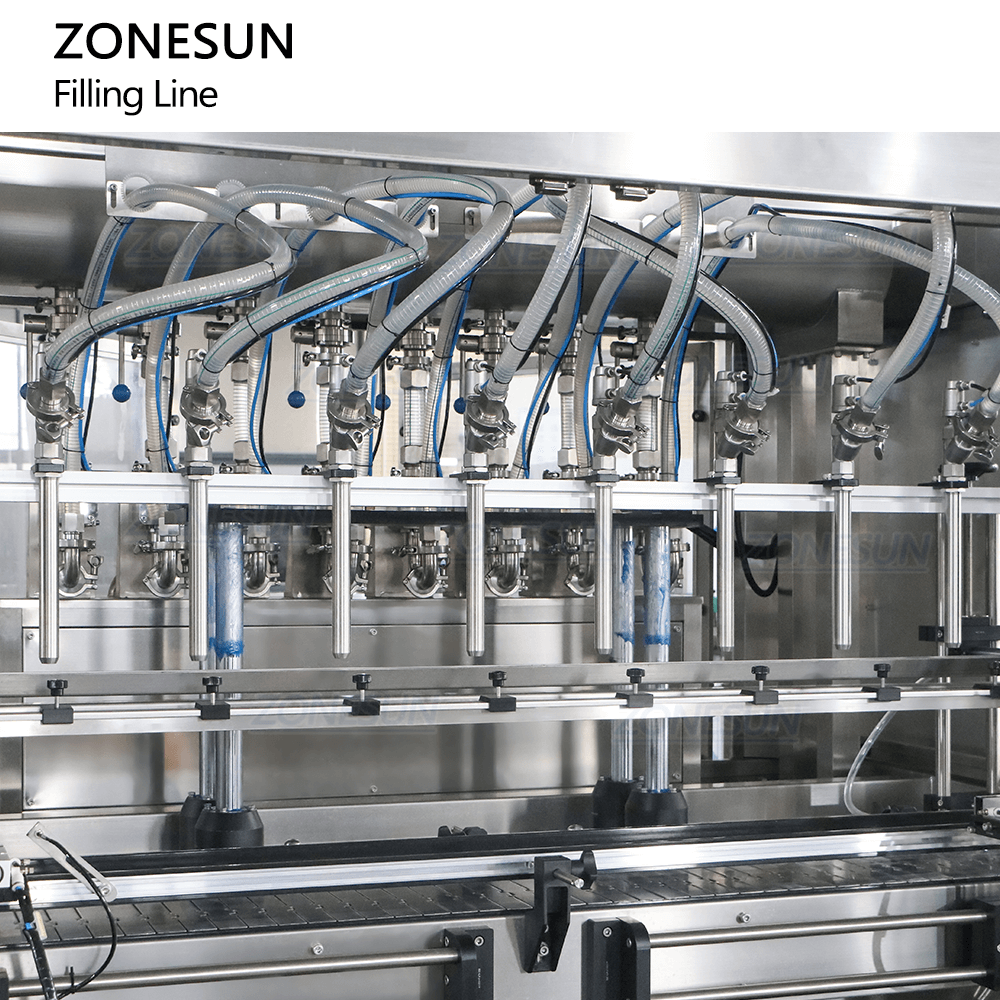

Filling Nozzles
Multi filling heads can be customized, anti-dripping structure ensures production quality.

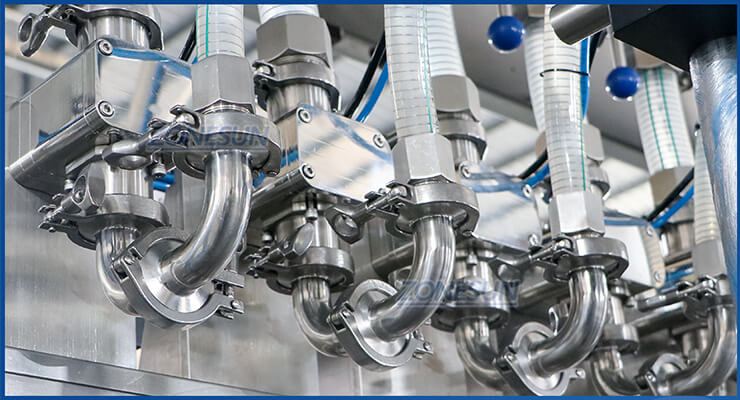

Servo Gear Pump
Filling work is controlled by servo gear pump,it has higher filling accuracy.

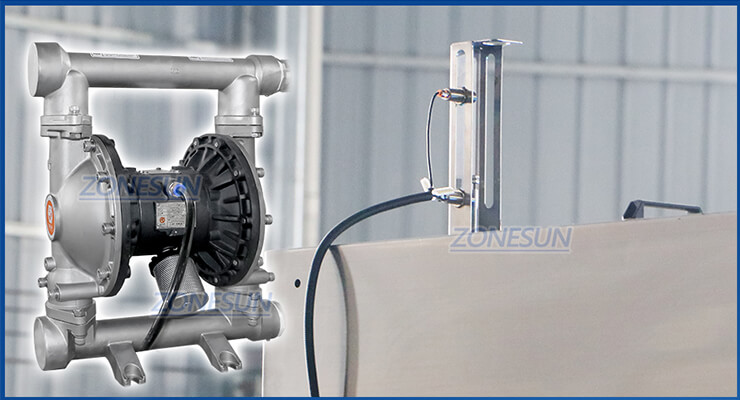

Feeding Pump
Can supply filling material in time once the liquid level sensor detects the material shortage.

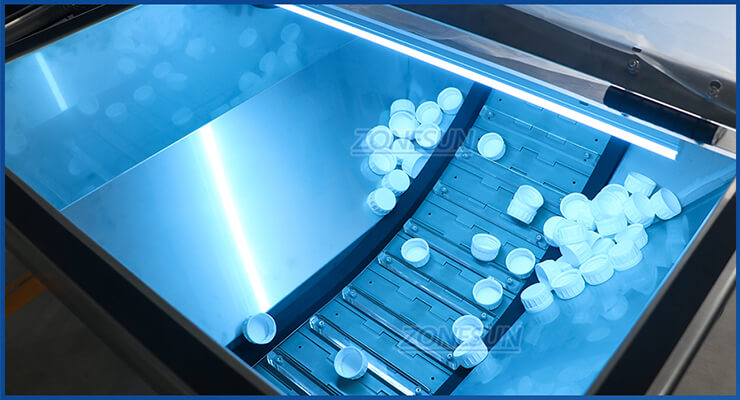

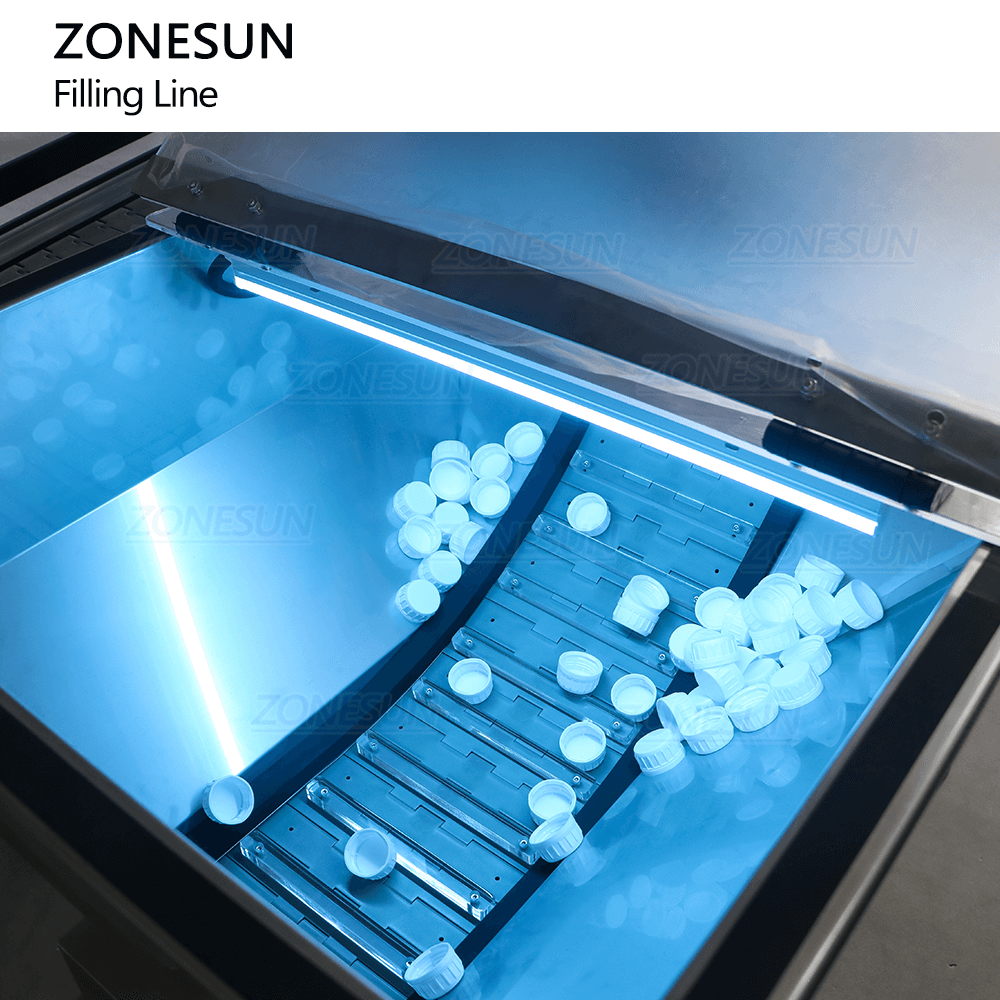

UV sterilization
Helps to kill bacteria, viruses, and other microorganisms .The cap elevator can lifts caps and moves them to the capping area.

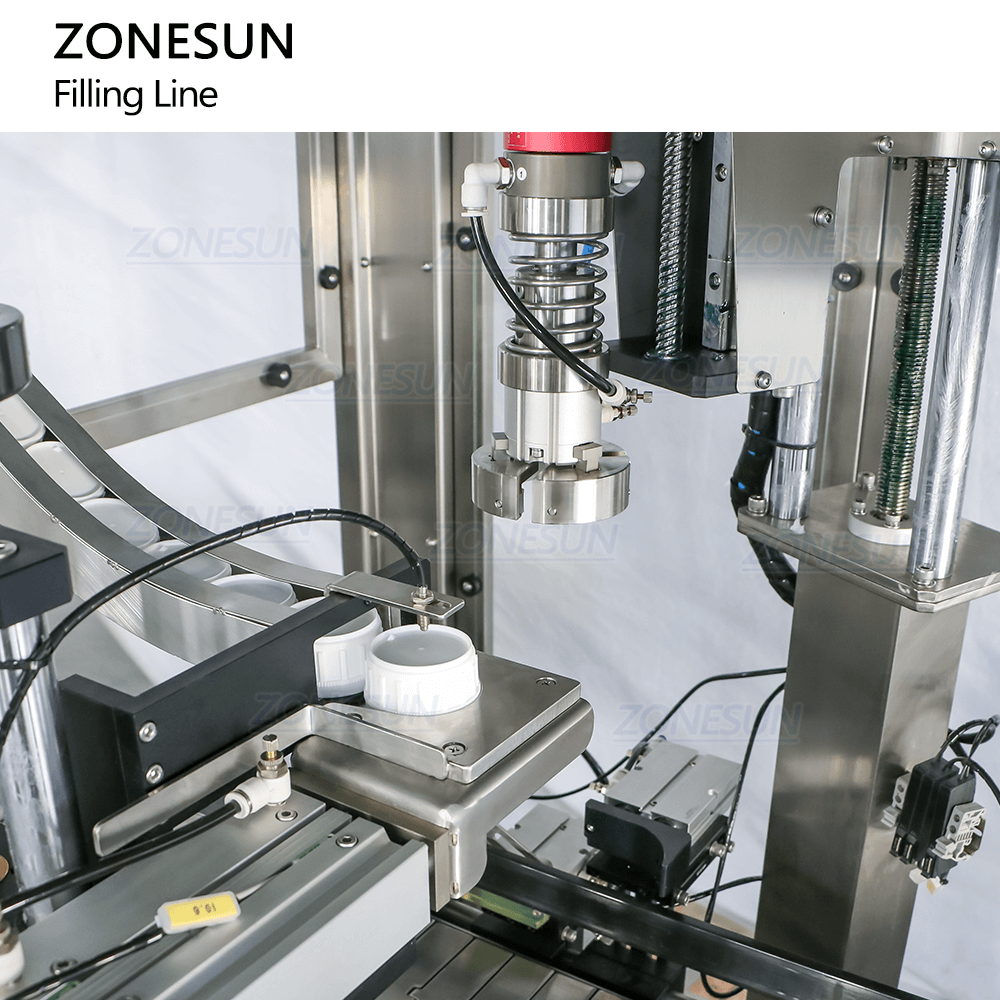

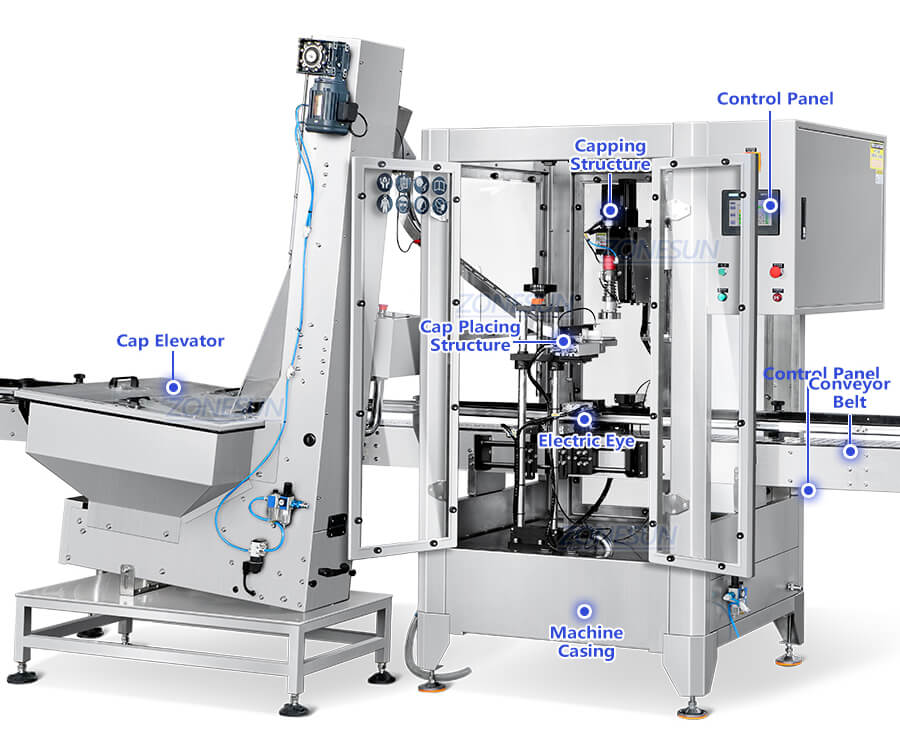

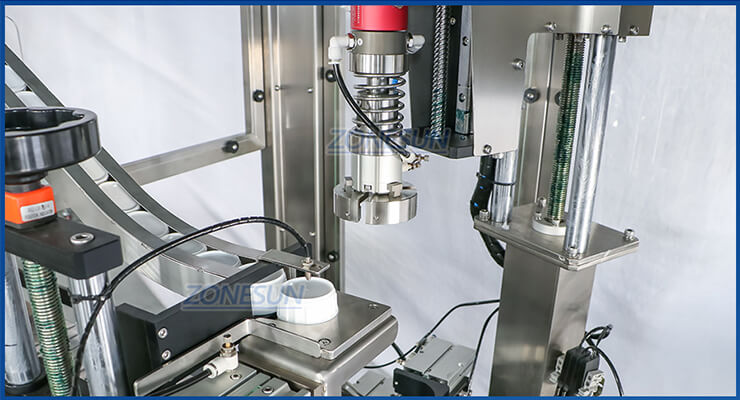

Capping Conveying & Capping Structure
Processes of passing and tightening caps are controlled by servo motor, capping torsion can be controlled more accuately.

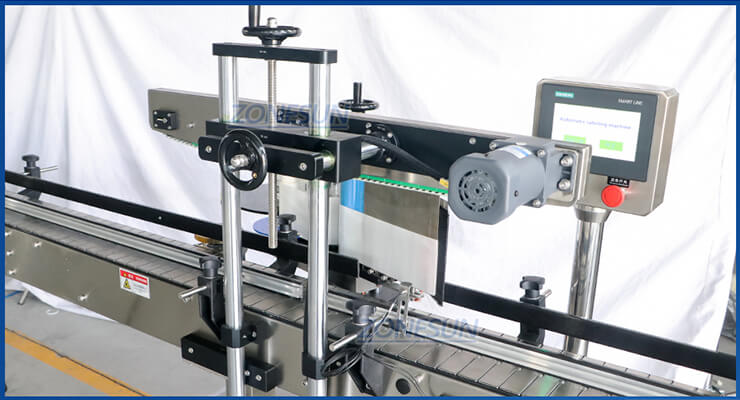

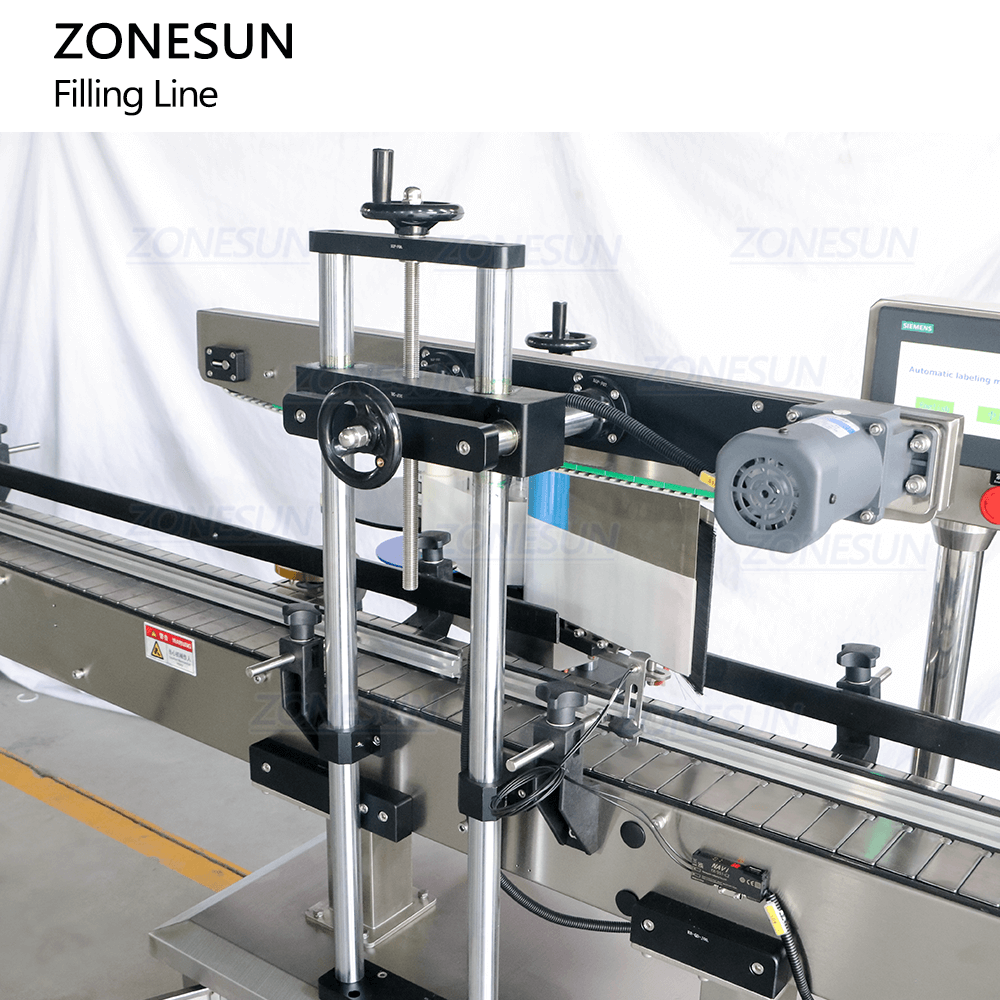

Labeling Structure
Suitable for single side labeling on flat bottles, working height can be adjusted as production need.

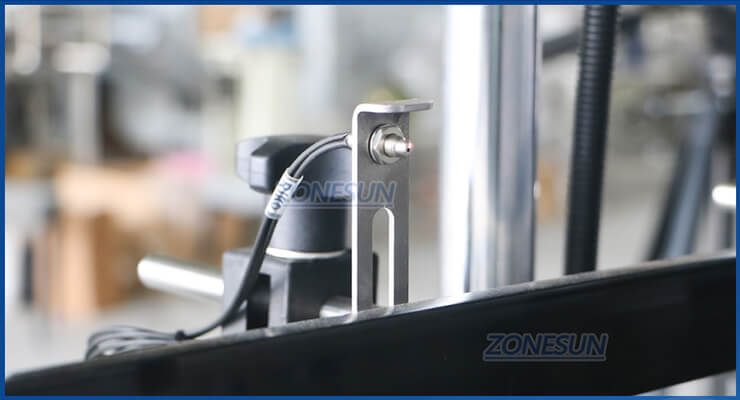

Electric Eye
Detect passing by bottles and control the machine to realize automated work.

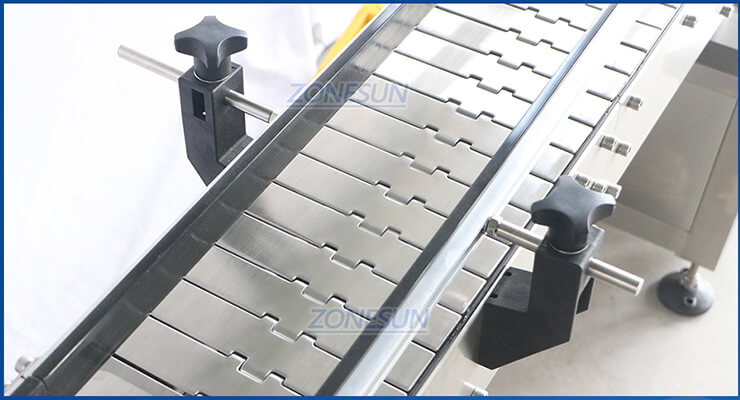

Chain Conveyor
Length and width can be customized as production need, it has large weight capacity.
