Essential Oil Cosmetic Production Line
This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better. It is widely used in food,beverage,cosmetics and daily chemical industries.
Description:
This production line can automatically arrange bottles,fill liquid,cap bottles,label stickers,print production date and collect bottles.The full automated operation helps to improve working efficiency.We also offer custom service for producing different products,make sure these machines can match your material better. It is widely used in food,beverage,cosmetics and daily chemical industries.
|

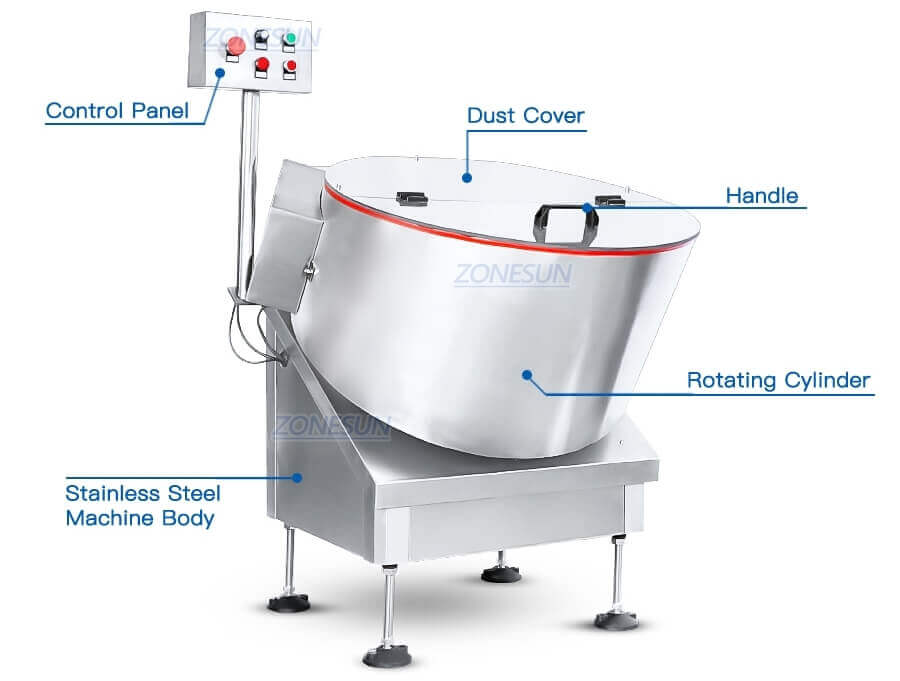

Machine Model
|
ZS-LP750
|
|
Machine Voltage
|
110/220V 50-60HZ
|
|
Machine Power
|
< 500W
|
|

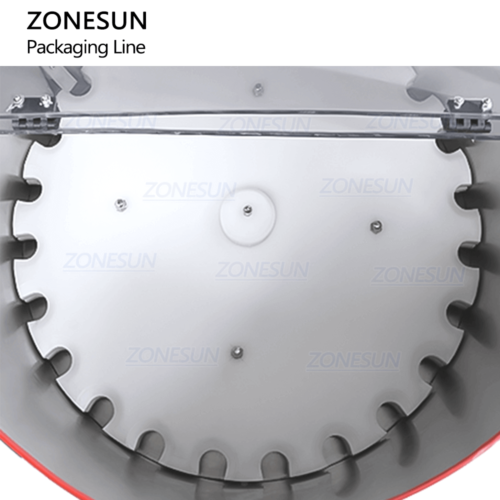

Rotary Plate Diameter
|
755mm
|
|
Suitable Bottle Diameter
|
Customized according to your bottles
|
|
Working Speed
|
20-80 bottles/min
|
|
Machine Size
|
About 570*685*1325mm
|
|
Machine Weight
|
About 177kg
|
|
Package Size
|
About 1110*1080*1490mm
|
|
Package Weight
|
About 208kg
|
|

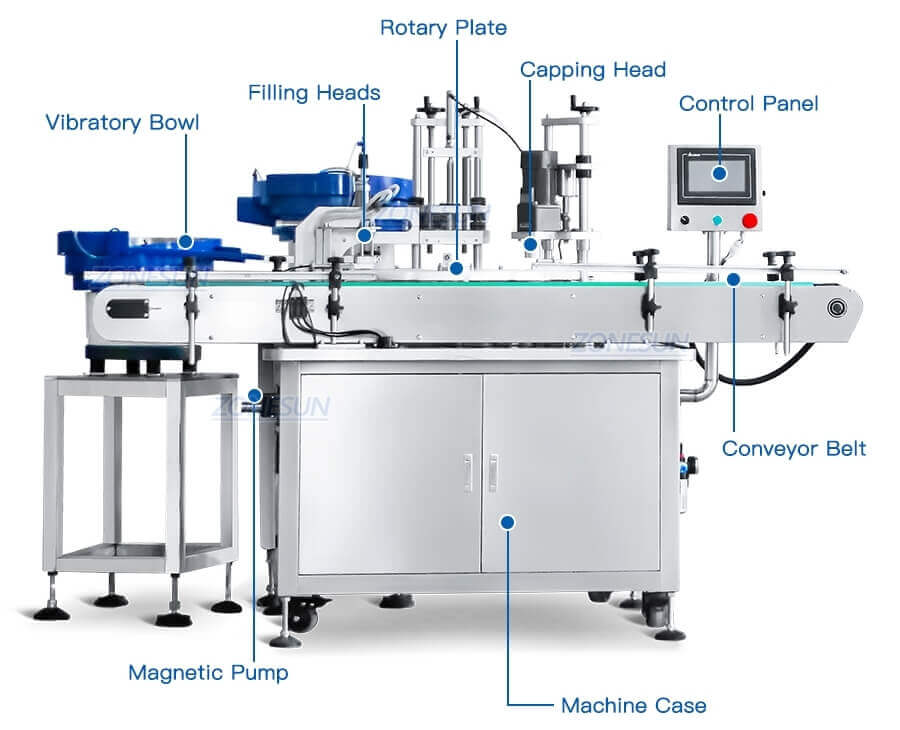

Machine Model
|
ZS-AFC14
|
|||
|
Voltage
|
220V/110V 50-60Hz
|
|||
|
Power
|
1.5kW
|
|||
|

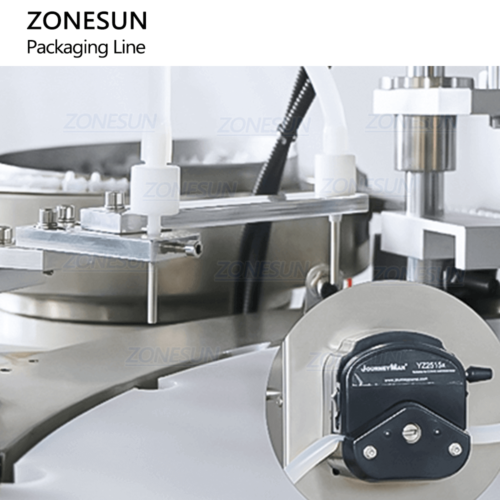

Filling Pump
|
316 Stainless Steel Magnetic Pump
|
|||
|
Working Speed
|
About 30 bottles/min
(depending on bottle size and filling materials)
|
|||
|
Max Flow Rate
|
4L/min*2(based on water)
|
|||
|
Suitable Bottle Size
|
Can be customized
|
|||
|
Suitable Bottle Cap Size
|
Can be customized
|
|||
|
Air Pressure
|
0.4-0.6MPa
|
|||
| Machine Size | About 2040*820*1430mm | |||
| Package Size | About 2140*1600*890mm | |||
|

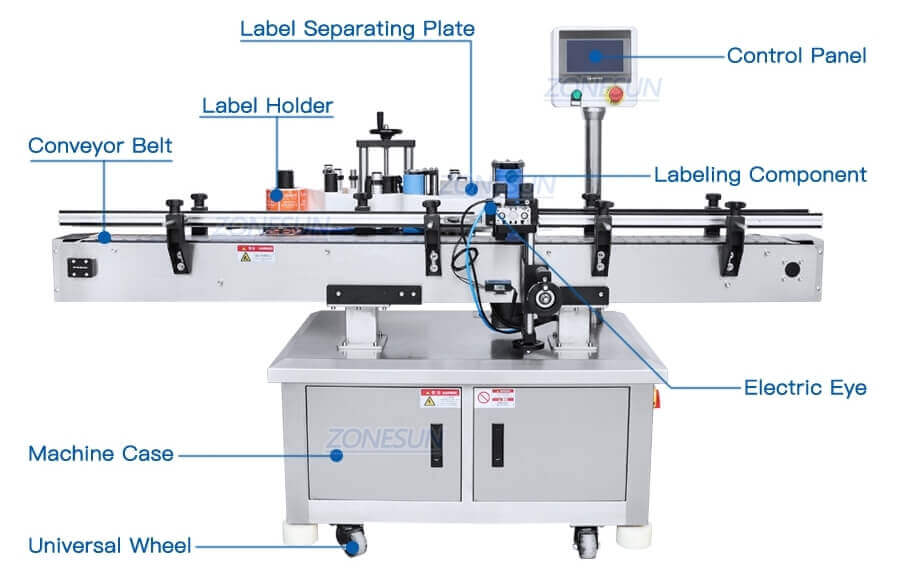

Model
|
ZS-TB260R
|
|
Power Supply
|
AC220V 50Hz/60Hz 1000W
|
|
Labeling Capacity
|
25-50 bottles/min(depending on bottle size)
|
|
Labeling Accuracy
|
??1.0mm
|
|
Suitable Bottle Diameter
|
??12-100mm
|
|
Label Size
|
(L)20-300mm (H)15-150mm
|
|
Roll Inside Diameter
|
??76mm
|
|
Roll Outside Diameter
|
??350mm
|
|
Conveyor Size
|
112*2000mm(W)
|
|
Machine Size
|
About 2000*820*1380mm
|
|
Package Size
|
About 2100*890*1520mm
|
|
Net Weight/Gross Weight
|
About 180kg/250kg
|
|

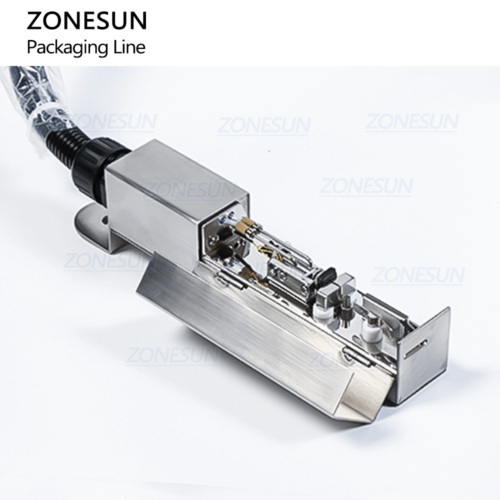

Power supply
|
220V/50HZ, 150VA
|
|
Number of lines printed
|
1-4 lines
|
|
Character height
|
1.5- 18mm
|
|
Printing speed
|
1024 seconds (5*7)
|
|
Printing direction
|
Positive sequence/reverse order/reverse
|
|
Printing distance
|
the nozzle and the object to be sprayed are kept within 3cm
|
|
Printing materials
|
paper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
|
|
Store information
|
The system can store 1000 print information
|
|
Font dot
|
alphanumeric 5??7 16??16
|
|
Machine size
|
length 370mm width 260mm height 500mm
|
|
Interface
|
RS232 serial interface
|
|
Ink consumption
|
70 million words per print (5*7)
|
|
Machine weight
|
About 21kg
|
|
Package size
|
About 560*350*570mm
|
|
Gross weight
|
About 25kg
|
|

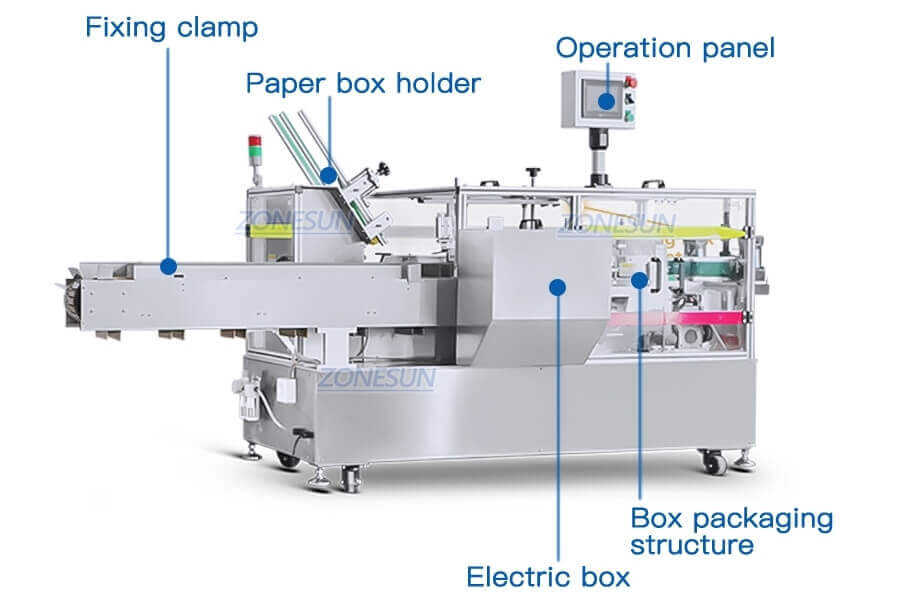

Machine Model
|
ZS-MSZH50
|
|
Power Supply
|
110V/220V/380V
|
|
Power
|
About 0.75KW
|
|
Work Flow
|
Convey material??Put in the box manually??Automatically take out the box??Automatic folding box??Automatically load materials into the
box??Convey finished product
|
|
Work Efficiency
|
About 30-60 pieces/min
|
|
Paper Box Quality Requirements
|
300-450g/m3,carton indentation is not less than 0.4MM,with pre-folding effect,no glue leakage in the box
|
|
Suitable Box Specifications
|
Skincare product:120-200* 30-70 *20-60mm (L*W*H)
Facial mask:135-200*20-150 *20-40mm (L*W*H)
(Can be ordered according to customer requirements)
|
|
Air Pressure
|
0.6-0.8Mpa
|
|
Air Consumption
|
130 L/H
|
