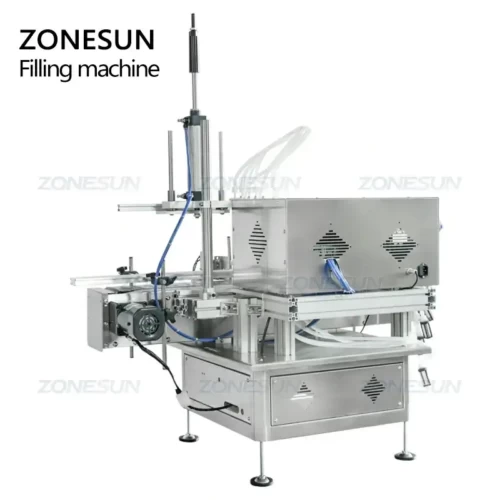

Desktop Magnetic Pump Filling Machine

Desktop Magnetic Pump Filling Machine

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.

Product Detail

Product Tags


Desktop Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

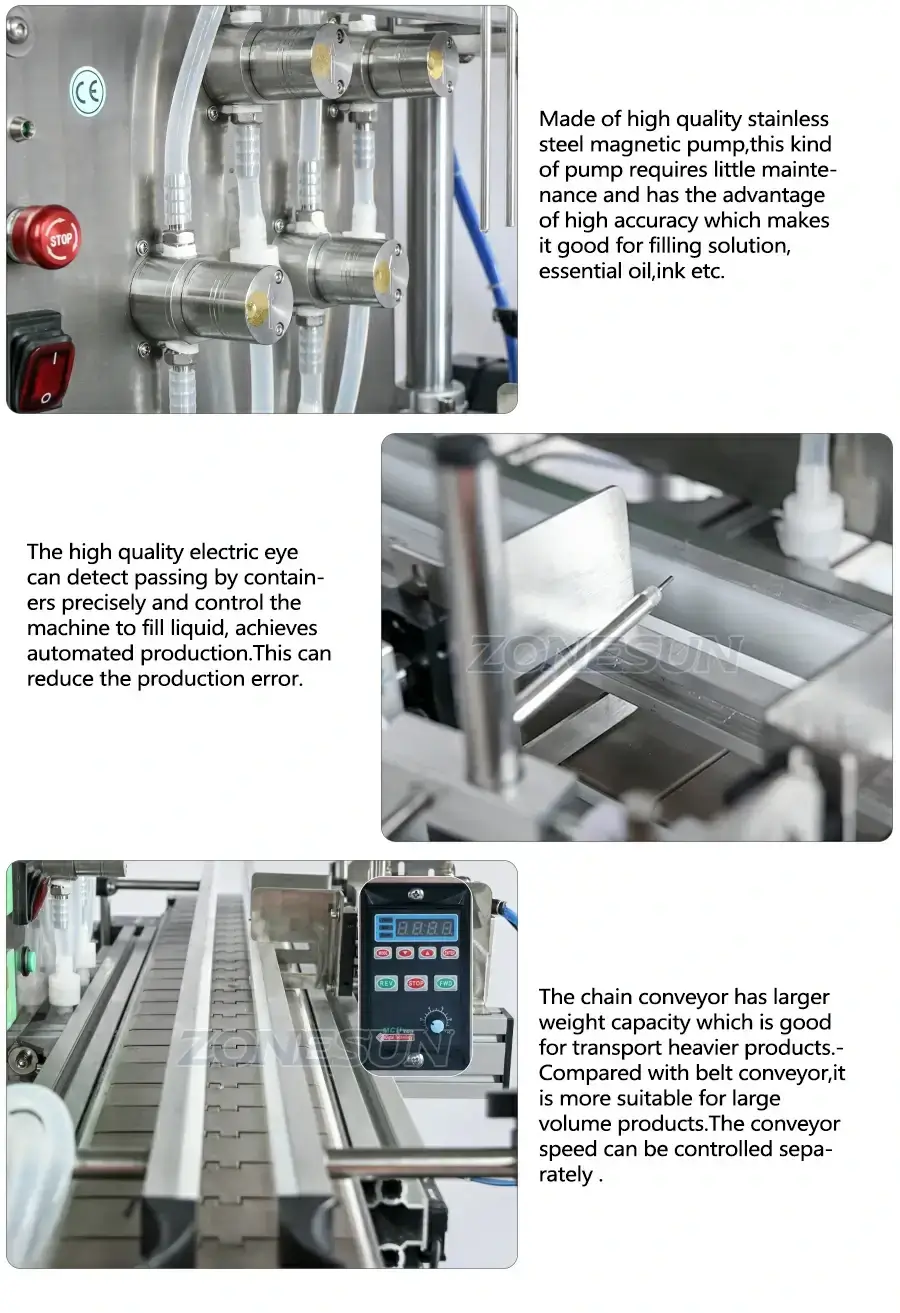

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.

Desktop Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-DTMP4AL
Power supply110/220V 50-60HZ 300W
Maximum flow velocity
6000ml/min
(Each nozzle and base on water)
Working speed20-30 bottles/min
Air pressure0.3-0.4MPa
Filling accuracy≤±1% (For water)
Diameter of filling nozzle6/8mm
Delay range0.01-999.9s
Count range1-99999 Times
Filling volume3-1000ml
Size of air compressor connectorOD8mm
Machine sizeAbout 1100*580*1110mm
Package sizeAbout1140*650*840mm
Net weight/Gross weightAbout 74kg/90kg

Desktop Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Desktop Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITEDDesktop Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED
