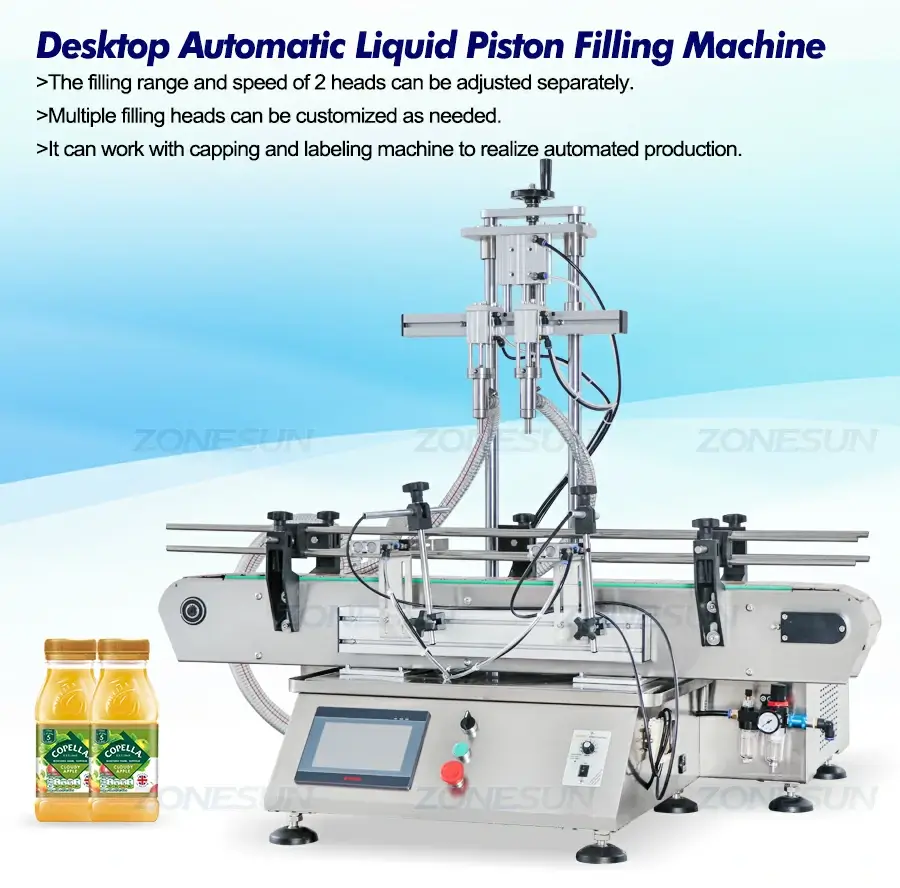

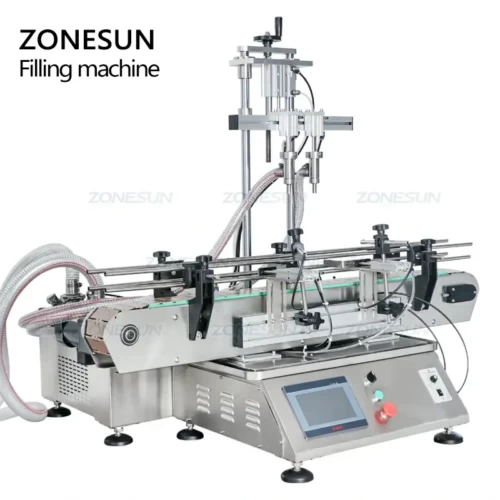

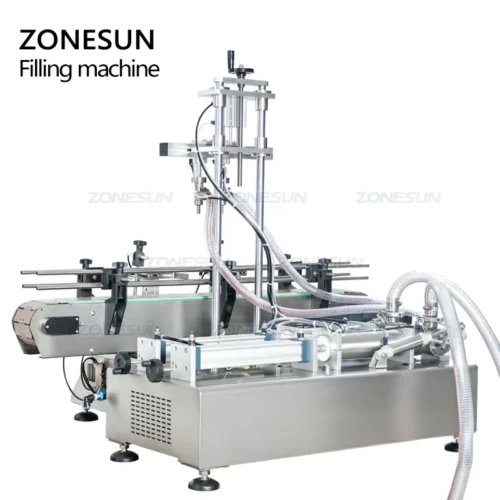

Desktop Liquid Filling Machine
Description:
Designed for filling liquid,this machine can work with desktop capping machine and labeling machine to save your working space and improve your production efficiency.We can customize multiple filling nozzles as your production need.This machine is widely used in food,daily chemical,cosmetics industries.
Parameter:
| Machine model | ZS-DTHSP2 |
| Voltage | 220V/110V 50-60Hz |
| Power | 400W |

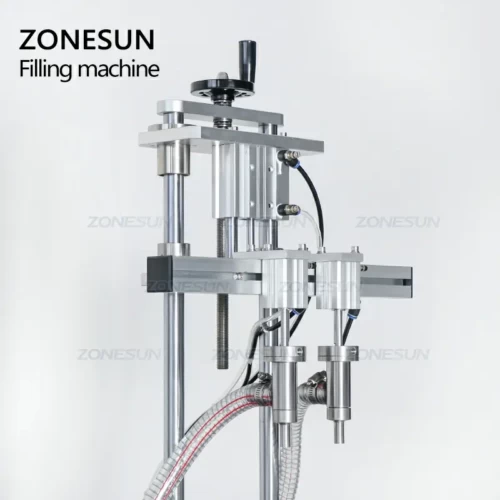

| Filling Head | 2 Heads(Can be customized) |
| Filling range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working speed | 10-30 bottles/min(depending on bottle size and liquid) |
| Filling Heads Diameter |
OD 10mm(Can choose other sizes) |
| Air Pressure | 0.4-0.6Mpa |
| Filling Accuracy | ≤±1% |
| Machine Size | About 1270*1030*1200mm |
| Machine Weight | About 112kg |
