Product Description:

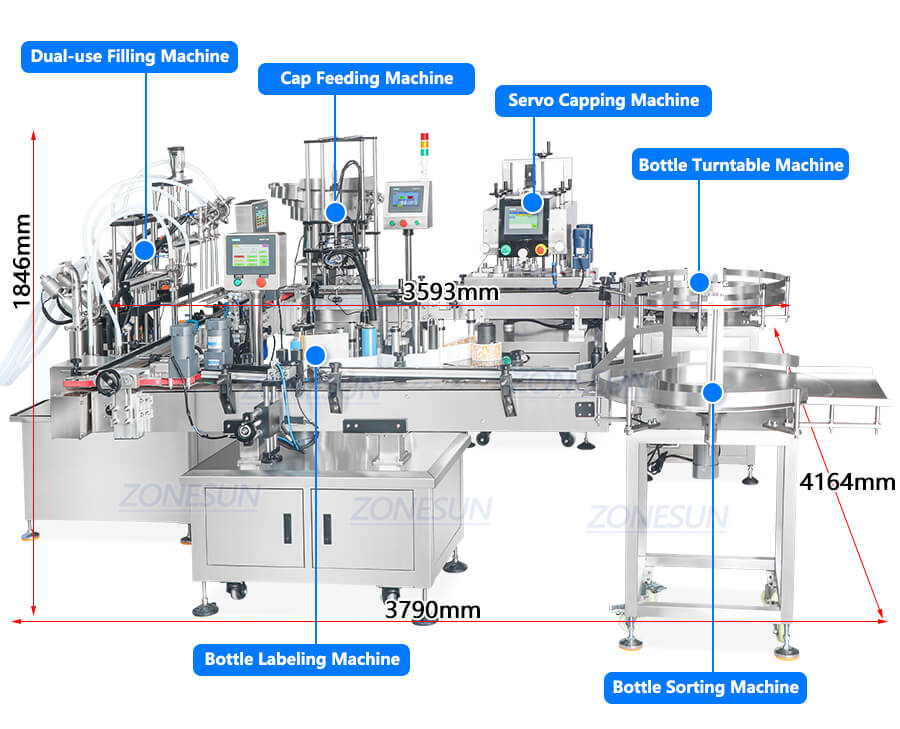

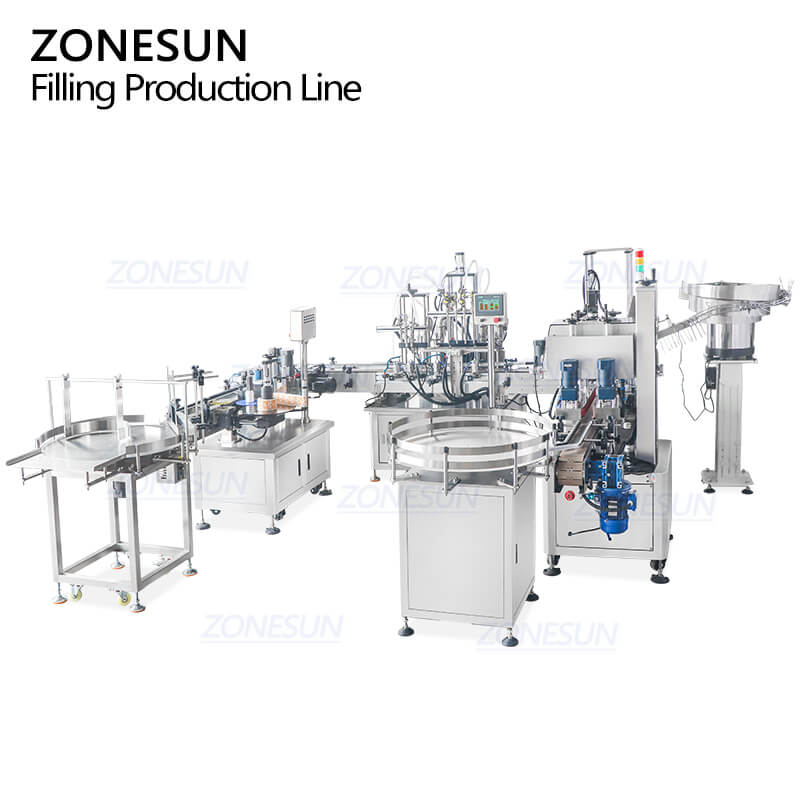

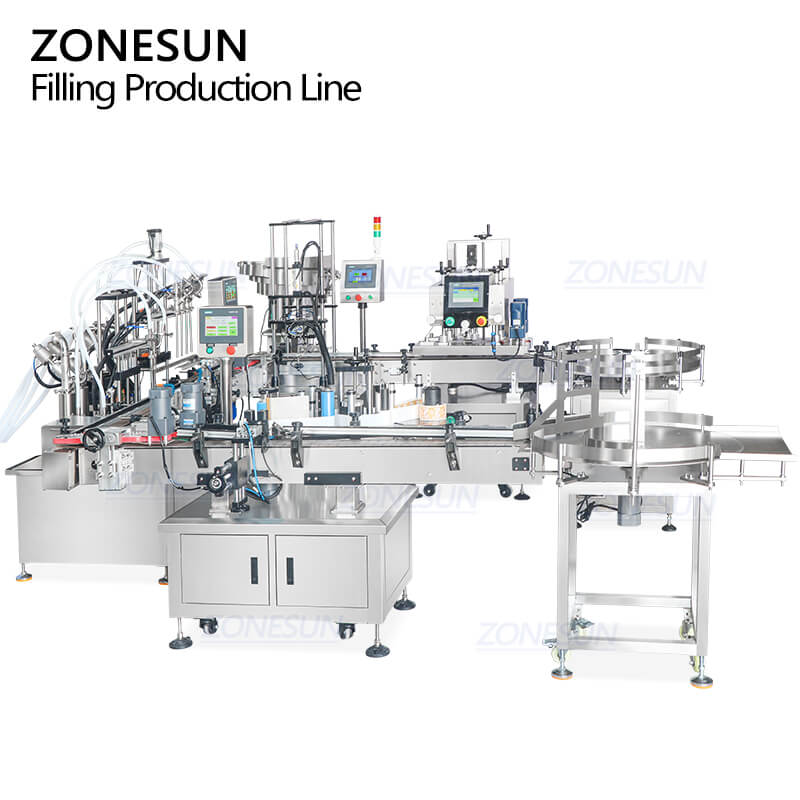

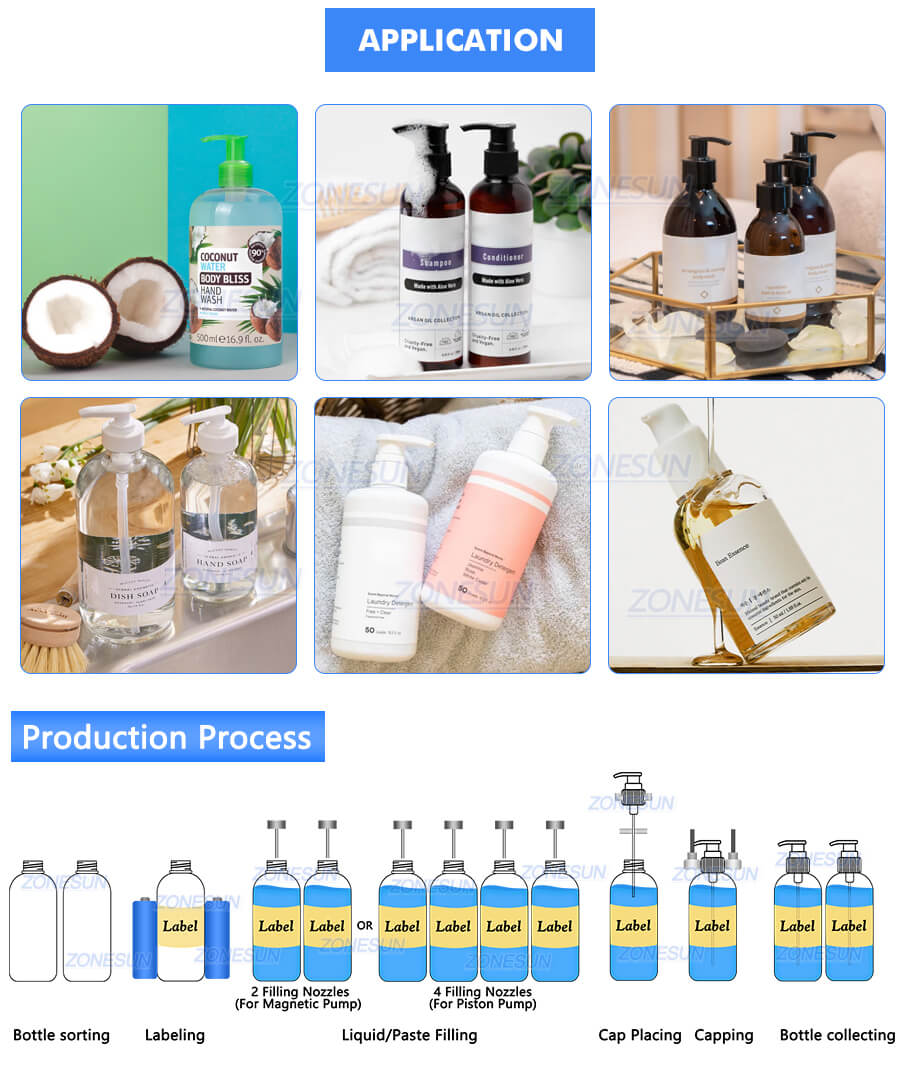

This filling system suits for filling liquid and paste, it consist of bottle sorting machine, automatic filling machines, servo motor capping machine, labeling machine and bottle turntable machine. It is the ideal choice for packaging shampoo, body lotion, laundry detergent etc.

Product Parameters:

Bottle Sorting Machine

Machine model	ZS-LP800N
Power supply	220V/110V 50-60Hz 200W
Turntable diameter	800mm
Suitable bottle diameter	20-100mm
Suitable bottle height	30-320mm
Working speed	40-60 bottles/min(depending on bottle size)
Package size	About 1230*1010*1260mm
Gross weight	About 141kg

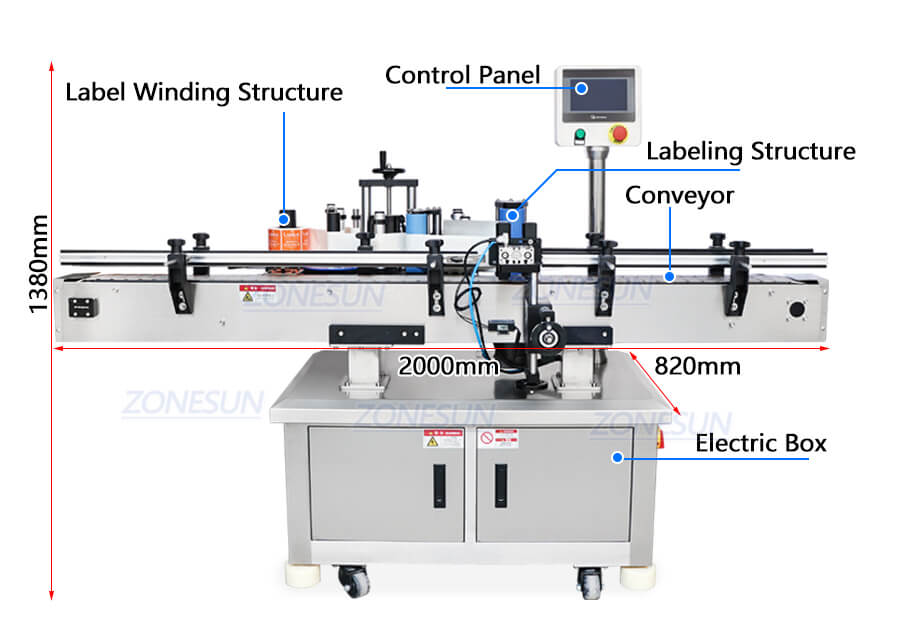

Bottle Labeling Machine

Model	ZS-TB260R Labeling Machine
Power supply	AC220V 50Hz/60Hz 1000W
Labeling capacity(bottles/min)	25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm)	±1.0mm
Suitable Bottle Diameter	Φ12-100mm
Label size(mm)	(L)20-300mm (H)15-150mm
Roll inside diameter(mm)	Φ76mm
Roll outside diameter(mm)	Φ350mm
Conveyor size	112*2000mm(W)
Machine size	About (L)2000*(W)820*(H)1380(mm)
Machine weight	About 180kg
Packing size	About (L)2100*(W)890*(H)1520(mm)
Package weight	About 250kg

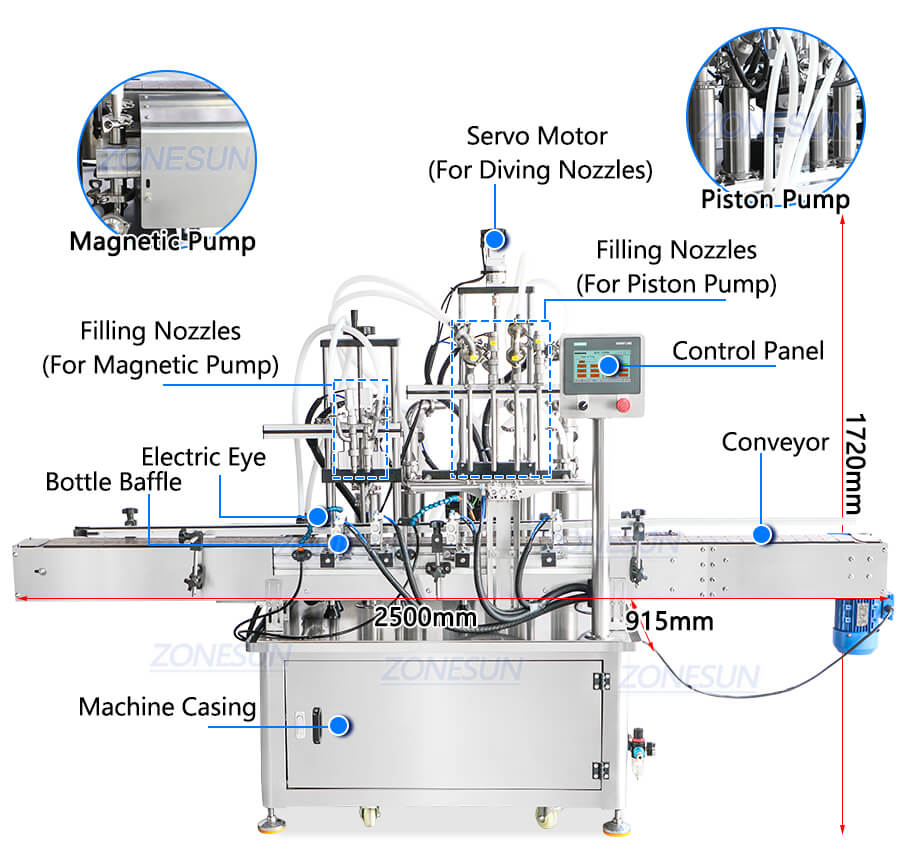

Dual-use Filling Machine

Machine model	ZS-SVYT4D
Machine voltage	110/220V 50-60HZ 4KW
Filling pump	Magnetic Pump	Piston Pump
Filling nozzle quantity	2	4
Filling range	50-1000ml(can be customized)
Working capacity	About 20-70 BPM
Filling accuracy	±1%
Air pressure	0.5-0.8 Mpa
Machine size	About 2500*915*1720mm
Package size	About 2140*1000*1920mm
Package weight	About 510kg

Cap Feeding Machine

Machine model	ZS-XG445S
Voltage	110/220V
Power	1.5KW
Capacity	5-25 Bottle/Min(based on bottle and cap size)
Air pressure	0.5-0.8Mpa
Suitable bottles	Customize according to sample
Cap feeding way	Pneumatic fetch
Machine size	About 3000*1300*2100mm(L*W*H)
Packaging size	About 1090*640*1960mm(machine)+About 1060*970*1570mm(Vibratory bowl sorter)
Packaging weight	About 210kg(machine)+About 106kg(Vibratory bowl sorter)

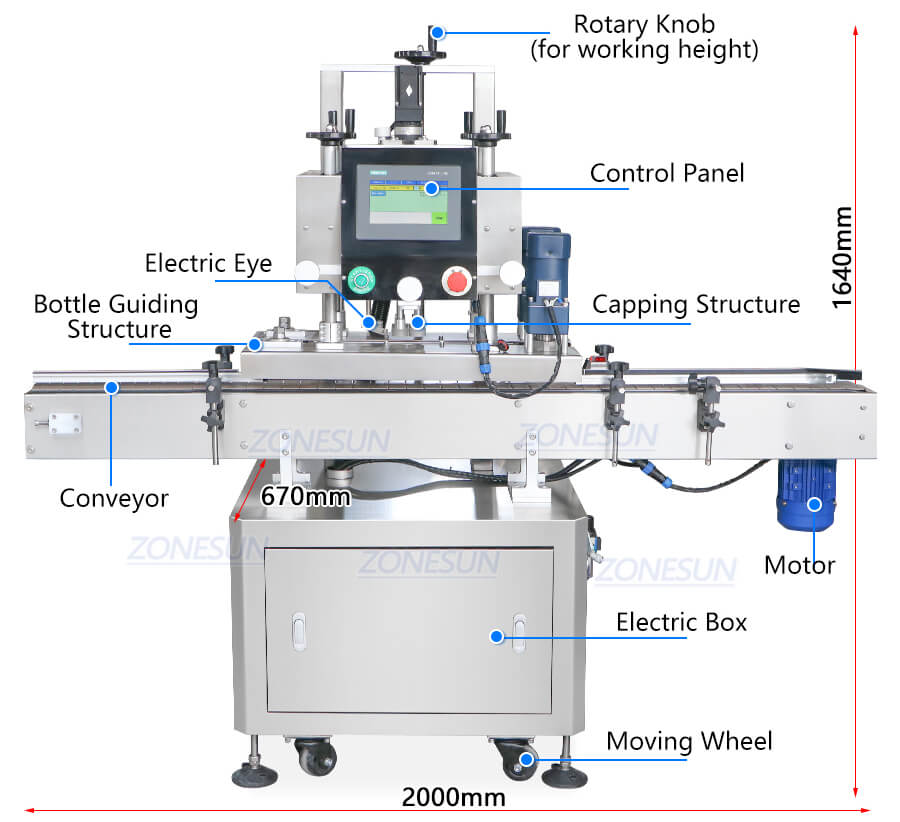

Servo Capping Machine

Machine model	ZS-XG440S
Voltage	110/220V 50-60HZ
Machine power	About 2.8KW
Suitable bottle size	H=50-300mm φ=30-120mm
Suitable cap size	φ=20-60mm
Working speed	About 30-100 bottles/min
Machine size	About 2000mm*750mm*1650mm
Machine weight	About 300kg

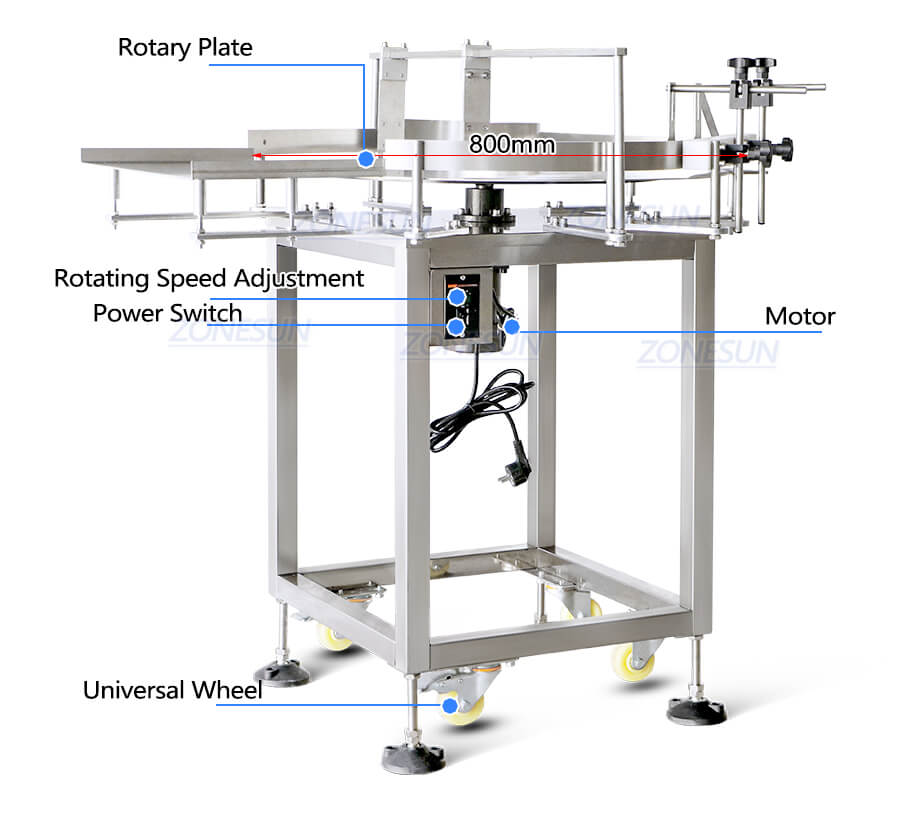

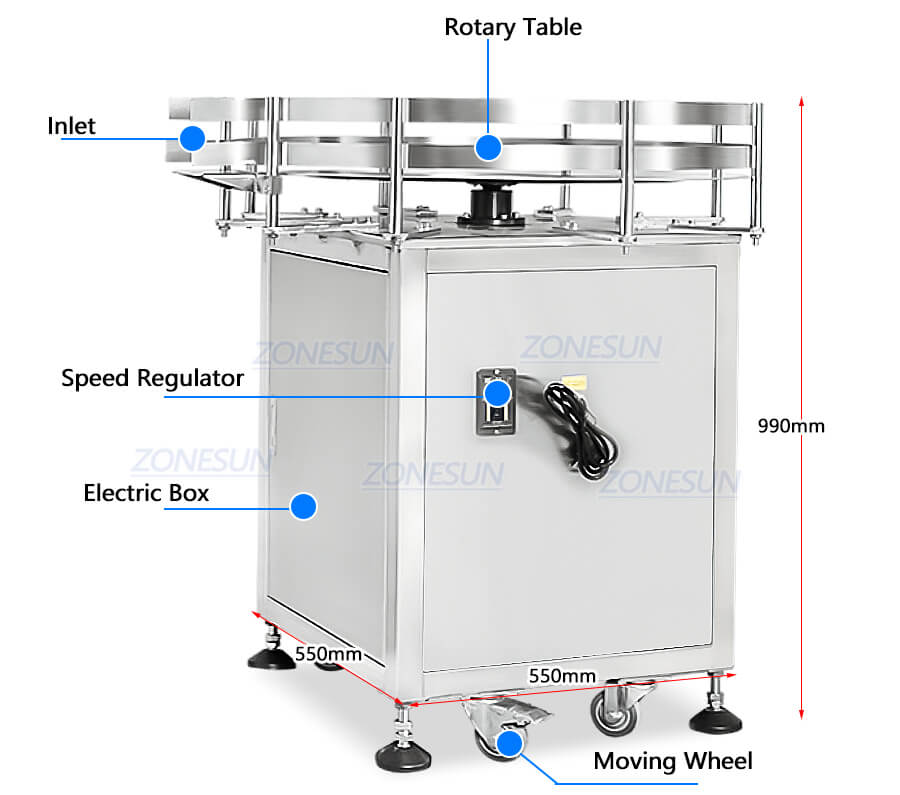

Bottle Turntable Machine

Machine model	ZS-SP800S
Bottle specifications	Square bottle/round bottle
Conveying speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power supply	200W
Turntable diameter	800 mm Available
Dimensions	About 550*550*990mm
Package size	About 1050*1000*1130mm
Net weight/Gross weight	About 93kg/120kg

Product Details:

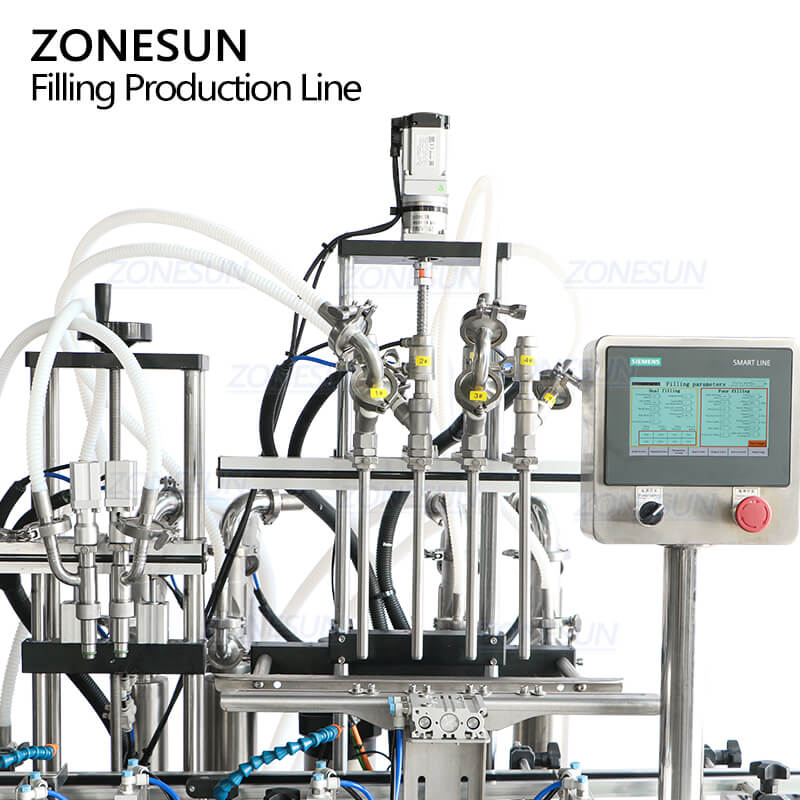

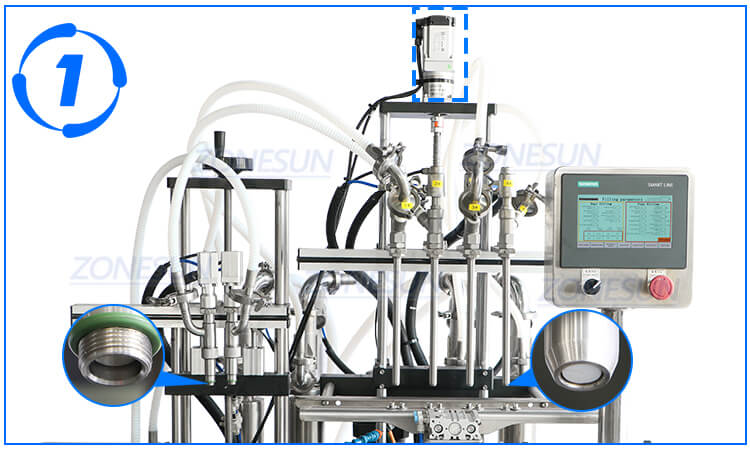

Anti-dripping Filling Nozzle
Servo motor can also controls the up and down of the filling nozzles (for paste) to prevent material from spraying out.

Filling System

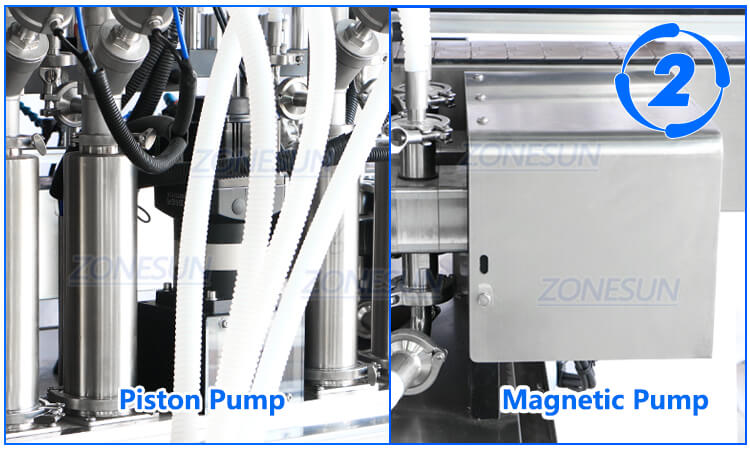

Equipped with magnetic pump and piston pump at the same time, it is good for accurate filling of liquid and paste.Choose one of them to work during filling.

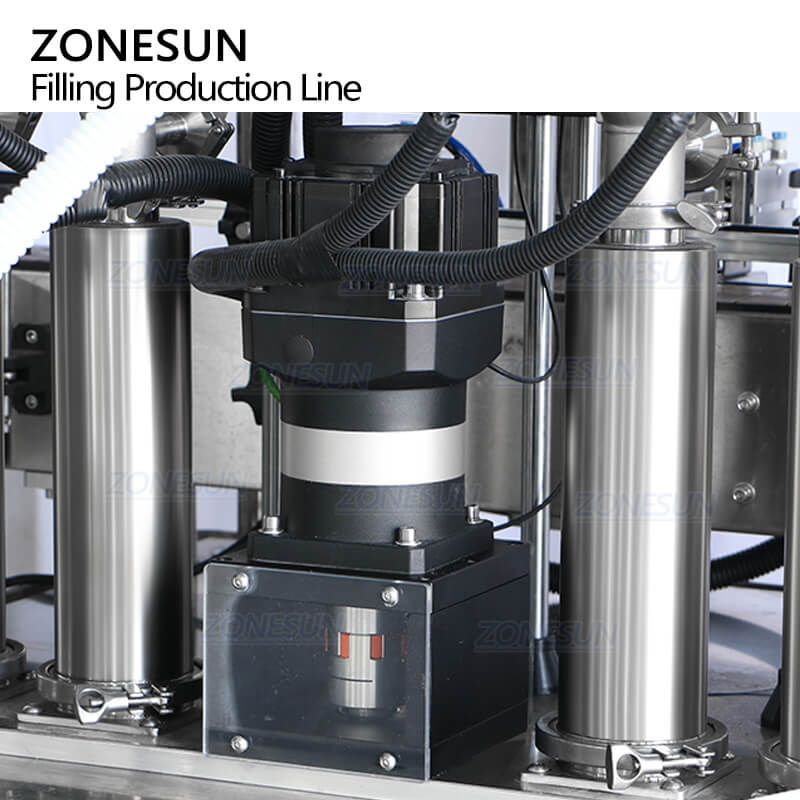

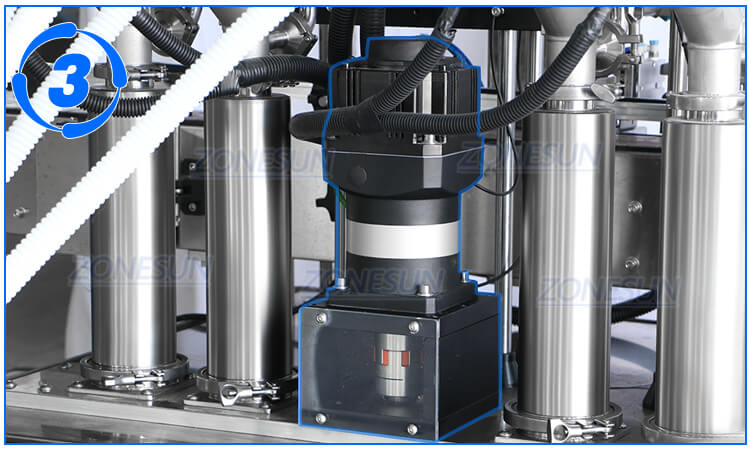

Servo Motor
Makes machine operation more conveniently and improves filling accuracy.

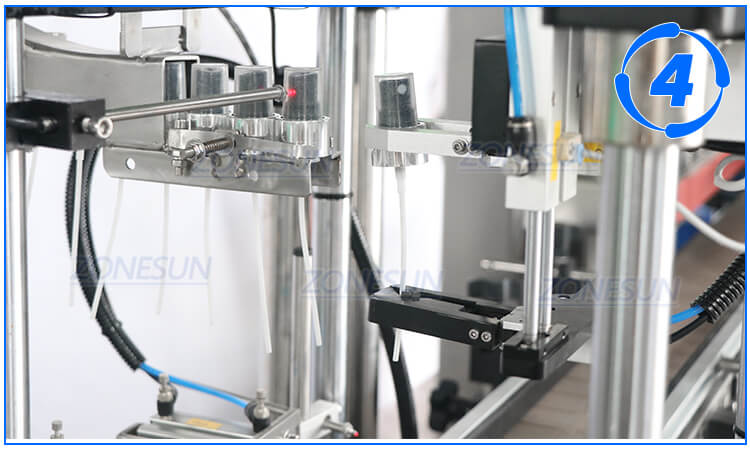

Cap Feeding Structure
Designed for pump caps with long & hard tube, imitate human hands to take caps and accurately place caps.

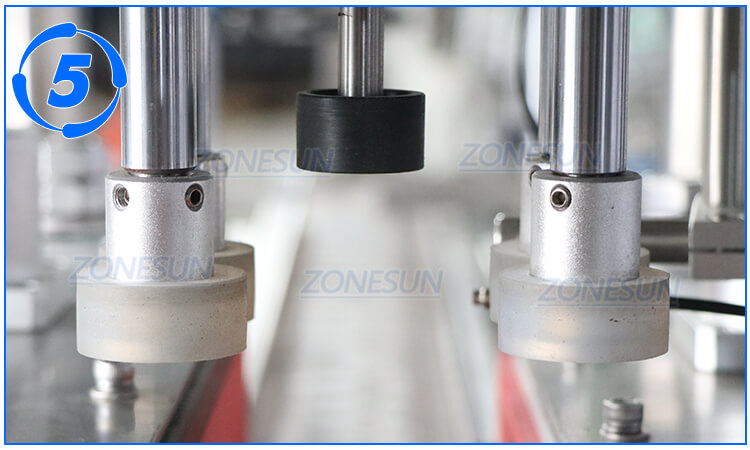

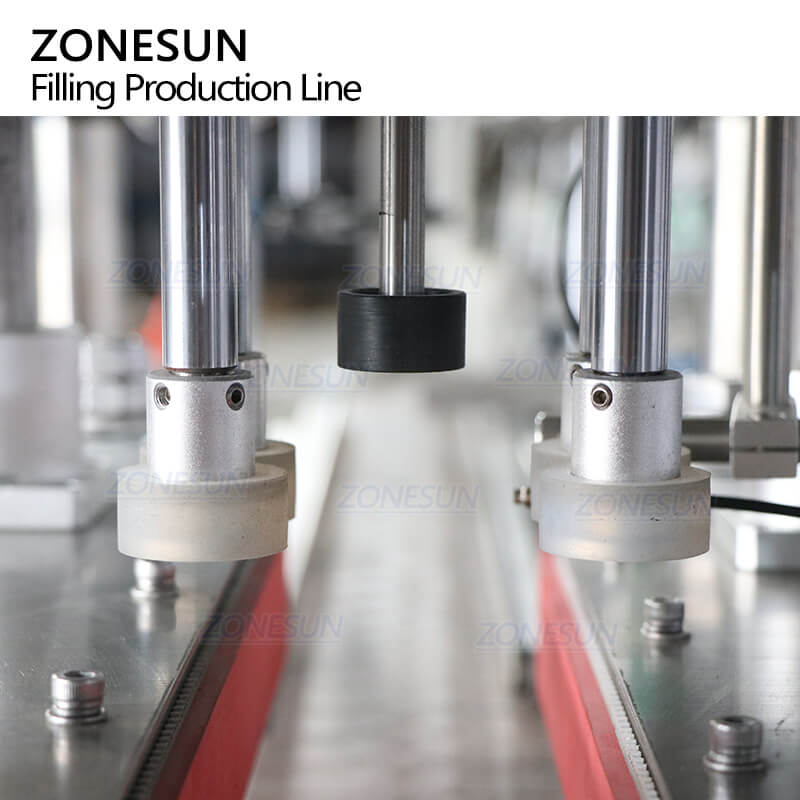

Capping Structure
Controlled by servo motor, it suits bottle caps with screw thread like spray bottles, dropper bottles, pump head bottles.

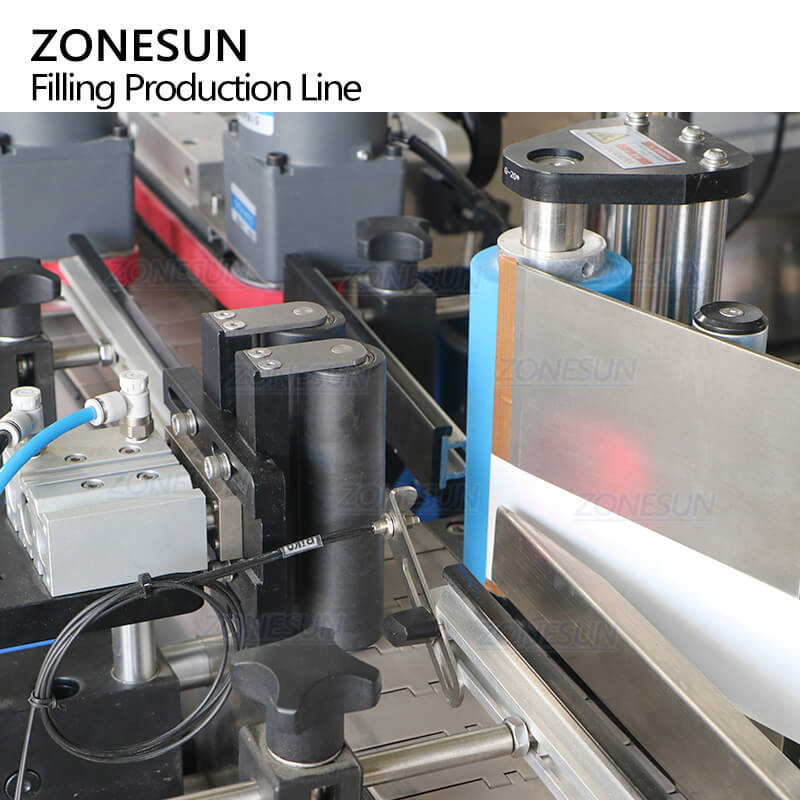

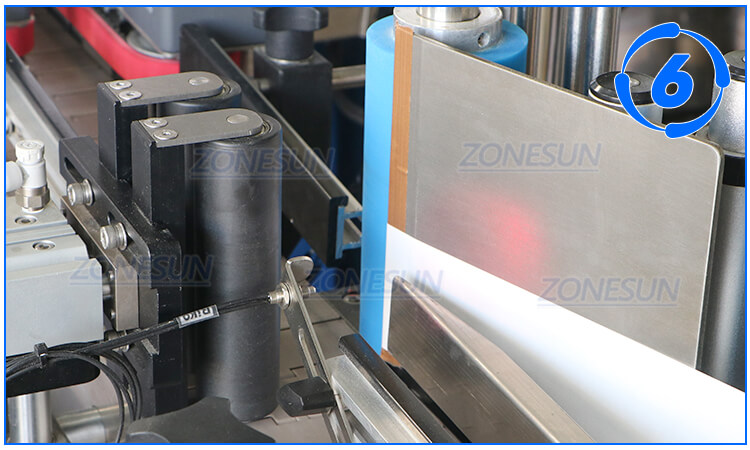

Labeling Structure
Suits for single side, double sides and wrap-around labeling on round bottles.

Turntable Machine
Diameter can be customized based on production need.
