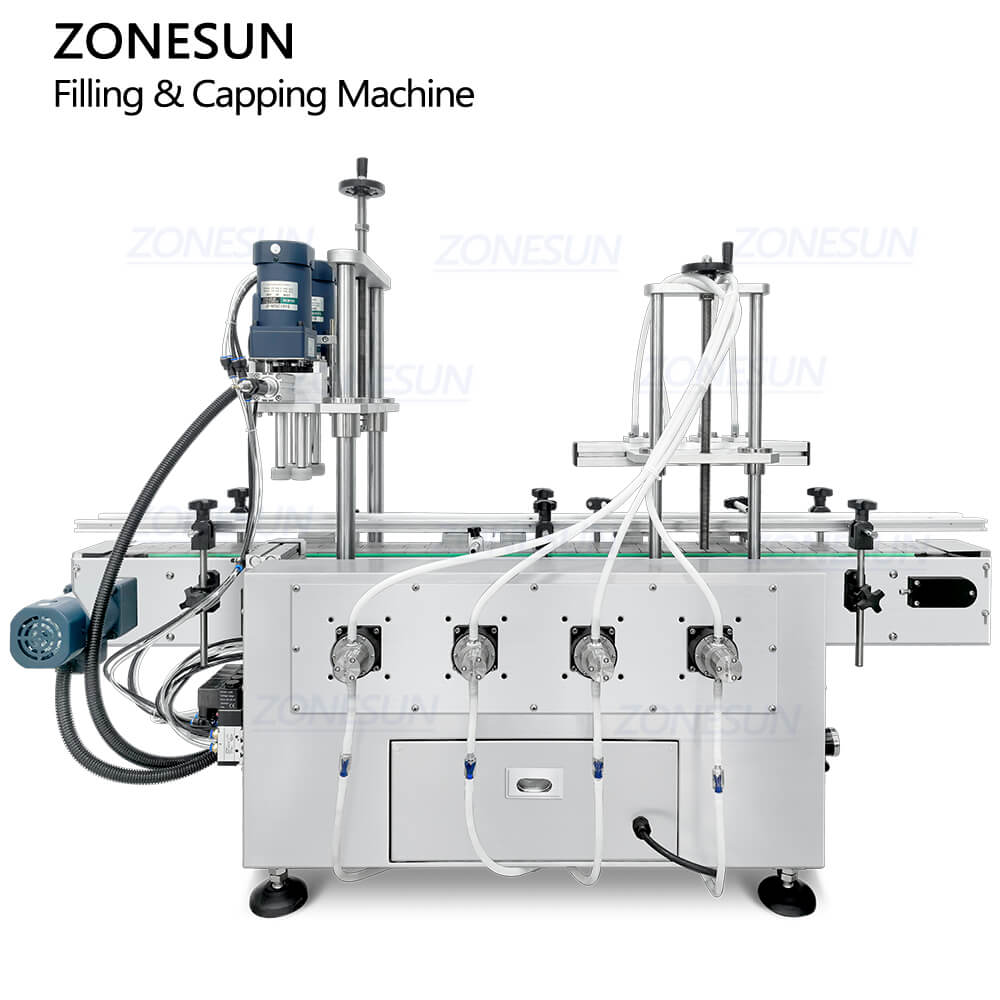

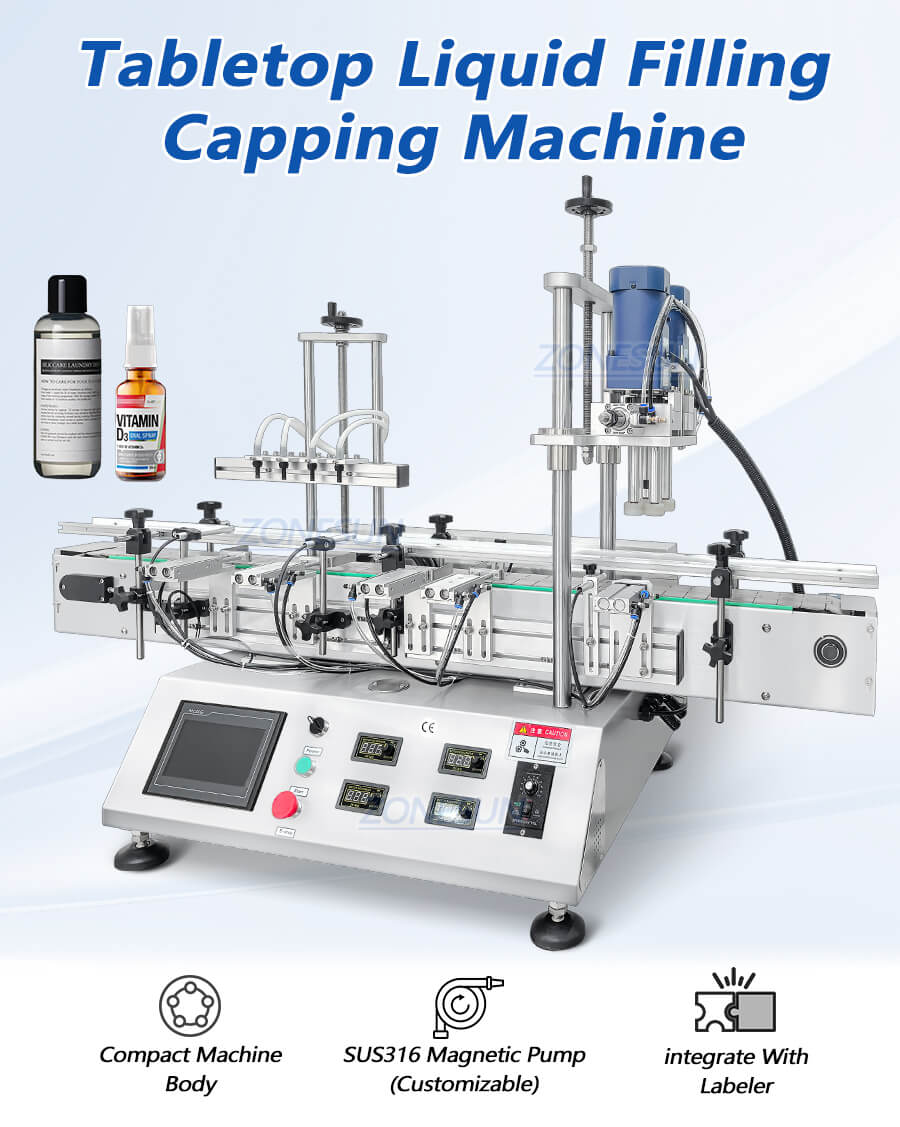

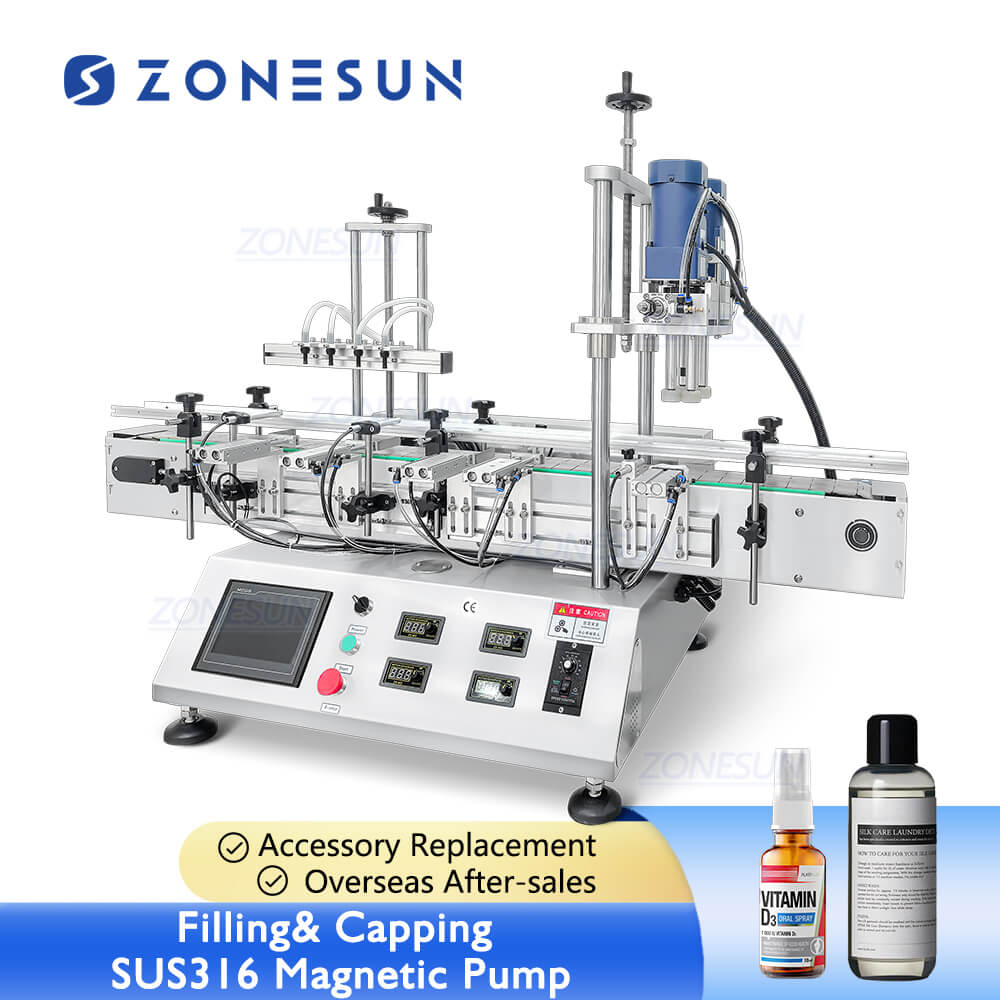

Cosmetic Liquid Filling Capping Machine
The machine combines the filling station and the capping station together to realize inline filling and capping work, compact machine body saves working space.It can work with tabletop labeling machine to realize automated packaging work.It is suitable for the small scale production of liquid products like massgae oil, liquid soap, skin toner etc.
Share to
Product Description:
The machine combines the filling station and the capping station together to realize inline filling and capping work, compact machine body saves working space.It can work with tabletop labeling machine to realize automated packaging work.It is suitable for the small scale production of liquid products like massage oil, liquid soap, skin toner etc.
Product Parameters:
| Machine model | ZS-DTFC4T |
| Machine voltage | 110/220V 50-60HZ 2KW |
| Filling range | 10-100ml (Customzable for＜10ml) |
| Filling pump | Magnetic pump(Customizable) |
| Air pressure | 0.6-0.8MPa |
| Working capacity | 1500-1800BPH(based on 100ml) |
| Suitable bottle size | Φ=30-70mm H=50-200mm |
| Suitable cap size | Φ=30-65mm |
| Filling nozzle quantity | 4 |

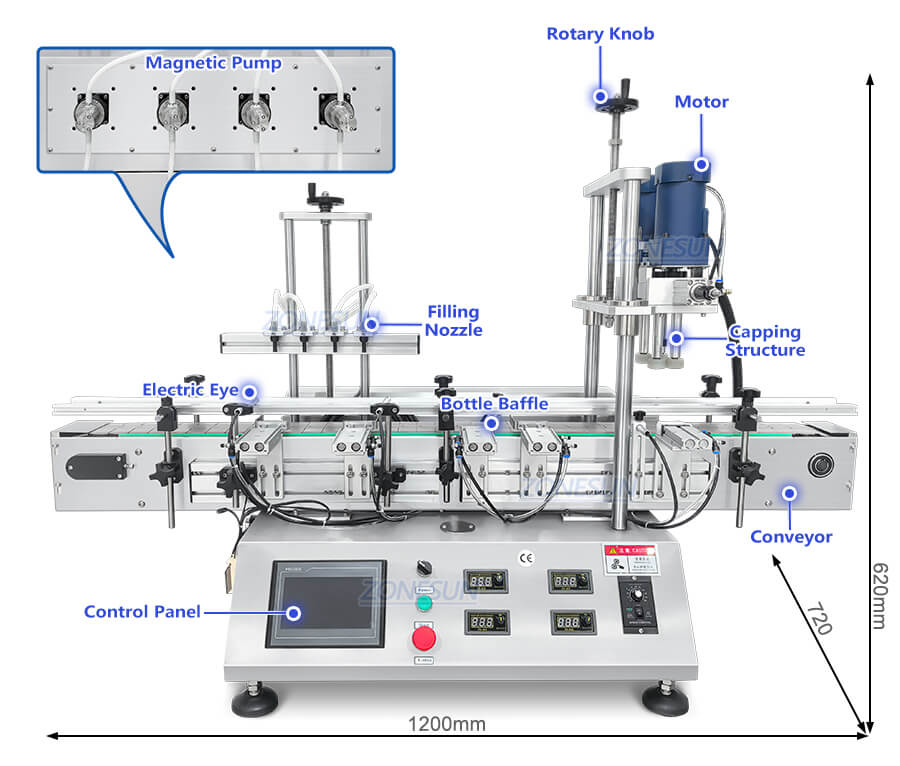

| Machine size | About 1200*720*620mm(L*W*H) |
Product Details:

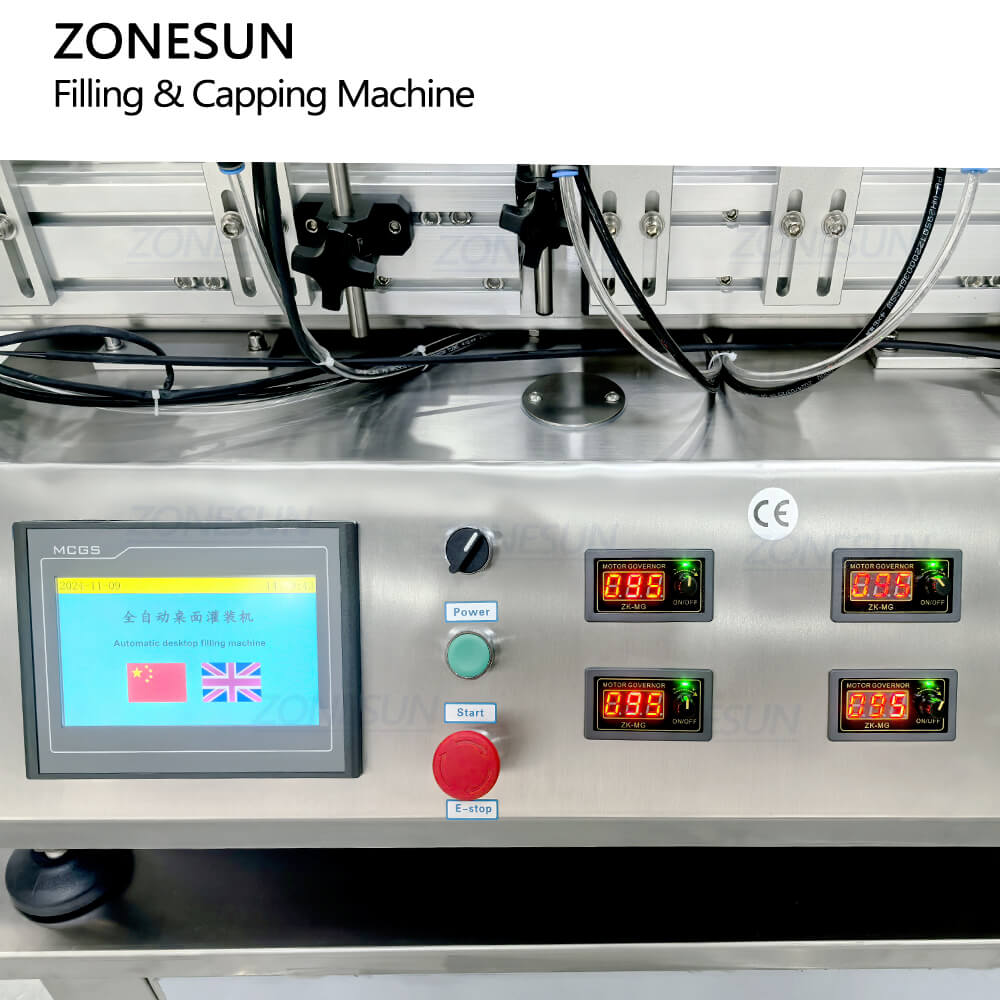

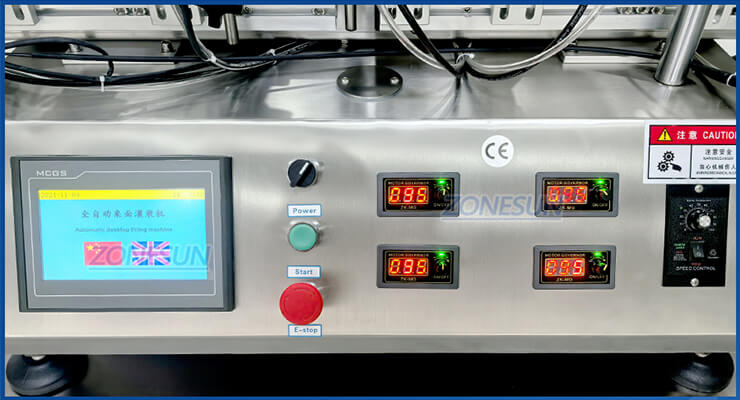

Control Panel
Touch screen control panel simplifies machine debugging and operation, parameter setting more intuitively.

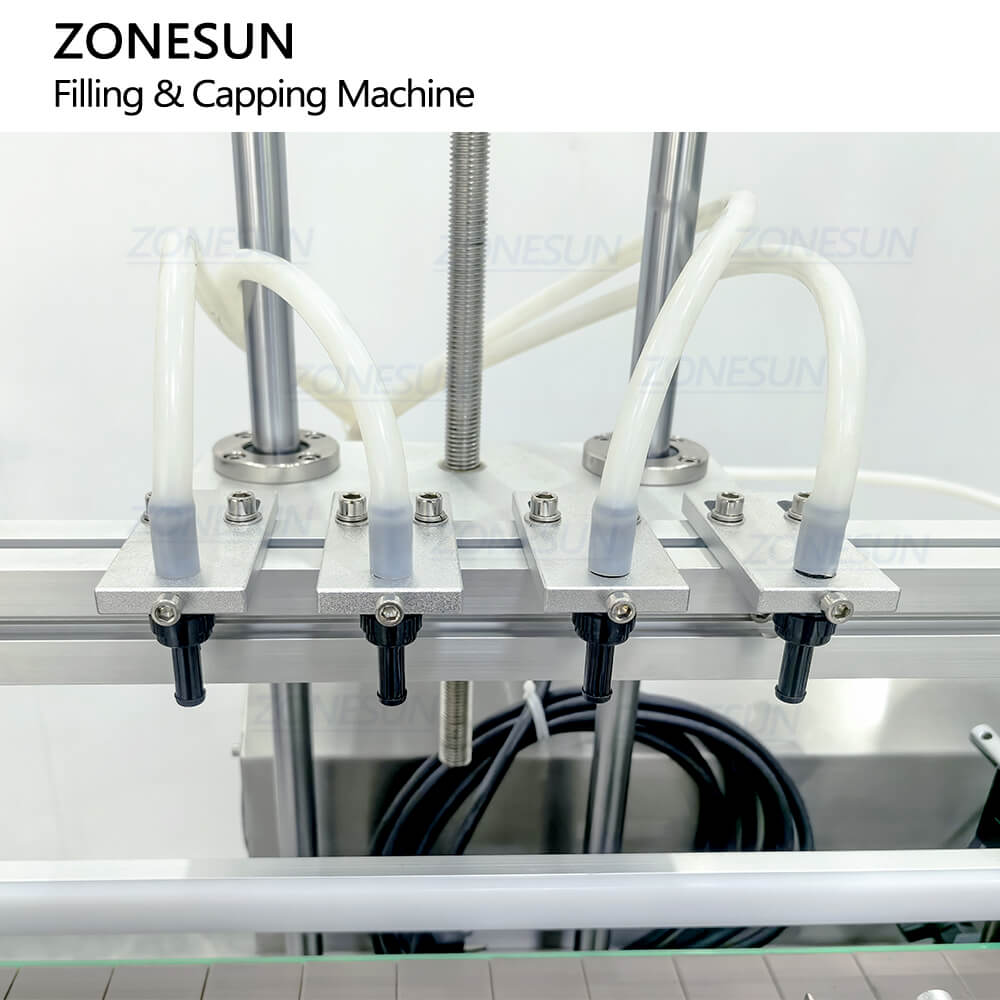

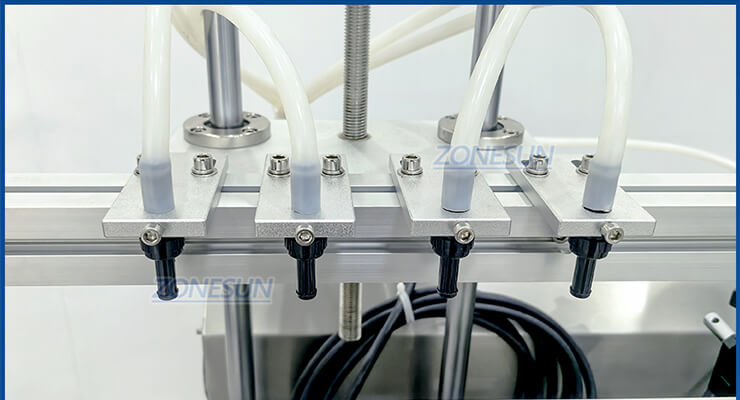

Filling Nozzle
Size of filling nozzles is customizable based on containers’ size. Multi filling nozzles (2/4) can be customized to improve working efficiency.

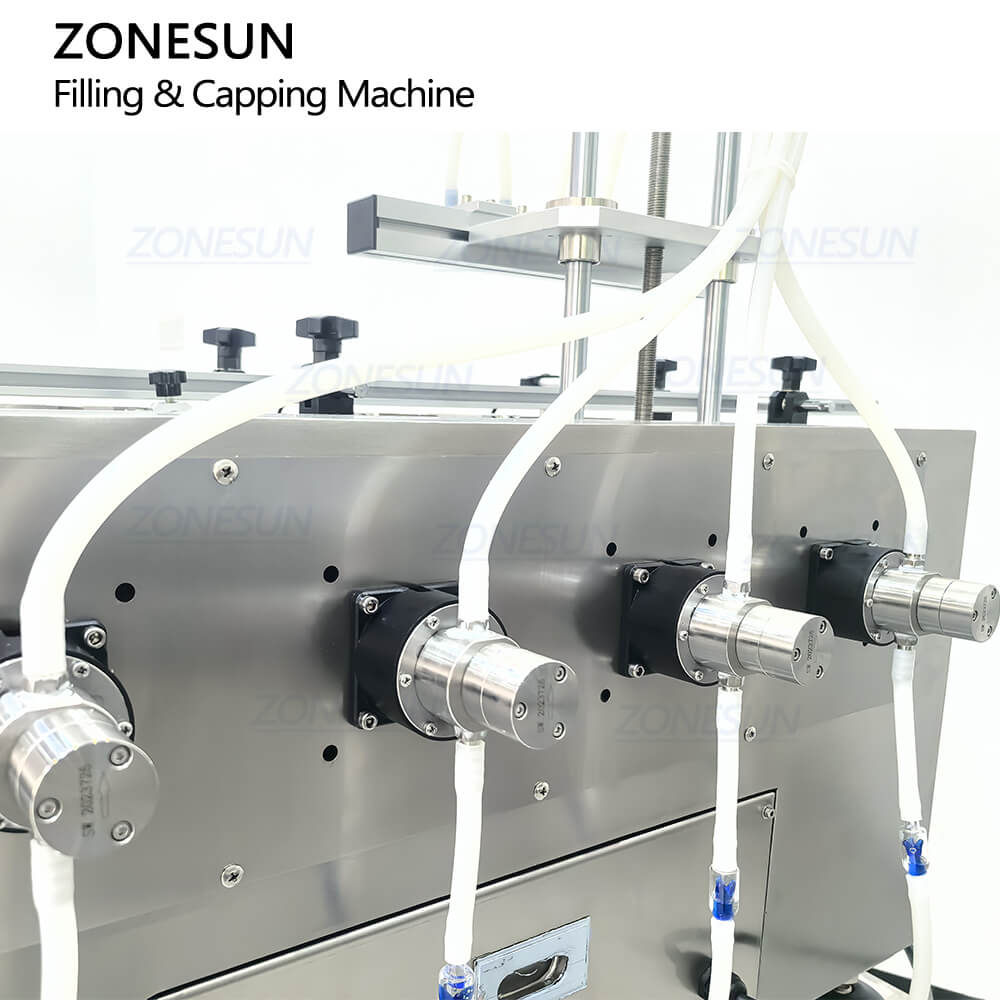

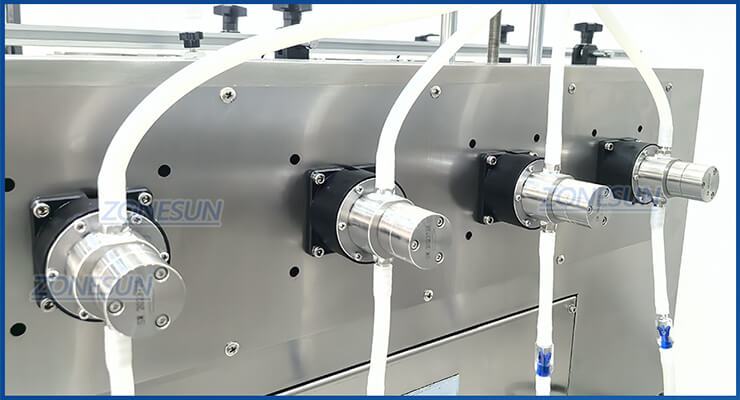

Filling Pump
Made of SUS316 magnetic pump, it has high filling accuracy.Different filling pumps are customizable based on production need.

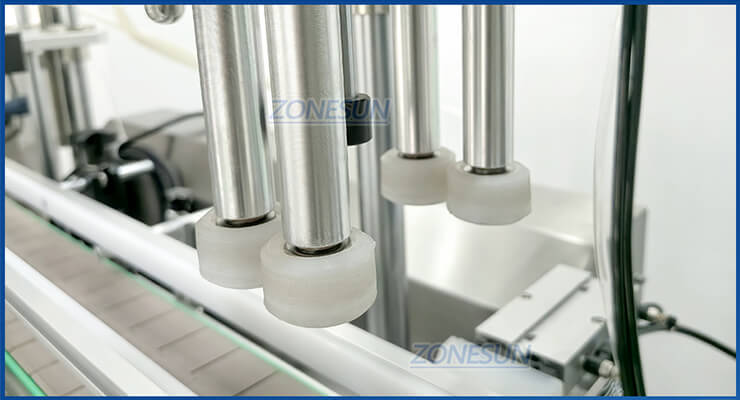

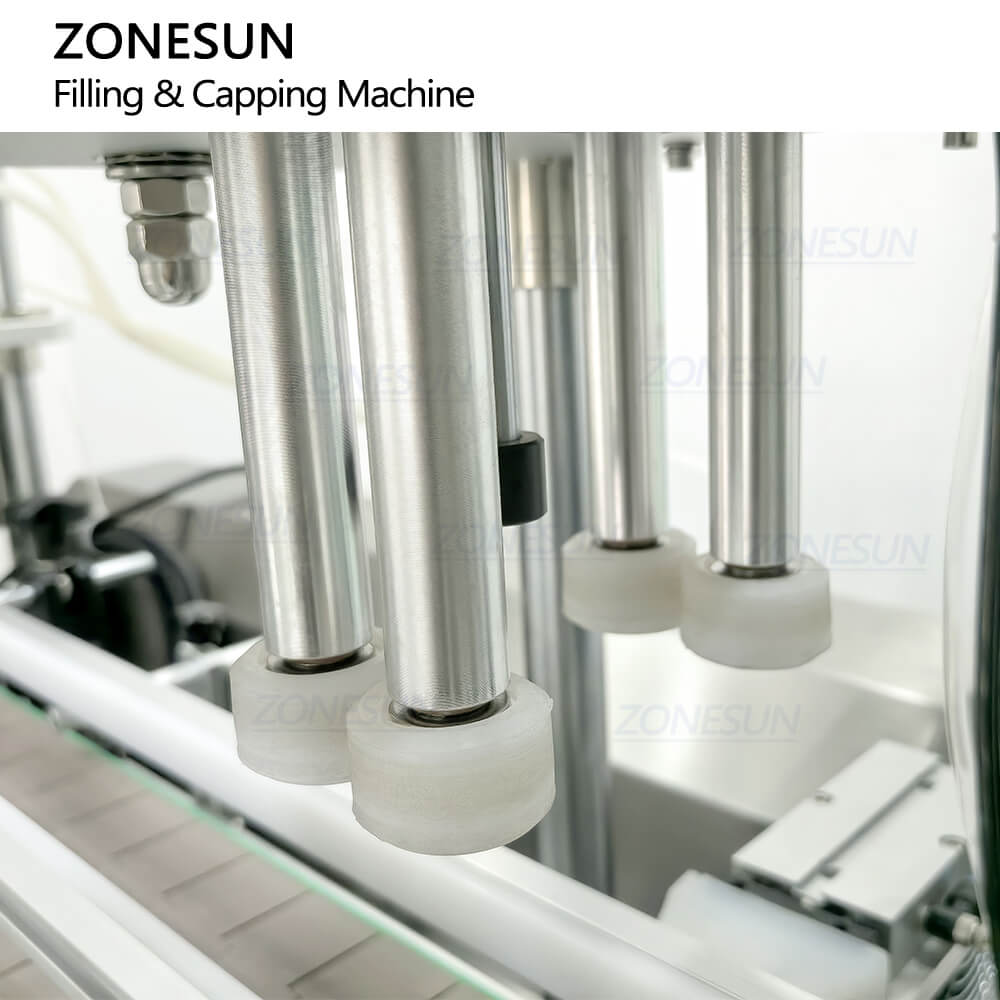

Capping Structure
Suitable for screw-on caps, working height is adjustable based on bottle height.

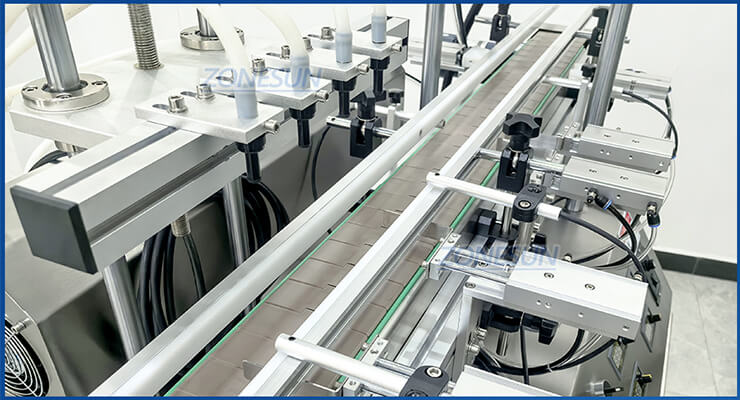

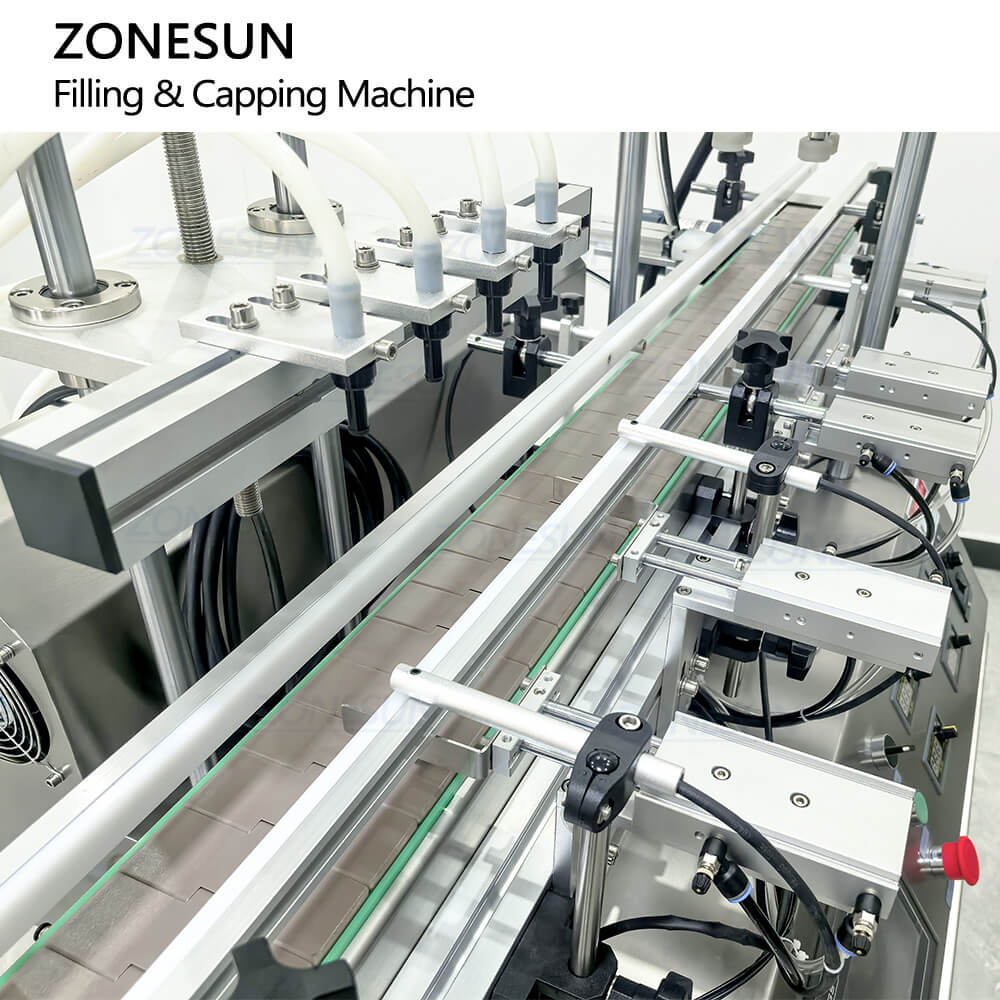

Conveyor Belt
Chain conveyor has large weight capacity, length and width are customizable based on production need.
